Power Steering Pressure Switch: Service and Repair

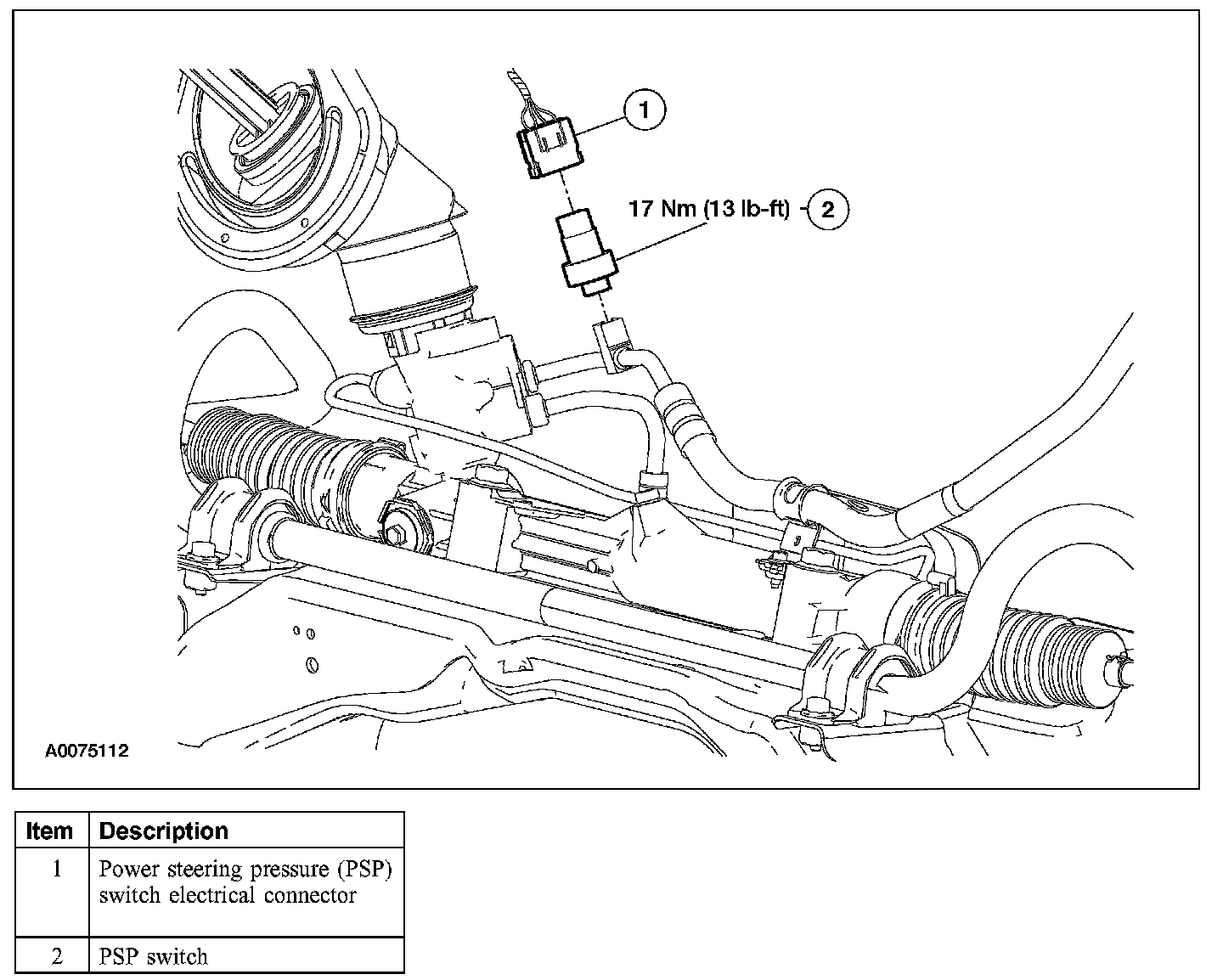

POWER STEERING PRESSURE (PSP) SWITCH







Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Disconnect the PSP switch electrical connector.
4. Remove the PSP switch.
- To install, tighten to 17 Nm (13 lb-ft).

5. To install, reverse the removal procedure.
