Power Sliding Door (PSD) Module - LH

POWER SLIDING DOOR (PSD) MODULE - LH







Removal and Installation

All vehicles
1. Remove the rear quarter trim panel.

Vehicles with auxiliary A/C

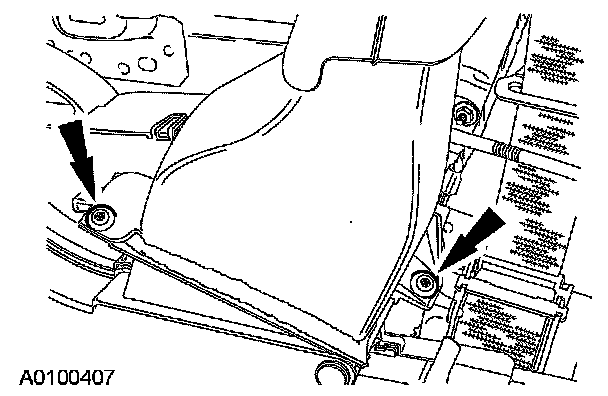

2. Remove the 2 upper air duct scrivets.

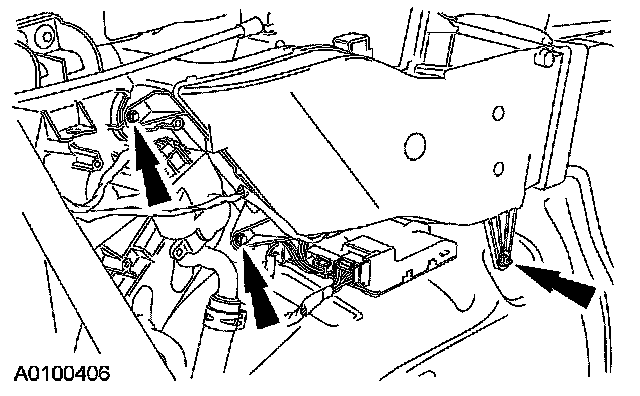

3. Remove the 3 bolts and the lower air duct.

All vehicles

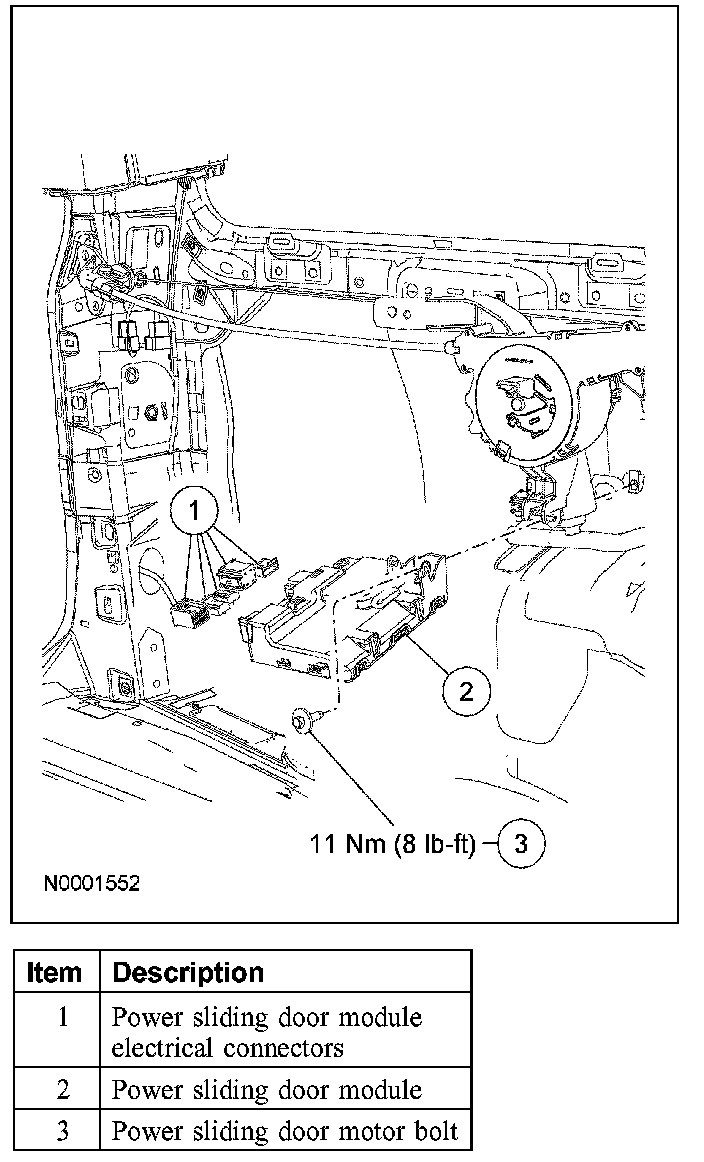

4. Remove the power sliding door motor bolt.
5. Disconnect the electrical connectors.

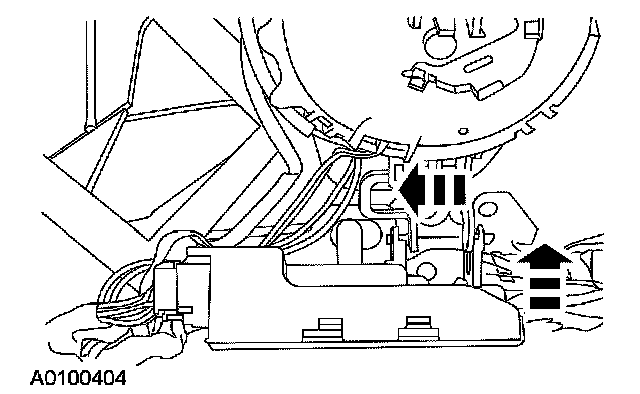

6. Pivot the power sliding door module upward and carefully slide the module to the left to detach module from the drive assembly.
7. To install, reverse the removal procedure.
8. Initialize the power sliding door.
