Procedures

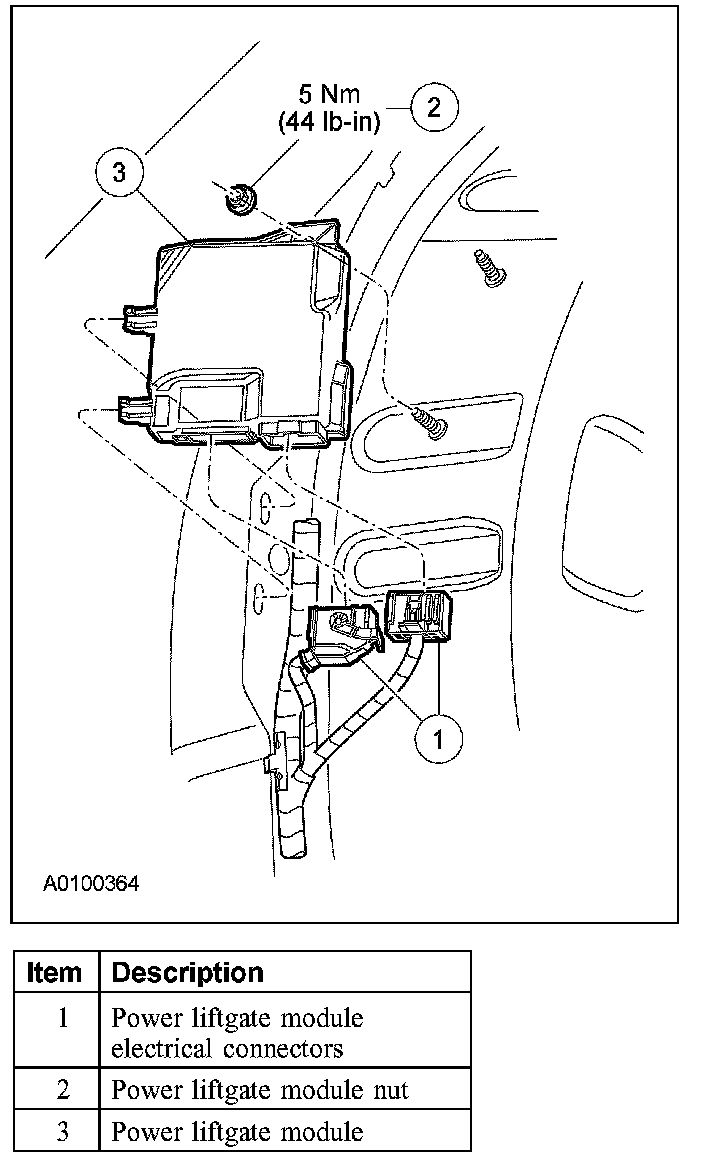

POWER LIFTGATE MODULE







Removal
1. Remove the LH rear quarter trim panel.
2. Disconnect the power liftgate module electrical connectors.
3. Remove the power liftgate module nut and power liftgate module.

Installation
1. Install the power liftgate module and power liftgate module nut.
- Tighten to 5 Nm (44 lb-in).

2. Connect the power liftgate module electrical connectors.
3. Install the LH rear quarter trim panel.
4. Initialize the power liftgate system.
