Window Frame: Service and Repair

FRONT DOOR GLASS TOP RUN

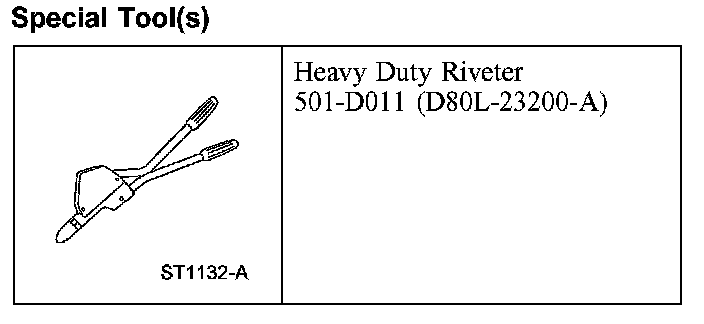

Heavy Duty Riveter:

Special Tool(s)

Removal and Installation
1. Remove the door window glass.
2. Remove the door window glass top run and front glass channel bolts.
- To install, tighten to 12 Nm (9 lb-ft).

3. Remove the door window glass top run and front door glass channel.
4. To install, reverse the removal procedure.
