Freestyle AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>
Powertrain Control Module (PCM) C175b
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

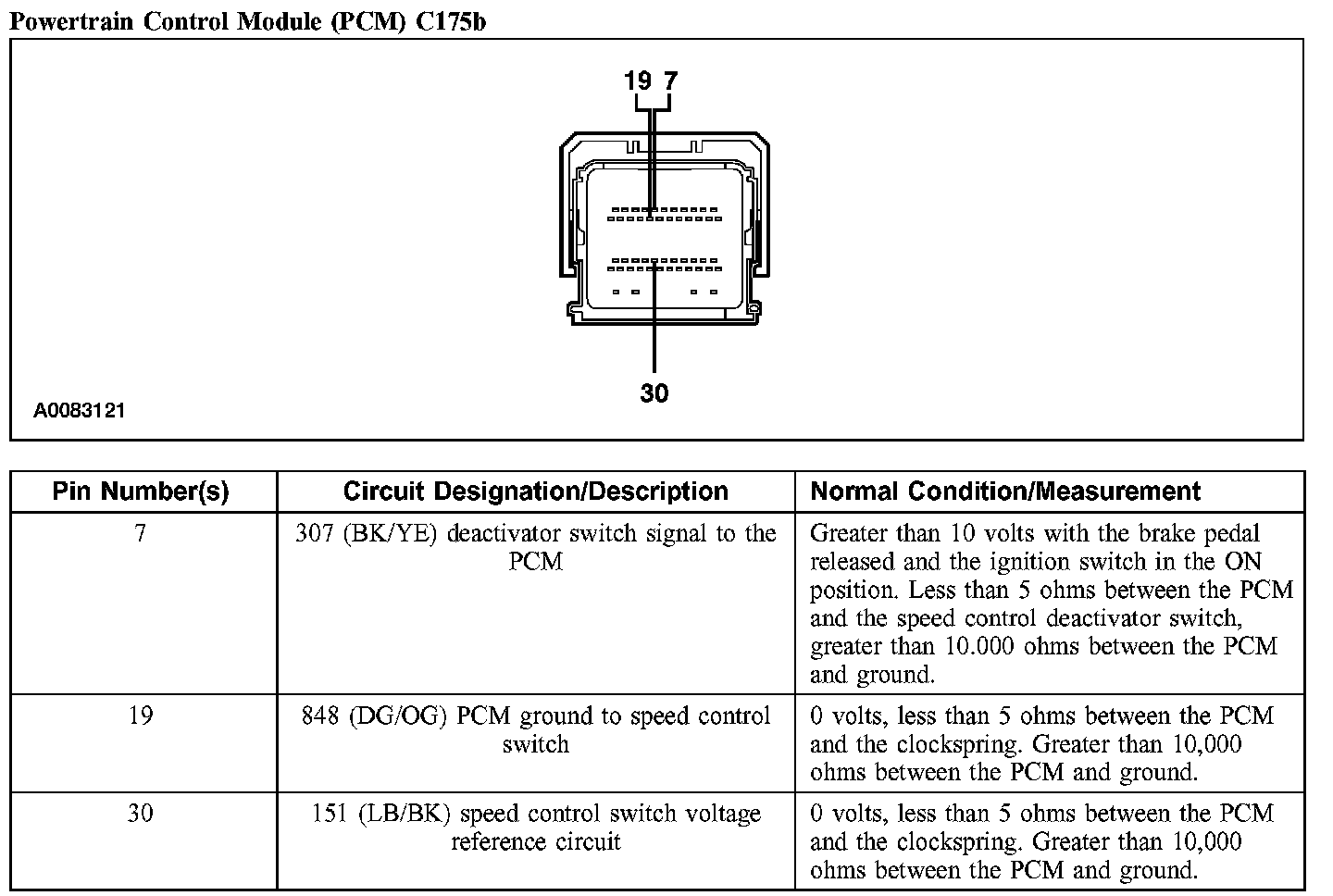

Powertrain Control Module (PCM) C175b
Powertrain Control Module (PCM) C175b:
