Home >> Ford >> 2005 >> Freestyle AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

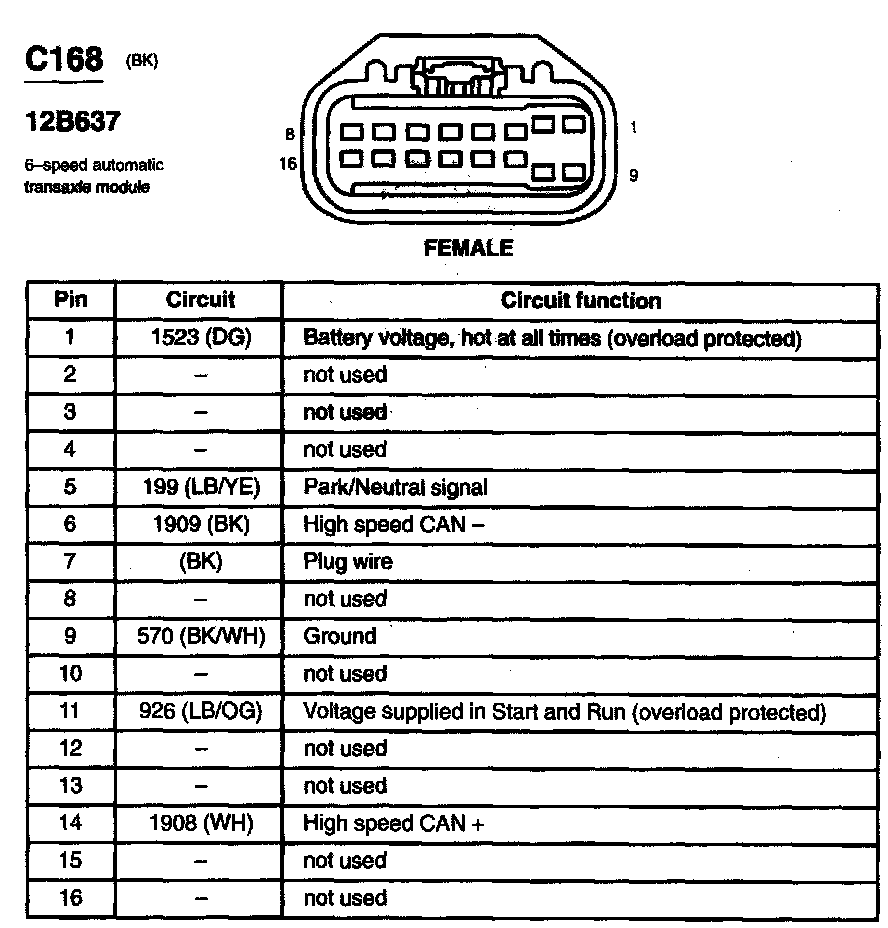

Control Module, A/T
