Engine Control Module: Service and Repair

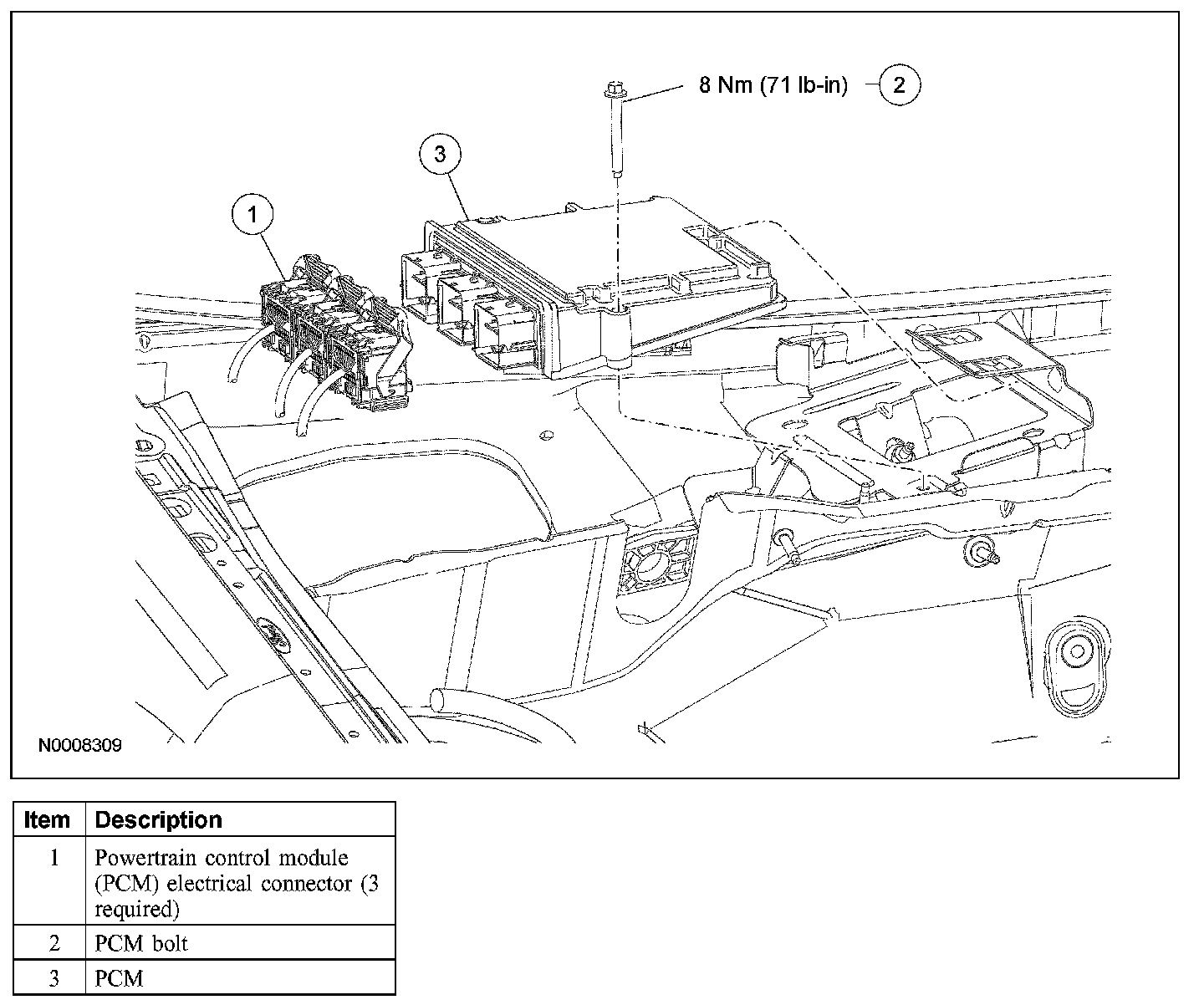

POWERTRAIN CONTROL MODULE (PCM)

Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the cowl panel grille.
3. Disconnect the PCM electrical connectors.
4. Remove the bolt and the PCM.
- To install, tighten to 8 Nm (71 lb-in).

5. To install, reverse the removal procedure.
