System Specifications

TORQUE SPECIFICATIONS

Crankshaft Pulley Bolt
Stage 1 120 Nm (86 ft. lbs.)
Stage 2 Loosen one full turn.
Stage 3 50 Nm (37 ft. lbs.)
Stage 4 Tighten an additional 90 degrees.

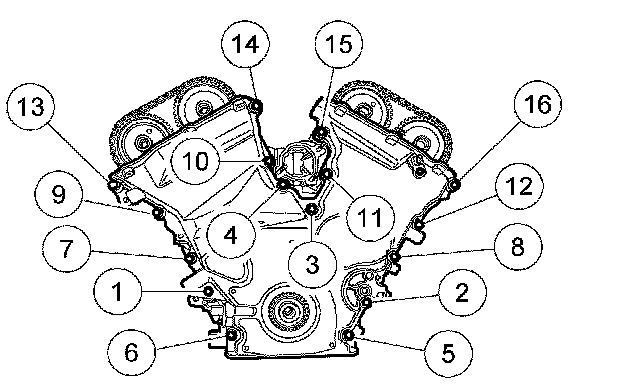

Timing cover





Engine Front Cover 25 Nm (18 ft. lbs.)

Timing chain guide bolts 25 Nm (18 ft. lbs.)
Timing chain tensioner bolts 25 Nm (18 ft. lbs.)
