Identification Codes: Notes

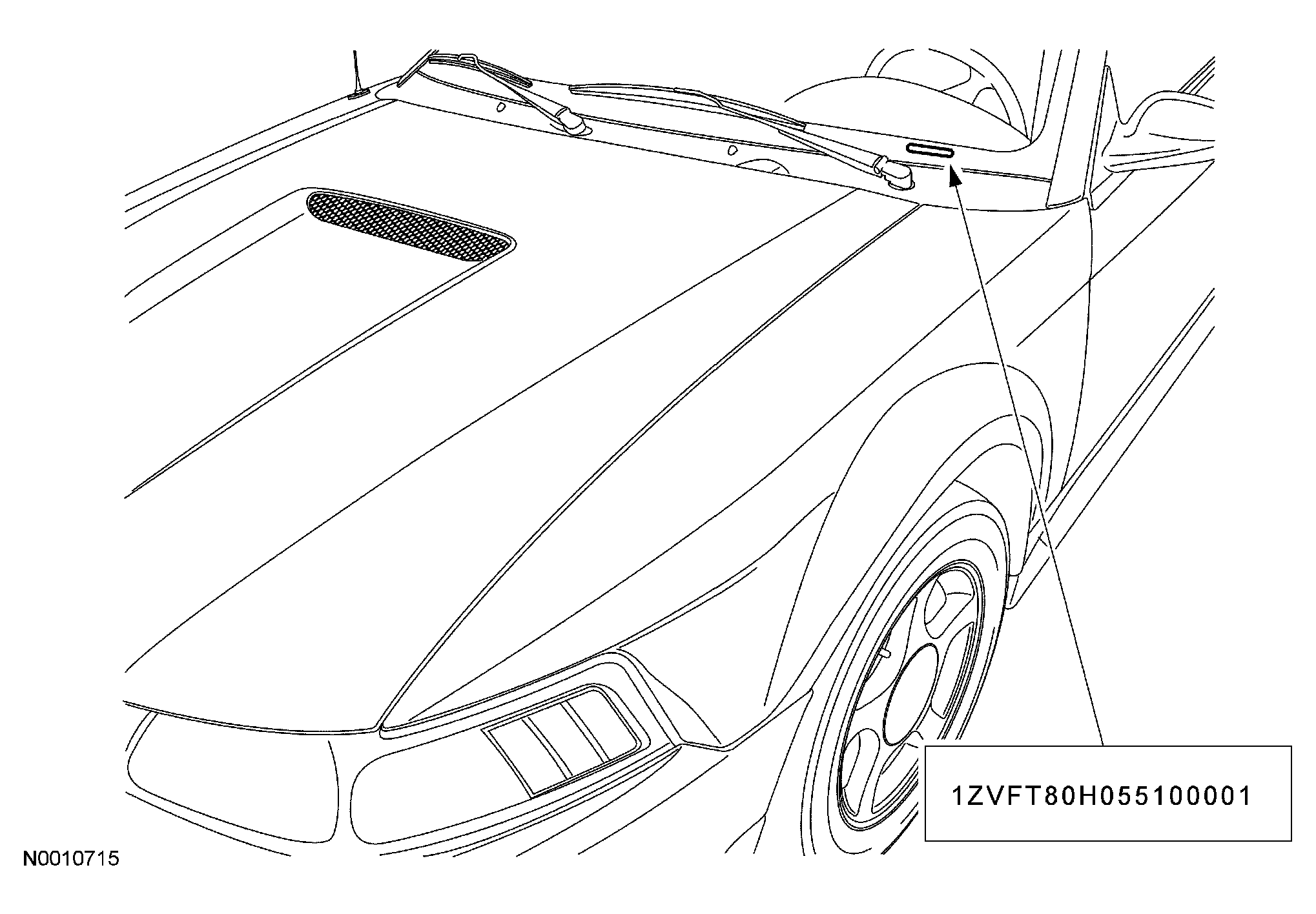

Fig 1: Identifying Vehicle Identification Number (VIN) Locator
G03982720Courtesy of FORD MOTOR CO.

The vehicle identification number (VIN) is a 17-digit alphanumeric code. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label.

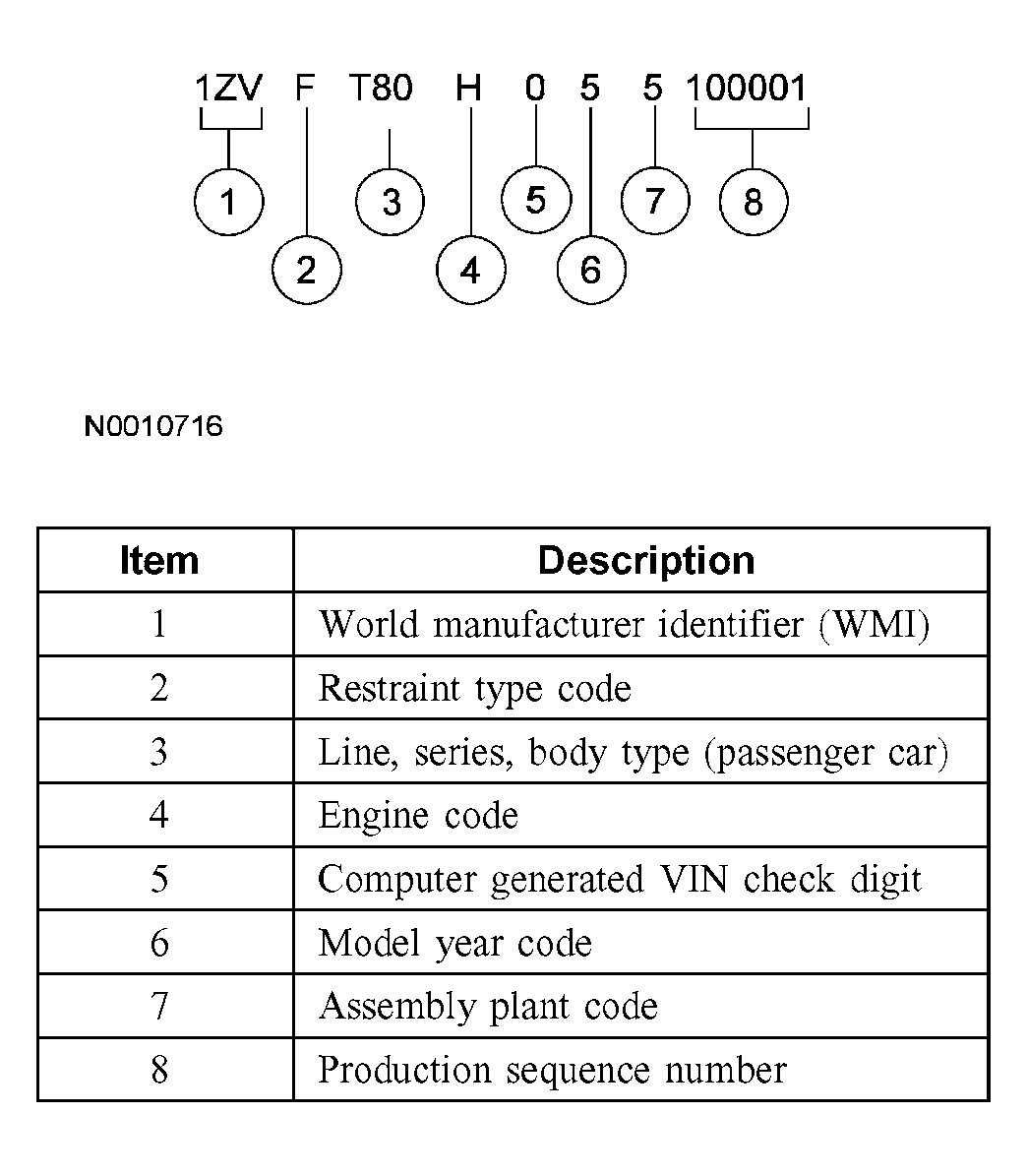

Fig 2: Vehicle Identification Number (VIN) Description
G03982721Courtesy of FORD MOTOR CO.
