Steering Column Multifunction Switch: Notes

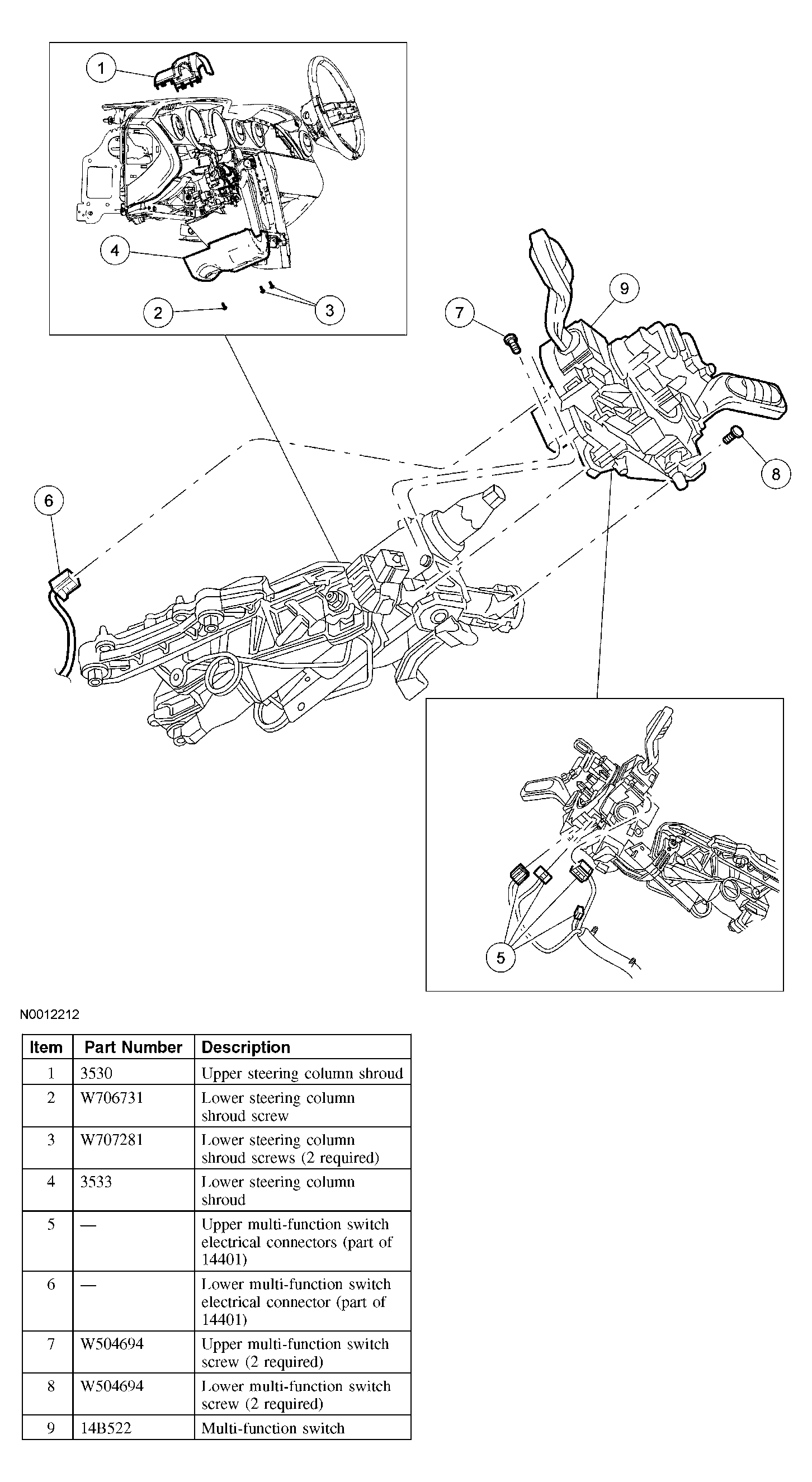

Fig 1: Steering Column Multifunction Switch Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
