Power Steering System - Exploded View

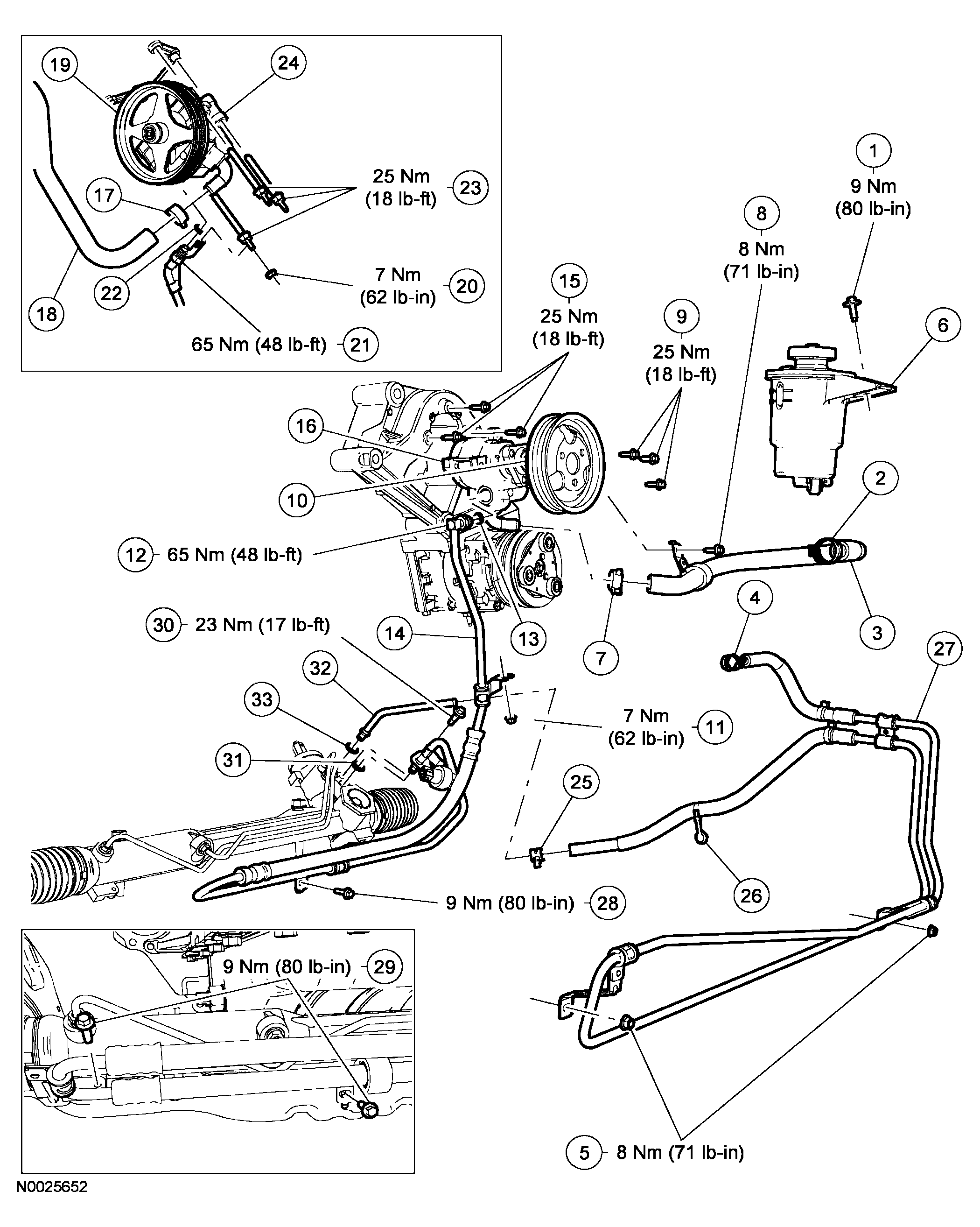

Fig 1: Exploded View Of Power Steering System (1 Of 2)
G03983507Courtesy of FORD MOTOR CO.
Fig 2: Exploded View Of Power Steering System (2 Of 2)
G03983508Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
