Powertrain Control Module C175e

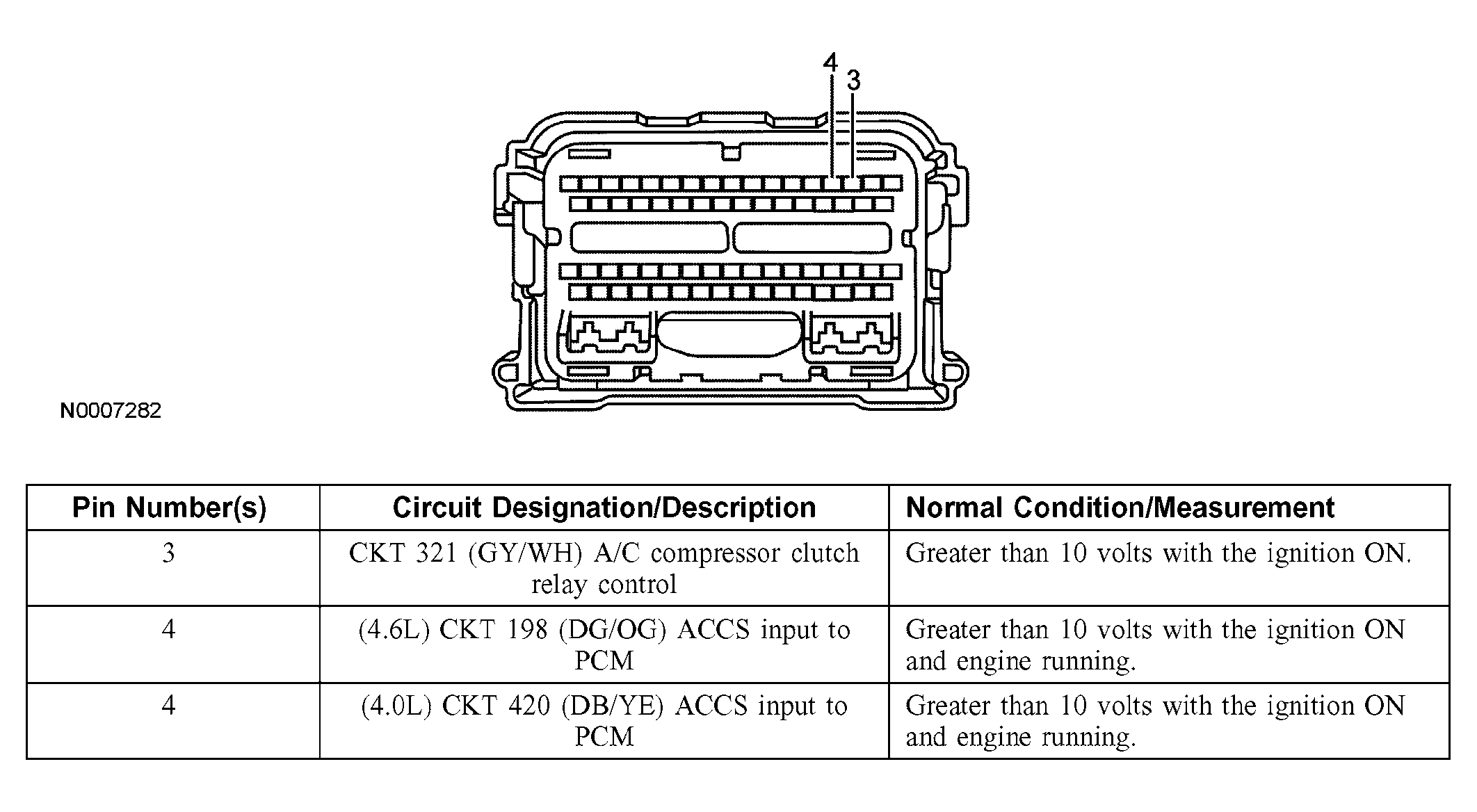

Fig 1: Identifying Powertrain Control Module C175e
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
