Jacking Points - Front

NOTE: RH side shown, LH side similar.

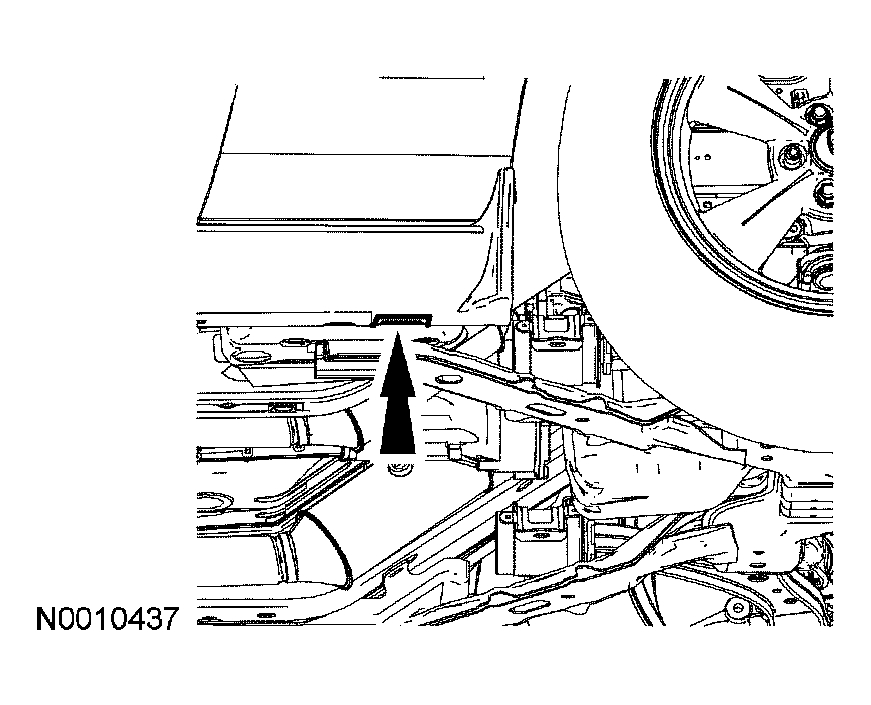

Fig 1: Identifying Front Jacking Points
G03982744Courtesy of FORD MOTOR CO.

To jack the front end, lift at the pinch welds, located at the front opening of the rocker panels.
