Inspection and Verification: Notes

  1. Verify the customer concern.
  2. Visually inspect for obvious signs of mechanical damage.
    VISUAL INSPECTION CHART

    Mechanical
    • Fluid level
    • Tire pressure
    • Tires
    • Drive belt
    • Drive belt tensioner
    • Steering column alignment
    • Tie-rod ends
    • Suspension components
    • Steering column shaft U-joints
    • Intermediate shaft bolts
    • Power steering reservoir baffle
    • Power steering reservoir filter
    • Power steering pressure lines, fittings or O-rings
    • Power steering return hoses and clamps
    • Steering gear
    • Power steering pump
    3. NOTE: The 3 areas that should be inspected for possible contamination are the power steering reservoir filter, the flow control and pressure relief valve in the pump, and the check valve in the inlet port on the power steering gear (if equipped).
  3. Inspect the power steering fluid for the following conditions:
  4. Check the power steering system for fluid leaks.
    • Check the power steering fluid level.
    NOTE: It may be necessary to add power steering fluid to achieve the correct level.

    With the ignition OFF:

    • Wipe off the power steering pump, the power steering pressure hose, the power steering return hose, the power steering fluid cooler, the hose assembly and the steering gear.
      • CAUTION: Do not hold the steering wheel at the stops for an extended amount of time. Damage to the power steering pump can occur.
    • Start the engine and turn the steering wheel from stop to stop several times and check for leaks.
  5. Inspect the power steering pressure and return hoses, the fittings and the O-rings for leaks.
    • If a leak is detected at a power steering pressure or return hose, install a new hose. Refer to POWER STEERING .
    • If a leak is detected at a fitting or clamp plate, tighten to specification. If the leak is still evident, visually inspect the fittings, the clamp plate, the O-rings, and the Teflon® seals. Install new as necessary. Refer to POWER STEERING .
    • If a leak is detected at the power steering reservoir, install a new reservoir. Refer to POWER STEERING FLUID RESERVOIR .
    • If a leak is detected at a constant tension spring clamp, verify that the hose is fully installed on the fitting and that the constant tension spring clamp is correctly positioned. If the leak remains, install a new constant tension spring clamp.
    • If a leak is detected at a screw clamp joint, tighten the screw clamp. If the leak remains, inspect the tube end and install a new hose. Refer to POWER STEERING .
    • If a leak is detected at the power steering pump, install a new power steering pump. Refer to POWER STEERING PUMP .
    NOTE: It may be necessary to remove the squeeze-type clamp from the steering gear boots to inspect for leaks.
  6. Inspect the power steering gear for leaks. If a leak is detected at the power steering gear, install a new power steering gear. Refer to STEERING GEAR .

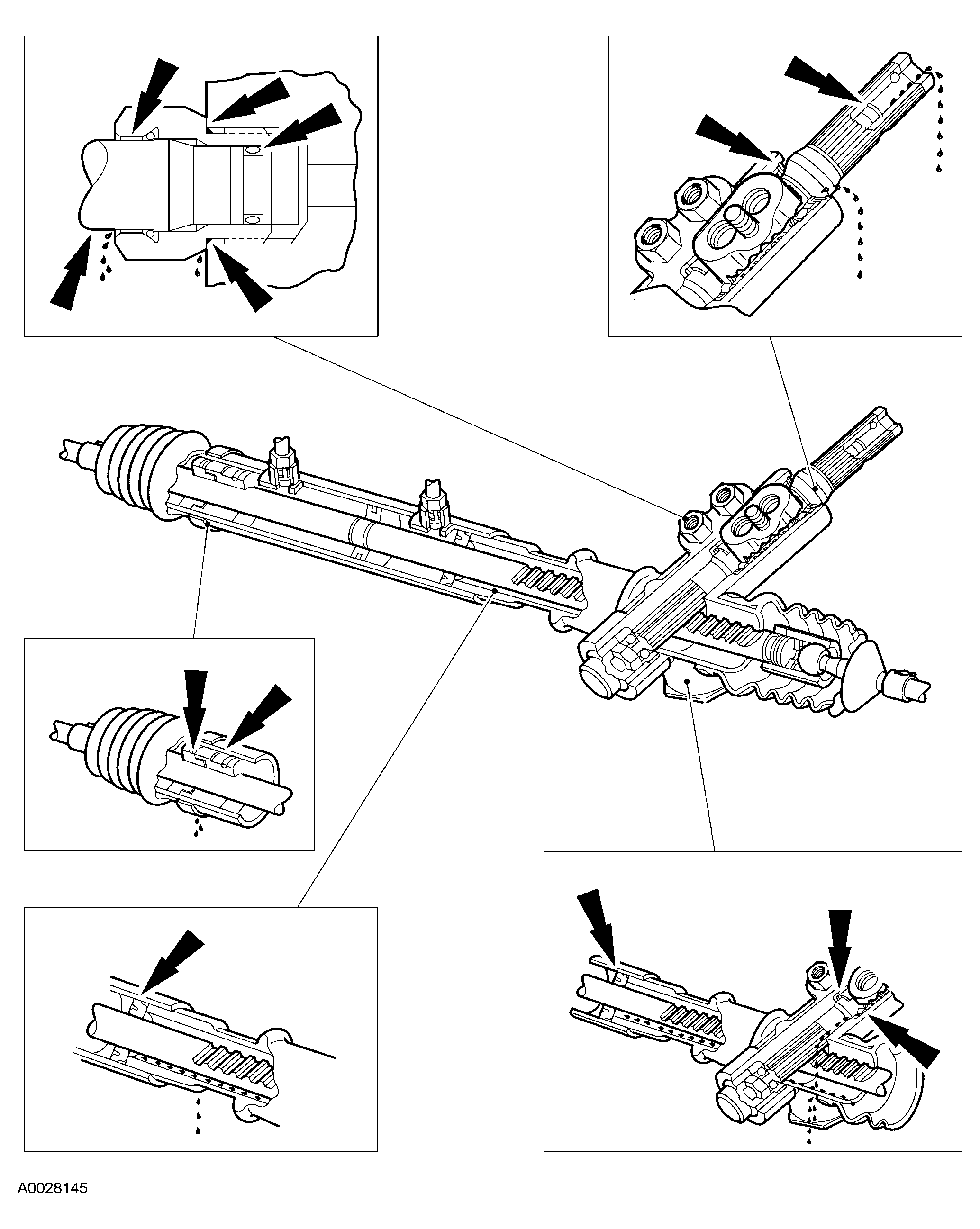

    Fig 1: Identifying Rack-And-Pinion Steering Gear Leak Points
    G03878965Courtesy of FORD MOTOR CO.
  7. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
  8. If the cause is not visually evident, verify the symptom and GO to SYMPTOM CHART .
