Pressure Feedback Exhaust Sensor: Service and Repair

EXHAUST GAS RECIRCULATION (EGR) SYSTEM MODULE

Part 1:

Part 2:

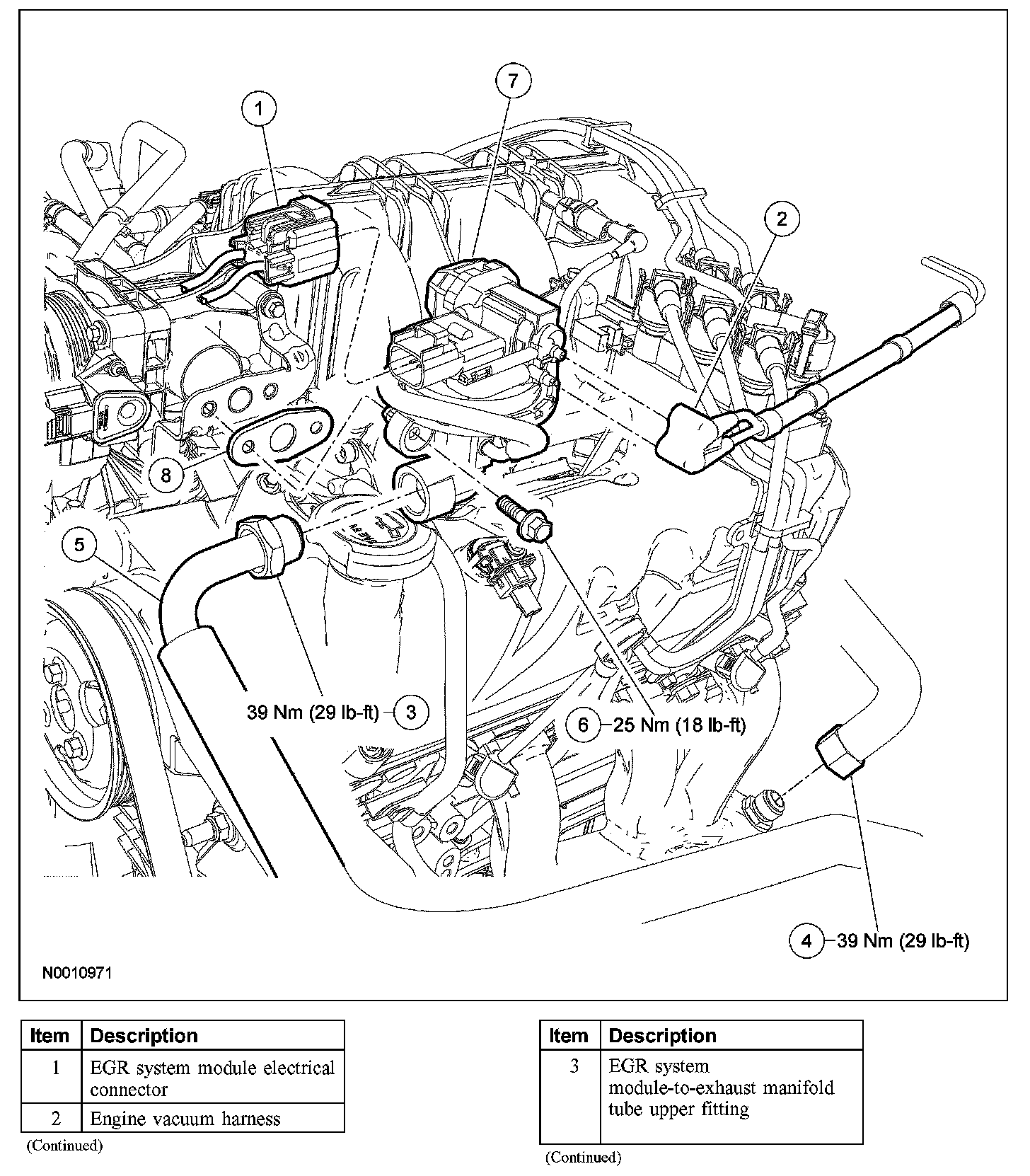

Exploded View

Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the exhaust gas recirculation (EGR) system module vacuum tube and electrical connector.
3. Disconnect the EGR system module-to-exhaust manifold tube upper fitting. - To install, tighten to 39 Nm (29 lb-ft).

4. Remove the 2 bolts and the EGR system module.
- To install, tighten to 25 Nm (18 lb-ft).

5. To install, reverse the removal procedure.
