Ignition Lock: Service and Repair

IGNITION LOCK CYLINDER







Removal and Installation
1. Remove the steering column cover.

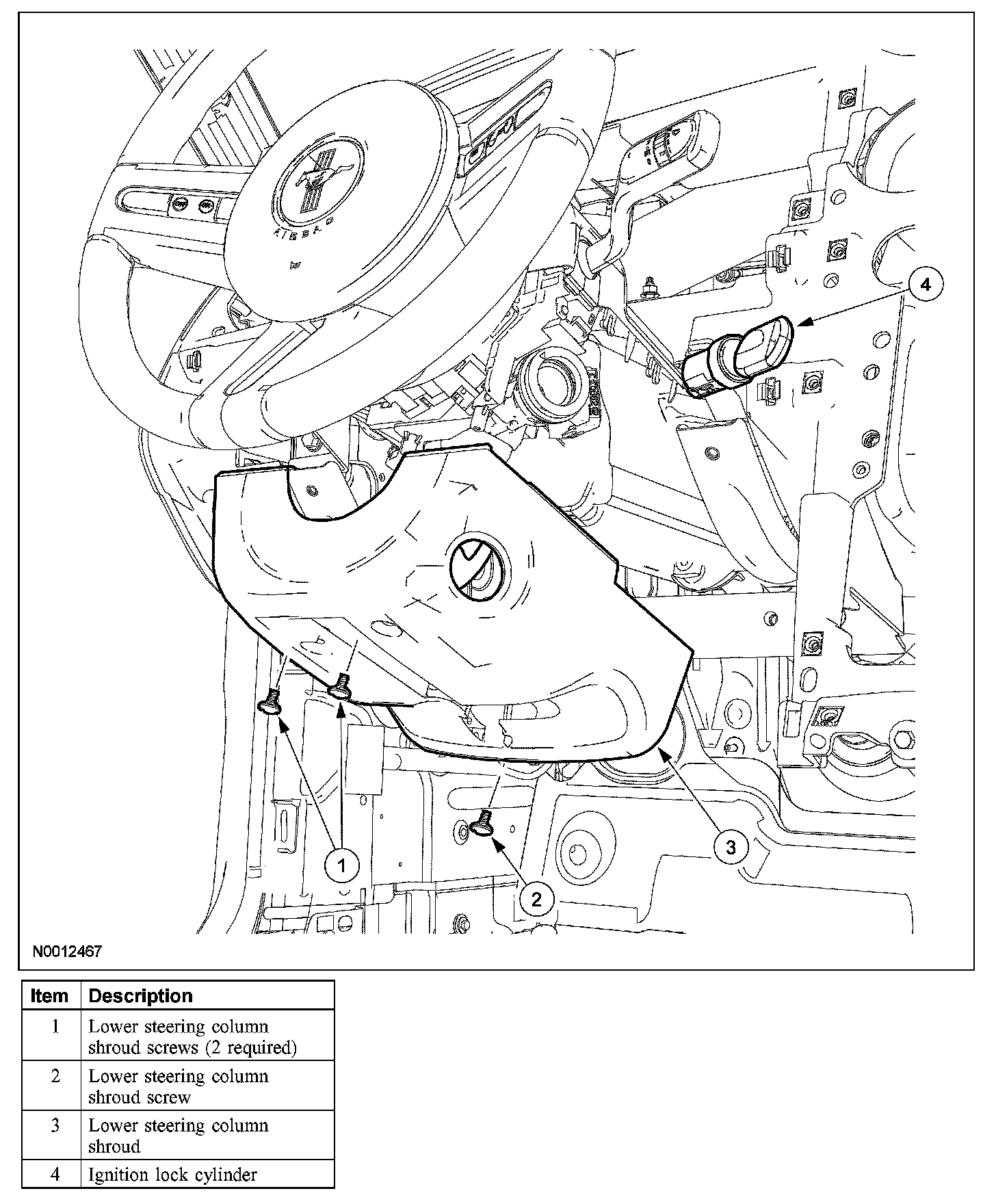

2. Remove the 3 screws and the lower steering column shroud.
3. Turn the key to the RUN position.







4. Insert a small punch into the hole and remove the ignition lock cylinder.
5. To install, reverse the removal procedure.
- Lubricate the ignition lock cylinder after installation.
