Manual Transmission/Transaxle
>>

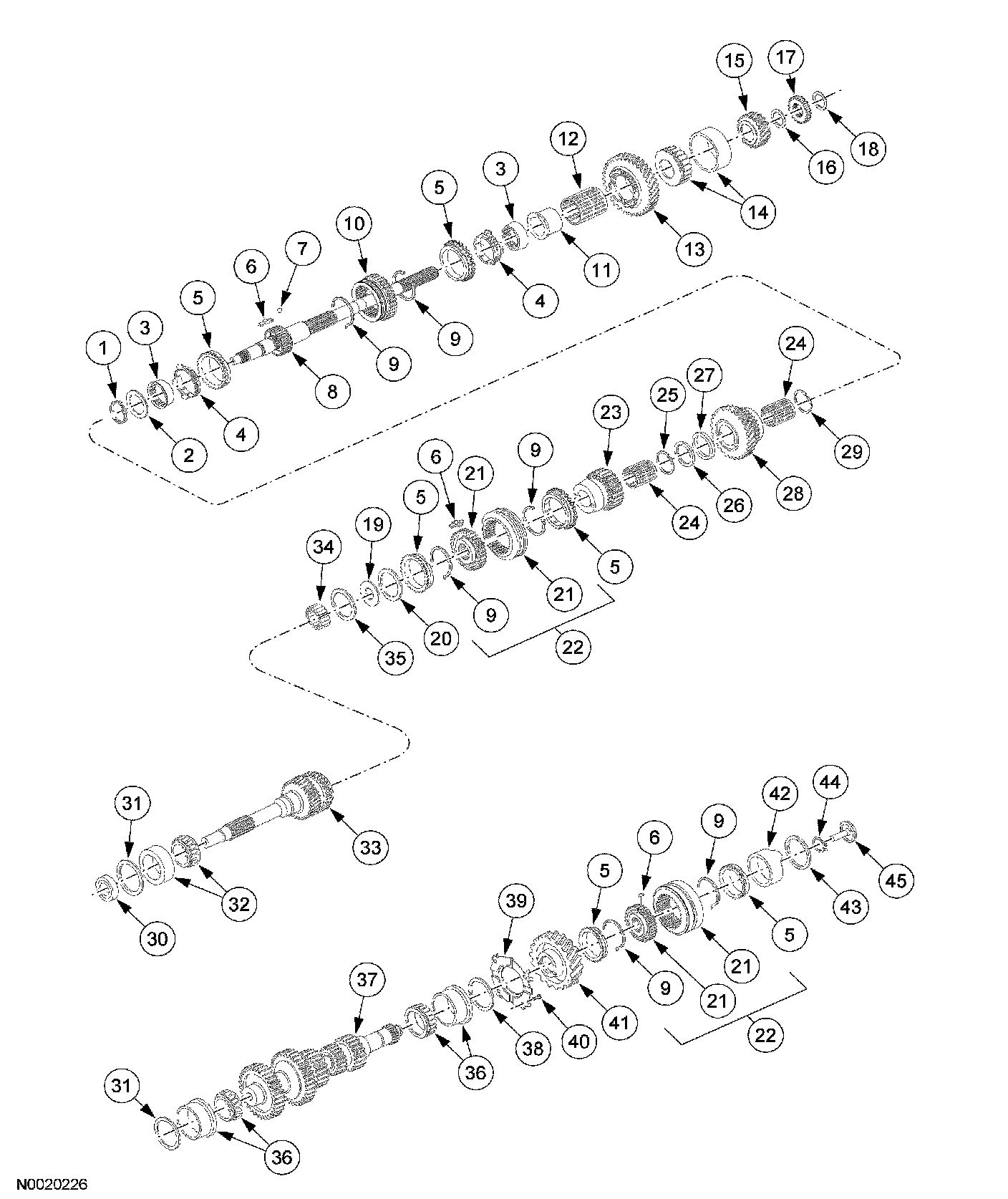

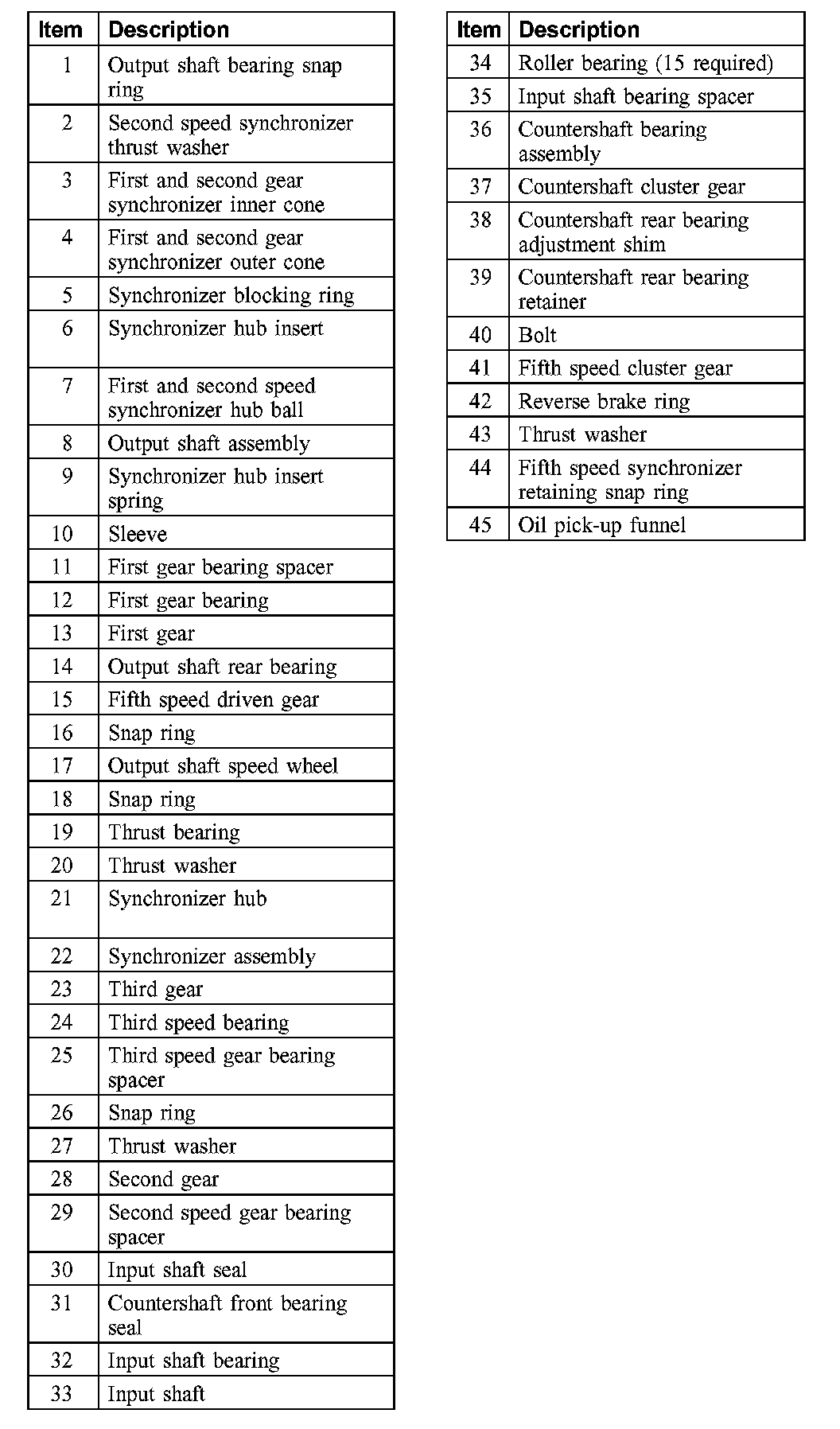

Disassembled View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Disassembled View
