Transmission Range (TR) Sensor

Transmission Range (TR) Sensor Adjustment

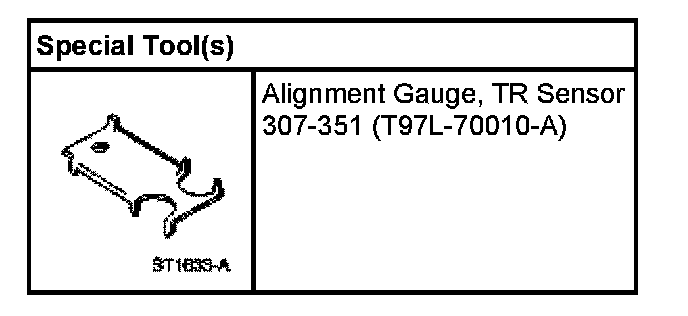

Special Tool(s)

Adjust

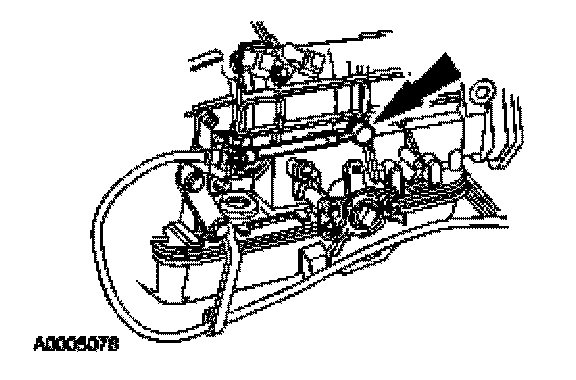

1. With the vehicle in NEUTRAL, position it on a hoist.

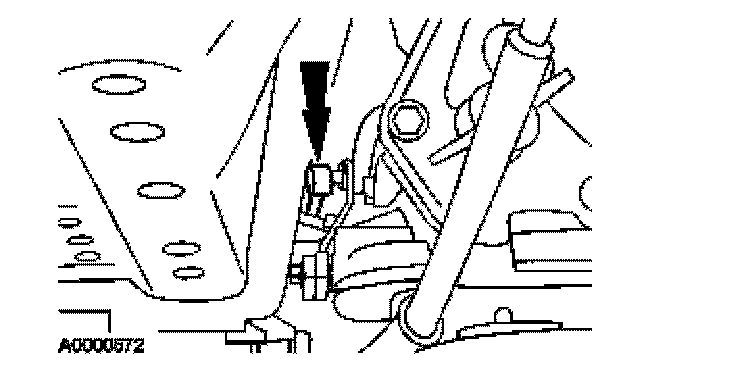

2. Disconnect the shift cable from the manual control lever.

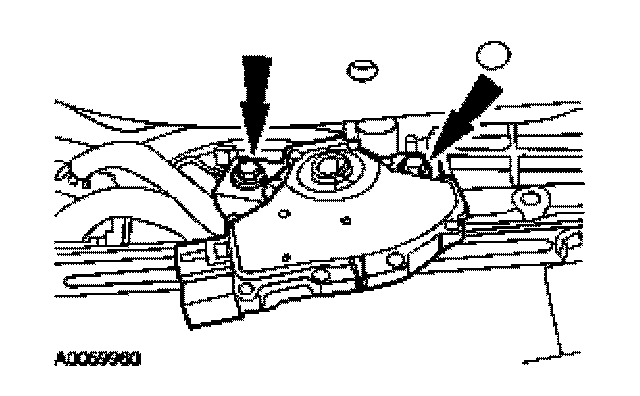

3. Loosen the screws.

4. CAUTION: The digital TR sensor must fit flush against the case. Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

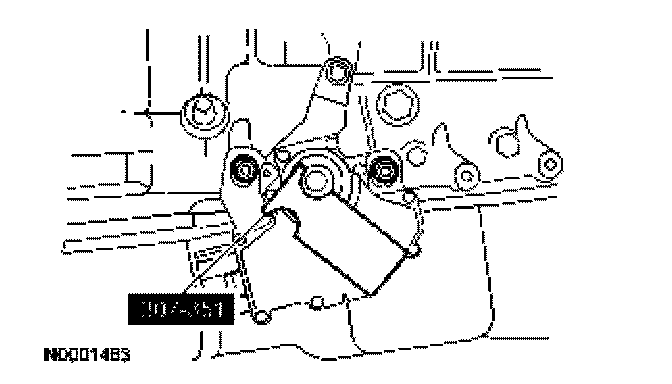

Using the special tool, align the digital TR sensor and tighten the screws in an alternating sequence.

- Tighten to 10 Nm (89 lb-in).






5. Install the shift cable to the manual control lever.

6. Verify that the shift cable is adjusted correctly.
