System Specifications

Front cover fasteners

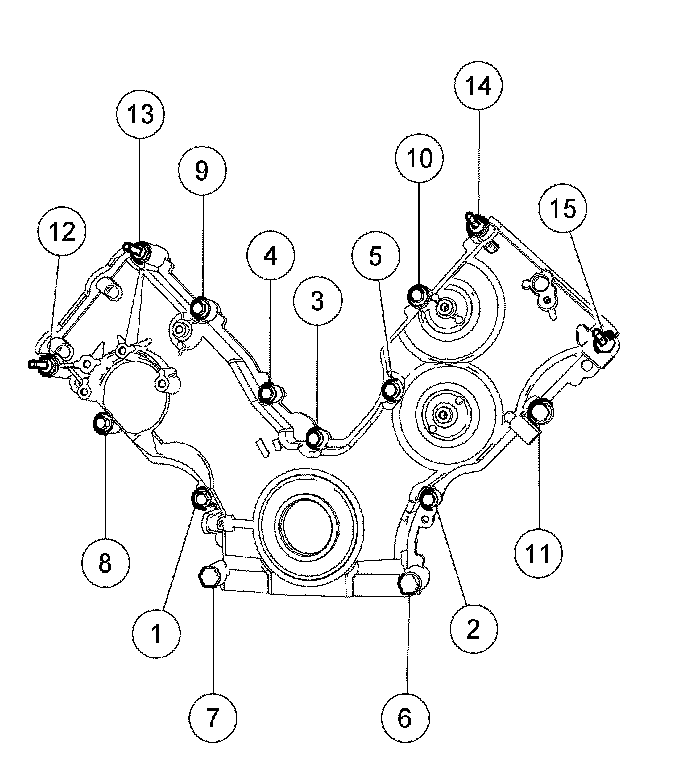

Tighten the engine front cover fasteners in the sequence shown to 25 Nm (18 ft. lbs.).

Crankshaft pulley bolt
^ Stage 1: Tighten to 90 Nm (66 ft. lbs.)
^ Stage 2: Loosen 360 degrees.
^ Stage 3: Tighten to 50 Nm (37 ft. lbs.)
^ Stage 4: Tighten an additional 90 degrees
