Removal and Installation

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the powertrain control module (PCM) electrical connector.
    Fig 1: Removing Powertrain Control Module (PCM) Electrical Connector
    G03956400Courtesy of FORD MOTOR CO.
  3. Remove the nuts and the PCM cover.

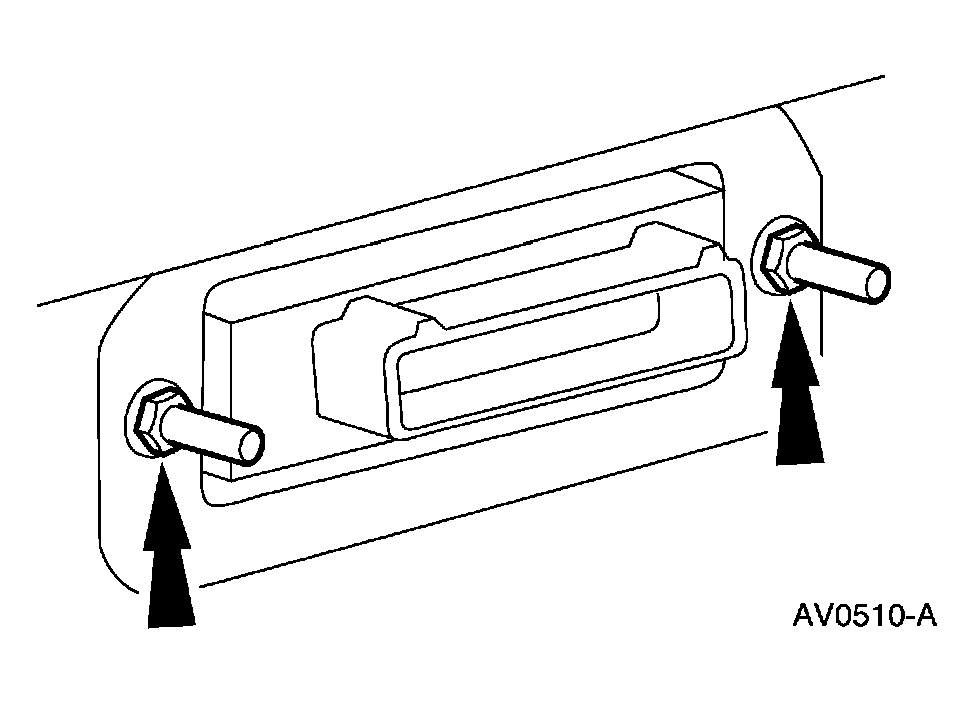

    Fig 2: Removing Powertrain Control Module (PCM) Cover Nuts
    G03914596Courtesy of FORD MOTOR CO.
  4. Remove the PCM.
  5. To install, reverse the removal procedure.
