Torque Specifications

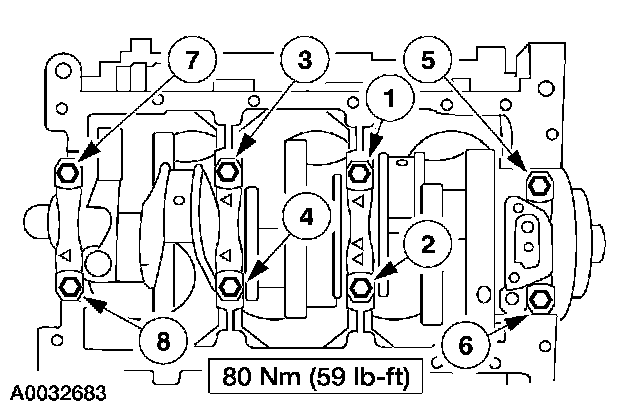

TORQUE SPECIFICATIONSMAIN BEARING CAPS
Main Bearing Bolts 80 Nm (59 ft. lbs.)
CRANKSHAFT PULLEY
Crankshaft Vibration Damper Bolt 145 Nm (107 ft. lbs.)
Crankshaft Pulley Bolts 63 Nm (46 ft. lbs.)
MAIN BEARING CAPS
Main Bearing Bolts 80 Nm (59 ft. lbs.)
CRANKSHAFT PULLEY
Crankshaft Vibration Damper Bolt 145 Nm (107 ft. lbs.)
Crankshaft Pulley Bolts 63 Nm (46 ft. lbs.)
