Torque Specifications

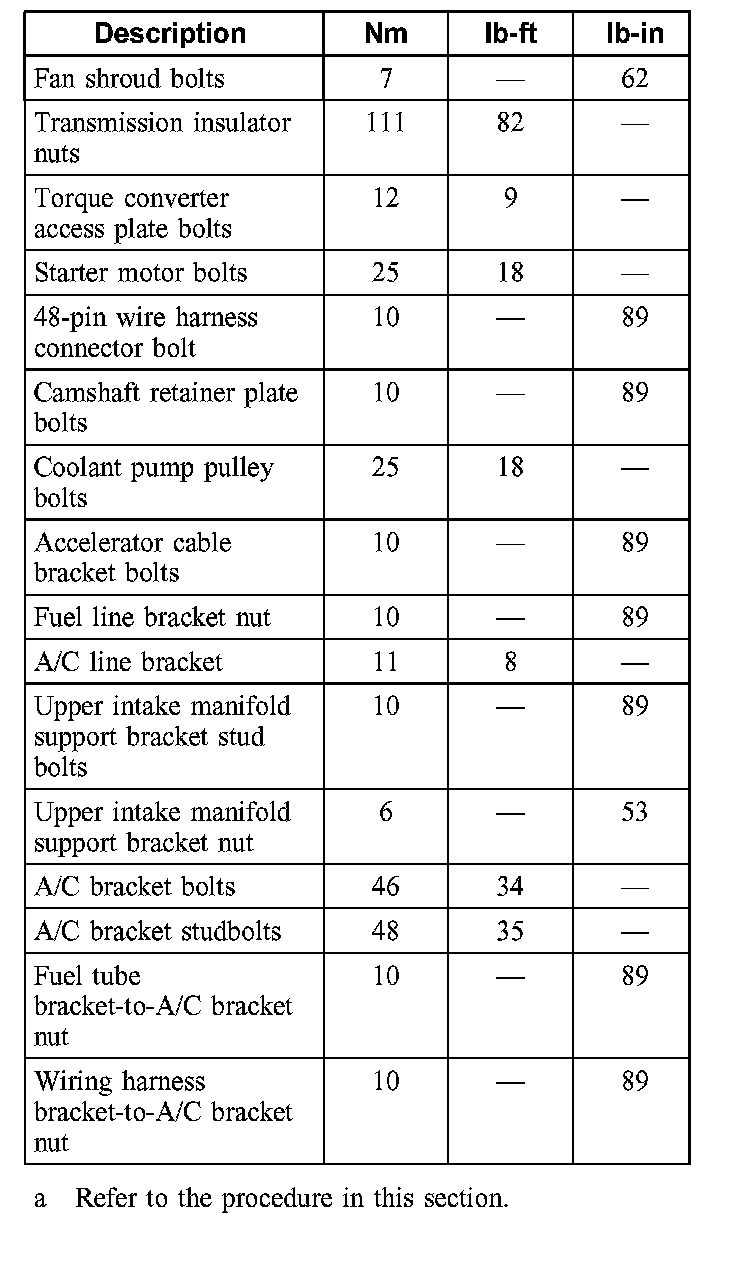

Torque Specifications, Part 1:

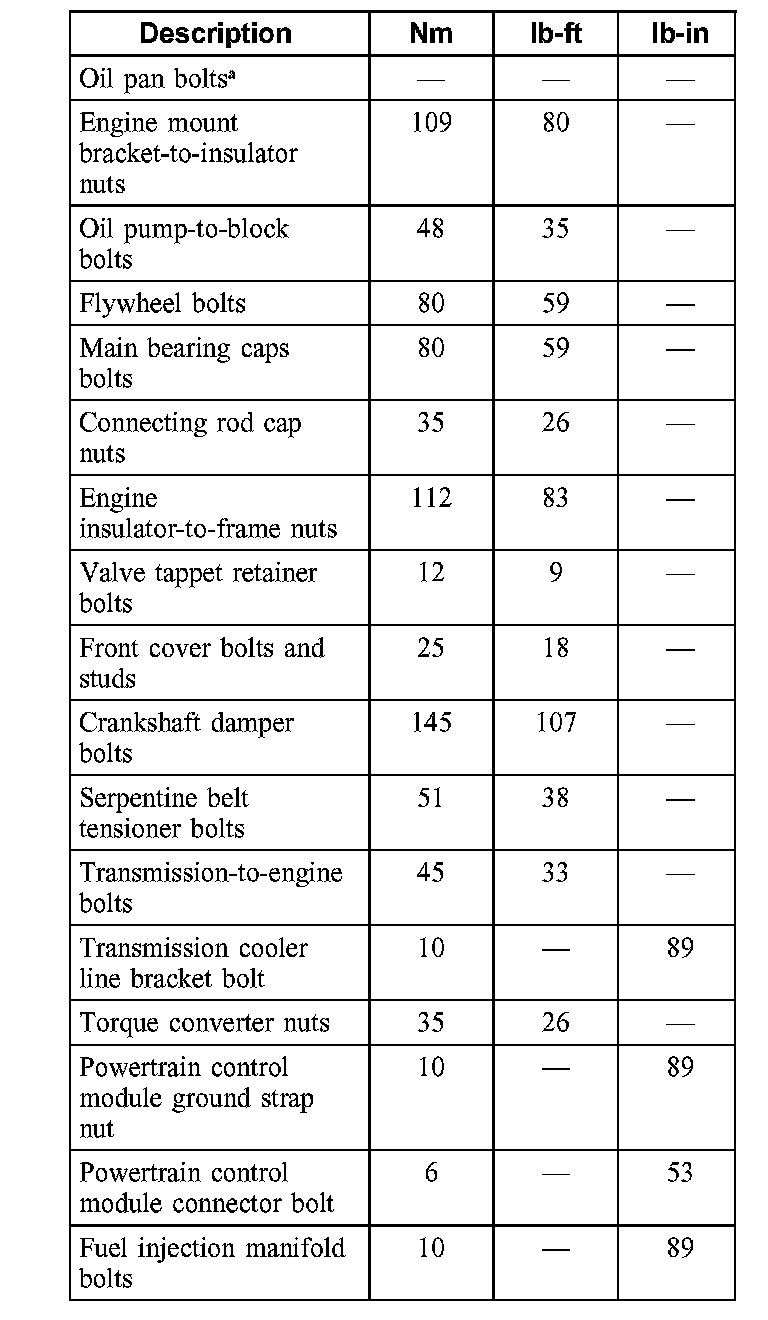

Torque Specifications, Part 2:





Torque Specifications, Part 3:






Water Pump Bolts 10 Nm (89 in. lbs.)
