Torque Specifications

TORQUE SPECIFICATIONS

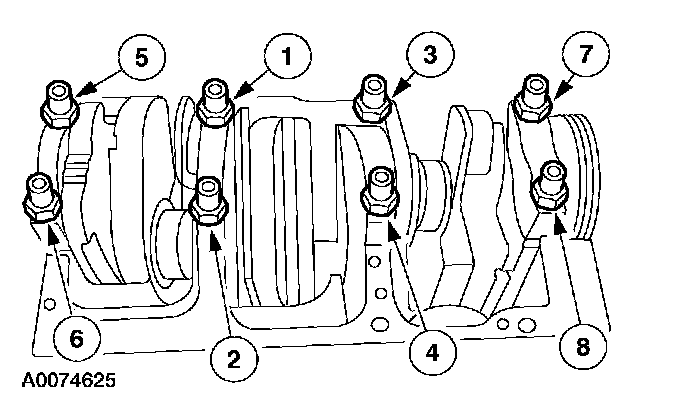

MAIN BEARING CAPS





Main Bearing Cap Bolts
Stage 1 35 Nm (26 ft. lbs.)
Stage 2 additional 57 degrees

CRANKSHAFT PULLEY BOLT

Crankshaft Pulley Bolt
Stage 1 50 Nm (37 ft. lbs.)
Stage 2 additional 90 degrees
