Main Components and Functions

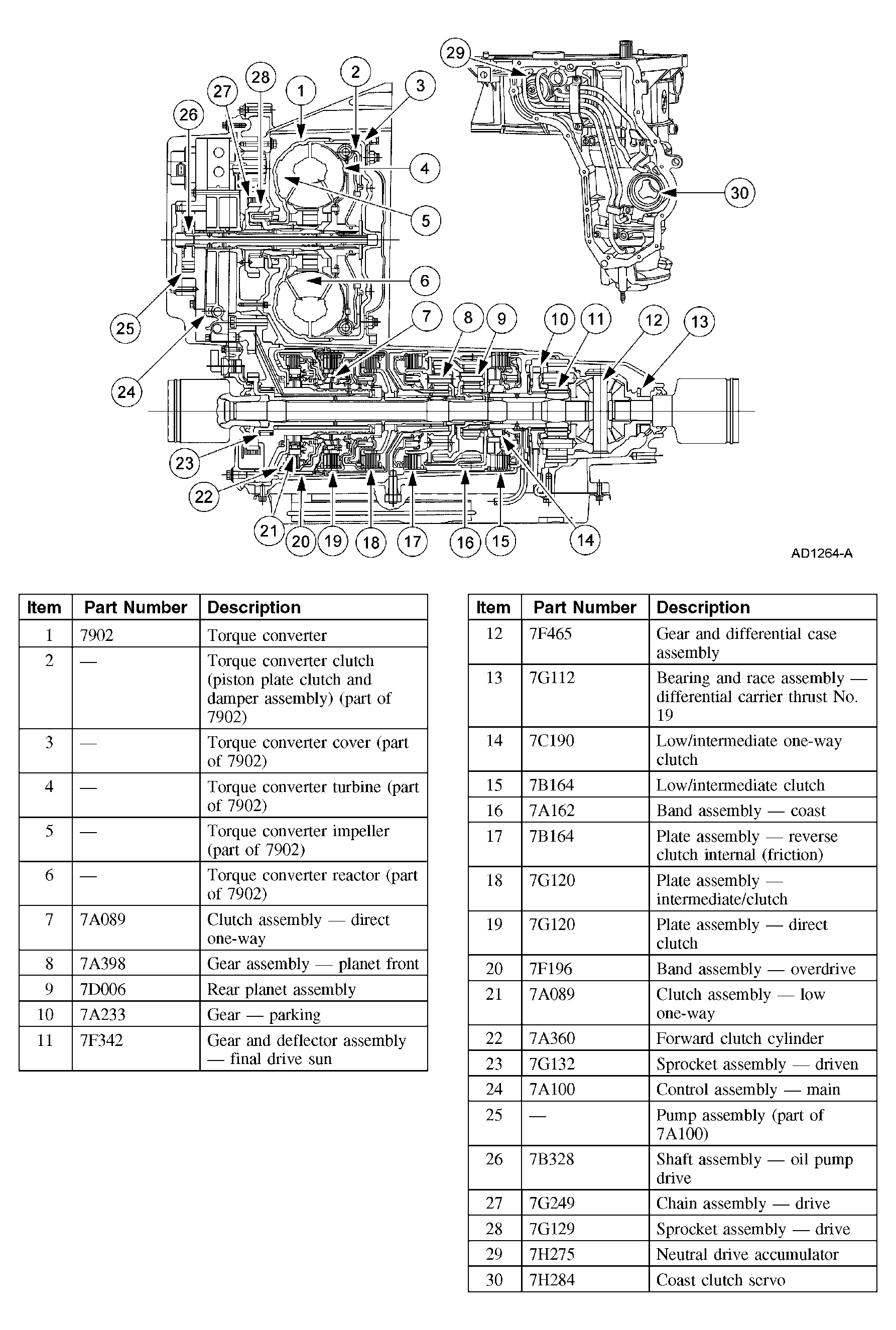

Fig 1: Identifying Transmission Main Components And Functions
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
