Firing Order: Specifications

"AllData Editors Note:

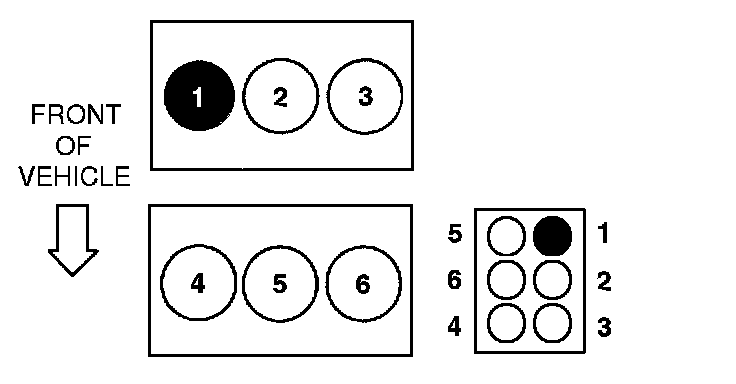

Customers have reported success using the following spark plug wire placement on the coil pack."






Firing order 1-4-2-5-3-6






The ignition coil:
- is controlled by the PCM.
- fires two spark plugs simultaneously.
