System Diagram

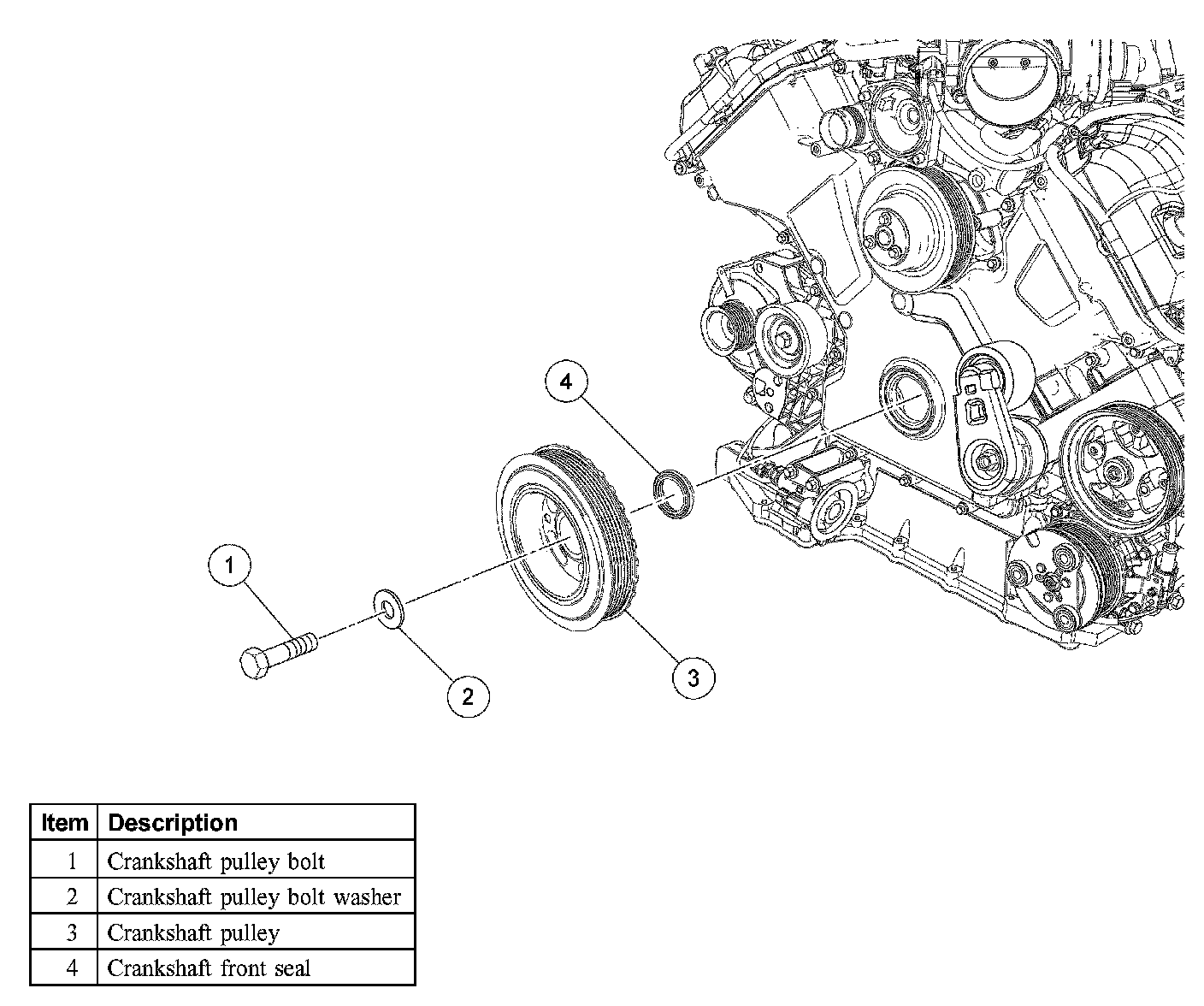

Lower End Components - Exploded View, Crankshaft Pulley and Crankshaft Front Oil Seal

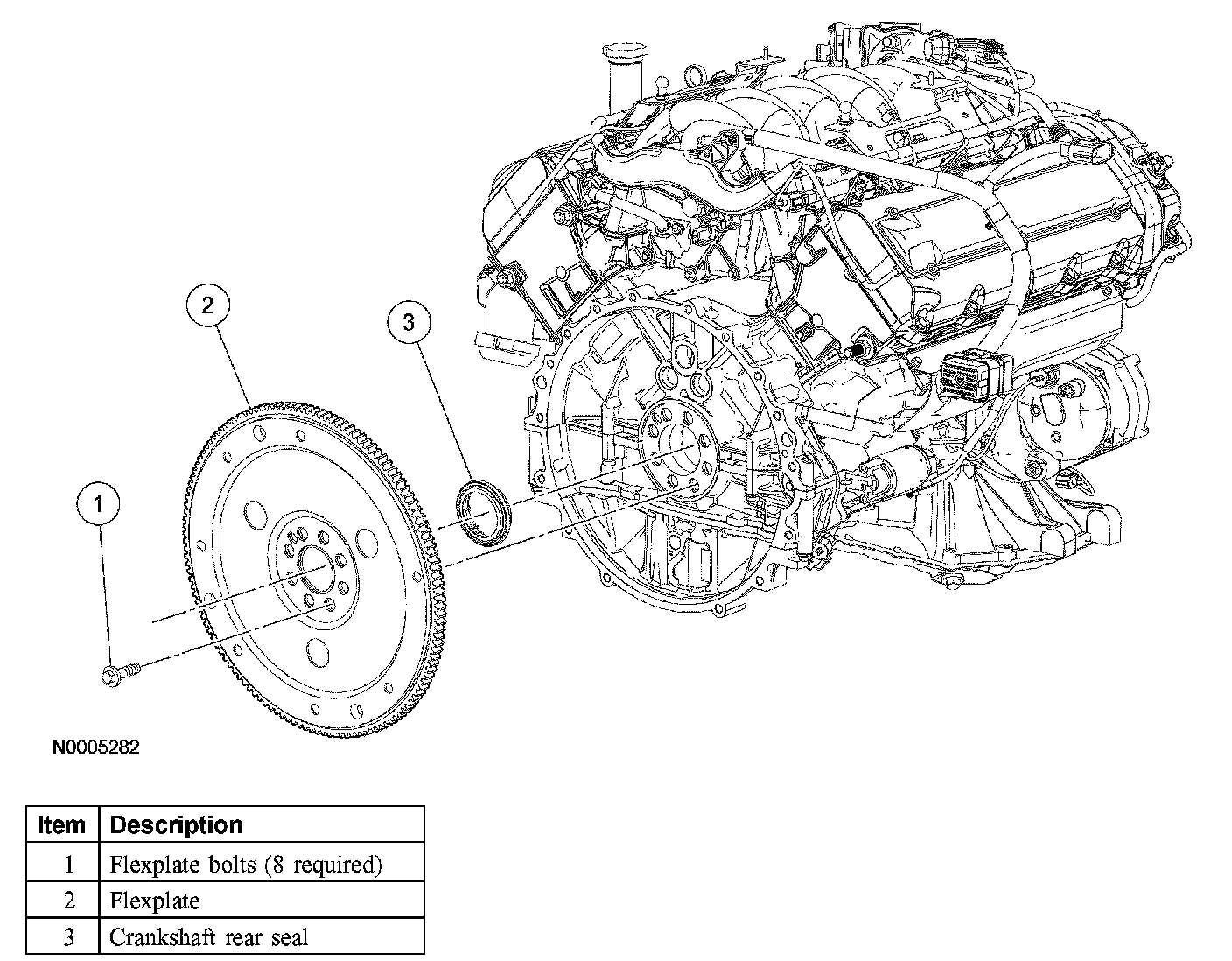

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Oil Seal
