Dual Electronic Automatic Temperature Control (DATC) Module Diagnostic Trouble Code (DTC) Index

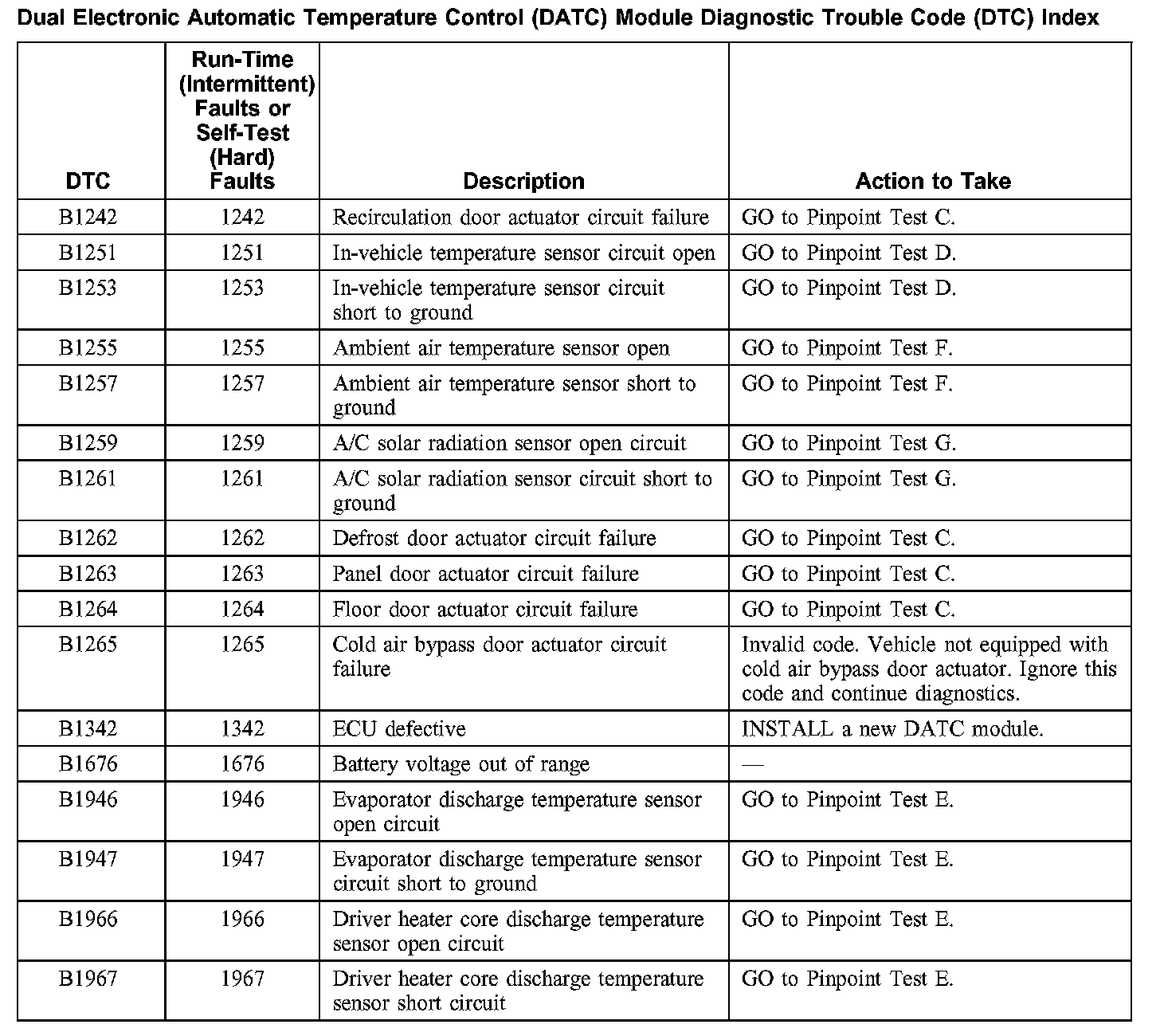

B1242-B1967:

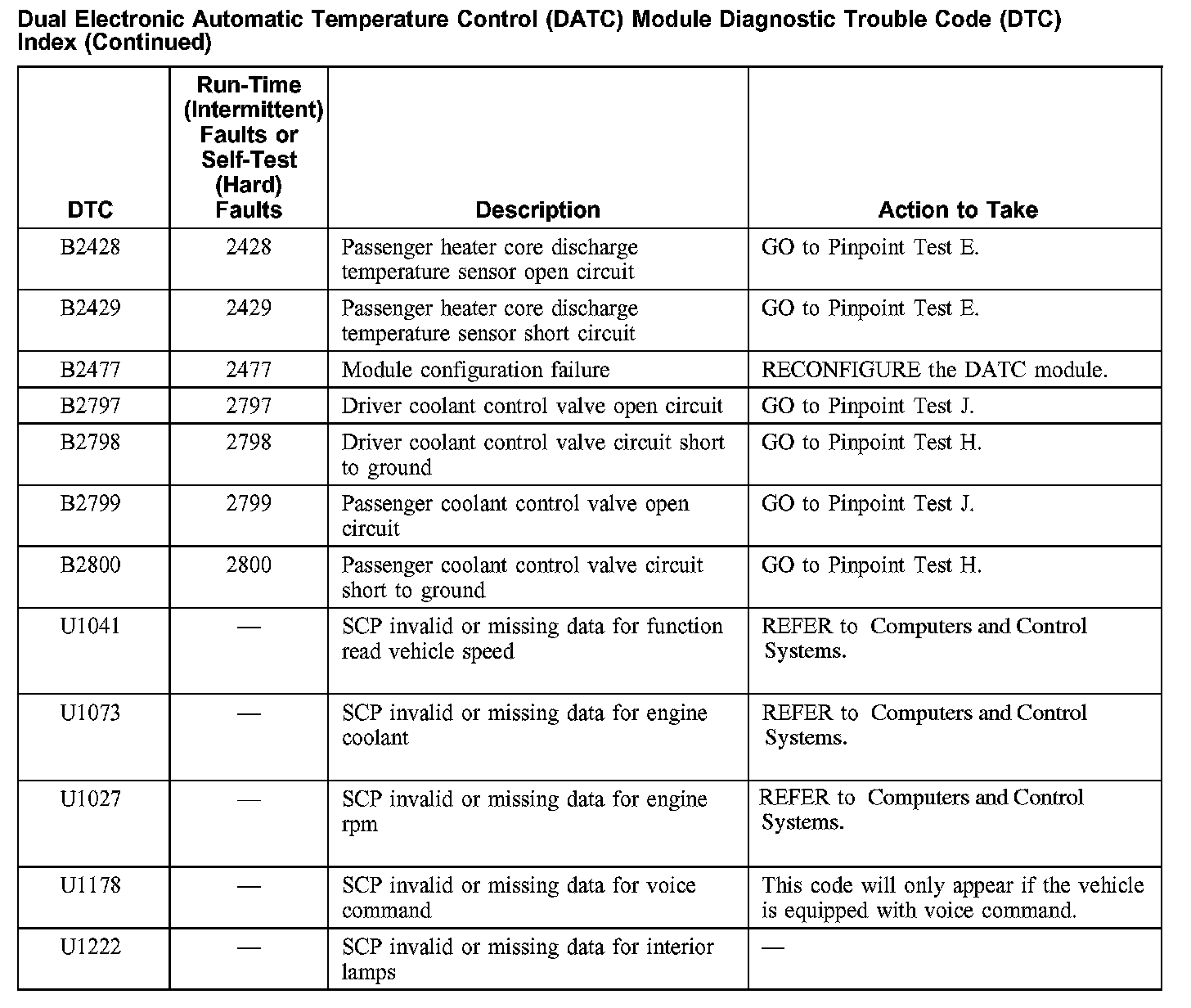

B2428-U1222:
