Engine Control Module: Service and Repair

POWERTRAIN CONTROL MODULE (PCM)

Part 1:

Part 2:

Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the cabin air filter plenum.
3. Remove the glove compartment.

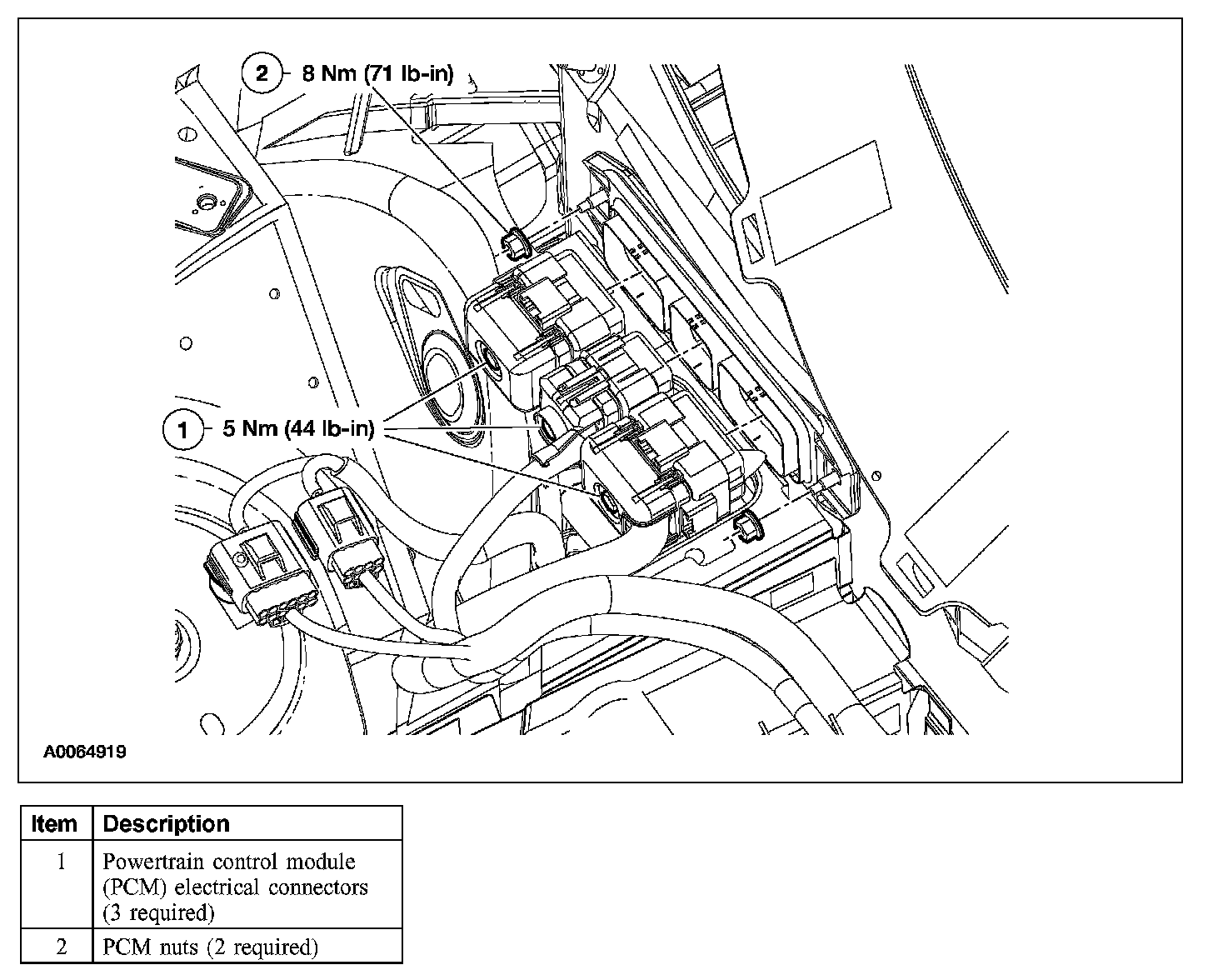

4. Disconnect the 3 powertrain control module (PCM) electrical connectors.
- To install, tighten to 5 Nm (44 lb-in).

5. Remove the 2 PCM nuts.
- To install, tighten to 8 Nm (71 lb-in).

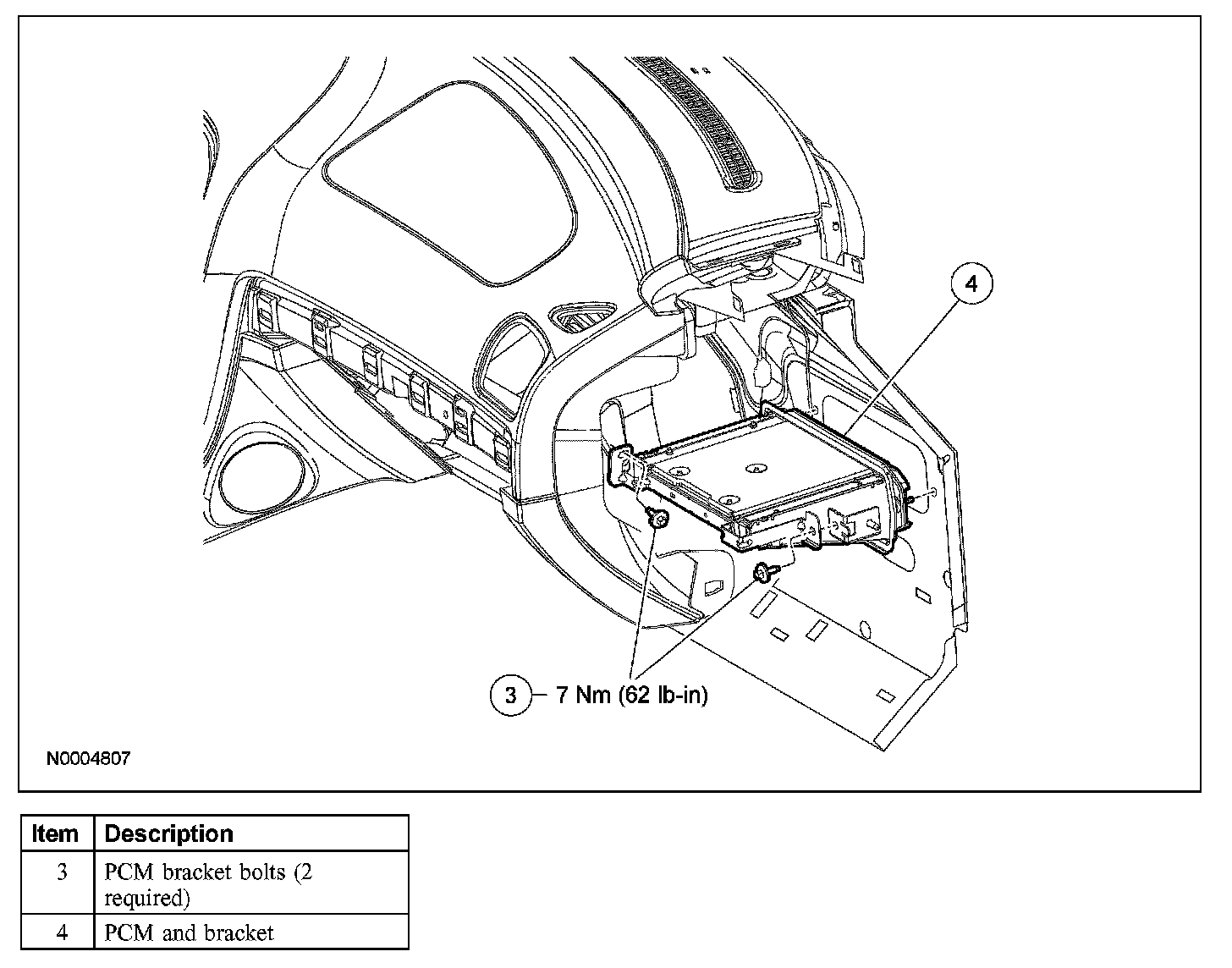

6. Remove the 2 PCM bracket bolts.
- To install, tighten to 7 Nm (62 lb-in).

7. Remove the PCM and bracket as an assembly through the glove compartment opening.
8. To install, reverse the removal procedure.
