Ignition switch (11572): Schematic

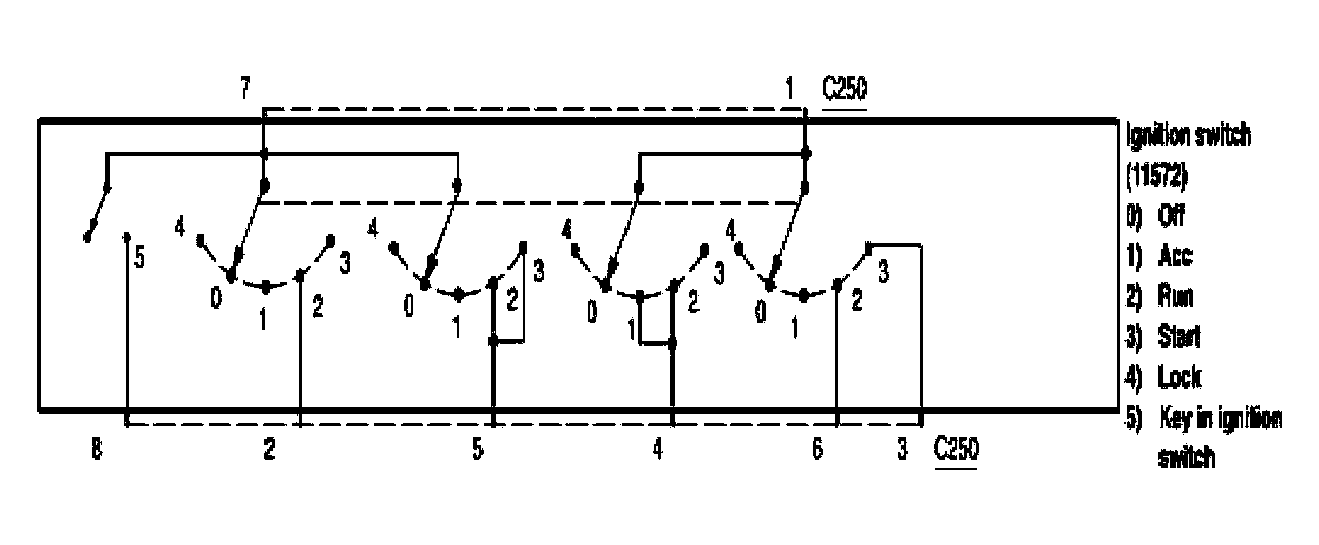

Fig 1: Ignition Switch (11572) - Schematic

G03994516

Courtesy of FORD MOTOR CO.
