Connector Circuit Reference: Notes

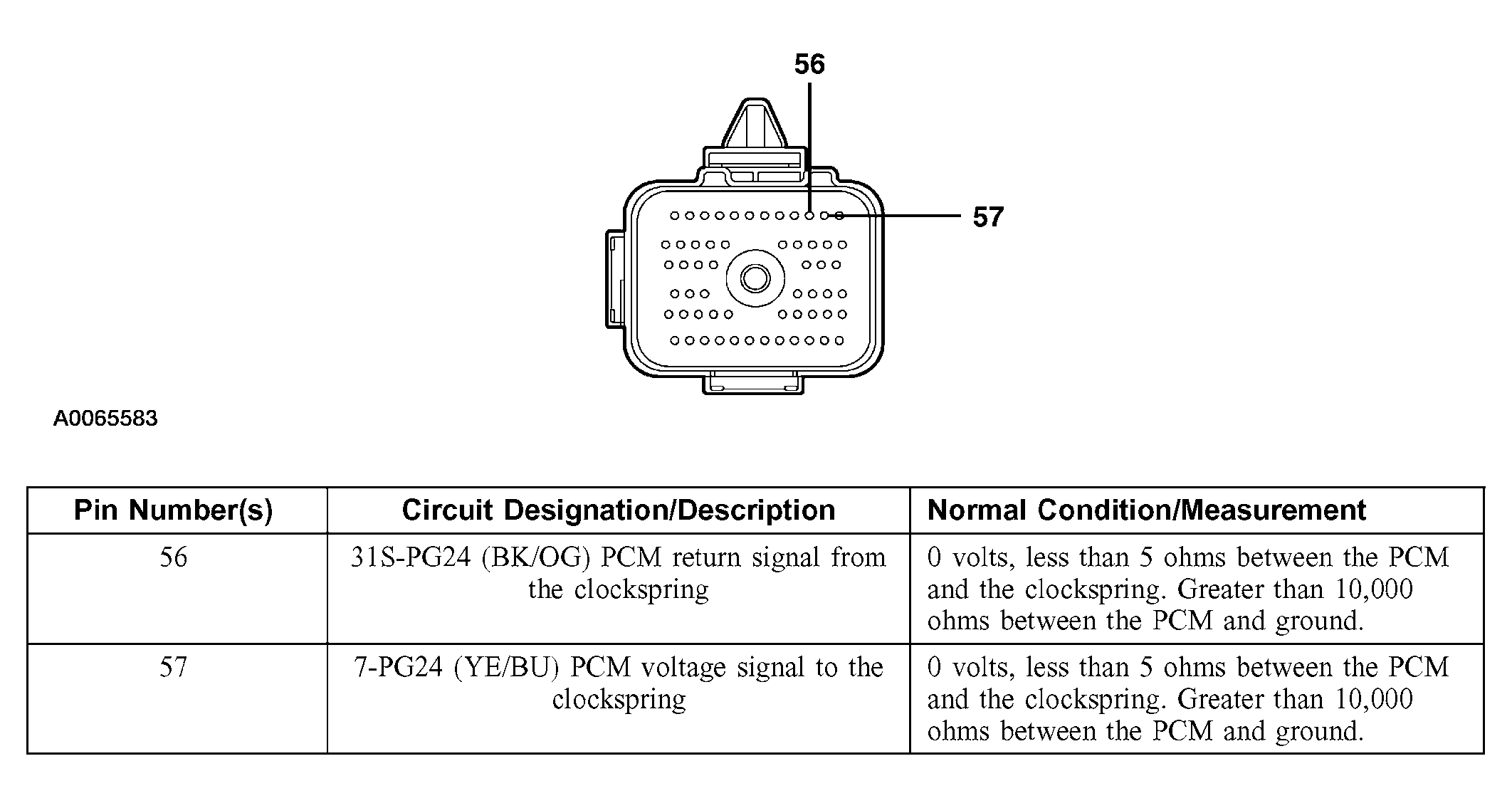

PCM C175b

Fig 1: Identifying PCM C175b
G04008849Courtesy of FORD MOTOR CO.

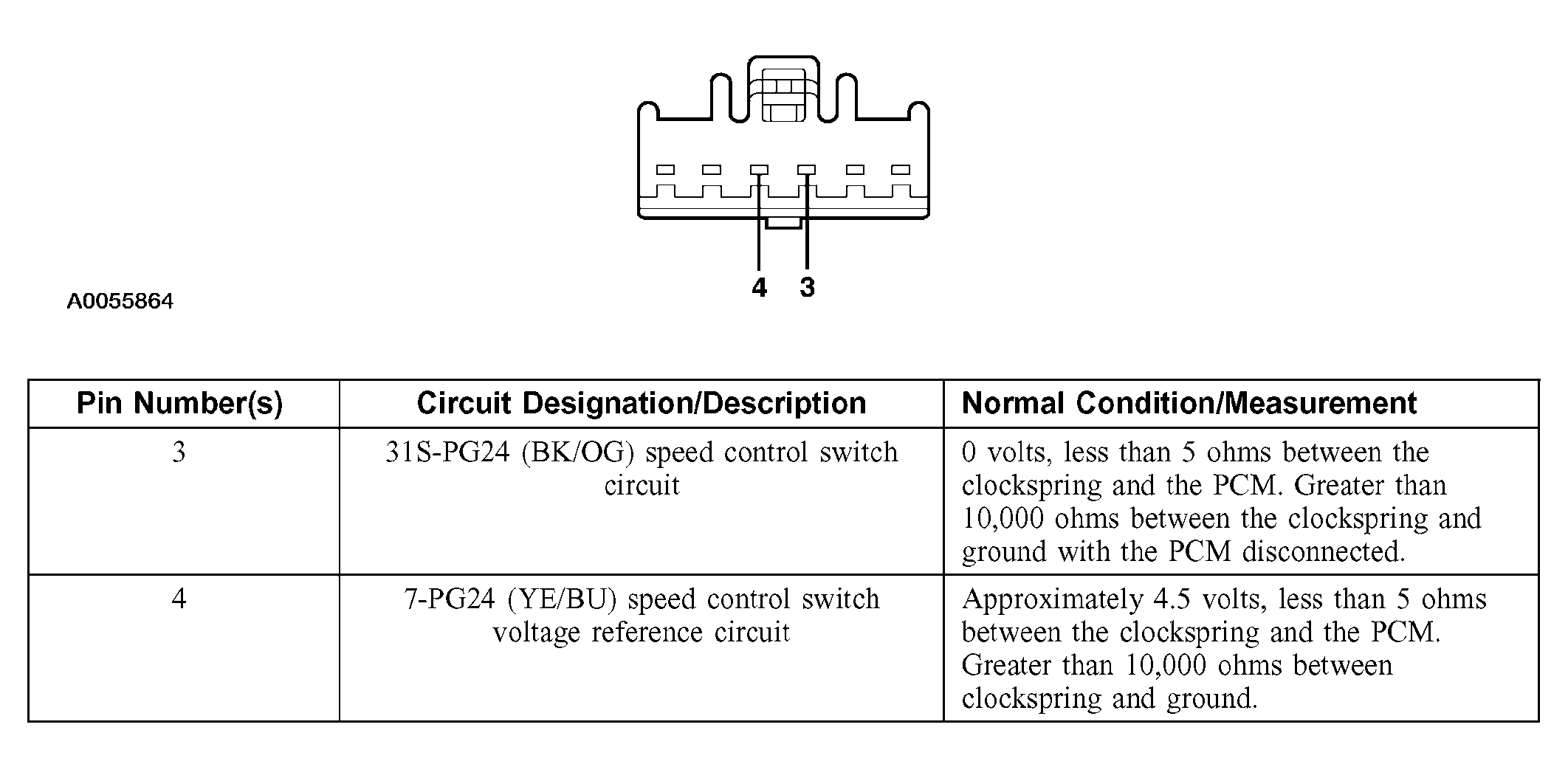

Clockspring C218a

Fig 2: Identifying Clockspring C218a
G04008850Courtesy of FORD MOTOR CO.

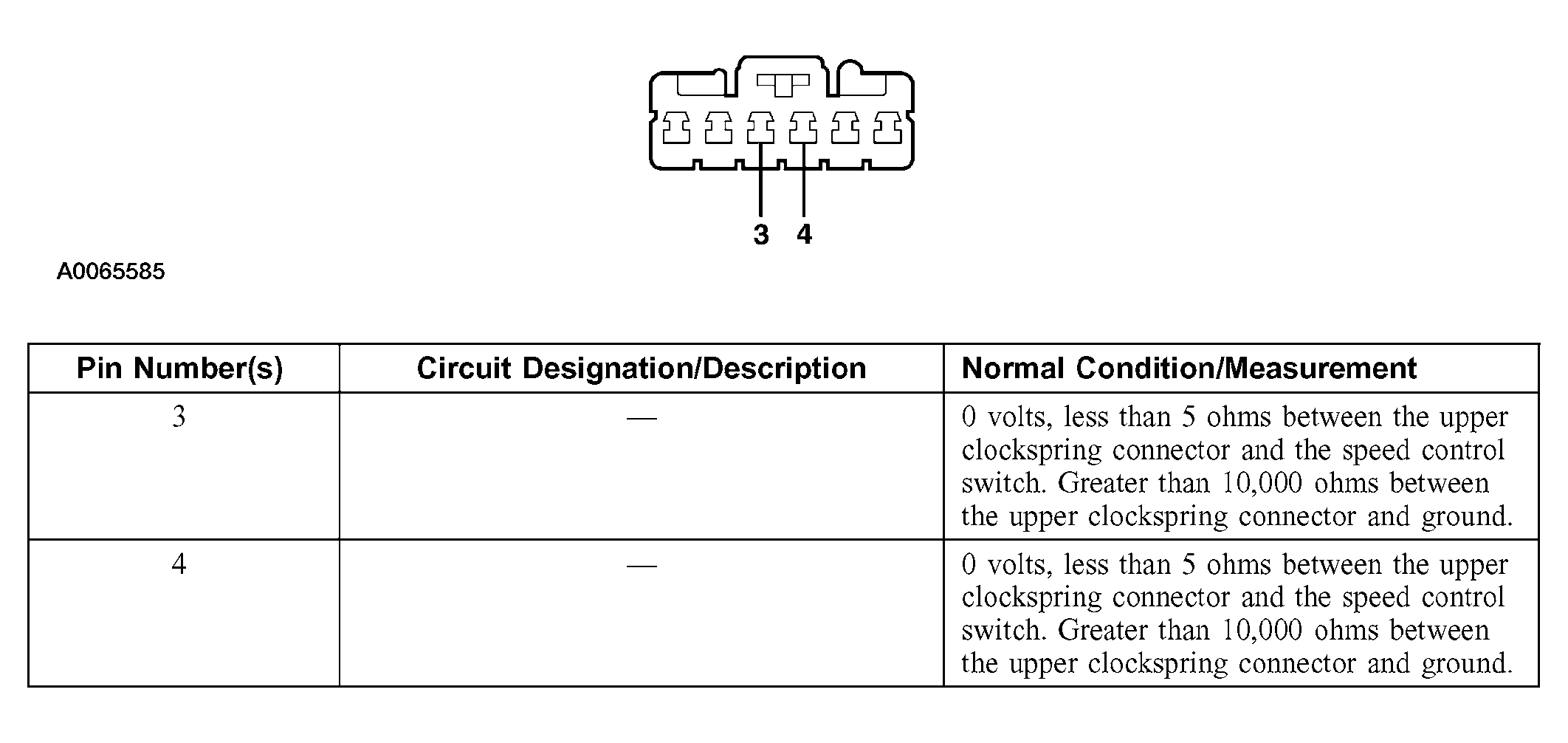

Upper Clockspring Connector

Fig 3: Identifying Upper Clockspring Connector
G04008851Courtesy of FORD MOTOR CO.
