Exterior Mirrors - Exploded View

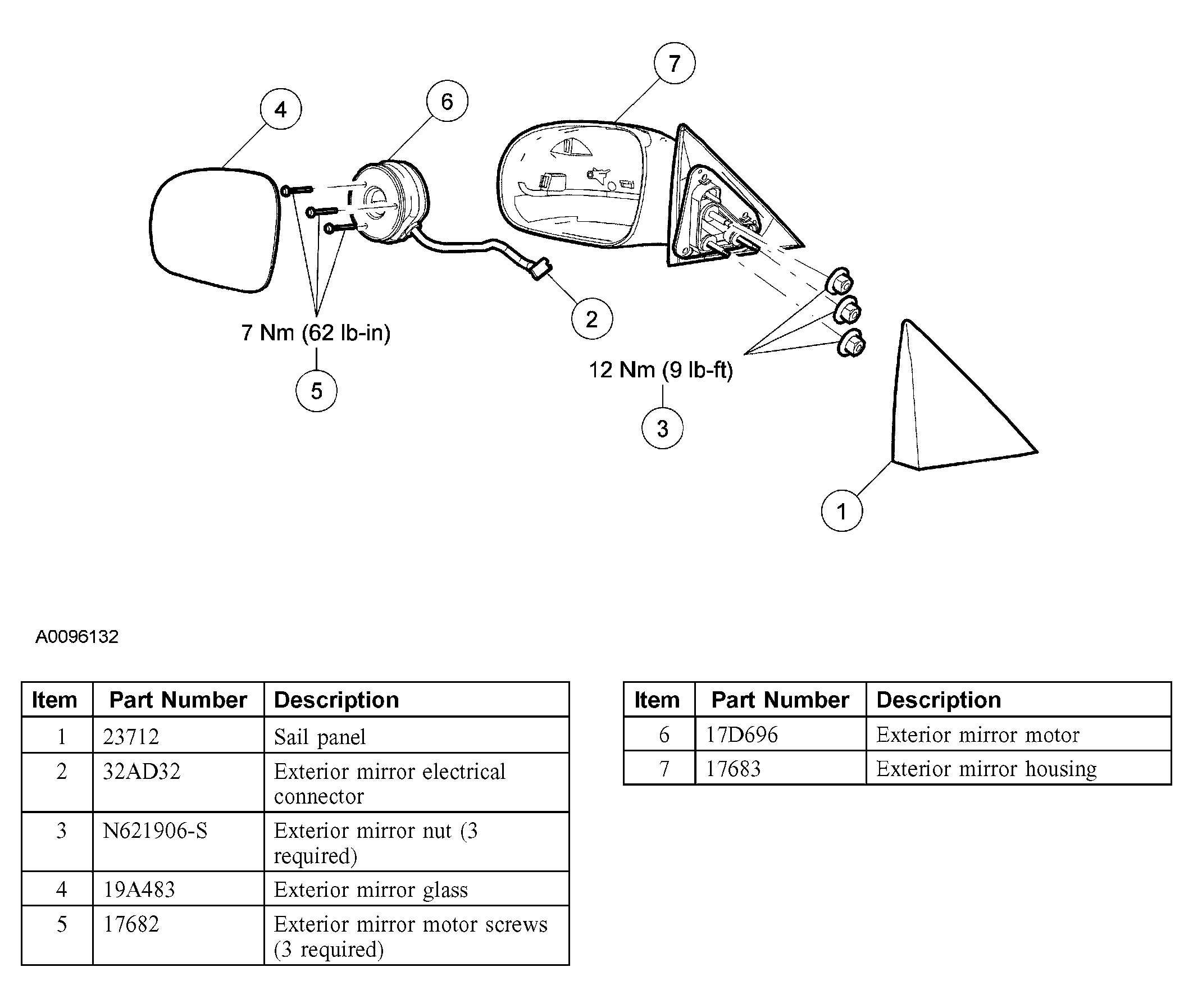

Fig 1: Exploded View Of Exterior Mirrors With Torque Specifications
G04009640Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
