Front Seat Backrest: Notes

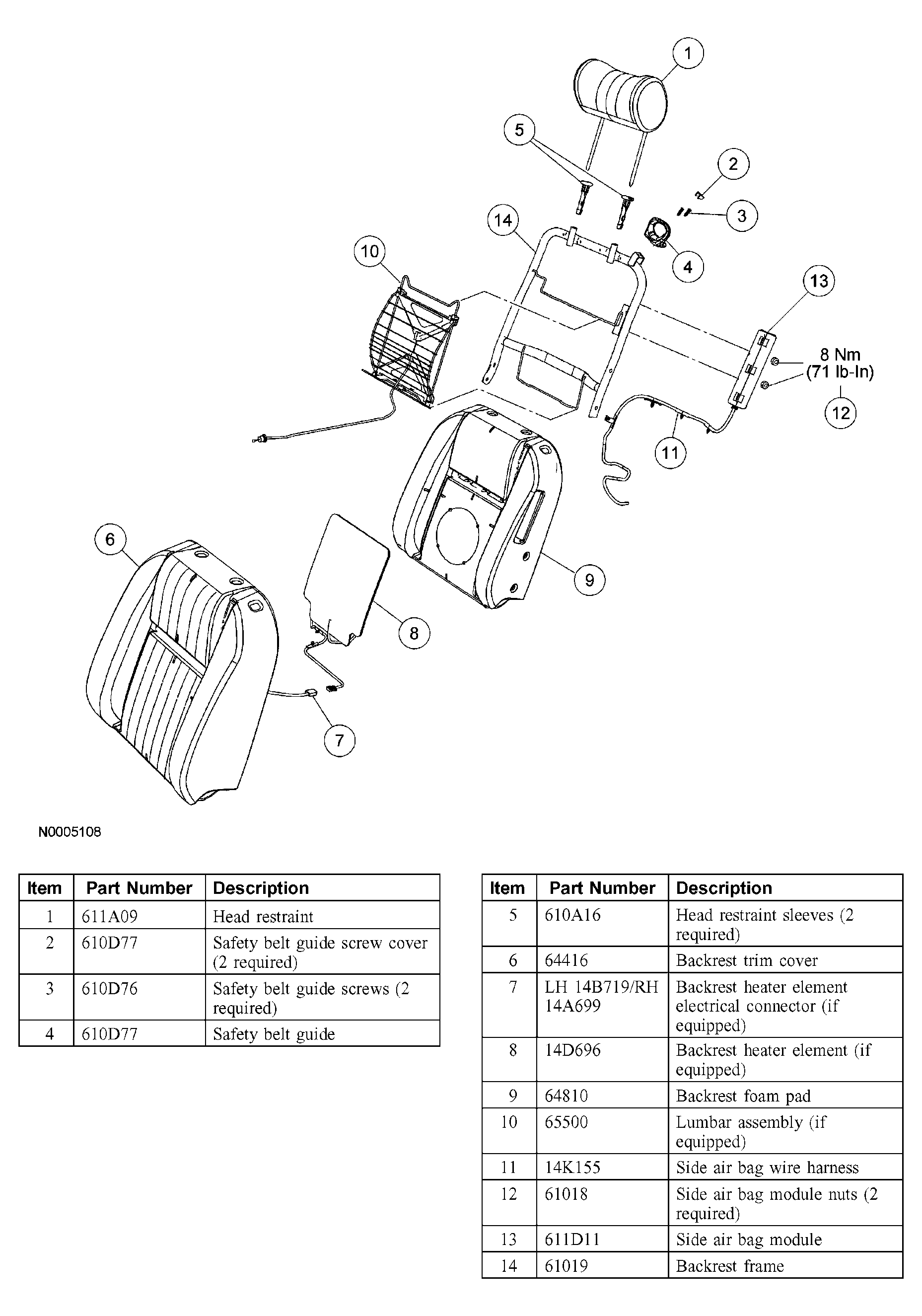

Fig 1: Front Seat Backrest With Torque Specification

G04009766

Courtesy of FORD MOTOR CO.
