Windshield Glass: Notes

SPECIAL TOOL CHART

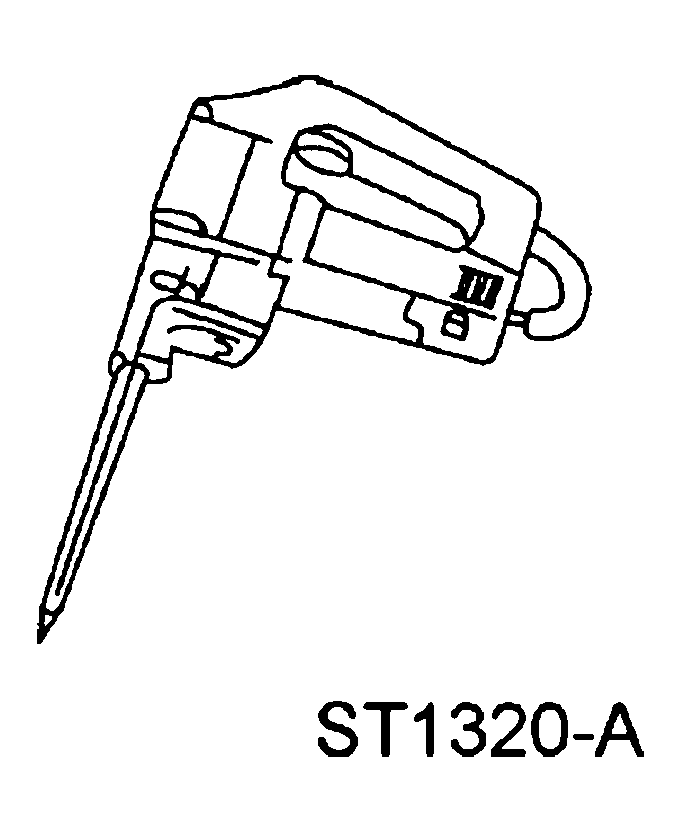

	Interior Auto Glass Cut-Out Knife Kit (electric) 164-R2450 or equivalent
	Pneumatic Knife with Offset Blade 107-R1511 or equivalent

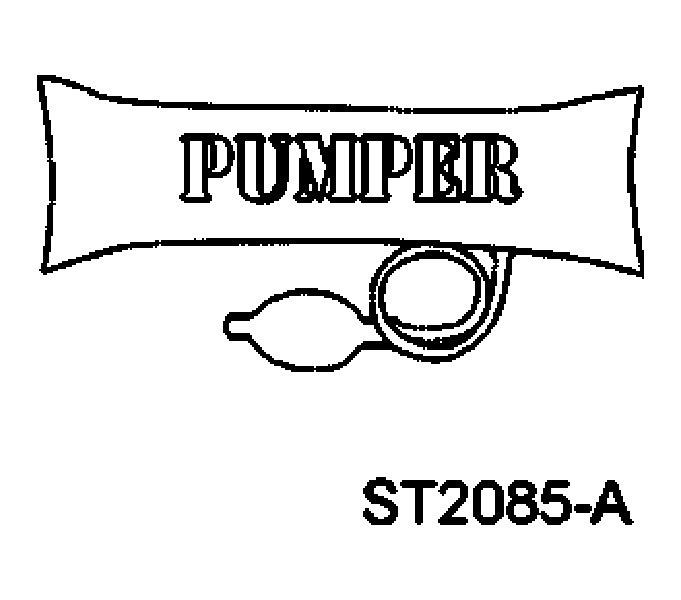

	The Pumper 164-R2459 or equivalent

MATERIAL ITEM SPECIFICATION

Item	Specification
Urethane Metal Primer Essex U-413	WSB-M2G234-C
Urethane Glass Prep Essex U-401	WSB-M5B280-C
Urethane Glass Primer Essex U-402	WSB-M2G314-B
Urethane Adhesive Essex 400-HV	WSB-M2G316-B
Rear View Mirror Adhesive TA-17	-

Fig 1: Identifying Window Control Switch (2 Of 2)

Courtesy of FORD MOTOR CO.
