Battery Cables: Notes

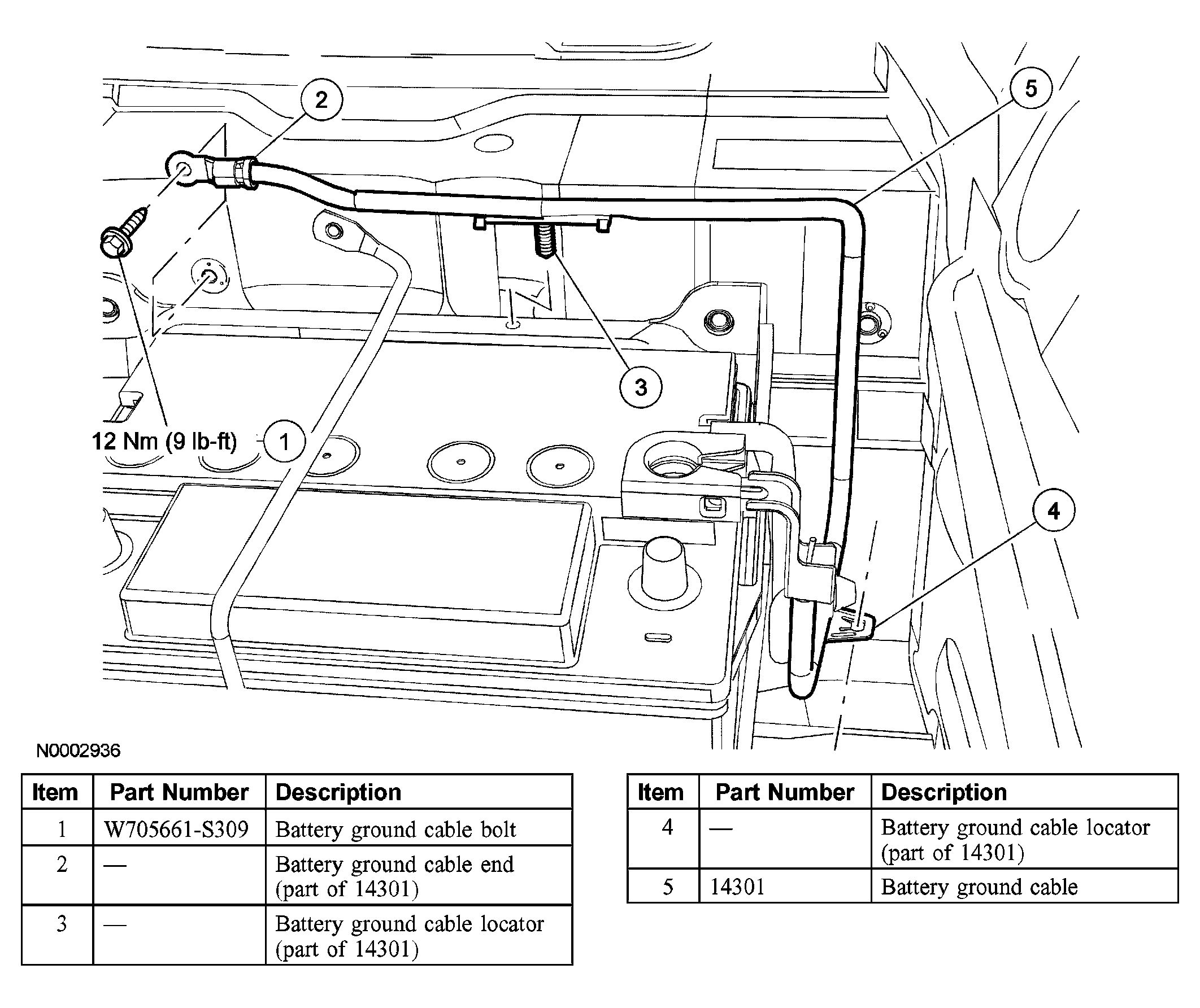

Fig 1: Battery Ground Cable With Torque Specification

Courtesy of FORD MOTOR CO.

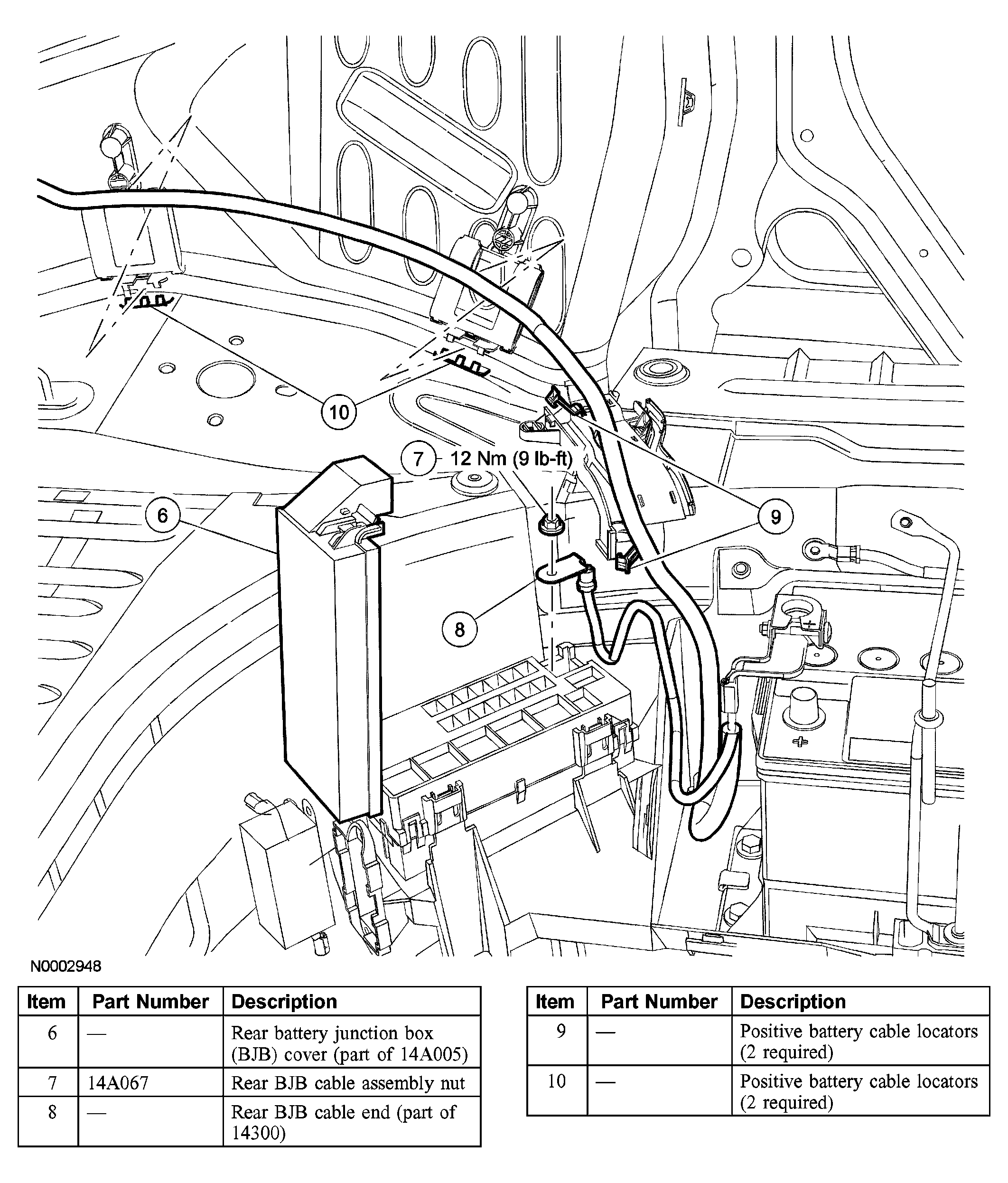

Fig 2: Positive Battery Cable Luggage Compartment Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

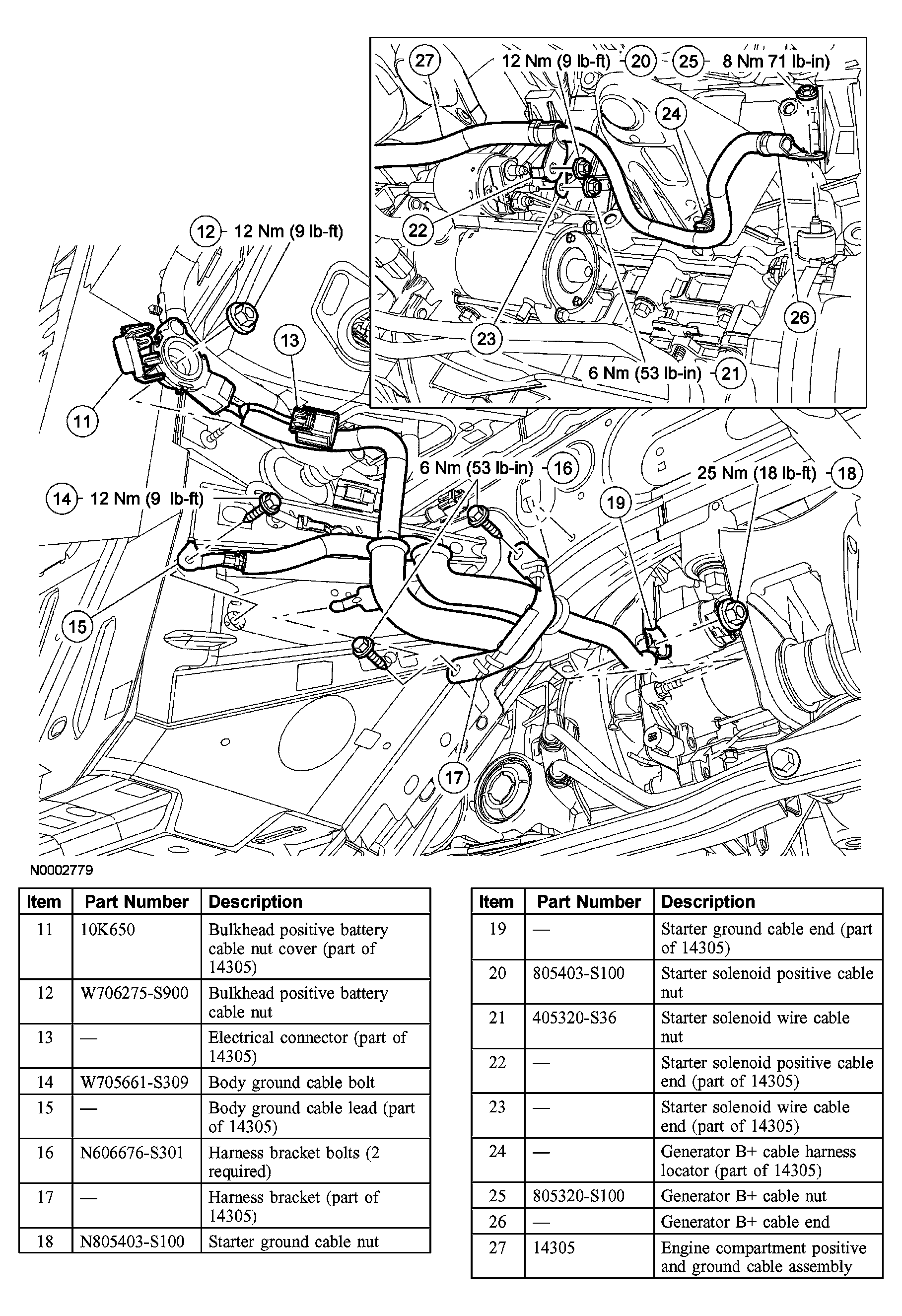

Fig 3: Battery Cable Engine Compartment Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
