Powertrain Control Module C175c

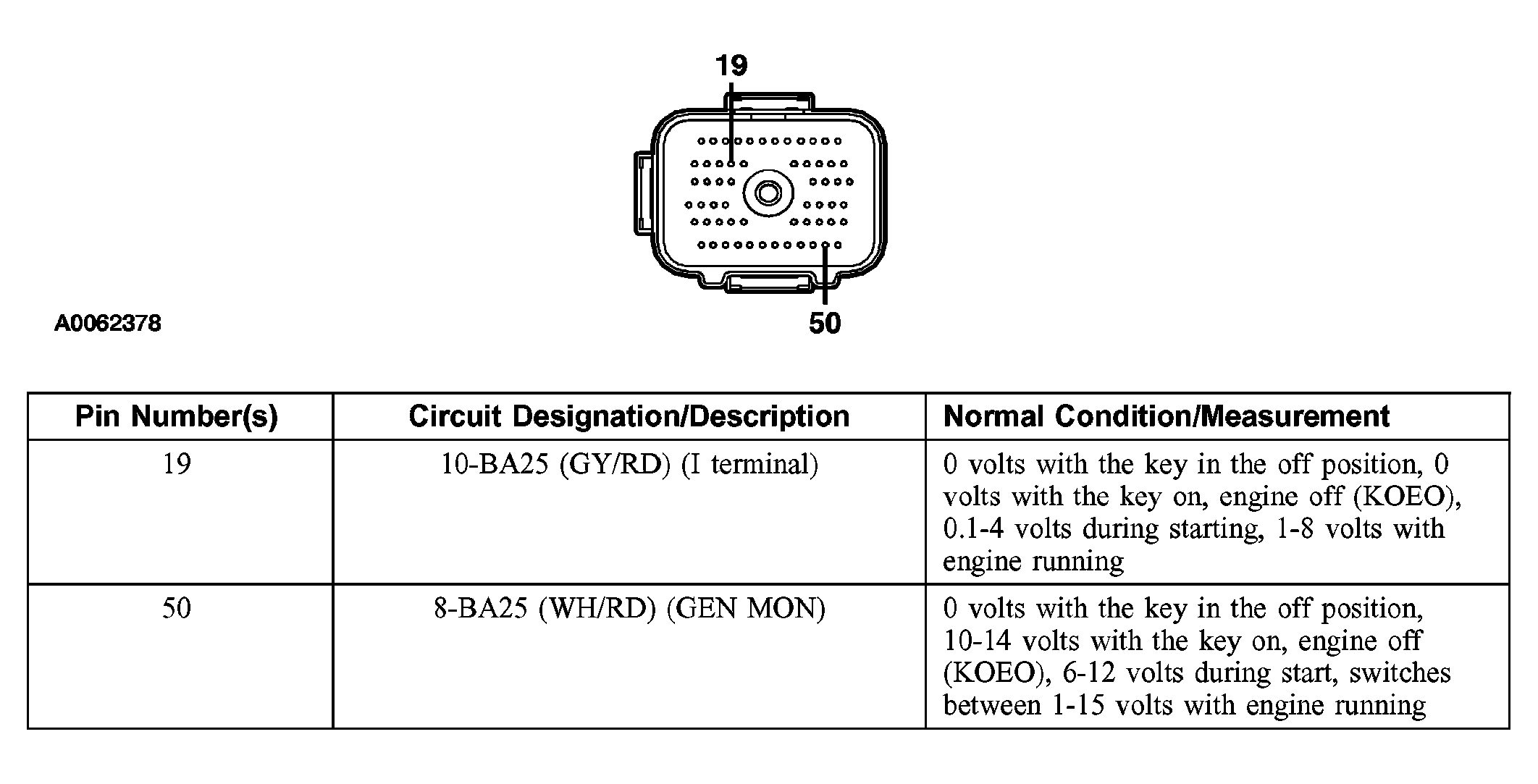

Fig 1: Identifying Powertrain Control Module C175c Connector
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
