Instrument Panel - Exploded View

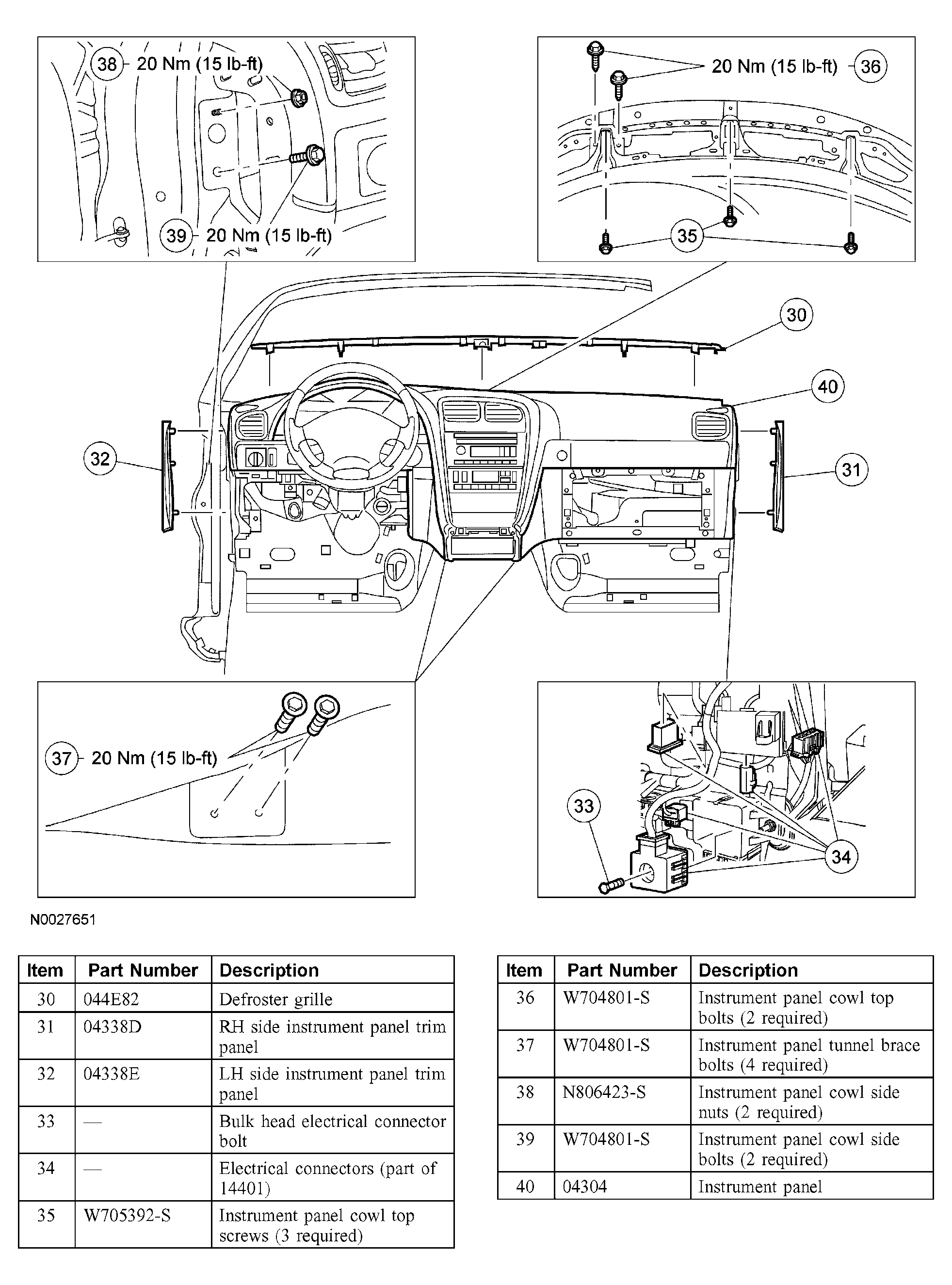

Fig 1: Exploded View Of Instrument Panel With Torque Specification (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 2: Exploded View Of Instrument Panel With Torque Specifications (2 Of 3)
Courtesy of FORD MOTOR CO.

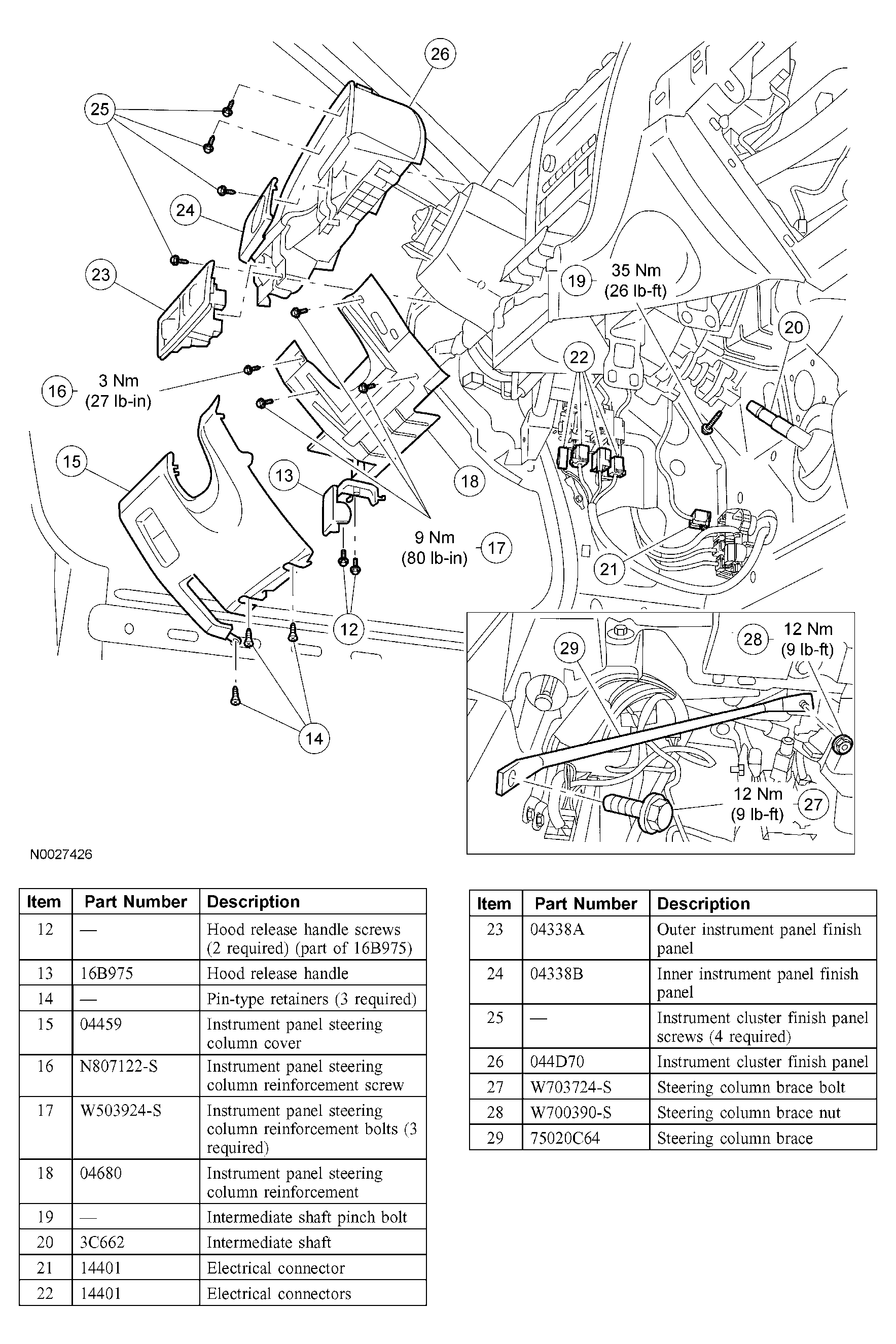

Fig 3: Exploded View Of Instrument Panel With Torque Specification (3 Of 3)
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
