Connector Views

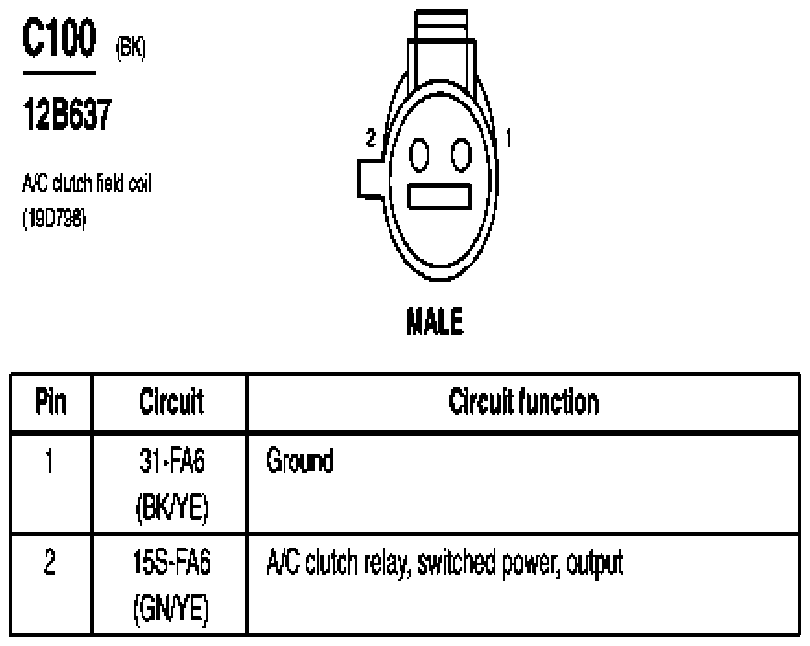

Fig 1: A/C Clutch Field Coil Connector End View (C100)
G07845137Courtesy of FORD MOTOR CO.

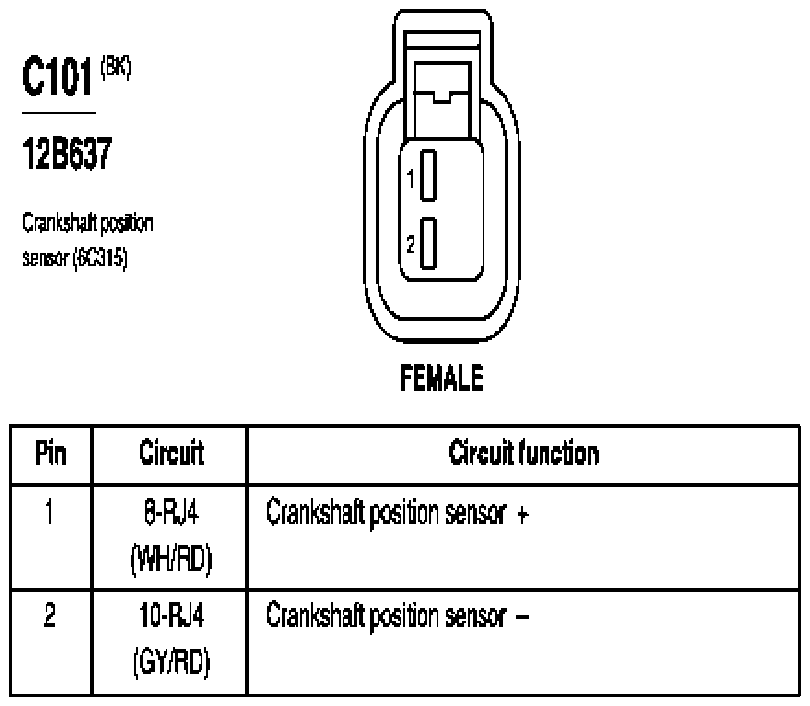

Fig 2: Crankshaft Position Sensor Connector End View (C101)
G07845138Courtesy of FORD MOTOR CO.

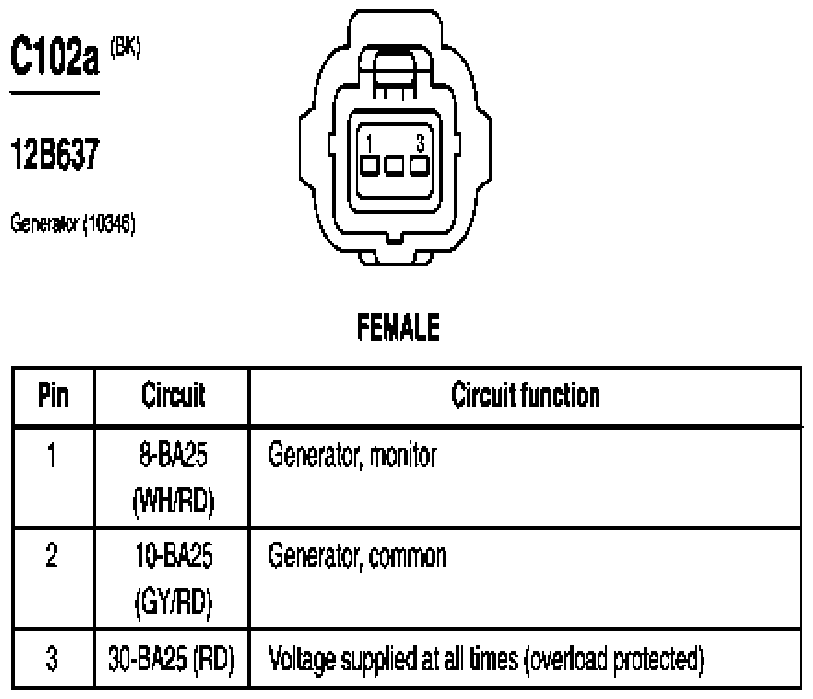

Fig 3: Generator Connector End View (C102a)
G07845139Courtesy of FORD MOTOR CO.

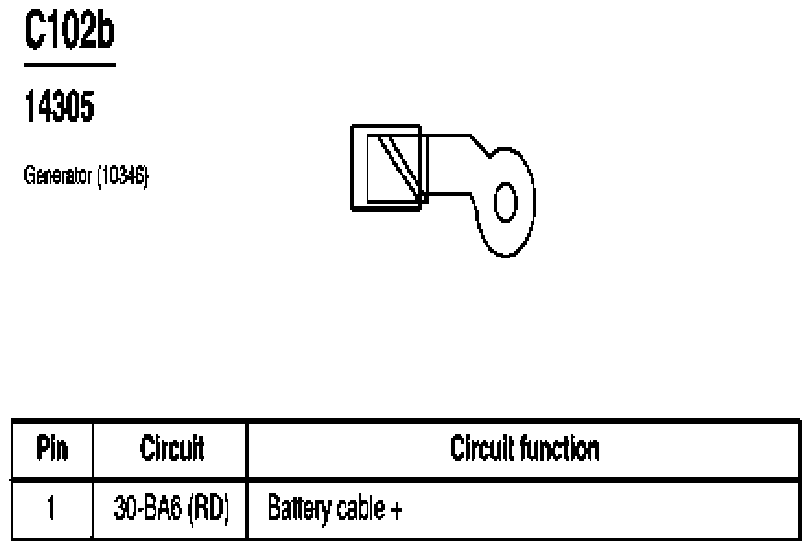

Fig 4: Generator Connector End View (C102b)
G07845140Courtesy of FORD MOTOR CO.
Fig 5: Oil Pressure Switch Connector End View (C103)
G07845141Courtesy of FORD MOTOR CO.

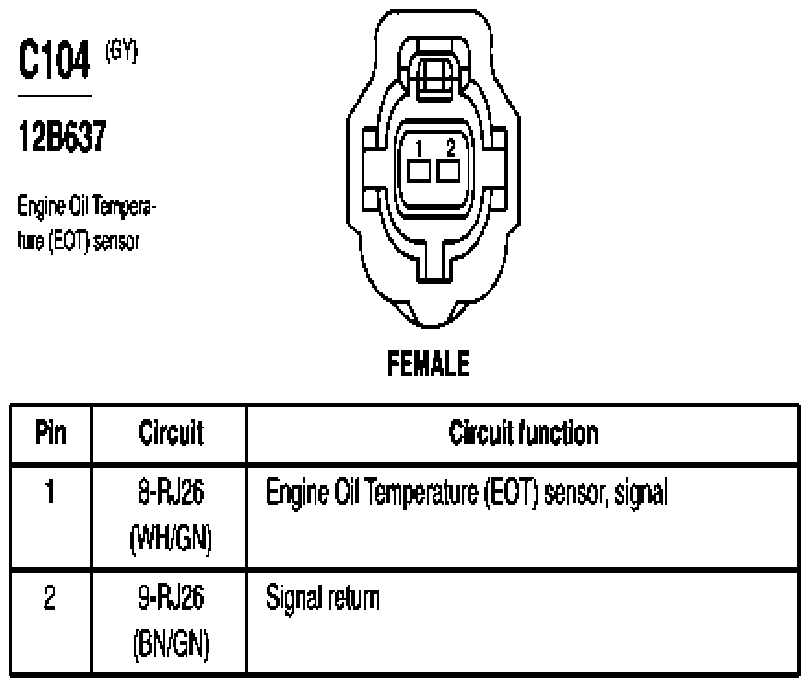

Fig 6: Engine Oil Temperature (EOT) Sensor Connector End View (C104)
G07845142Courtesy of FORD MOTOR CO.

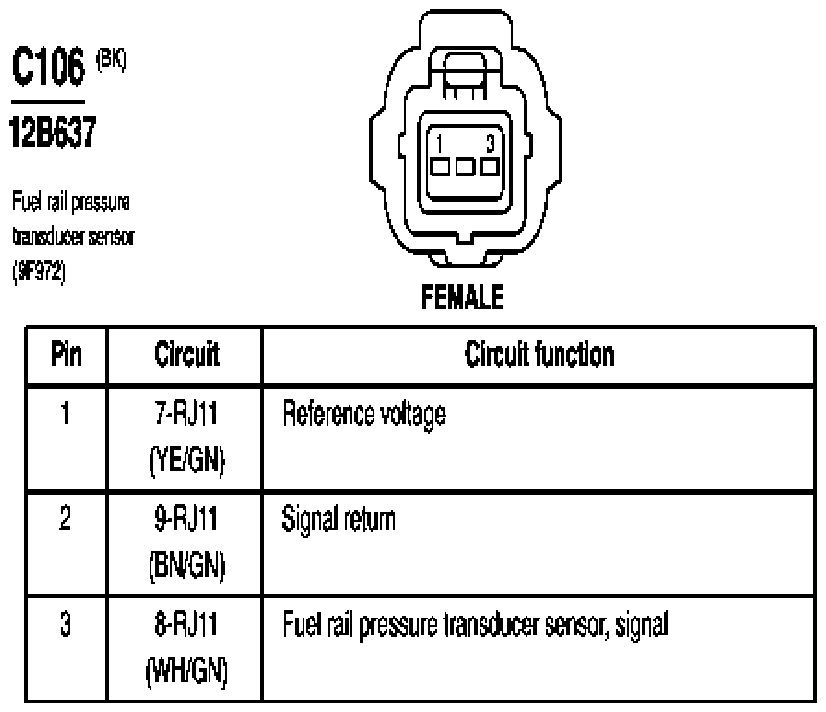

Fig 7: Fuel Rail Pressure Transducer Sensor Connector End View (C106)
G07845143Courtesy of FORD MOTOR CO.

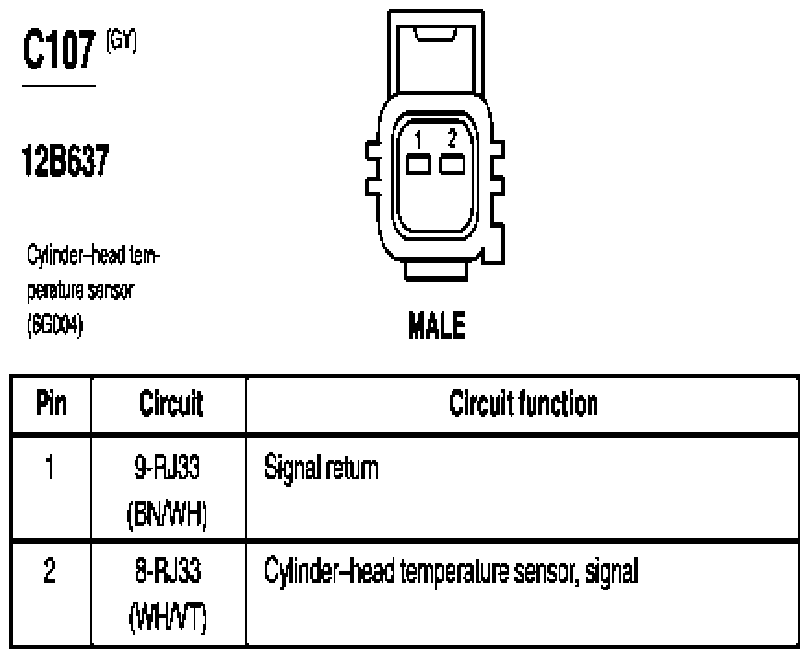

Fig 8: Cylinder-Head Temperature Sensor Connector End View (C107)
G07845144Courtesy of FORD MOTOR CO.

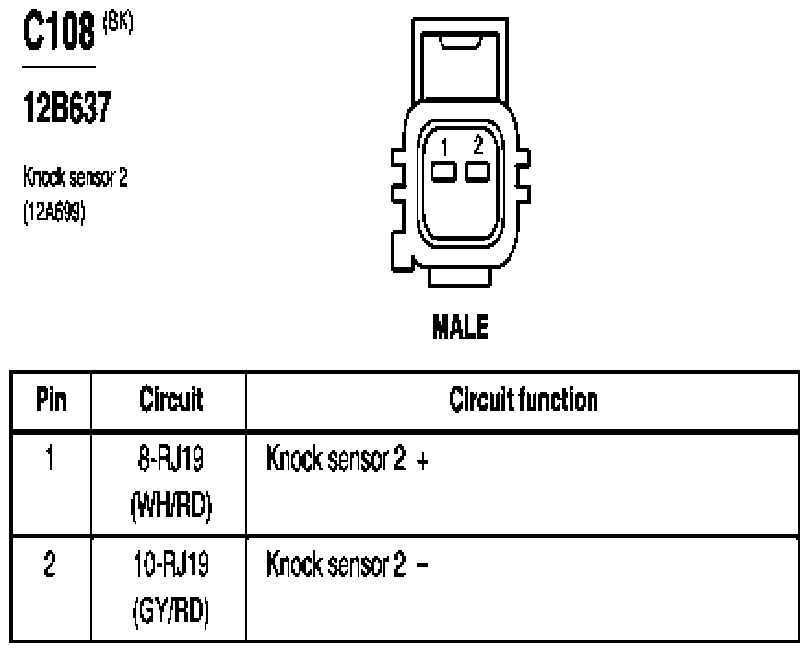

Fig 9: Knock Sensor 2 Connector End View (C108)
G07845145Courtesy of FORD MOTOR CO.

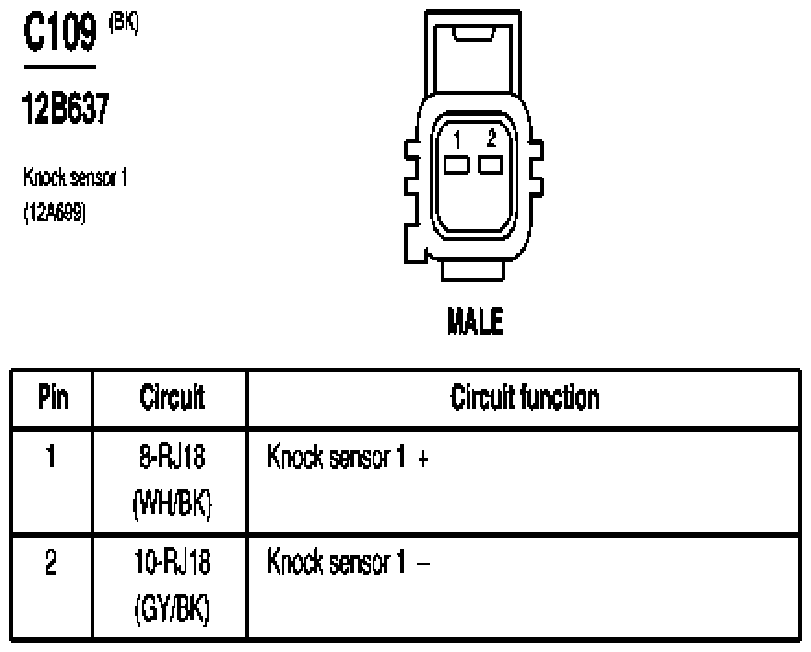

Fig 10: Knock Sensor 1 Connector End View (C109)
G07845146Courtesy of FORD MOTOR CO.

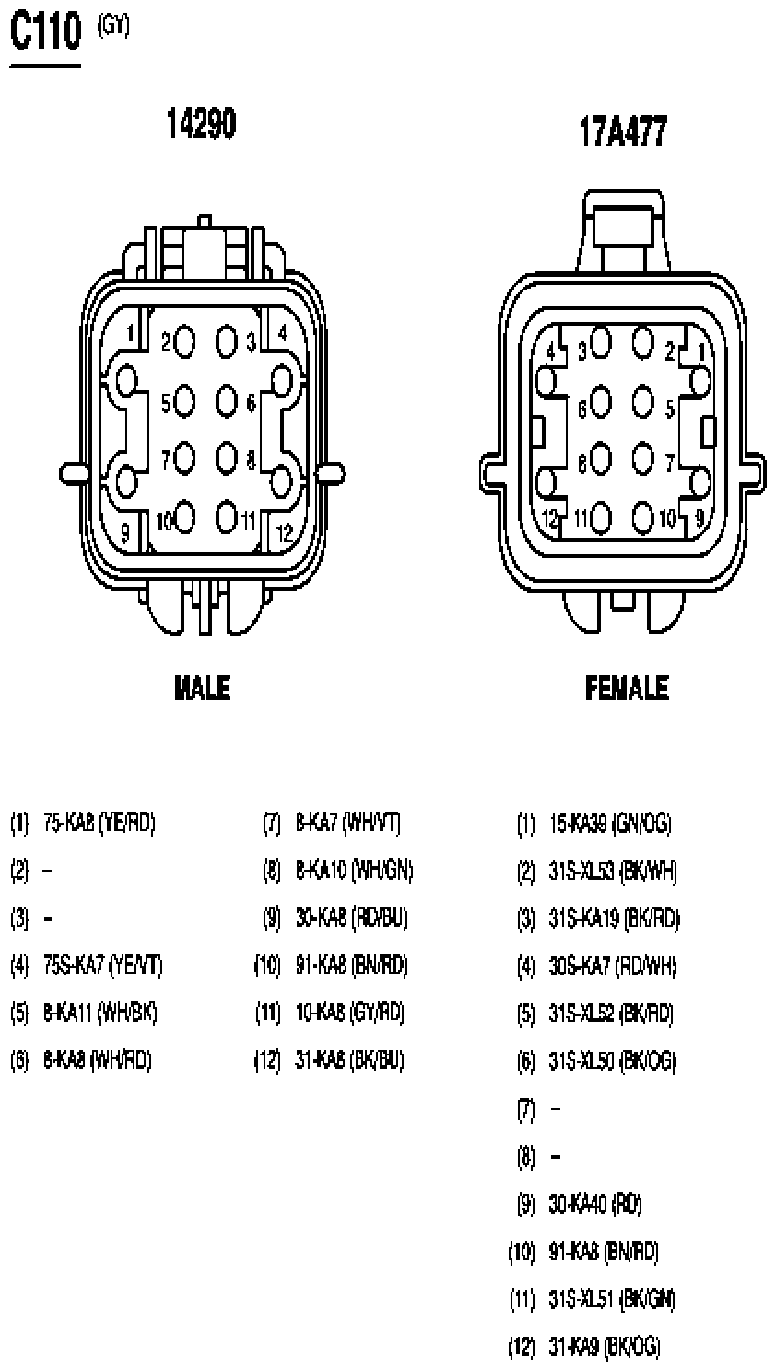

Fig 11: Inline Connector End View (C110)
G07845147Courtesy of FORD MOTOR CO.

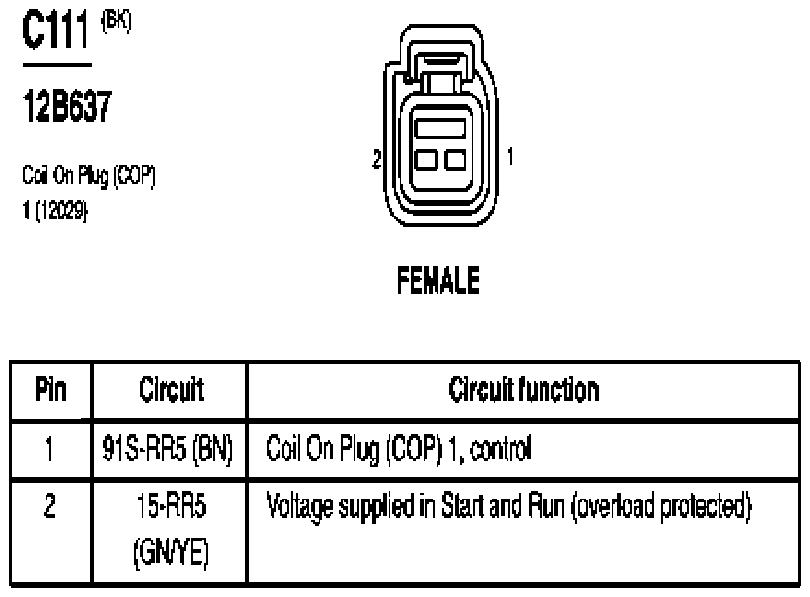

Fig 12: Coil On Plug (COP) 1 Connector End View (C111)
G07845148Courtesy of FORD MOTOR CO.

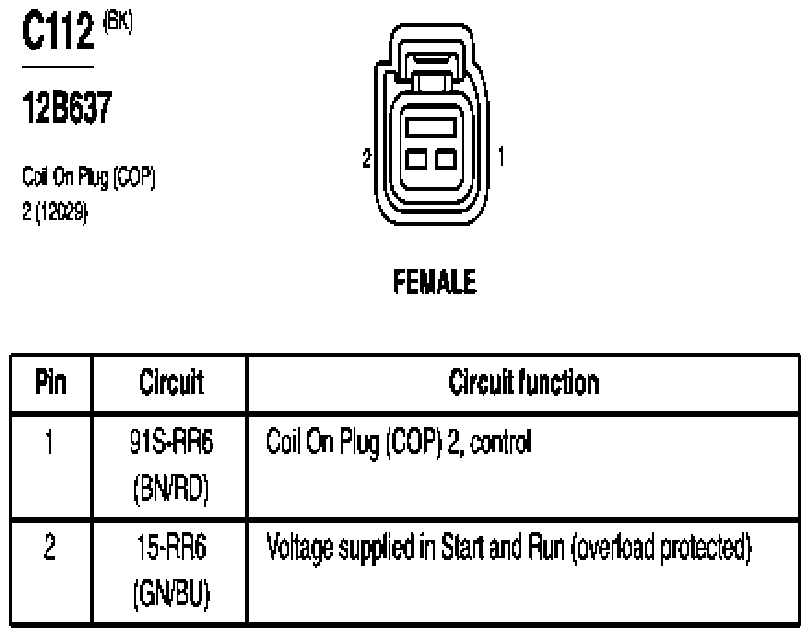

Fig 13: Coil On Plug (COP) 2 Connector End View (C112)
G07845149Courtesy of FORD MOTOR CO.

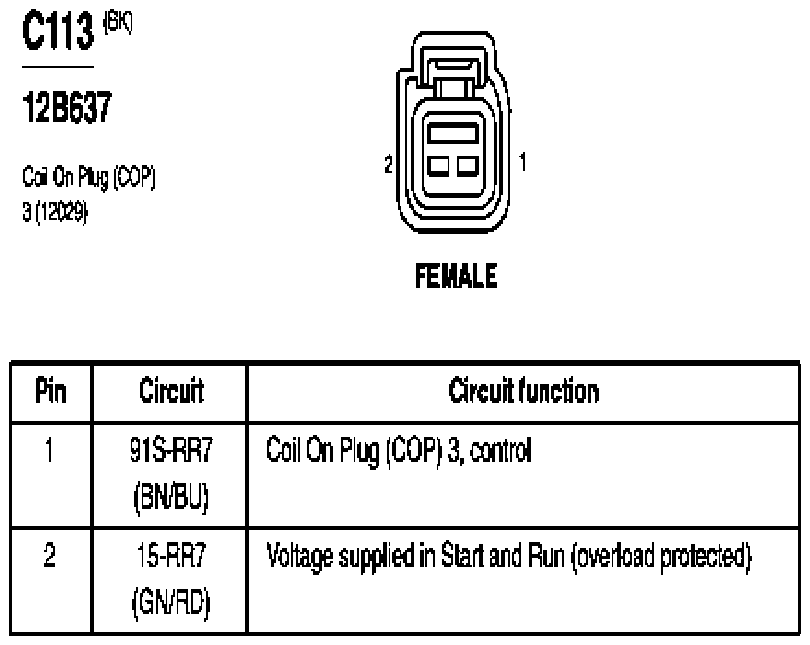

Fig 14: Coil On Plug (COP) 3 Connector End View (C113)
G07845150Courtesy of FORD MOTOR CO.

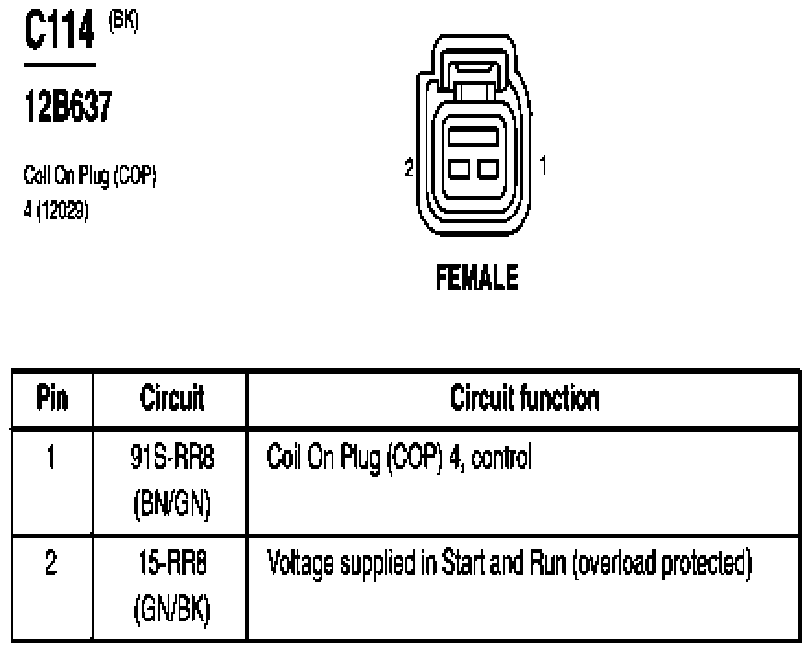

Fig 15: Coil On Plug (COP) 4 Connector End View (C114)
G07845151Courtesy of FORD MOTOR CO.

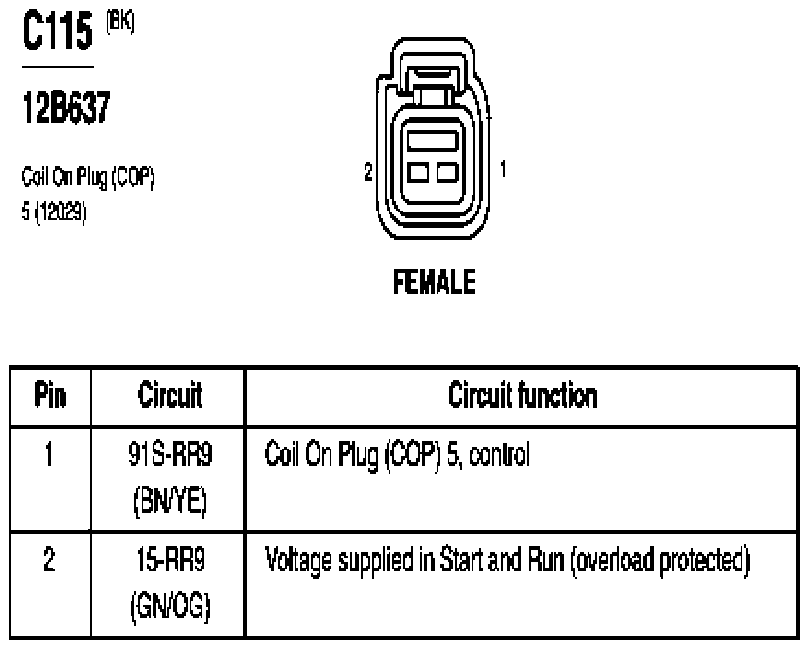

Fig 16: Coil On Plug (COP) 5 Connector End View (C115)
G07845152Courtesy of FORD MOTOR CO.

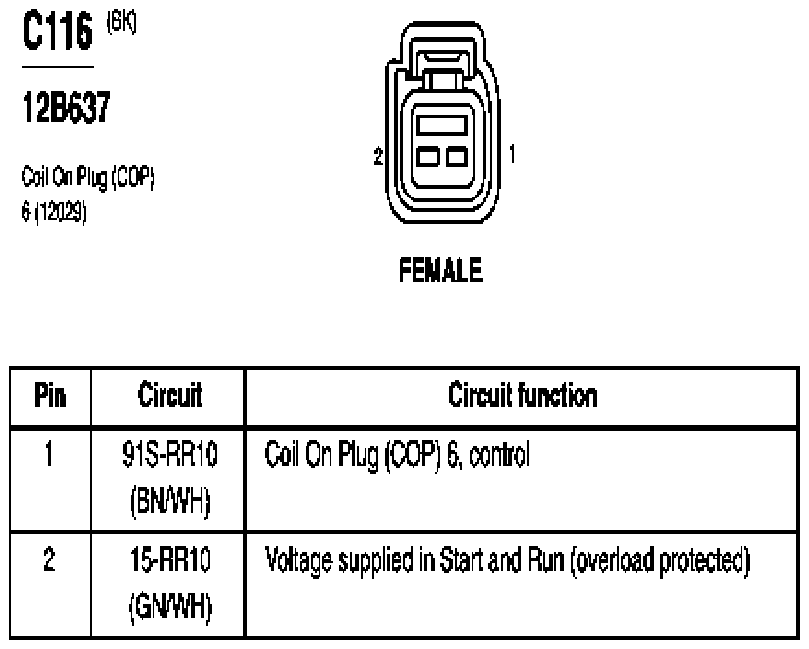

Fig 17: Coil On Plug (COP) 6 Connector End View (C116)
G07845153Courtesy of FORD MOTOR CO.

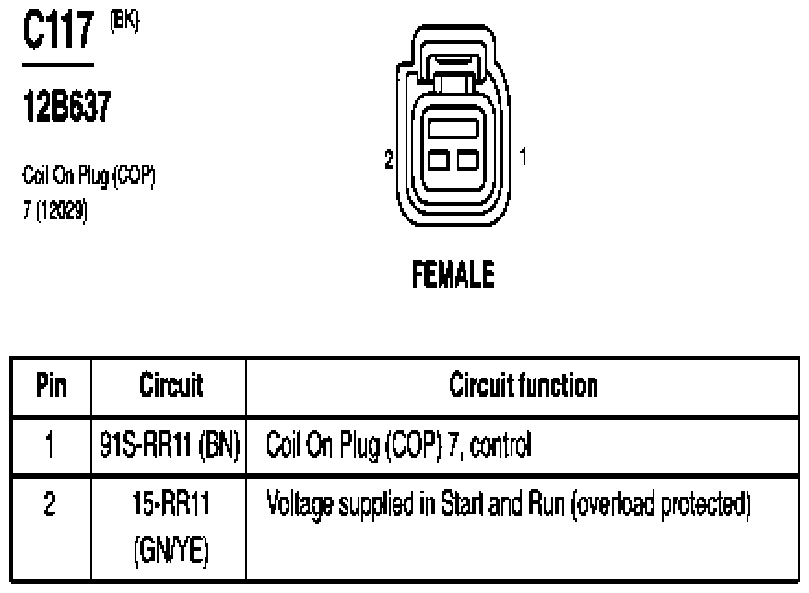

Fig 18: Coil On Plug (COP) 7 Connector End View (C117)
G07845154Courtesy of FORD MOTOR CO.
Fig 19: Coil On Plug (COP) 8 Connector End View (C118)
G07845155Courtesy of FORD MOTOR CO.

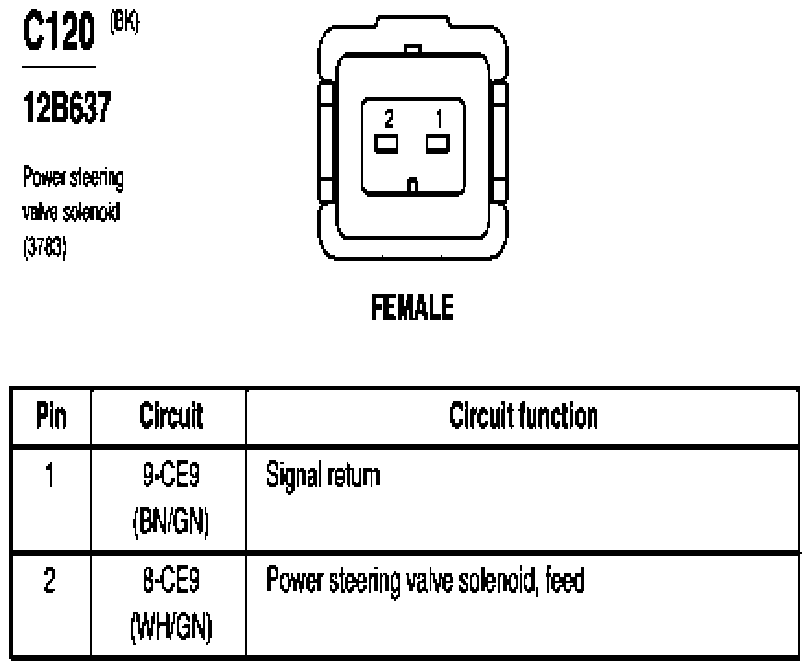

Fig 20: Power Steering Valve Solenoid Connector End View (C120)
G07845156Courtesy of FORD MOTOR CO.

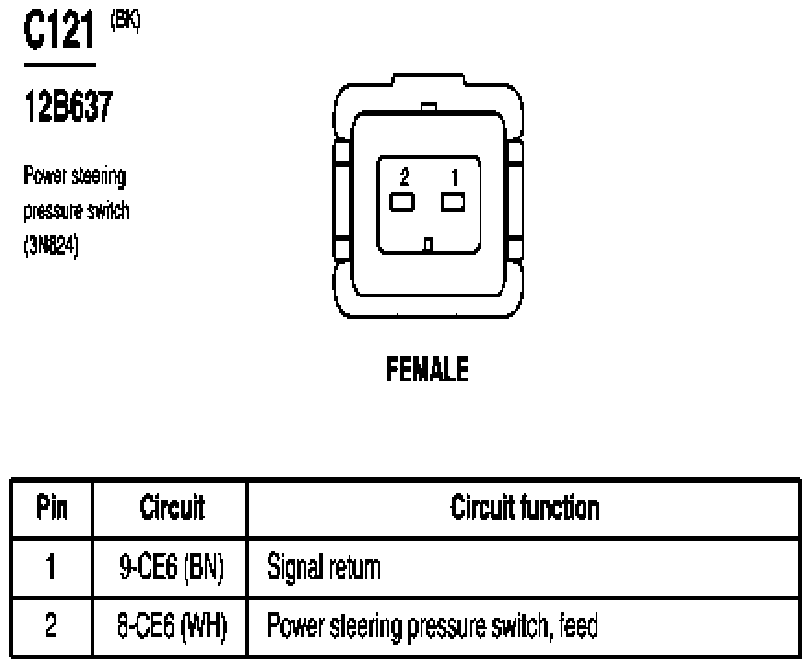

Fig 21: Power Steering Pressure Switch Connector End View (C121)
G07845157Courtesy of FORD MOTOR CO.

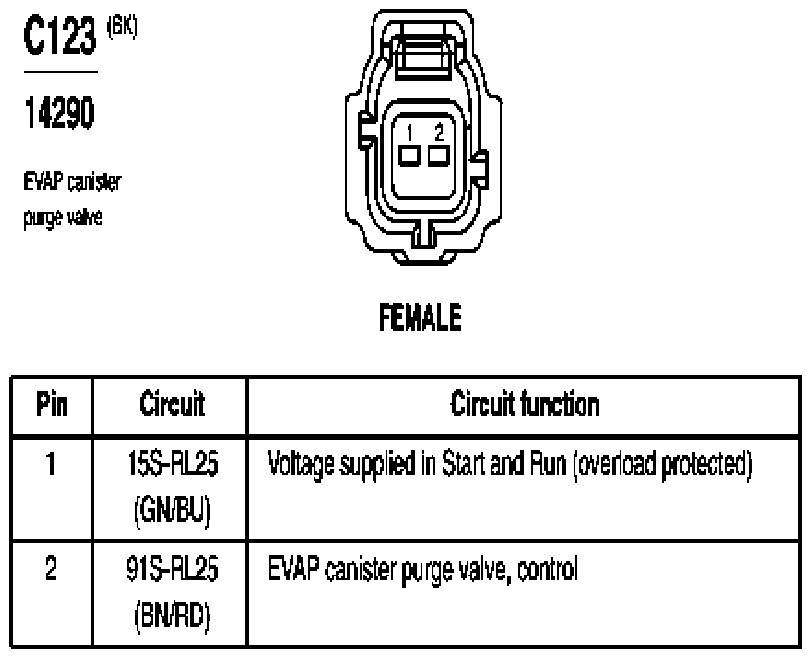

Fig 22: EVAP Canister Purge Valve Connector End View (C123)
G07845158Courtesy of FORD MOTOR CO.
Fig 23: Brake Fluid Level Switch Connector End View (C124)
G07845159Courtesy of FORD MOTOR CO.

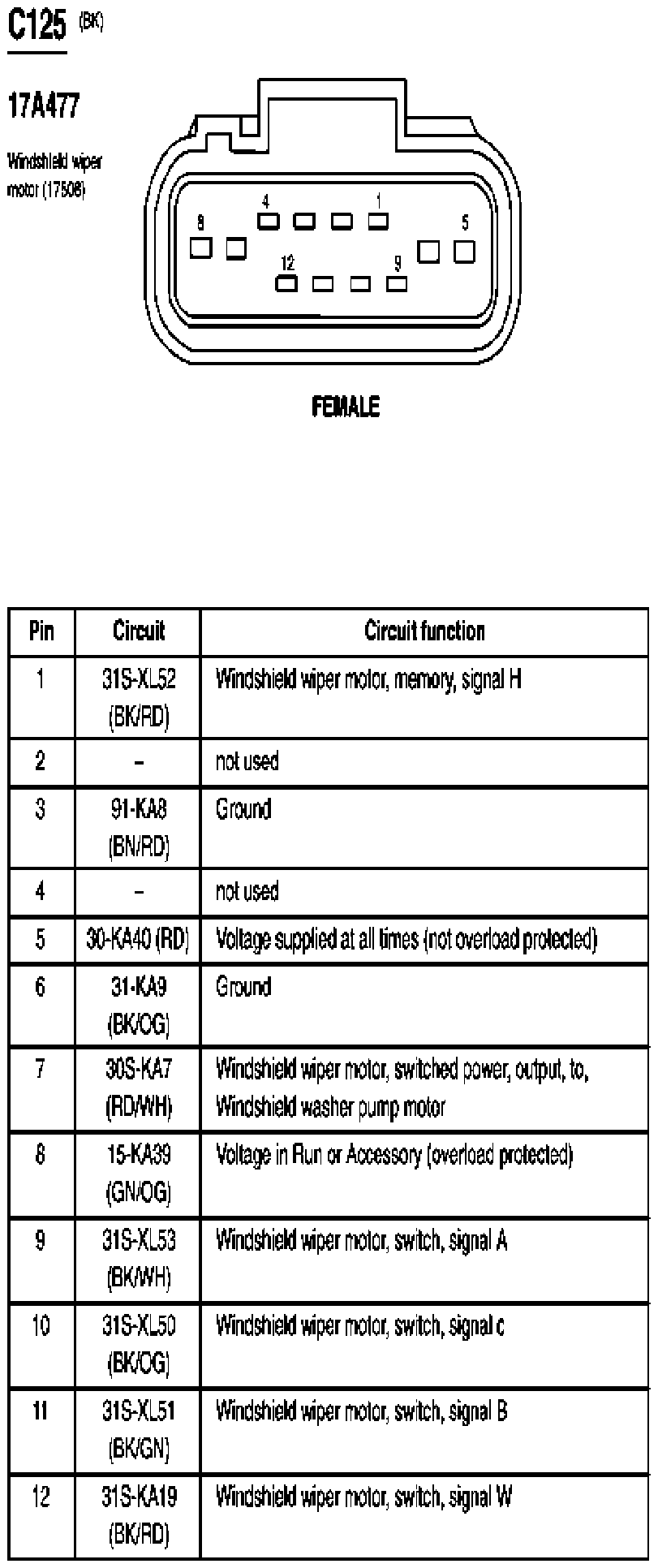

Fig 24: Windshield Wiper Motor Connector End View (C125)
G07845160Courtesy of FORD MOTOR CO.

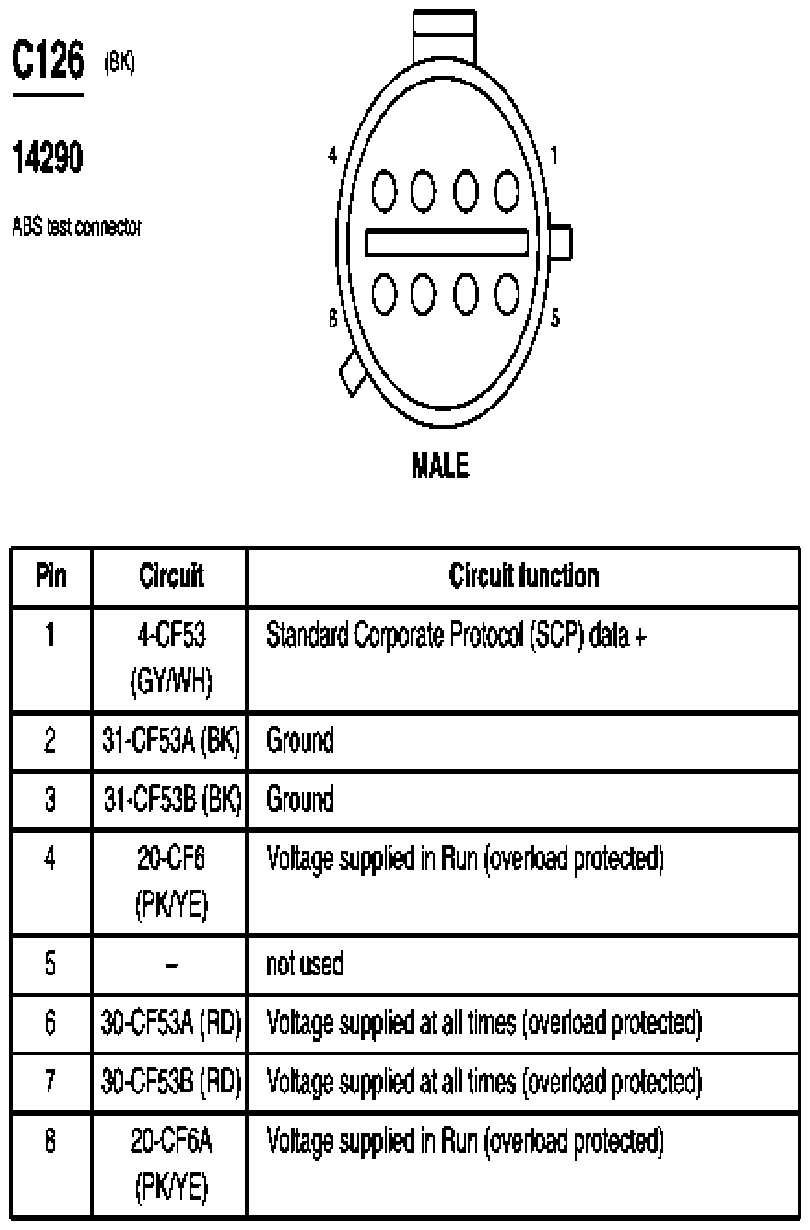

Fig 25: ABS Test Connector End View (C126)
G07845161Courtesy of FORD MOTOR CO.

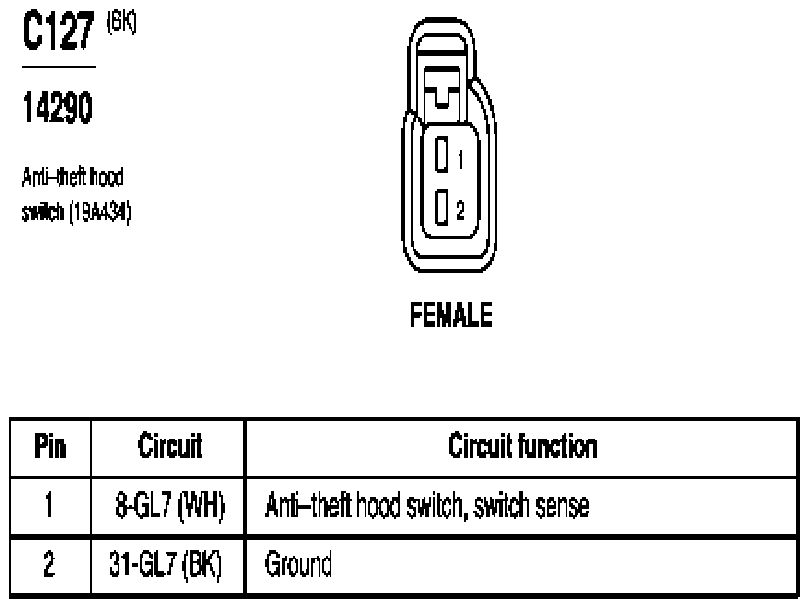

Fig 26: Anti-Theft Hood Switch Connector End View (C127)
G07845162Courtesy of FORD MOTOR CO.
Fig 27: Mass Air Flow (MAF) Sensor Connector End View (C128)
G07845163Courtesy of FORD MOTOR CO.

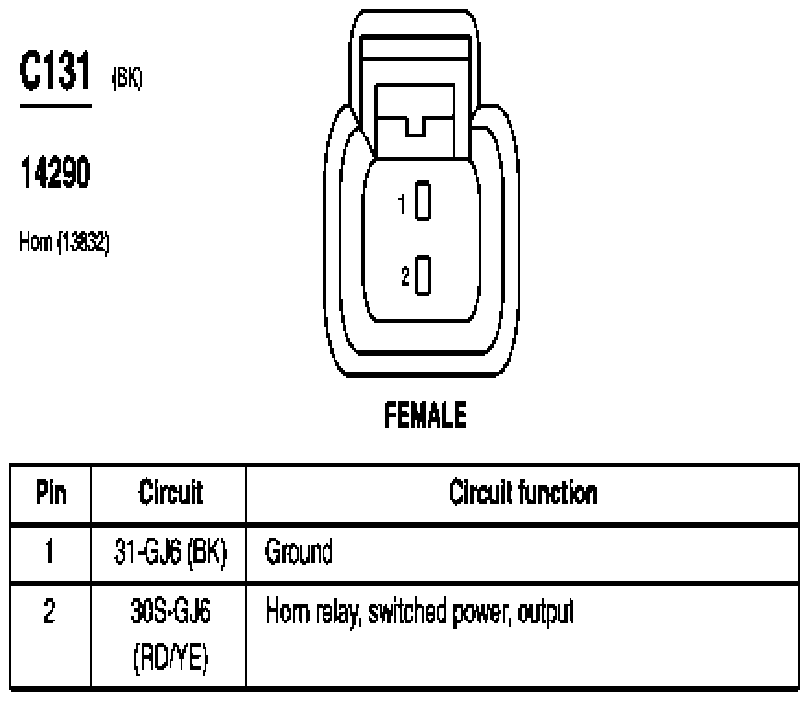

Fig 28: Horn Connector End View (C131)
G07845164Courtesy of FORD MOTOR CO.

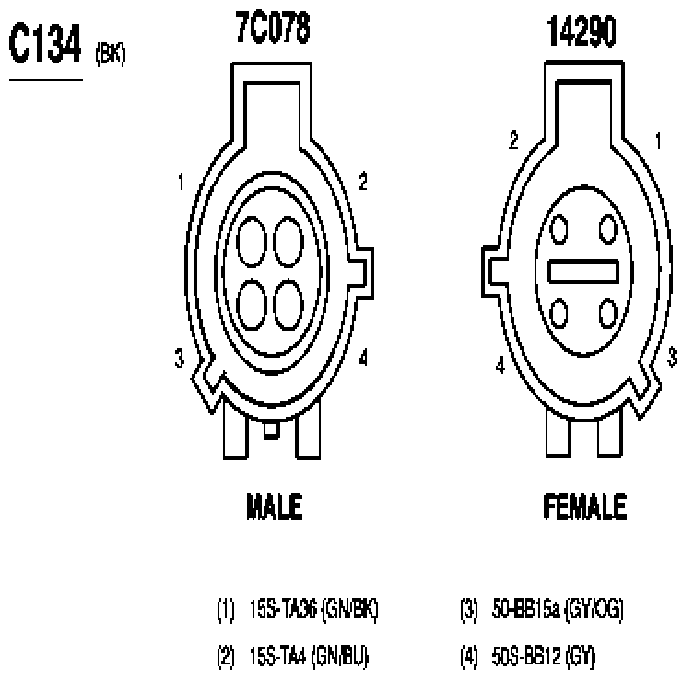

Fig 29: Inline Connector End View (C134)
G07845165Courtesy of FORD MOTOR CO.

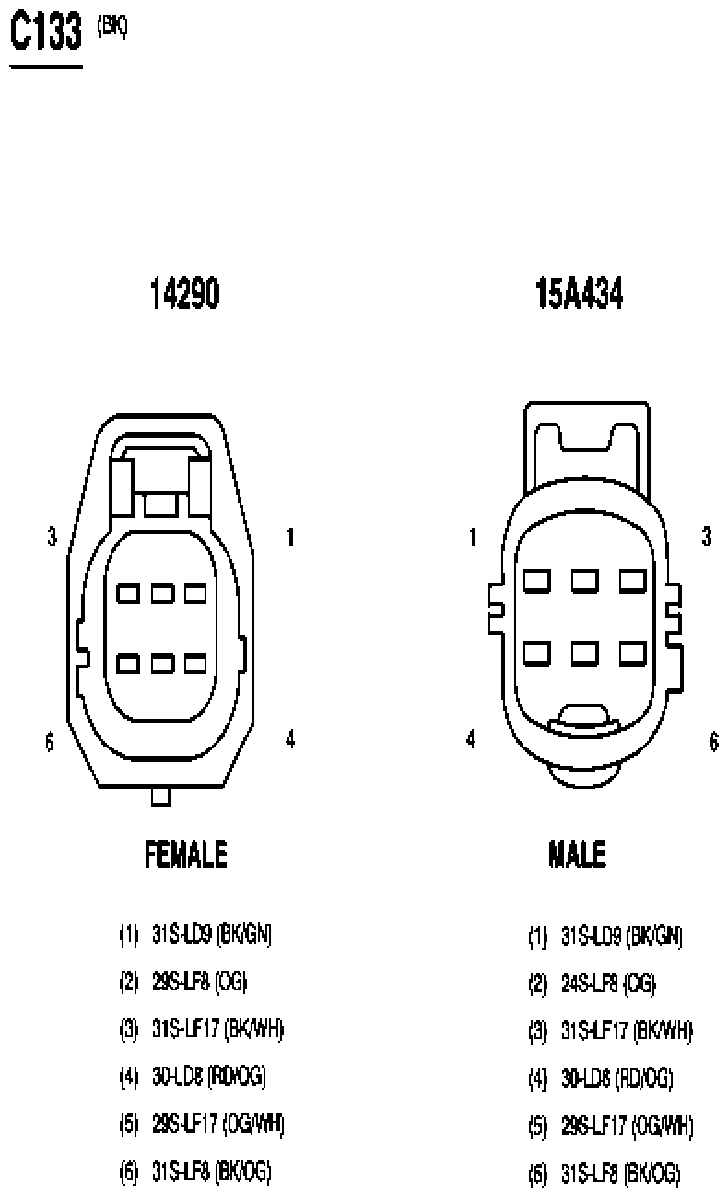

Fig 30: Inline Connector End View (C133)
G03994548Courtesy of FORD MOTOR CO.

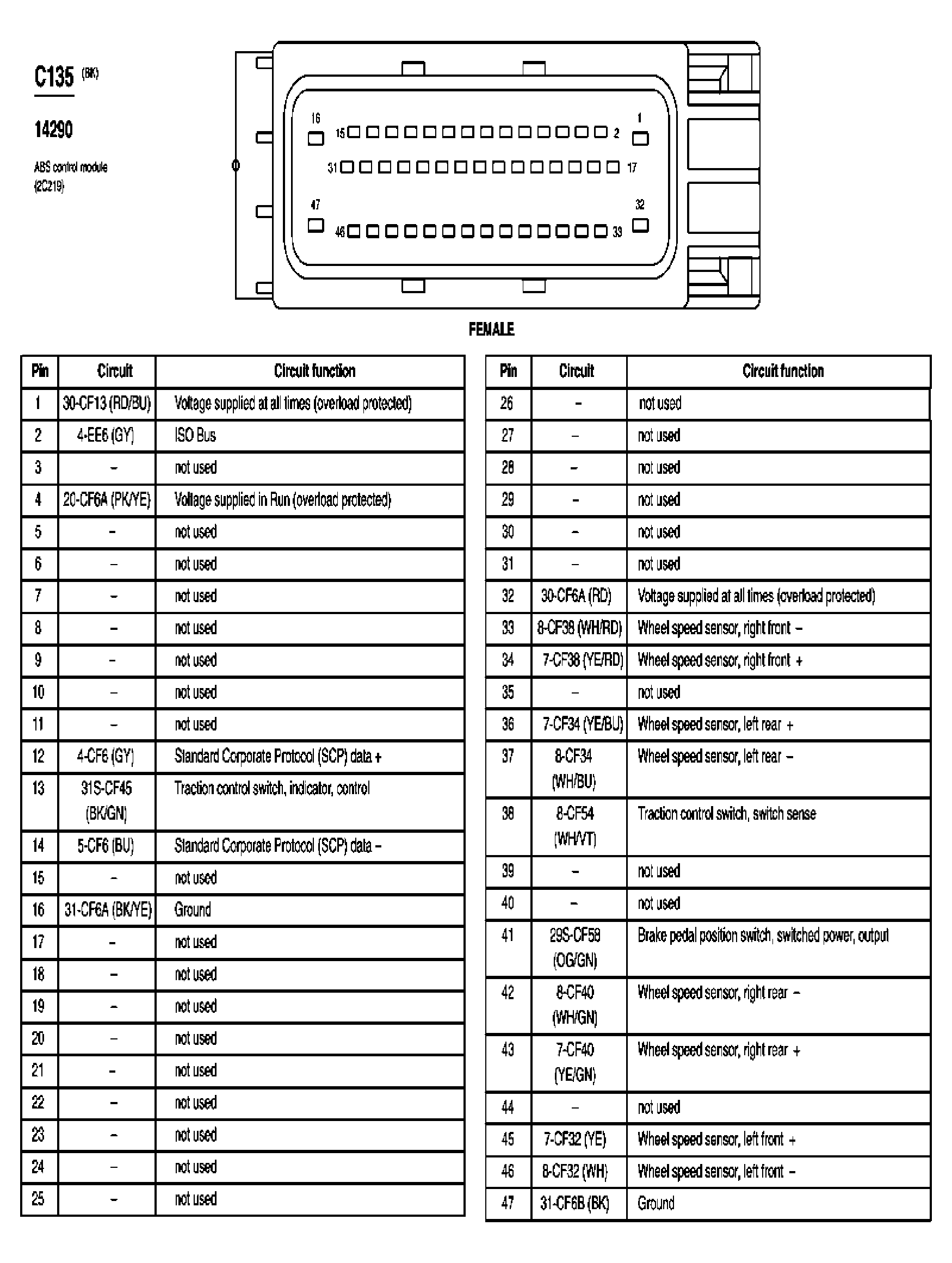

Fig 31: ABS Control Module Connector End View (C135)
G03994549Courtesy of FORD MOTOR CO.

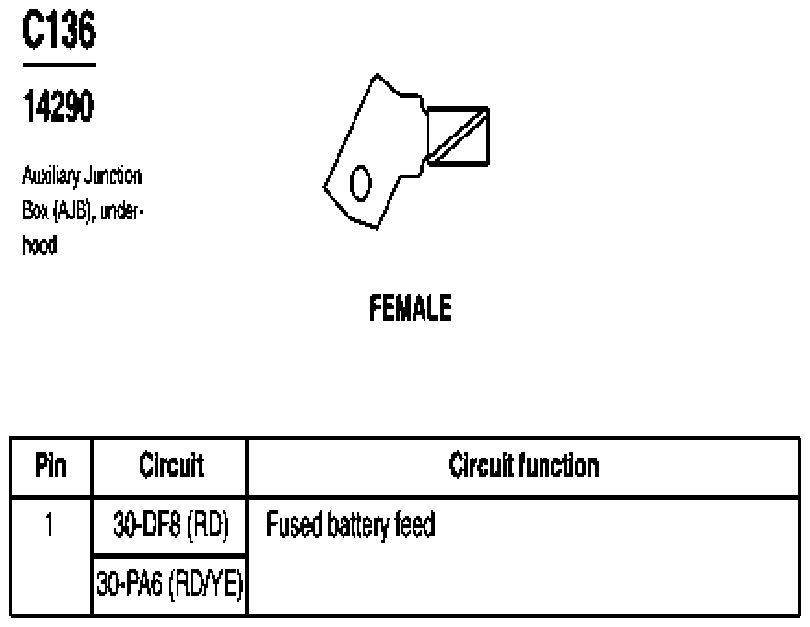

Fig 32: Auxiliary Junction Box (AJB), Underhood Connector End View (C136)
G07845166Courtesy of FORD MOTOR CO.

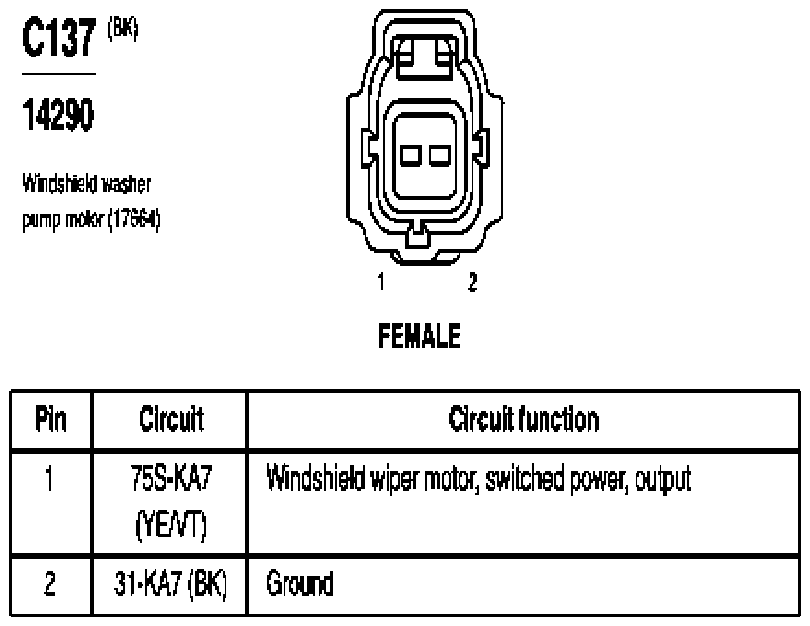

Fig 33: Windshield Washer Pump Motor Connector End View (C137)
G07845167Courtesy of FORD MOTOR CO.

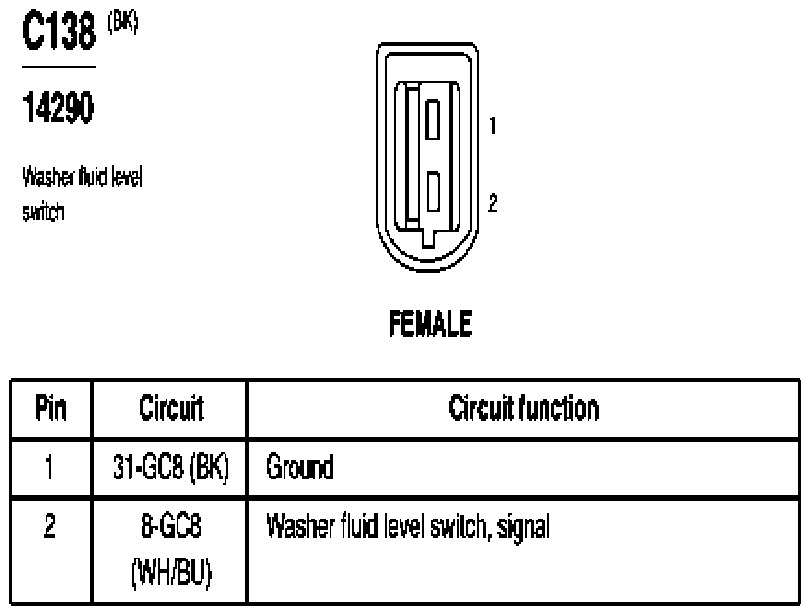

Fig 34: Washer Fluid Level Switch Connector End View (C138)
G07845168Courtesy of FORD MOTOR CO.

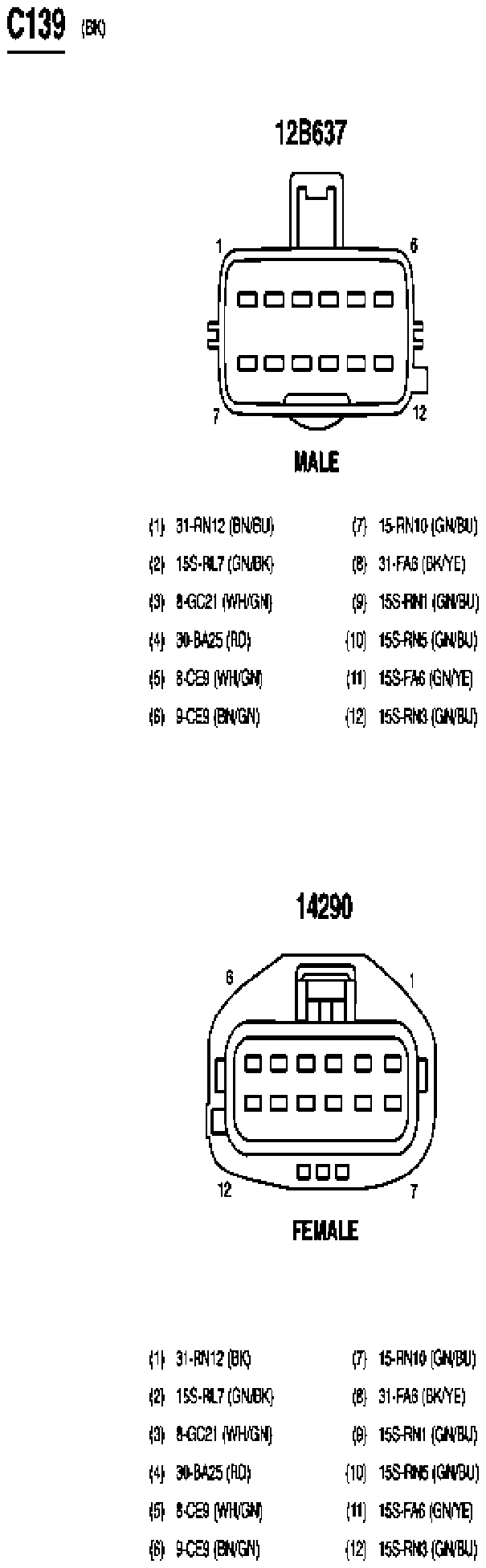

Fig 35: Inline Connector End View (C139)
G07845169Courtesy of FORD MOTOR CO.

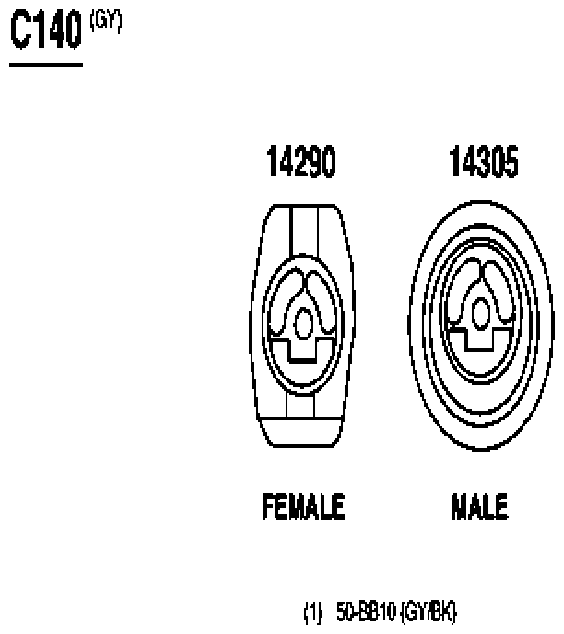

Fig 36: Inline Connector End View (C140)
G07845170Courtesy of FORD MOTOR CO.

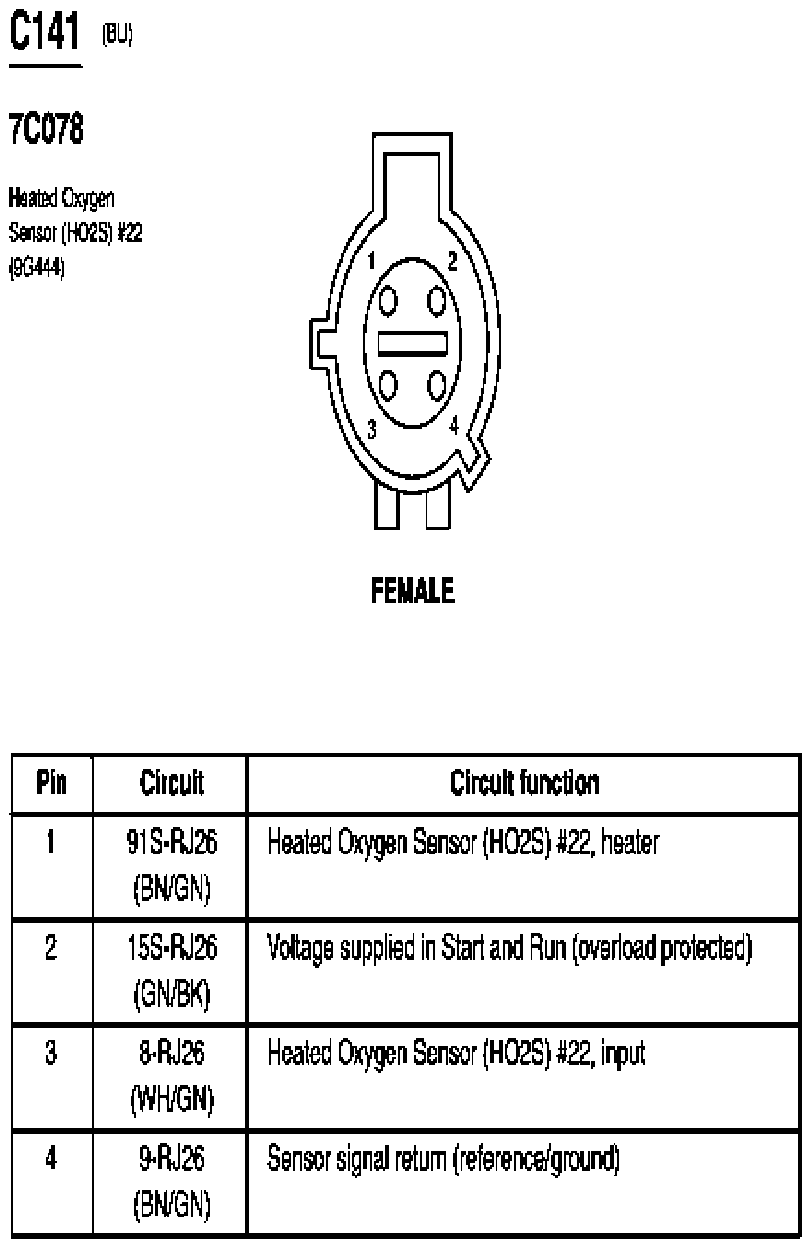

Fig 37: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
G07845171Courtesy of FORD MOTOR CO.

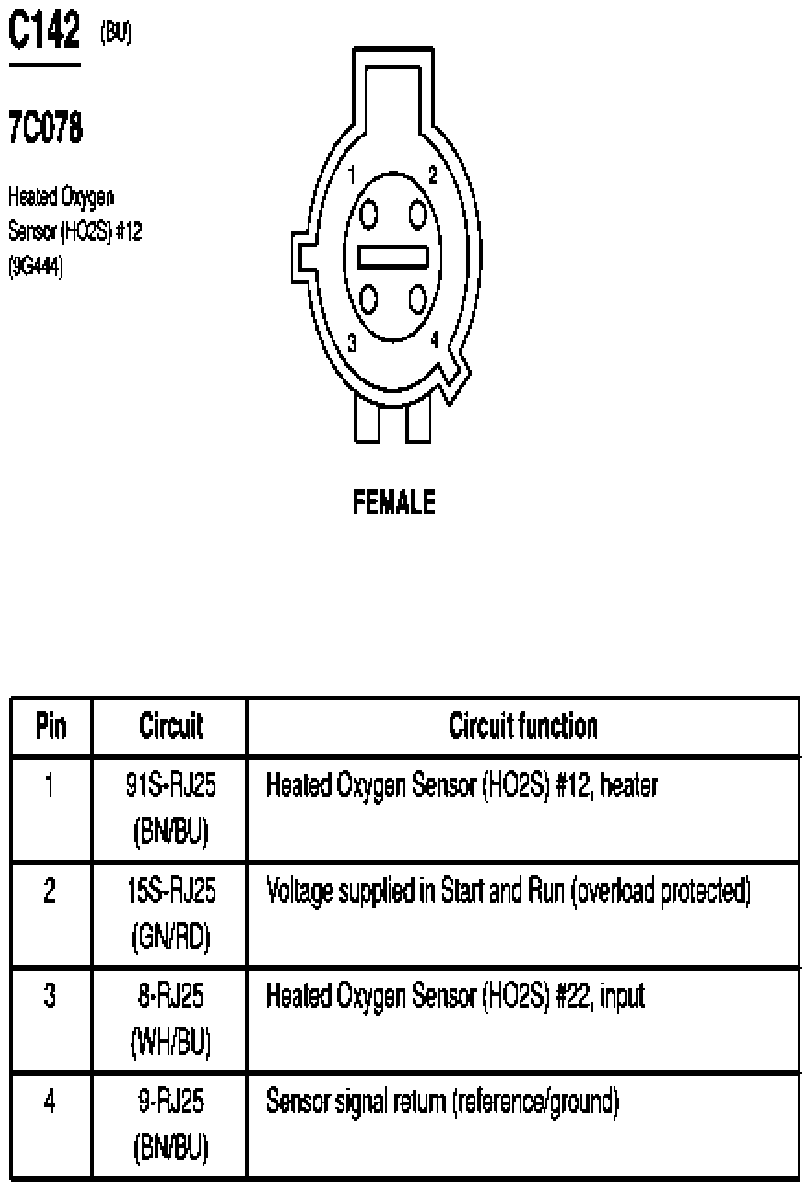

Fig 38: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
G07845172Courtesy of FORD MOTOR CO.

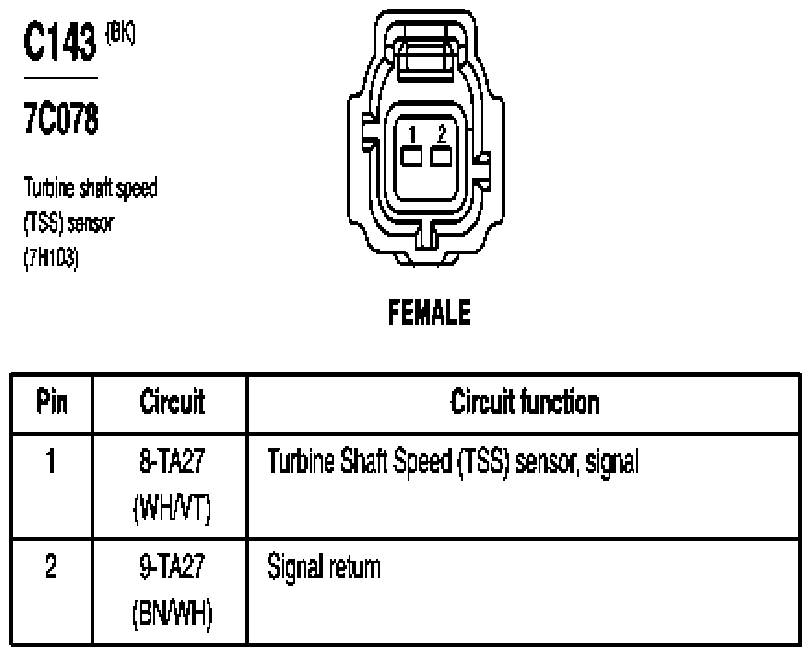

Fig 39: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
G07845173Courtesy of FORD MOTOR CO.

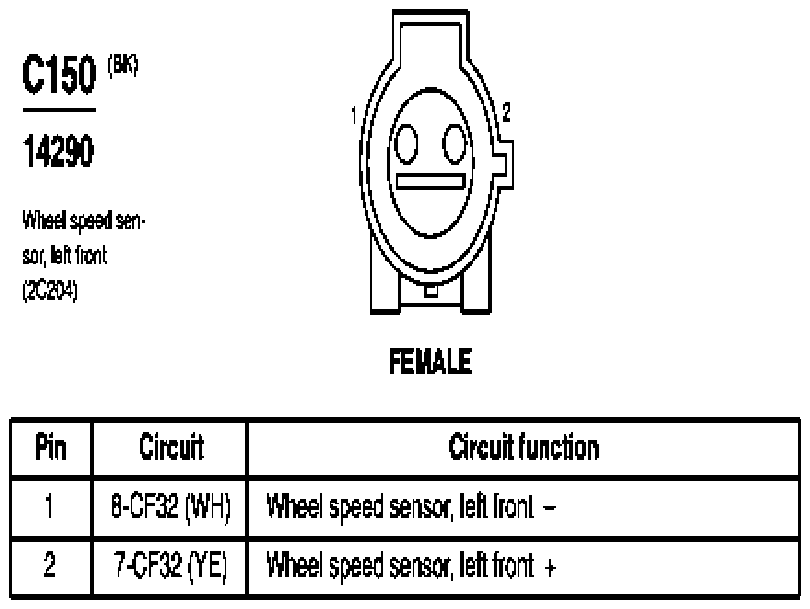

Fig 40: Wheel Speed Sensor Left Front Connector End View (C150)
G07845174Courtesy of FORD MOTOR CO.

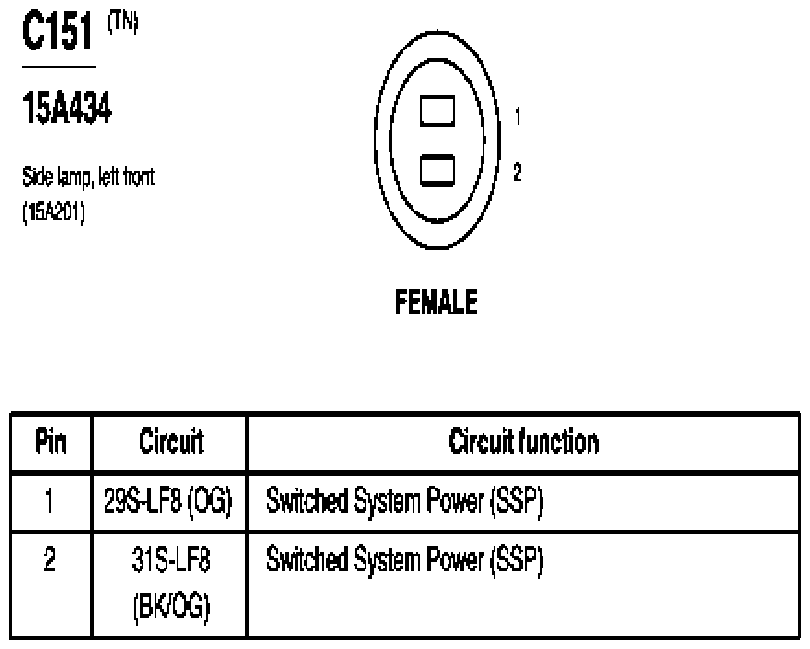

Fig 41: Side Lamp, Left Front Connector End View (C151)
G07845175Courtesy of FORD MOTOR CO.

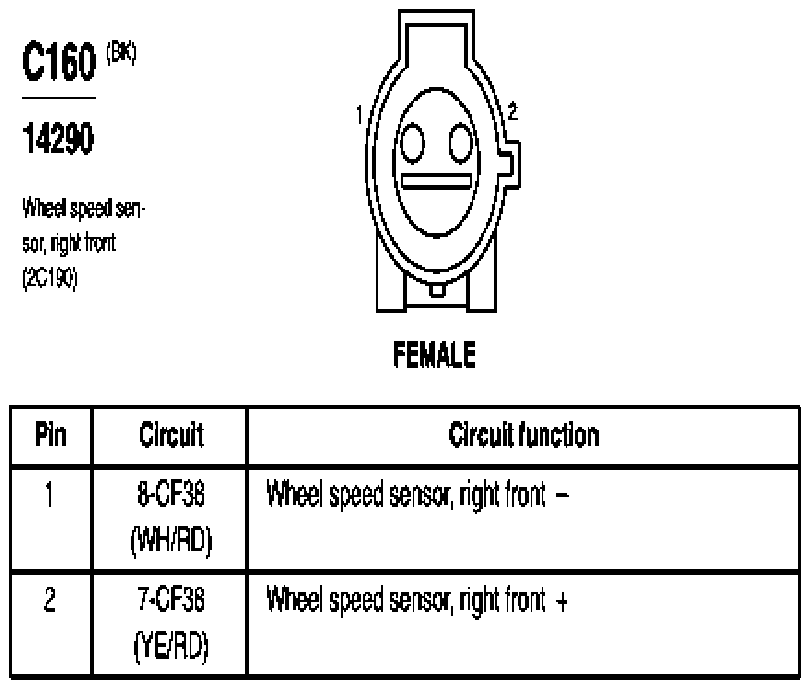

Fig 42: Wheel Speed Sensor Right Front Connector End View (C160)
G07845176Courtesy of FORD MOTOR CO.

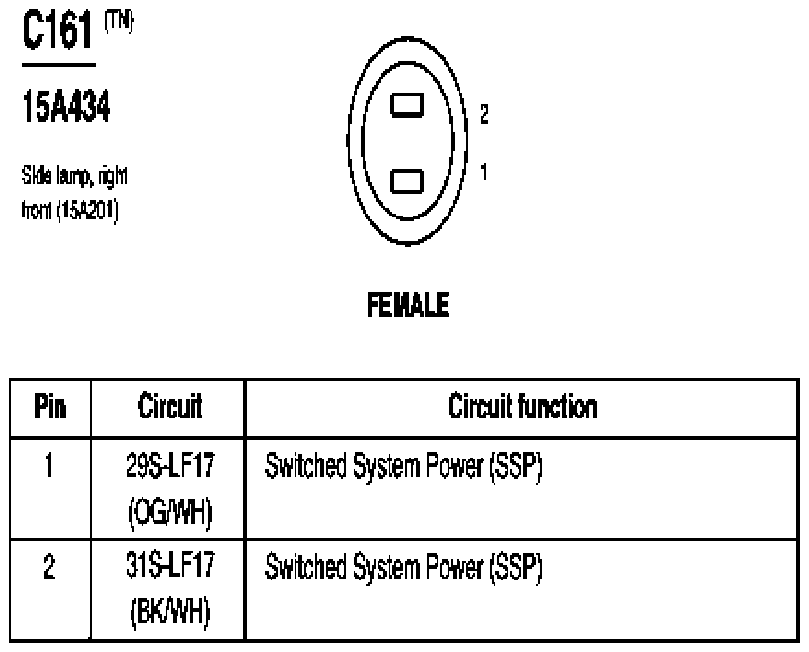

Fig 43: Side Lamp, Right Front Connector End View (C161)
G07845177Courtesy of FORD MOTOR CO.

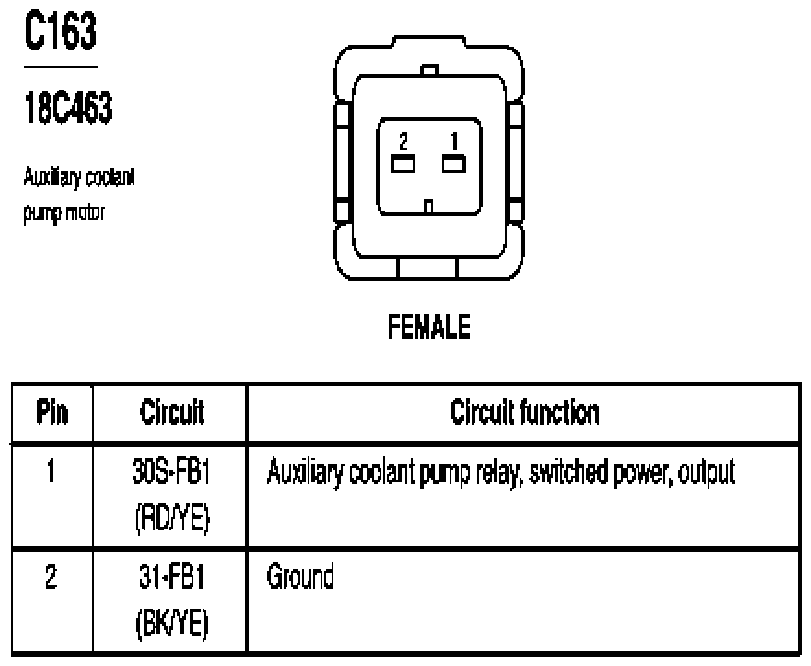

Fig 44: Auxiliary Control Pump Motor Connector End View (C163)
G07845178Courtesy of FORD MOTOR CO.

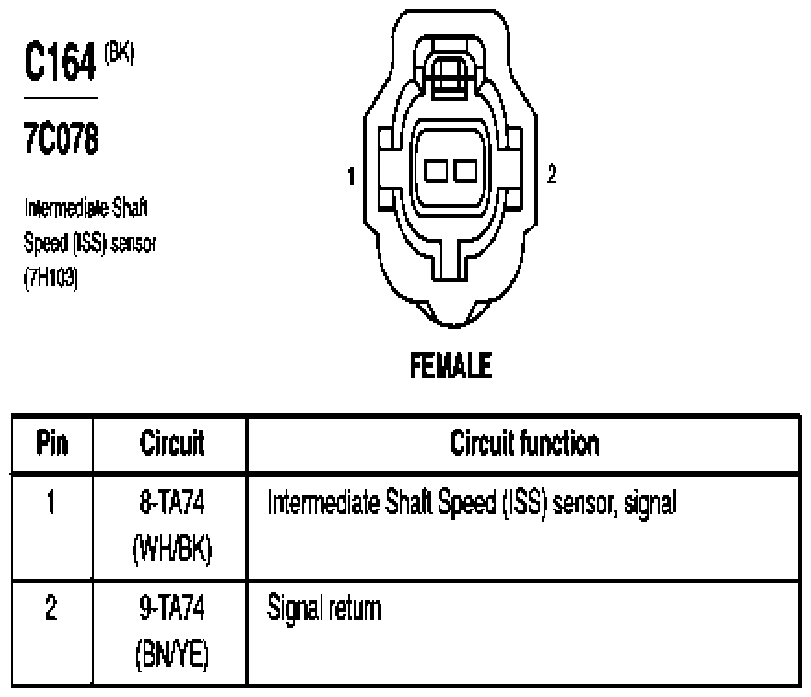

Fig 45: Intermediate Shaft Speed (ISS) Sensor, Signal Connector End View (C164)
G07845179Courtesy of FORD MOTOR CO.

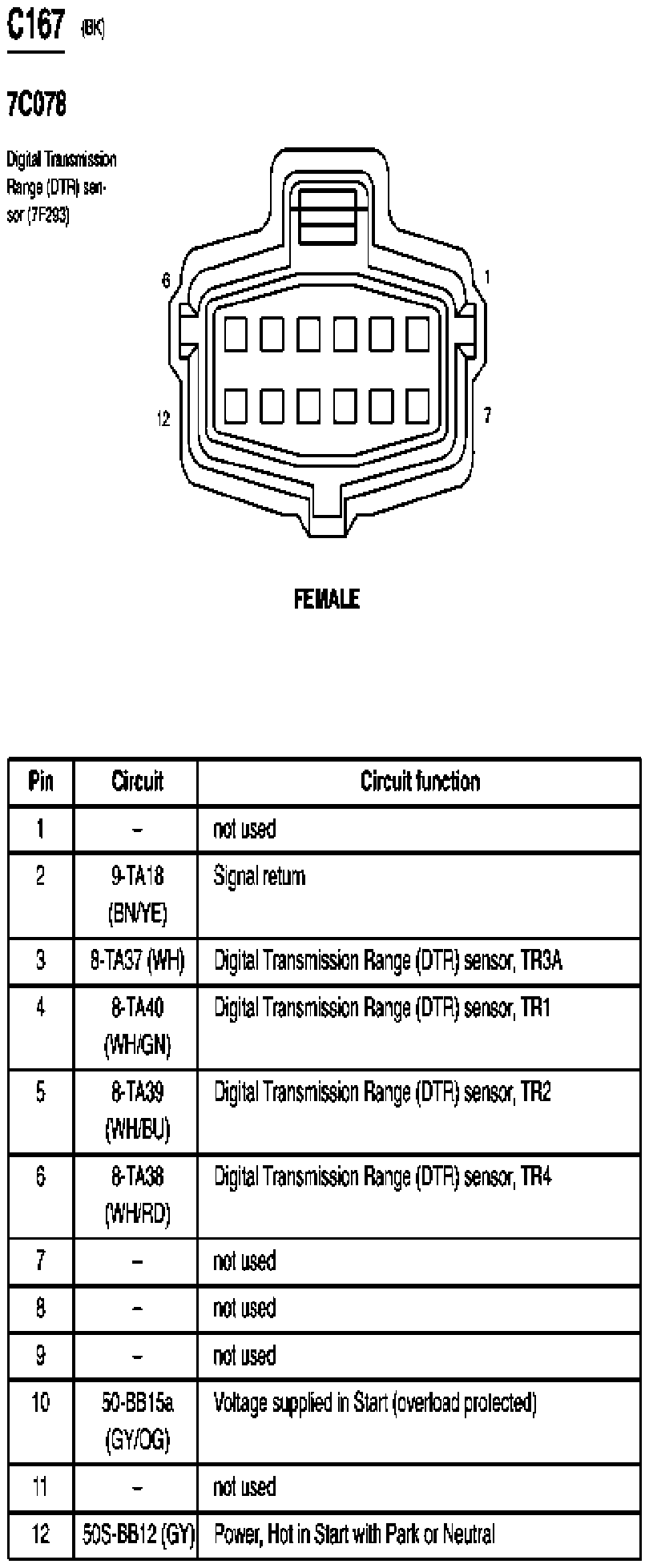

Fig 46: Digital Transmission Range (DTR) Sensor Connector End View (C167)
G07845180Courtesy of FORD MOTOR CO.

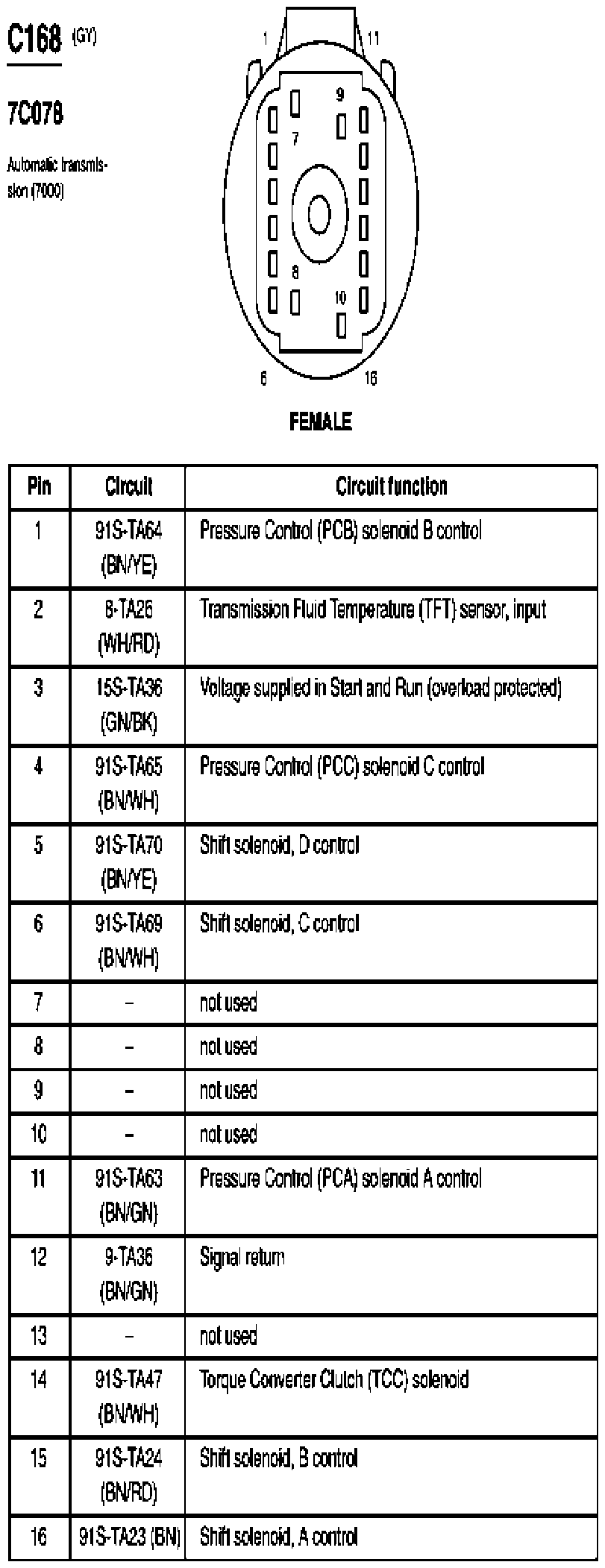

Fig 47: Automatic Transaxle Connector End View (C168)
G07845181Courtesy of FORD MOTOR CO.

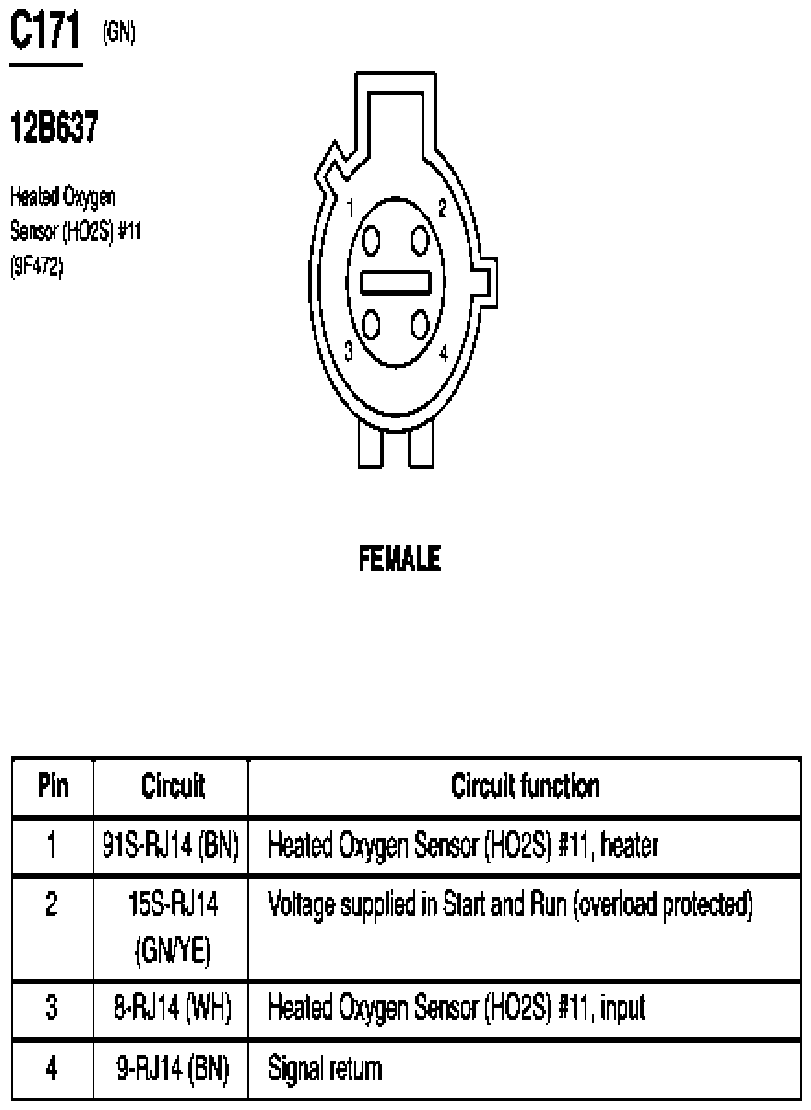

Fig 48: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
G07845182Courtesy of FORD MOTOR CO.

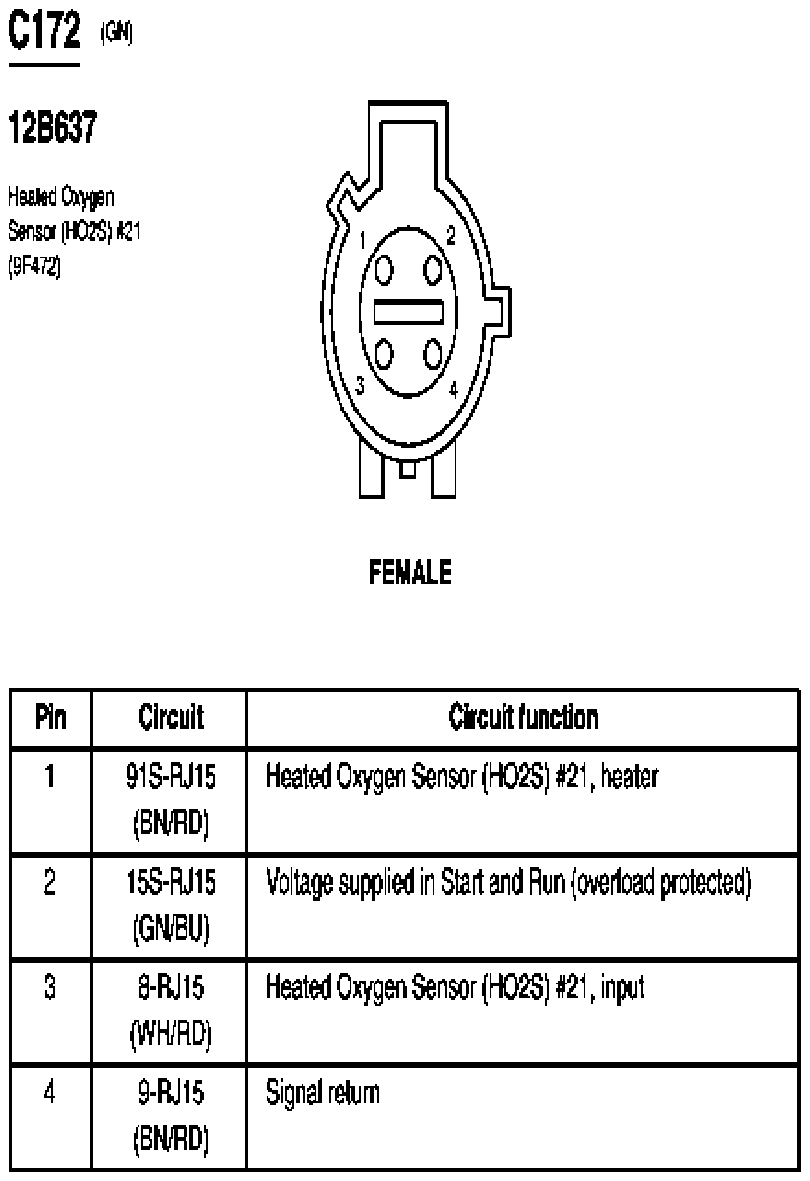

Fig 49: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
G07845183Courtesy of FORD MOTOR CO.

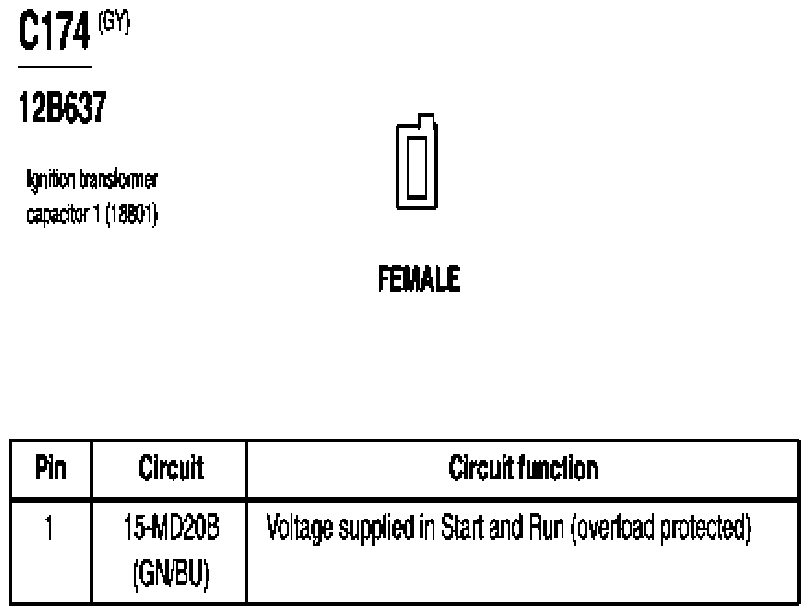

Fig 50: Ignition Transformer Capacitor 1 Connector End View (C174)
G07845184Courtesy of FORD MOTOR CO.

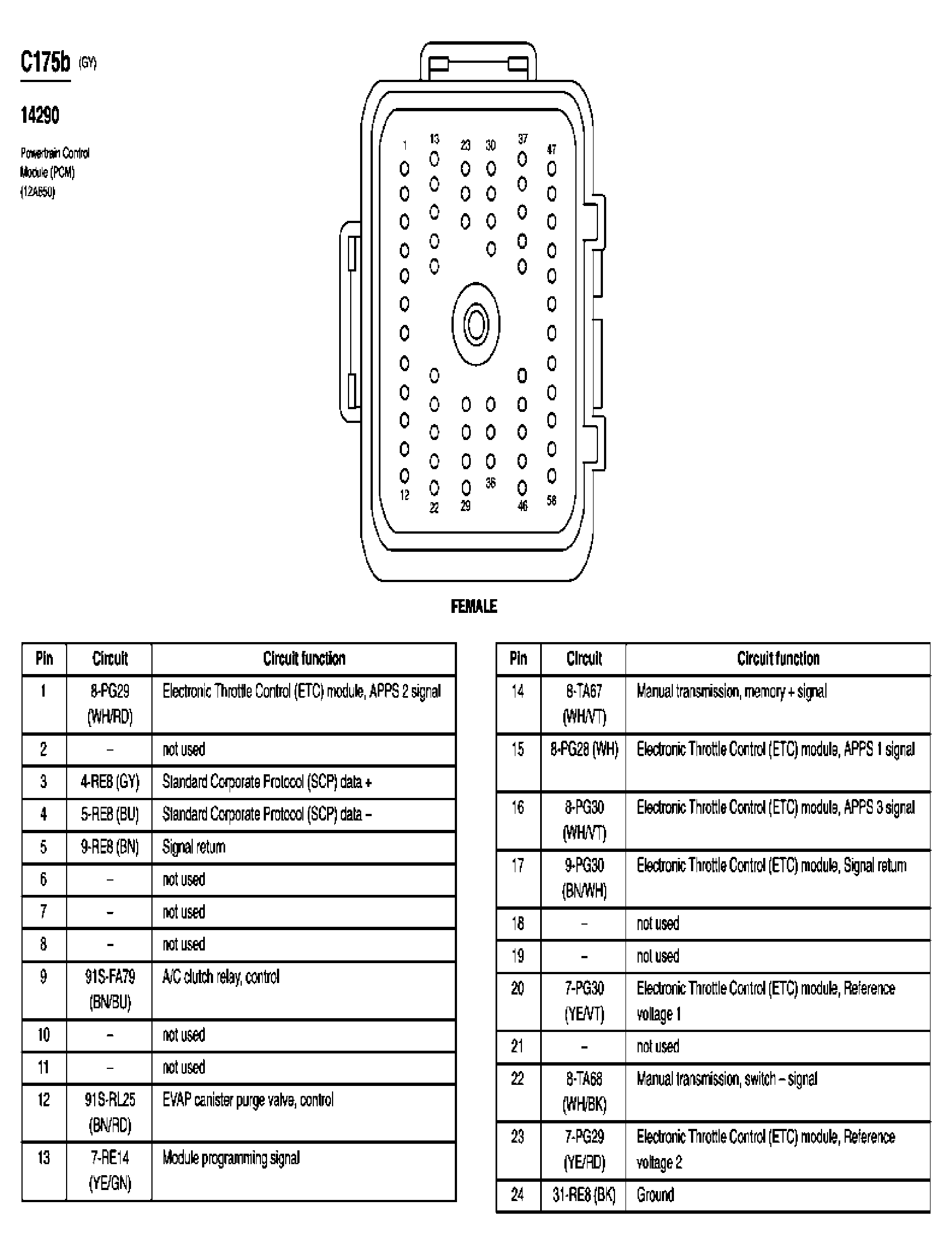

Fig 51: Powertrain Control Module (PCM) Connector End View (C175b) (1 Of 2)
G03994555Courtesy of FORD MOTOR CO.

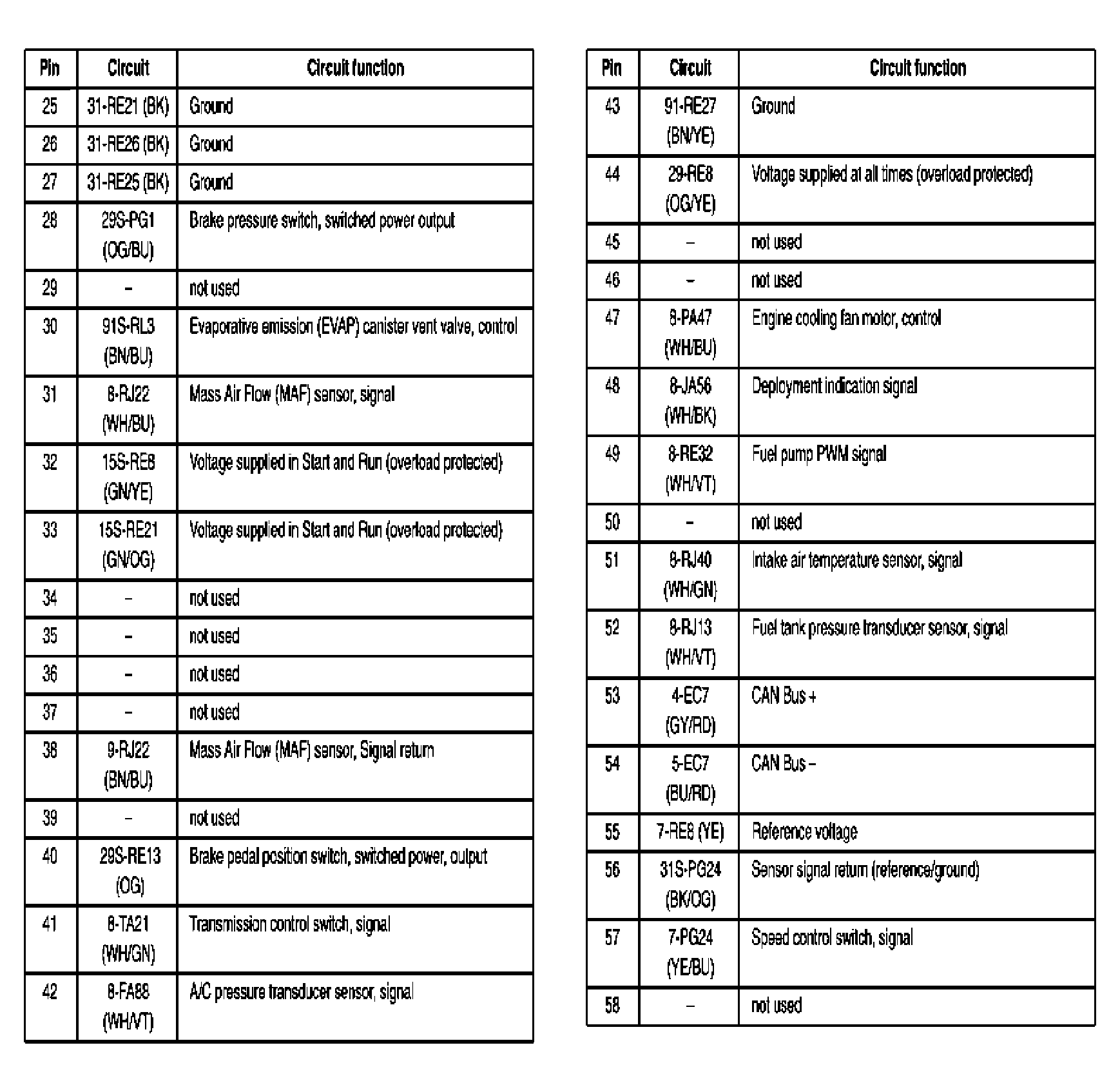

Fig 52: Powertrain Control Module (PCM) Connector End View (C175b) (2 Of 2)
G03994556Courtesy of FORD MOTOR CO.

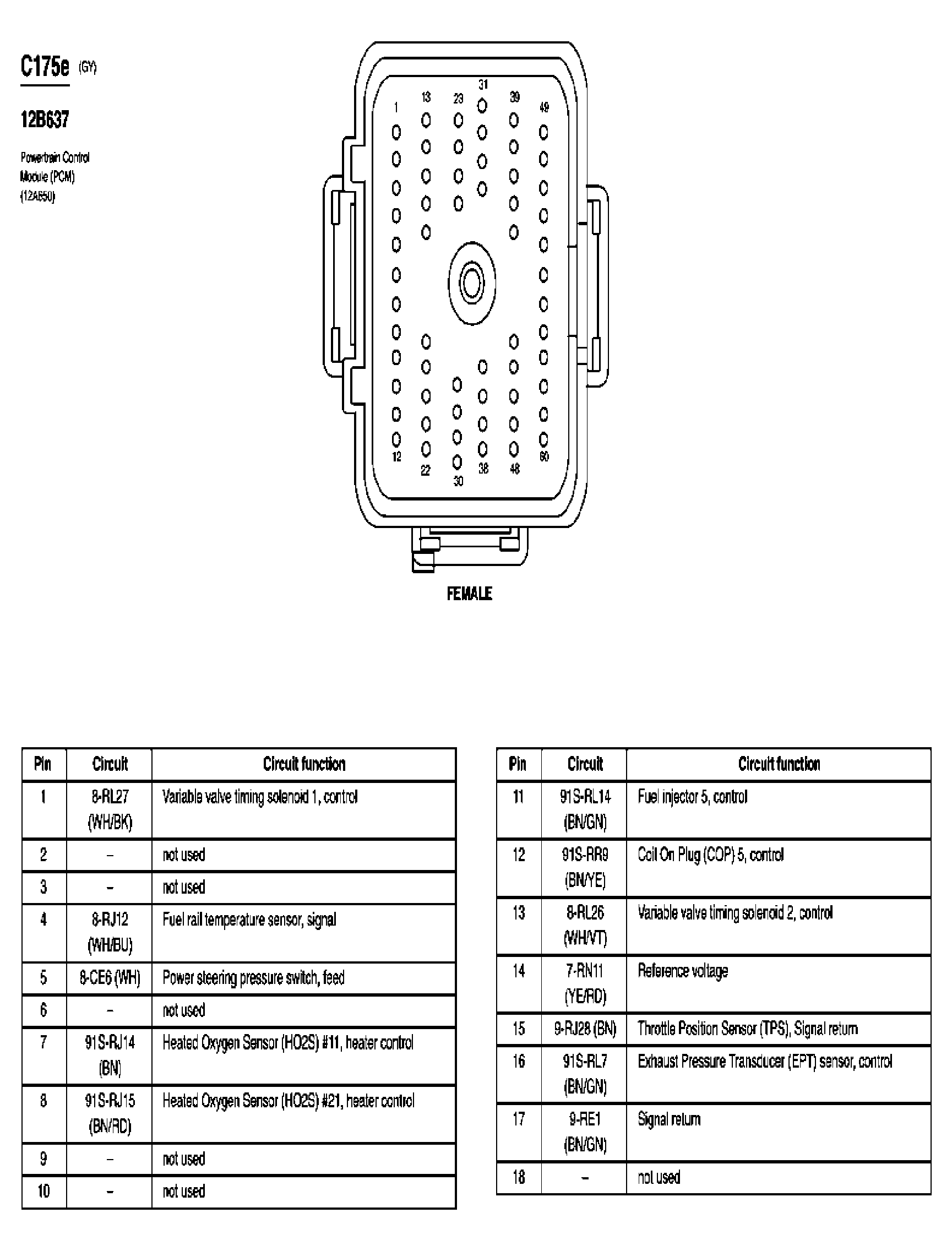

Fig 53: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)
G03994557Courtesy of FORD MOTOR CO.

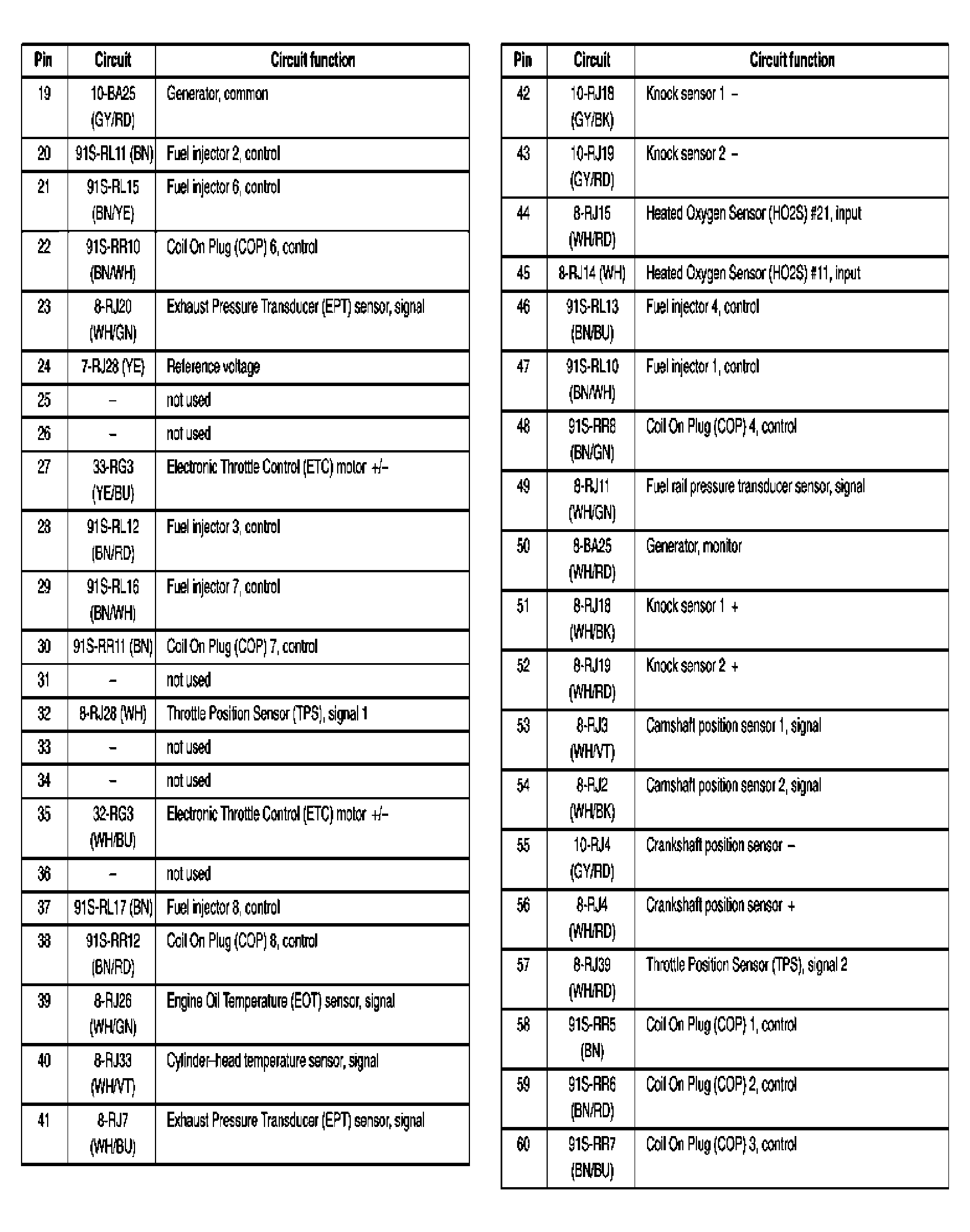

Fig 54: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)
G03994558Courtesy of FORD MOTOR CO.
Fig 55: Powertrain Control Module (PCM) Connector End View (C175t)
G03994559Courtesy of FORD MOTOR CO.

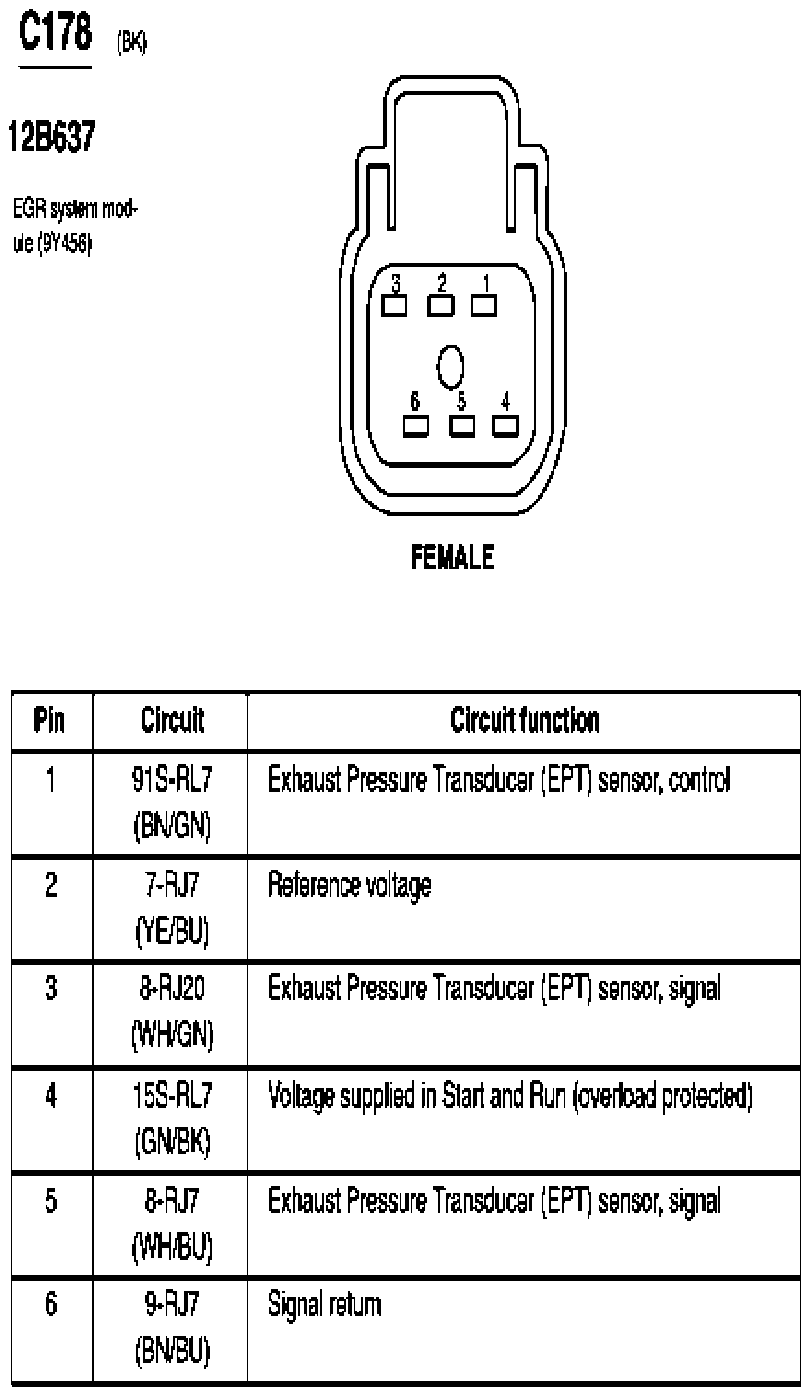

Fig 56: EGR System Module Connector End View (C178)
G07845185Courtesy of FORD MOTOR CO.

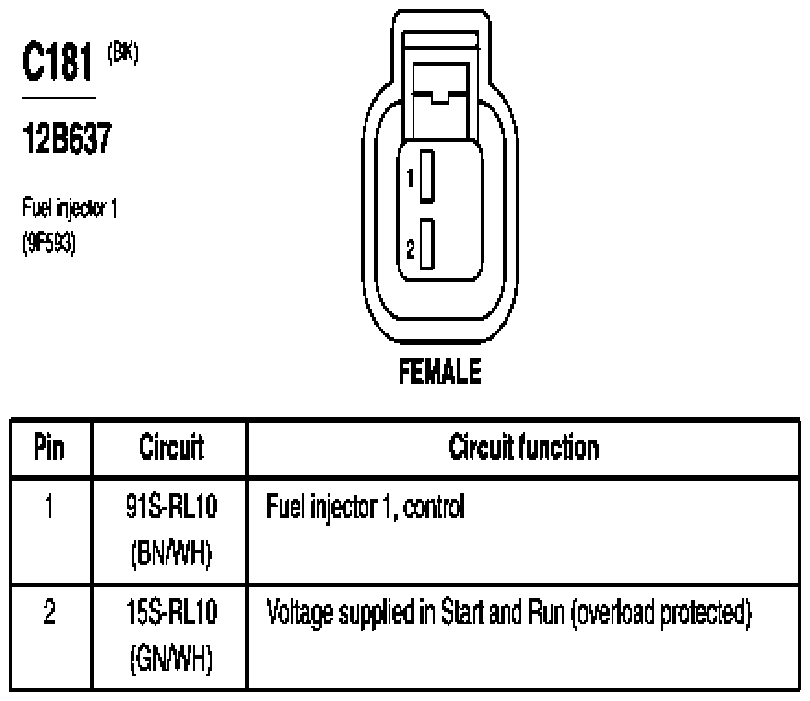

Fig 57: Fuel Injector 1 Connector End View (C181)
G07845186Courtesy of FORD MOTOR CO.

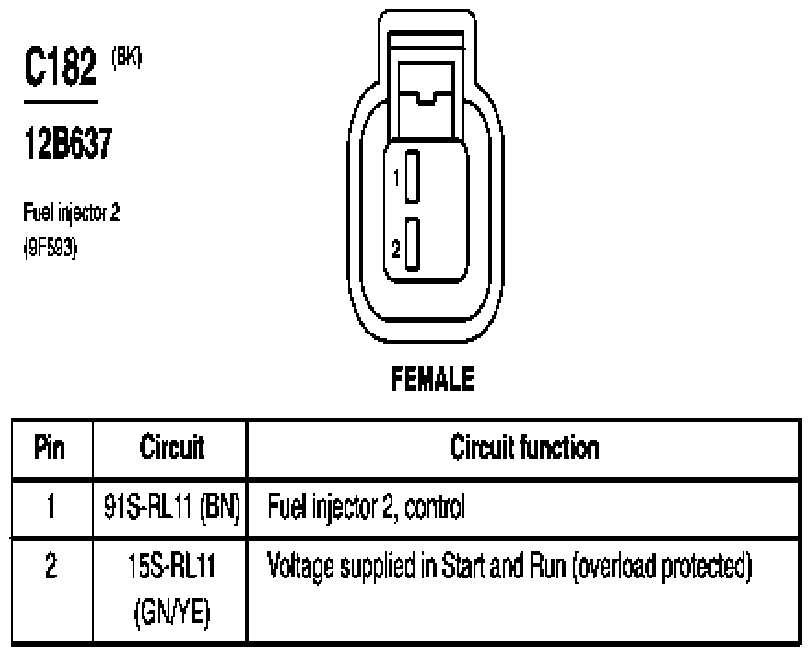

Fig 58: Fuel Injector 2 Connector End View (C182)
G07845187Courtesy of FORD MOTOR CO.

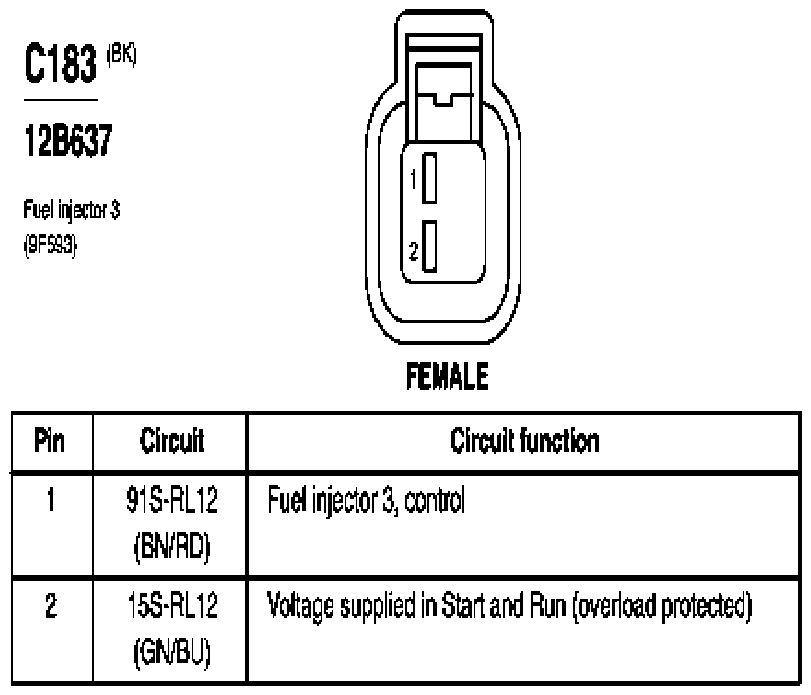

Fig 59: Fuel Injector 3 Connector End View (C183)
G07845188Courtesy of FORD MOTOR CO.

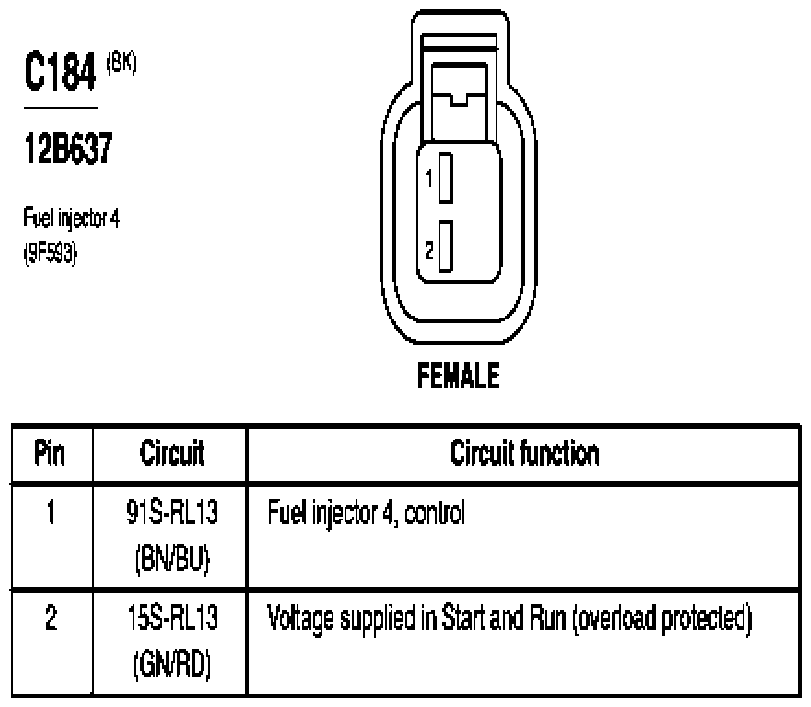

Fig 60: Fuel Injector 4 Connector End View (C184)
G07845189Courtesy of FORD MOTOR CO.

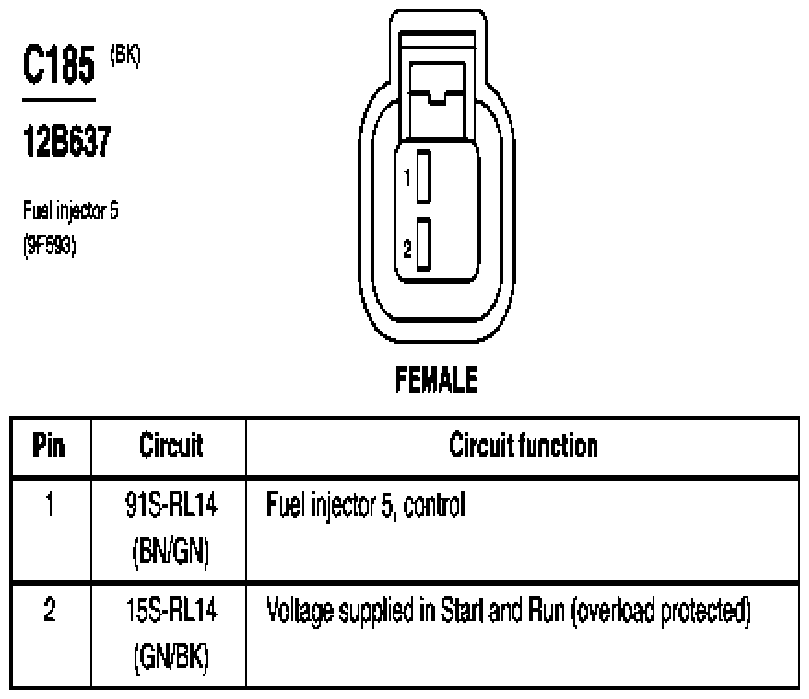

Fig 61: Fuel Injector 5 Connector End View (C185)
G07845190Courtesy of FORD MOTOR CO.

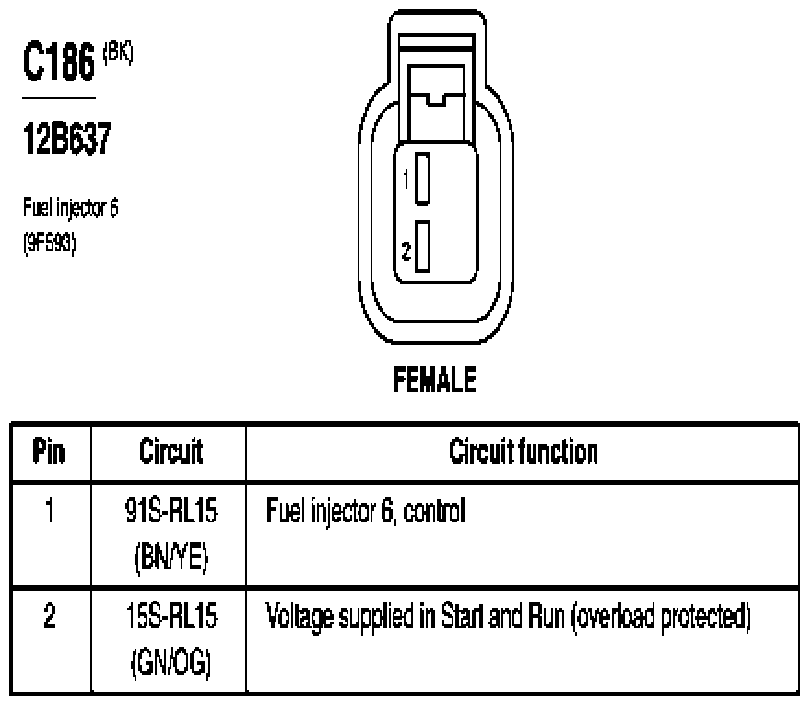

Fig 62: Fuel Injector 6 Connector End View (C186)
G07845191Courtesy of FORD MOTOR CO.

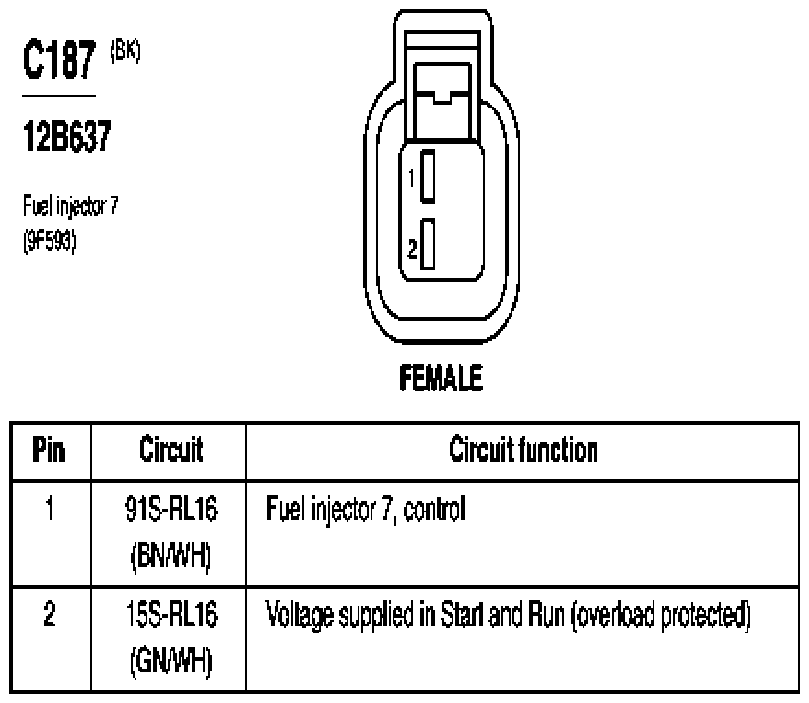

Fig 63: Fuel Injector 7 Connector End View (C187)
G07845192Courtesy of FORD MOTOR CO.

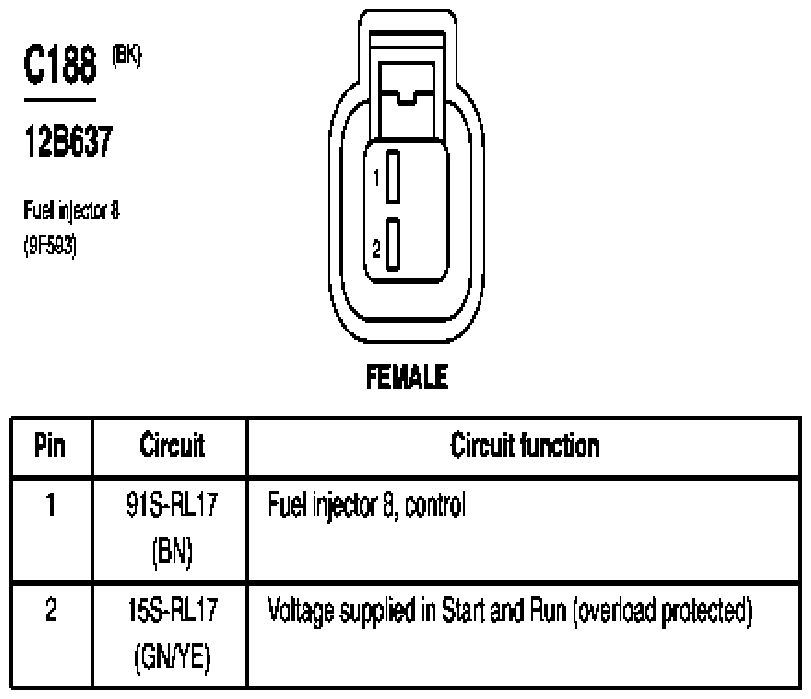

Fig 64: Fuel Injector 8 Connector End View (C188)
G07845193Courtesy of FORD MOTOR CO.

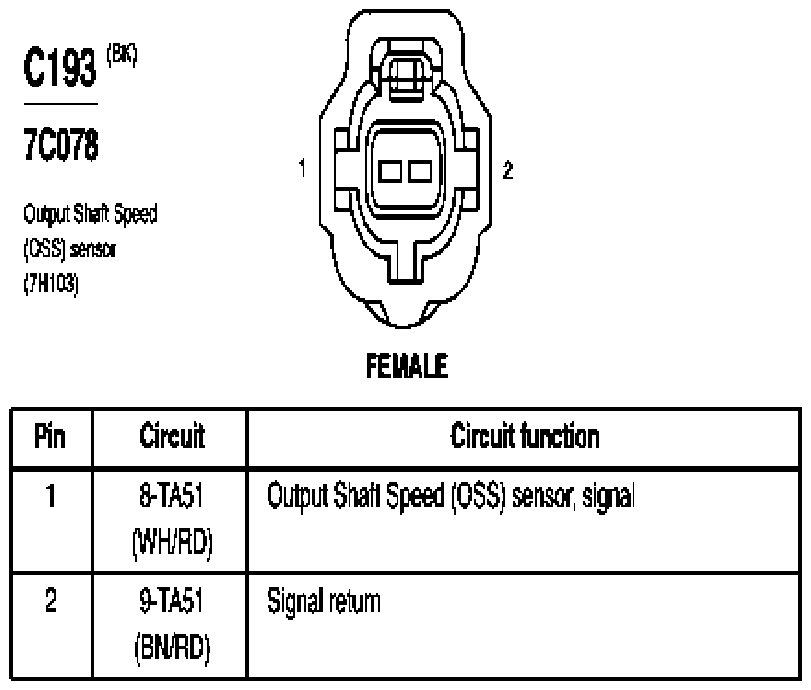

Fig 65: Output Shaft Speed (OSS) Sensor Connector End View (C193)
G07845194Courtesy of FORD MOTOR CO.

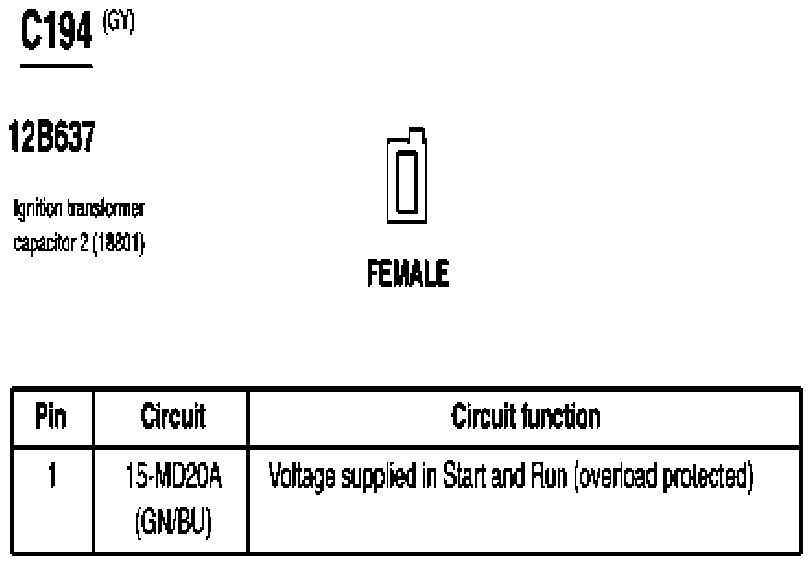

Fig 66: Ignition Transformer Capacitor Connector End View (C194)
G07845195Courtesy of FORD MOTOR CO.

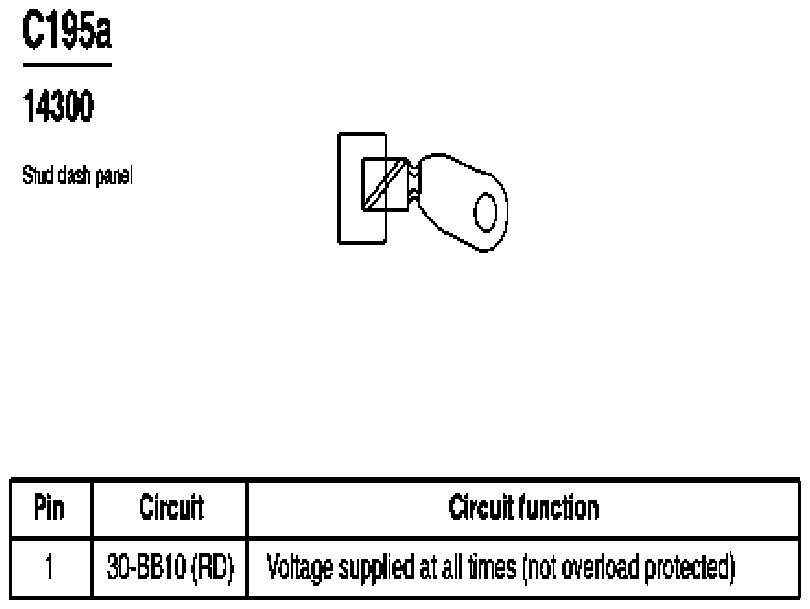

Fig 67: Stud Dash Panel Connector End View (C195a)
G07845196Courtesy of FORD MOTOR CO.

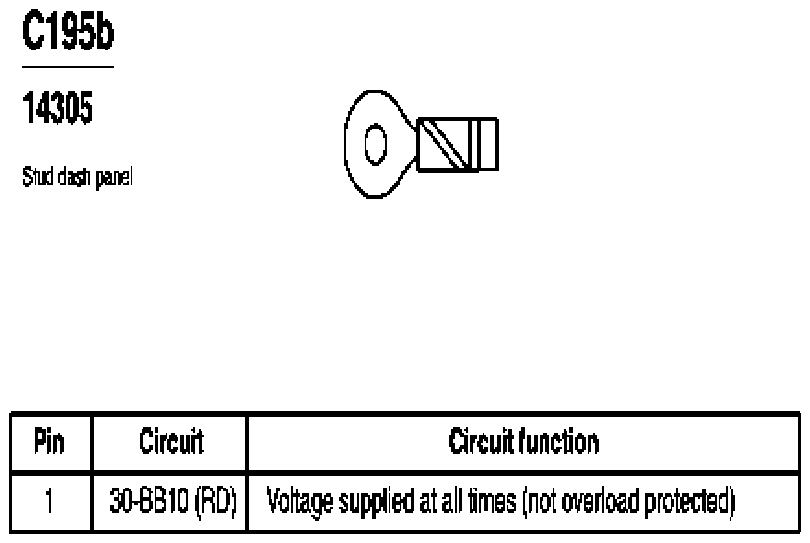

Fig 68: Stud Dash Panel Connector End View (C195b)
G07845197Courtesy of FORD MOTOR CO.

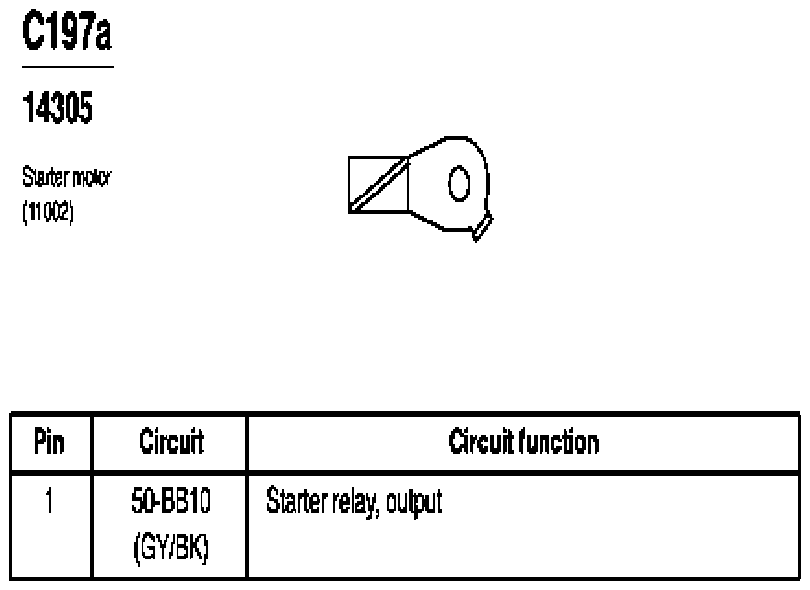

Fig 69: Starter Motor Connector End View (C197a)
G07845198Courtesy of FORD MOTOR CO.

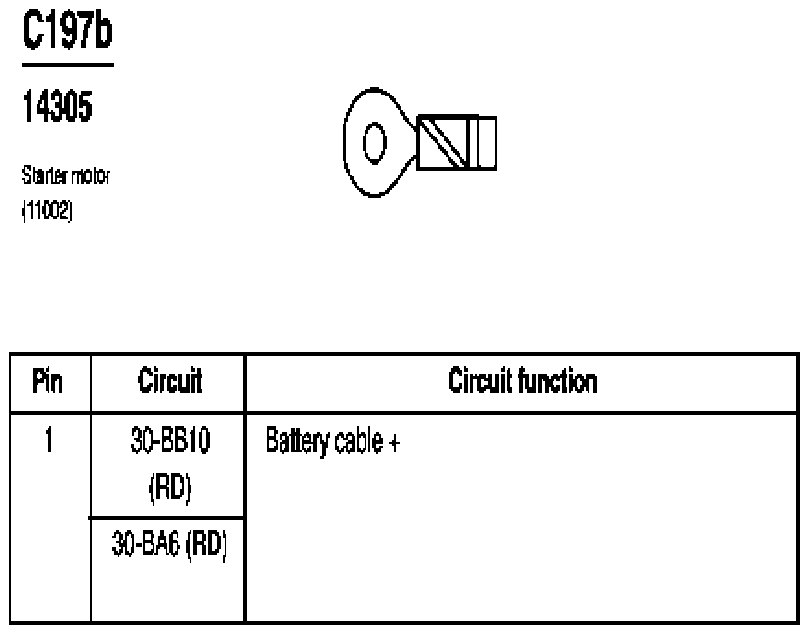

Fig 70: Starter Motor Connector End View (C197b)
G07845199Courtesy of FORD MOTOR CO.

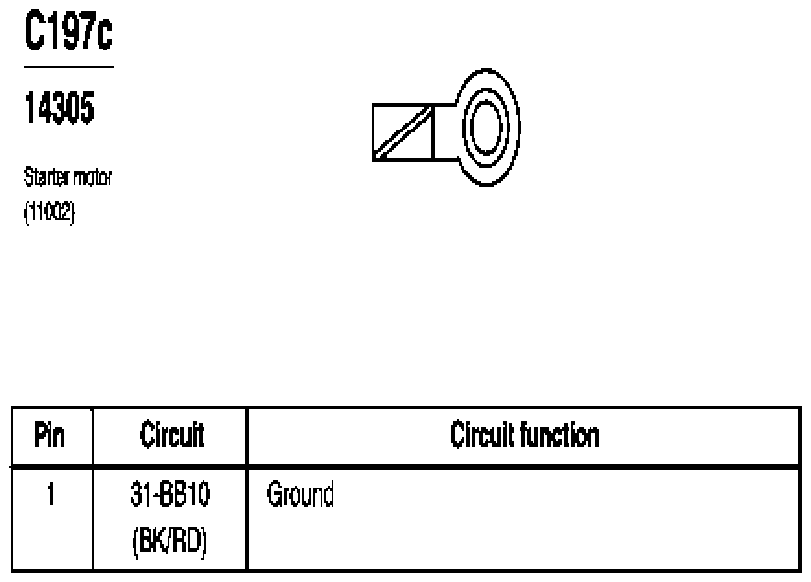

Fig 71: Starter Motor Connector End View (C197c)
G07845200Courtesy of FORD MOTOR CO.

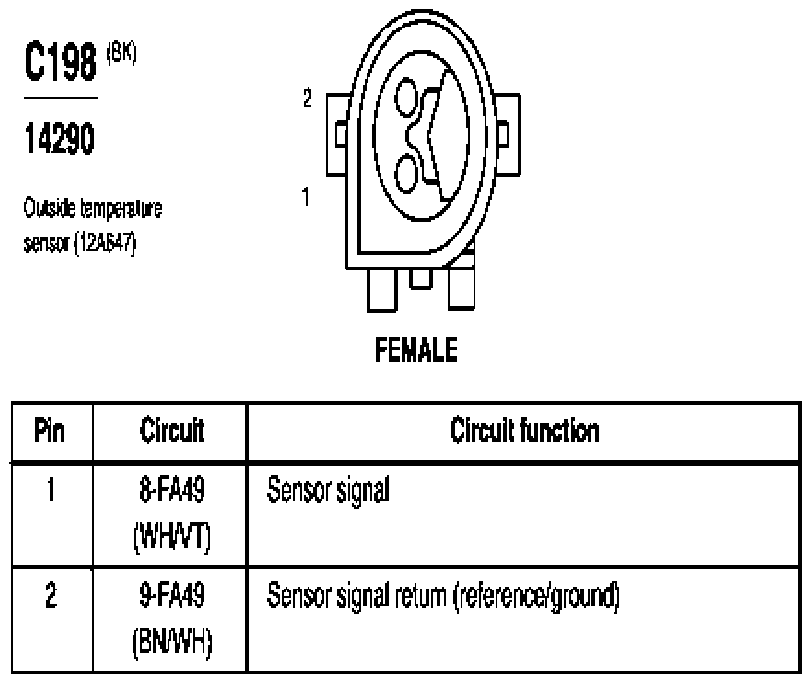

Fig 72: Outside Temperature Sensor Connector End View (C198)
G07845201Courtesy of FORD MOTOR CO.

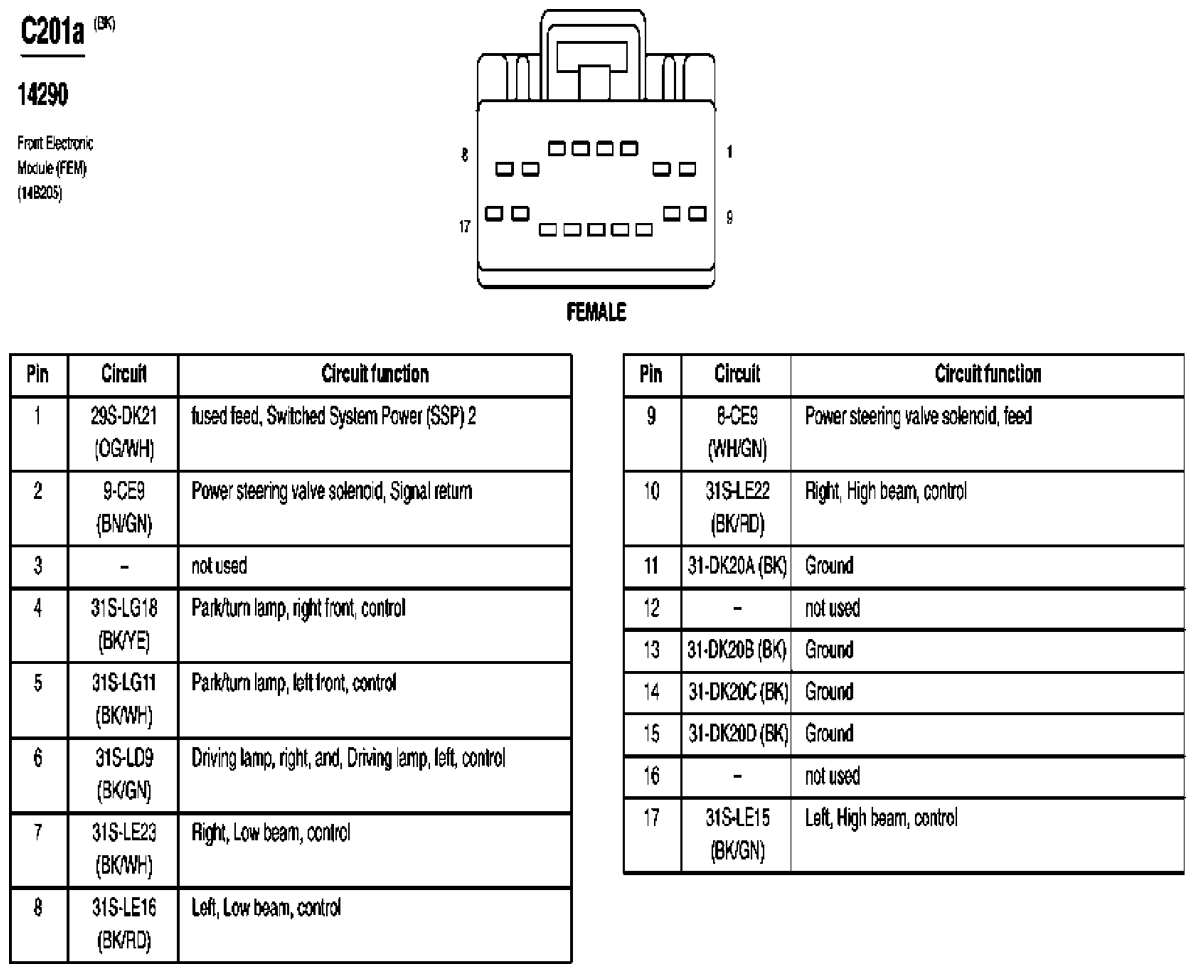

Fig 73: Front Electronic Module (FEM) Connector End View (C201a)
G03994563Courtesy of FORD MOTOR CO.

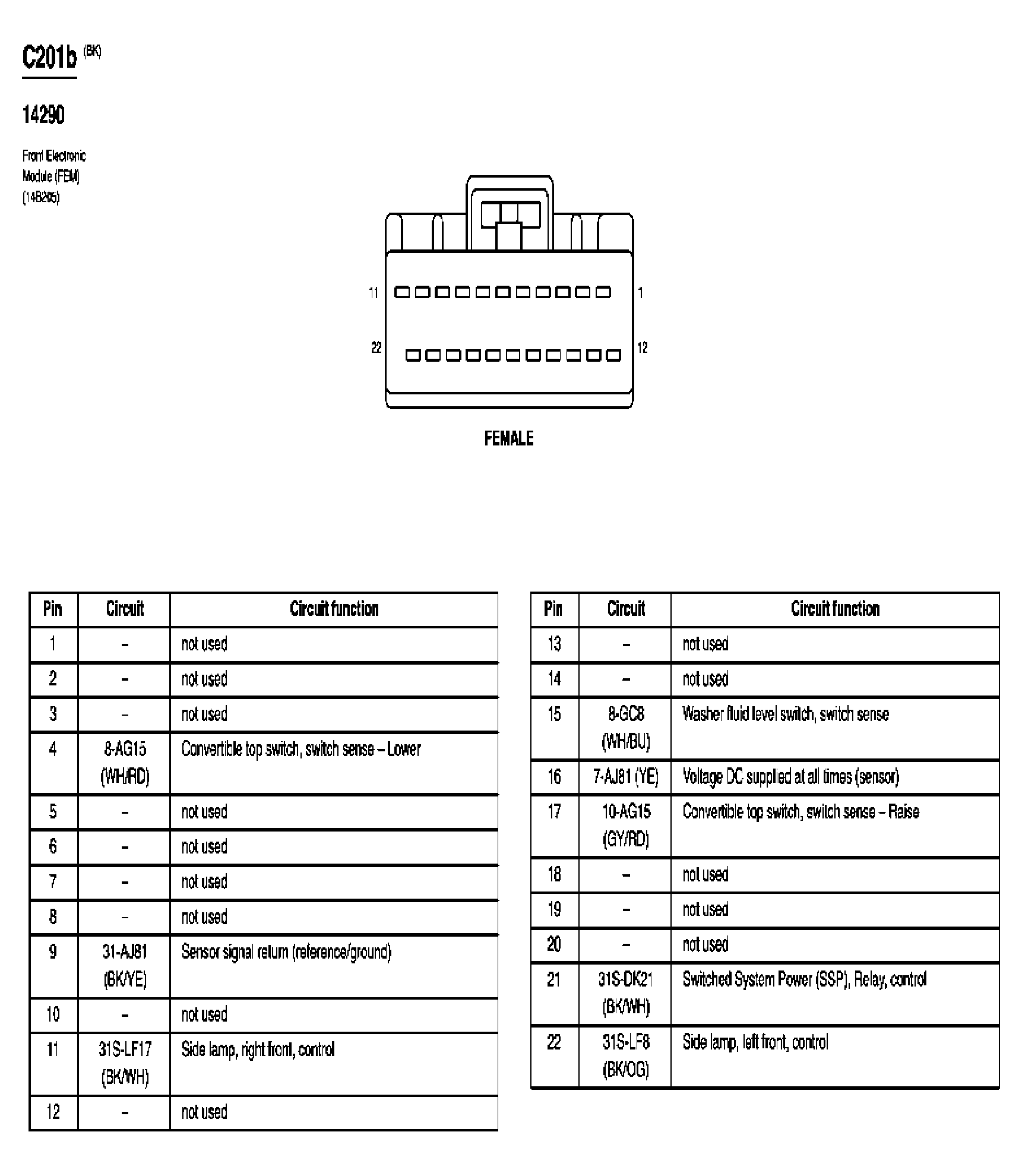

Fig 74: Front Electronic Module (FEM) Connector End View (C201b)
G03994564Courtesy of FORD MOTOR CO.

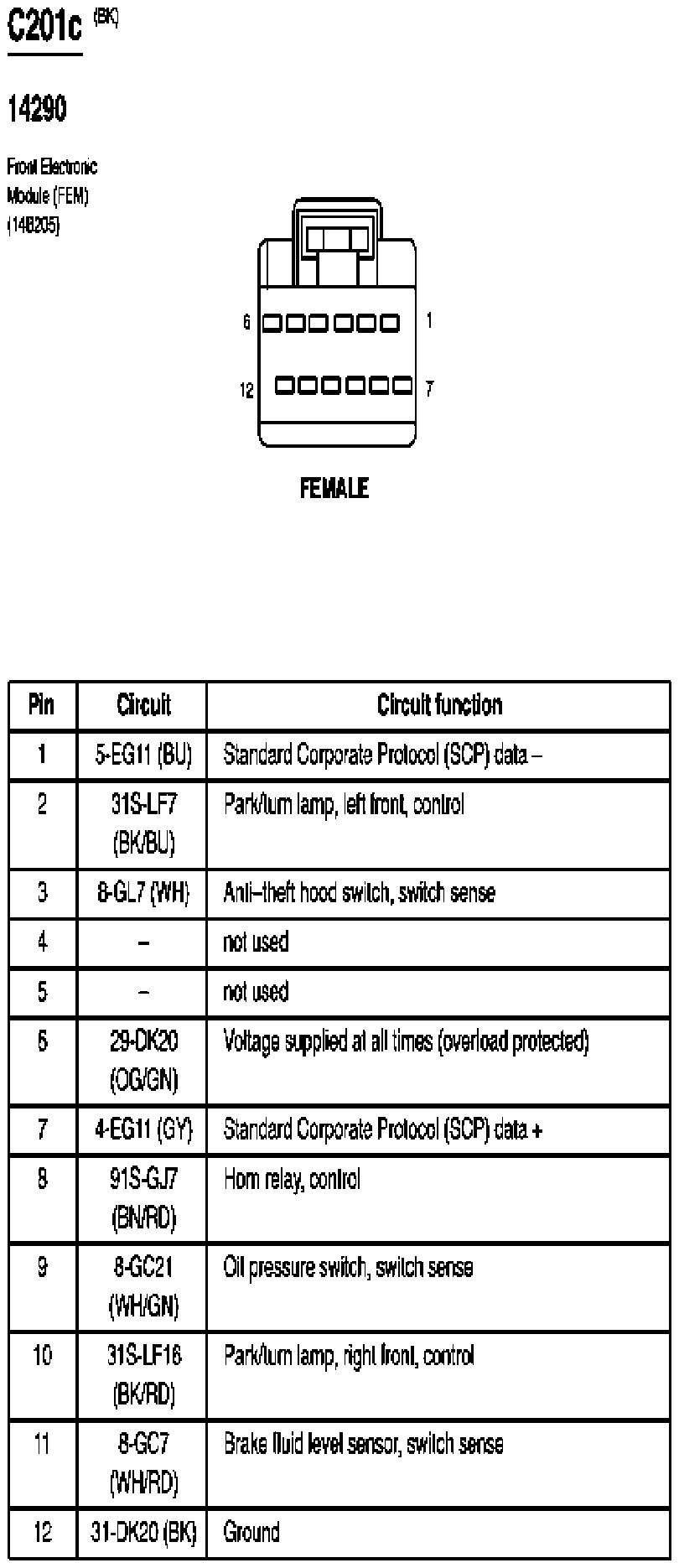

Fig 75: Front Electronic Module (FEM) Connector End View (C201c)
G03994565Courtesy of FORD MOTOR CO.

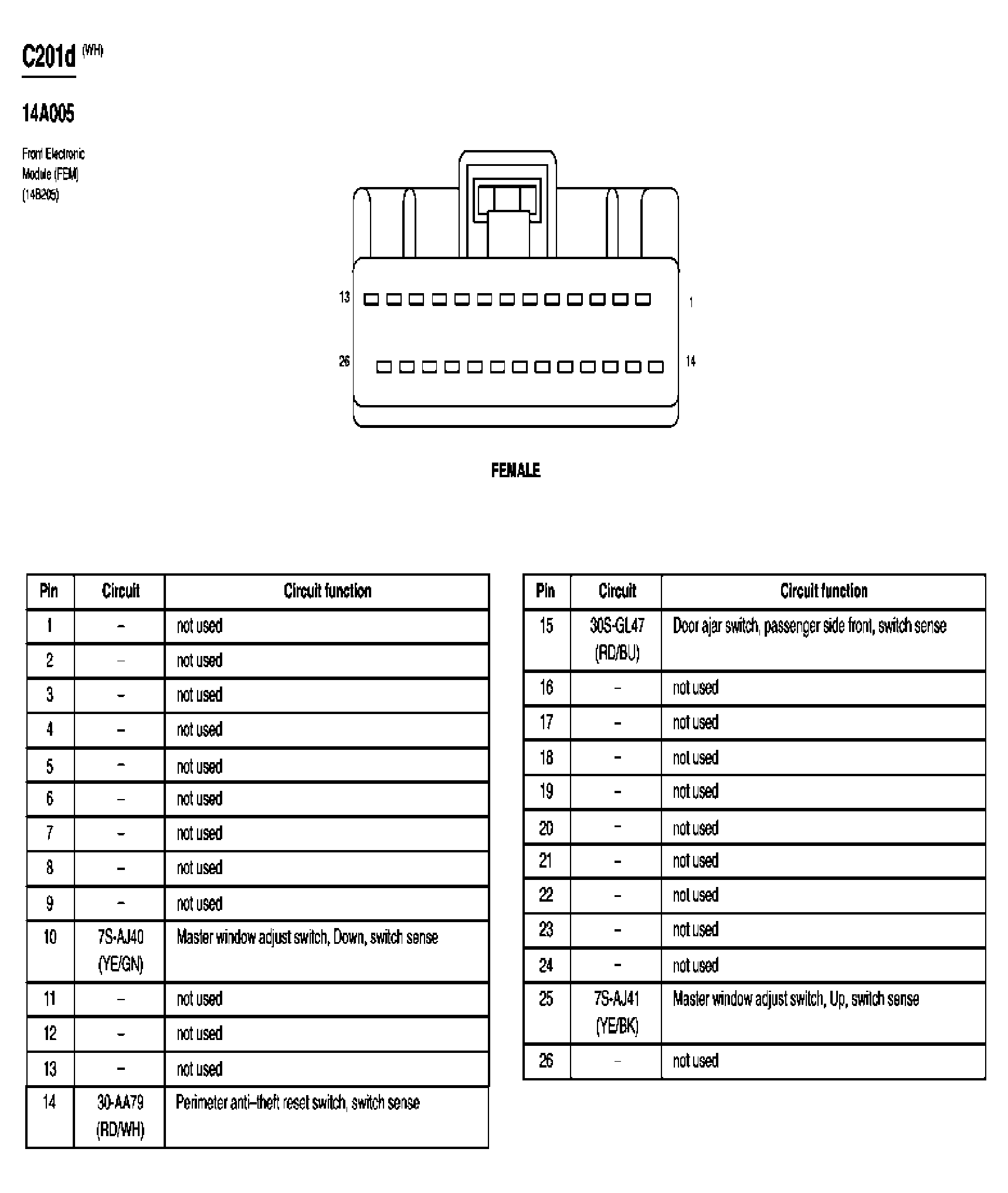

Fig 76: Front Electronic Module (FEM) Connector End View (C201d)
G03994566Courtesy of FORD MOTOR CO.
Fig 77: Front Electronic Module (FEM) Connector End View (C201e)
G03994567Courtesy of FORD MOTOR CO.

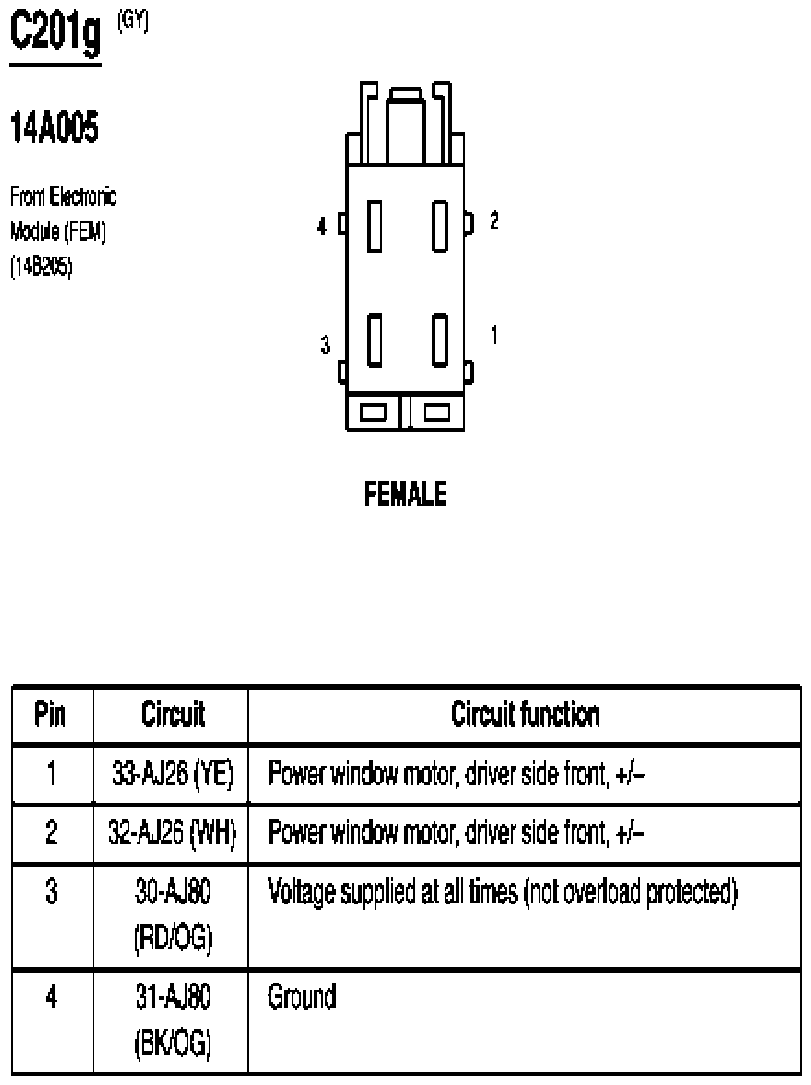

Fig 78: Front Electronic Module (FEM) Connector End View (C201g)
G07845202Courtesy of FORD MOTOR CO.

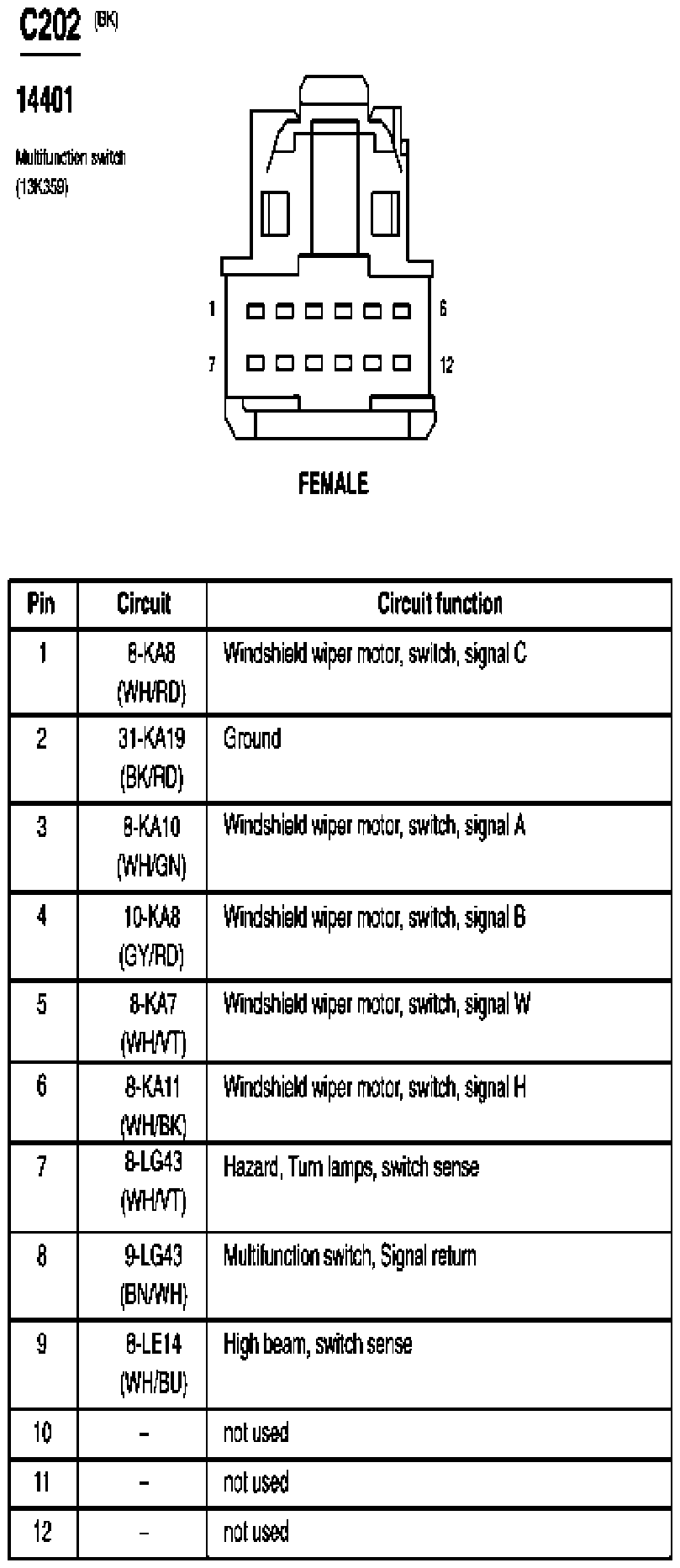

Fig 79: Multifunction Switch Connector End View (C202)
G07845203Courtesy of FORD MOTOR CO.

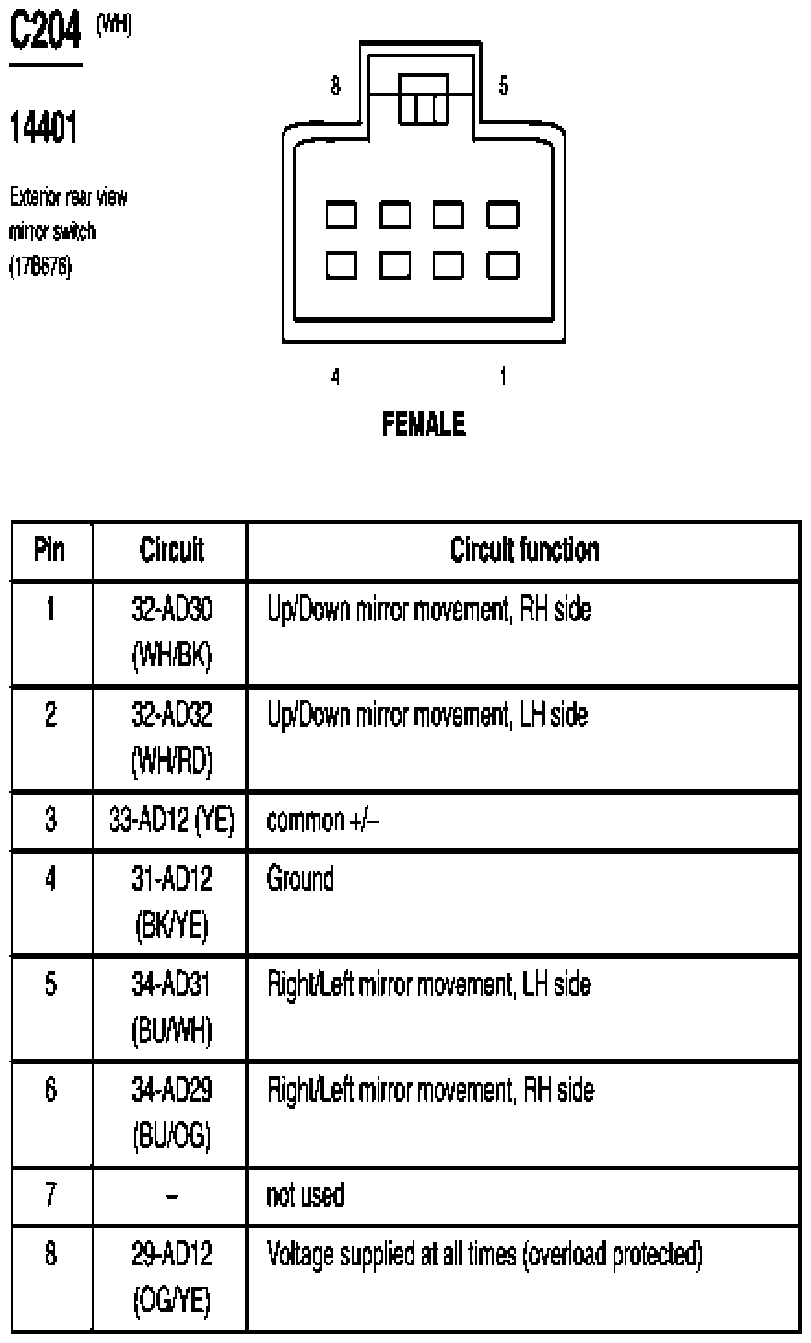

Fig 80: Exterior Rear View Mirror Switch Connector End View (C204)
G07845204Courtesy of FORD MOTOR CO.

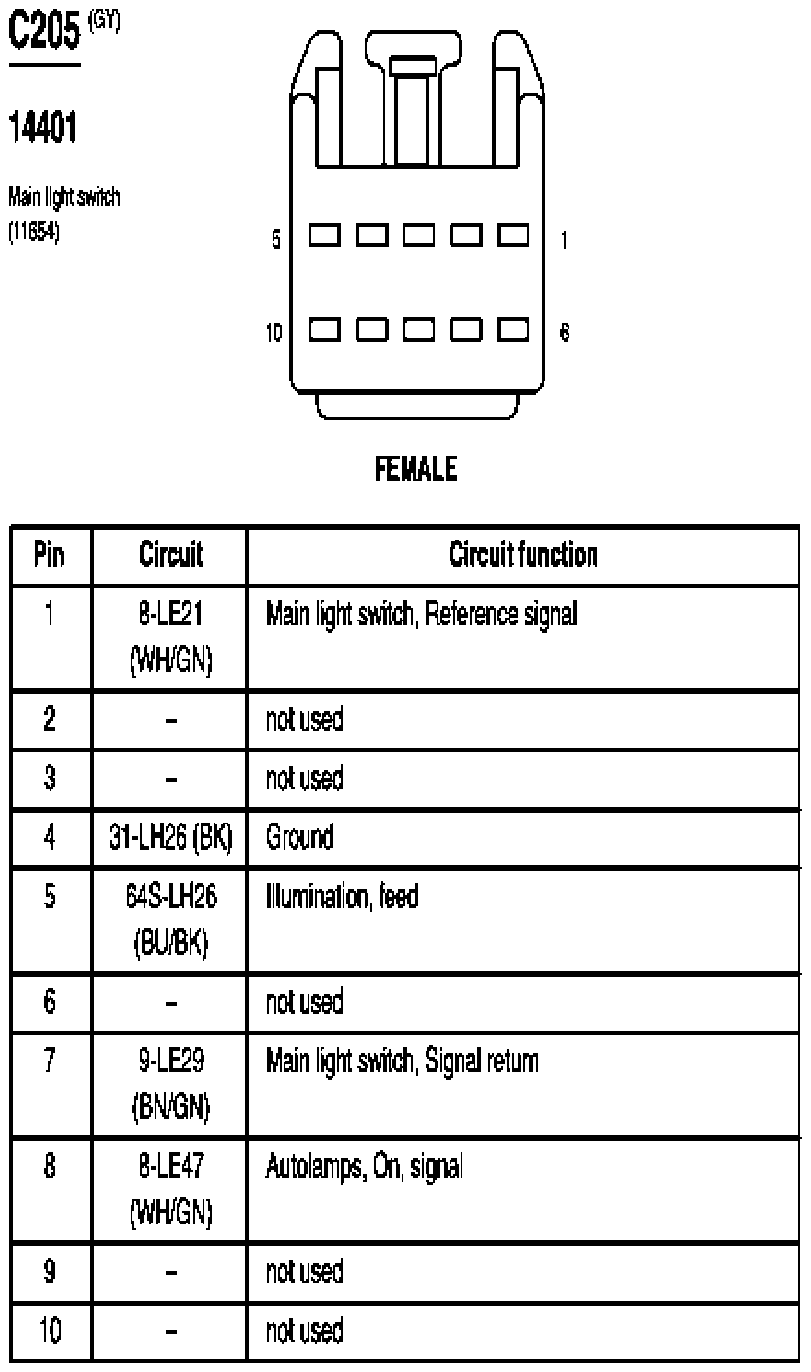

Fig 81: Main Light Switch Connector End View (C205)
G07845205Courtesy of FORD MOTOR CO.

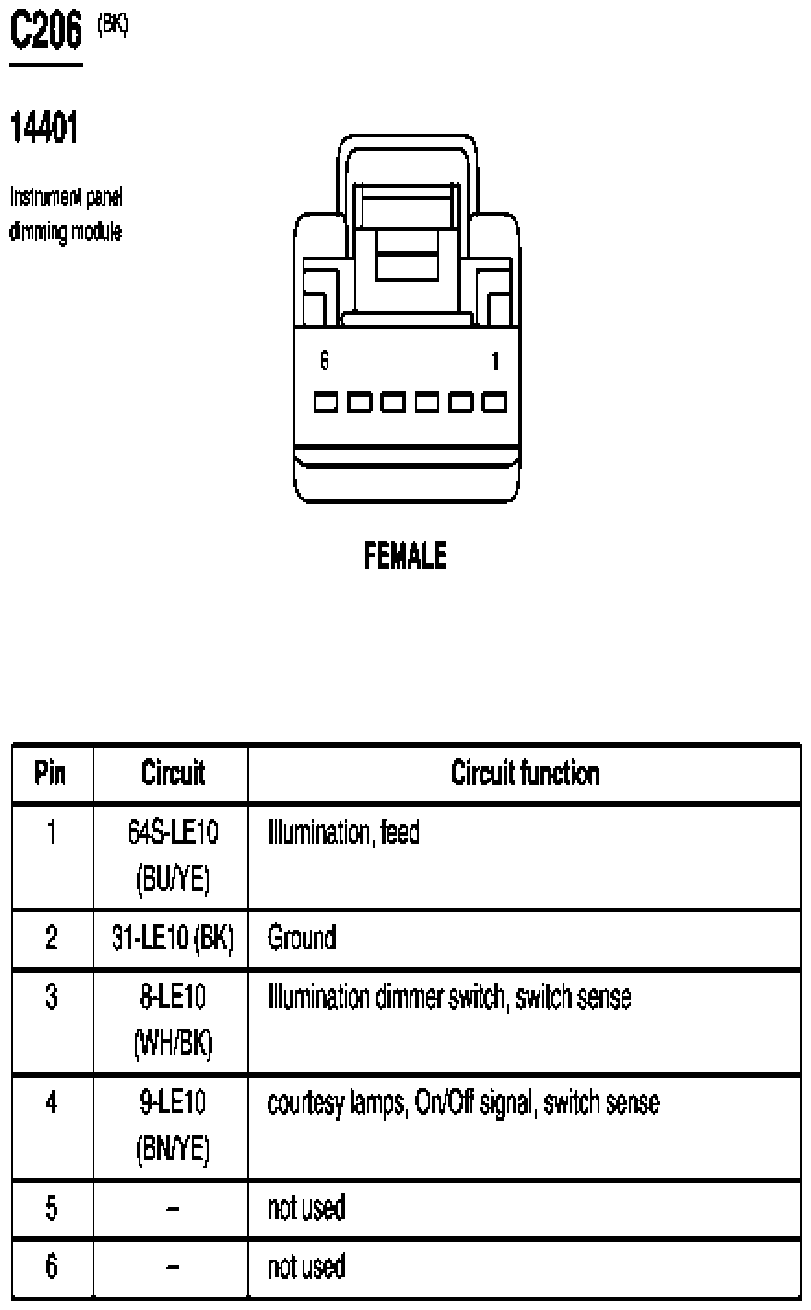

Fig 82: Instrument Panel Dimming Module Connector End View (C206)
G07845206Courtesy of FORD MOTOR CO.

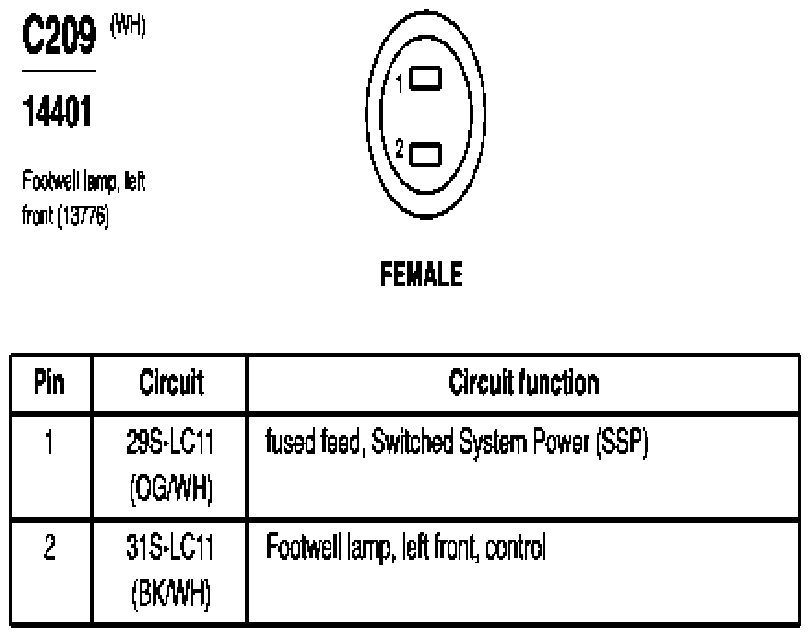

Fig 83: Footwell Lamp Left Front Connector End View (C209)
G07845207Courtesy of FORD MOTOR CO.

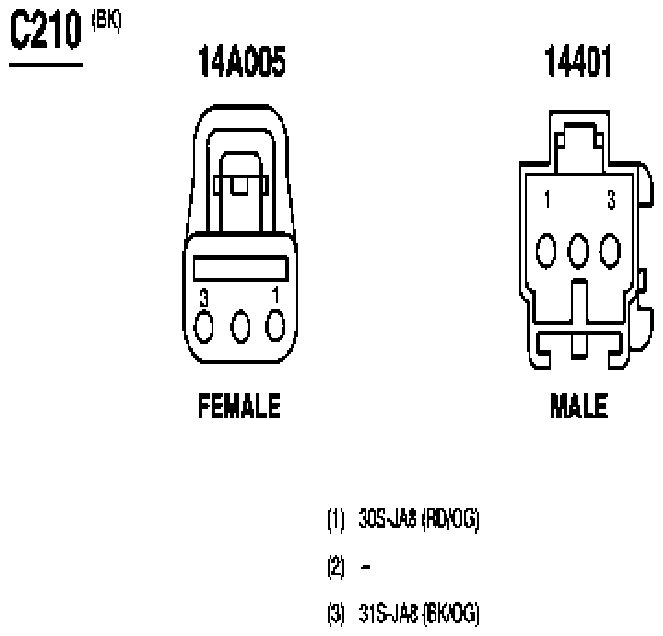

Fig 84: Inline Connector End View (C210)
G07845208Courtesy of FORD MOTOR CO.

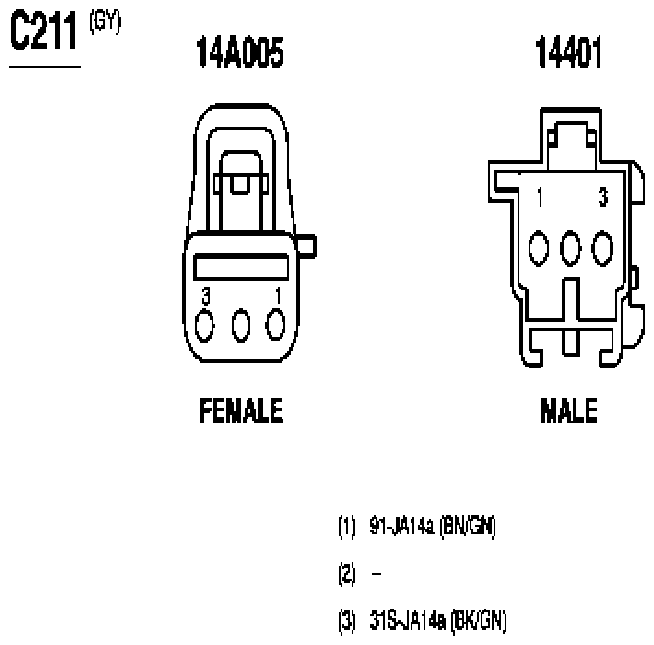

Fig 85: Inline Connector End View (C211)
G07845209Courtesy of FORD MOTOR CO.

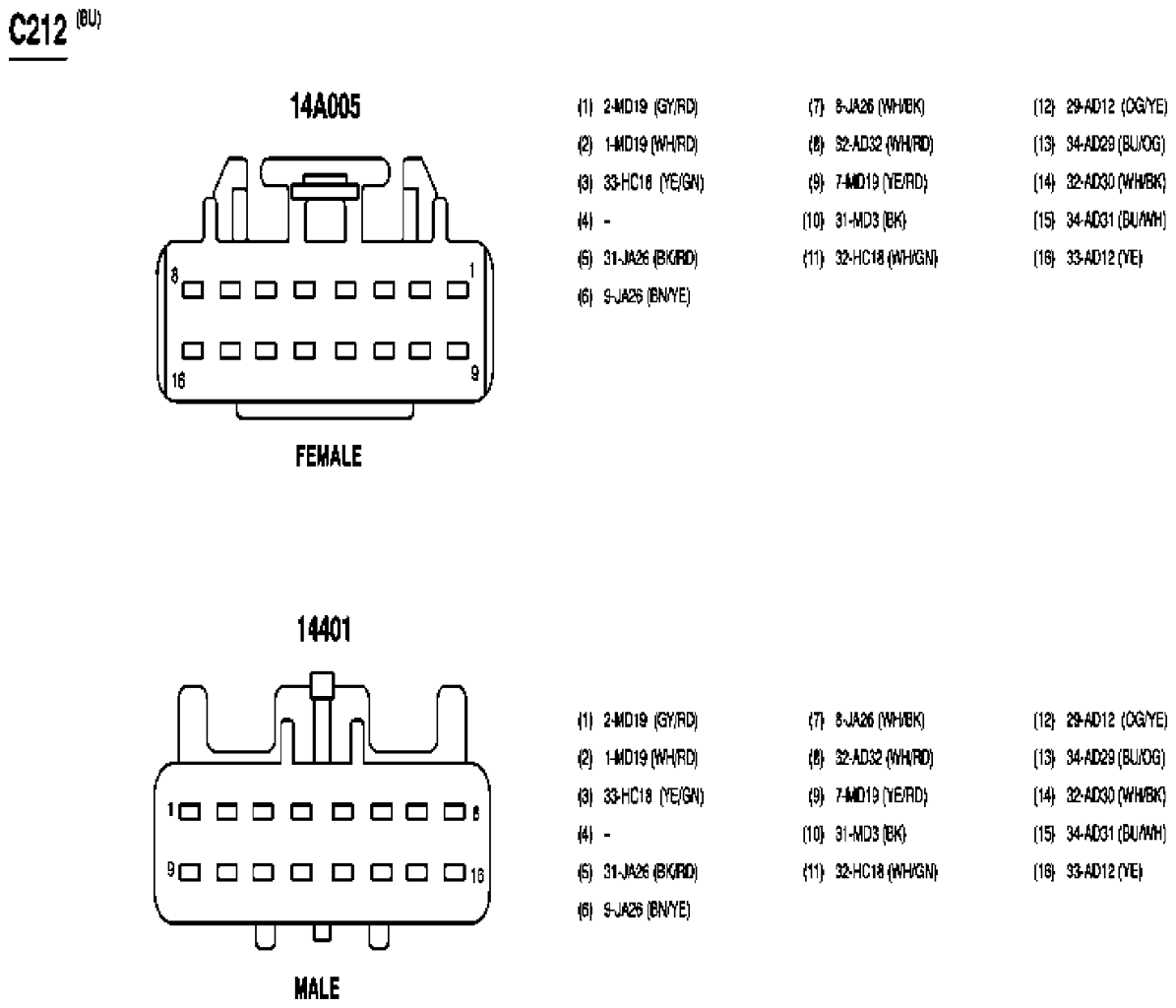

Fig 86: Inline Connector End View (C212)
G03994571Courtesy of FORD MOTOR CO.

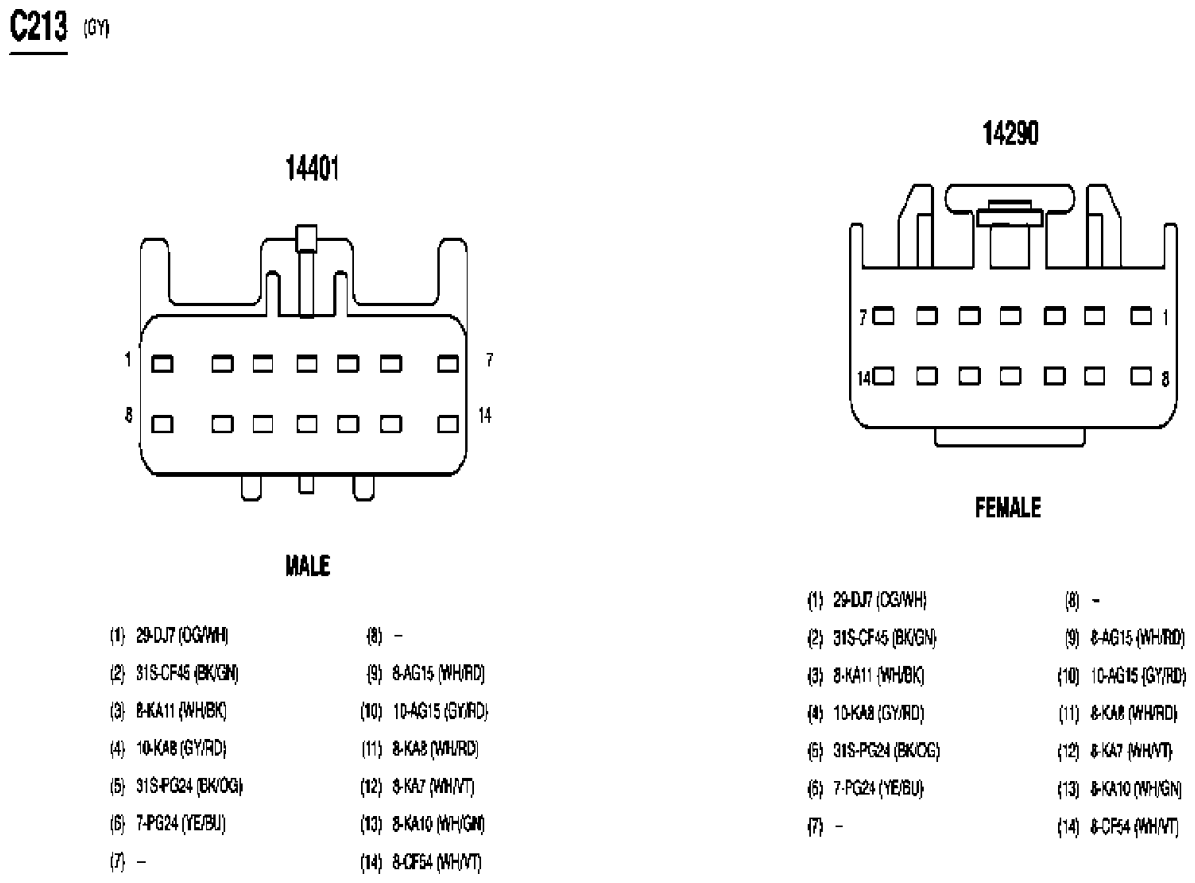

Fig 87: Inline Connector End View (C213)
G03994572Courtesy of FORD MOTOR CO.

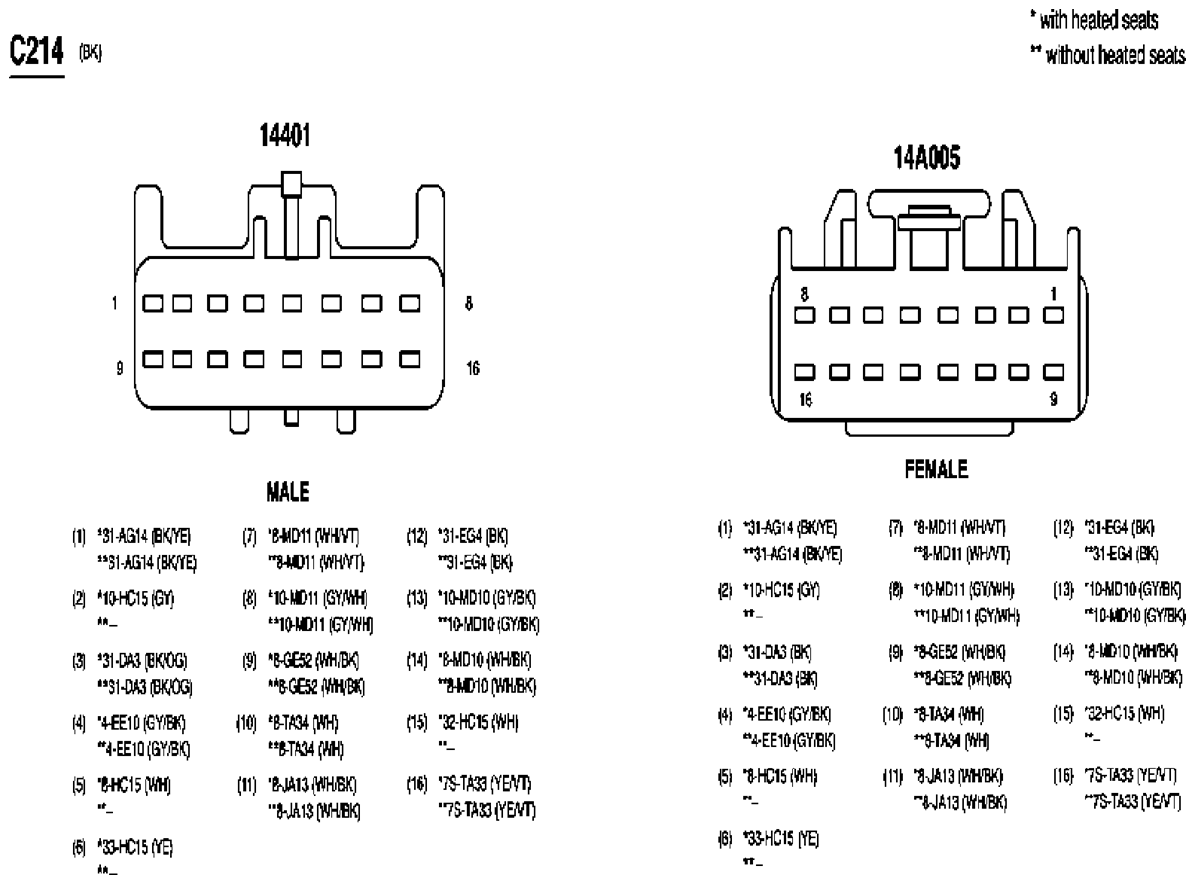

Fig 88: Inline Connector End View (C214)
G03994573Courtesy of FORD MOTOR CO.

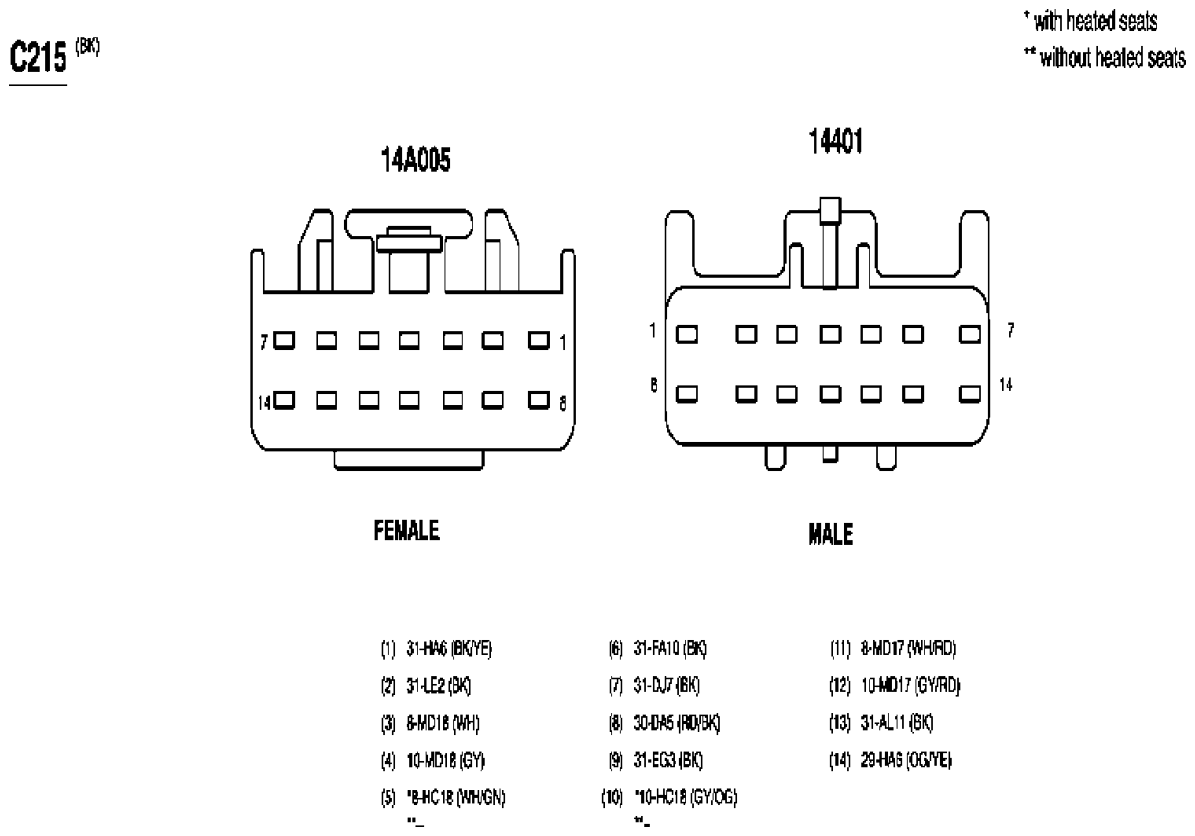

Fig 89: Inline Connector End View (C215)
G03994574Courtesy of FORD MOTOR CO.

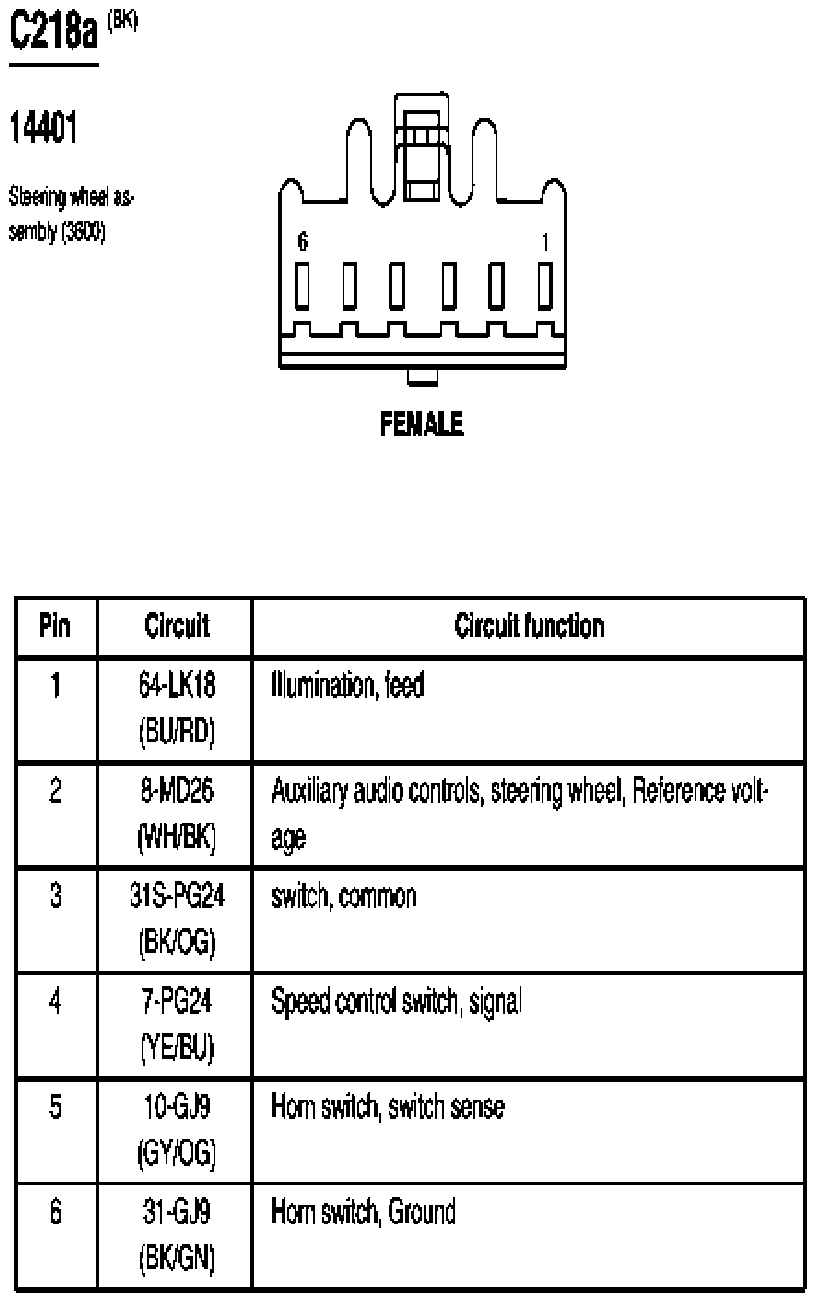

Fig 90: Steering Wheel Assembly Connector End View (C218a)
G07845210Courtesy of FORD MOTOR CO.

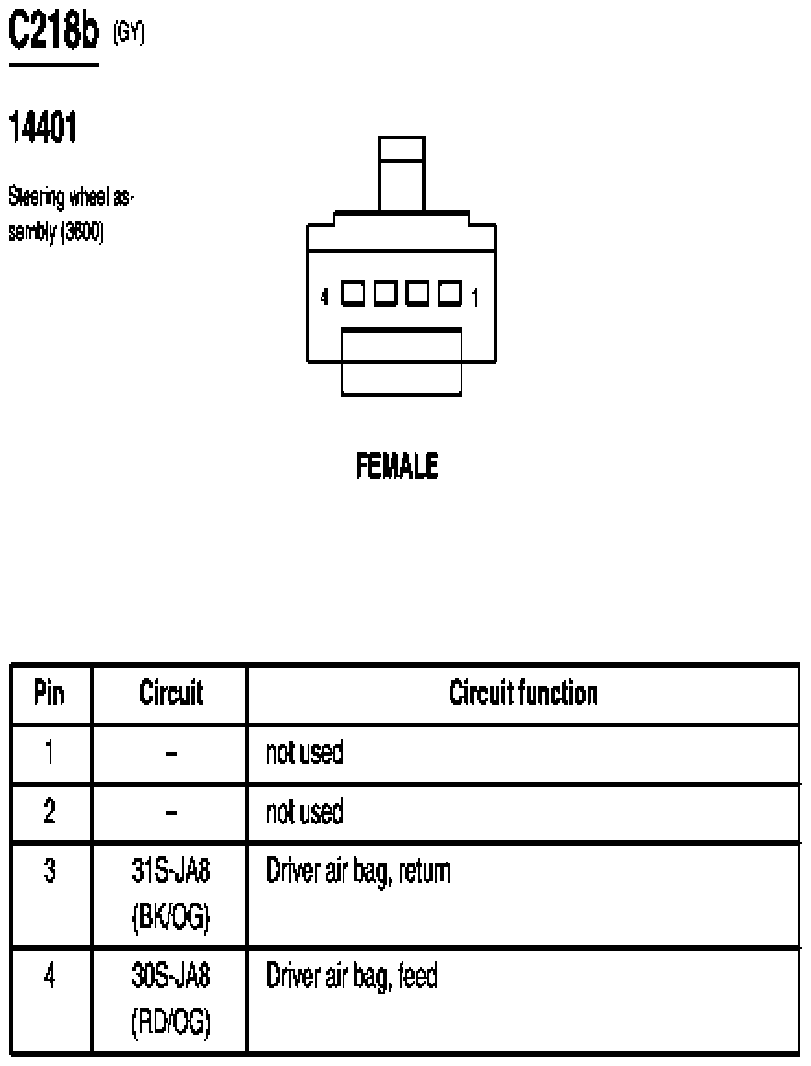

Fig 91: Steering Wheel Assembly Connector End View (C218b)
G07845211Courtesy of FORD MOTOR CO.

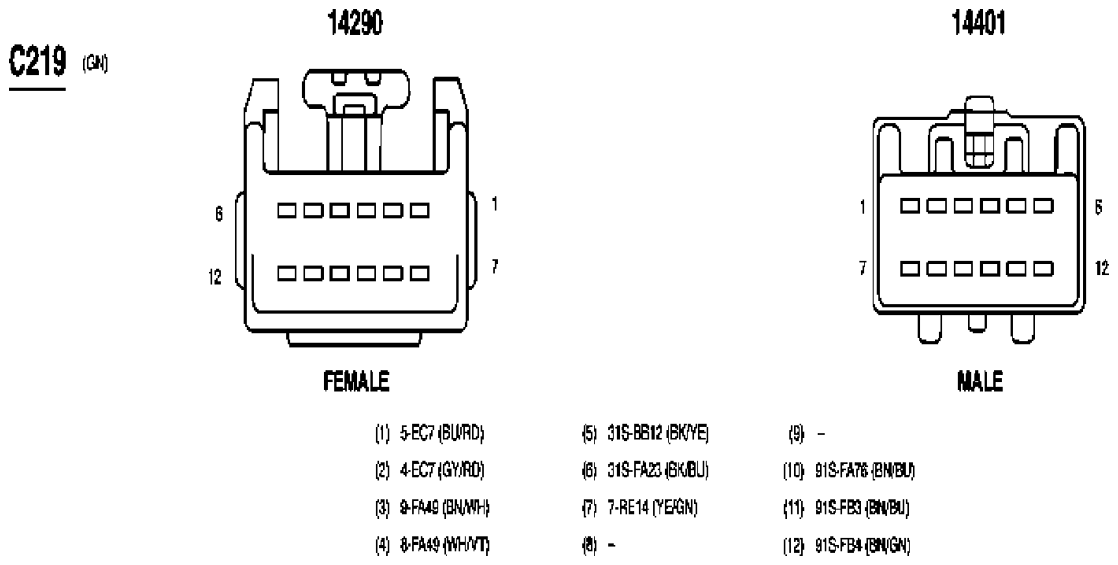

Fig 92: Inline Connector End View (C219)
G07845212Courtesy of FORD MOTOR CO.
Fig 93: Instrument Cluster Connector End View (C220a)
G03994576Courtesy of FORD MOTOR CO.

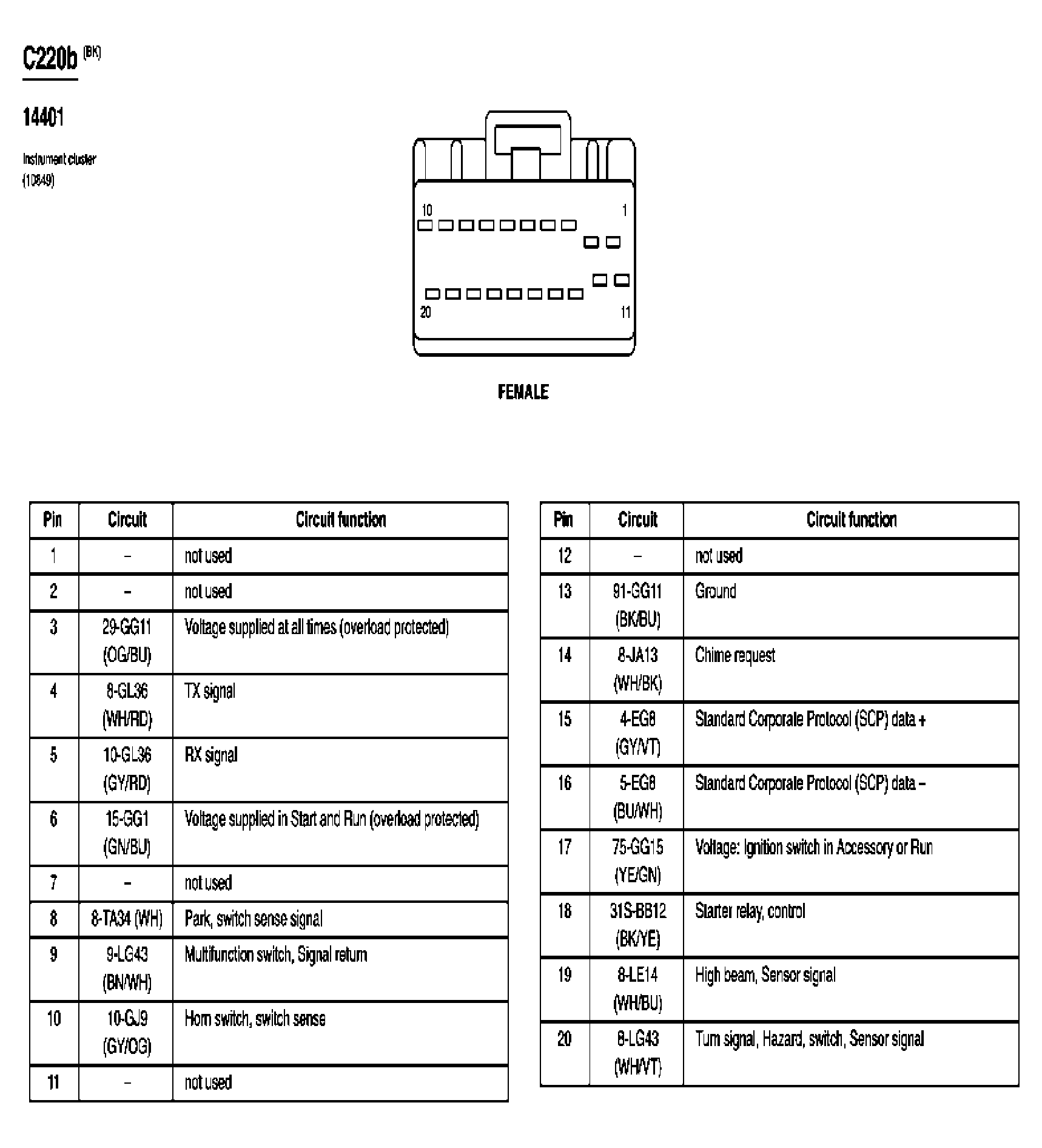

Fig 94: Instrument Cluster Connector End View (C220b)
G03994577Courtesy of FORD MOTOR CO.

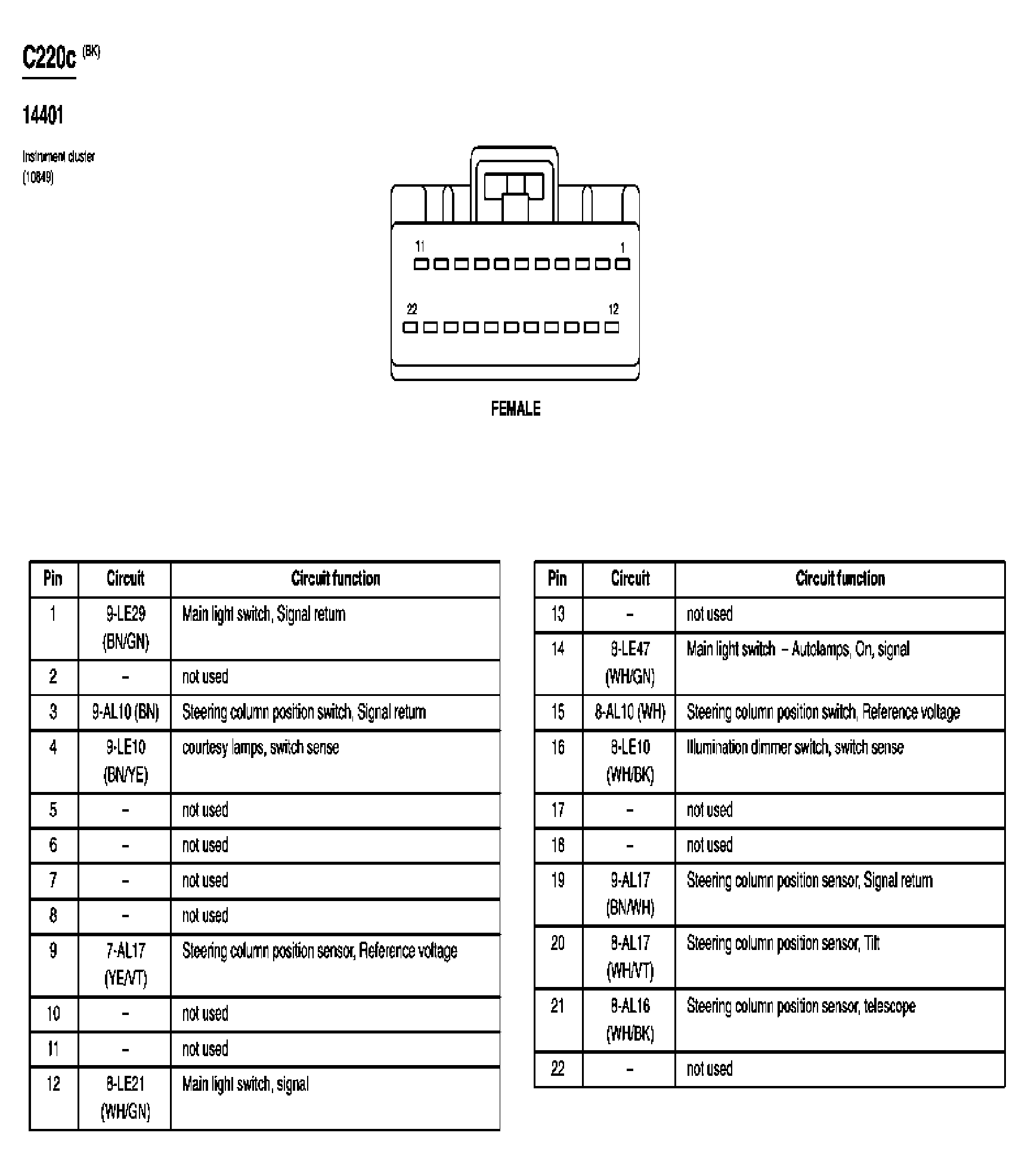

Fig 95: Instrument Cluster Connector End View (C220c)
G03994578Courtesy of FORD MOTOR CO.

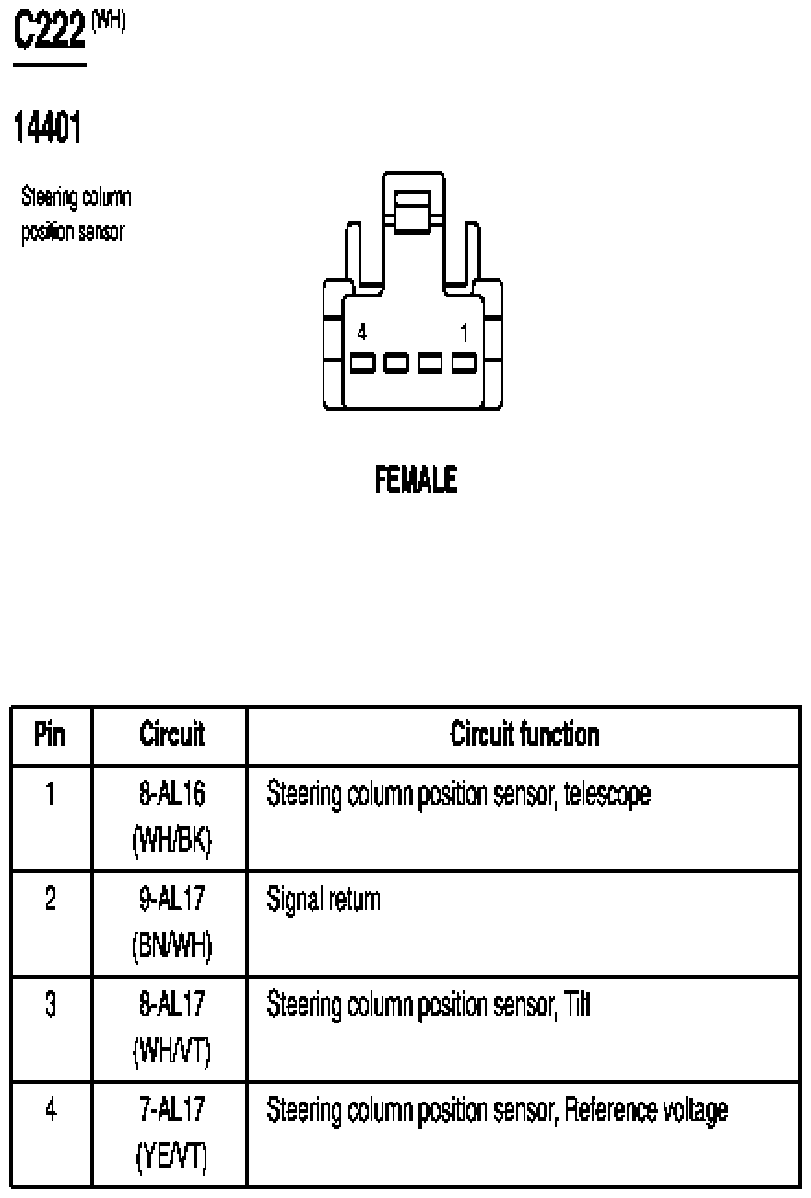

Fig 96: Steering Column Position Sensor Connector End View (C222)
G07845213Courtesy of FORD MOTOR CO.

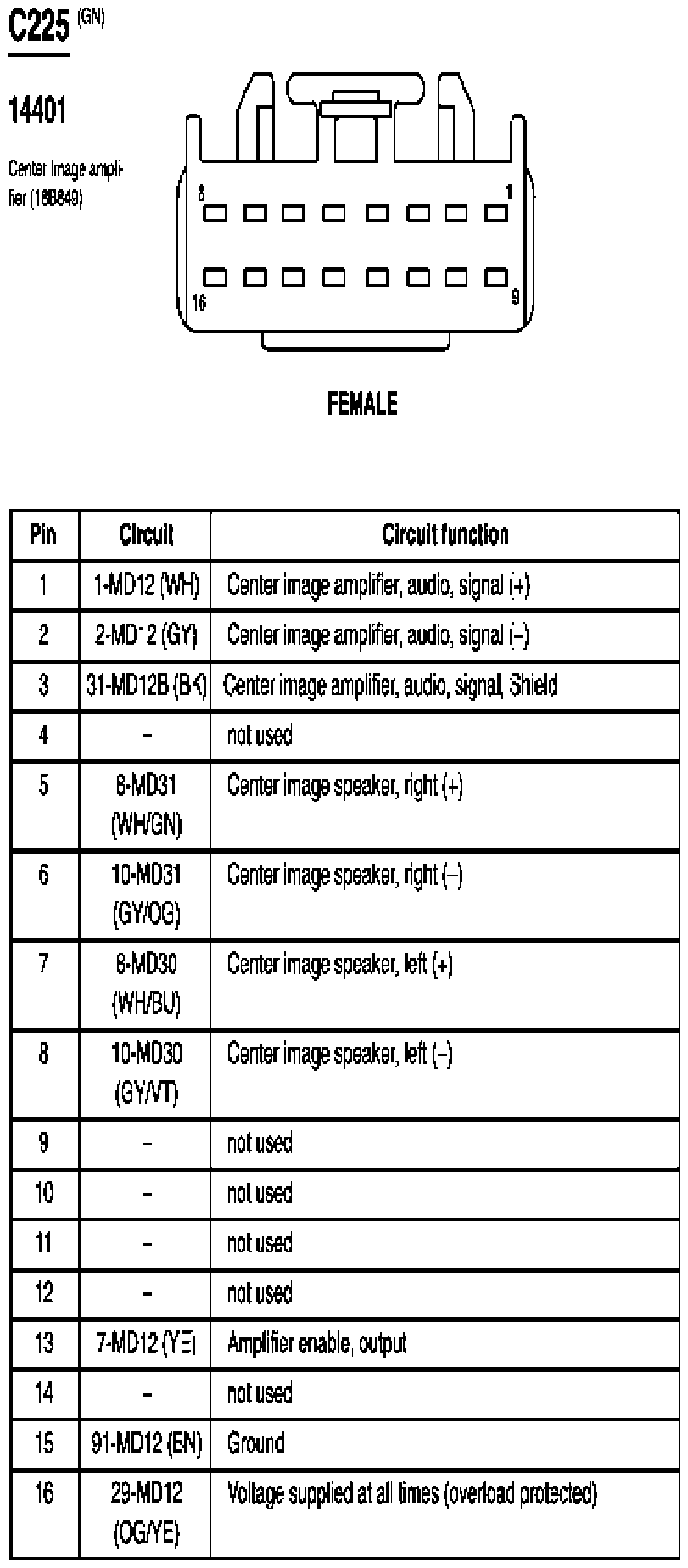

Fig 97: Center Image Amplifier Connector End View (C225)
G07845214Courtesy of FORD MOTOR CO.

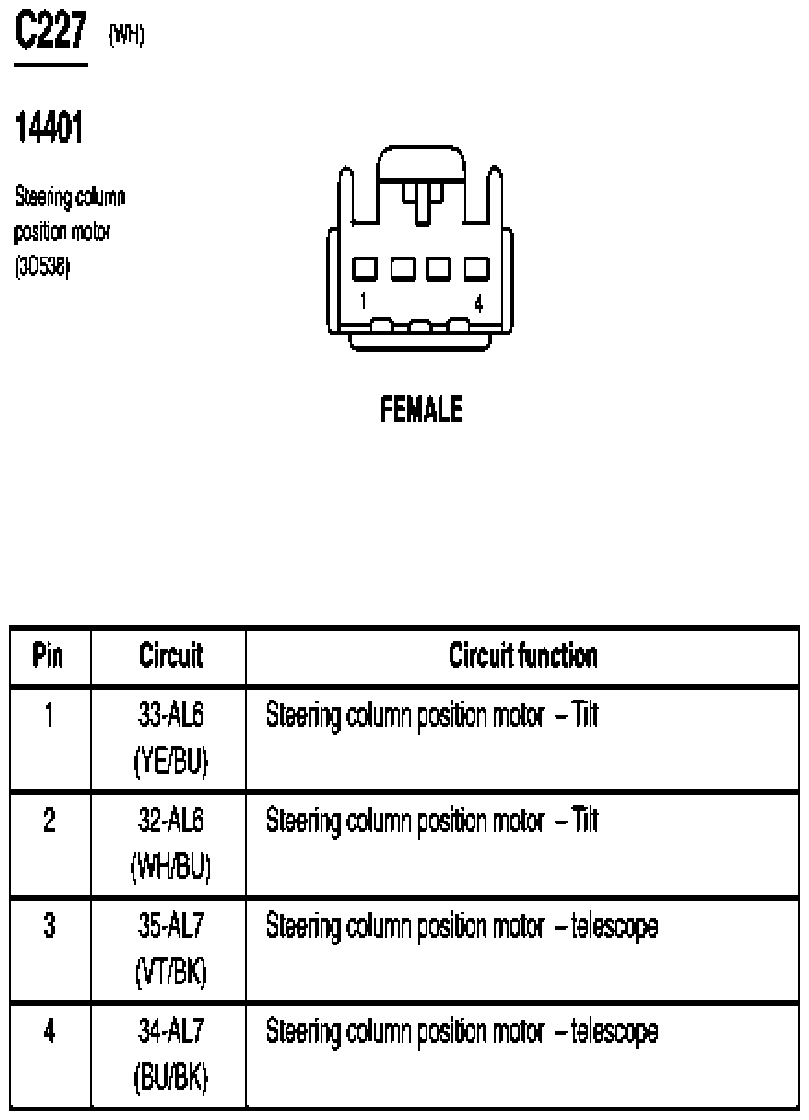

Fig 98: Steering Column Position Motor Connector End View (C227)
G03994580Courtesy of FORD MOTOR CO.

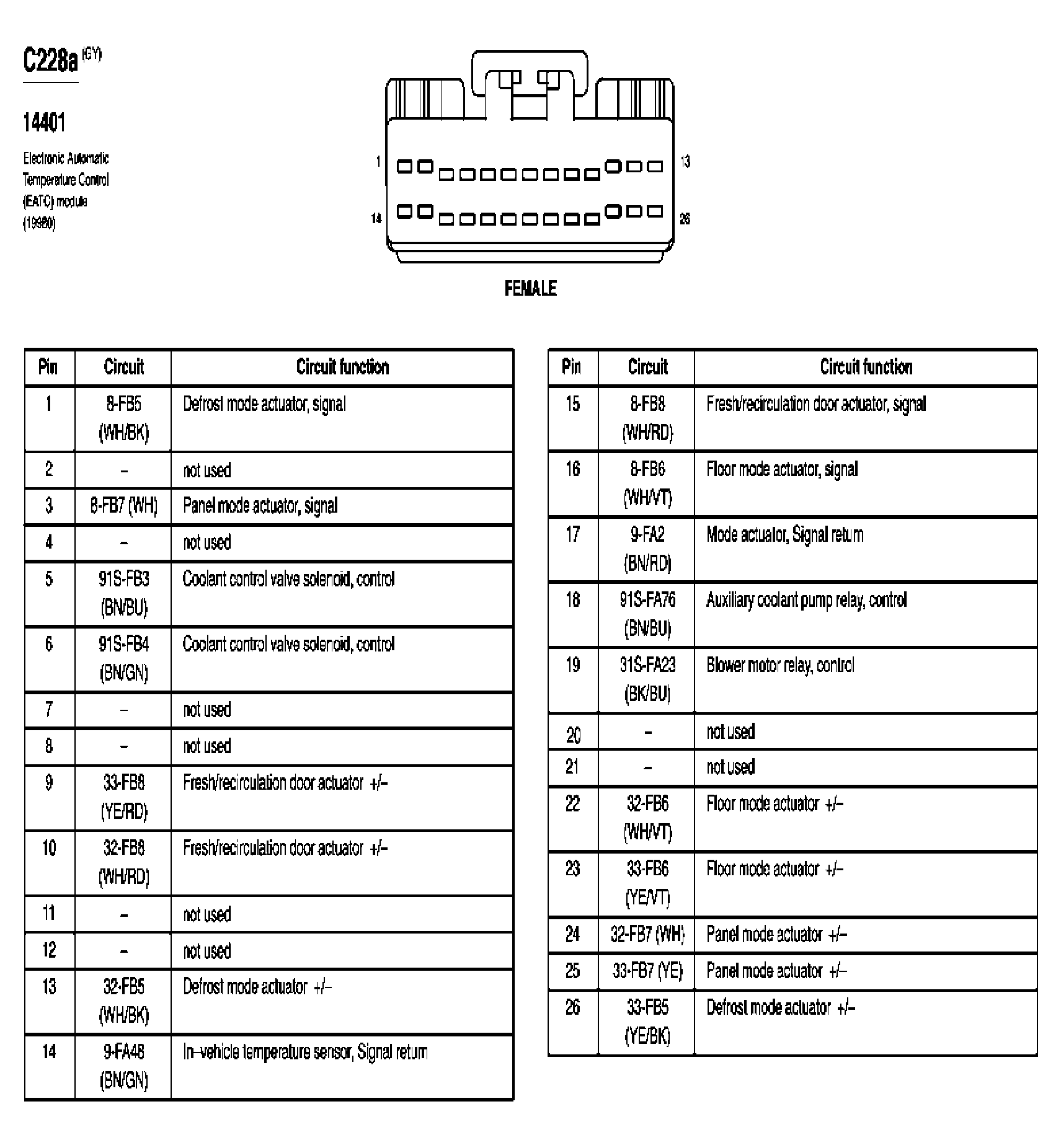

Fig 99: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)
G03994581Courtesy of FORD MOTOR CO.

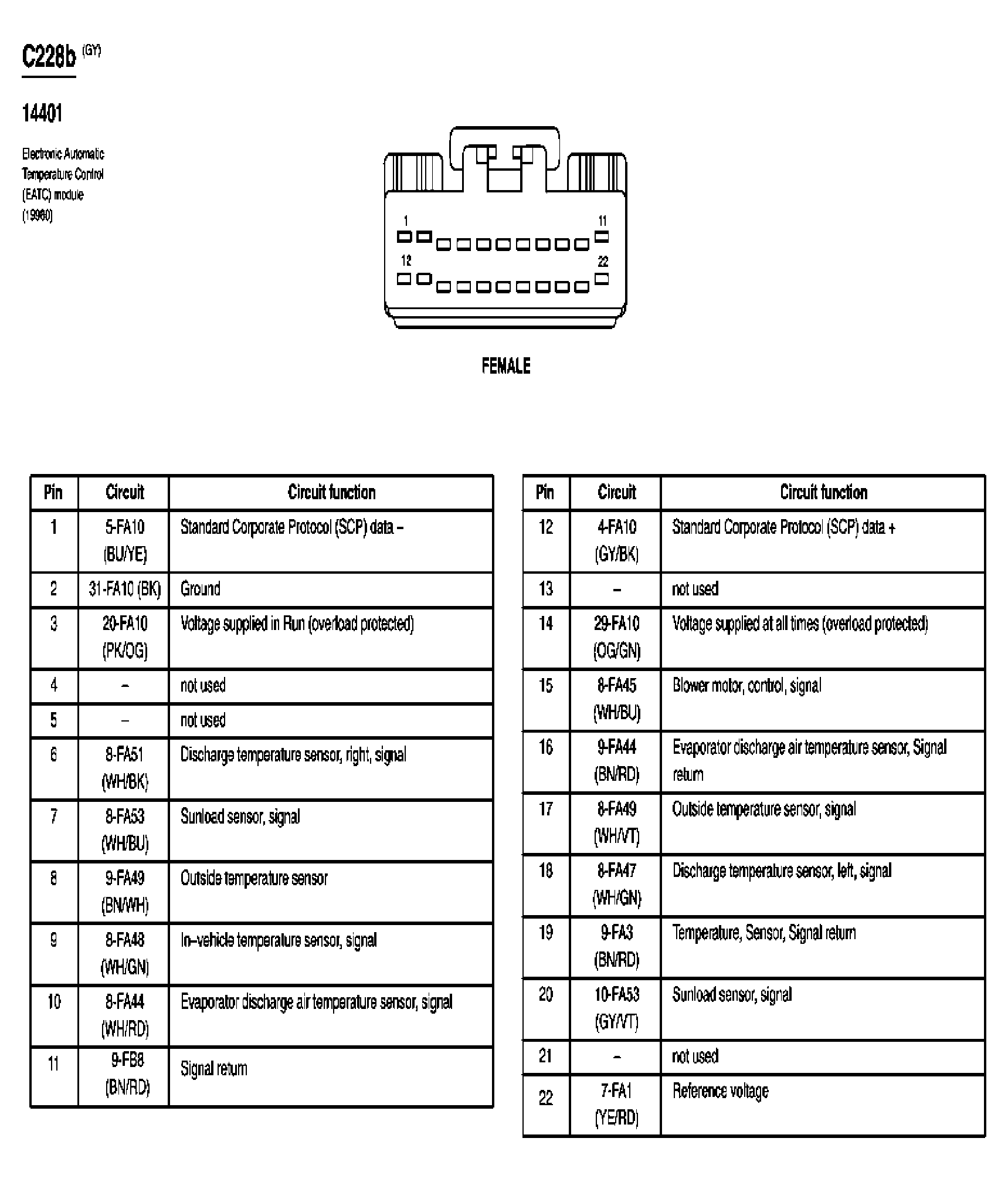

Fig 100: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)
G03994582Courtesy of FORD MOTOR CO.

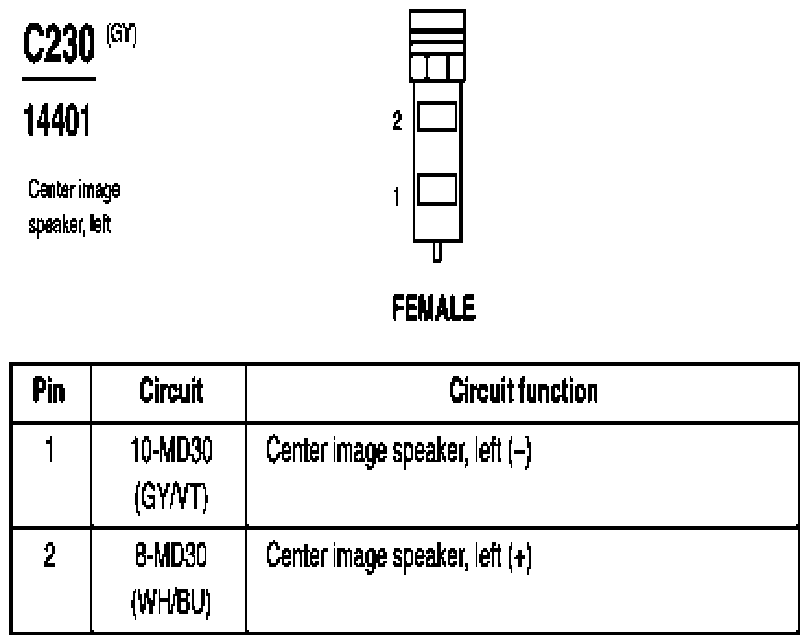

Fig 101: Center Image Speaker, Left Connector End View (C230)
G07845215Courtesy of FORD MOTOR CO.

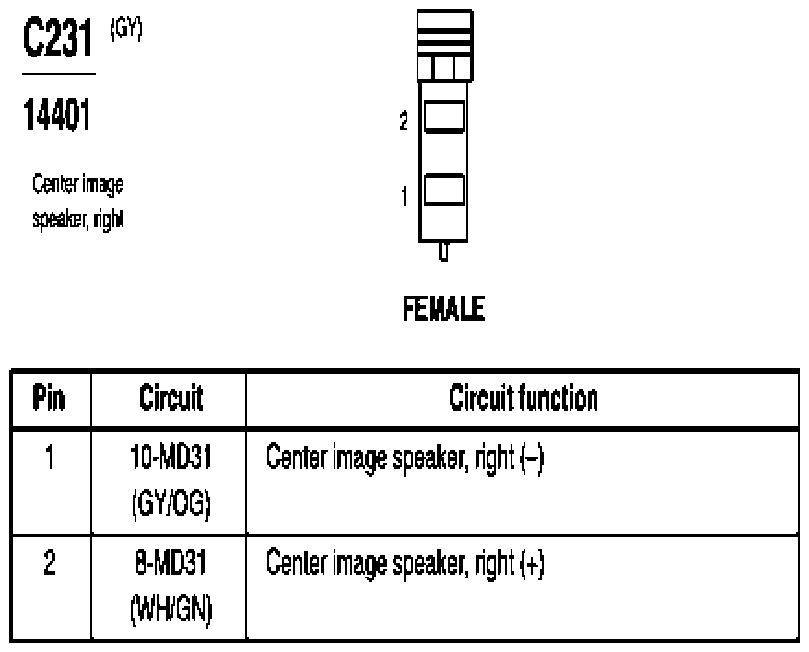

Fig 102: Center Image Speaker, Right Connector End View (C231)
G07845216Courtesy of FORD MOTOR CO.

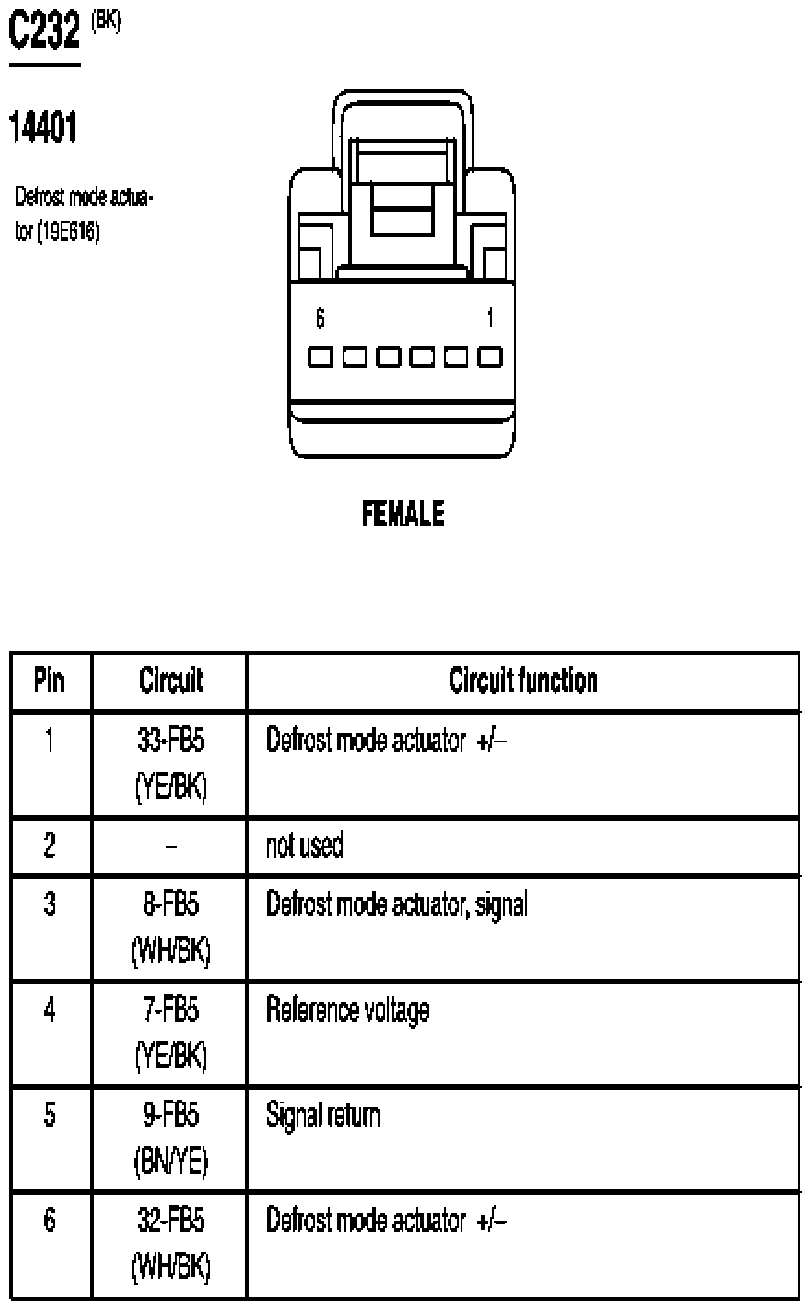

Fig 103: Defrost Mode Actuator Connector End View (C232)
G07845217Courtesy of FORD MOTOR CO.

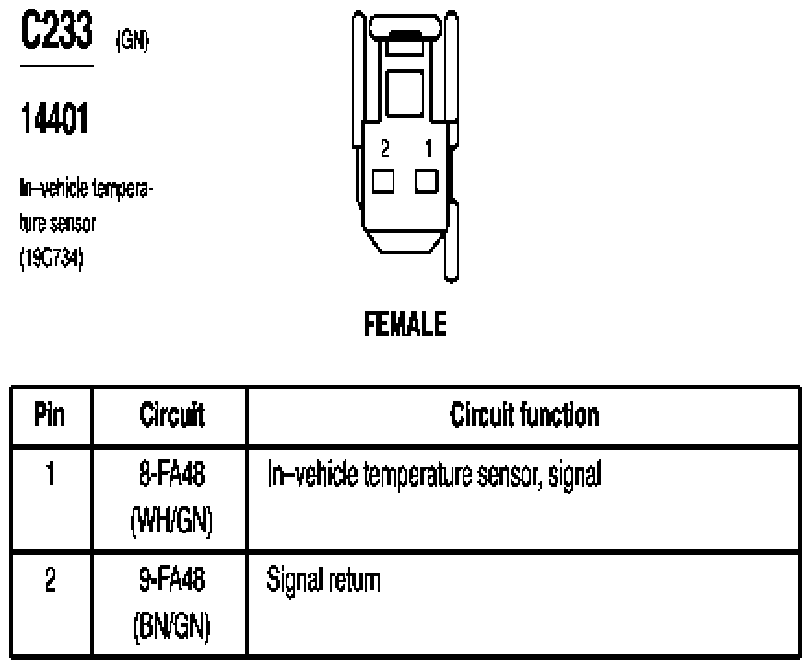

Fig 104: In-Vehicle Temperature Sensor Connector End View (C233)
G07845218Courtesy of FORD MOTOR CO.

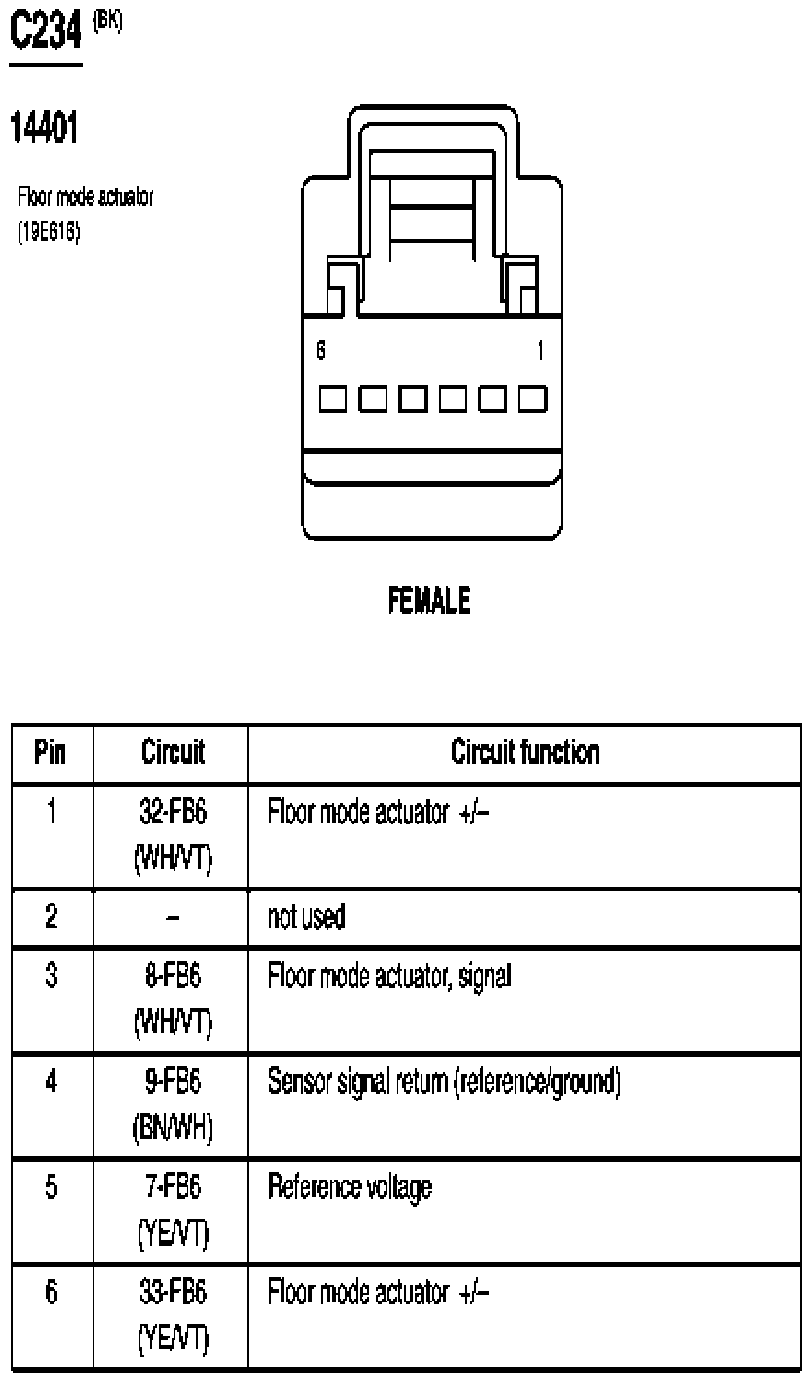

Fig 105: Floor Mode Actuator Connector End View (C234)
G07845219Courtesy of FORD MOTOR CO.

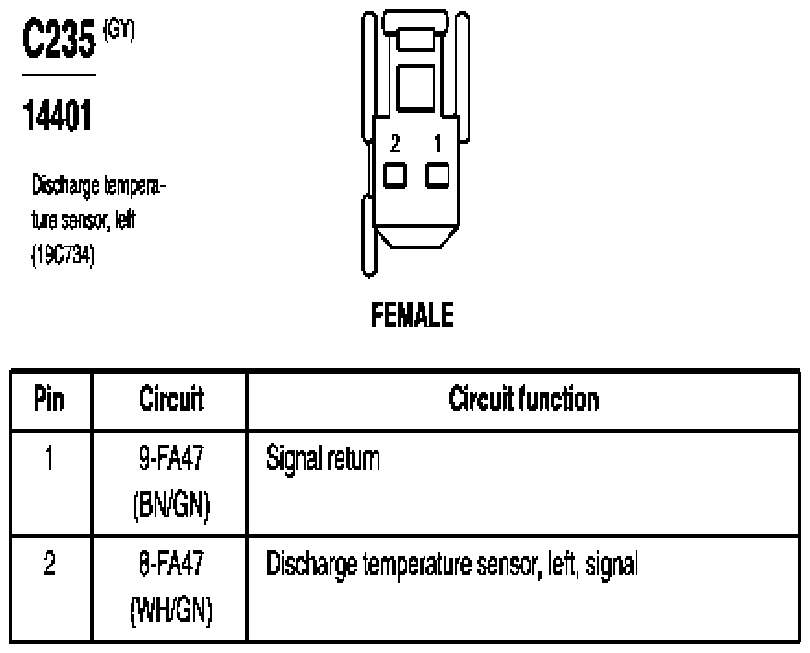

Fig 106: Discharge Temperature Sensor, Left Connector End View (C235)
G07845220Courtesy of FORD MOTOR CO.

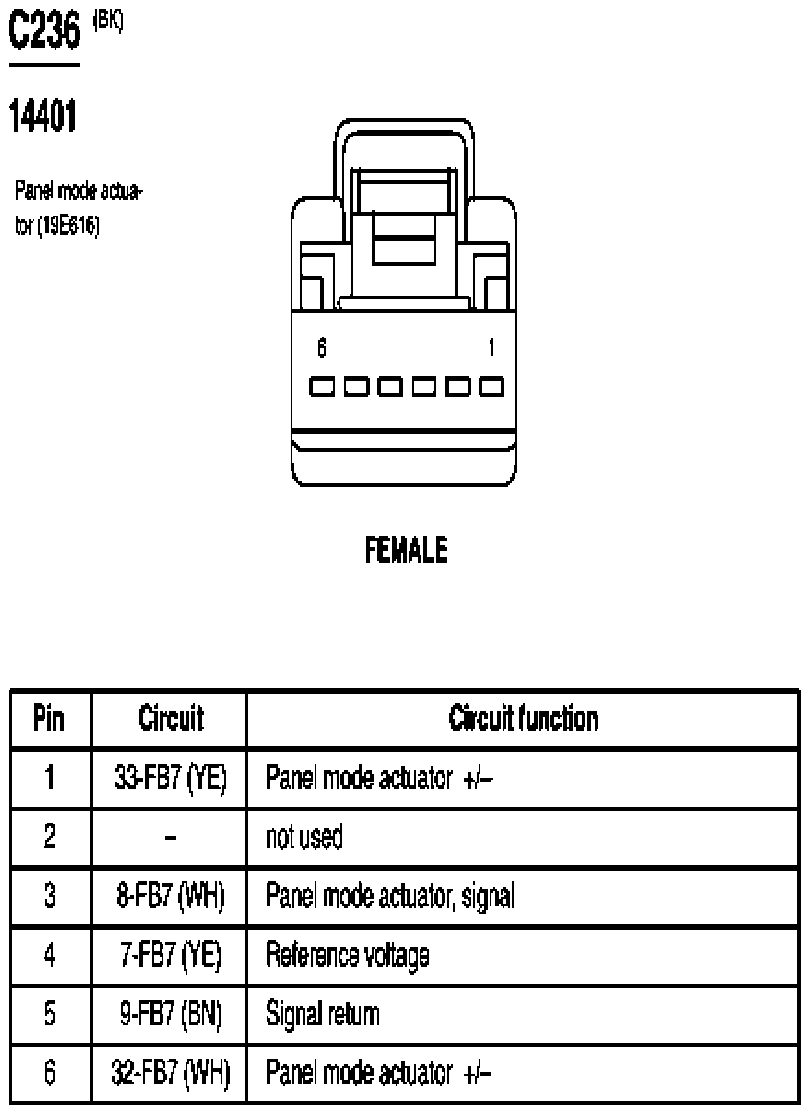

Fig 107: Panel Mode Actuator Connector End View (C236)
G07845221Courtesy of FORD MOTOR CO.
Fig 108: Inline Connector End View (C237)
G07845222Courtesy of FORD MOTOR CO.

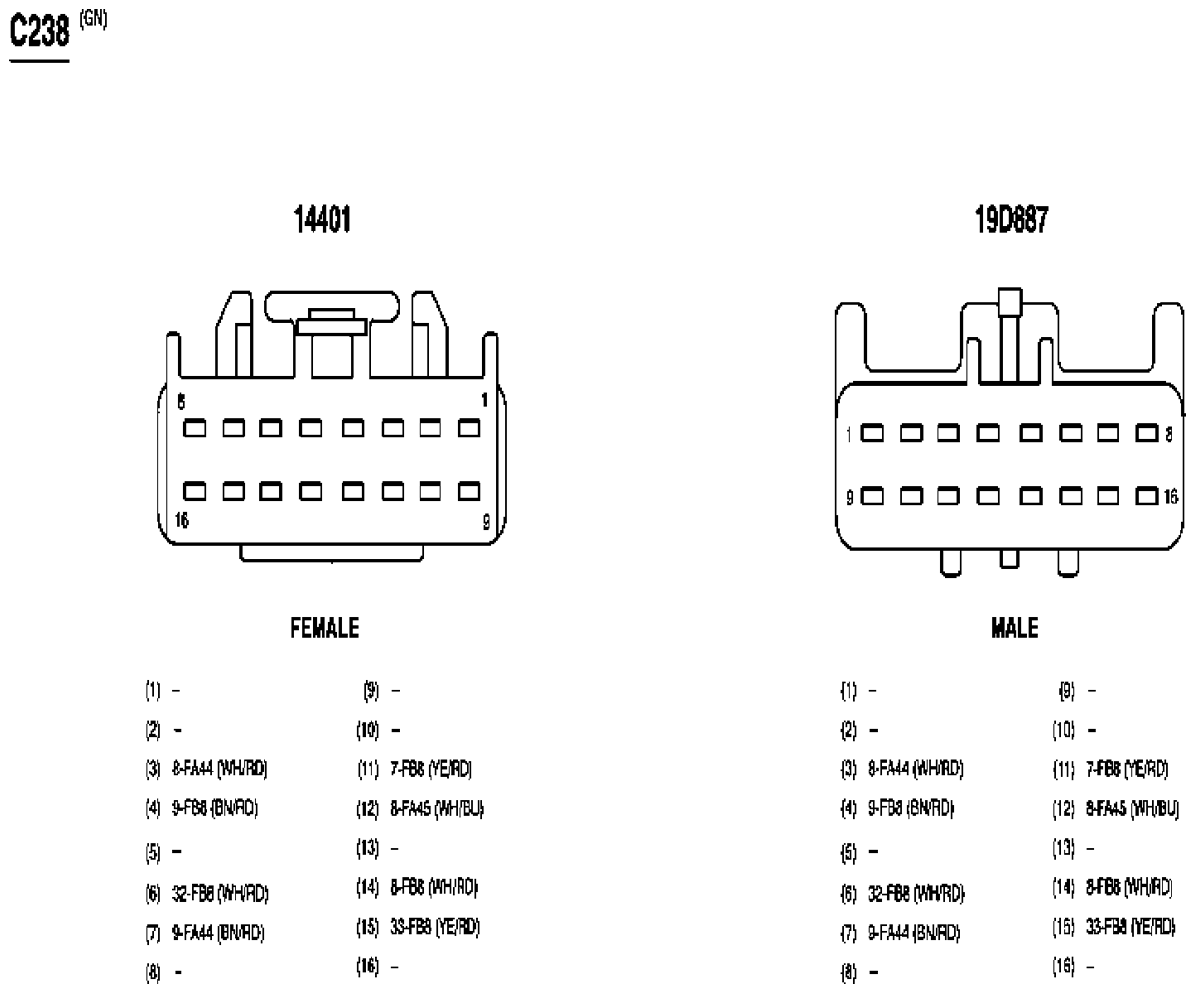

Fig 109: Inline Connector End View (C238)
G03994585Courtesy of FORD MOTOR CO.

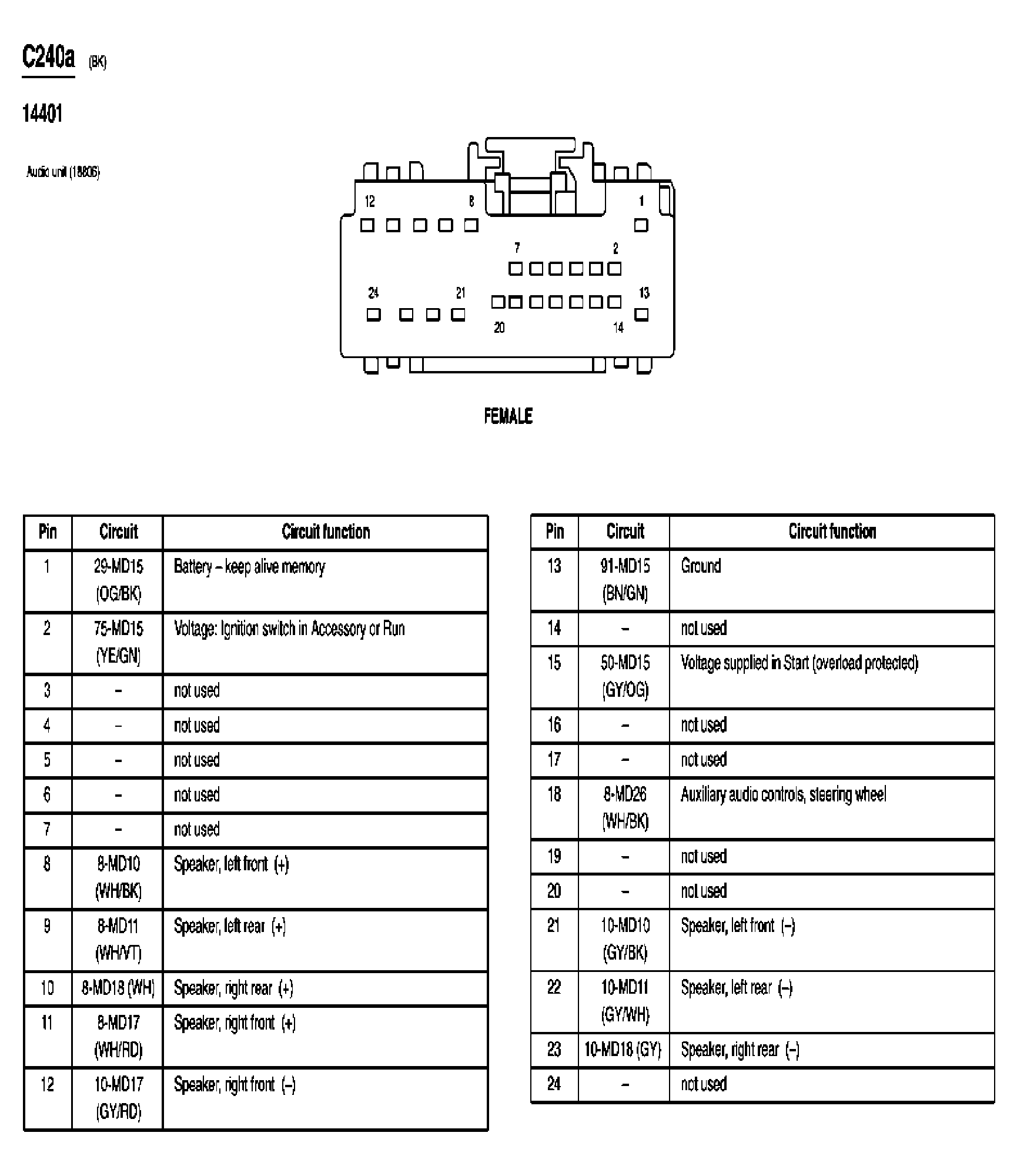

Fig 110: Audio Unit Connector End View (C240a)
G03994586Courtesy of FORD MOTOR CO.

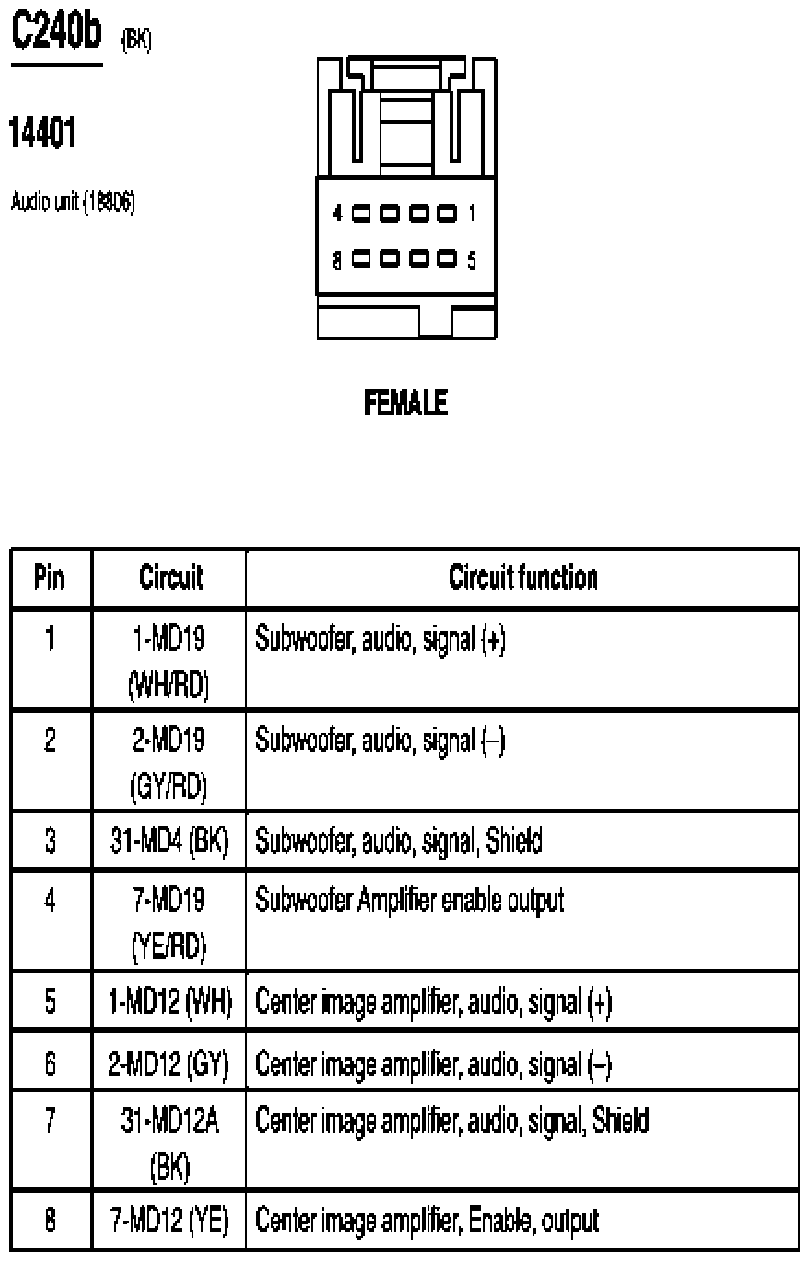

Fig 111: Audio Unit Connector End View (C240b)
G07845223Courtesy of FORD MOTOR CO.

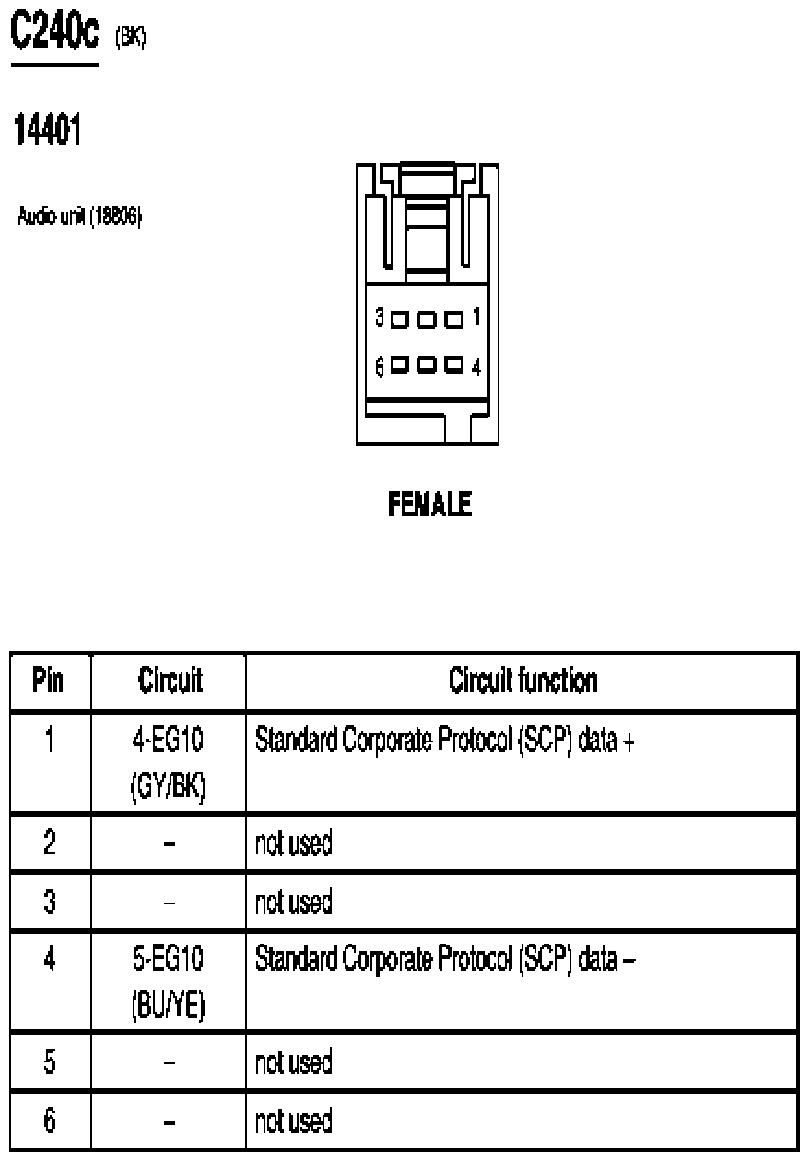

Fig 112: Audio Unit Connector End View (C240c)
G07845224Courtesy of FORD MOTOR CO.

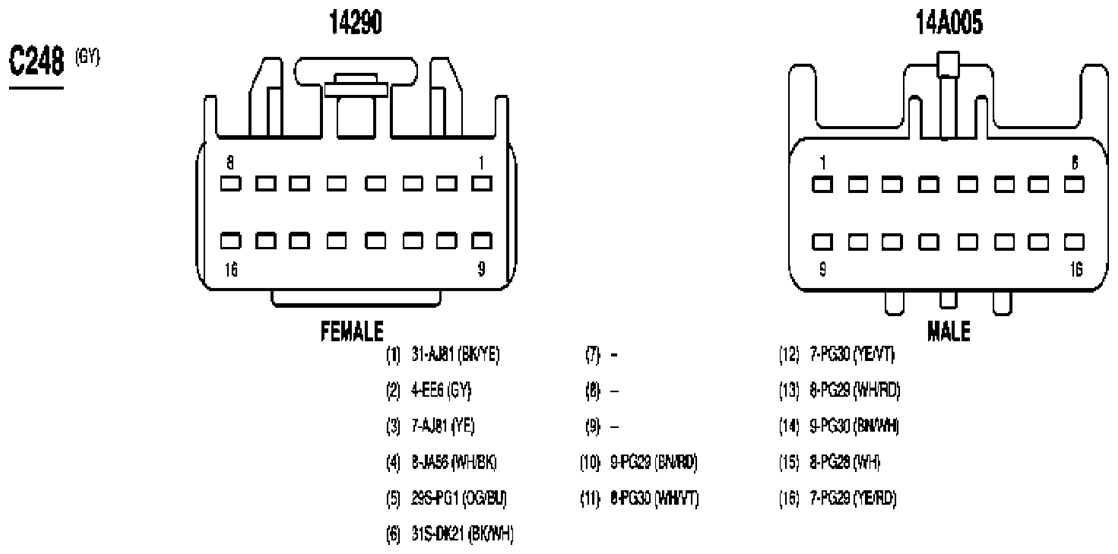

Fig 113: Inline Connector End View (C248)
G07845225Courtesy of FORD MOTOR CO.

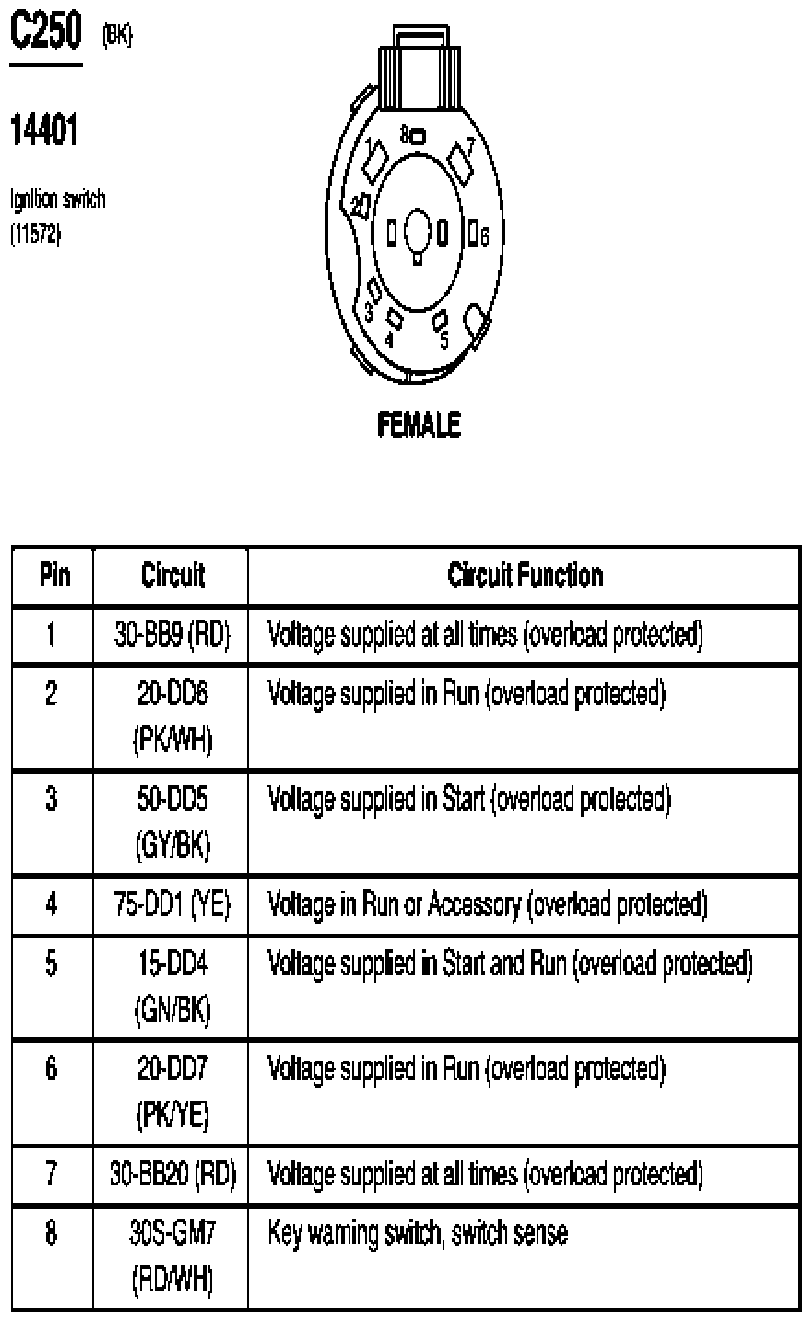

Fig 114: Ignition Switch Connector End View (C250)
G07845226Courtesy of FORD MOTOR CO.

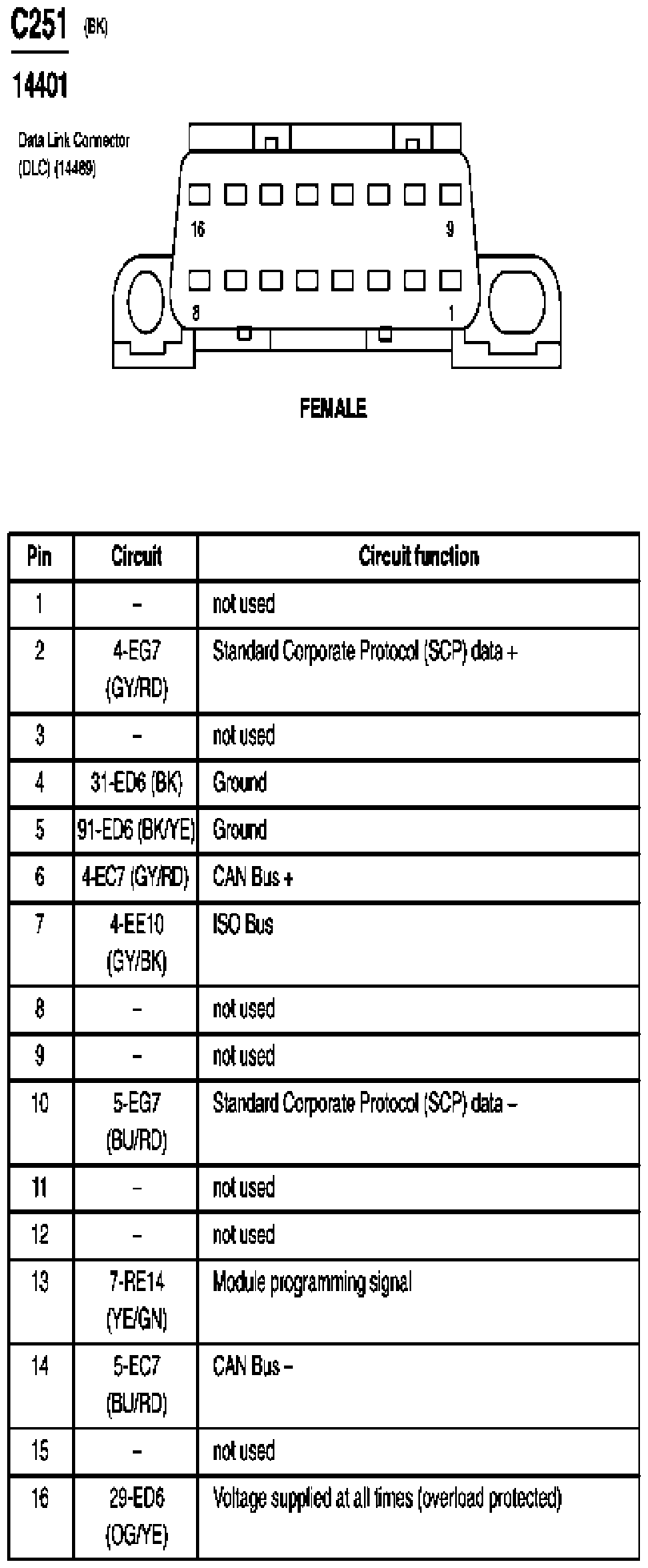

Fig 115: Data Link Connector (DLC) Connector End View (C251)
G07845227Courtesy of FORD MOTOR CO.

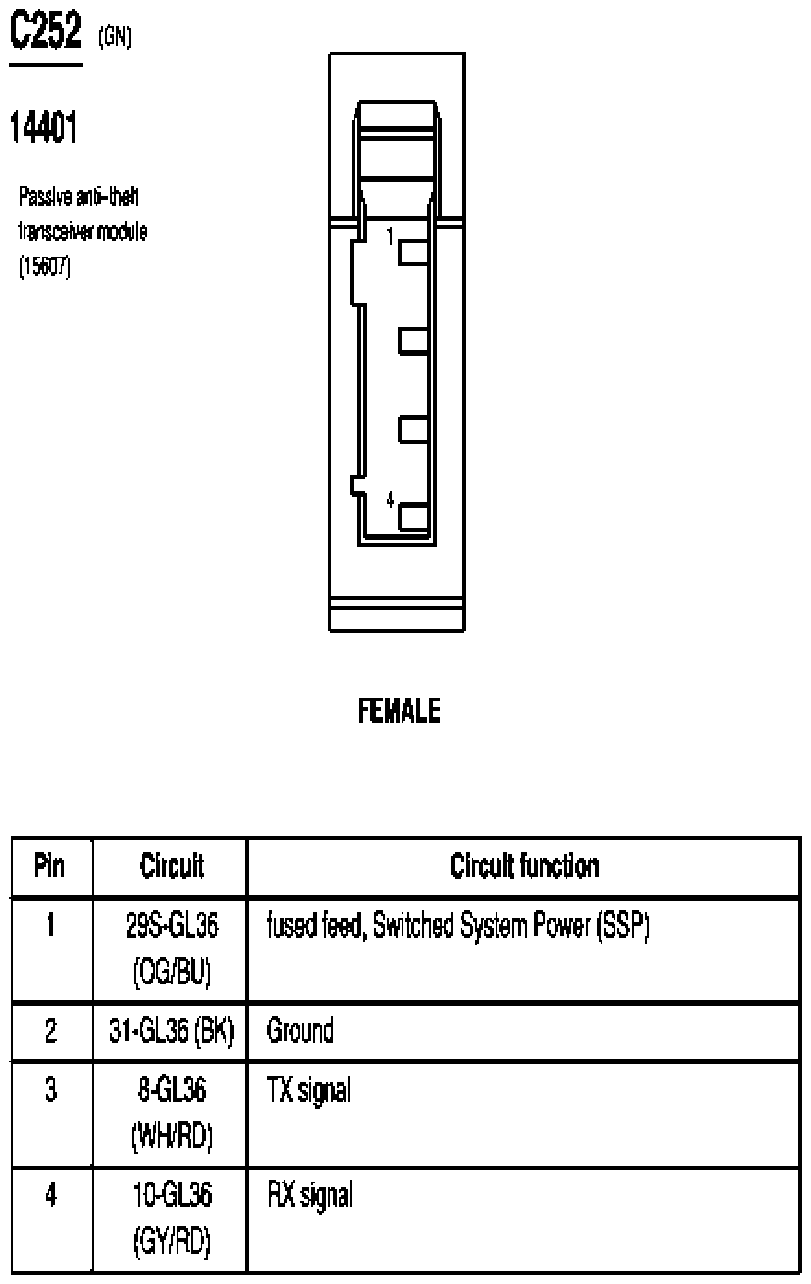

Fig 116: Passive Anti-Theft Transceiver Module Connector End View (C252)
G07845228Courtesy of FORD MOTOR CO.

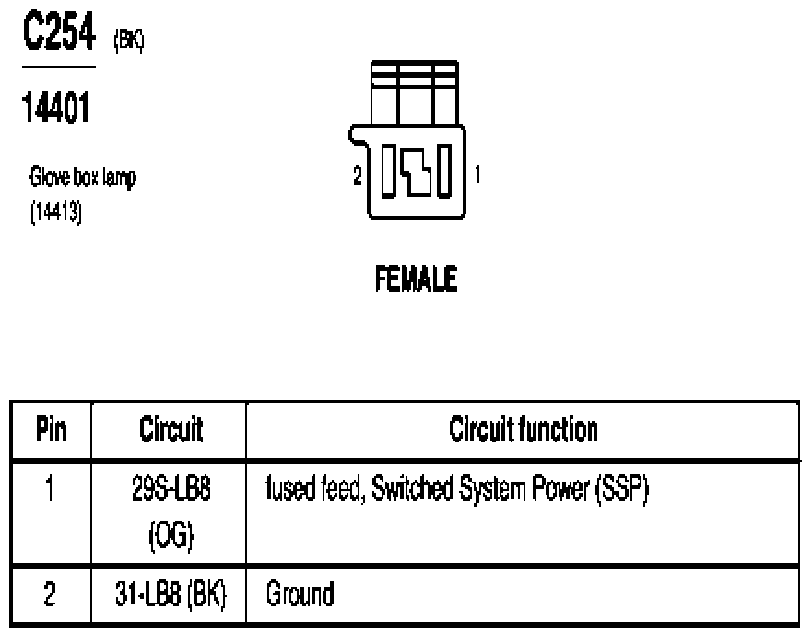

Fig 117: Glove Box Lamp Connector End View (C254)
G07845229Courtesy of FORD MOTOR CO.

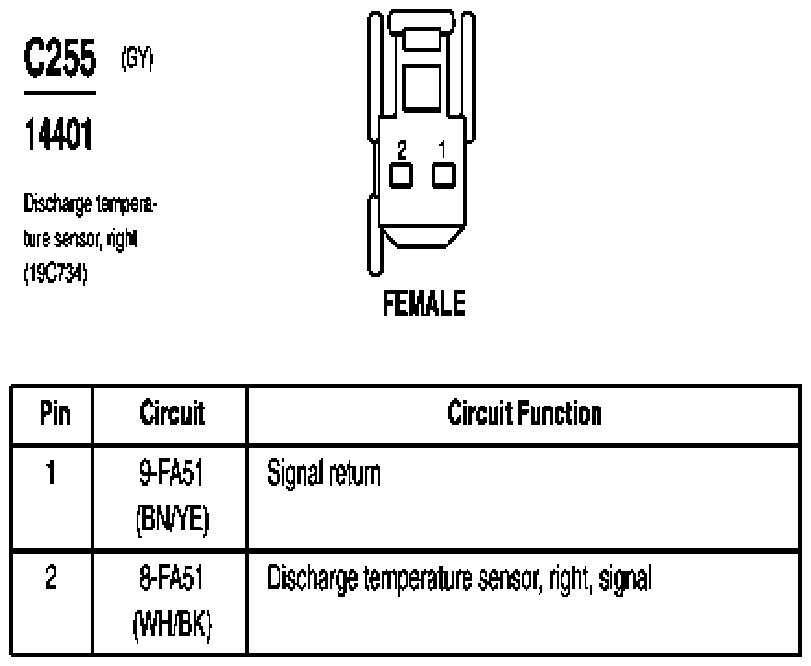

Fig 118: Discharge Temperature Sensor, Right Connector End View (C255)
G07845230Courtesy of FORD MOTOR CO.

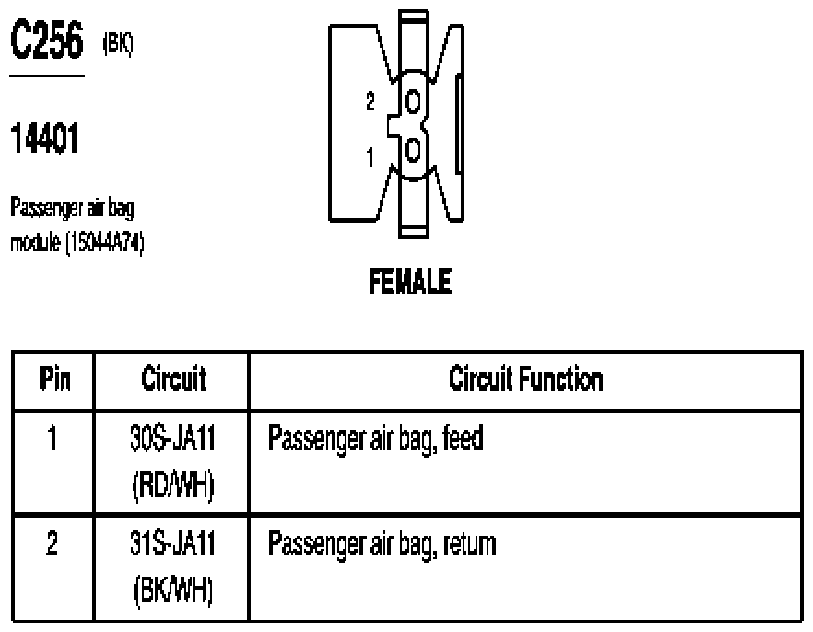

Fig 119: Passenger Air Bag Module Connector End View (C256)
G07845231Courtesy of FORD MOTOR CO.

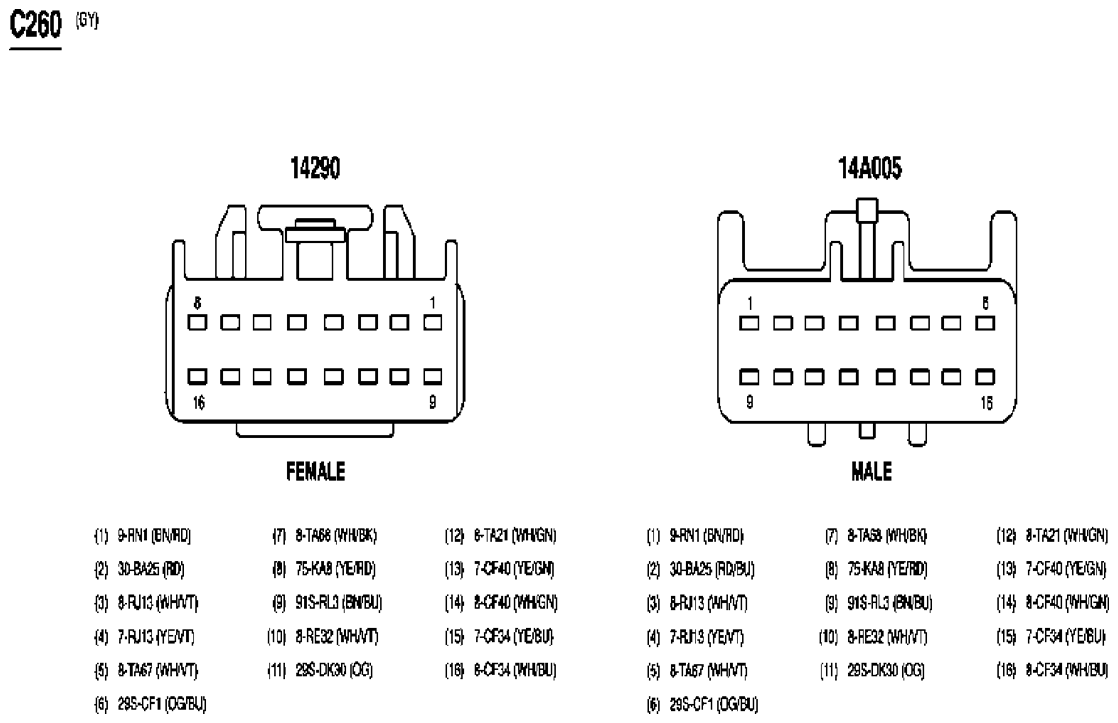

Fig 120: Inline Connector End View (C260)
G07845232Courtesy of FORD MOTOR CO.

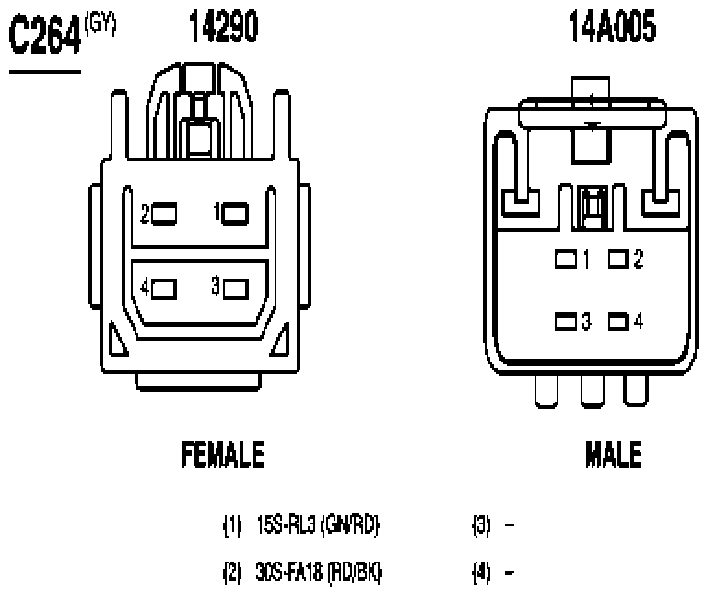

Fig 121: Inline Connector End View (C264)
G07845233Courtesy of FORD MOTOR CO.

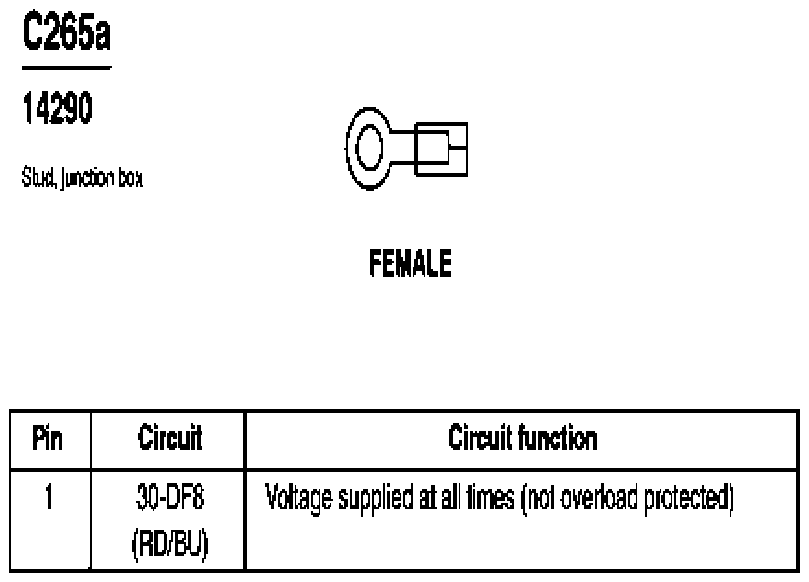

Fig 122: Stud, Junction Box Connector End View (C265a)
G07845234Courtesy of FORD MOTOR CO.

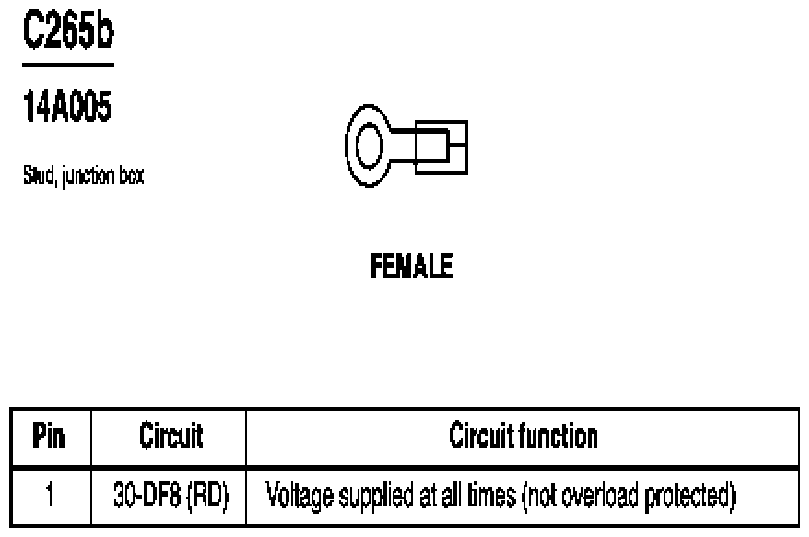

Fig 123: Stud, Junction Box Connector End View (C265b)
G07845235Courtesy of FORD MOTOR CO.

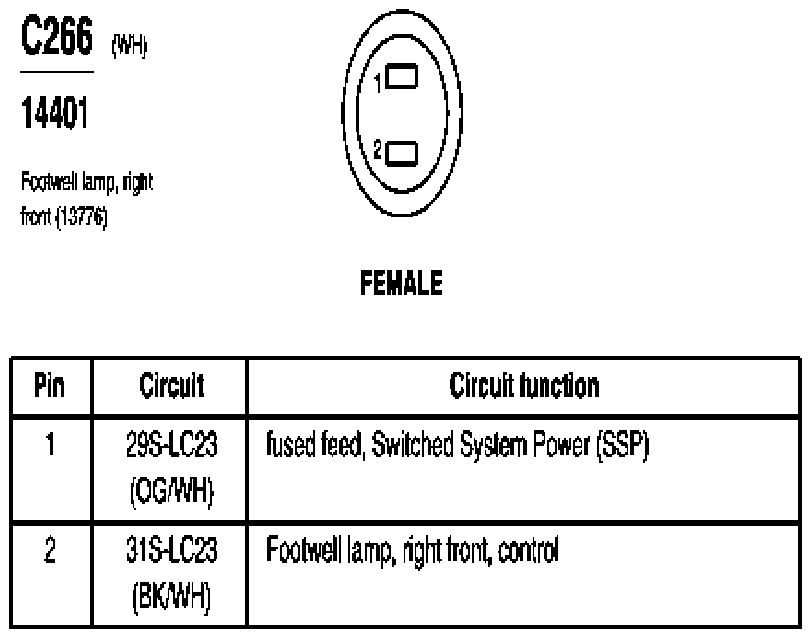

Fig 124: Footwell Lamp, Right Front Connector End View (C266)
G07845236Courtesy of FORD MOTOR CO.

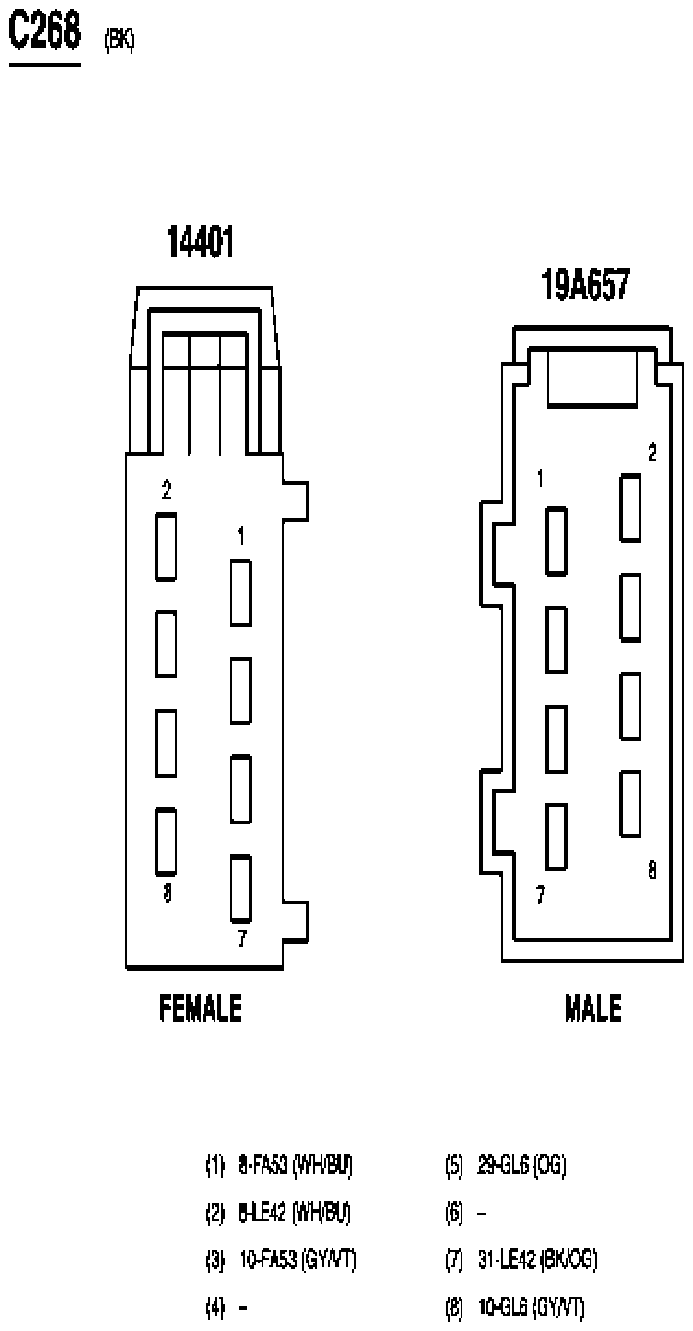

Fig 125: Inline Connector End View (C268)
G07845237Courtesy of FORD MOTOR CO.

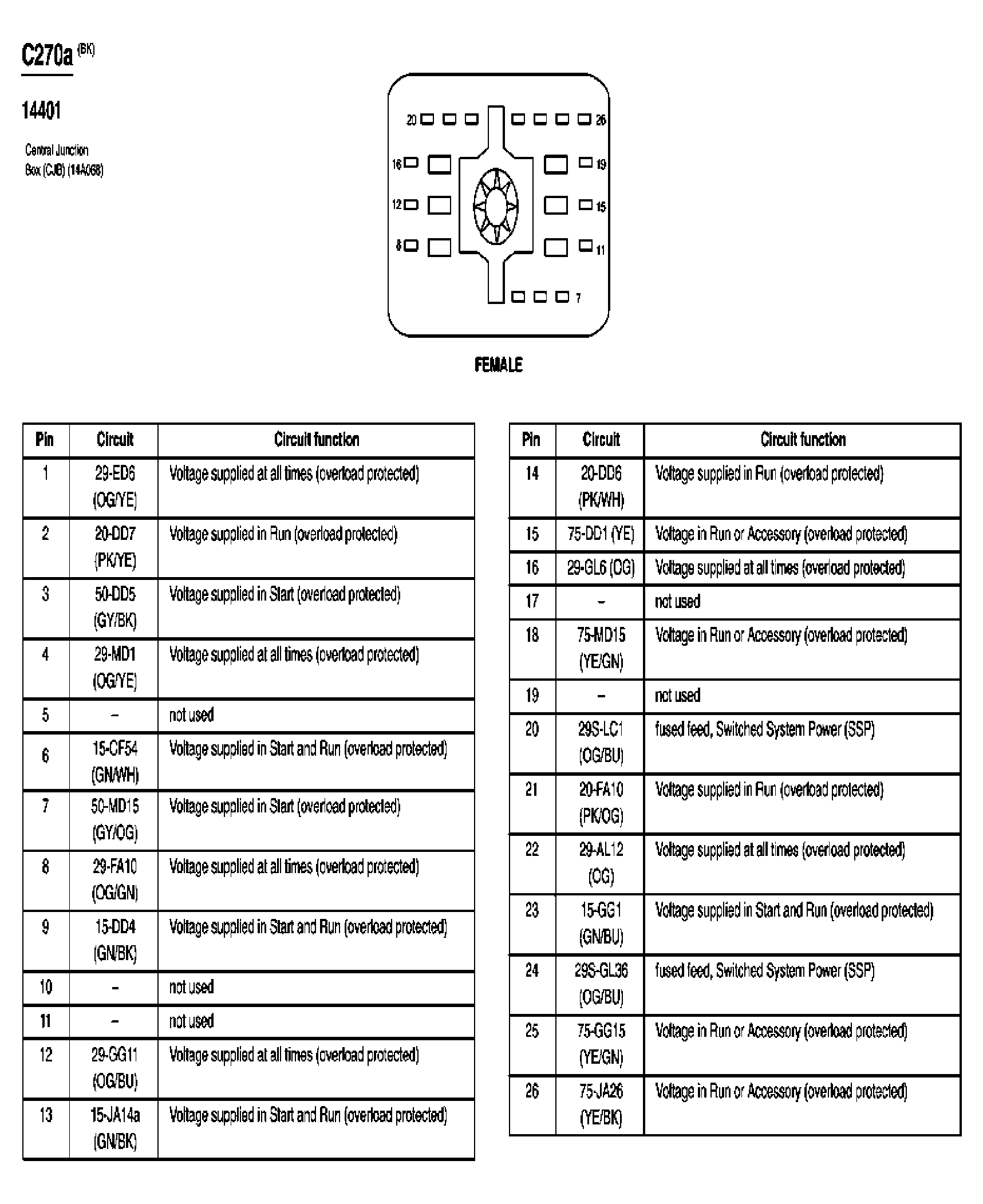

Fig 126: Central Junction Box (CJB) Connector End View (C270a)
G03994592Courtesy of FORD MOTOR CO.

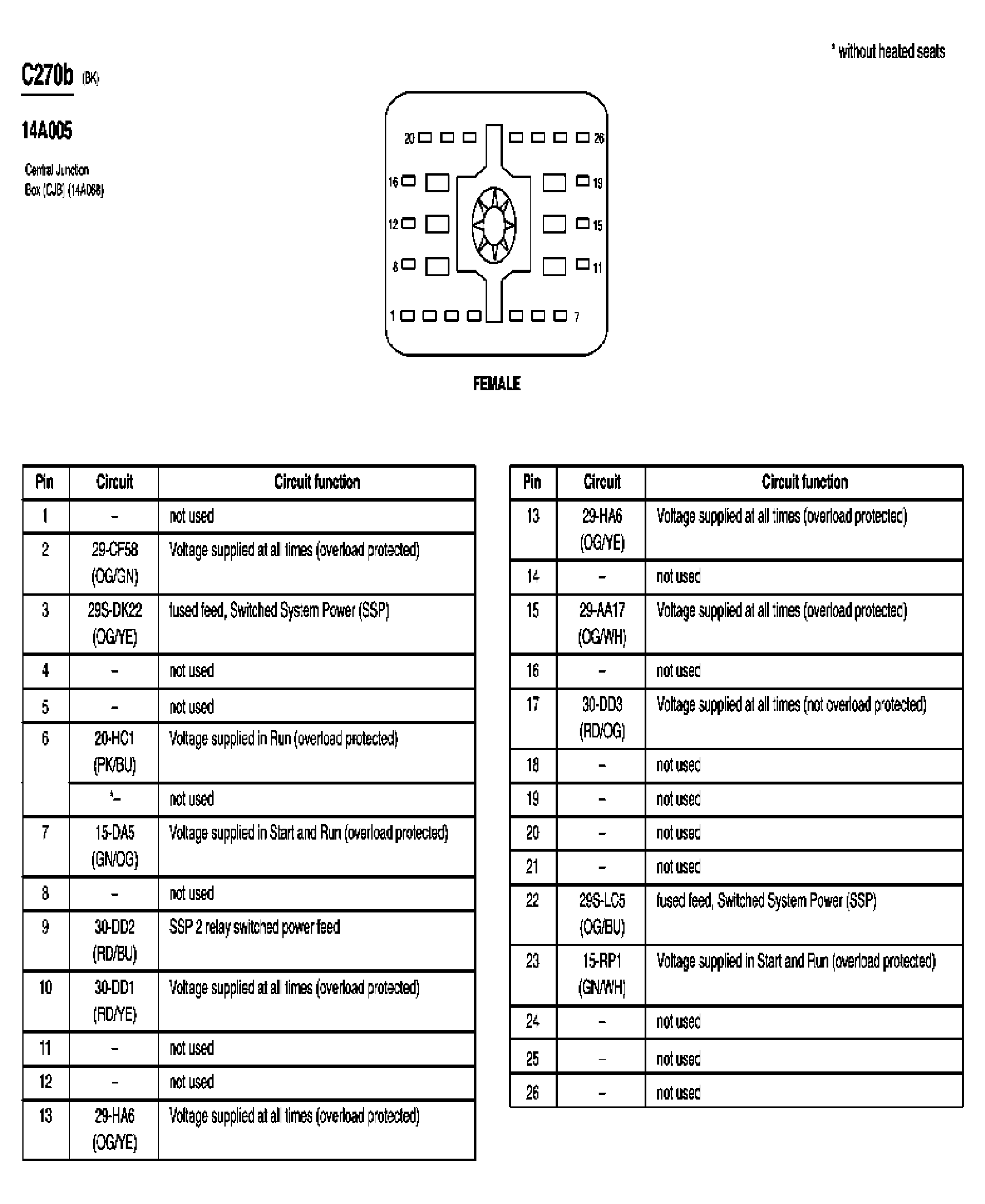

Fig 127: Central Junction Box (CJB) Connector End View (C270b)
G03994593Courtesy of FORD MOTOR CO.

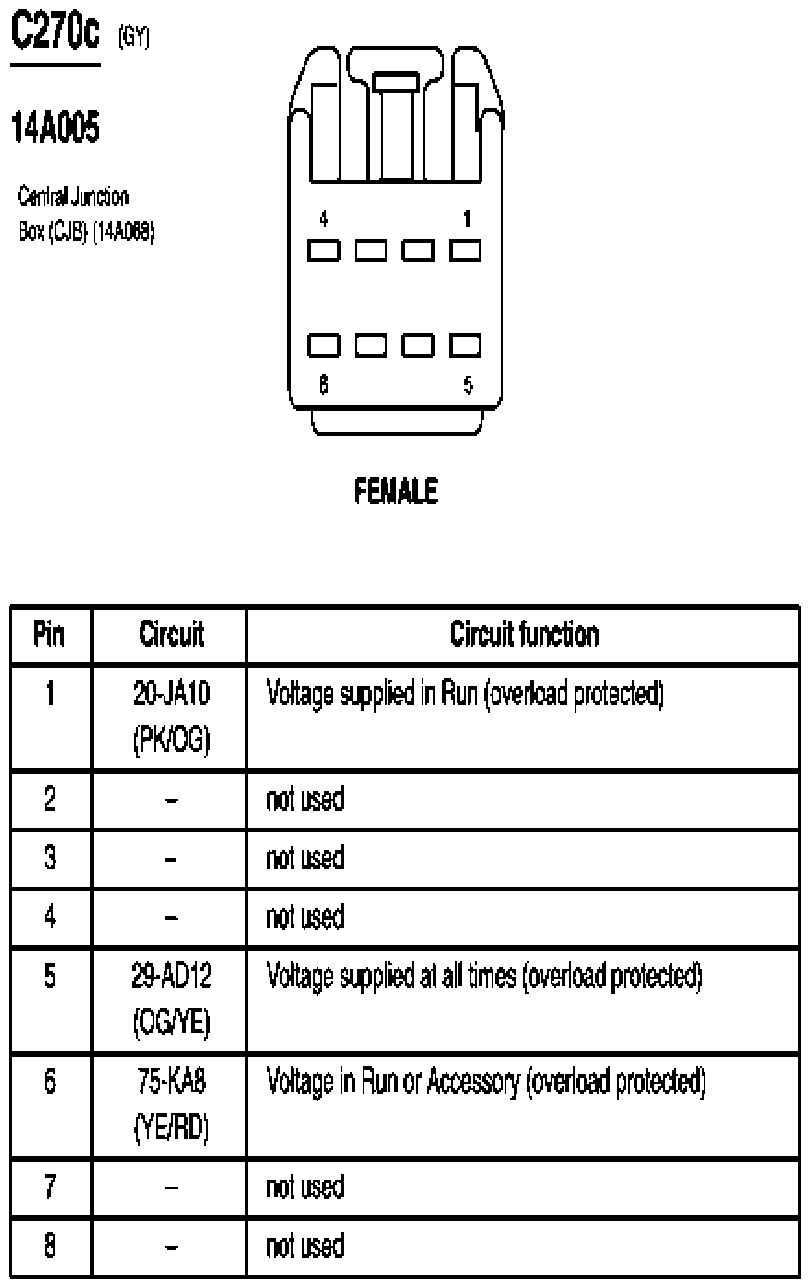

Fig 128: Central Junction Box (CJB) Connector End View (C270c)
G07845238Courtesy of FORD MOTOR CO.

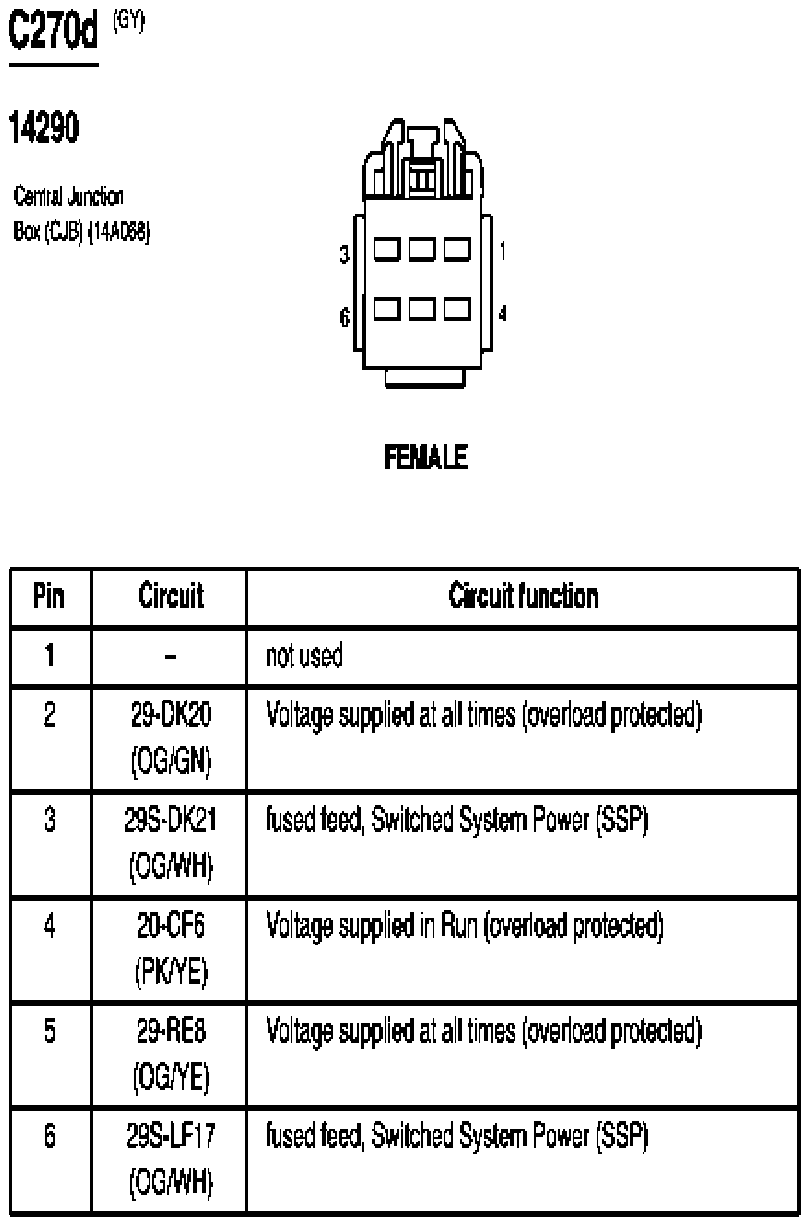

Fig 129: Central Junction Box (CJB) Connector End View (C270d)
G07845239Courtesy of FORD MOTOR CO.

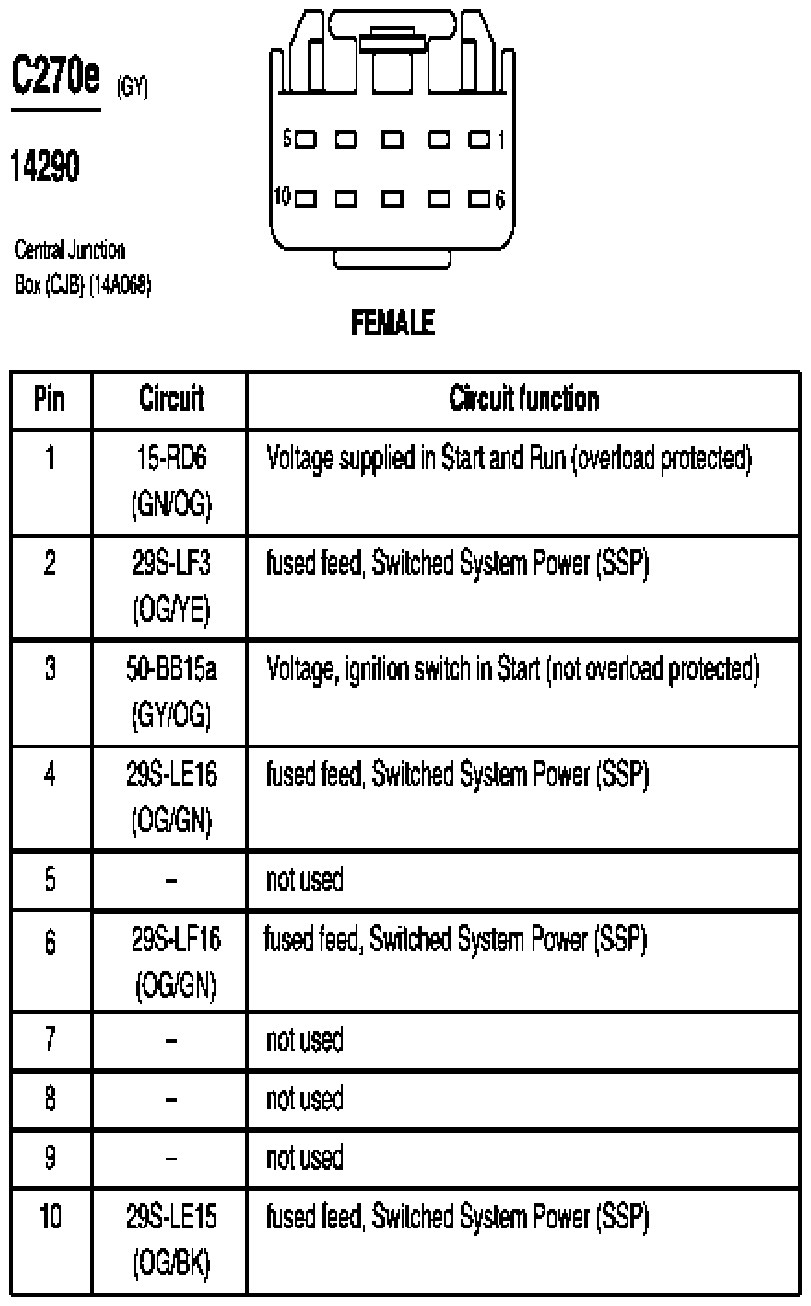

Fig 130: Central Junction Box (CJB) Connector End View (C270e)
G07845240Courtesy of FORD MOTOR CO.

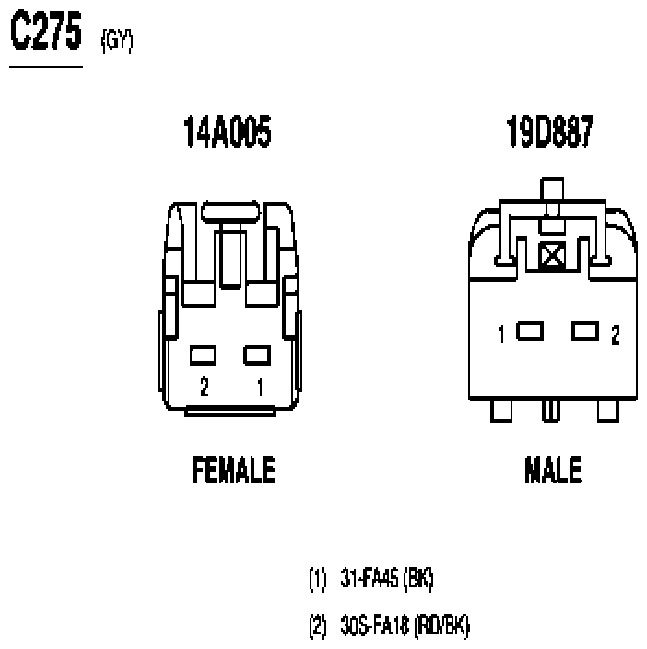

Fig 131: Inline Connector End View (C275)
G07845241Courtesy of FORD MOTOR CO.

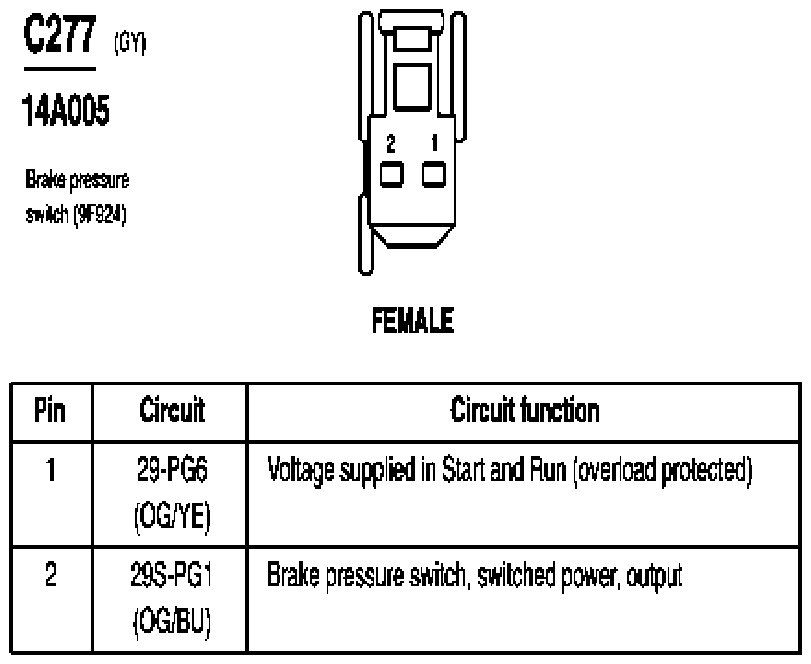

Fig 132: Brake Pressure Switch Connector End View (C277)
G07845242Courtesy of FORD MOTOR CO.

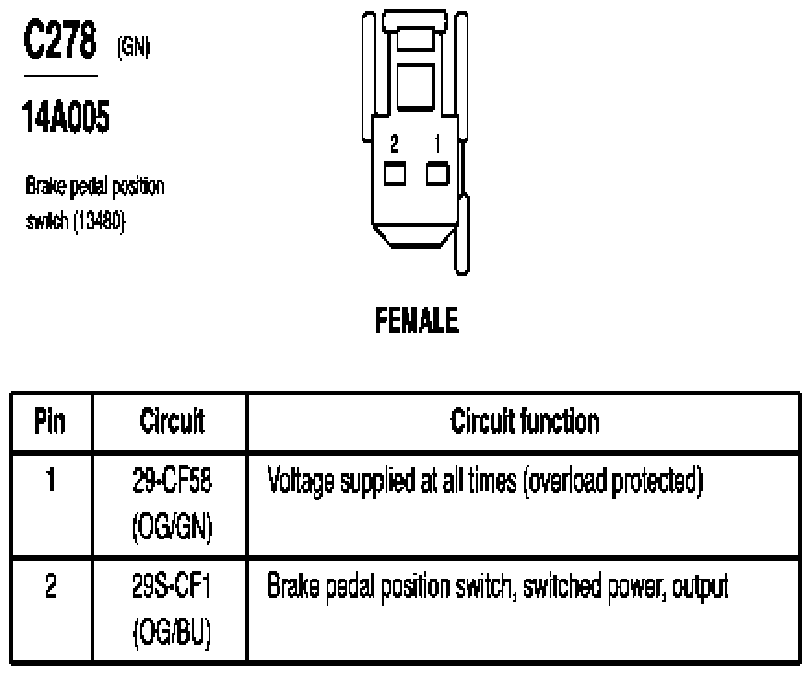

Fig 133: Brake Pedal Position Switch Connector End View (C278)
G07845243Courtesy of FORD MOTOR CO.

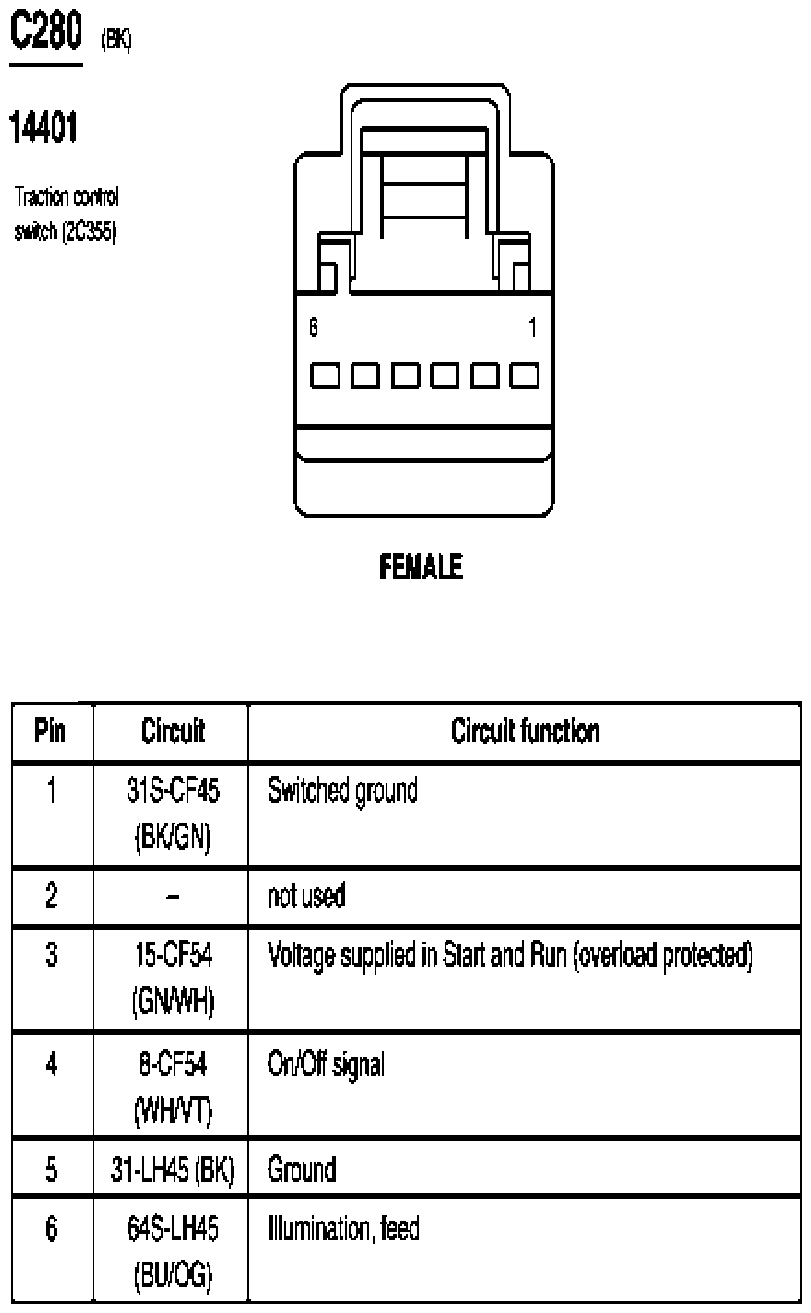

Fig 134: Traction Control Switch Connector End View (C280)
G07845244Courtesy of FORD MOTOR CO.

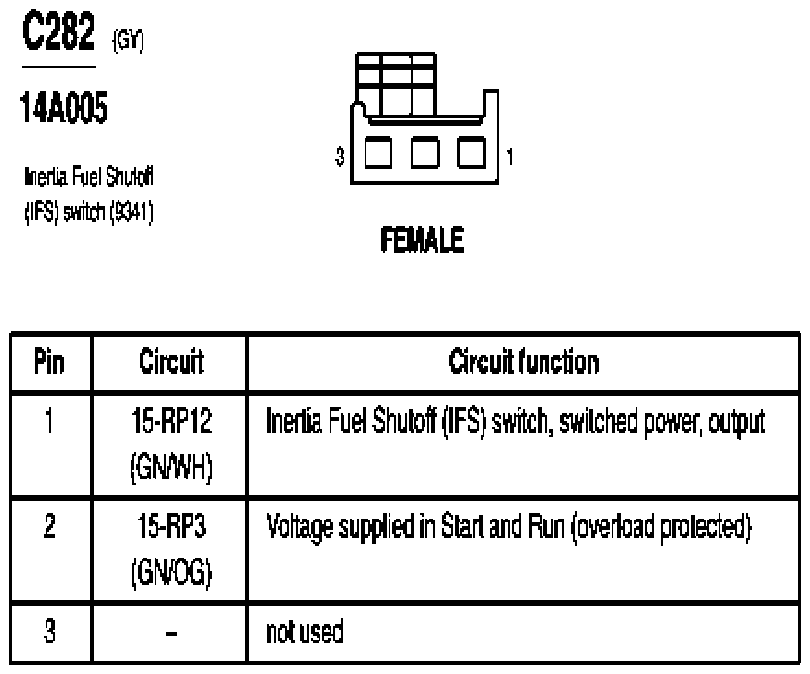

Fig 135: Inertia Fuel Shutoff (IFS, Switch) Connector End View (C282)
G07845245Courtesy of FORD MOTOR CO.

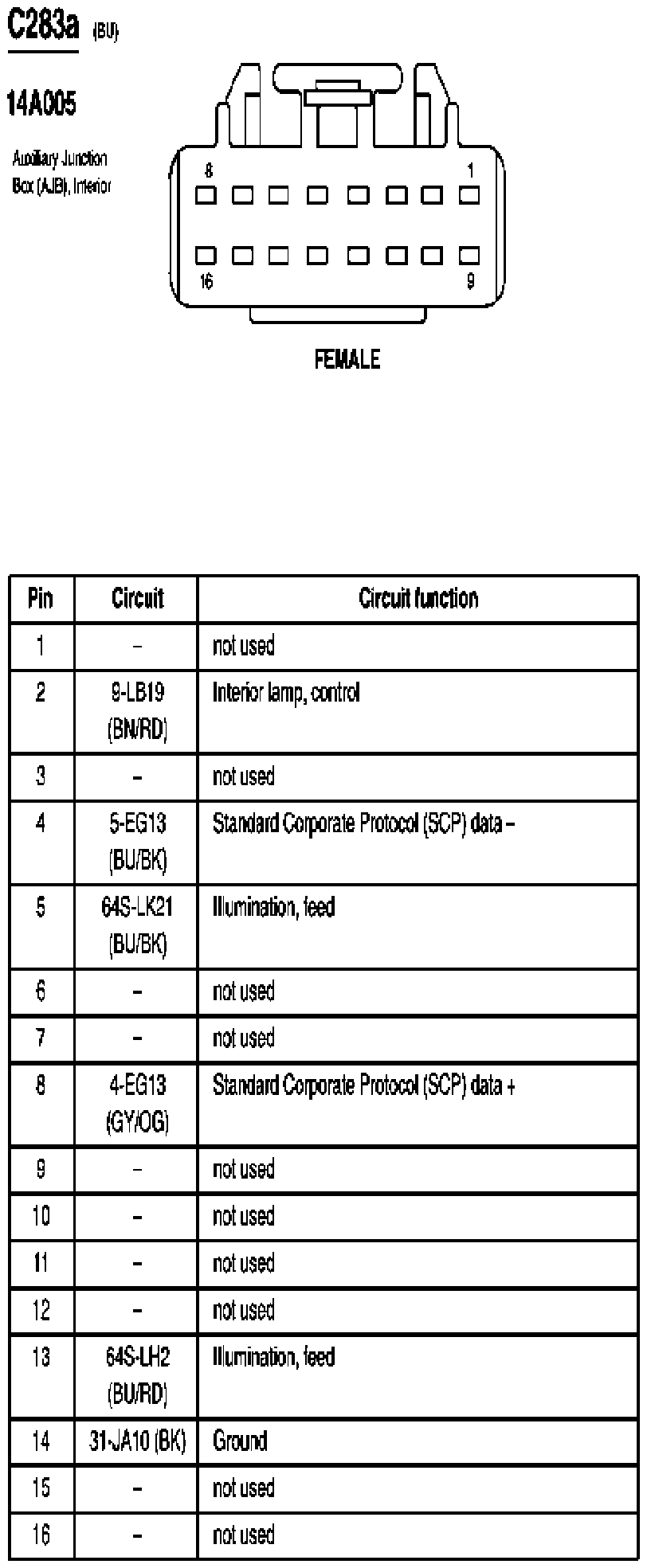

Fig 136: Auxiliary Junction Box (AJB), Interior Connector End View (C283a)
G07845246Courtesy of FORD MOTOR CO.
Fig 137: Auxiliary Junction Box (AJB), Interior Connector End View (C283b)
G07845247Courtesy of FORD MOTOR CO.

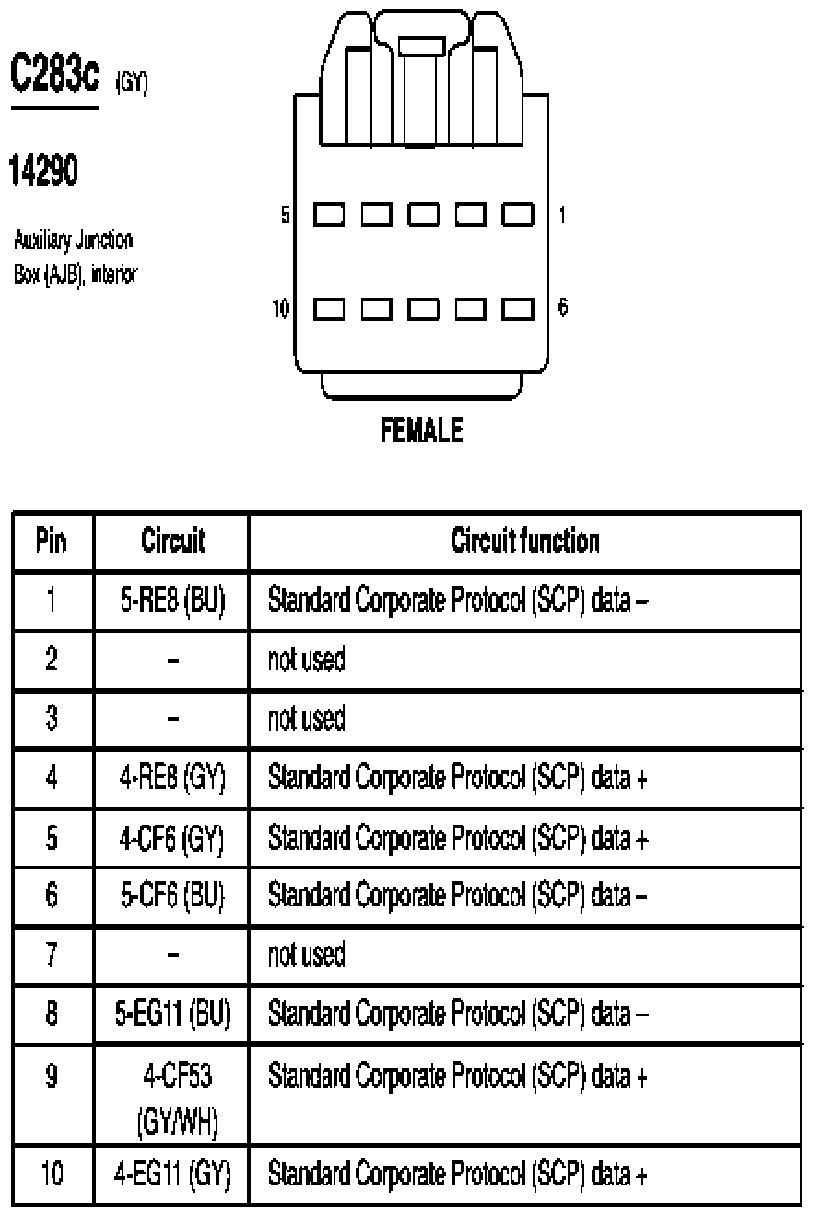

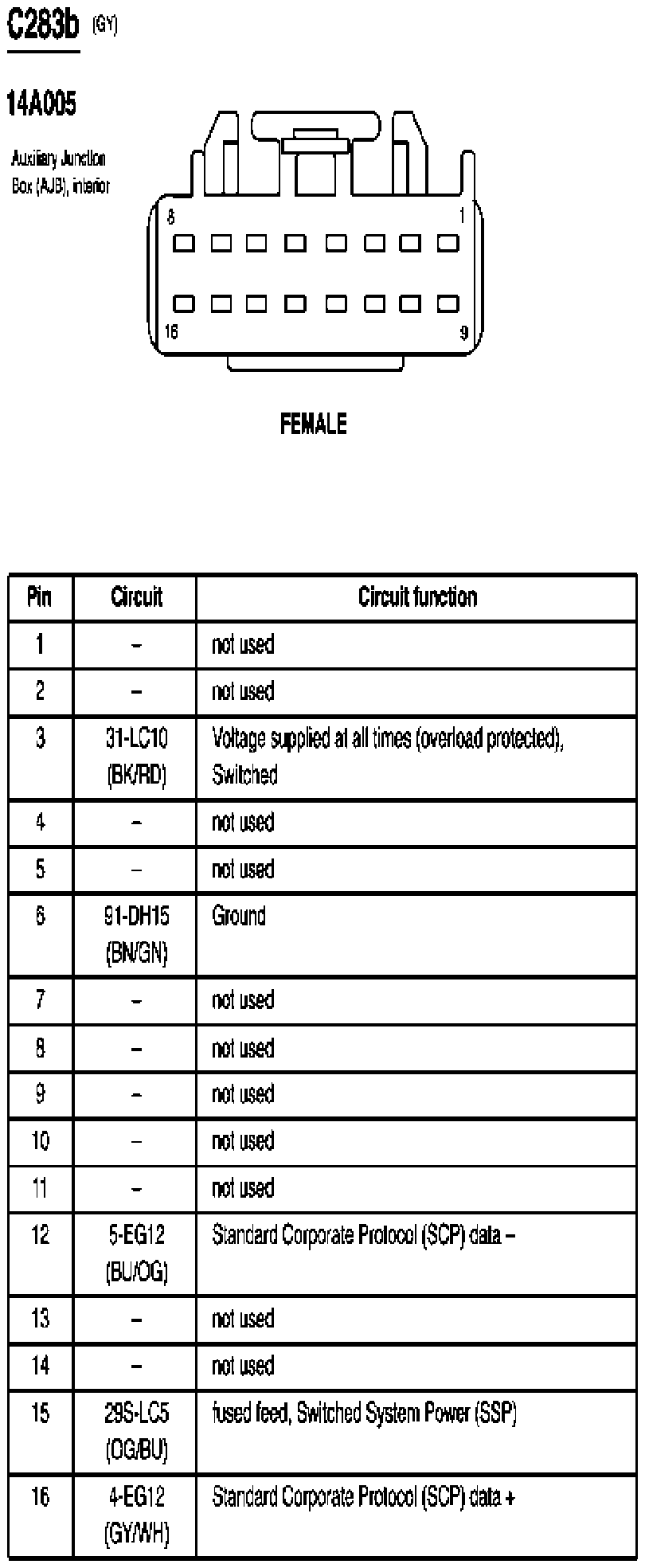

Fig 138: Auxiliary Junction Box (AJB), Interior Connector End View (C283c)
G07845248Courtesy of FORD MOTOR CO.

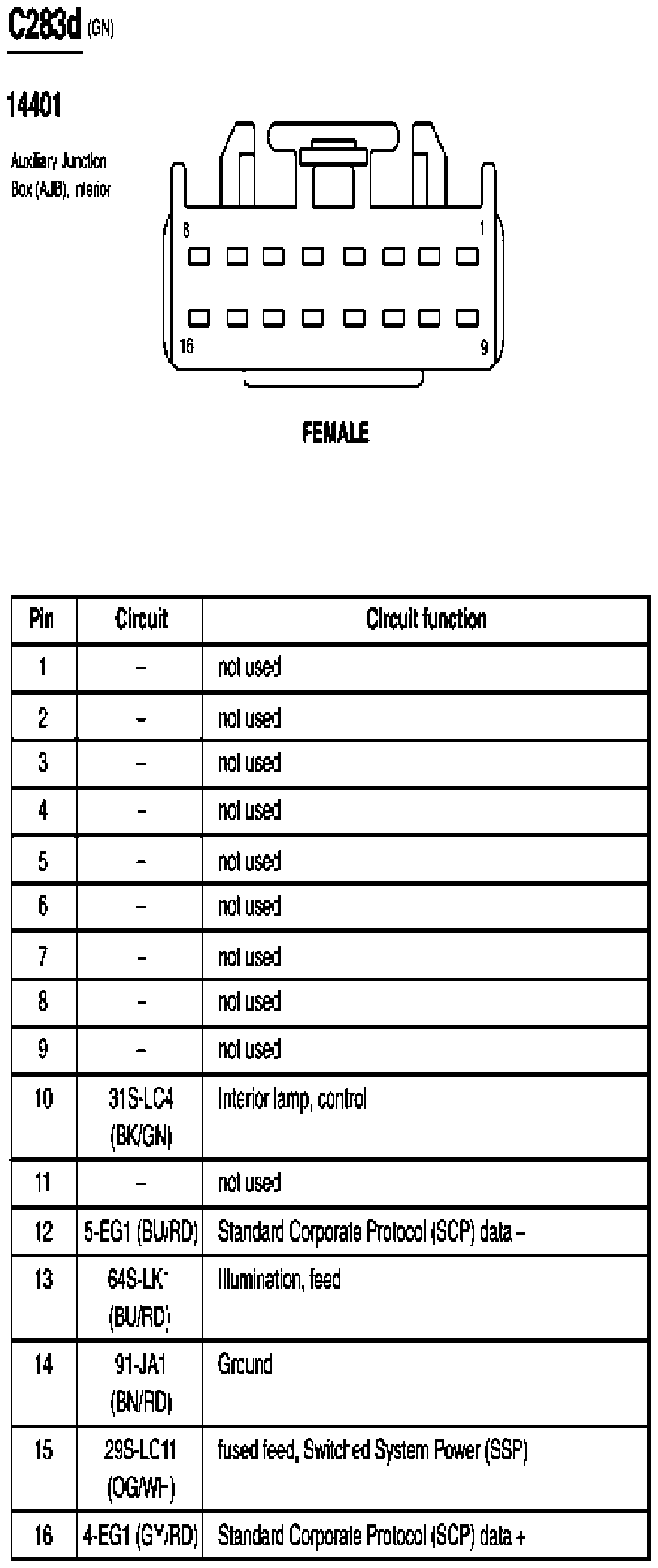

Fig 139: Auxiliary Junction Box (AJB), Interior Connector End View (C283d)
G07845249Courtesy of FORD MOTOR CO.

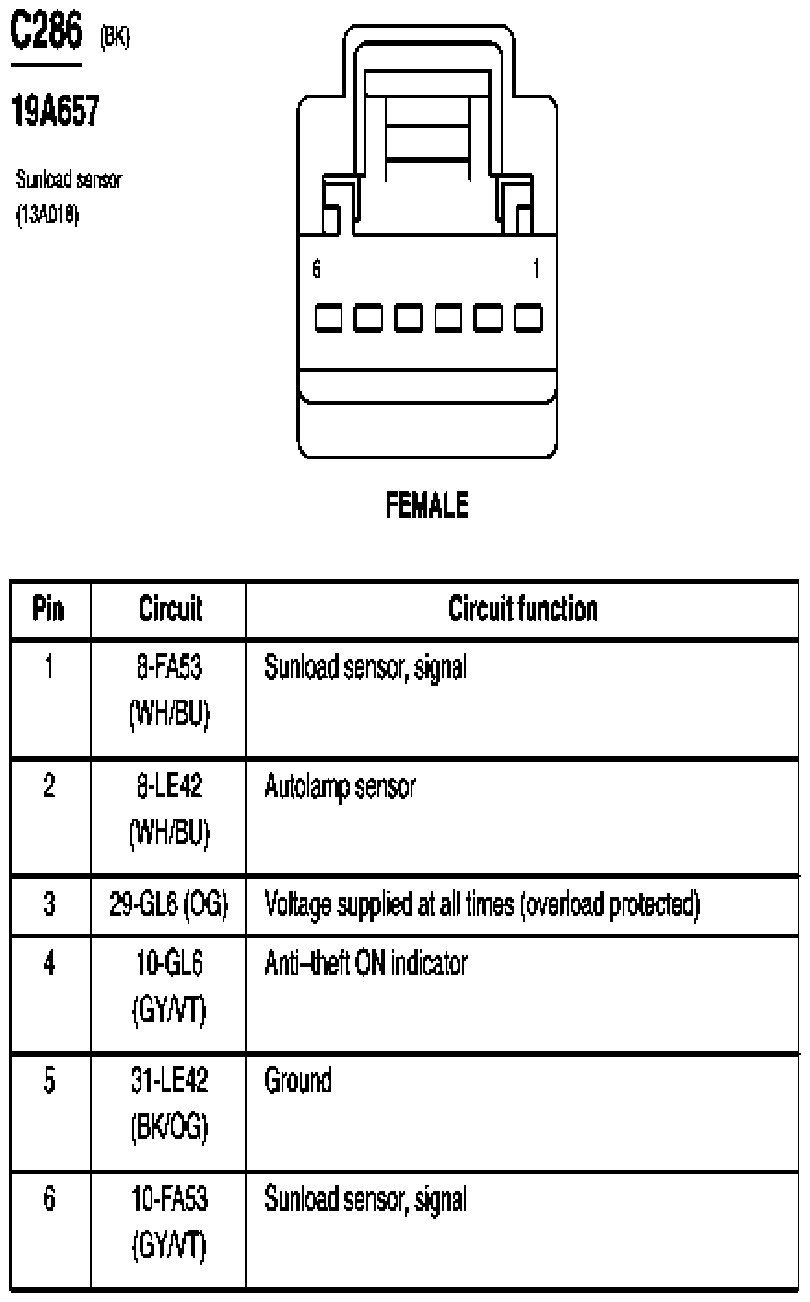

Fig 140: Sunload Sensor Connector End View (C286)
G07845250Courtesy of FORD MOTOR CO.

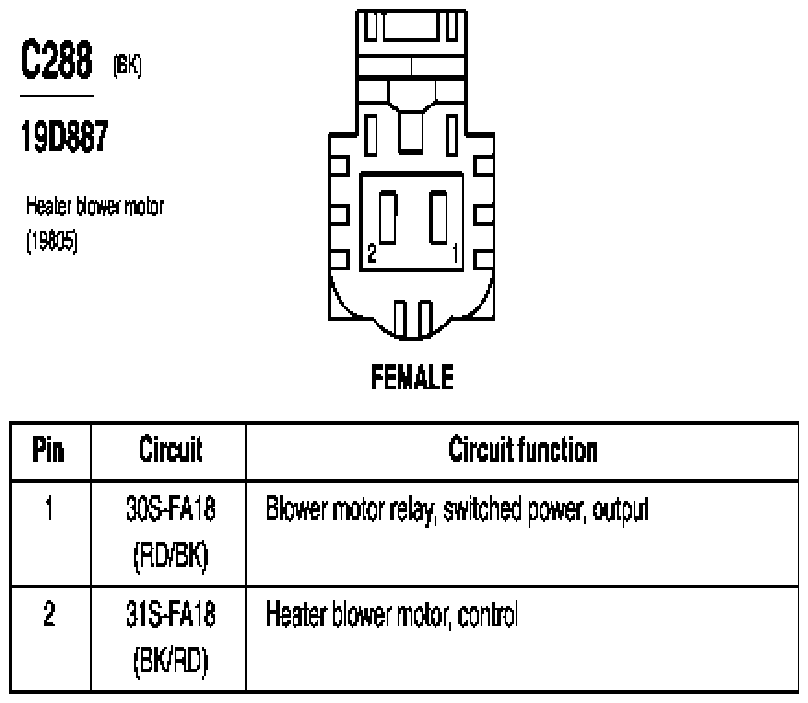

Fig 141: Heater Blower Motor Connector End View (C288)
G07845251Courtesy of FORD MOTOR CO.

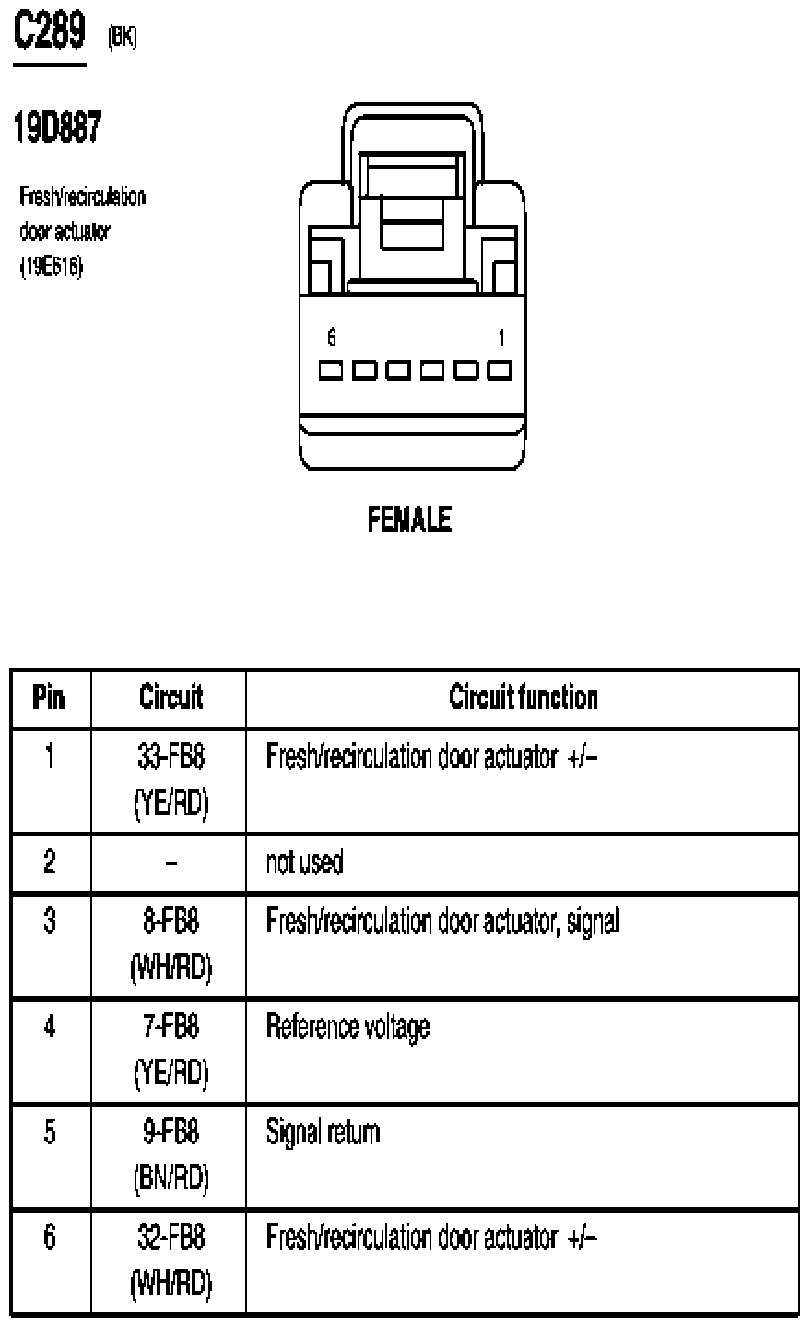

Fig 142: Temperature Blend Door Actuator Connector End View (C289)
G07845252Courtesy of FORD MOTOR CO.

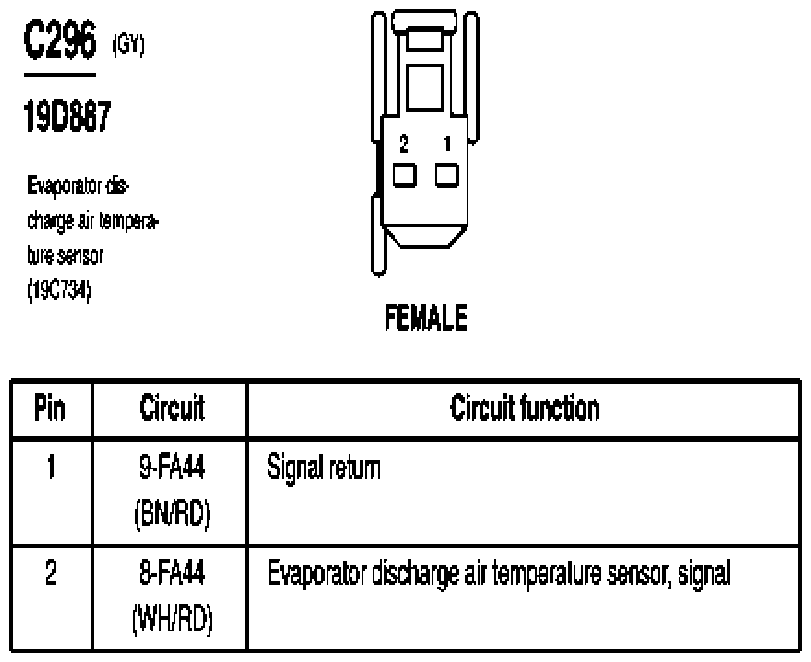

Fig 143: Evaporator Discharge Air Temperature Sensor Connector End View (C296)
G07845253Courtesy of FORD MOTOR CO.

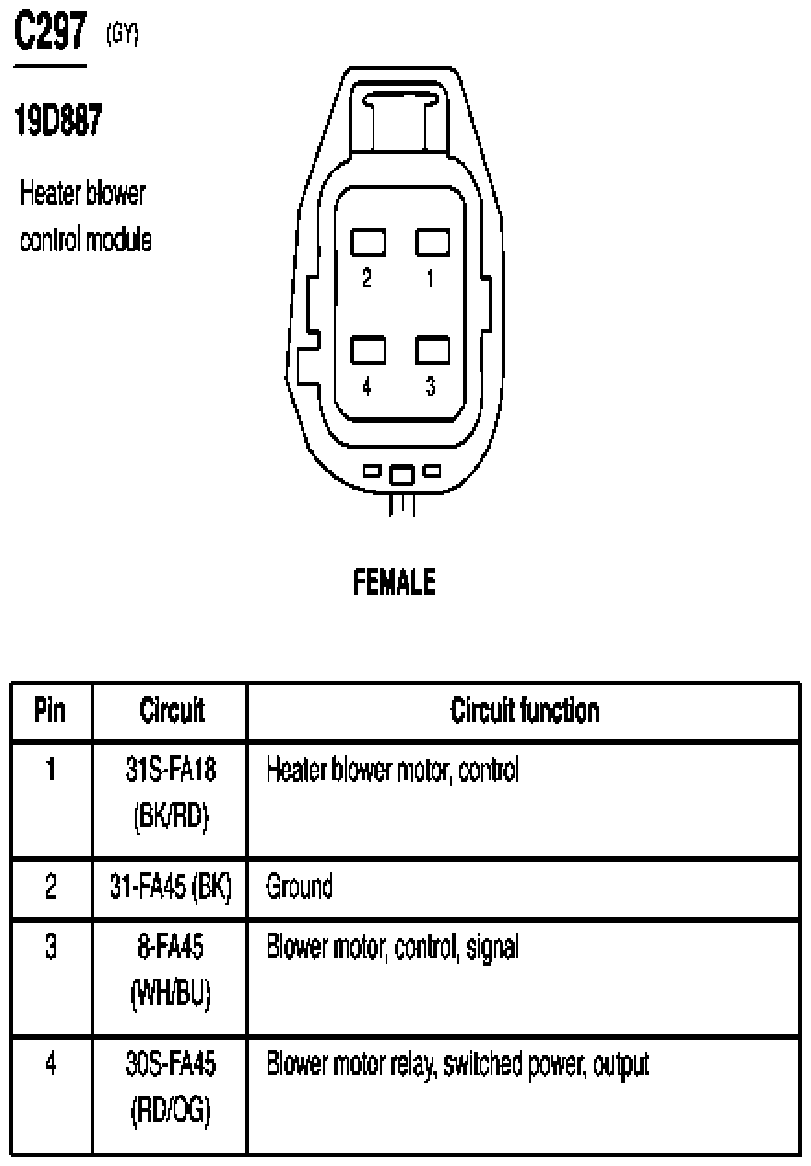

Fig 144: Heater Blower Control Module Connector End View (C297)
G07845254Courtesy of FORD MOTOR CO.

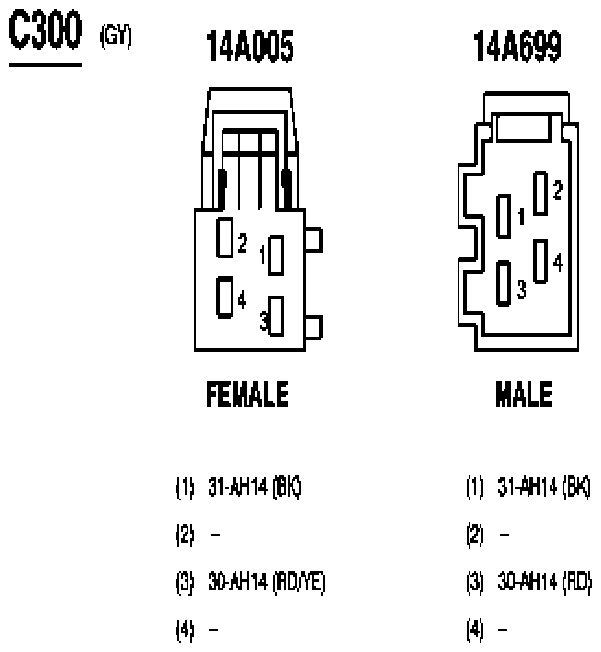

Fig 145: Inline Connector End View (C300)
G07845255Courtesy of FORD MOTOR CO.

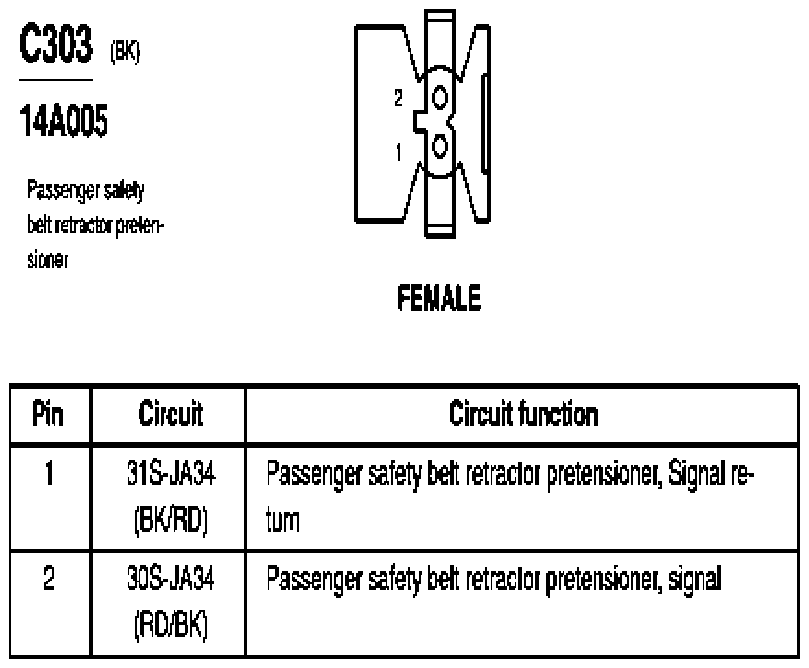

Fig 146: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)
G07845256Courtesy of FORD MOTOR CO.

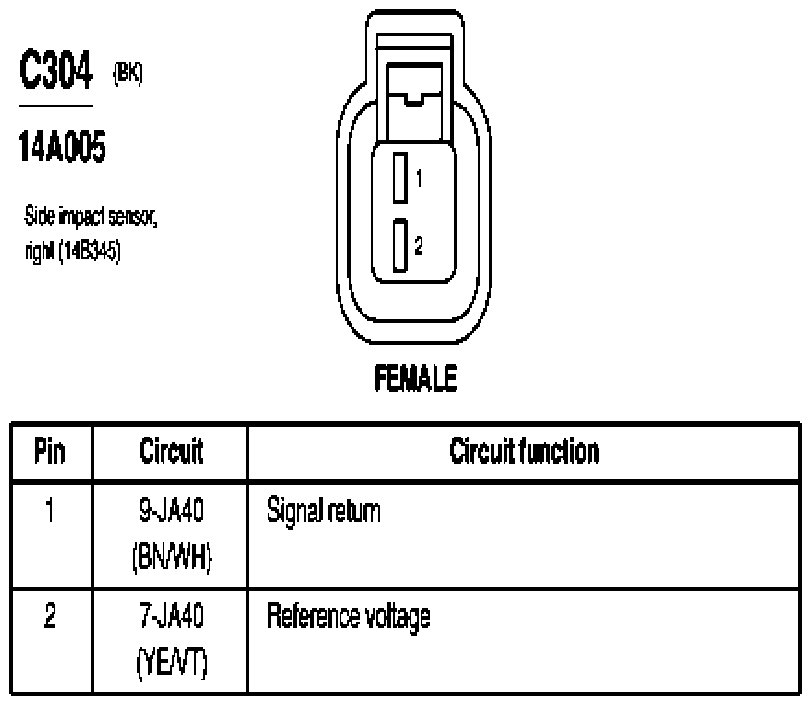

Fig 147: Side Impact Sensor, Right Connector End View (C304)
G07845257Courtesy of FORD MOTOR CO.

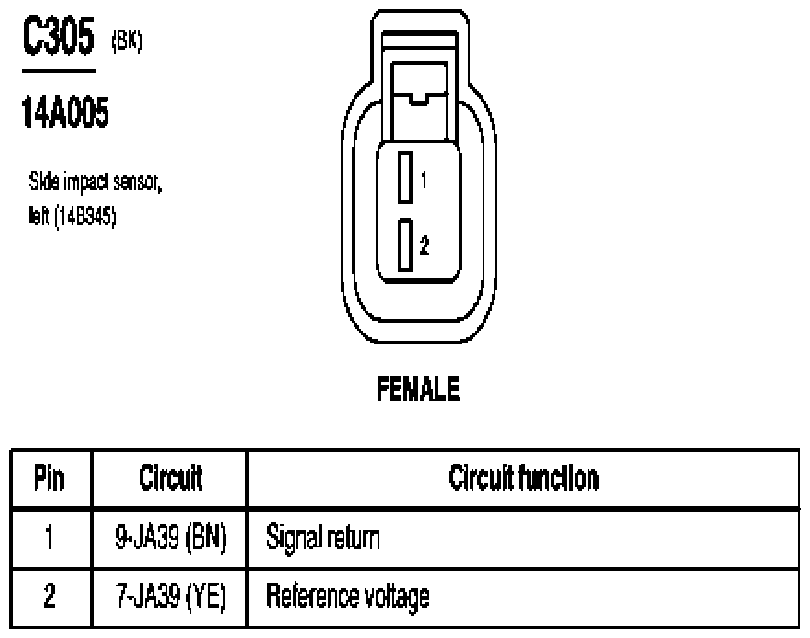

Fig 148: Side Impact Sensor, Left Connector End View (C305)
G07845258Courtesy of FORD MOTOR CO.

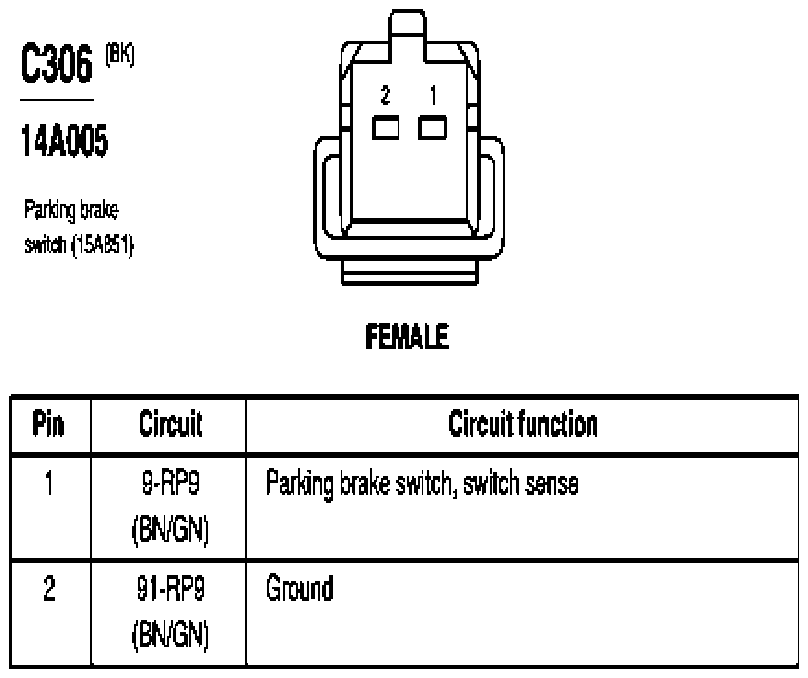

Fig 149: Parking Brake Switch Connector End View (C306)
G07845259Courtesy of FORD MOTOR CO.

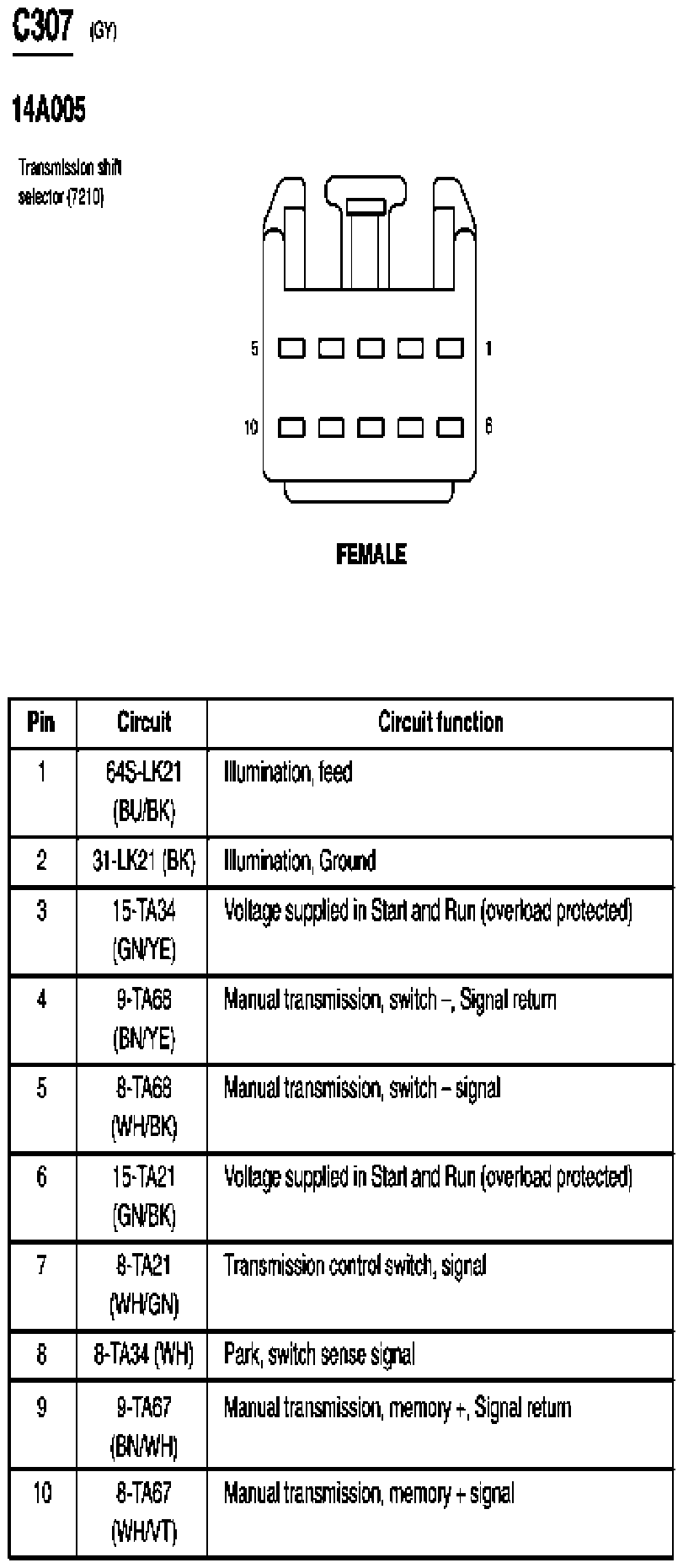

Fig 150: Transmission Shift Selector Connector End View (C307)
G03994601Courtesy of FORD MOTOR CO.

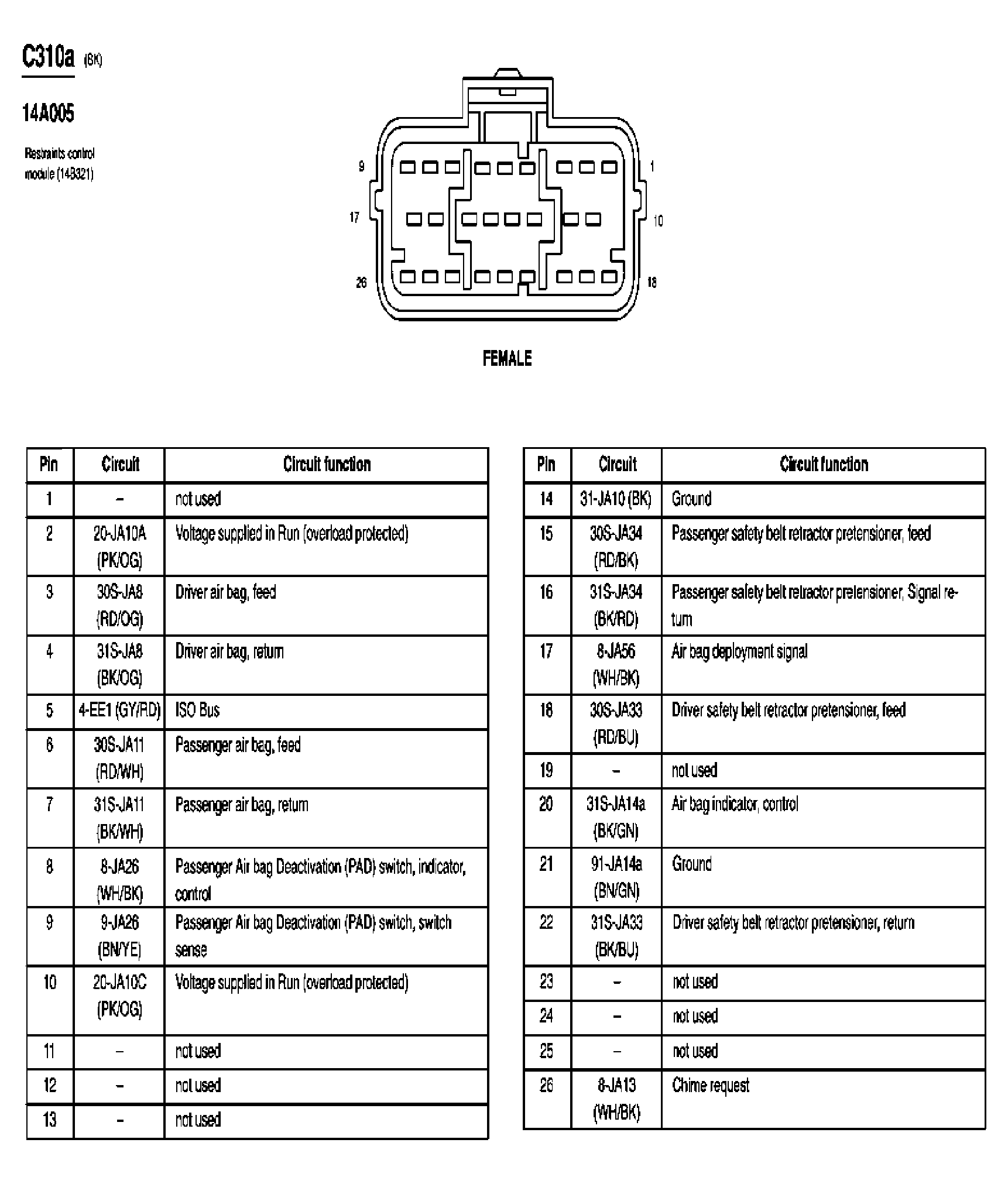

Fig 151: Restraints Control Module Connector End View (C310a)
G03994602Courtesy of FORD MOTOR CO.

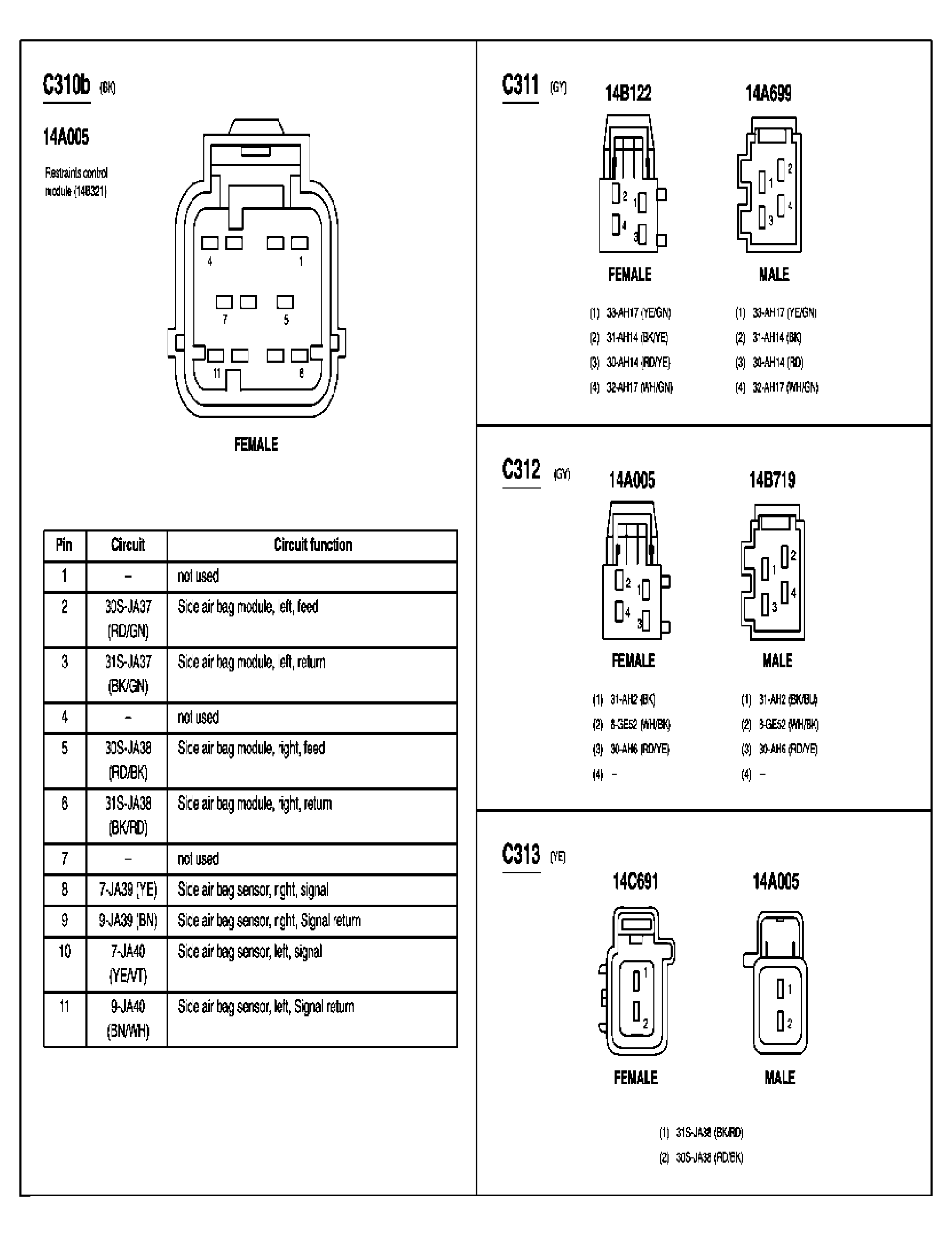

Fig 152: Restraints Control Module Connector End View (C310b)
G03994603Courtesy of FORD MOTOR CO.

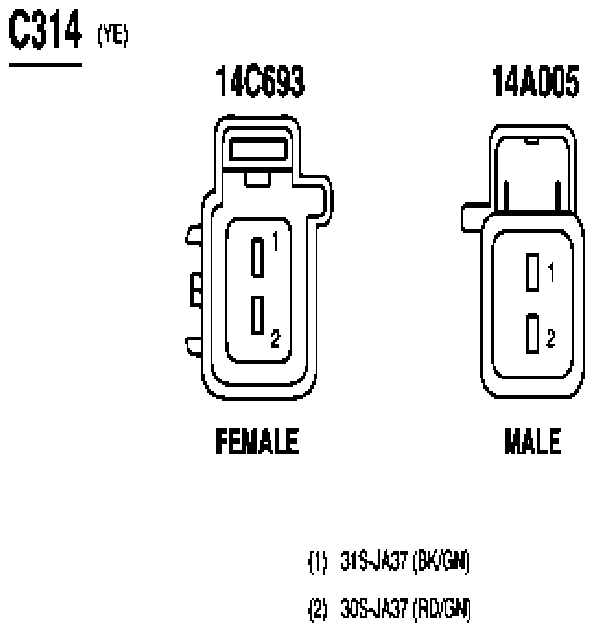

Fig 153: Inline Connector End View (C314)
G07845260Courtesy of FORD MOTOR CO.

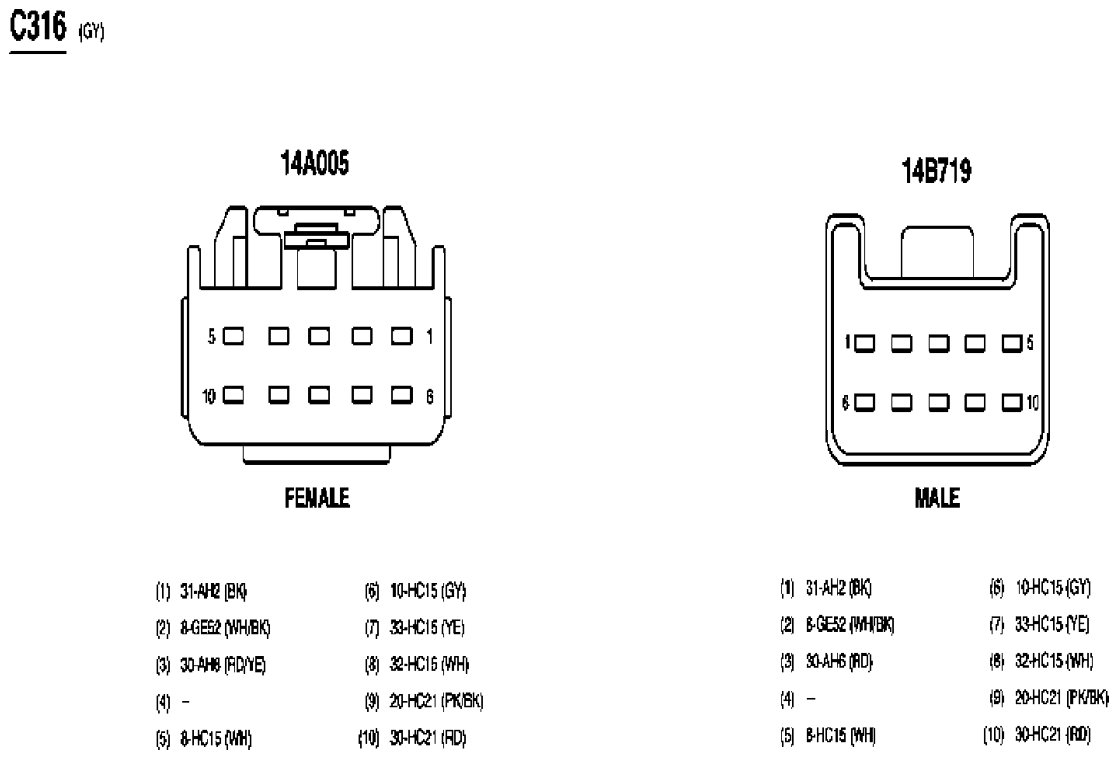

Fig 154: Inline Connector End View (C316)
G07845261Courtesy of FORD MOTOR CO.

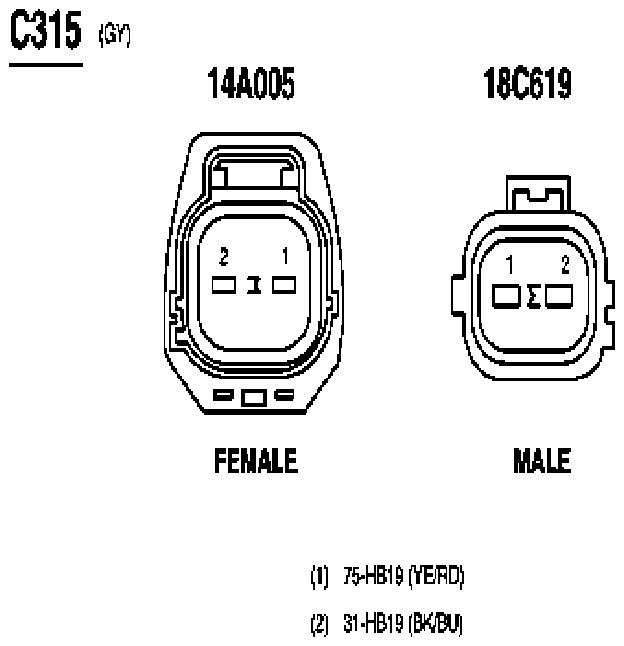

Fig 155: Inline Connector End View (C315)
G07845262Courtesy of FORD MOTOR CO.

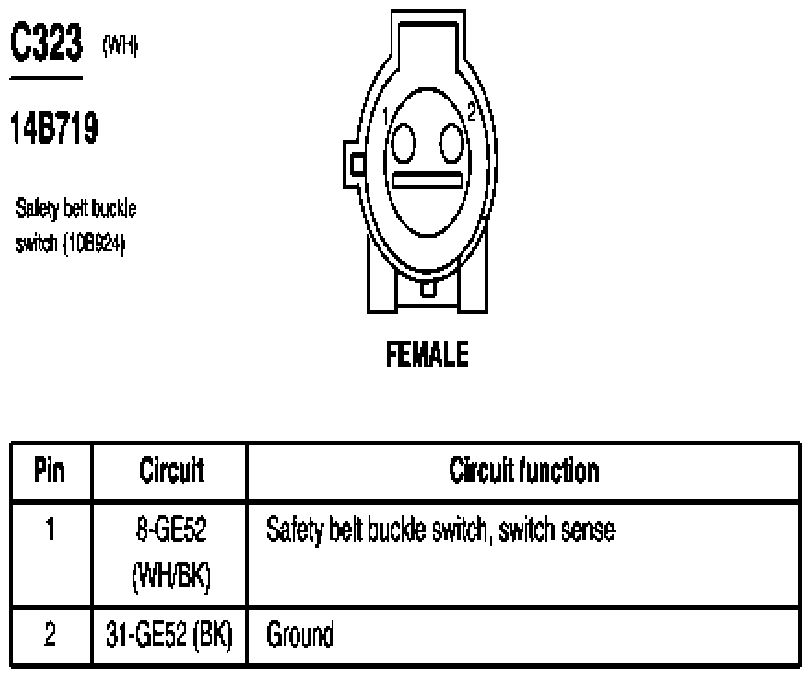

Fig 156: Safety Belt, Switch Connector End View (C323)
G07845263Courtesy of FORD MOTOR CO.

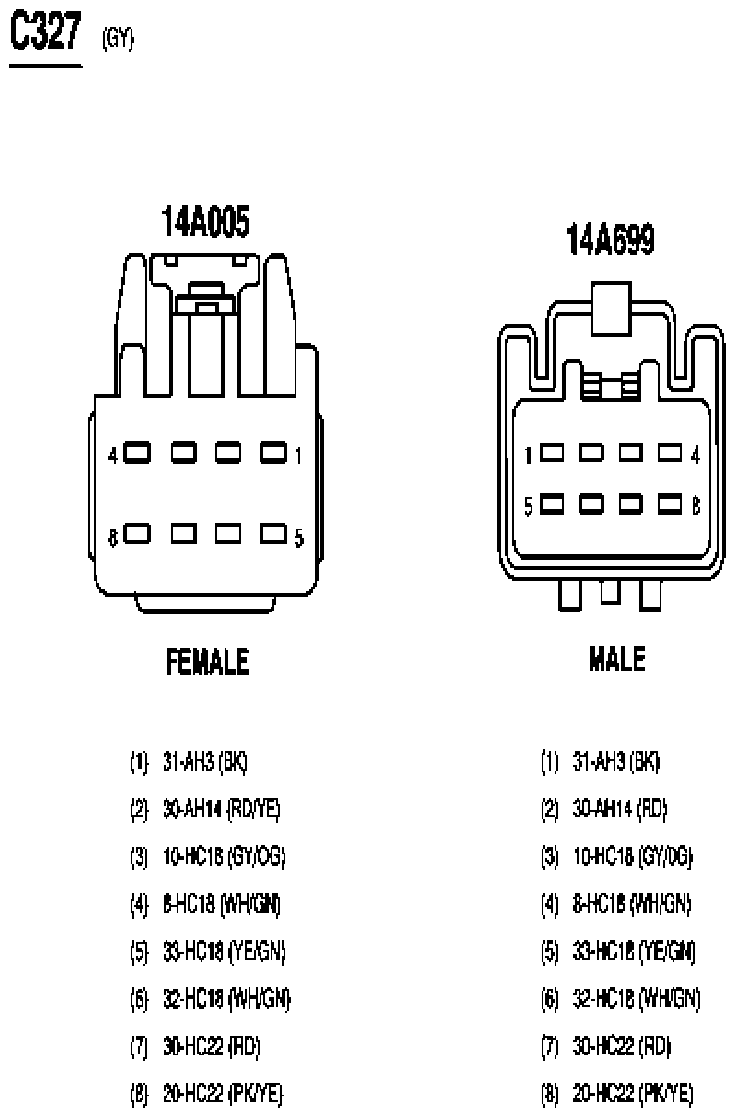

Fig 157: Inline Connector End View (C327)
G07845264Courtesy of FORD MOTOR CO.

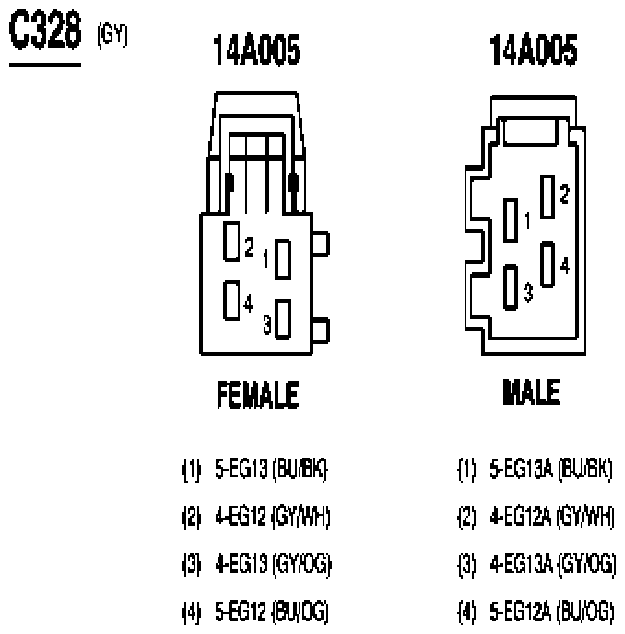

Fig 158: Inline Connector End View (C328)
G07845265Courtesy of FORD MOTOR CO.

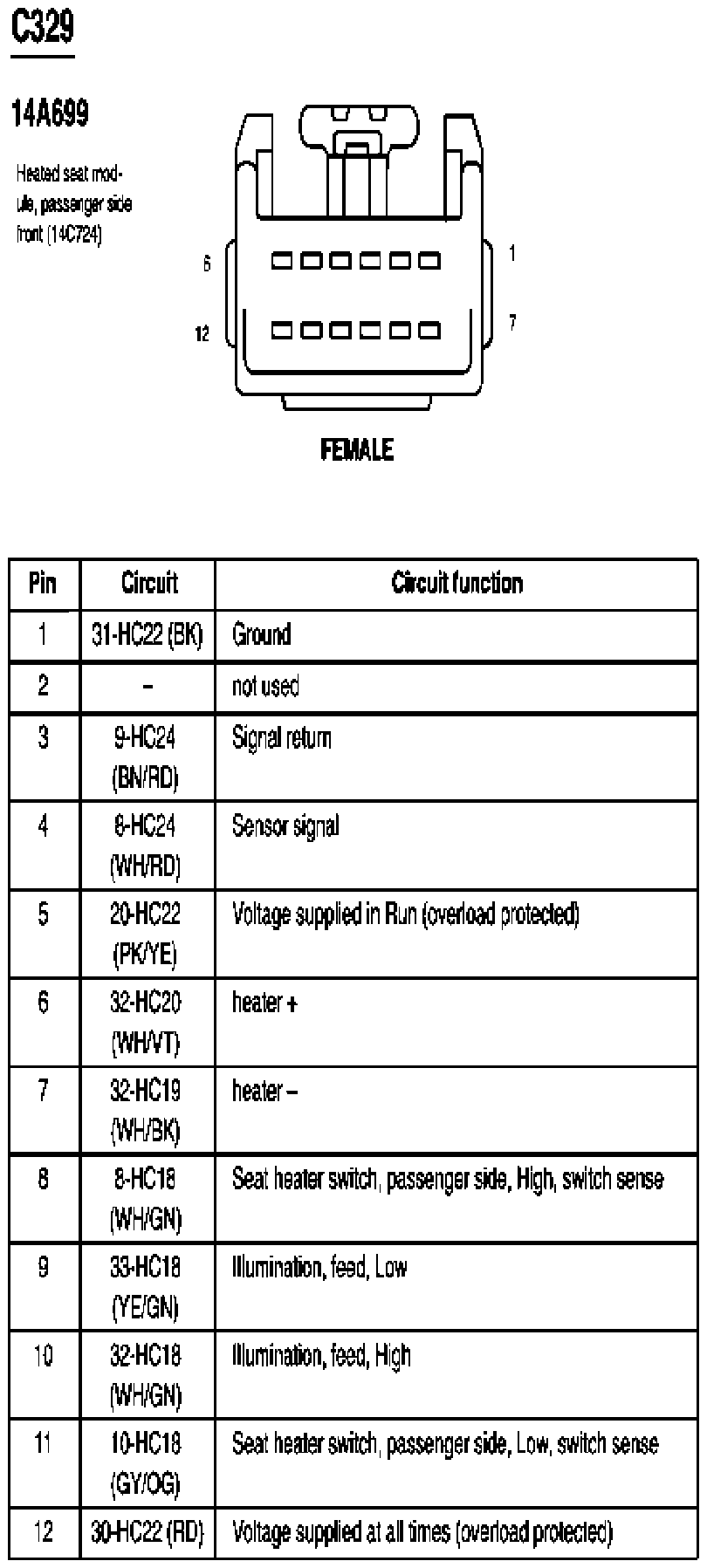

Fig 159: Heated Seat Module, Passenger Side Front Connector End View (C329)
G07845266Courtesy of FORD MOTOR CO.

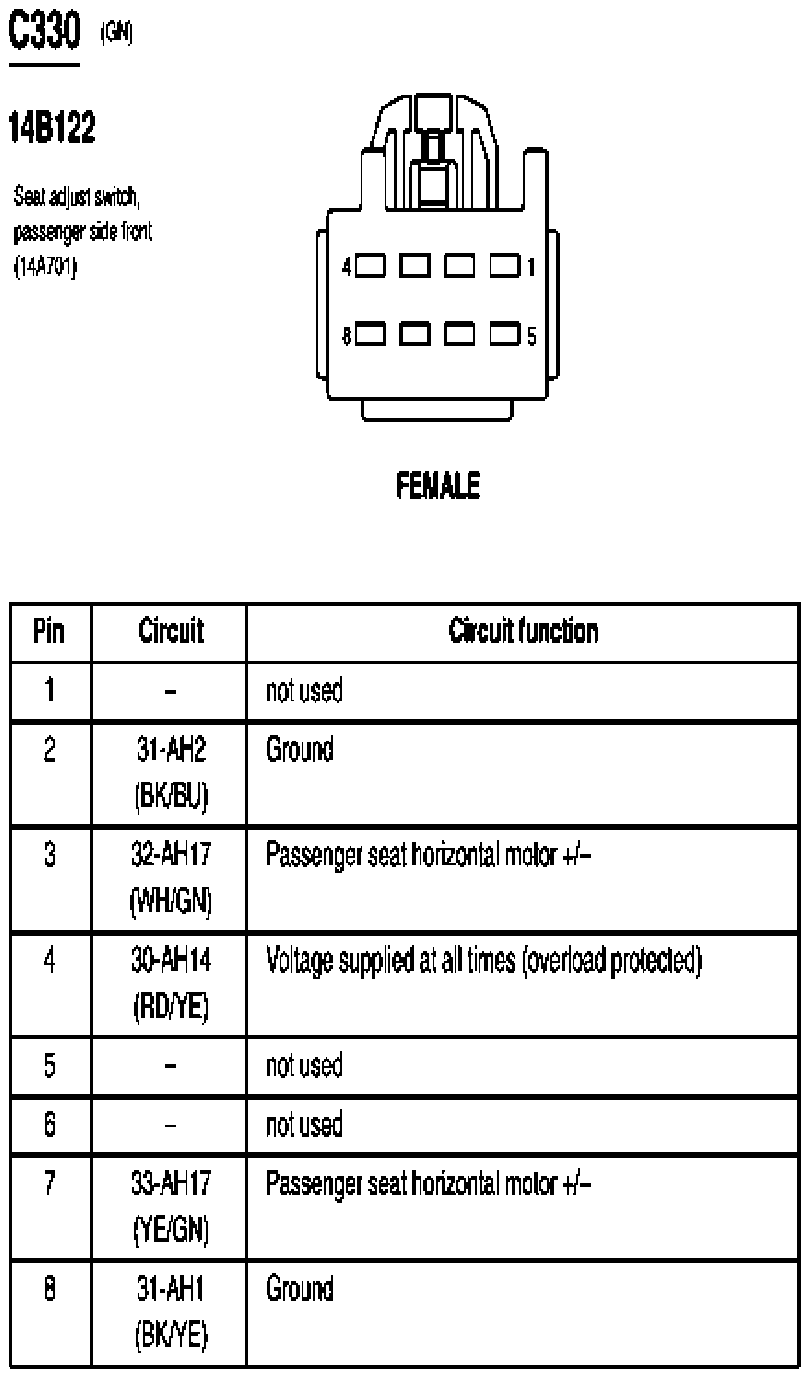

Fig 160: Seat Adjust Switch Passenger Side Front Connector End View (C330)
G07845267Courtesy of FORD MOTOR CO.

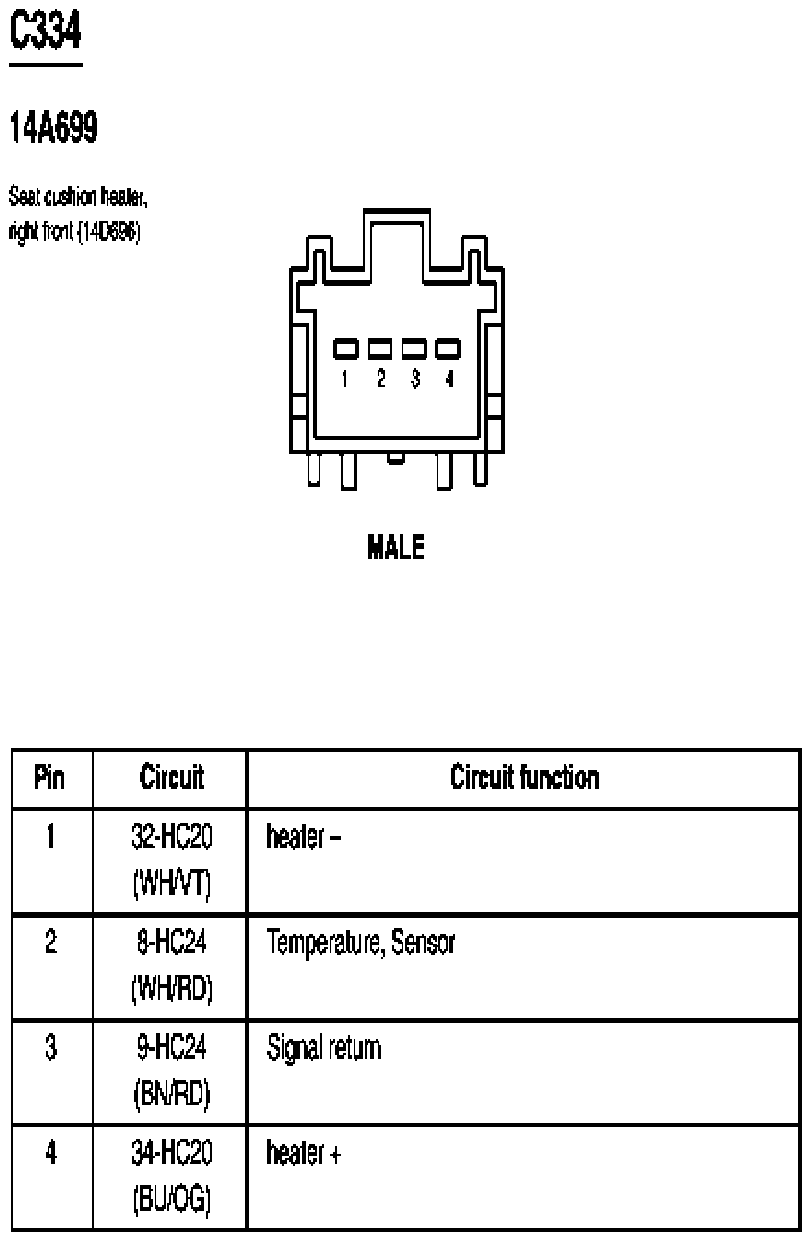

Fig 161: Seat Cushion Heater Right Front Connector End View (C334)
G07845268Courtesy of FORD MOTOR CO.

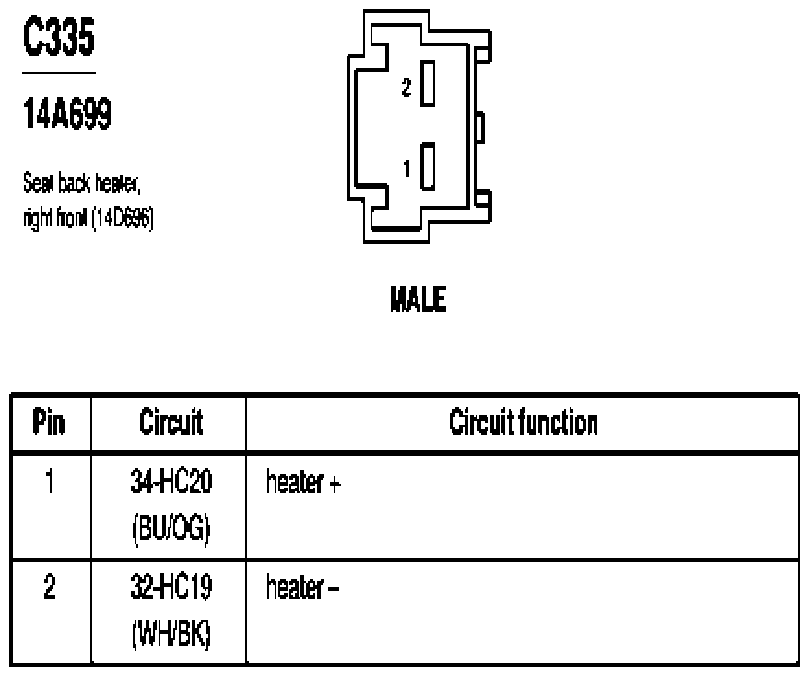

Fig 162: Seat Back Heater, Right Front Connector End View (C335)
G07845269Courtesy of FORD MOTOR CO.

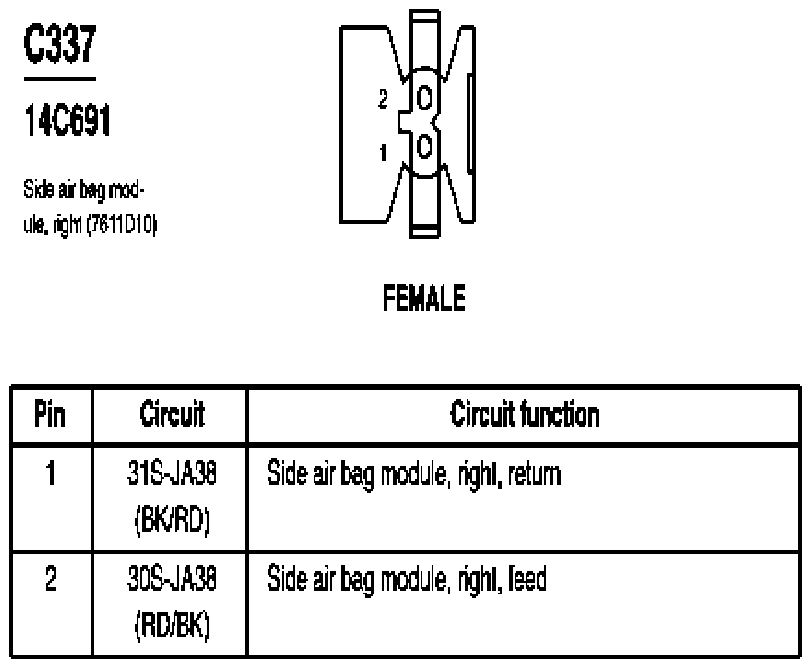

Fig 163: Side Air Bag Module, Right Connector End View (C337)
G07845270Courtesy of FORD MOTOR CO.

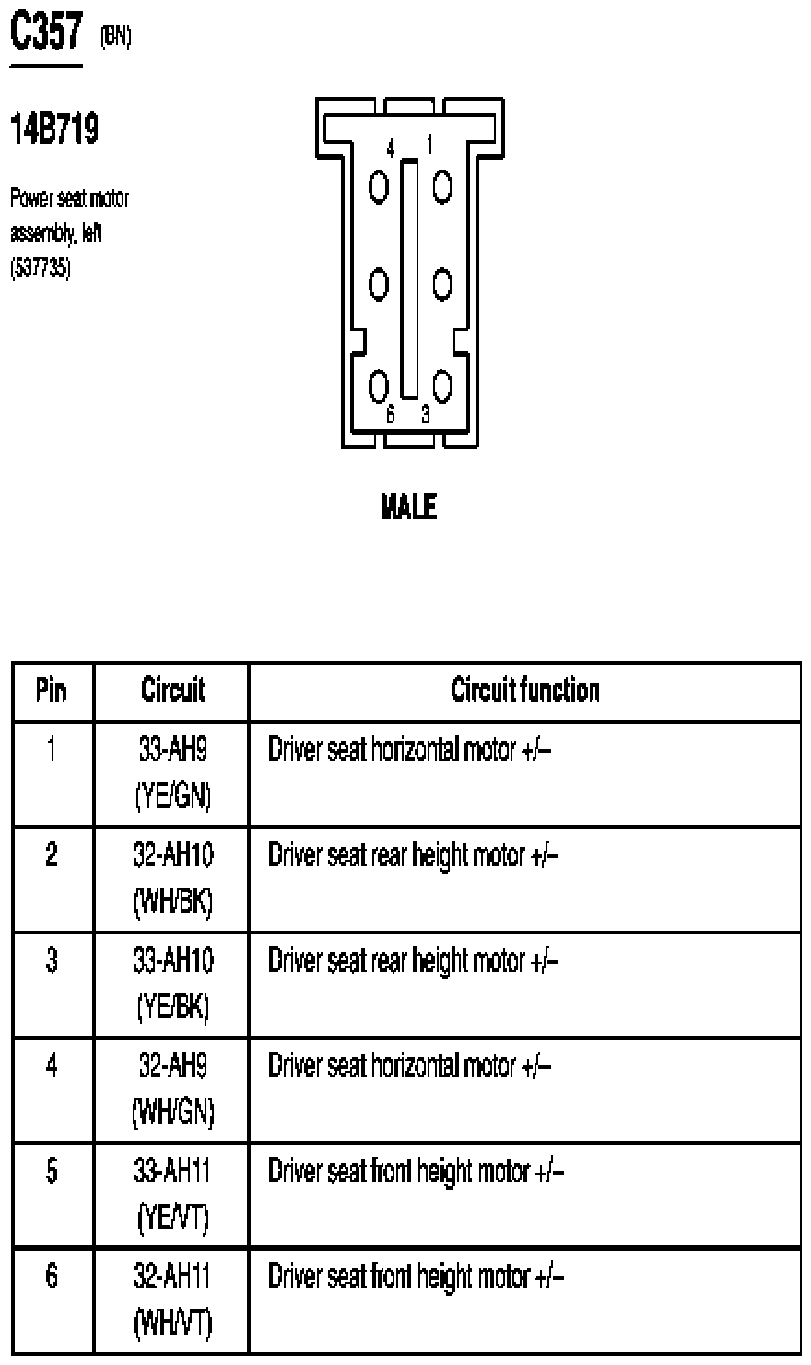

Fig 164: Power Seat Motor Assembly, Left Connector End View (C357)
G07845271Courtesy of FORD MOTOR CO.

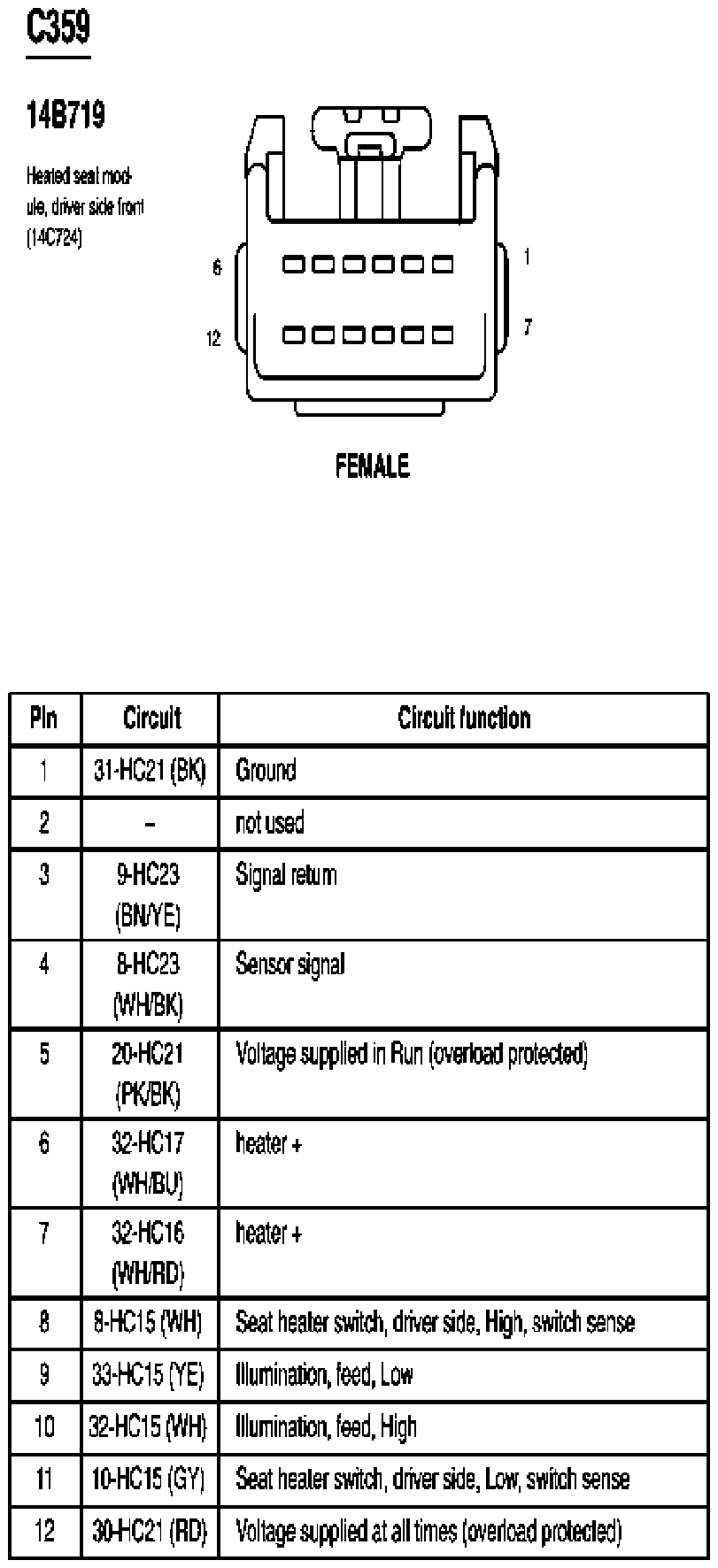

Fig 165: Heated Seat Module Driver Side Front Connector End View (C359)
G07845272Courtesy of FORD MOTOR CO.

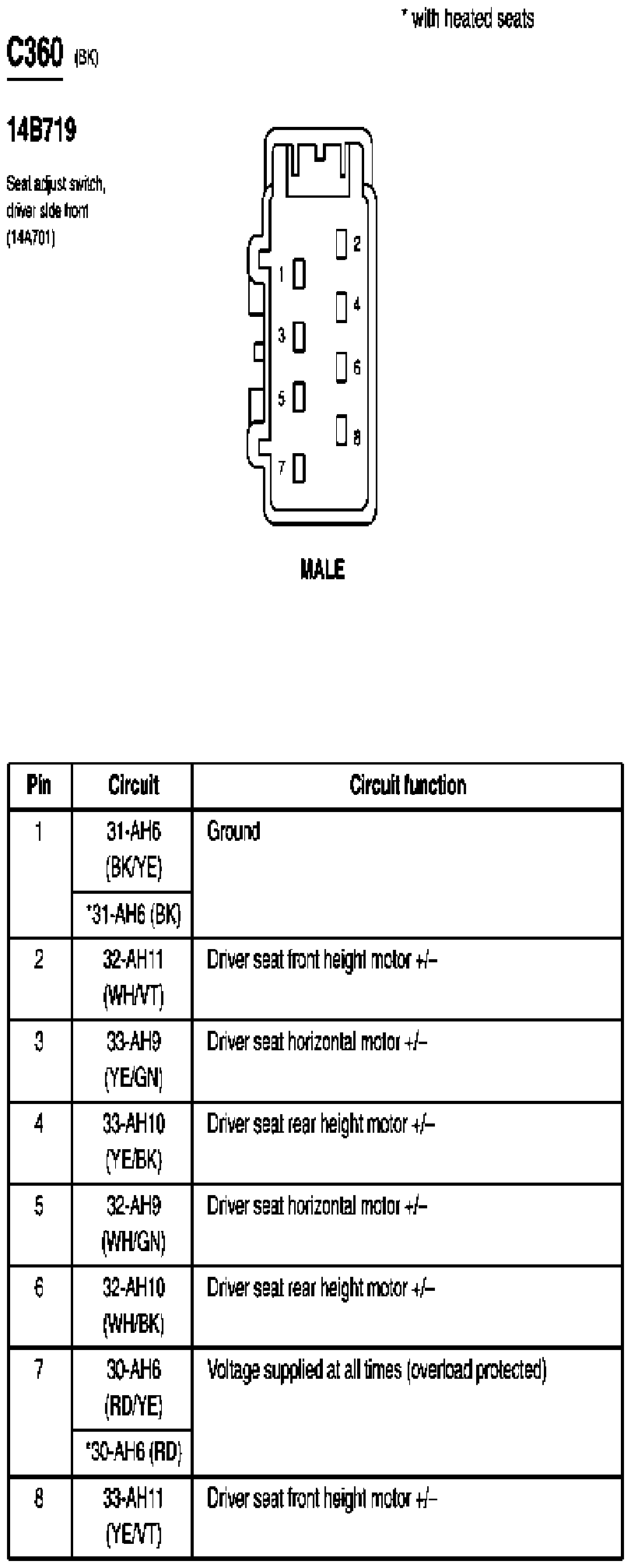

Fig 166: Seat Adjust Switch Driver Side Front Connector End View (C360)
G07845273Courtesy of FORD MOTOR CO.
Fig 167: Seat Cushion Heater Left Front Connector End View (C364)
G07845274Courtesy of FORD MOTOR CO.

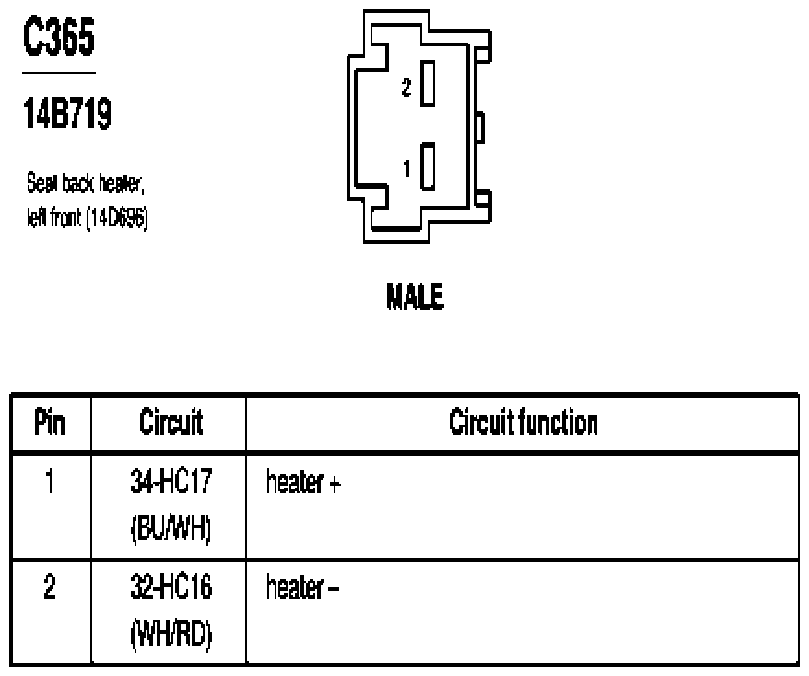

Fig 168: Seat Back Heater, Left Front Connector End View (C365)
G07845275Courtesy of FORD MOTOR CO.

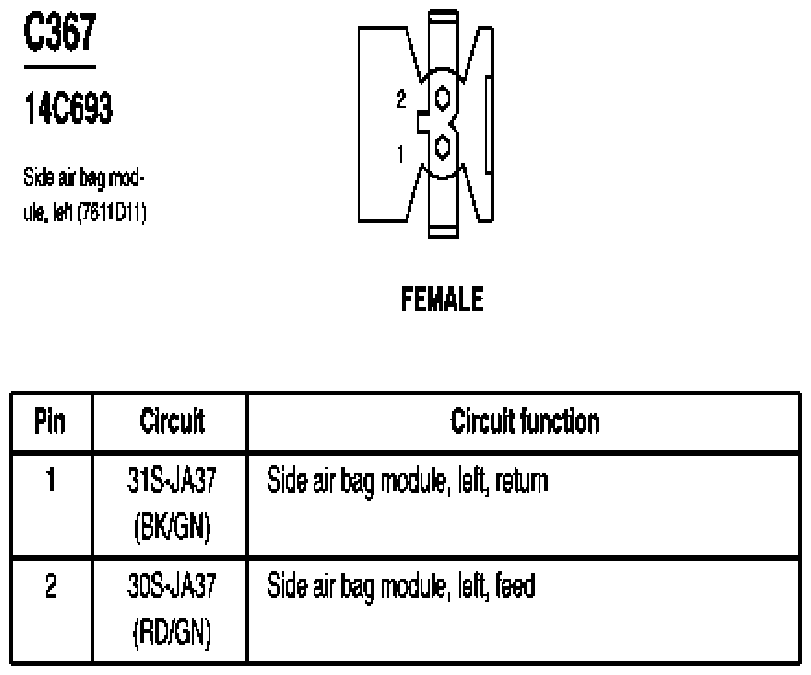

Fig 169: Side Air Bag Module, Left Connector End View (C367)
G07845276Courtesy of FORD MOTOR CO.

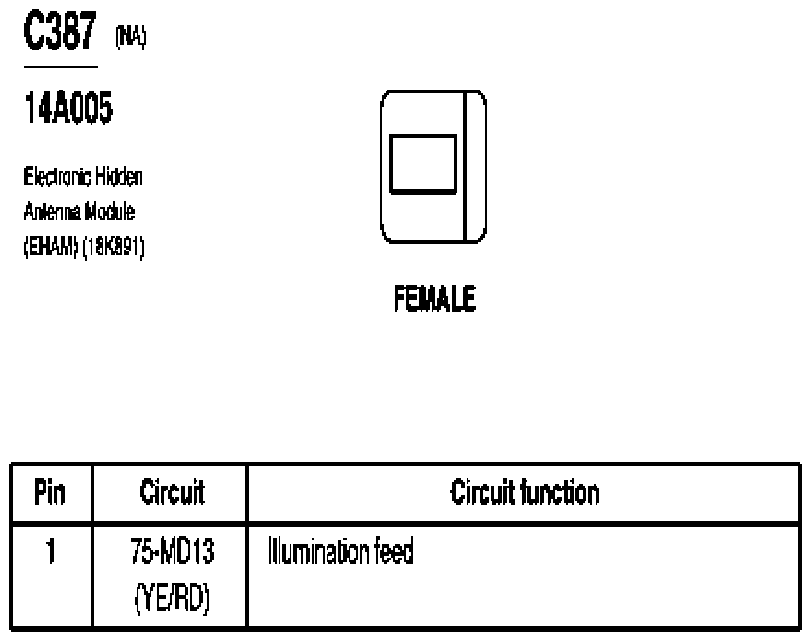

Fig 170: Electronic Hidden Antenna Module (EHAM) Connector End View (C387)
G07845277Courtesy of FORD MOTOR CO.

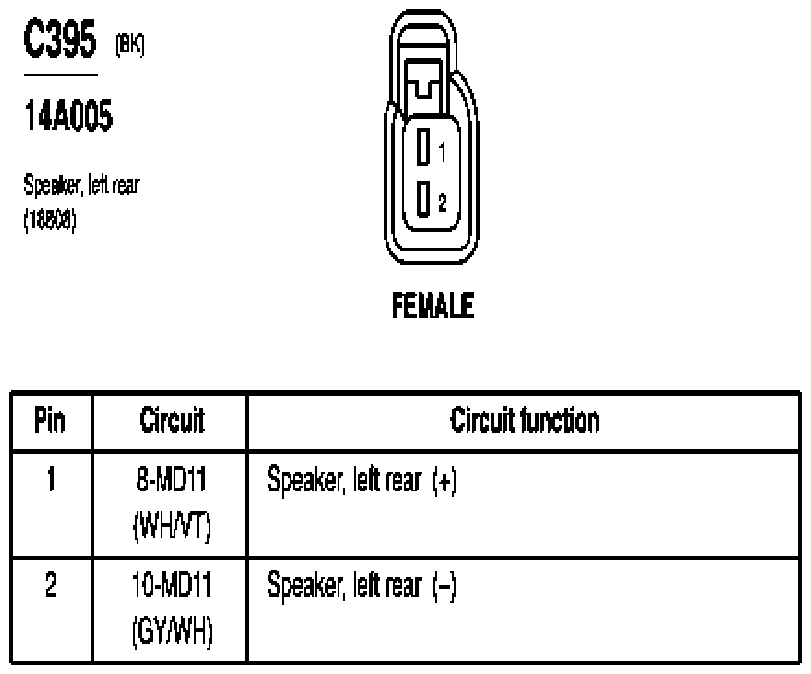

Fig 171: Speaker, Left Rear Connector End View (C395)
G07845278Courtesy of FORD MOTOR CO.

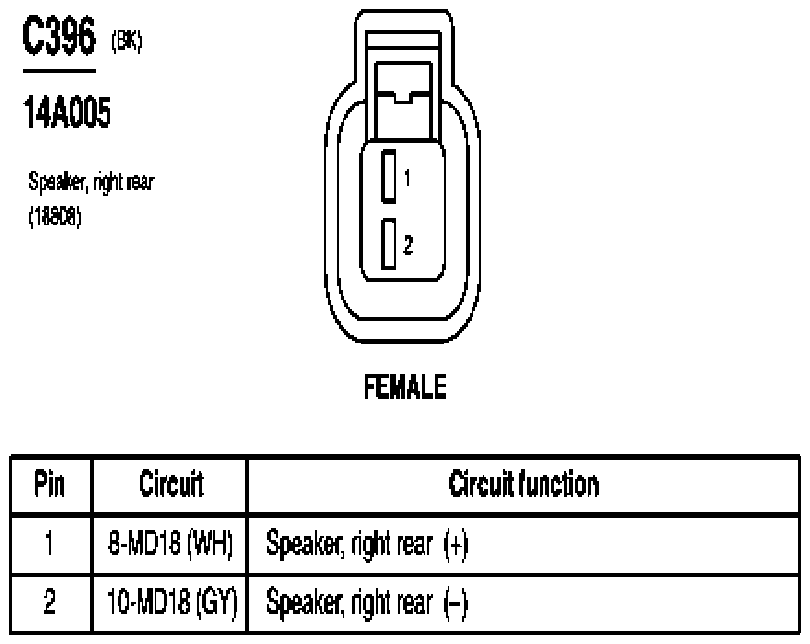

Fig 172: Speaker, Right Rear Connector End View (C396)
G07845279Courtesy of FORD MOTOR CO.

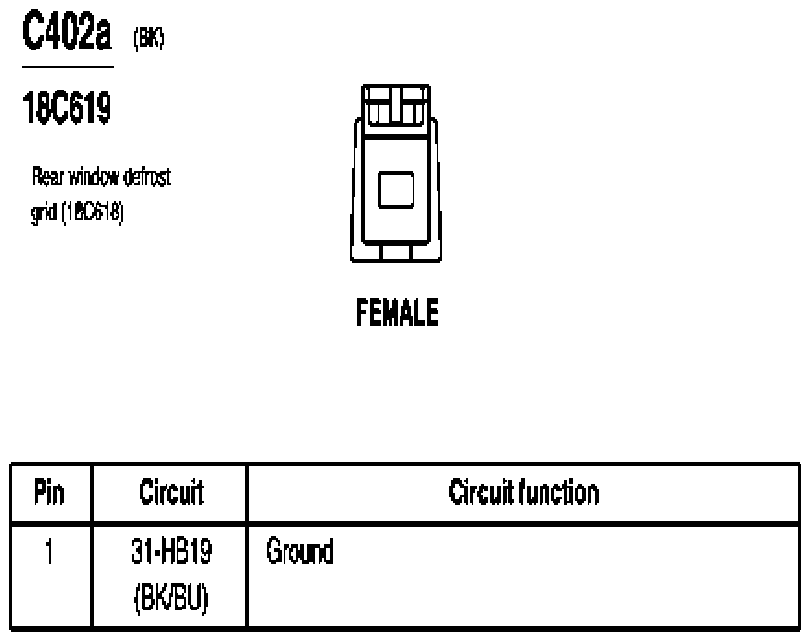

Fig 173: Rear Window Defrost Grid Connector End View (C402a)
G07845280Courtesy of FORD MOTOR CO.

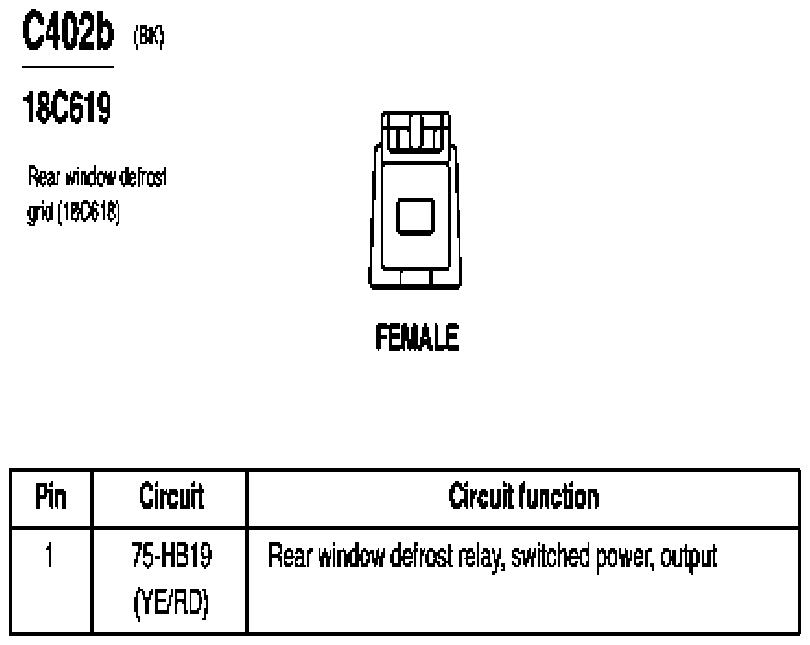

Fig 174: Rear Window Defrost Grid Connector End View (C402b)
G07845281Courtesy of FORD MOTOR CO.

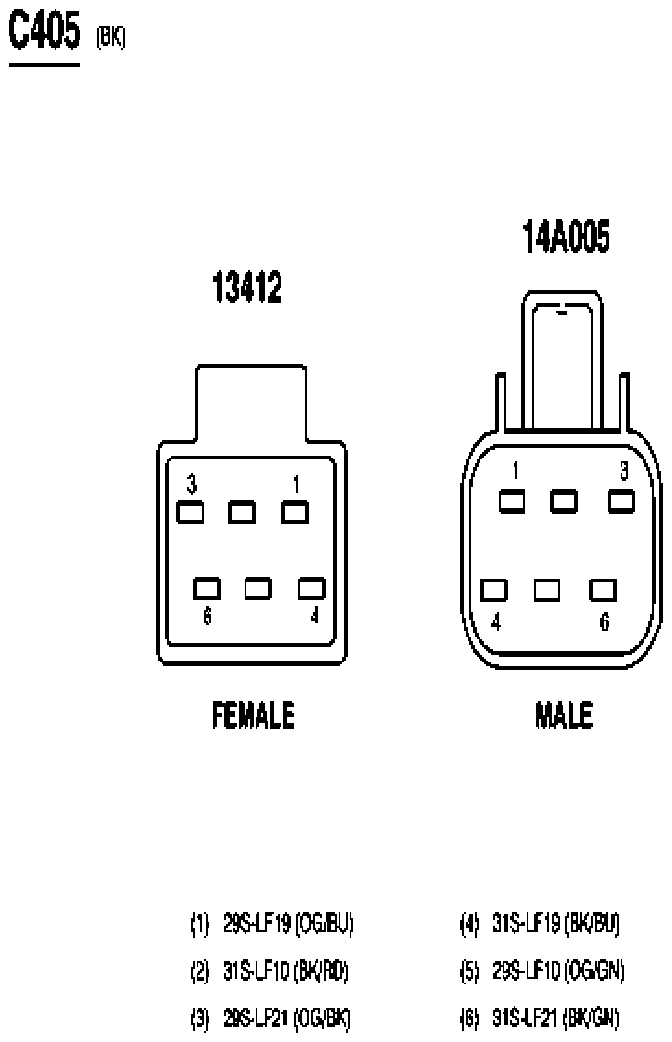

Fig 175: Inline Connector End View (C405)
G07845282Courtesy of FORD MOTOR CO.

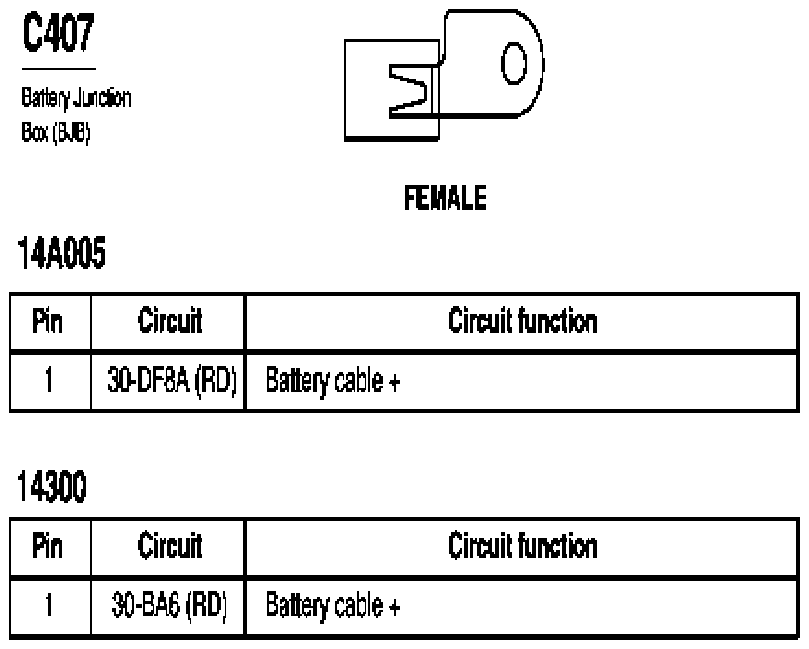

Fig 176: Battery Junction Box Connector End View (C407)
G07845283Courtesy of FORD MOTOR CO.

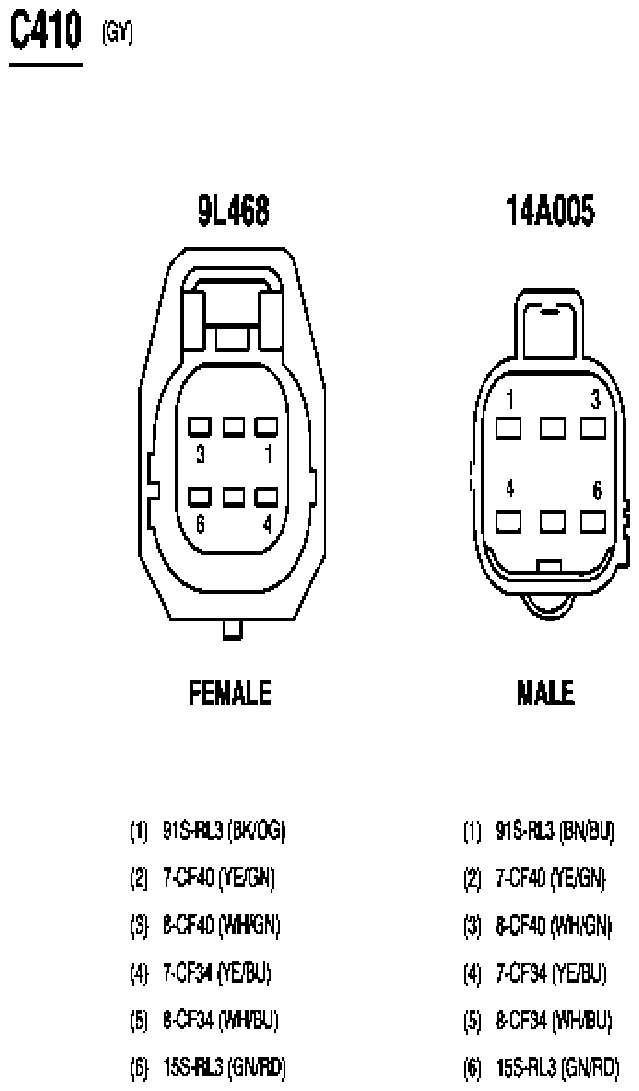

Fig 177: Inline Connector End View (C410)
G07845284Courtesy of FORD MOTOR CO.

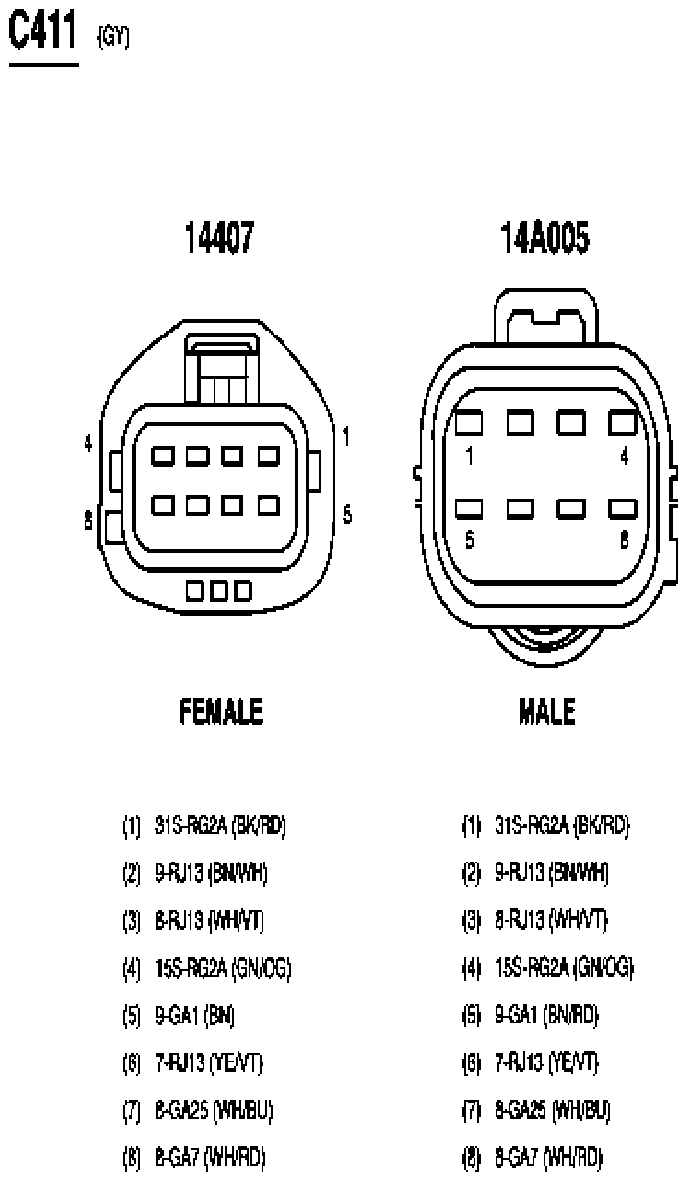

Fig 178: Inline Connector End View (C411)
G07845285Courtesy of FORD MOTOR CO.

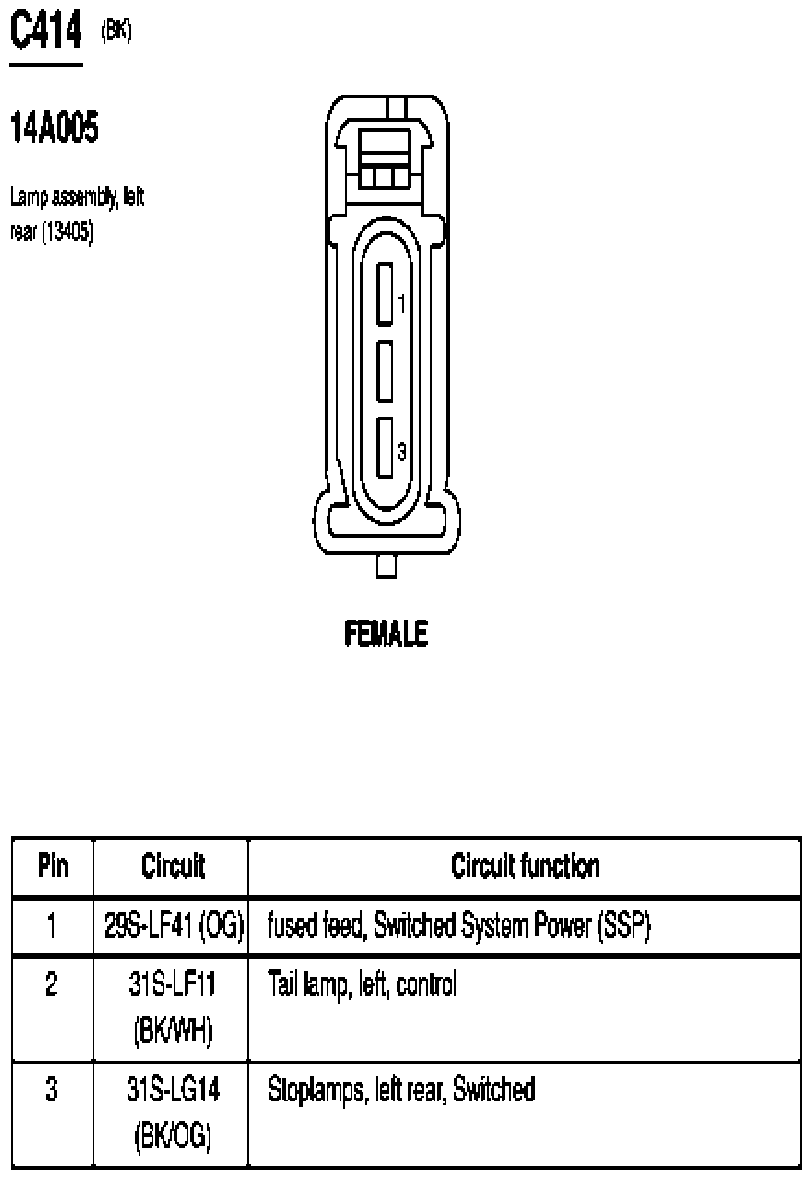

Fig 179: Lamp Assembly, Left Rear Connector End View (C414)
G07845286Courtesy of FORD MOTOR CO.

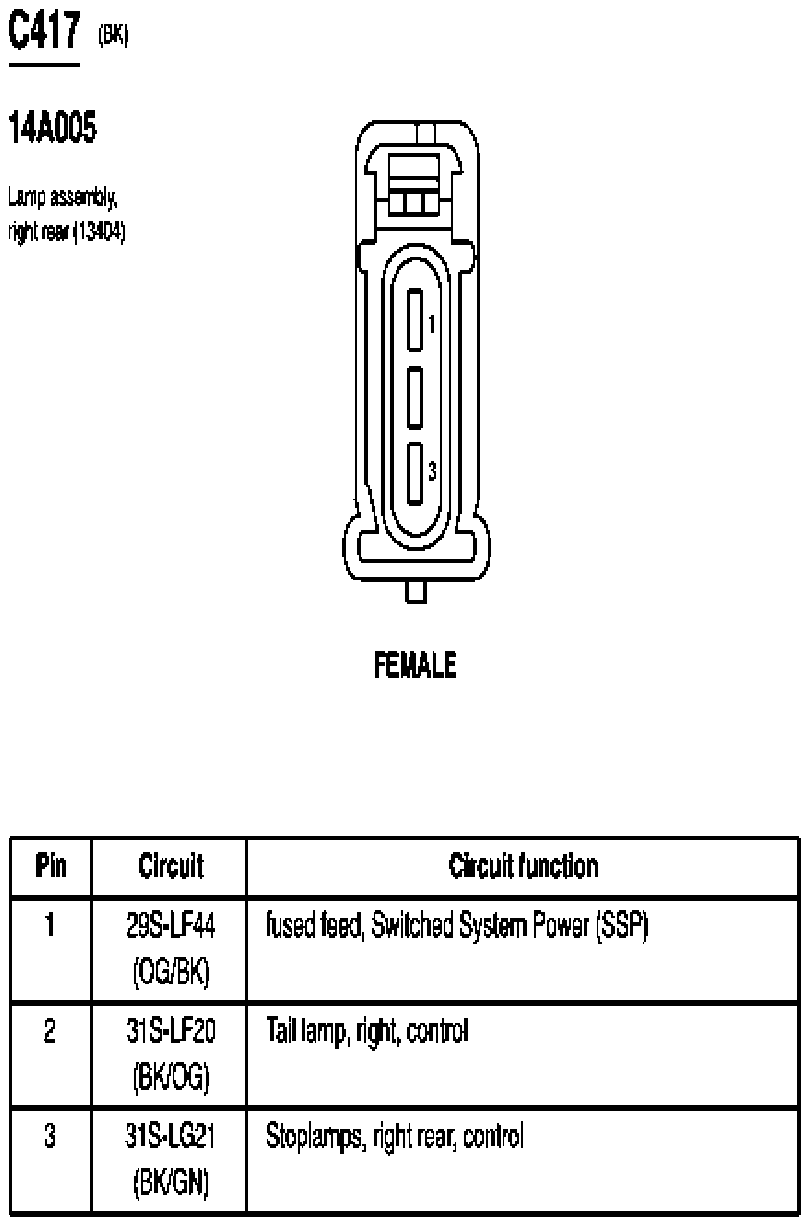

Fig 180: Lamp Assembly, Right Rear Connector End View (C417)
G07845287Courtesy of FORD MOTOR CO.

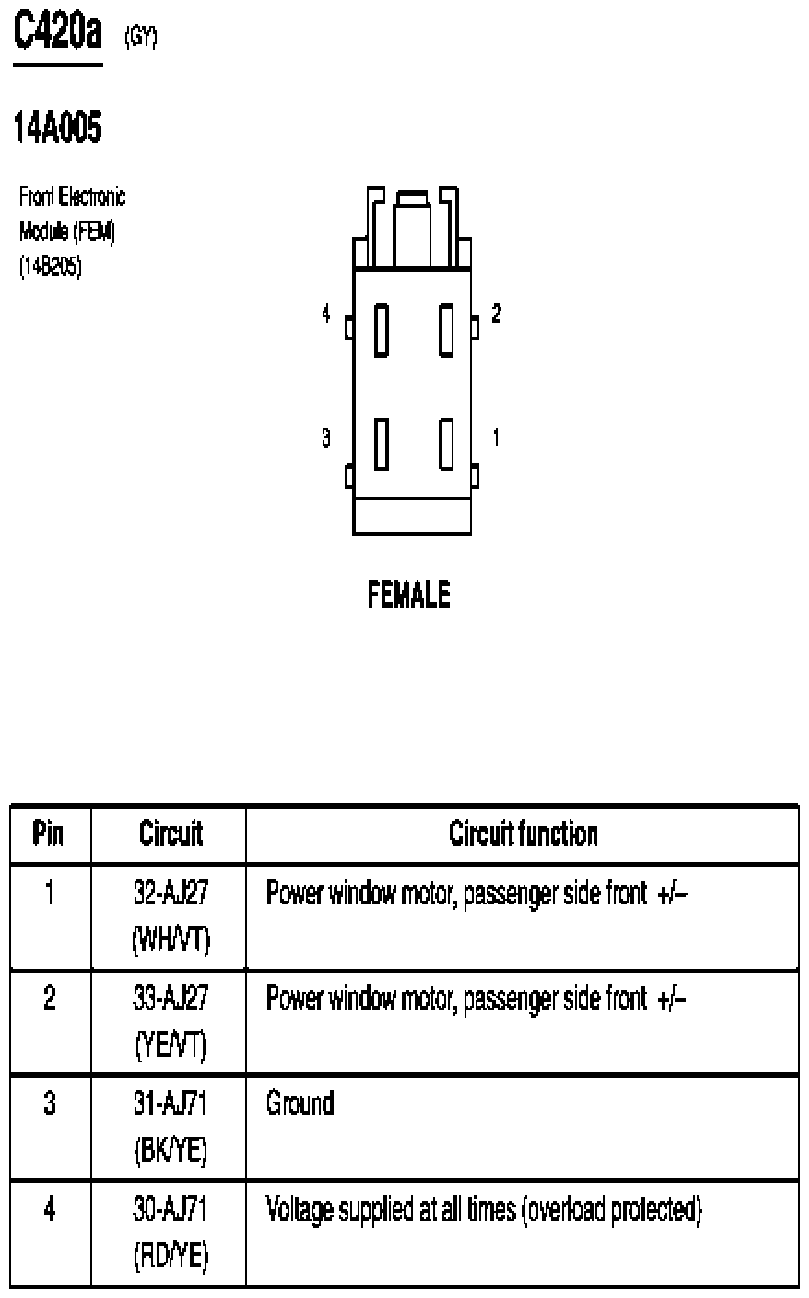

Fig 181: Front Electronic Module (FEM) Connector End View (C420a)
G07845288Courtesy of FORD MOTOR CO.

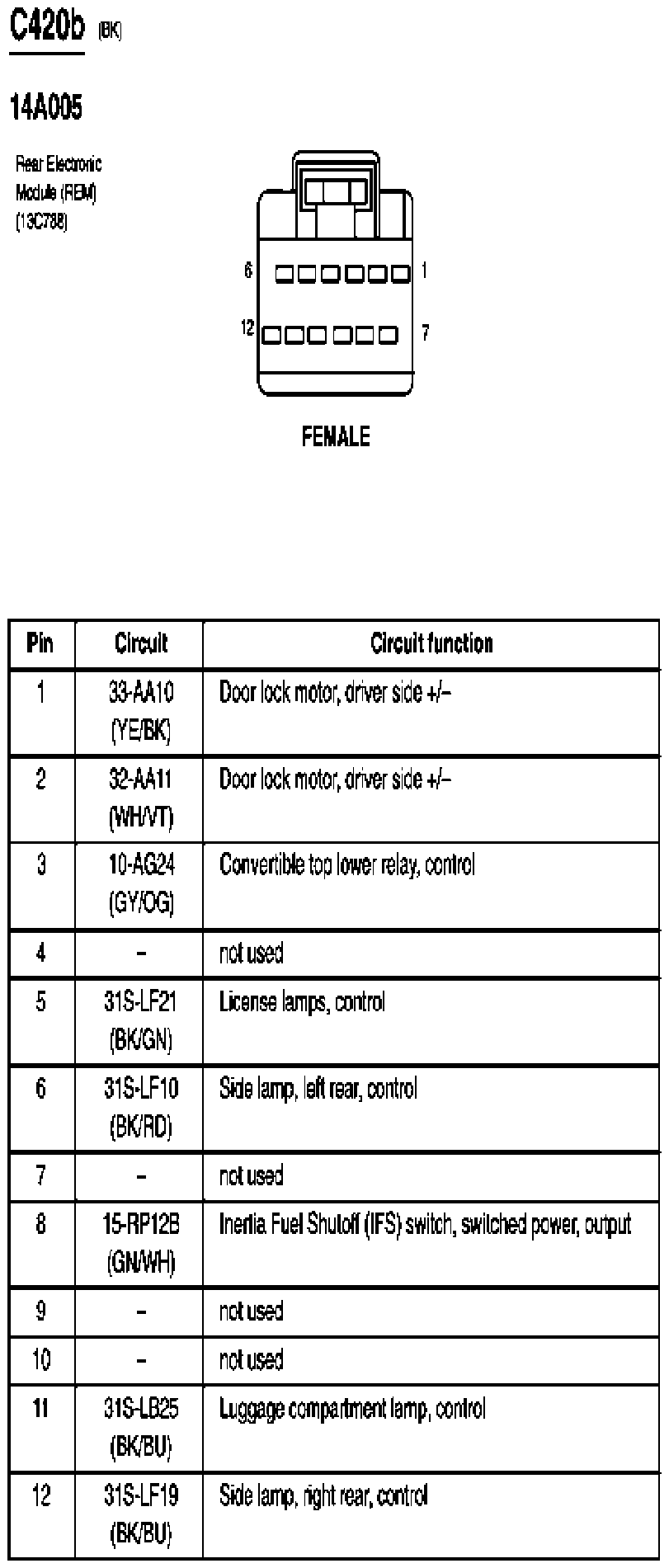

Fig 182: Rear Electronic Module (REM) Connector End View (C420b)
G07845289Courtesy of FORD MOTOR CO.

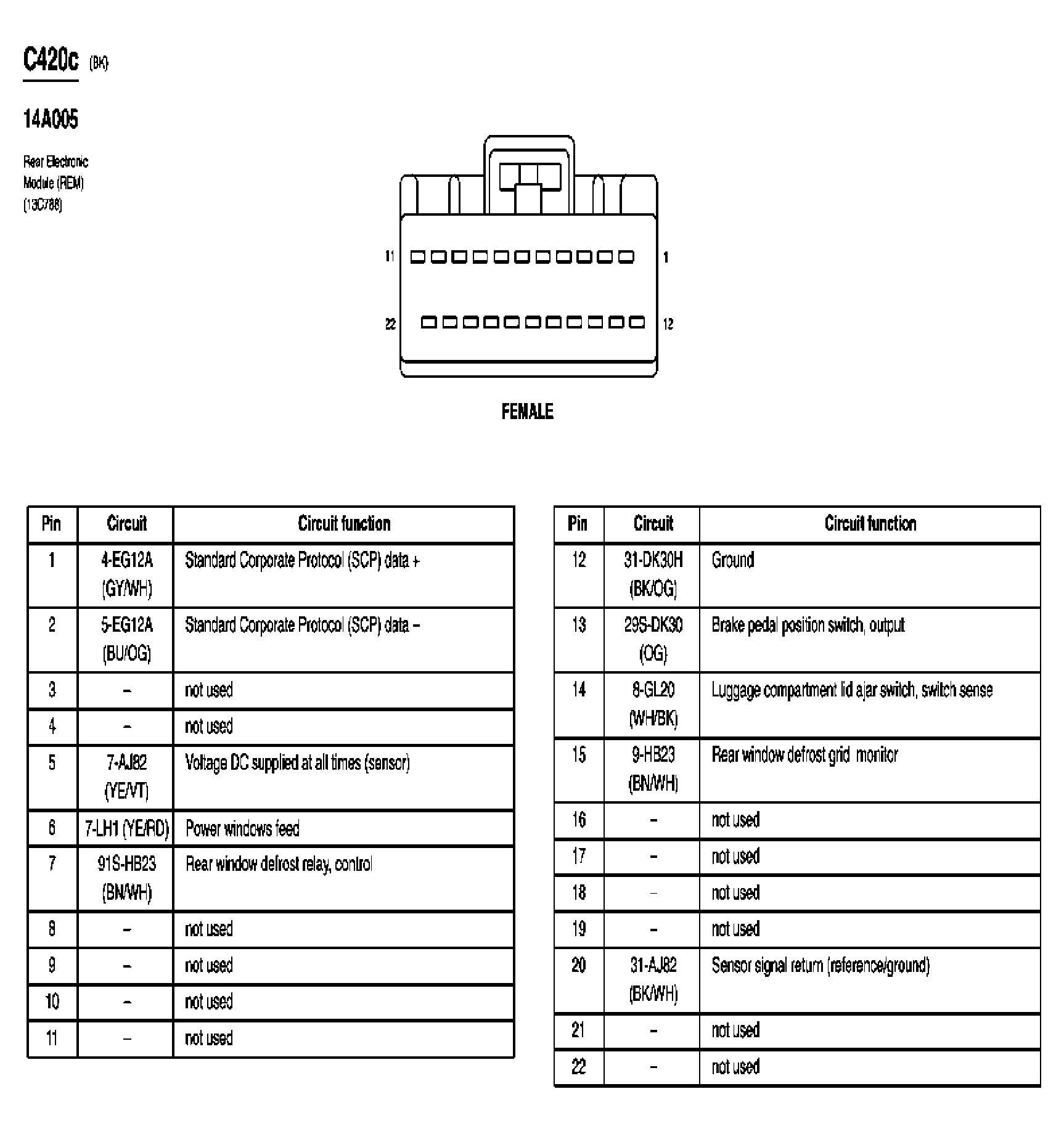

Fig 183: Rear Electronic Module (REM) Connector End View (C420c)
G03994614Courtesy of FORD MOTOR CO.

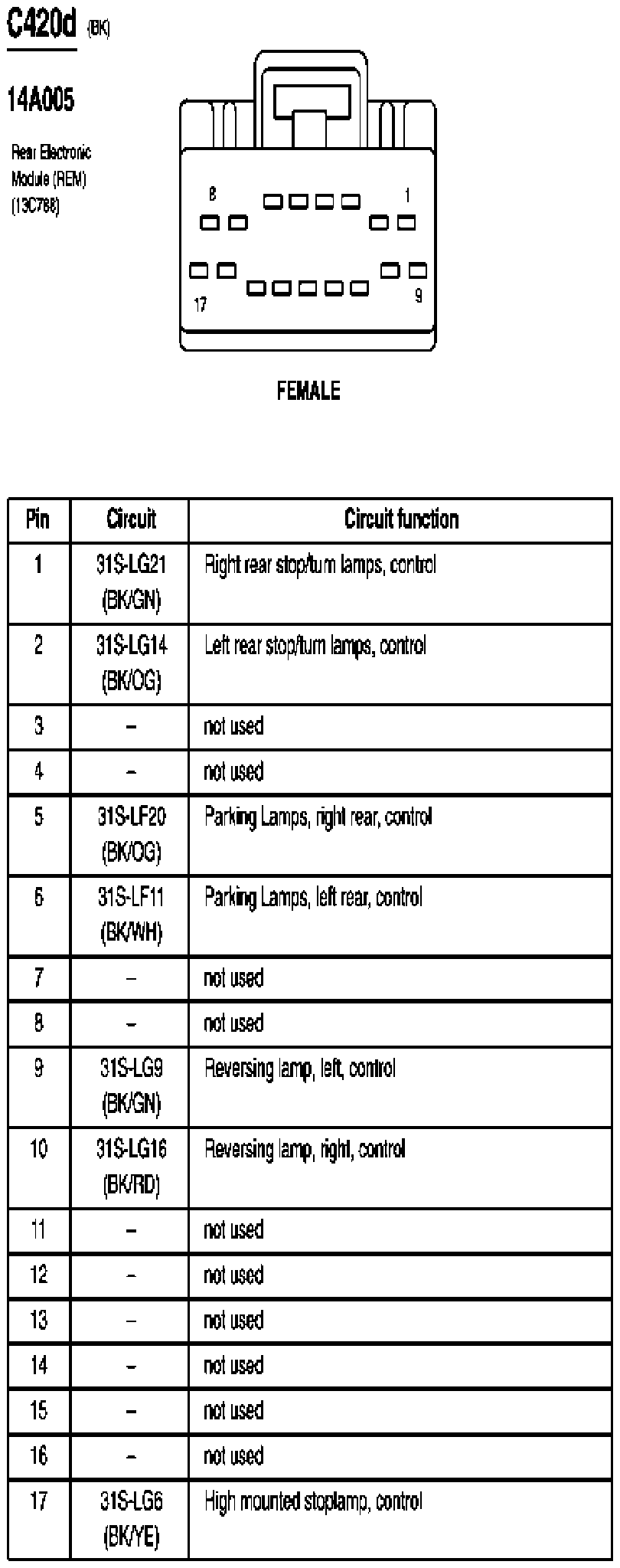

Fig 184: Rear Electronic Module (REM) Connector End View (C420d)
G03994615Courtesy of FORD MOTOR CO.

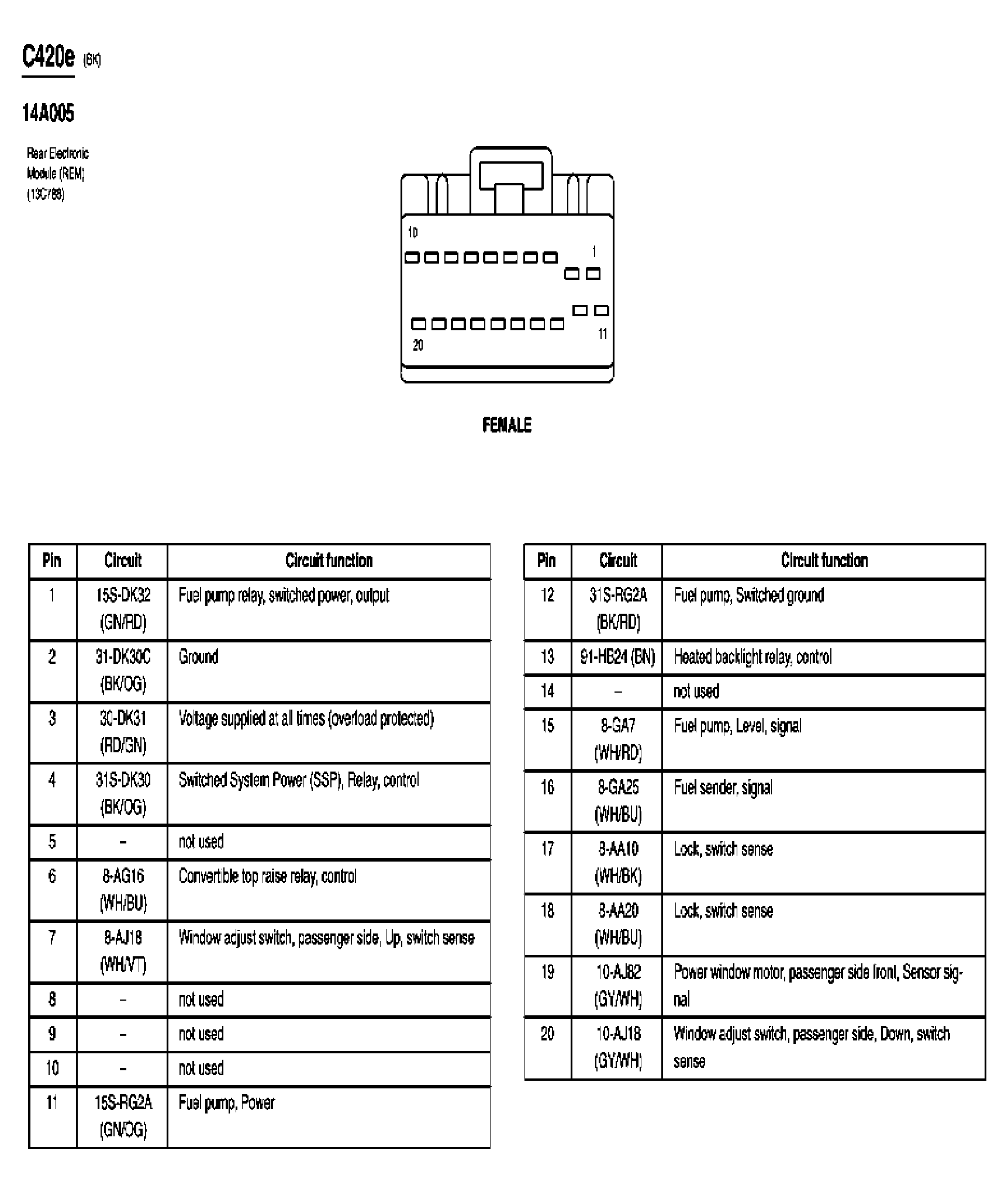

Fig 185: Rear Electronic Module (REM) Connector End View (C420e)
G03994616Courtesy of FORD MOTOR CO.

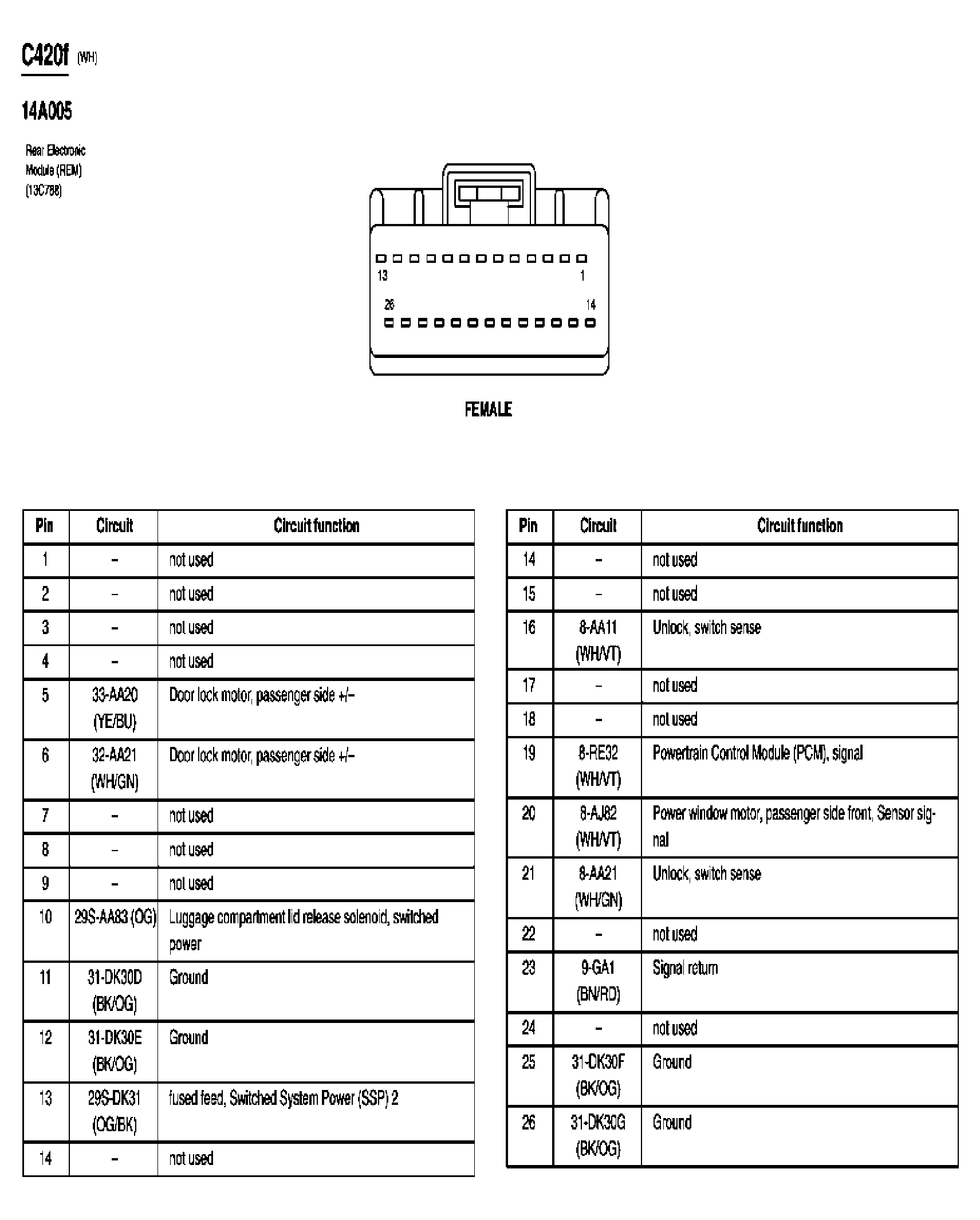

Fig 186: Rear Electronic Module (REM) Connector End View (C420f)
G03994617Courtesy of FORD MOTOR CO.

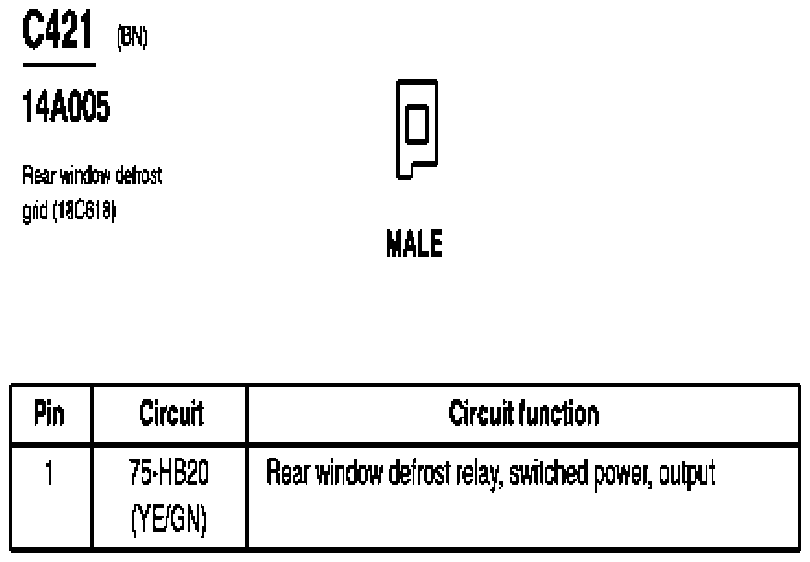

Fig 187: Rear Window Defrost Grid Connector End View (C421)
G07845290Courtesy of FORD MOTOR CO.

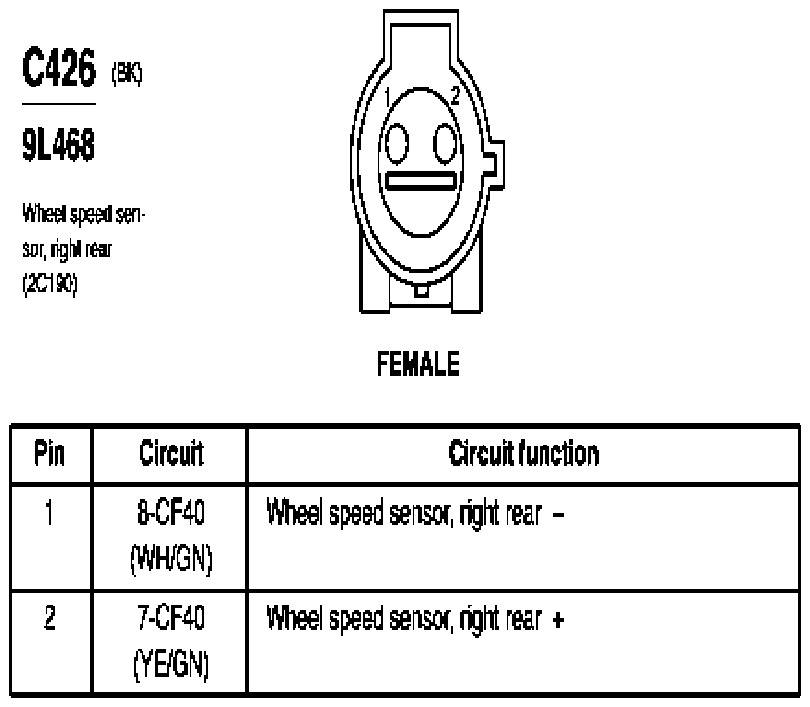

Fig 188: Wheel Speed Sensor, Right Rear Connector End View (C426)
G07845291Courtesy of FORD MOTOR CO.

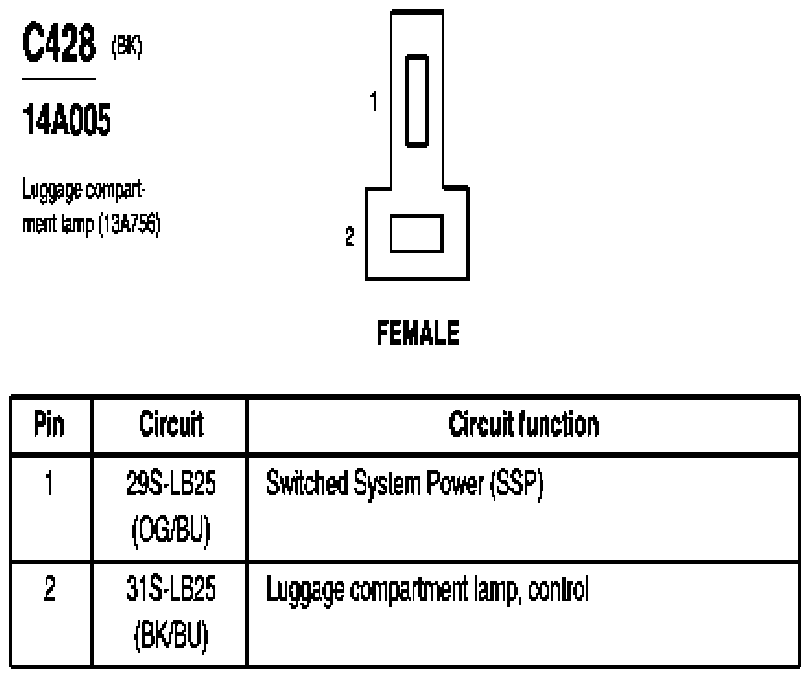

Fig 189: Luggage Compartment Lamp Connector End View (C428)
G07845292Courtesy of FORD MOTOR CO.

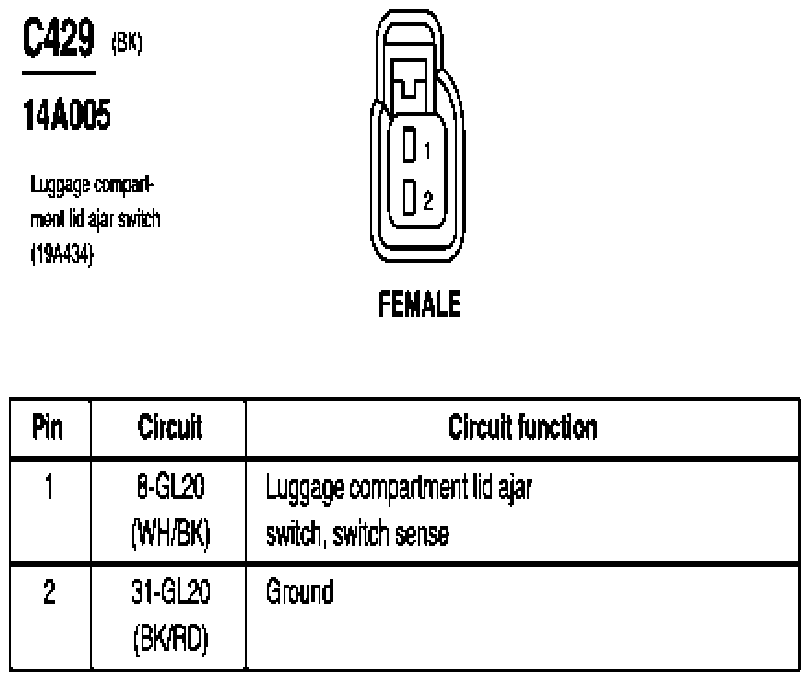

Fig 190: Luggage Compartment Lid Ajar Switch Connector End View (C429)
G07845293Courtesy of FORD MOTOR CO.

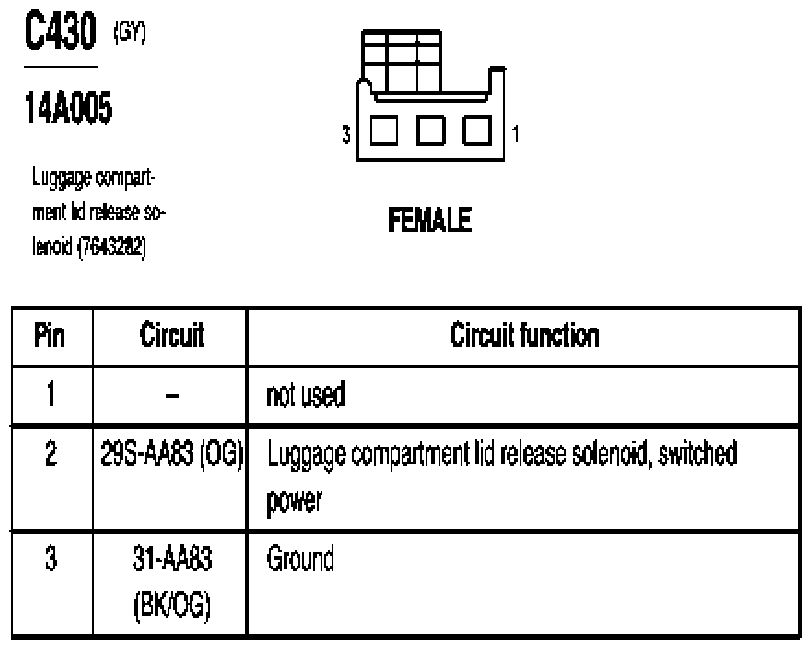

Fig 191: Luggage Compartment Lid Release Solenoid Connector End View (C430)
G07845294Courtesy of FORD MOTOR CO.

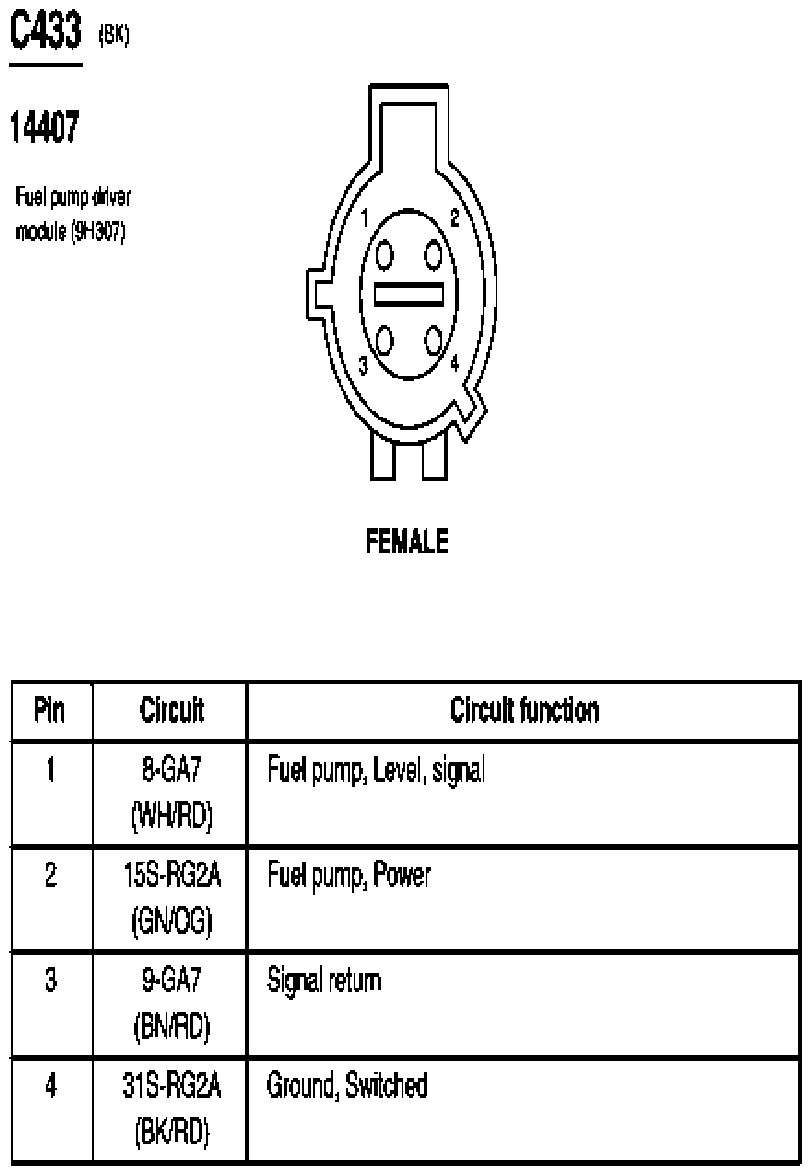

Fig 192: Fuel Pump Driver Module Connector End View (C433)
G07845295Courtesy of FORD MOTOR CO.

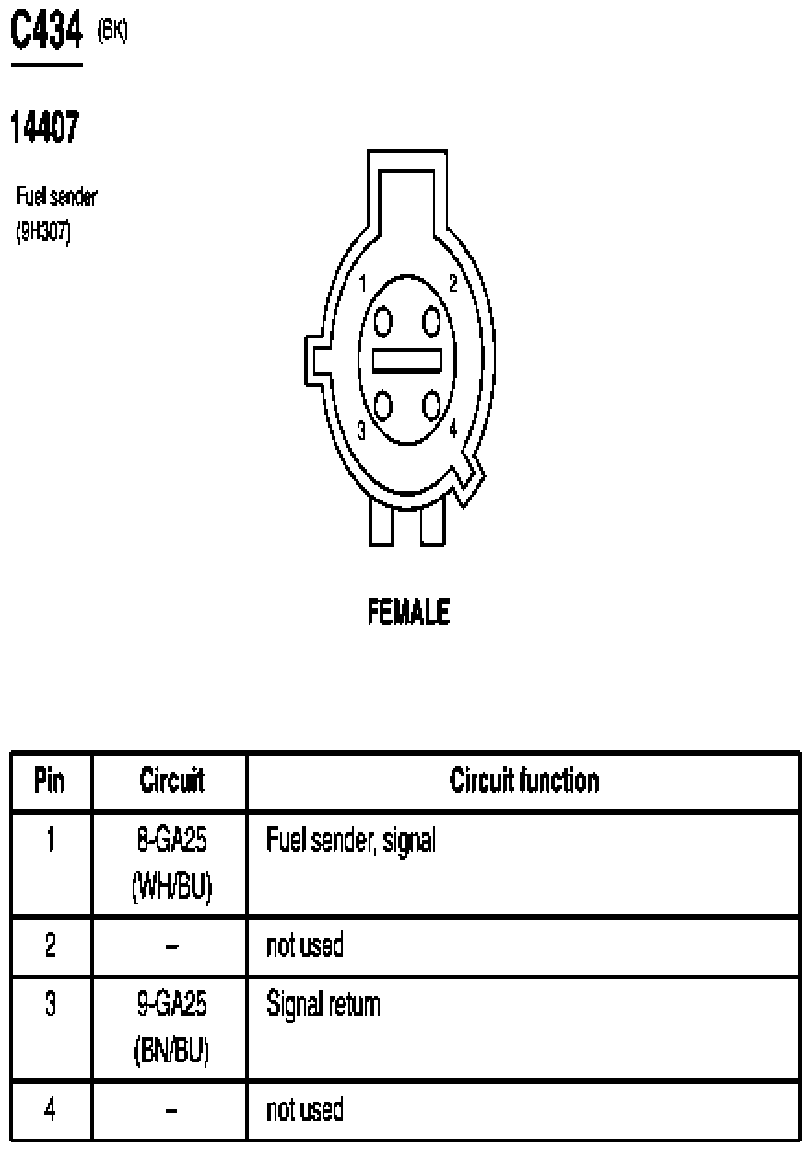

Fig 193: Fuel Sender Connector End View (C434)
G07845296Courtesy of FORD MOTOR CO.

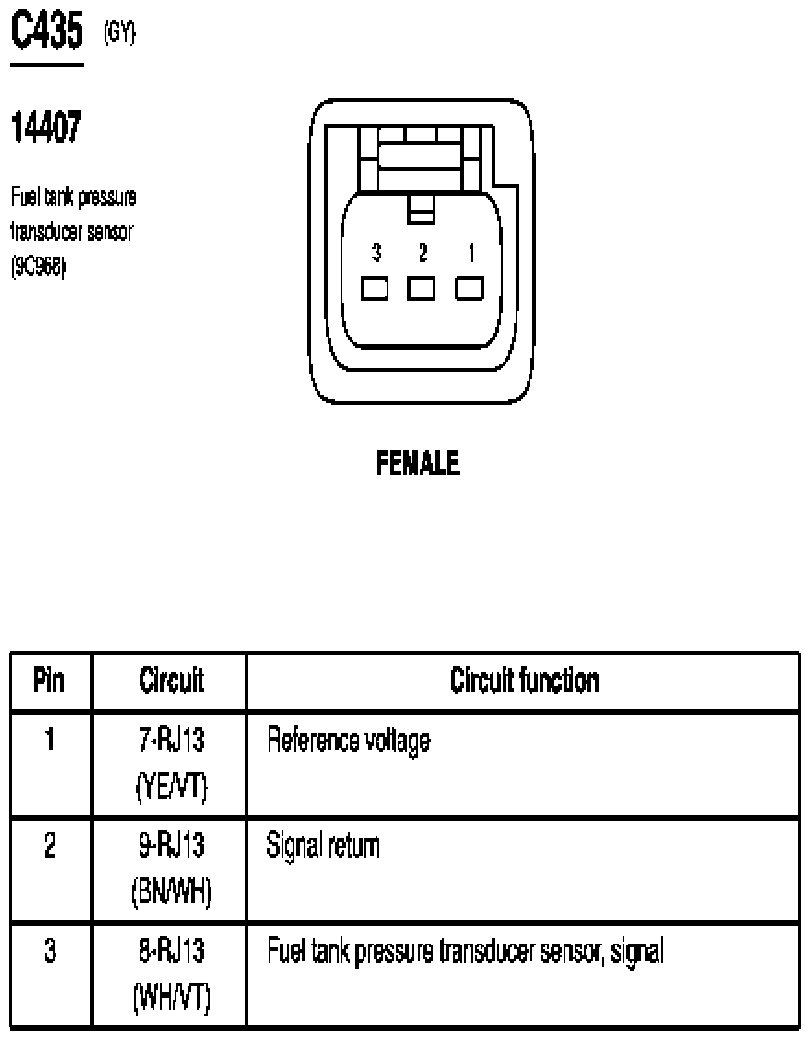

Fig 194: Fuel Tank Pressure Transducer Sensor Connector End View (C435)
G07845297Courtesy of FORD MOTOR CO.

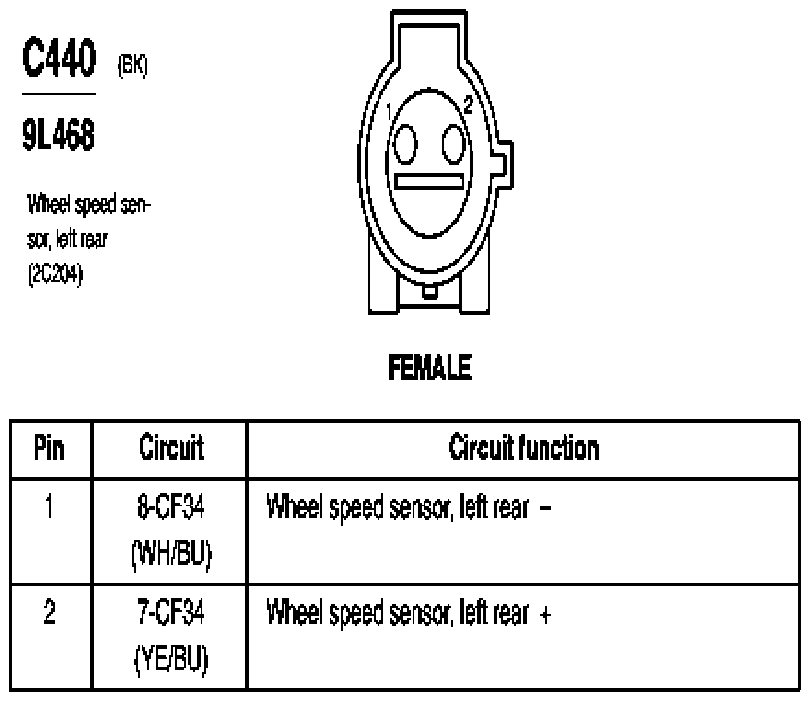

Fig 195: Wheel Speed Sensor, Left Rear Connector End View (C440)
G07845298Courtesy of FORD MOTOR CO.

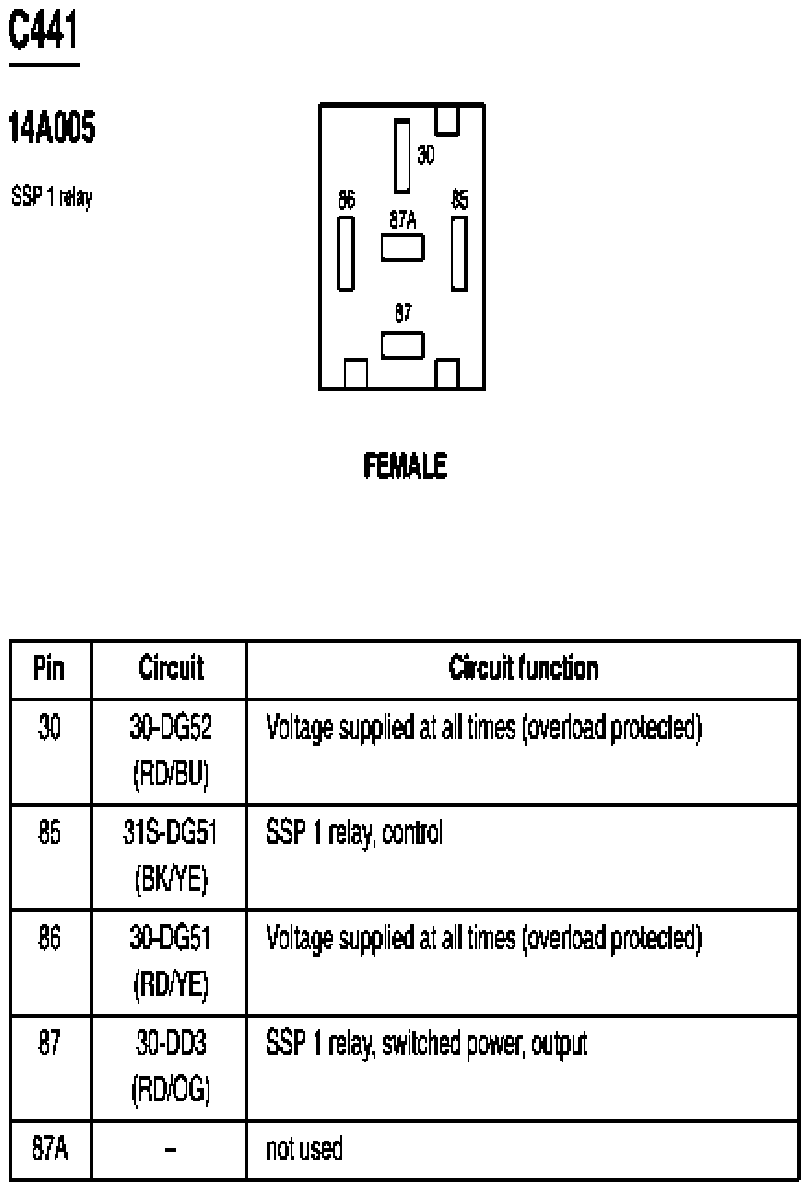

Fig 196: SSP 1 Relay Connector End View (C441)
G07845299Courtesy of FORD MOTOR CO.

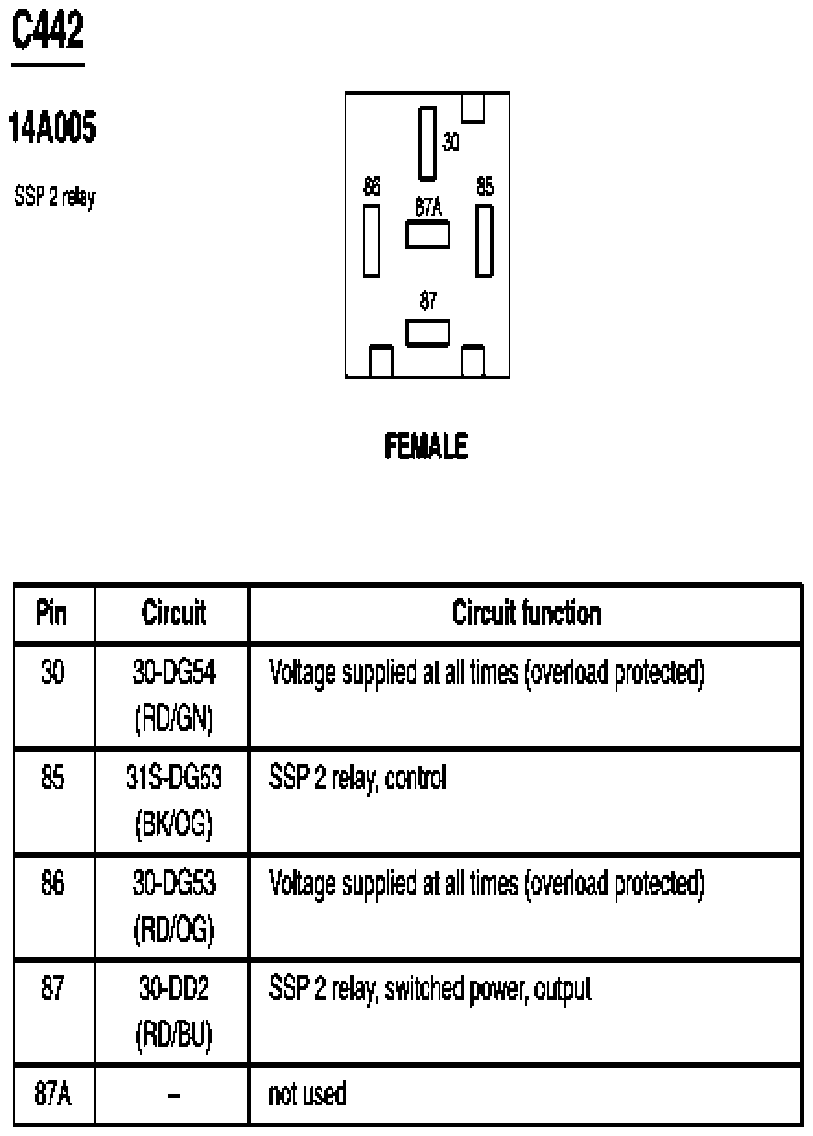

Fig 197: SSP 2 Relay Connector End View (C442)
G07845300Courtesy of FORD MOTOR CO.

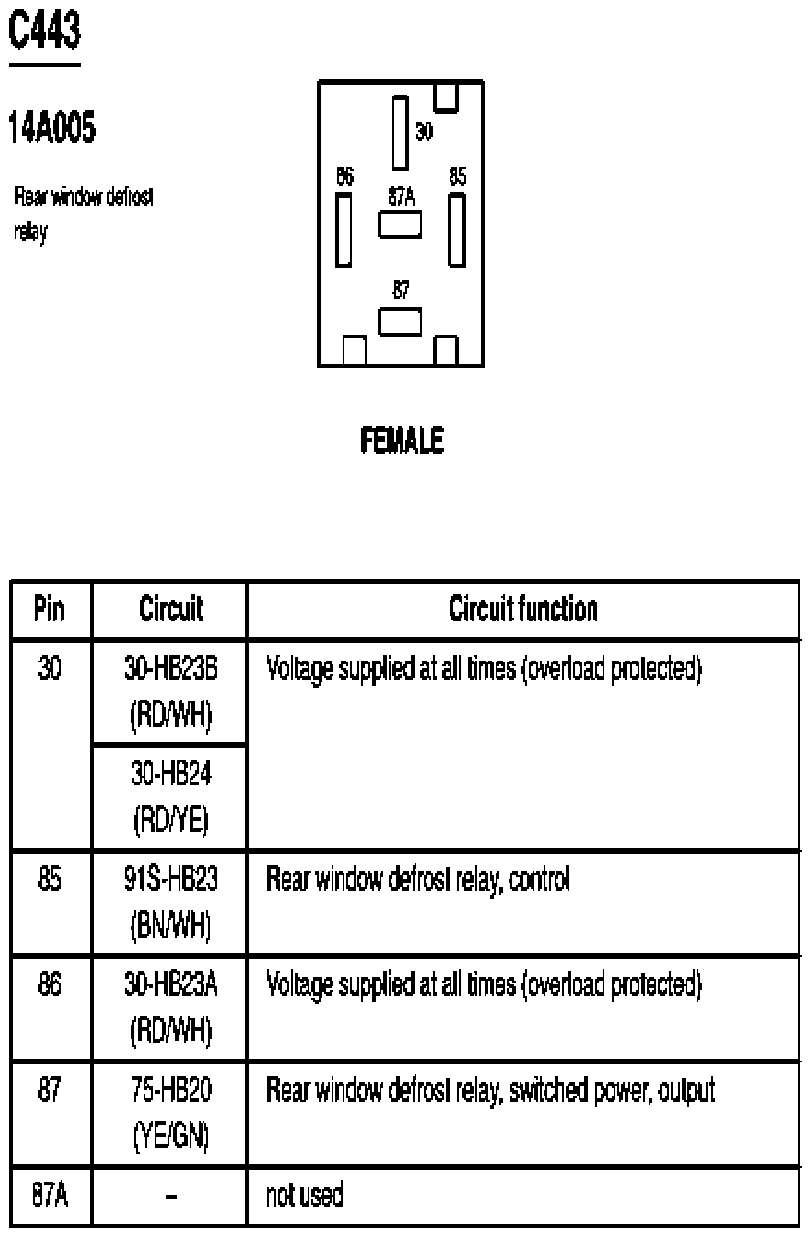

Fig 198: Rear Window Defrost Relay Connector End View (C443)
G07845301Courtesy of FORD MOTOR CO.

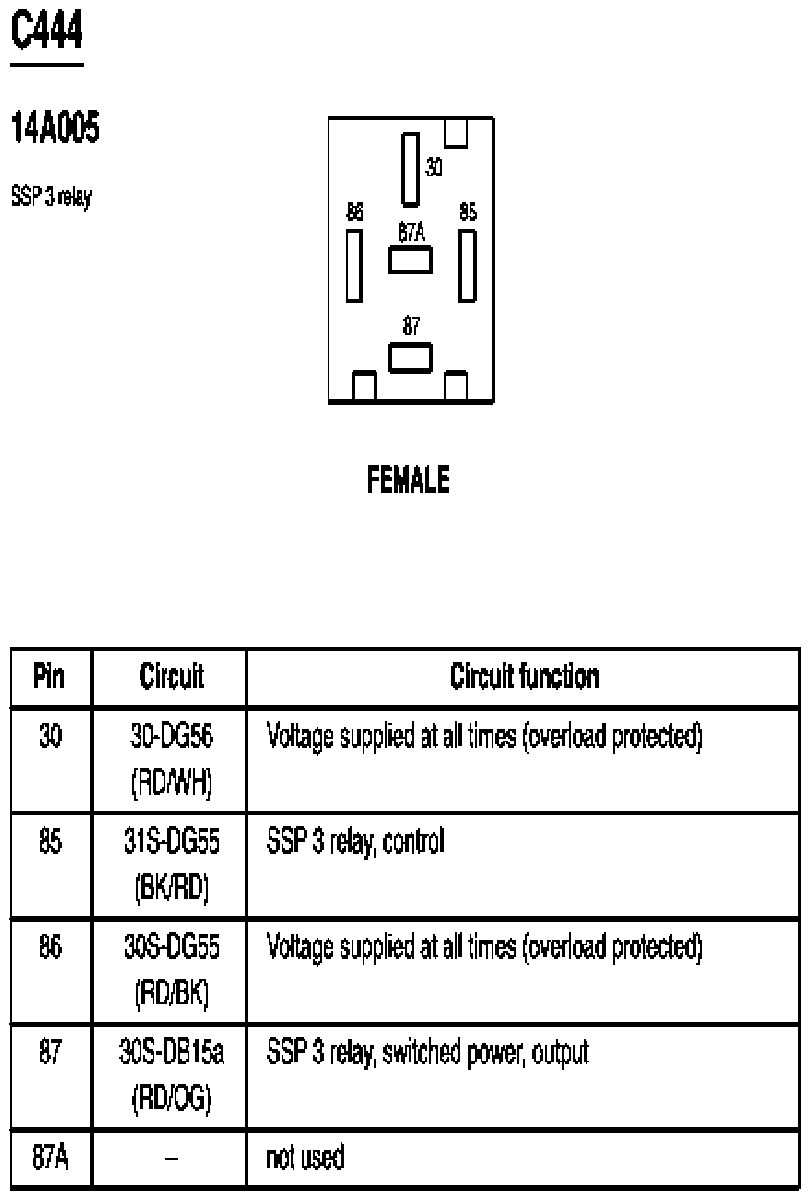

Fig 199: SSP 3 Relay Connector End View (C444)
G07845302Courtesy of FORD MOTOR CO.

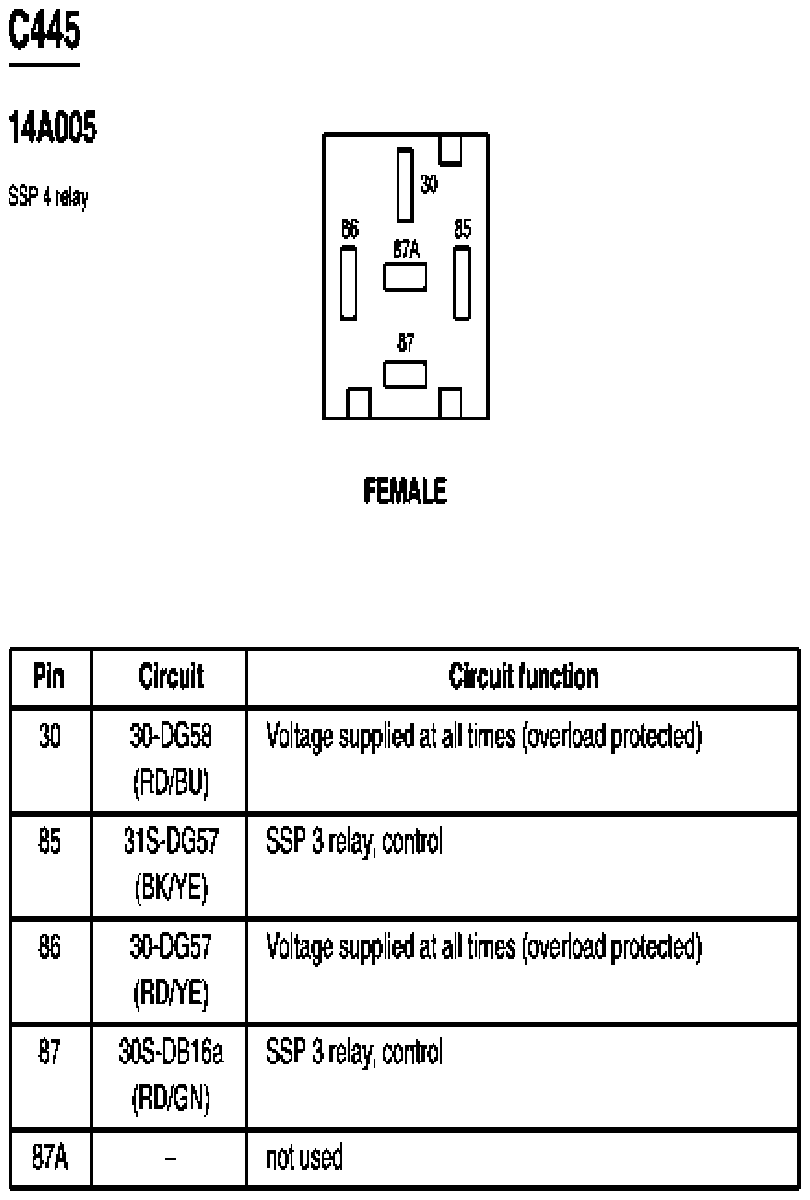

Fig 200: SSP 4 Relay Connector End View (C445)
G07845303Courtesy of FORD MOTOR CO.

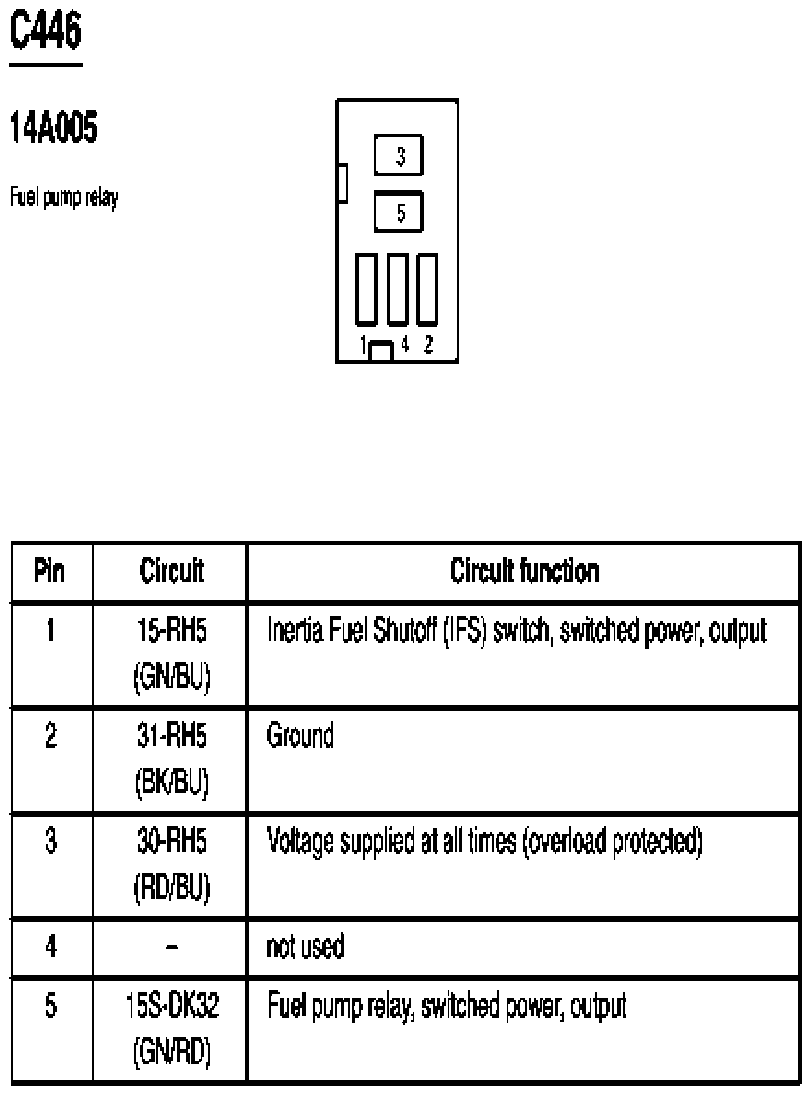

Fig 201: Fuel Pump Relay Connector End View (C446)
G07845304Courtesy of FORD MOTOR CO.

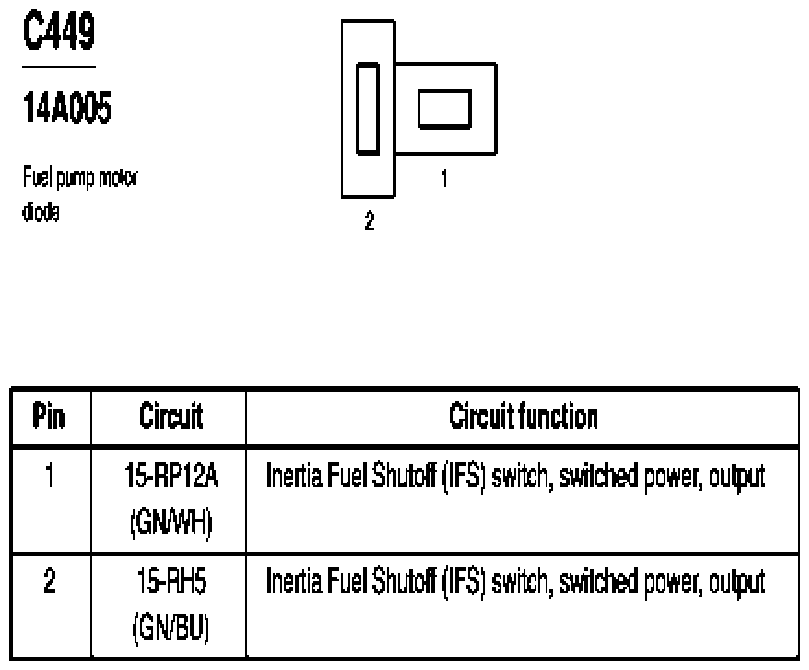

Fig 202: Fuel Pump Motor Connector End View (C449)
G07845305Courtesy of FORD MOTOR CO.

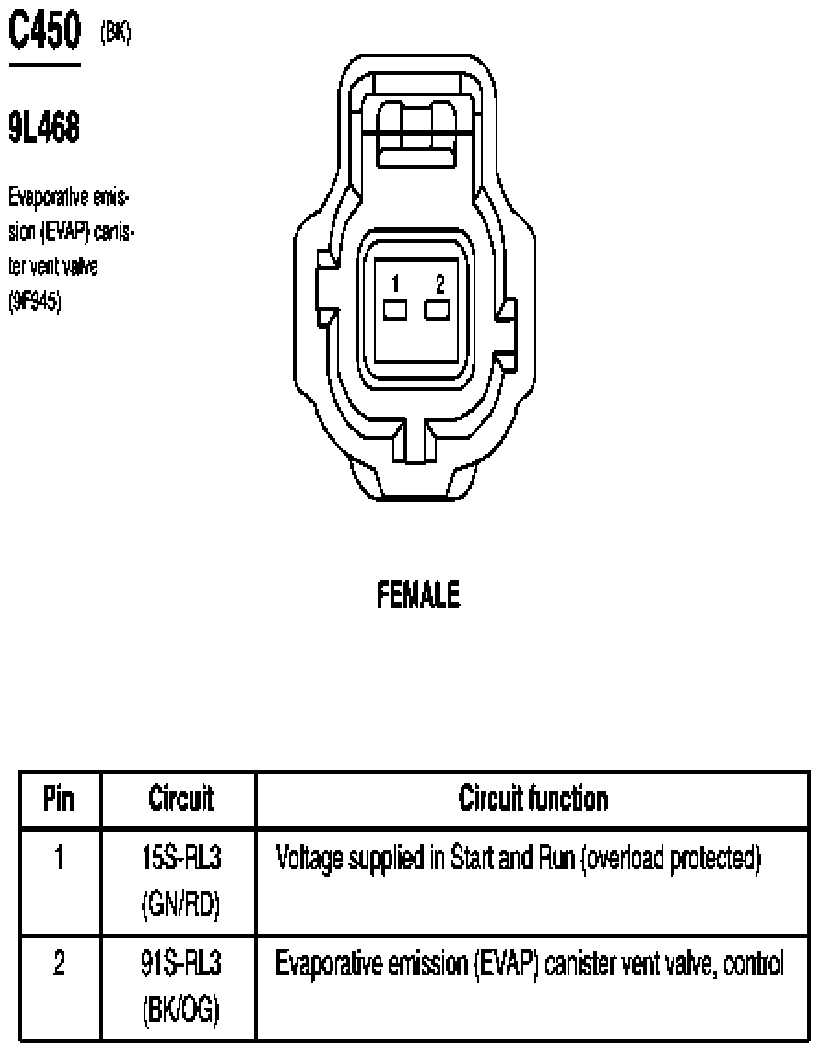

Fig 203: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)
G07845306Courtesy of FORD MOTOR CO.

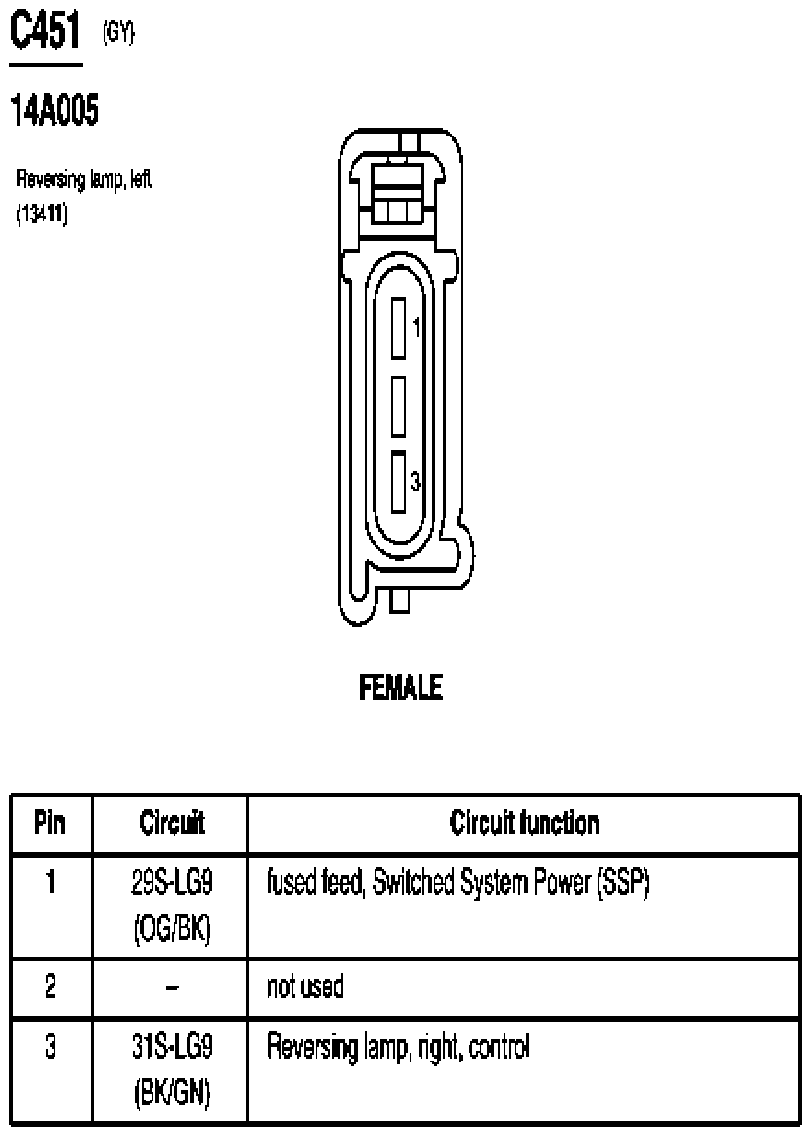

Fig 204: Reversing Lamp, Left Connector End View (C451)
G07845307Courtesy of FORD MOTOR CO.

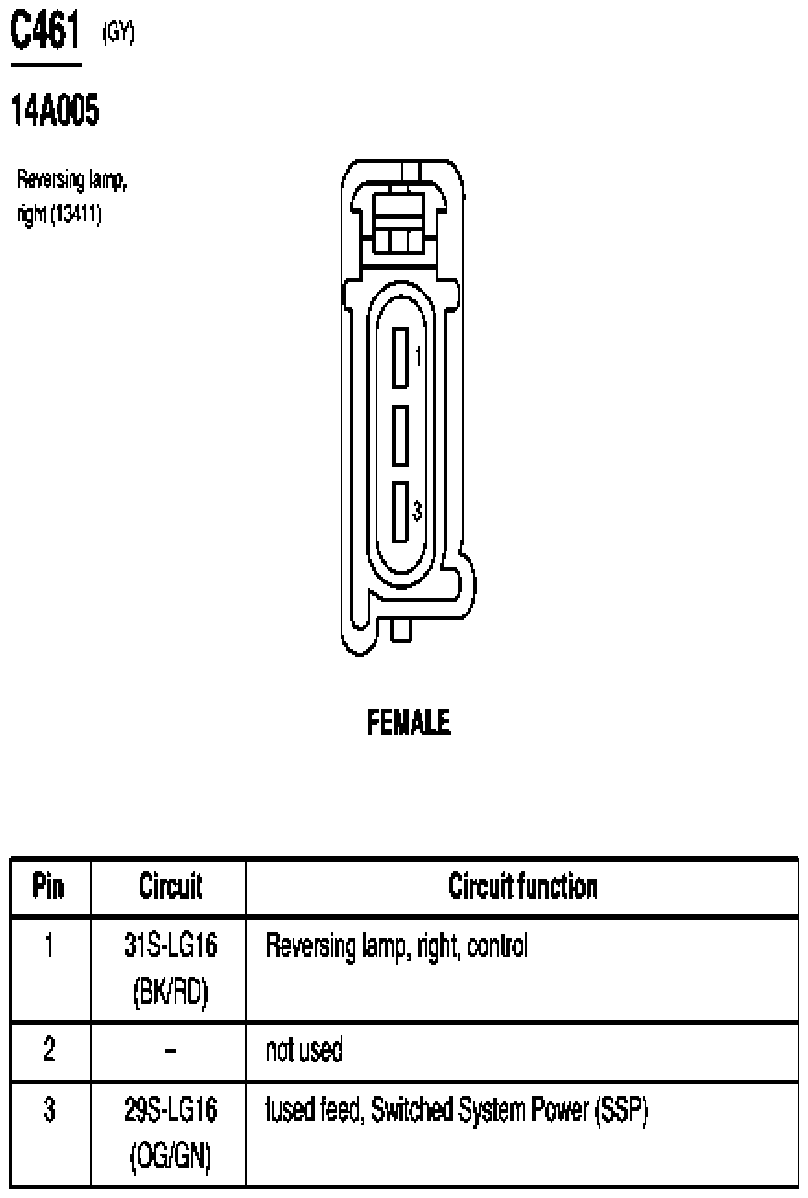

Fig 205: Reversing Lamp, Right Connector End View (C461)
G07845308Courtesy of FORD MOTOR CO.

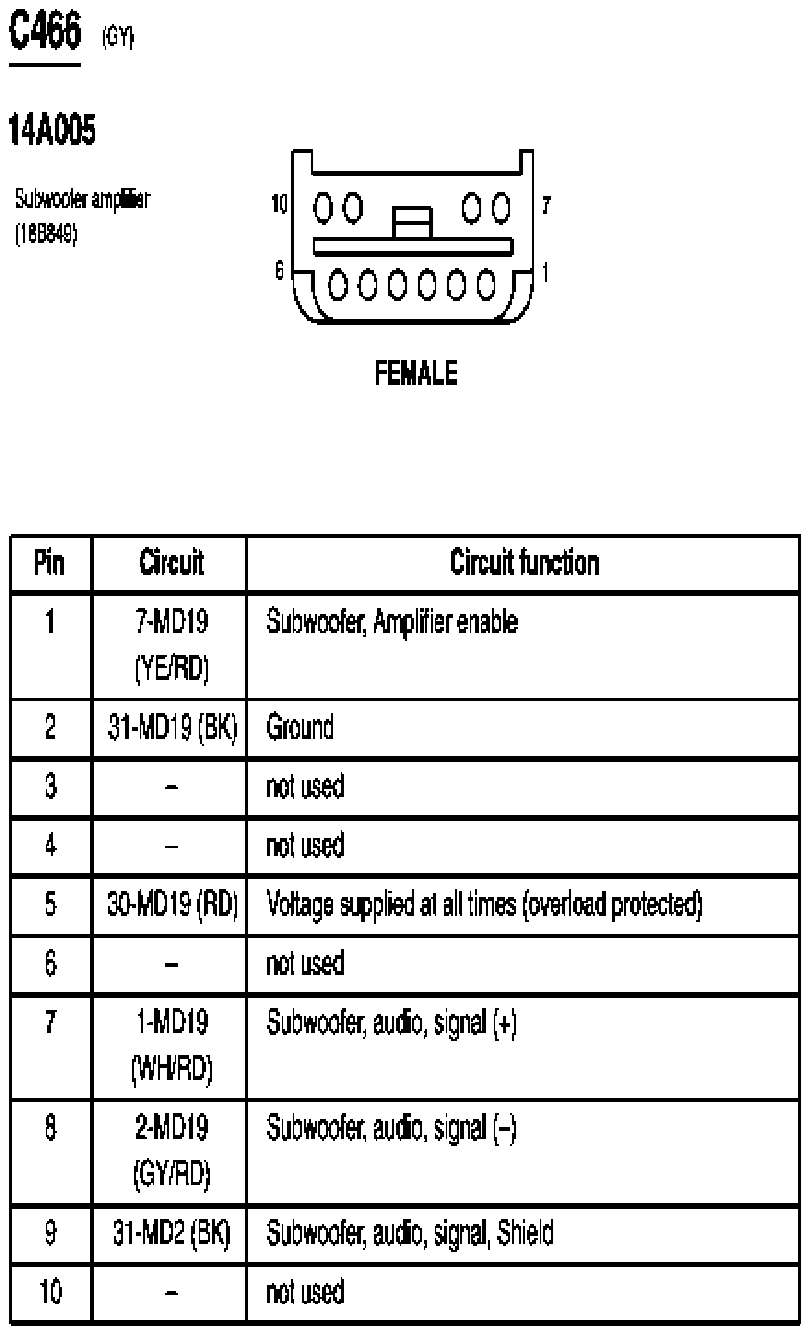

Fig 206: Subwoofer, Amplifier Connector End View (C466)
G07845309Courtesy of FORD MOTOR CO.

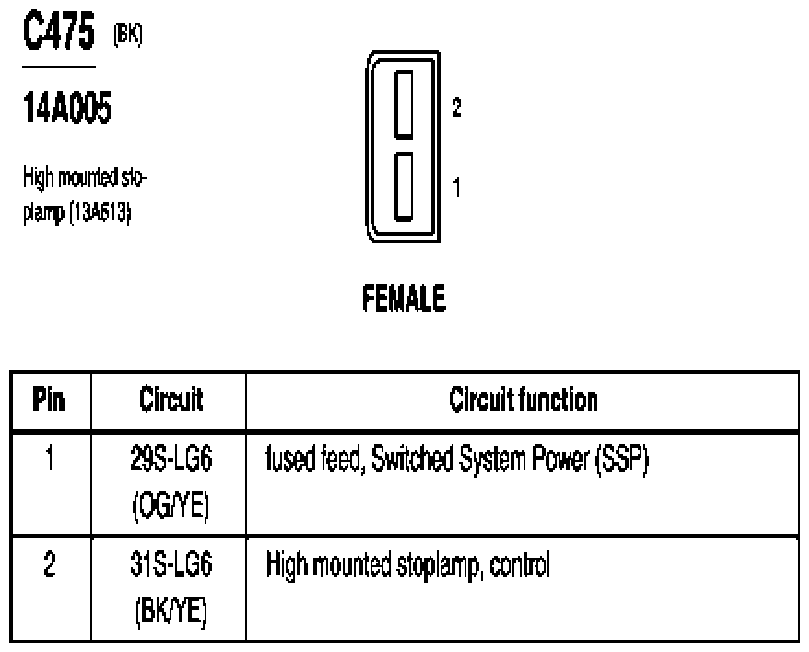

Fig 207: High Mounted Stop Lamp Connector End View (C475)
G07845310Courtesy of FORD MOTOR CO.

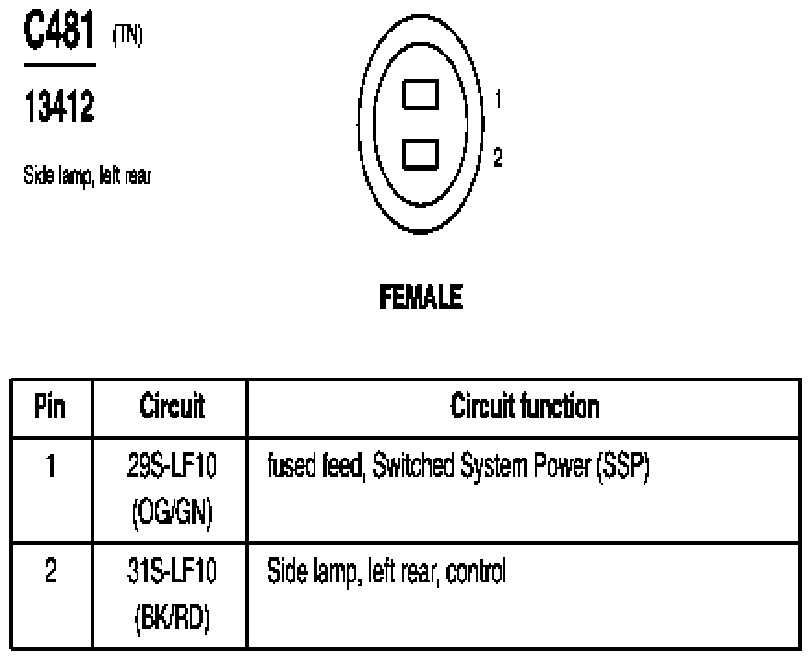

Fig 208: Side Lamp, Left Rear Connector End View (C481)
G07845311Courtesy of FORD MOTOR CO.

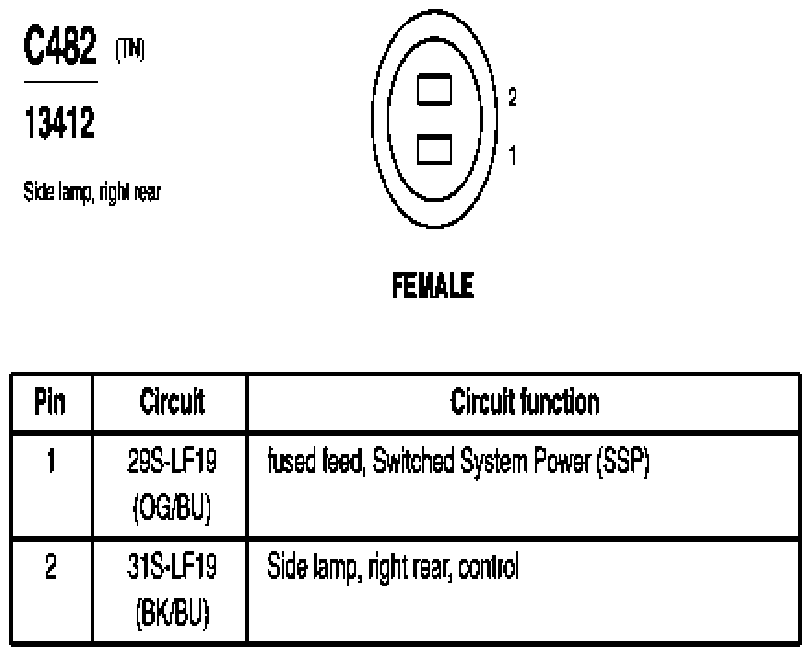

Fig 209: Side Lamp, Right Rear Connector End View (C482)
G07845312Courtesy of FORD MOTOR CO.

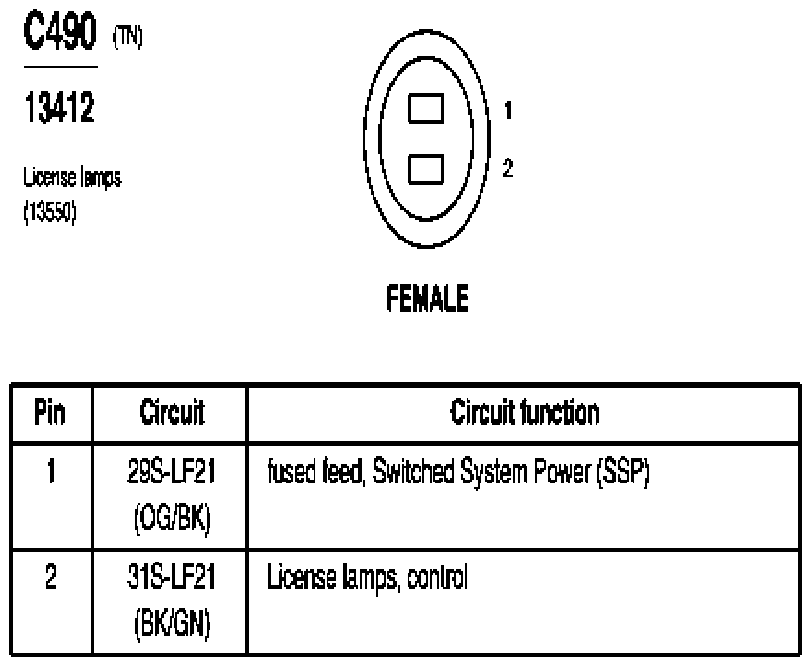

Fig 210: License Lamps Connector End View (C490)
G07845313Courtesy of FORD MOTOR CO.

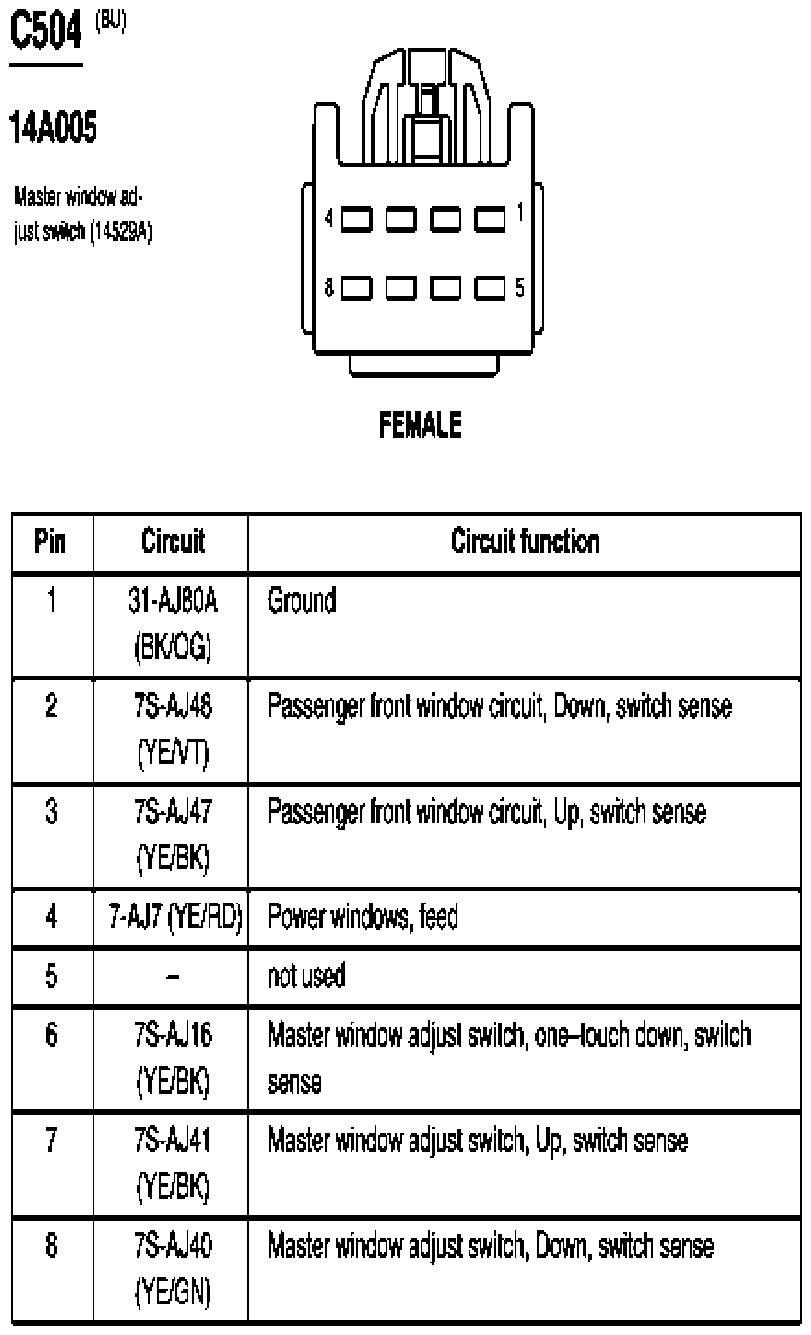

Fig 211: Master Window Adjust Switch Connector End View (C504)
G07845314Courtesy of FORD MOTOR CO.

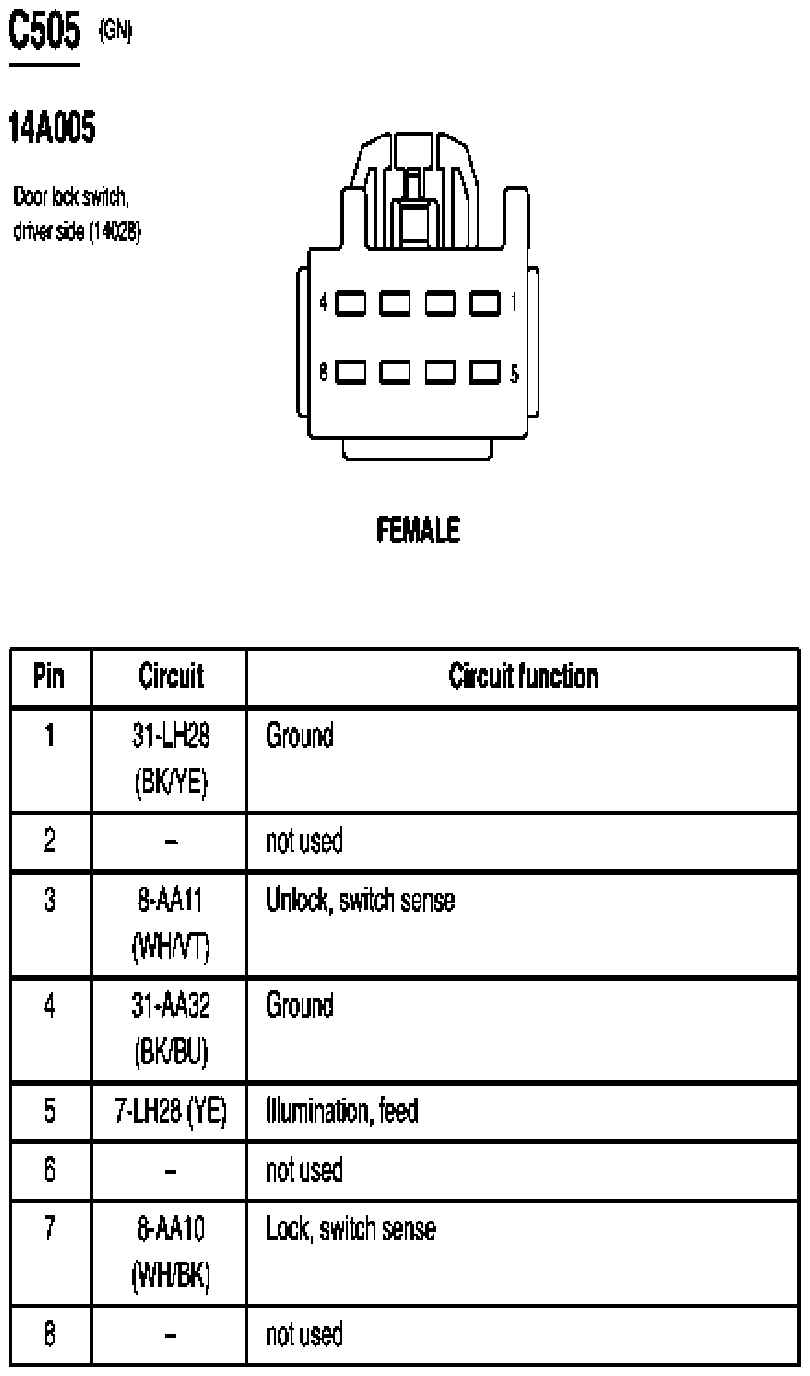

Fig 212: Door Lock Switch Driver Side Connector End View (C505)
G07845315Courtesy of FORD MOTOR CO.

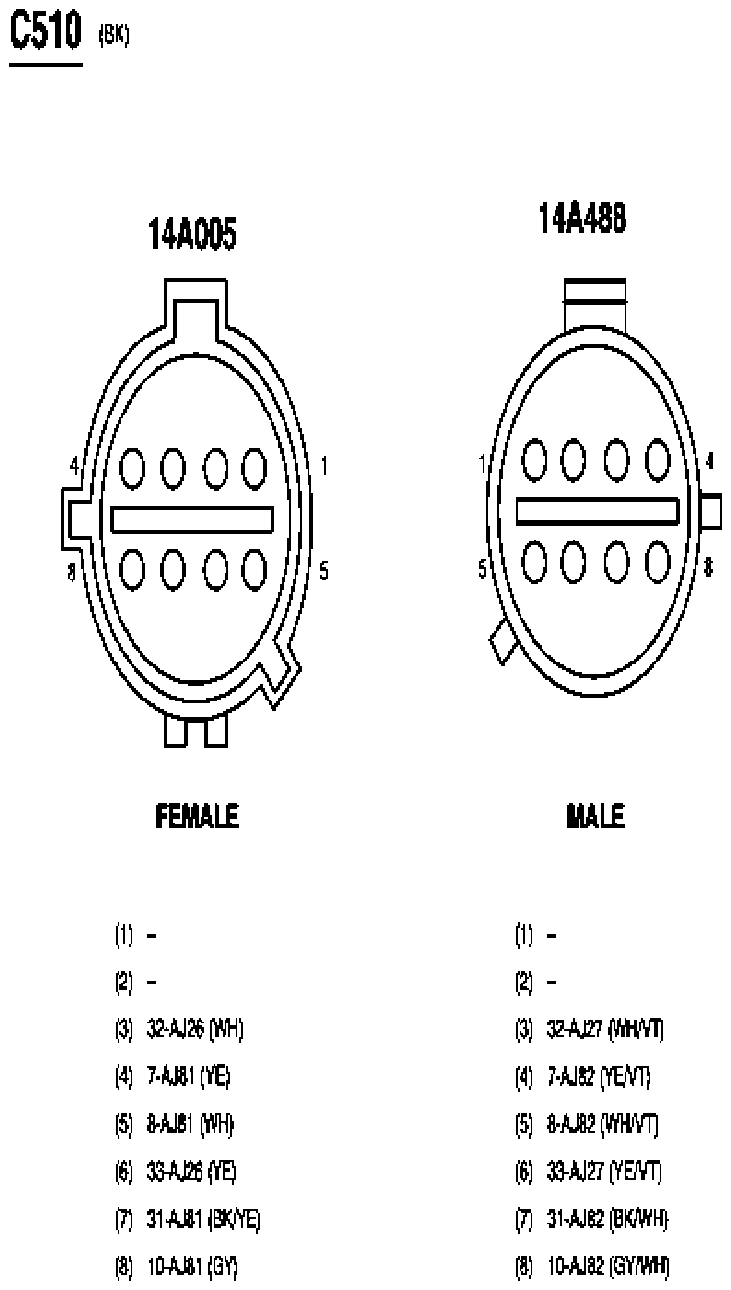

Fig 213: Inline Connector End View (C510)
G07845316Courtesy of FORD MOTOR CO.

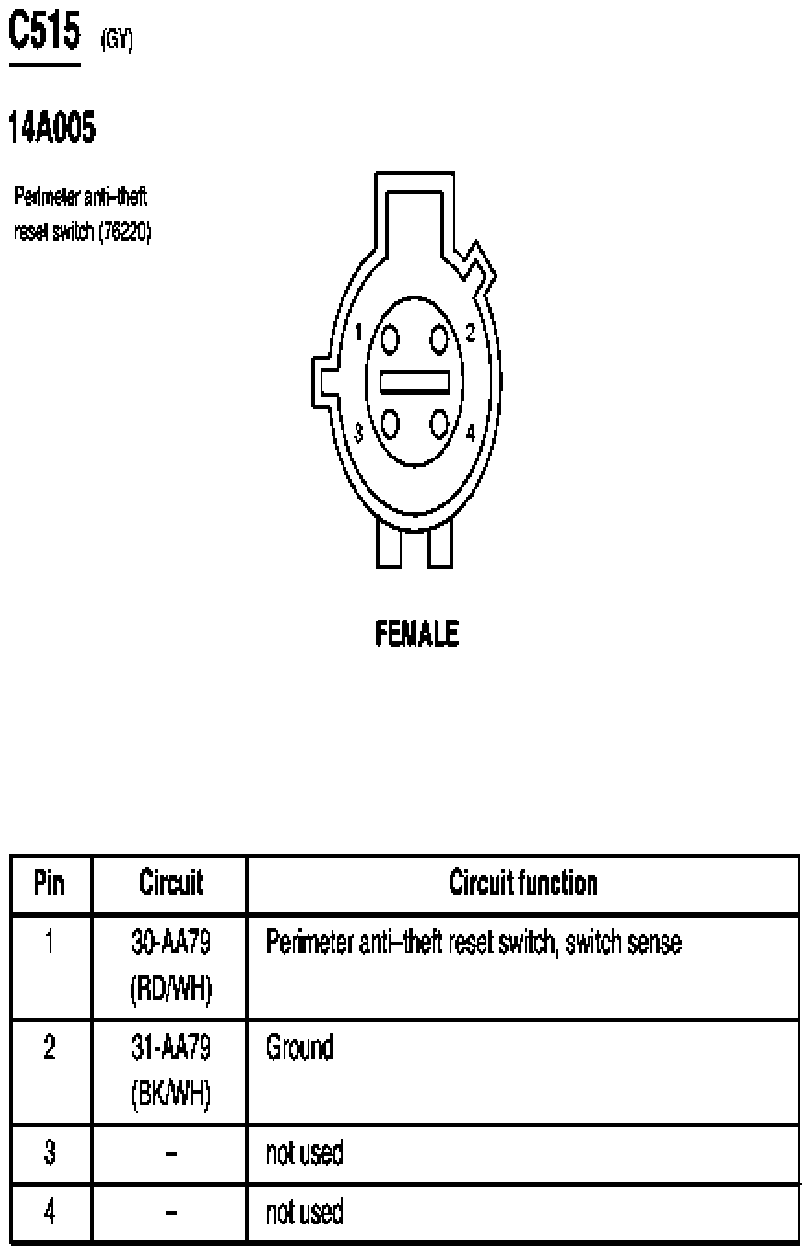

Fig 214: Perimeter Anti-Theft Reset Switch Connector End View (C515)
G07845317Courtesy of FORD MOTOR CO.

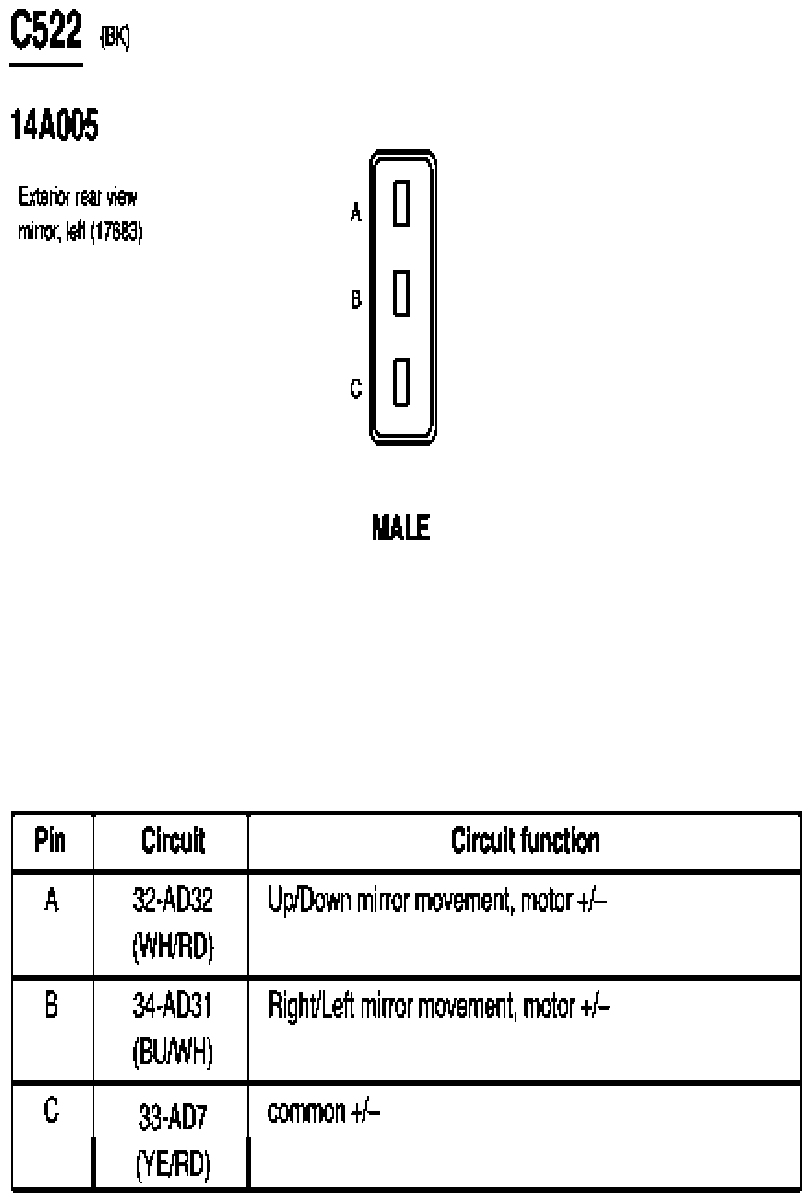

Fig 215: Exterior Rear View Mirror, Left Connector End View (C522)
G07845318Courtesy of FORD MOTOR CO.

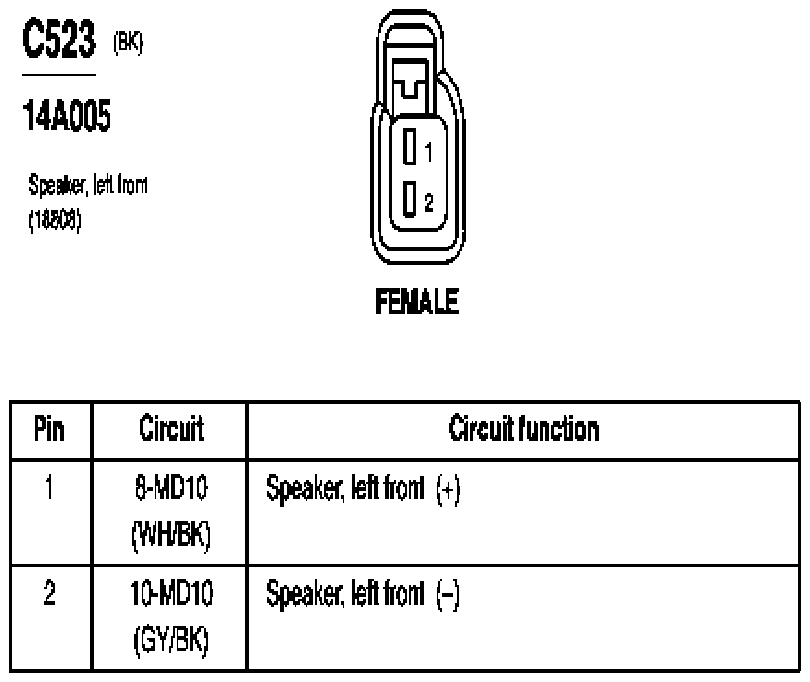

Fig 216: Speaker, Left Front Connector End View (C523)
G07845319Courtesy of FORD MOTOR CO.

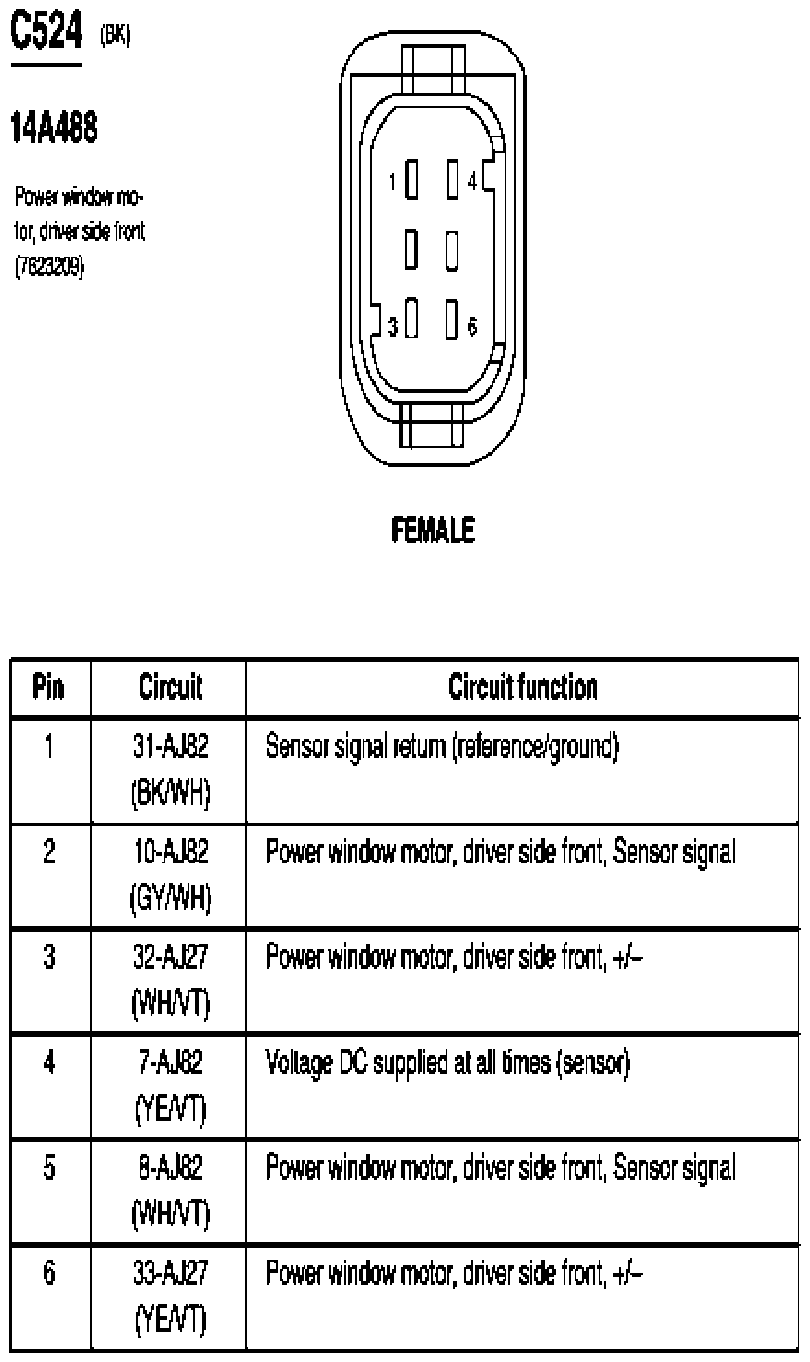

Fig 217: Power Window Motor, Driver Side Front Connector End View (C524)
G07845320Courtesy of FORD MOTOR CO.

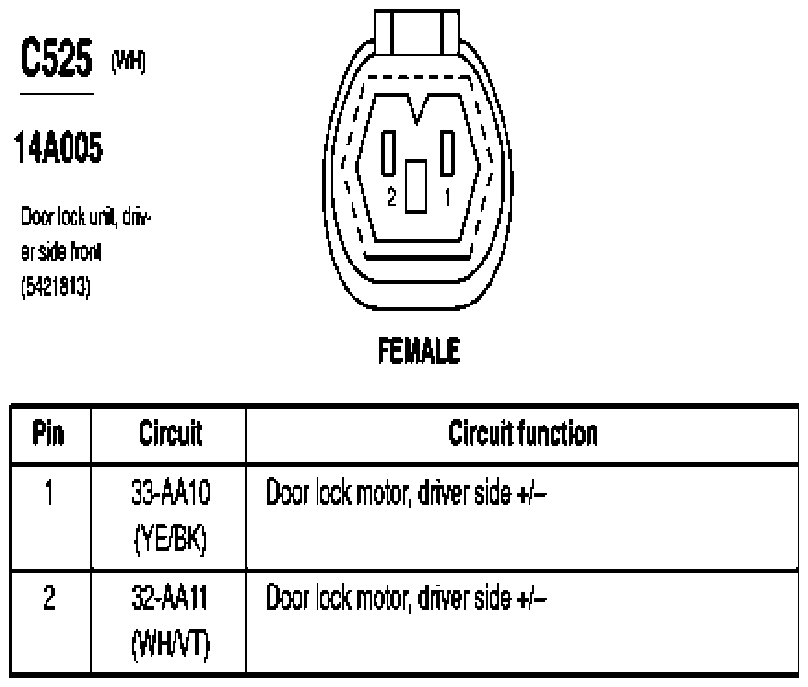

Fig 218: Door Lock Unit, Driver Side Front Connector End View (C525)
G07845321Courtesy of FORD MOTOR CO.

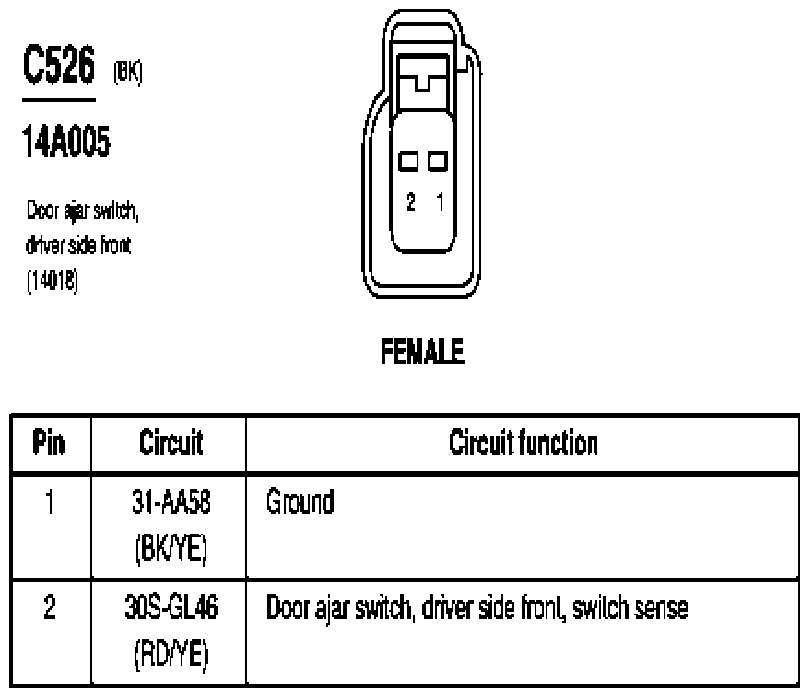

Fig 219: Door Ajar Switch, Driver Side Front Connector End View (C526)
G07845322Courtesy of FORD MOTOR CO.

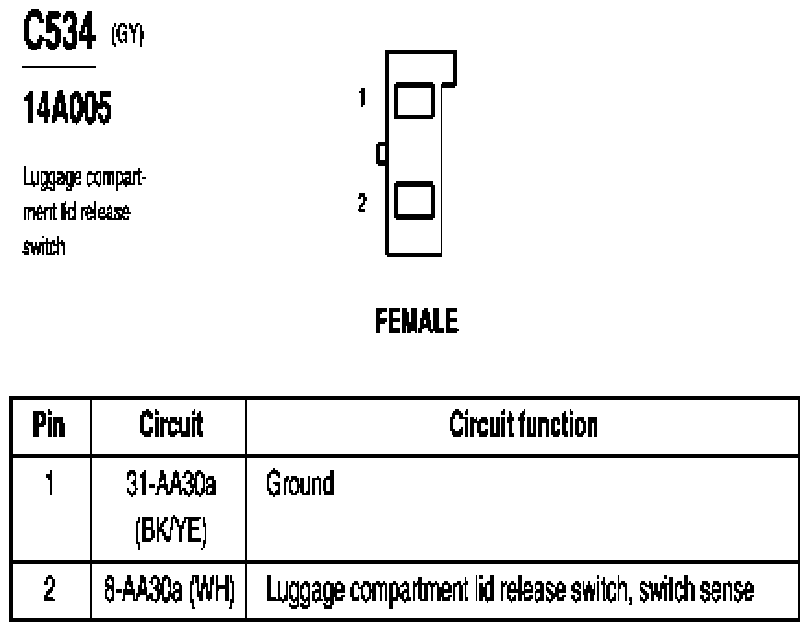

Fig 220: Luggage Compartment Lid Left Release Switch Connector End View (C534)
G07845323Courtesy of FORD MOTOR CO.

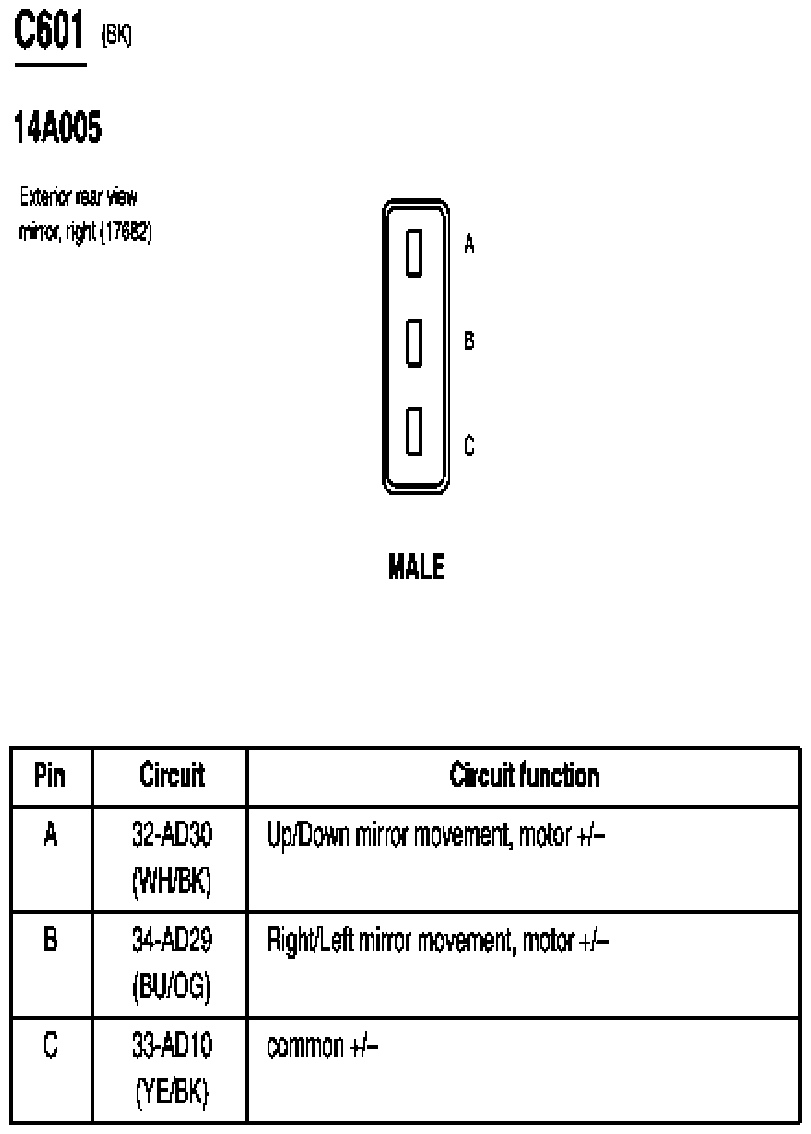

Fig 221: Exterior Rear View Mirror, Right Connector End View (C601)
G07845324Courtesy of FORD MOTOR CO.

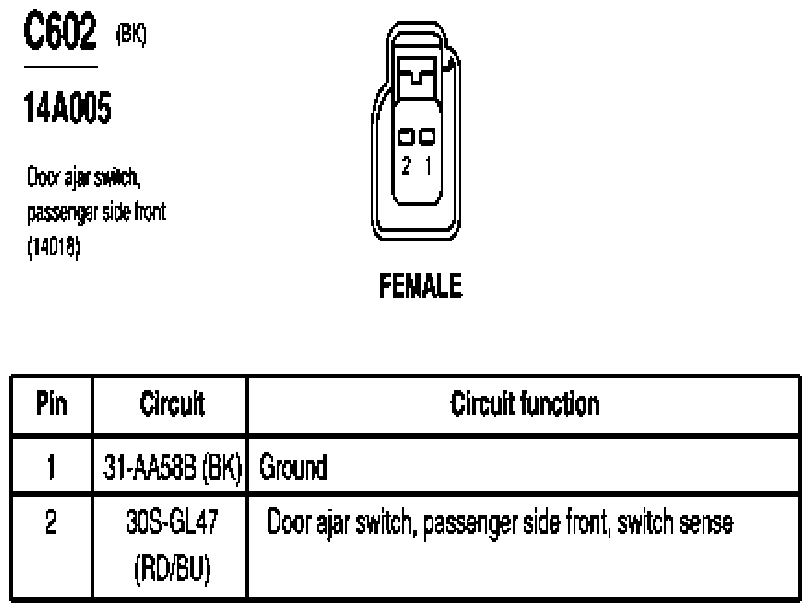

Fig 222: Door Ajar Switch, Passenger Side Front Connector End View (C602)
G07845325Courtesy of FORD MOTOR CO.

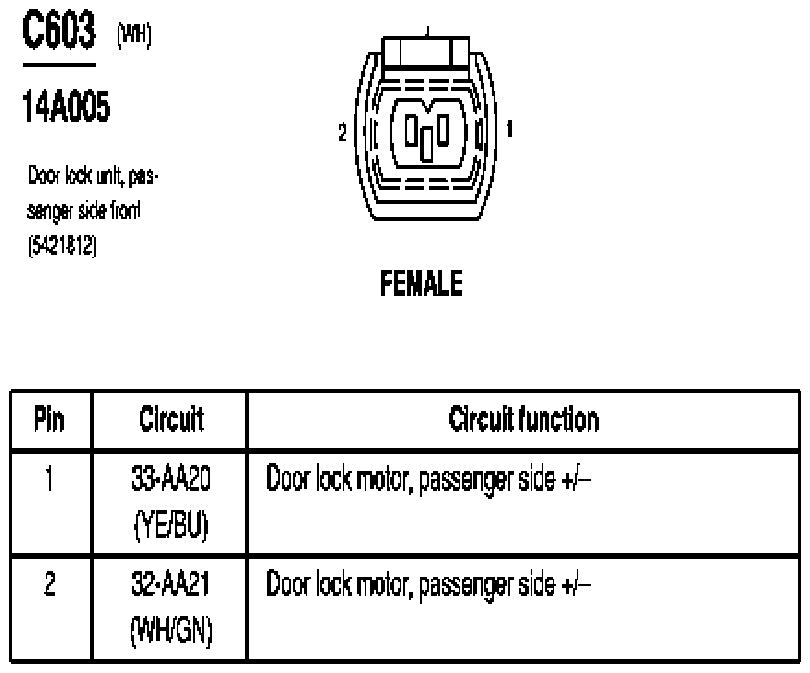

Fig 223: Door Lock Unit, Passenger Side Front Connector End View (C603)
G07845326Courtesy of FORD MOTOR CO.

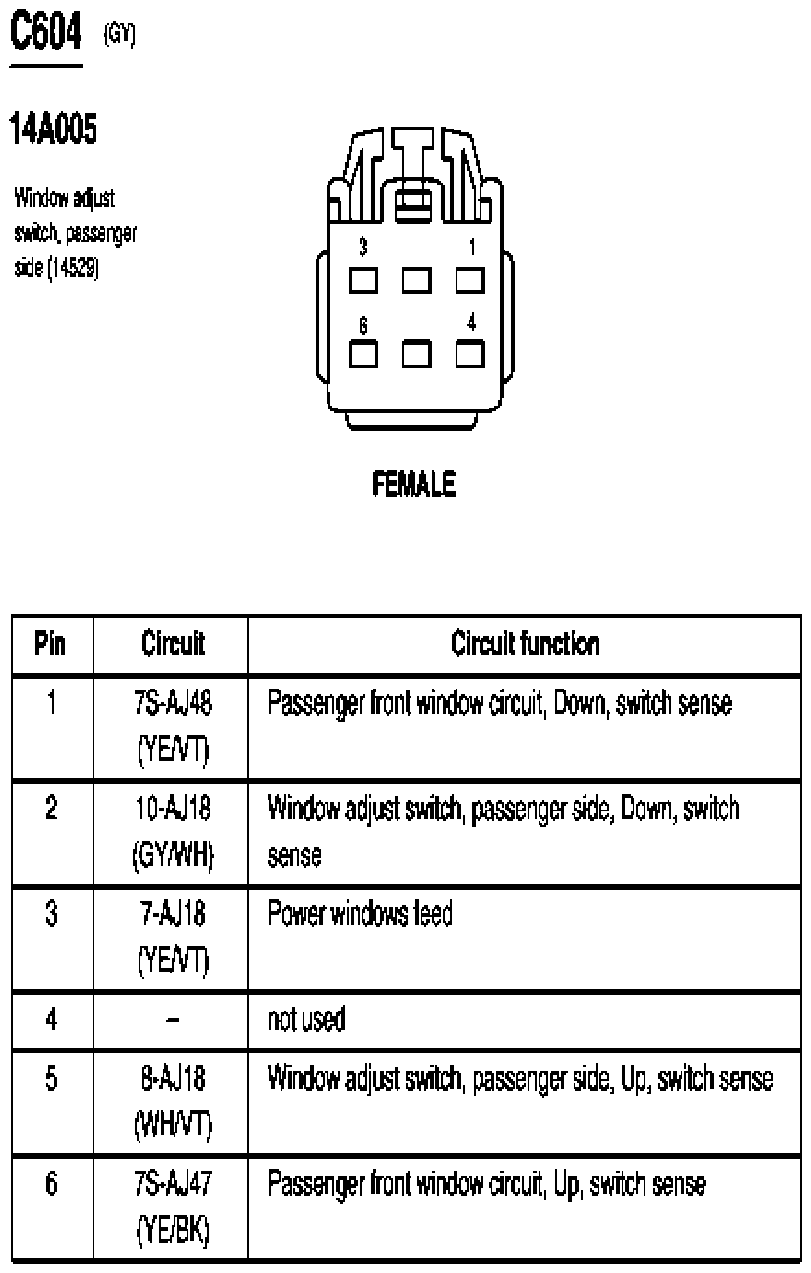

Fig 224: Window Adjust Switch, Passenger Side Connector End View (C604)
G07845327Courtesy of FORD MOTOR CO.

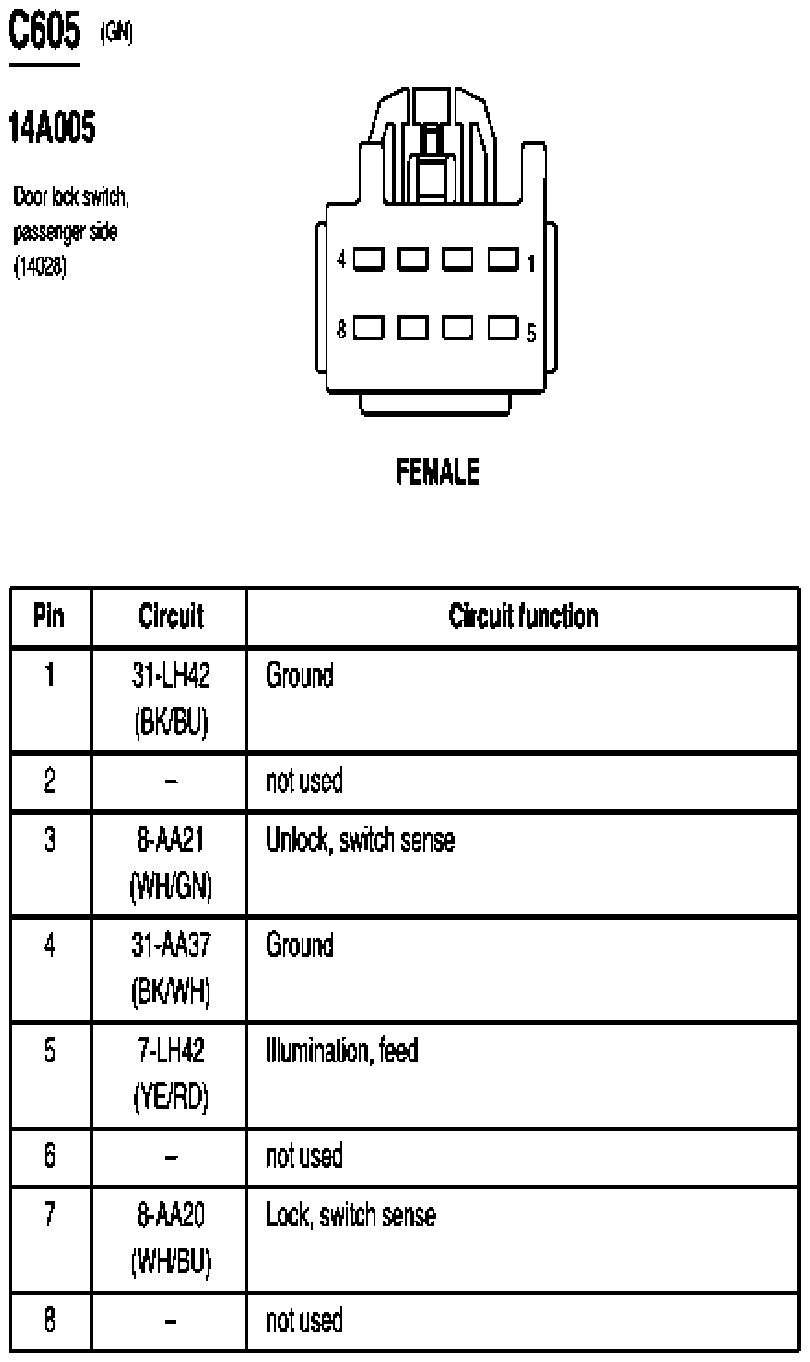

Fig 225: Door Lock Switch Passenger Side Connector End View (C605)
G07845328Courtesy of FORD MOTOR CO.

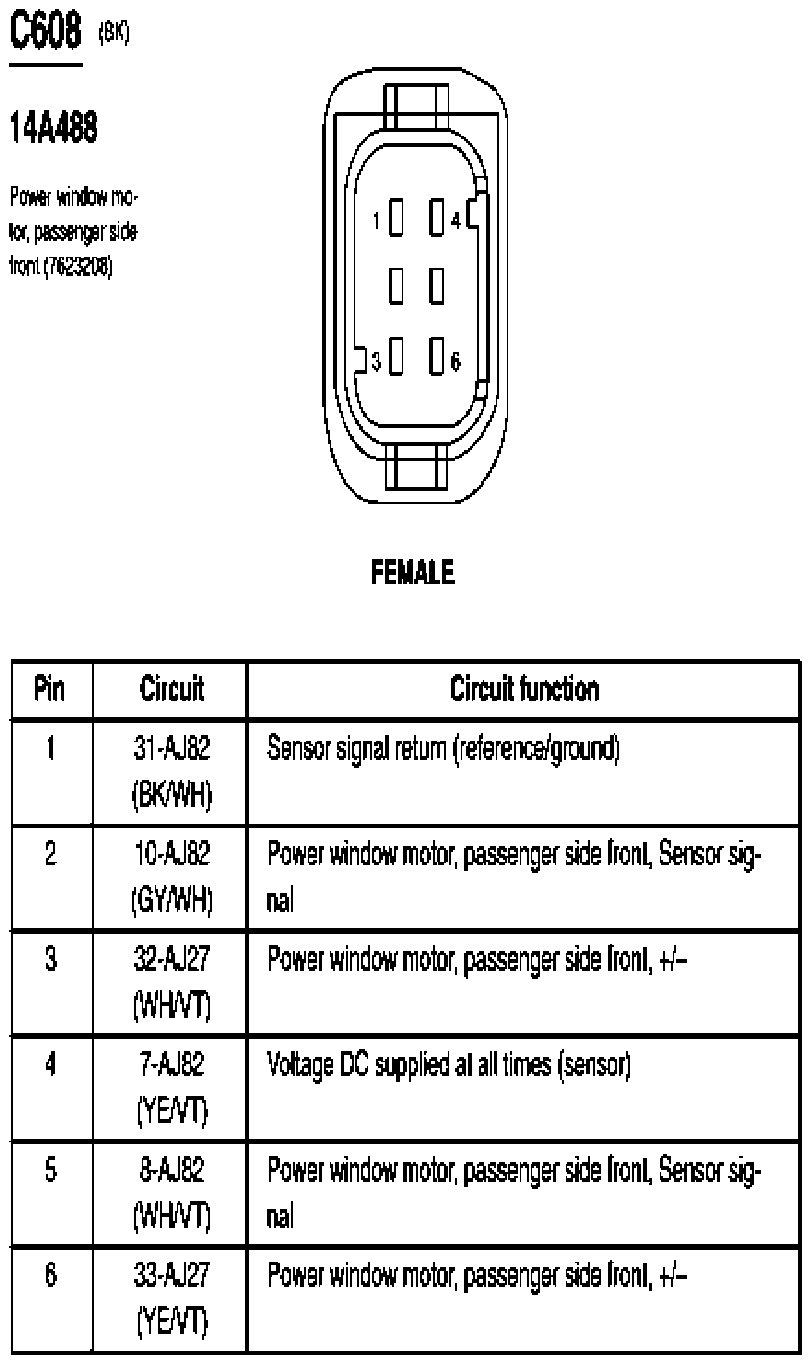

Fig 226: Power Window Motor, Passenger Side Front Connector End View (C608)
G07845329Courtesy of FORD MOTOR CO.

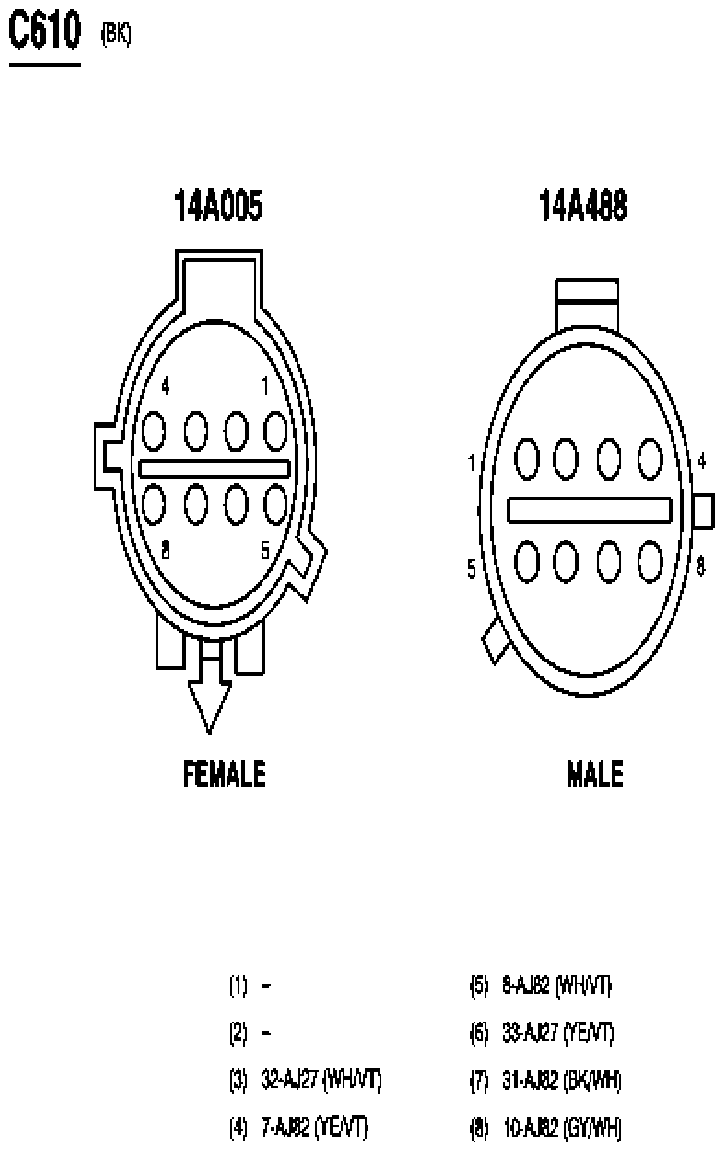

Fig 227: Inline Connector End View (C610)
G07845330Courtesy of FORD MOTOR CO.

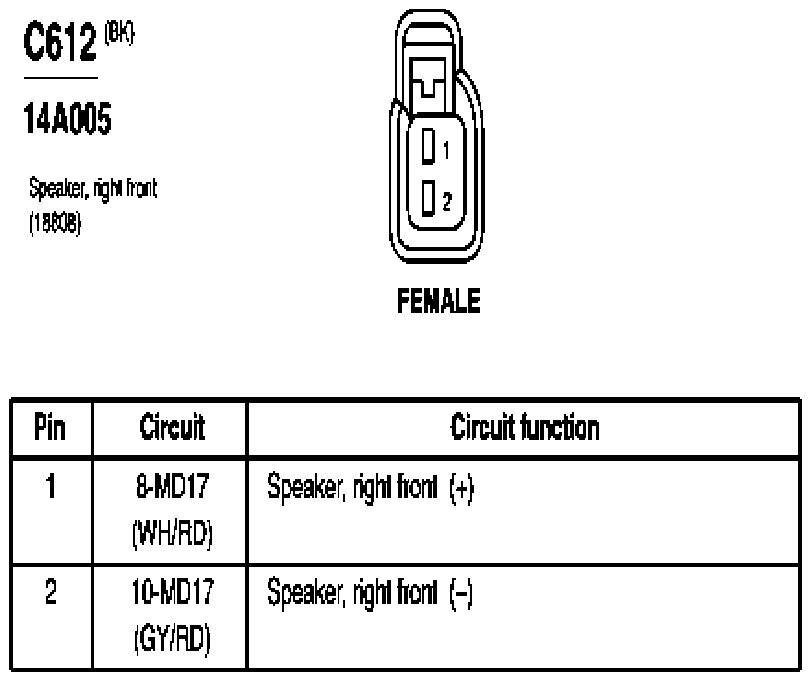

Fig 228: Speaker, Right Front Connector End View (C612)
G07845331Courtesy of FORD MOTOR CO.

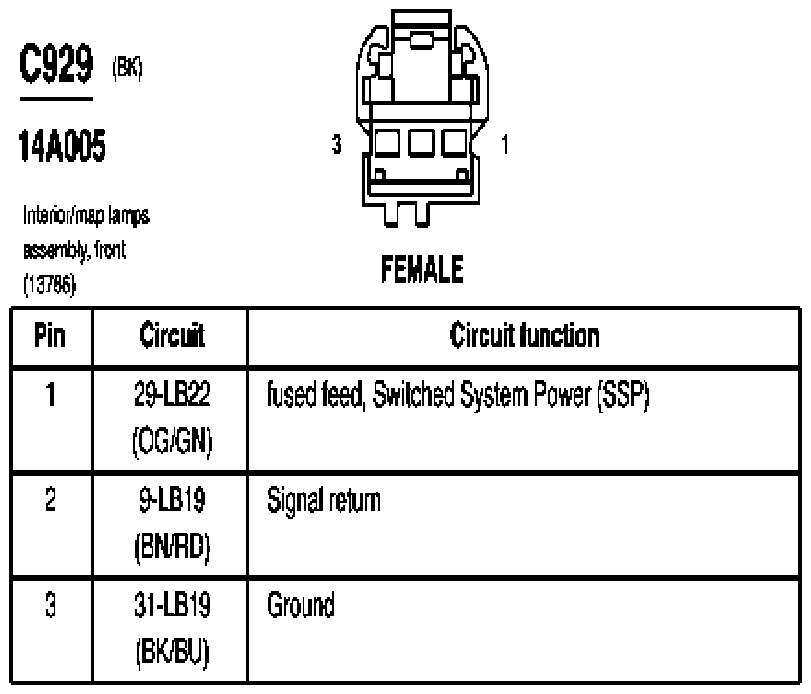

Fig 229: Interior/Map Lamps Assembly, Front Connector End View (C929)
G07845332Courtesy of FORD MOTOR CO.

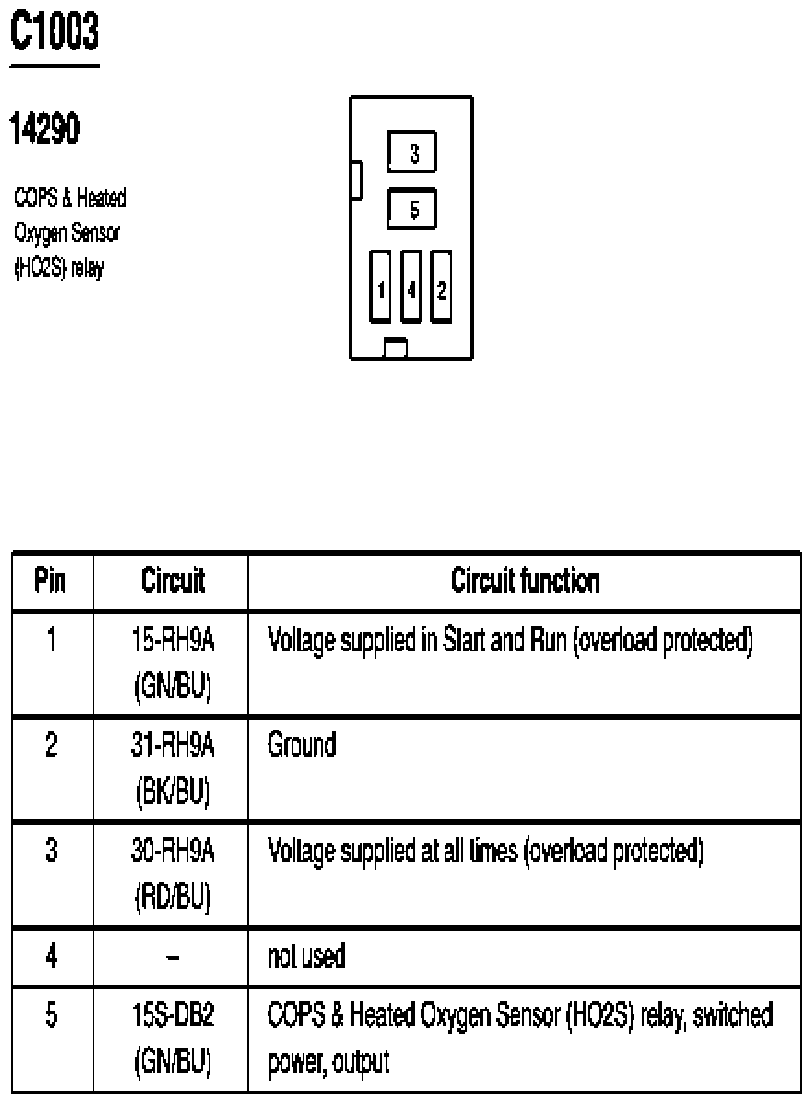

Fig 230: COPS & Heated Oxygen Sensor (HO2S) Relay Connector End View (C1003)
G07845333Courtesy of FORD MOTOR CO.

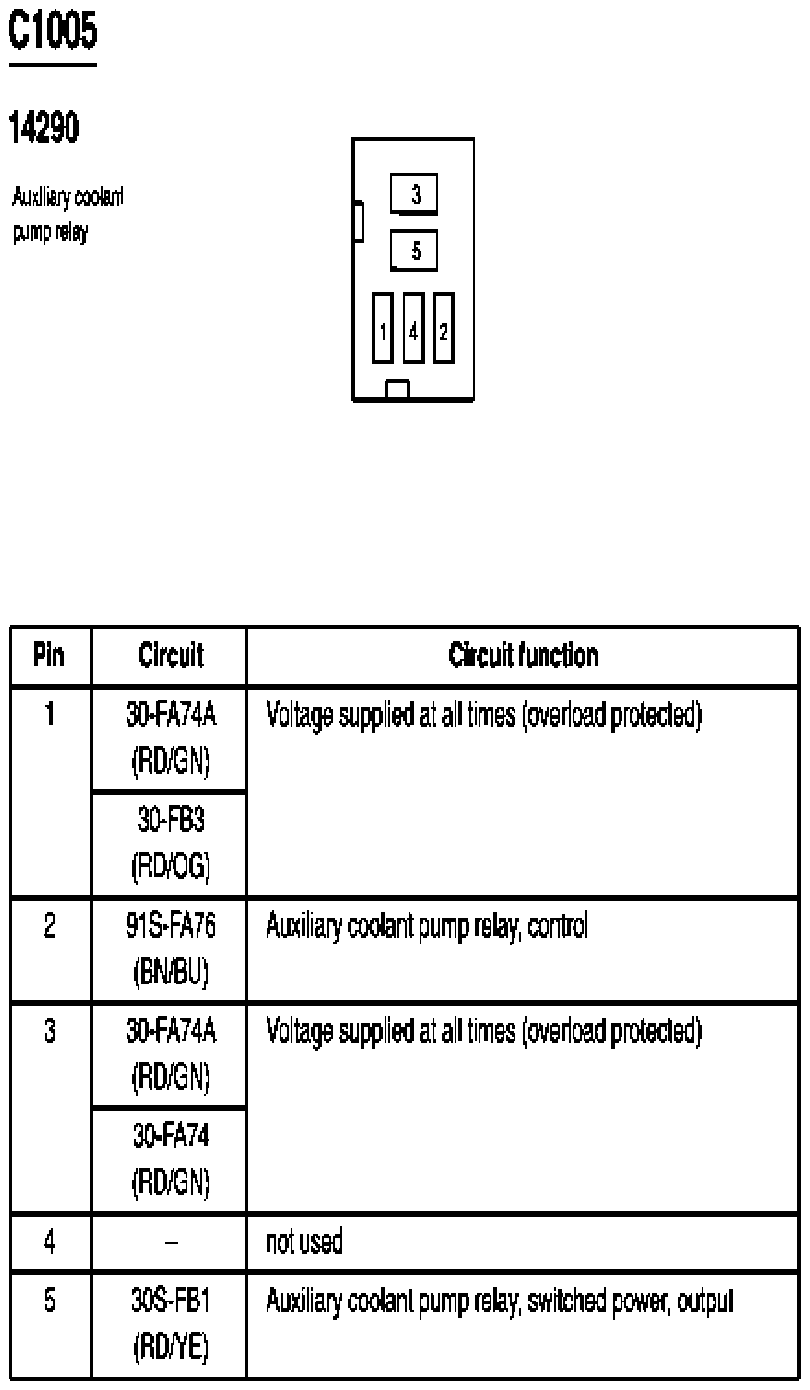

Fig 231: Auxiliary Coolant Pump Relay Connector End View (C1005)
G07845334Courtesy of FORD MOTOR CO.

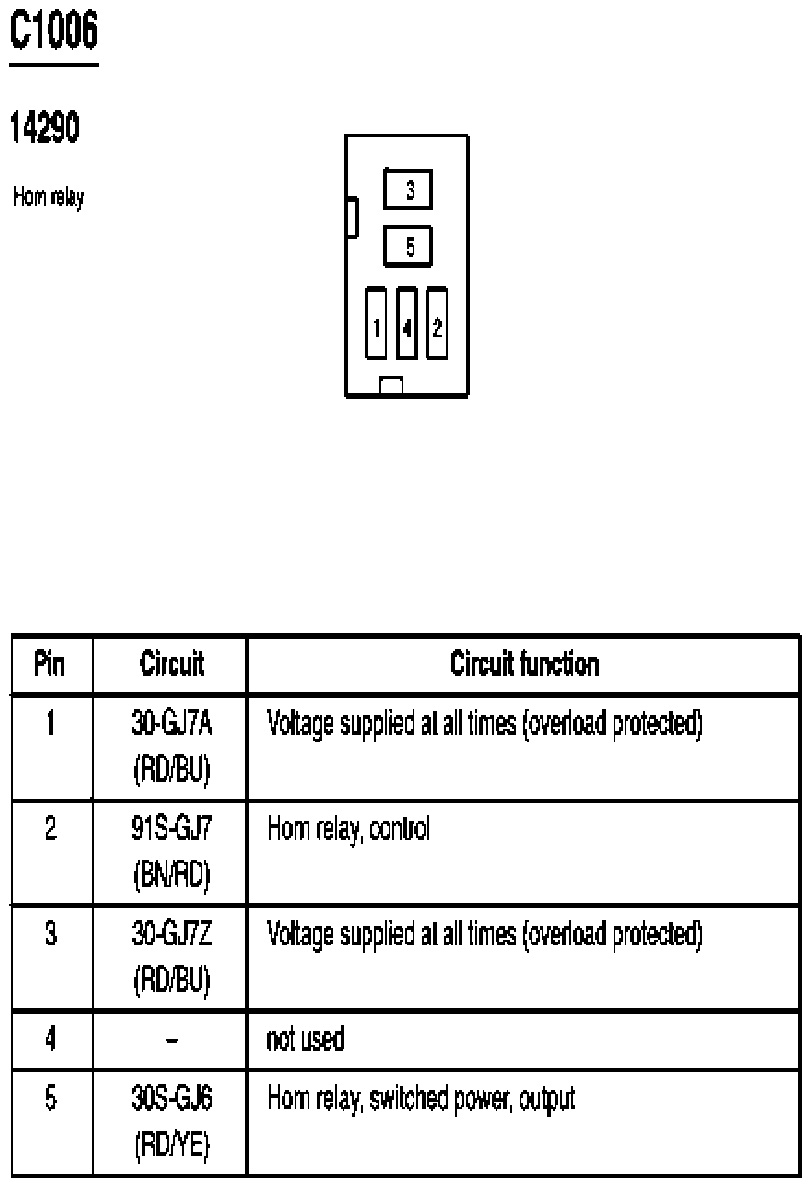

Fig 232: Horn Relay Connector End View (C1006)
G07845335Courtesy of FORD MOTOR CO.

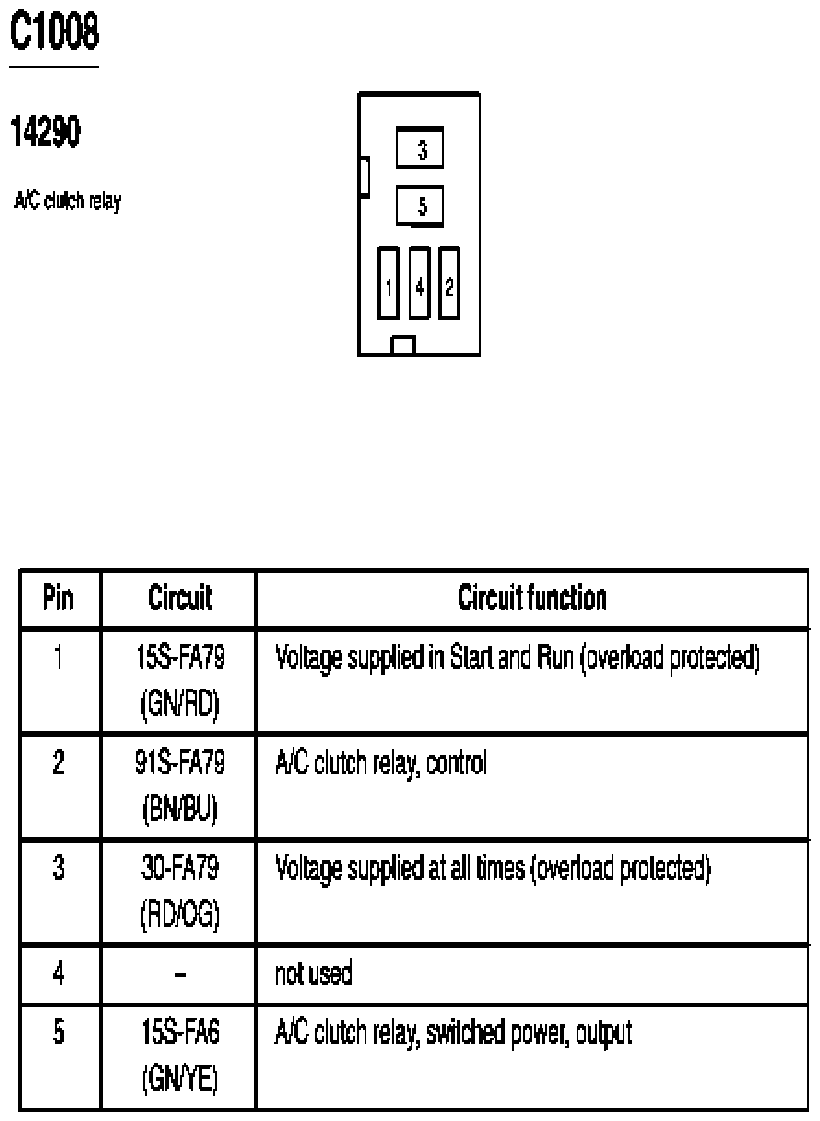

Fig 233: A/C Clutch Relay Connector End View (C1008)
G07845336Courtesy of FORD MOTOR CO.

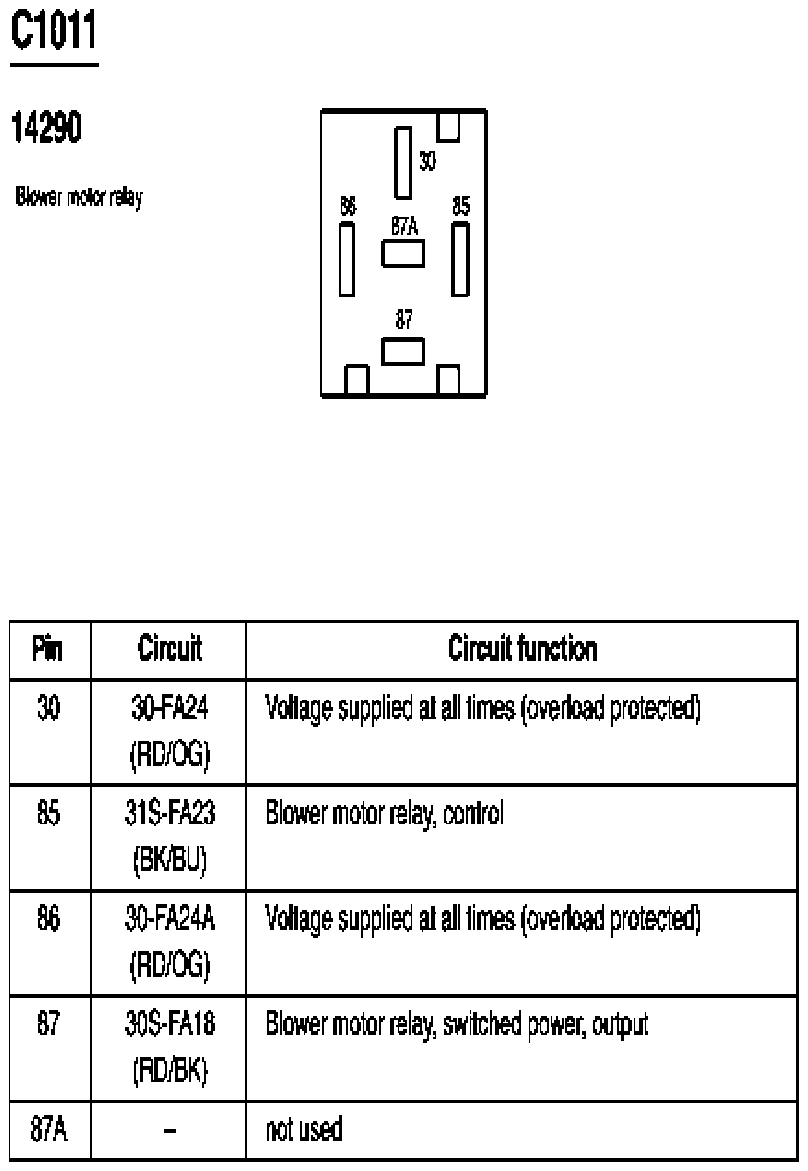

Fig 234: Blower Motor Relay Connector End View (C1011)
G07845337Courtesy of FORD MOTOR CO.

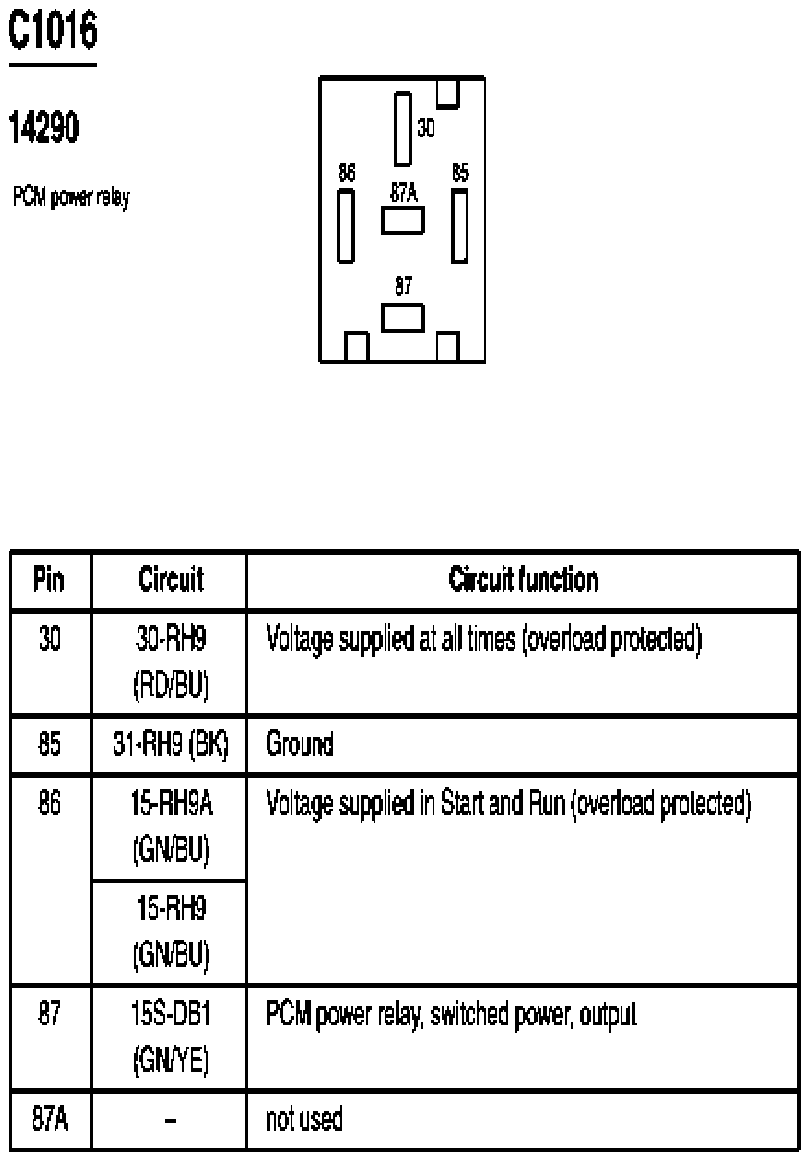

Fig 235: PCM Power Relay Connector End View (C1016)
G07845338Courtesy of FORD MOTOR CO.

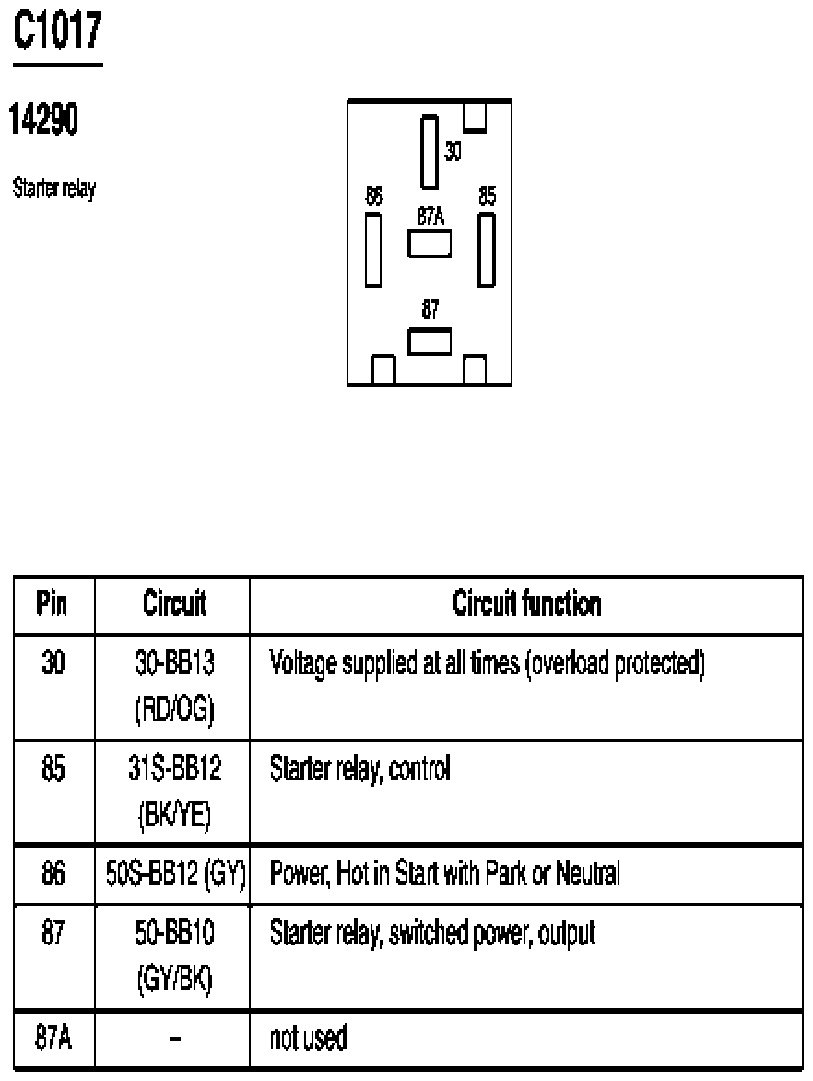

Fig 236: Starter Relay Connector End View (C1017)
G07845339Courtesy of FORD MOTOR CO.

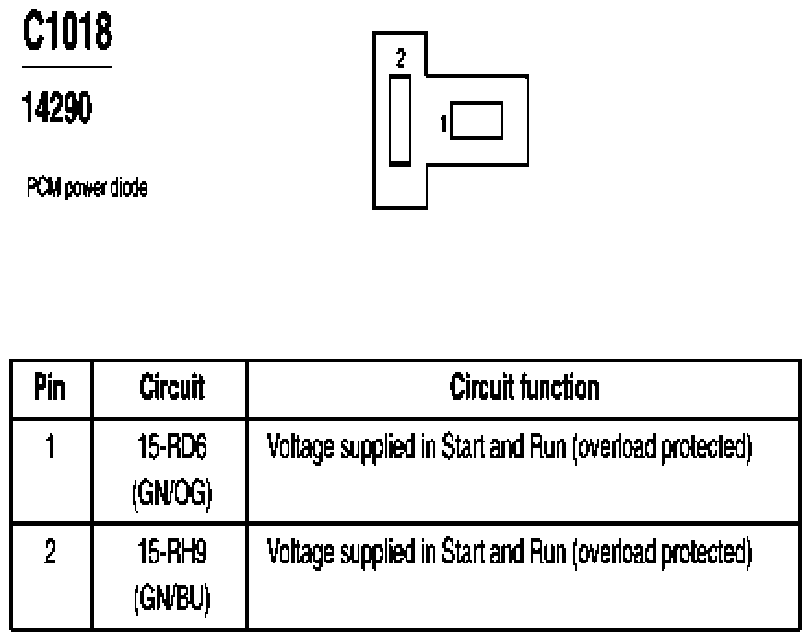

Fig 237: PCM Power Diode Connector End View (C1018)
G07845340Courtesy of FORD MOTOR CO.

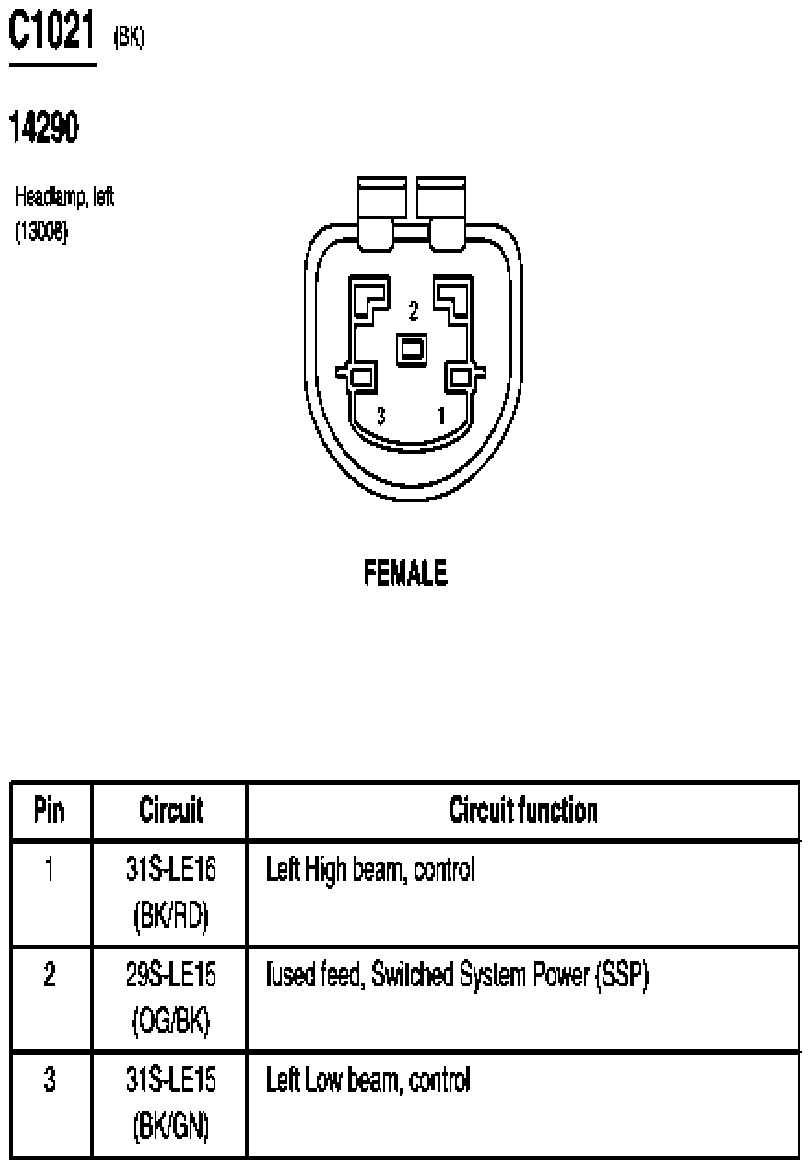

Fig 238: Headlamp, Left Connector End View (C1021)
G07845341Courtesy of FORD MOTOR CO.

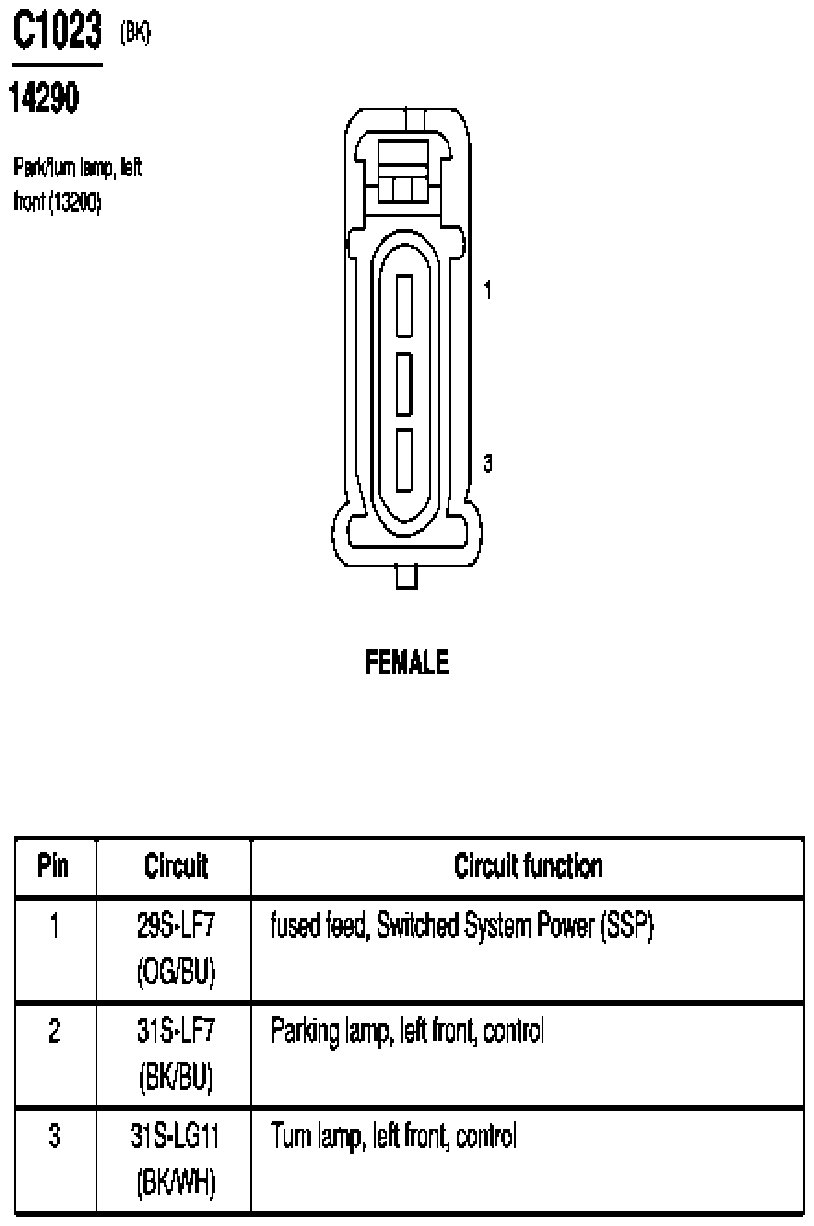

Fig 239: Park/Turn Lamp, Left Front Connector End View (C1023)
G07845342Courtesy of FORD MOTOR CO.

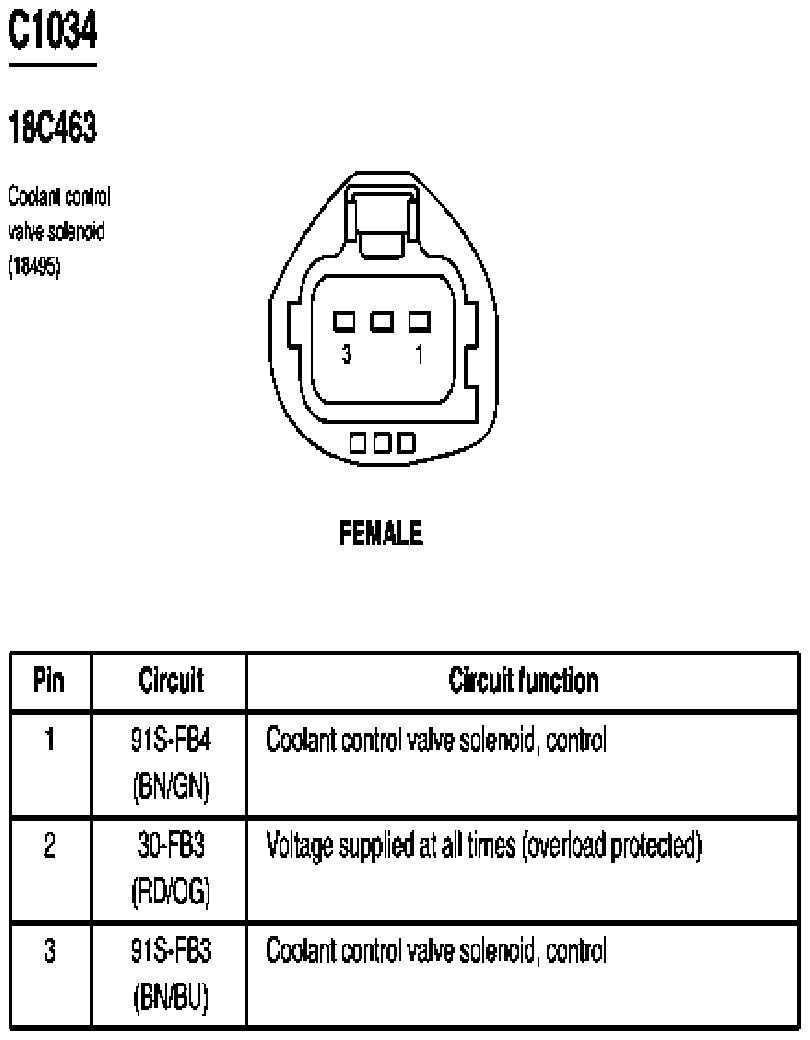

Fig 240: Coolant Control Valve Solenoid Connector End View (C1034)
G07845343Courtesy of FORD MOTOR CO.

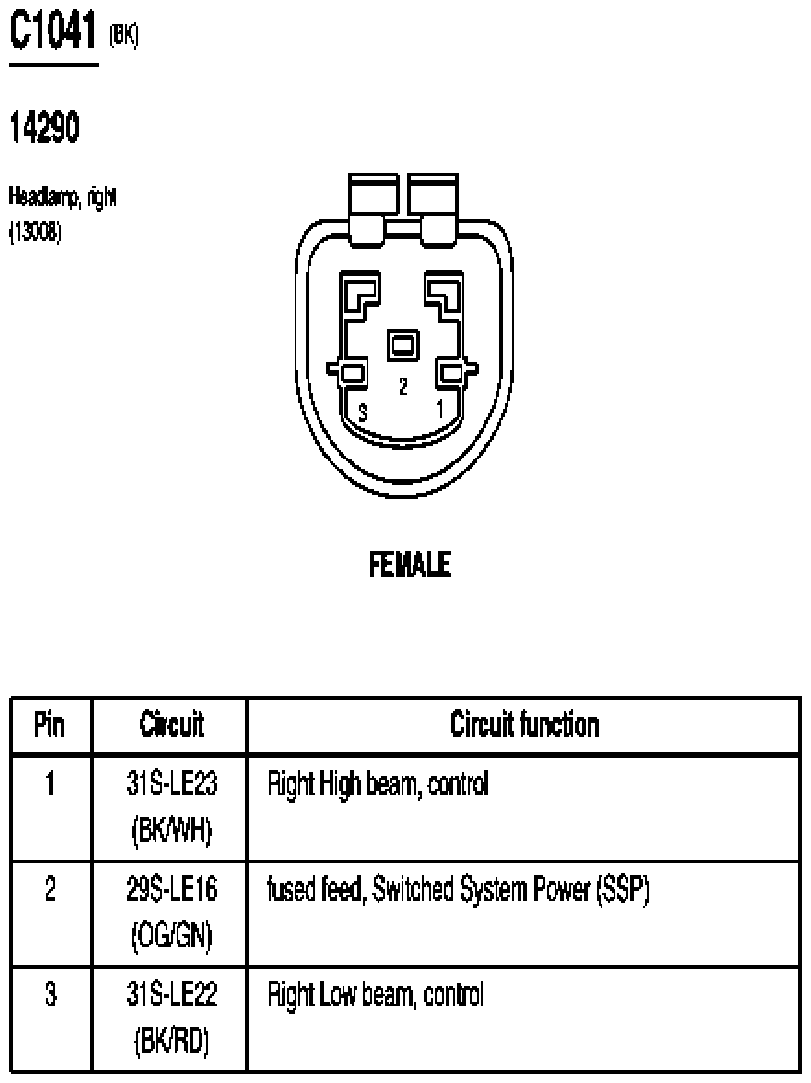

Fig 241: Headlamp, Right Connector End View (C1041)
G07845344Courtesy of FORD MOTOR CO.

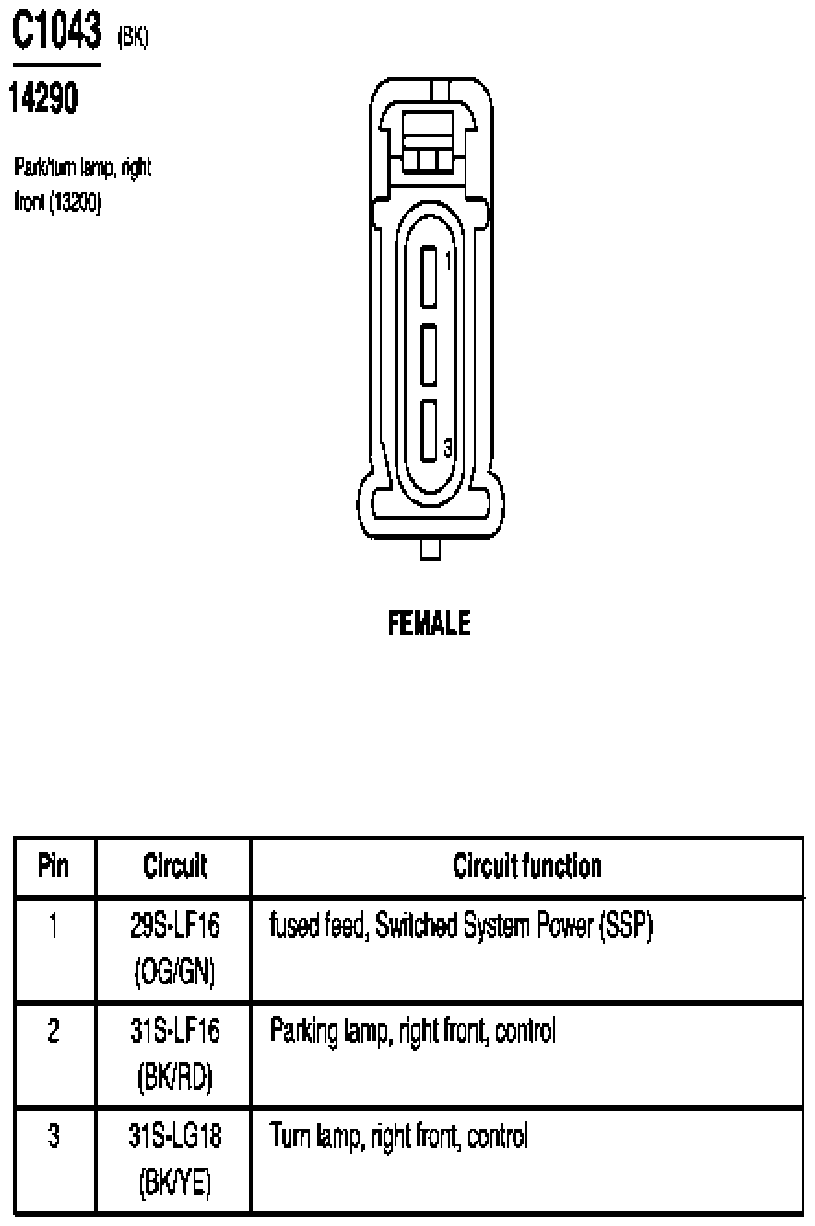

Fig 242: Park/Turn Lamp, Right Front Connector End View (C1043)
G07845345Courtesy of FORD MOTOR CO.

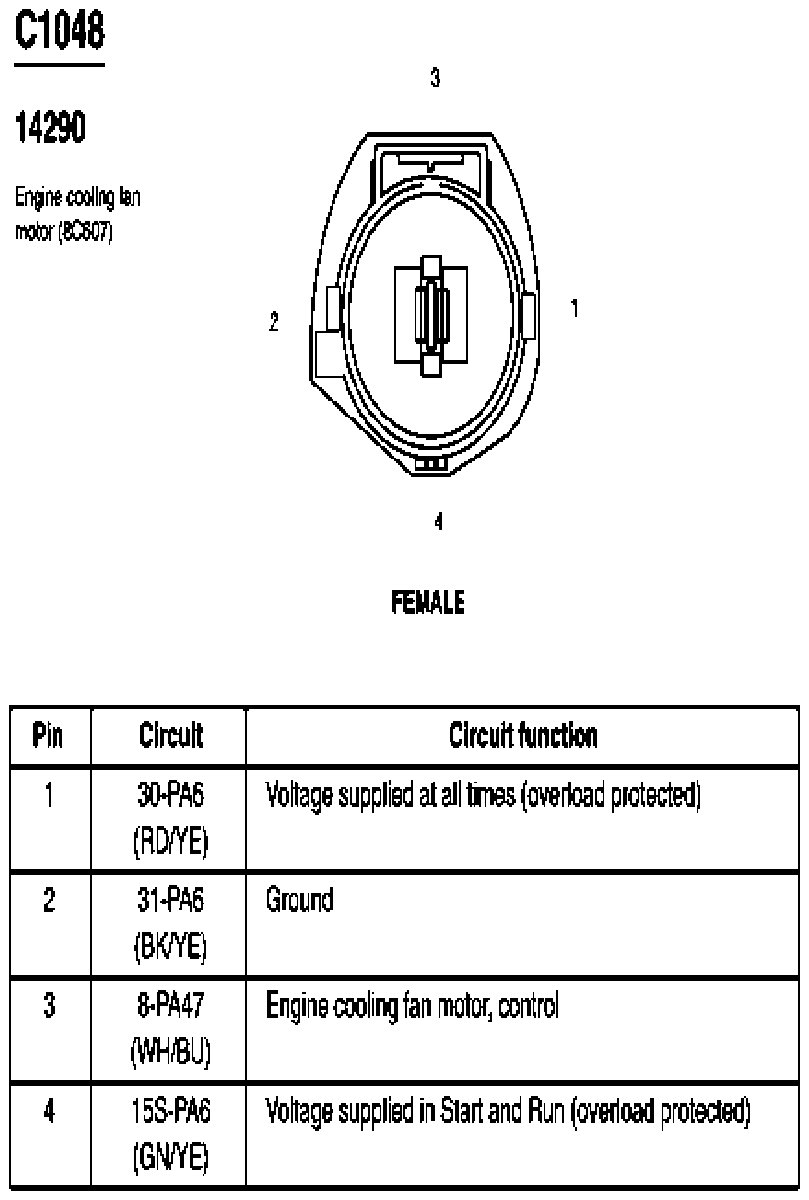

Fig 243: Engine Cooling Lamp Motor Connector End View (C1048)
G07845346Courtesy of FORD MOTOR CO.

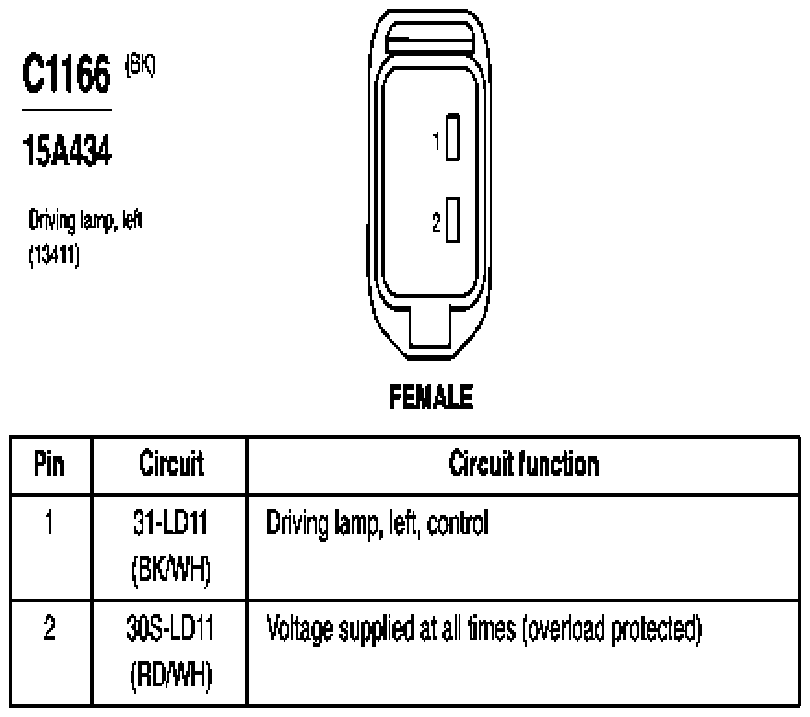

Fig 244: Driving Lamp, Left Connector End View (C1166)
G07845347Courtesy of FORD MOTOR CO.

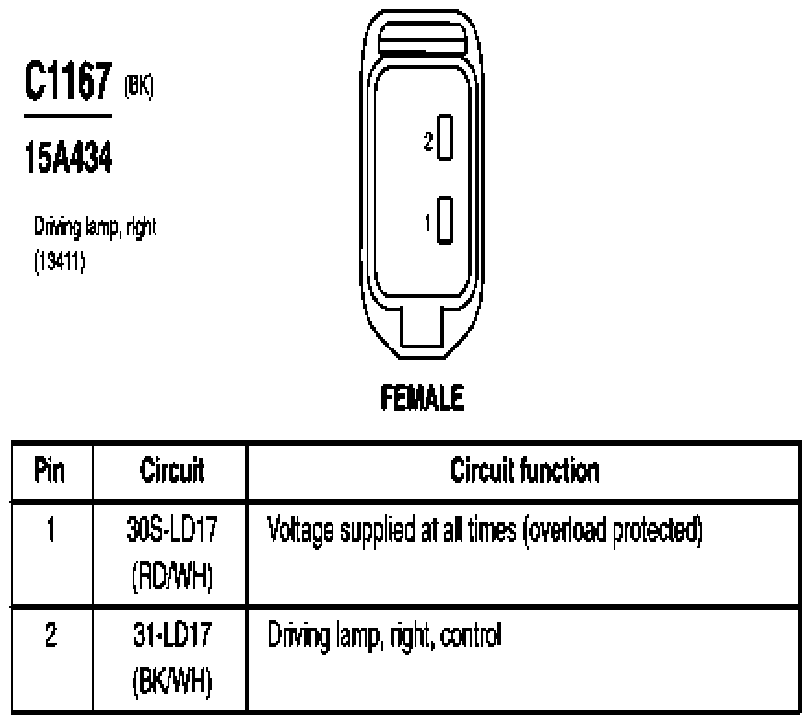

Fig 245: Driving Lamp, Right Connector End View (C1167)
G07845348Courtesy of FORD MOTOR CO.

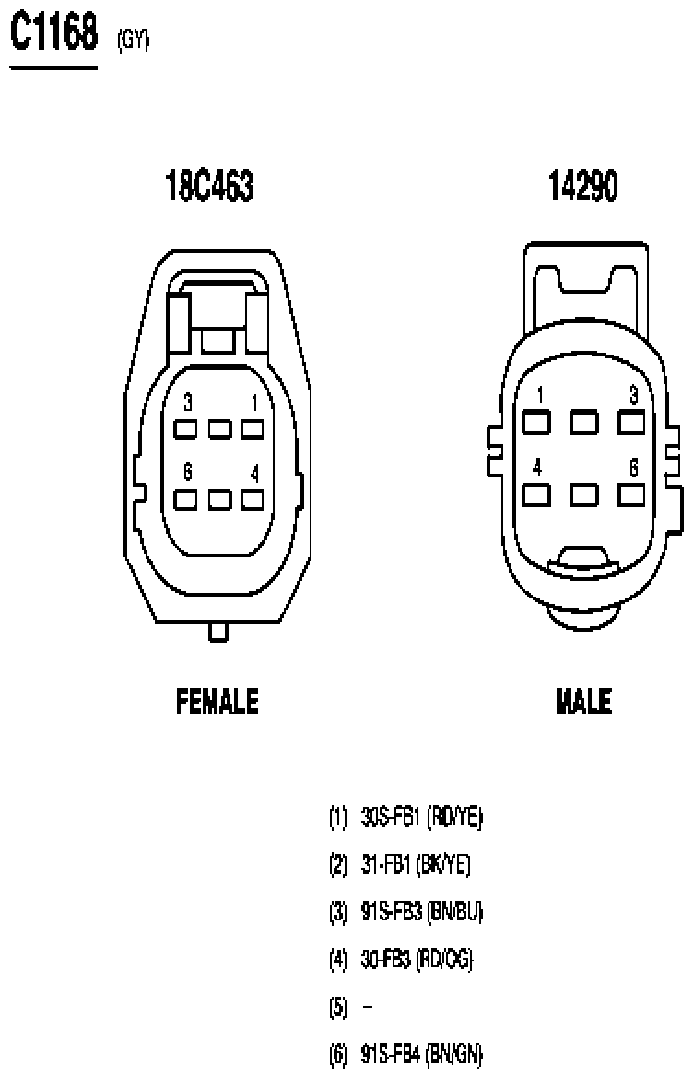

Fig 246: Inline Connector End View (C1168)
G07845349Courtesy of FORD MOTOR CO.

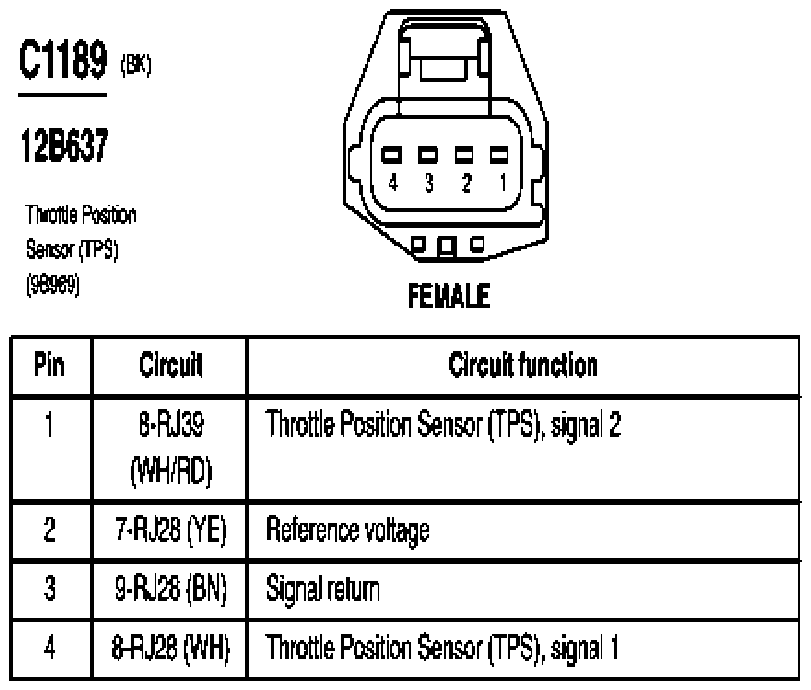

Fig 247: Throttle Position Sensor (TPS) Connector End View (C1189)
G07845350Courtesy of FORD MOTOR CO.

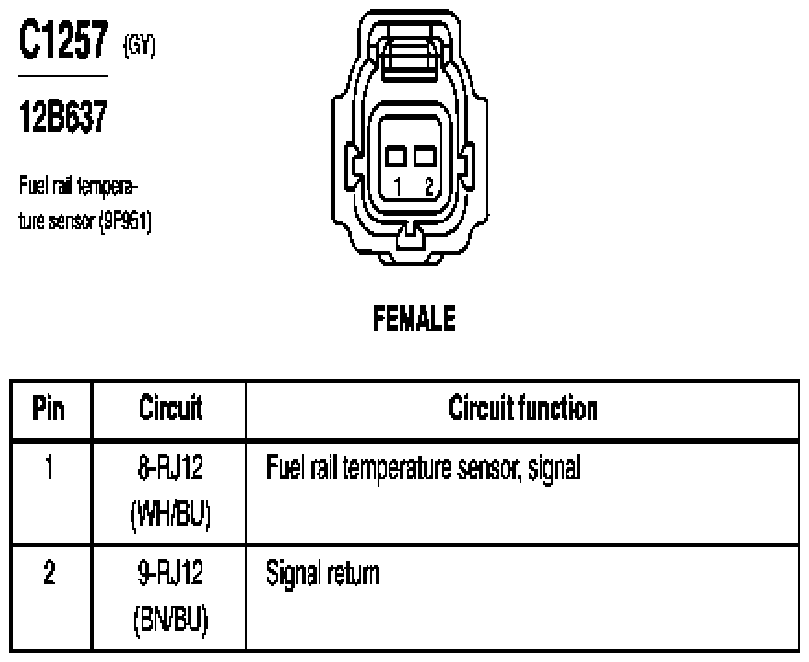

Fig 248: Fuel Rail Temperature Sensor Connector End View (C1257)
G07845351Courtesy of FORD MOTOR CO.

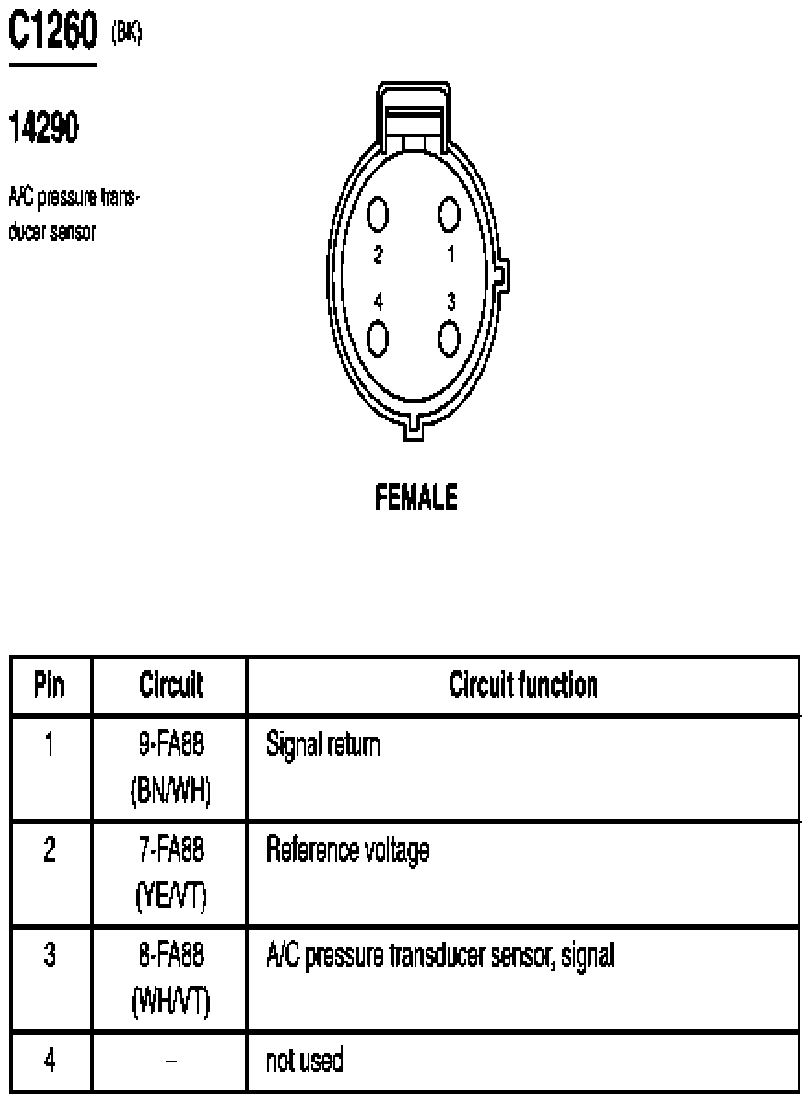

Fig 249: A/C Passenger, Sensor Connector End View (C1260)
G07845352Courtesy of FORD MOTOR CO.

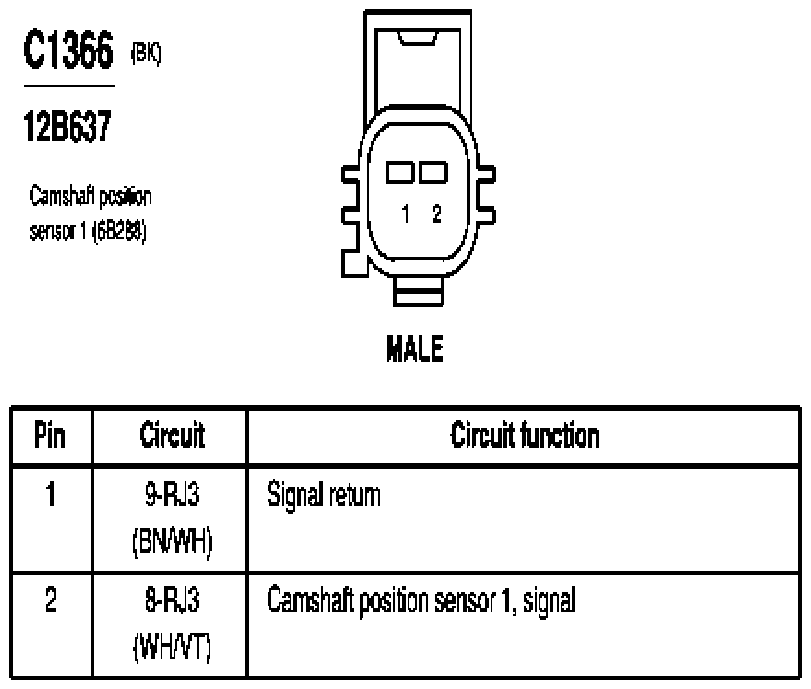

Fig 250: Camshaft Position Sensor Connector End View (C1366)
G07845353Courtesy of FORD MOTOR CO.

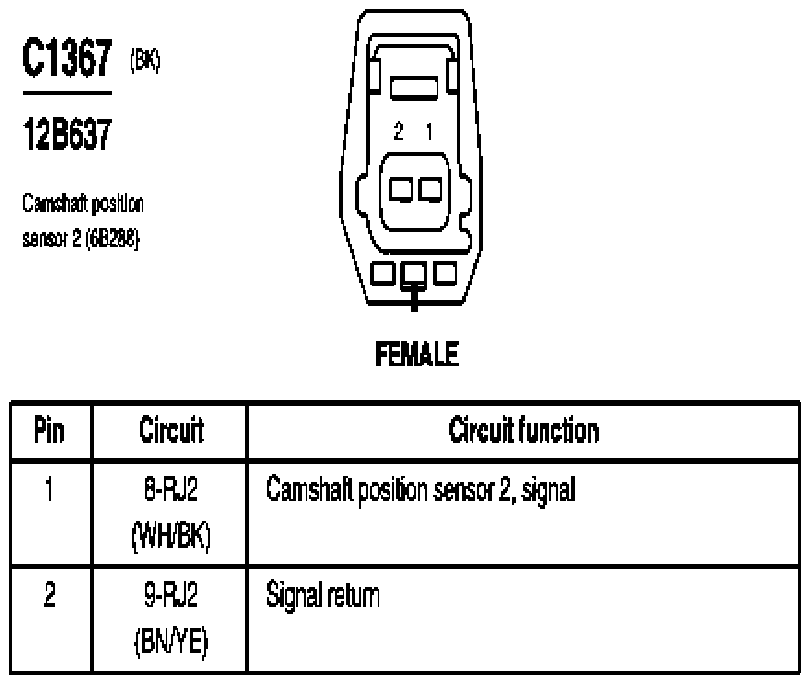

Fig 251: Camshaft Position Sensor Connector End View (C1367)
G07845354Courtesy of FORD MOTOR CO.

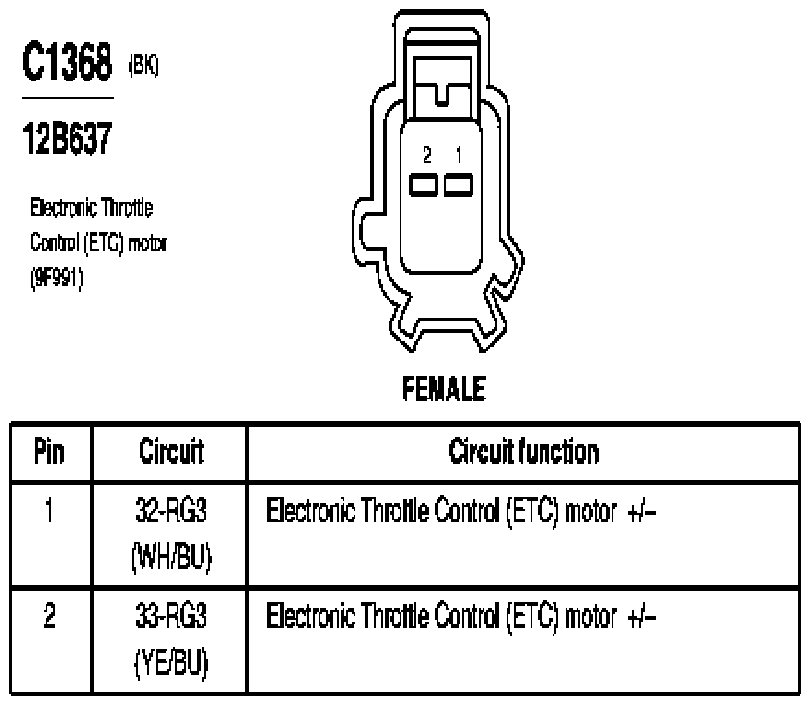

Fig 252: Electronic Throttle Control (ETC) Motor Connector End View (C1368)
G07845355Courtesy of FORD MOTOR CO.

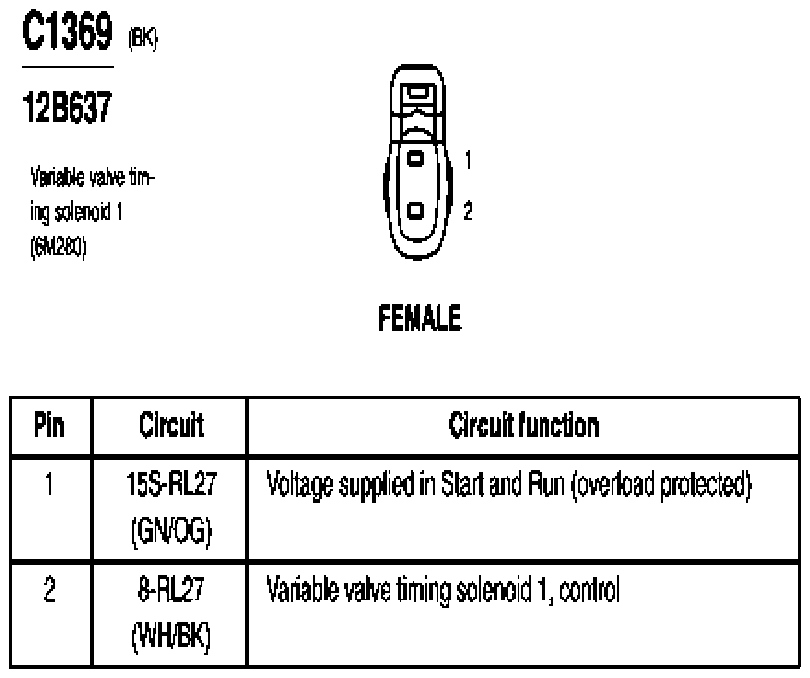

Fig 253: Variable Valve Timing Solenoid 1 Connector End View (C1369)
G07845356Courtesy of FORD MOTOR CO.

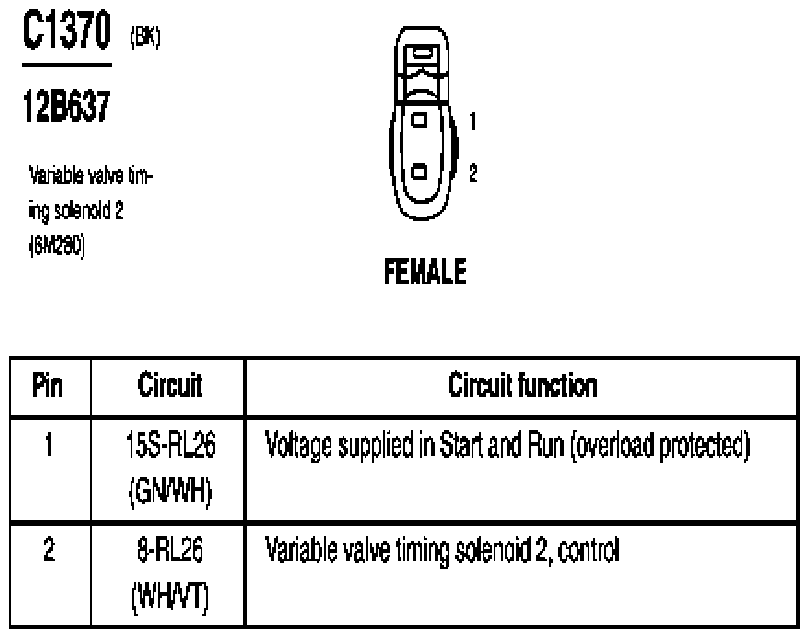

Fig 254: Variable Valve Timing Solenoid 2 Connector End View (C1370)
G07845357Courtesy of FORD MOTOR CO.

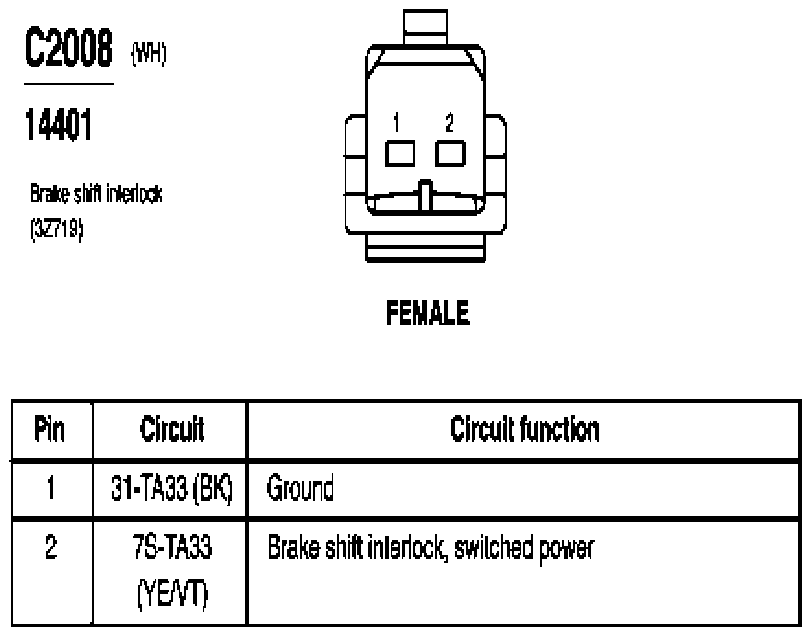

Fig 255: Brake Shift Interlock Connector End View (C2008)
G07845358Courtesy of FORD MOTOR CO.

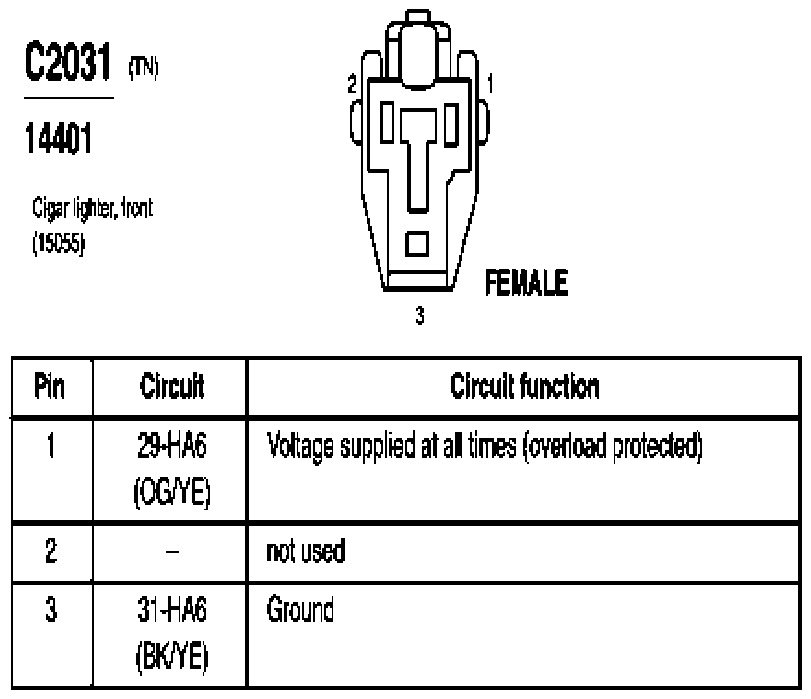

Fig 256: Cigar Lighter, Front Connector End View (C2031)
G07845359Courtesy of FORD MOTOR CO.

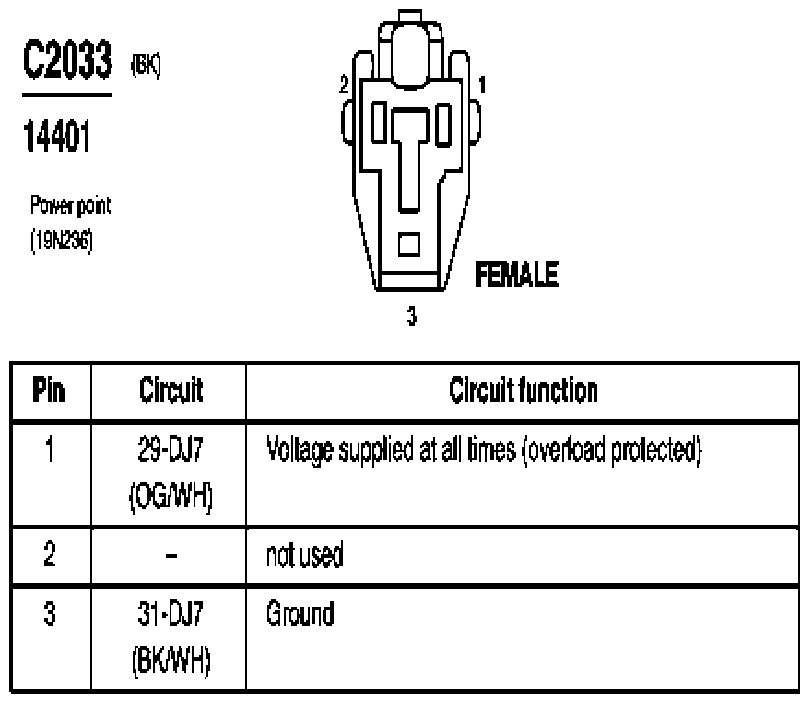

Fig 257: Powerpoint Connector End View (C2033)
G07845360Courtesy of FORD MOTOR CO.

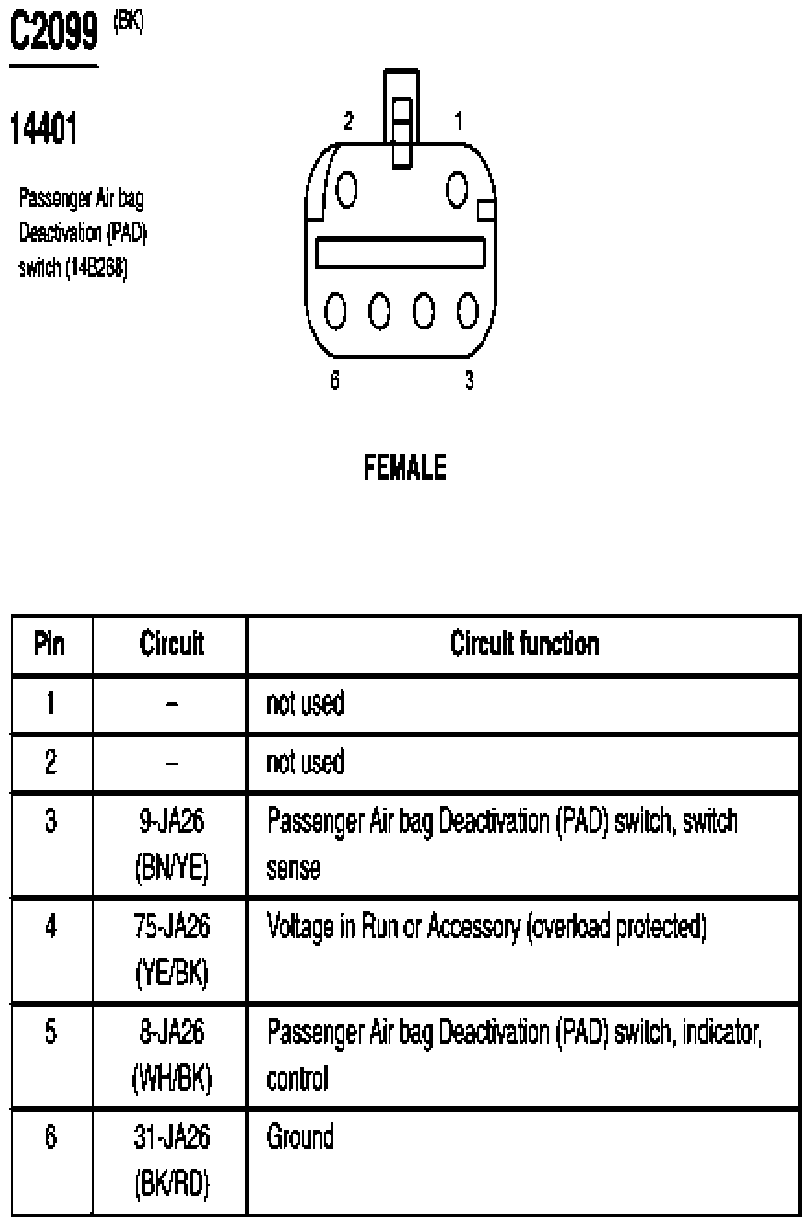

Fig 258: Passenger Air Bag Deactivation Connector End View (C2099)
G07845361Courtesy of FORD MOTOR CO.

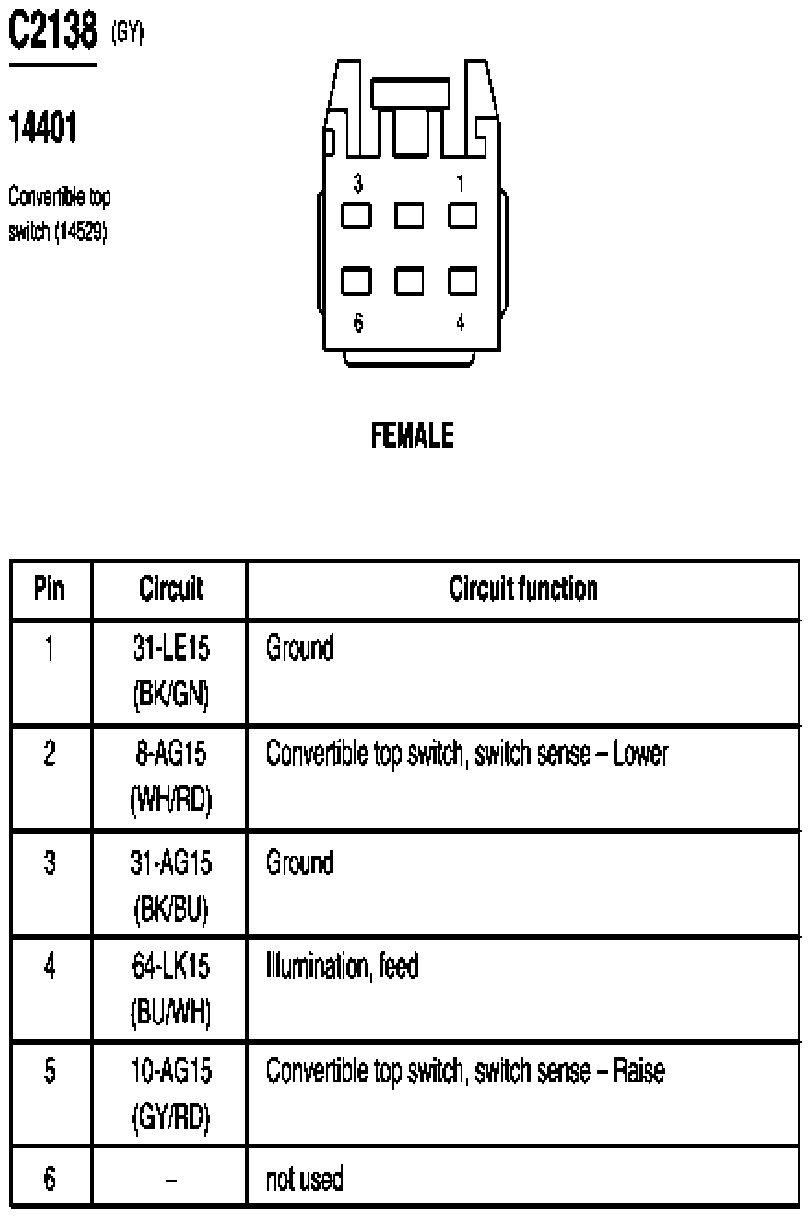

Fig 259: Convertible Top Switch Connector End View (C2138)
G07845362Courtesy of FORD MOTOR CO.

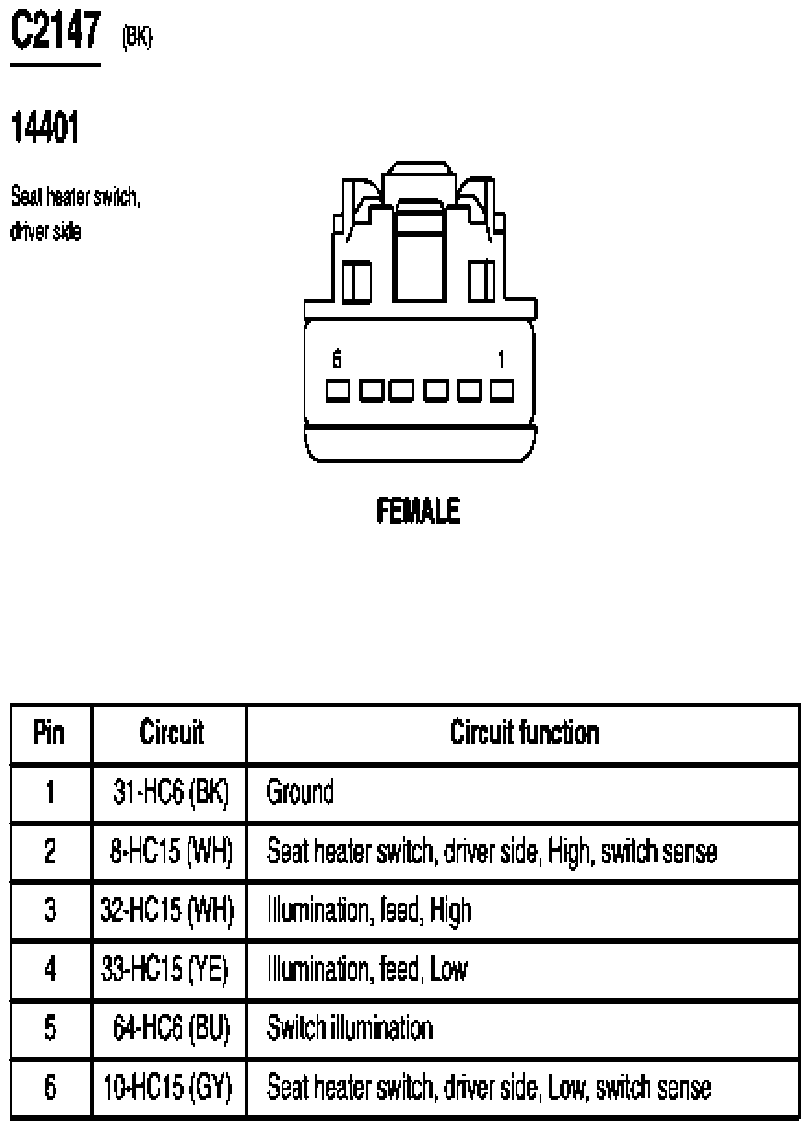

Fig 260: Seat Heater Switch Driver Side Connector End View (C2147)
G07845363Courtesy of FORD MOTOR CO.

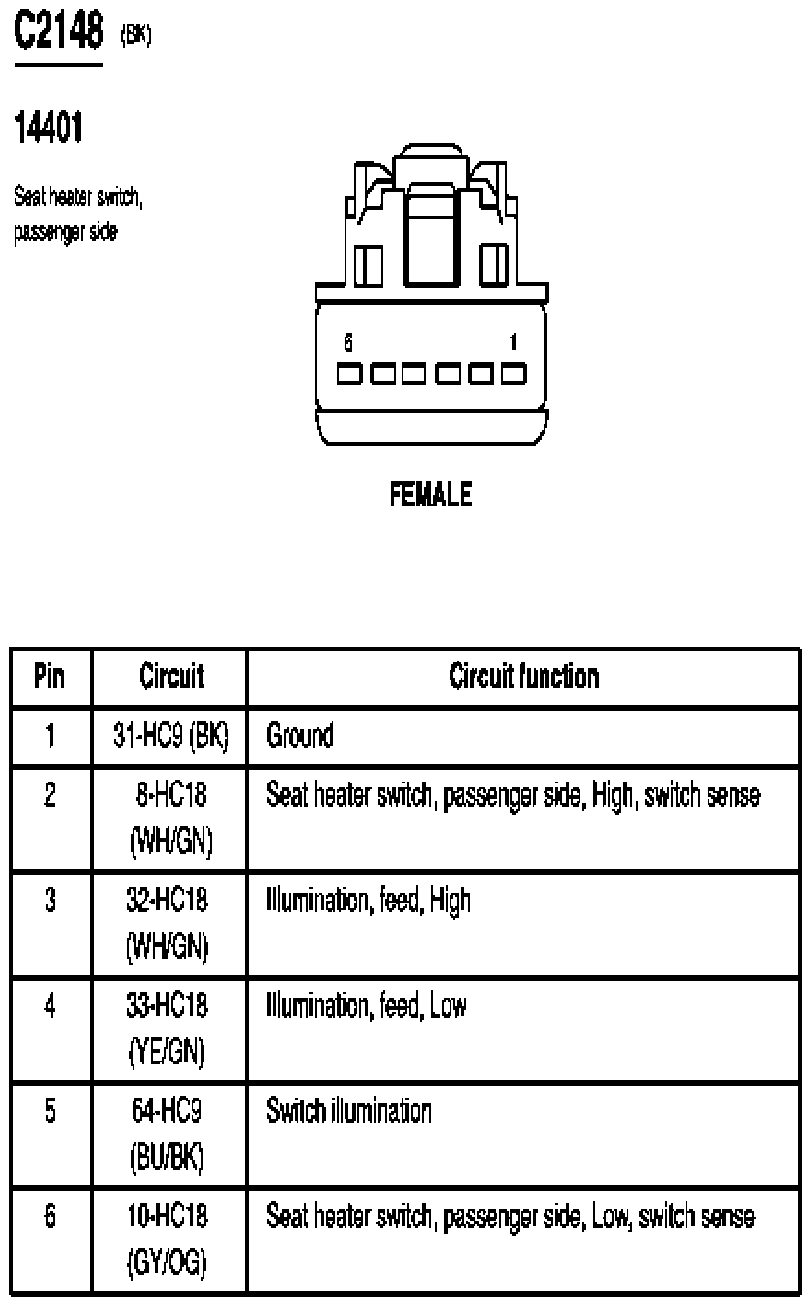

Fig 261: Seat Heater Switch, Passenger Side Connector End View (C2148)
G07845364Courtesy of FORD MOTOR CO.

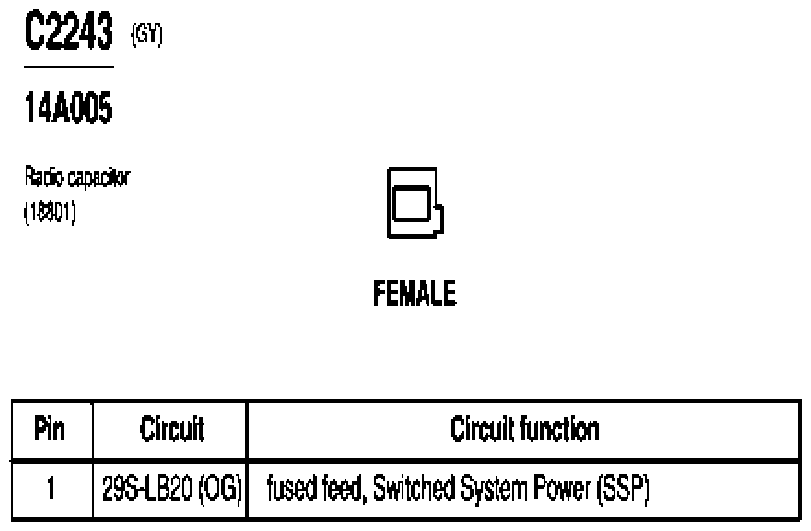

Fig 262: Radio Capacitor Connector End View (C2243)
G07845365Courtesy of FORD MOTOR CO.

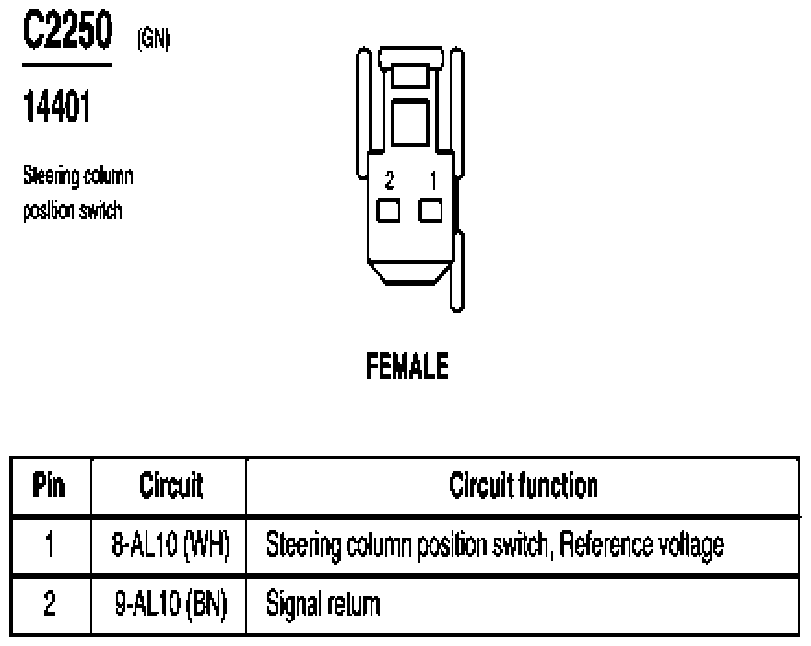

Fig 263: Steering Column Position Switch Connector End View (C2250)
G07845366Courtesy of FORD MOTOR CO.

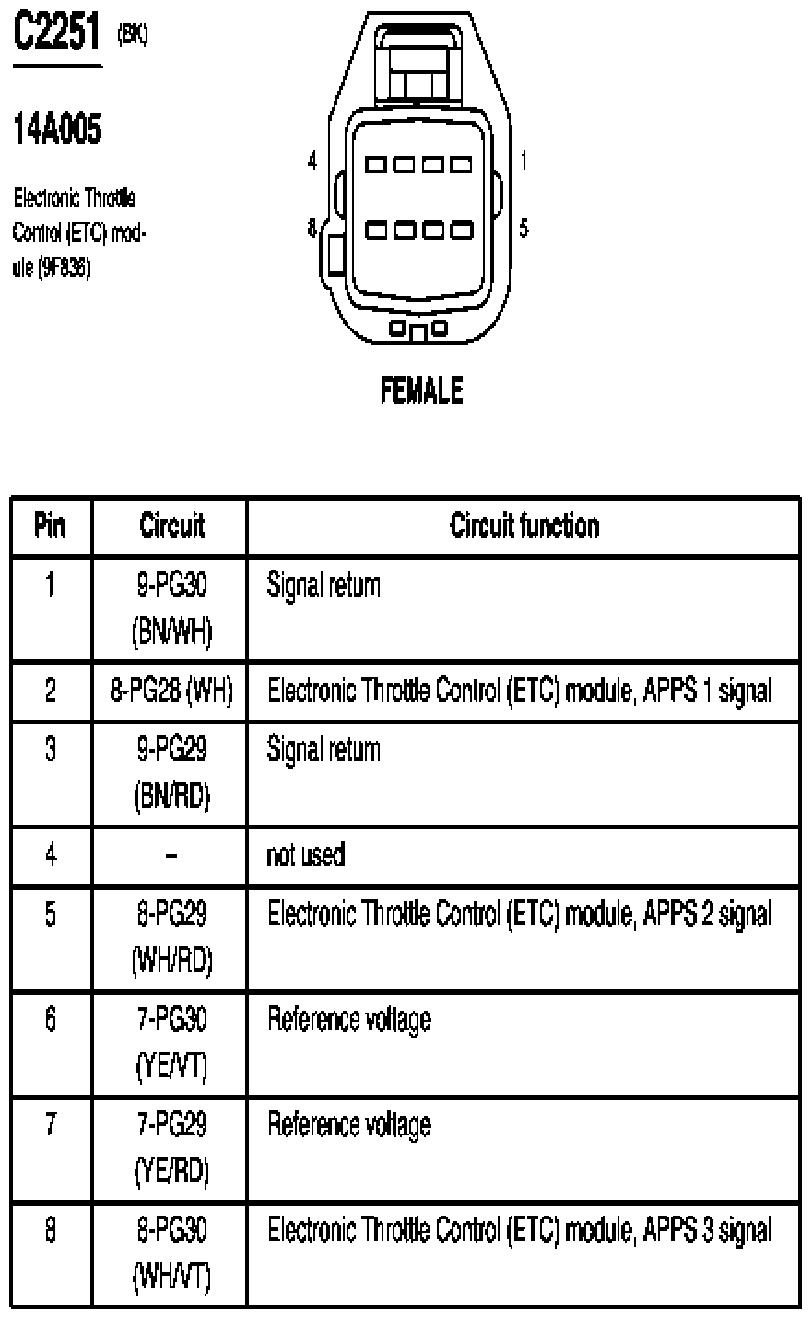

Fig 264: Electronic Throttle Control (ETC) Module Connector End View (C2251)
G07845367Courtesy of FORD MOTOR CO.

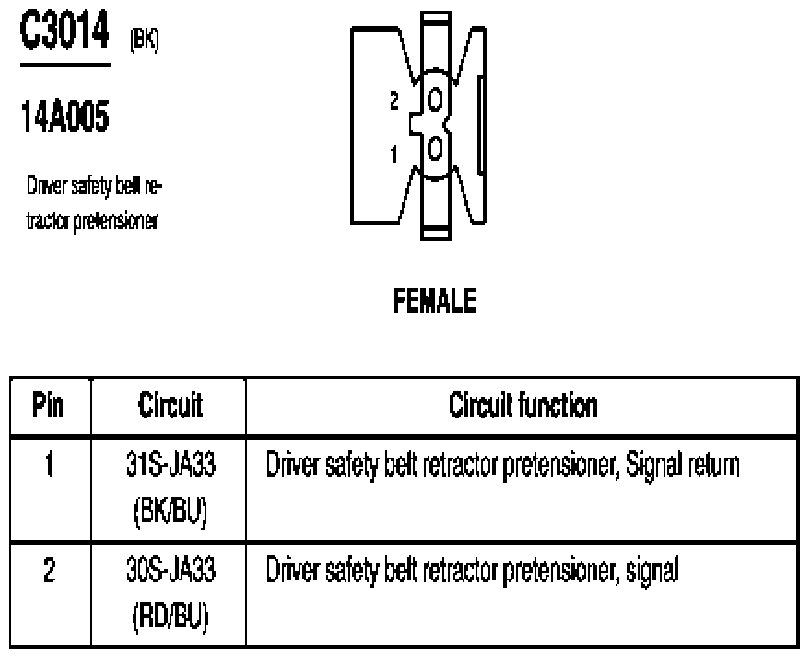

Fig 265: Driver Safety Retractor Pretensioner Connector End View (C3014)
G07845368Courtesy of FORD MOTOR CO.

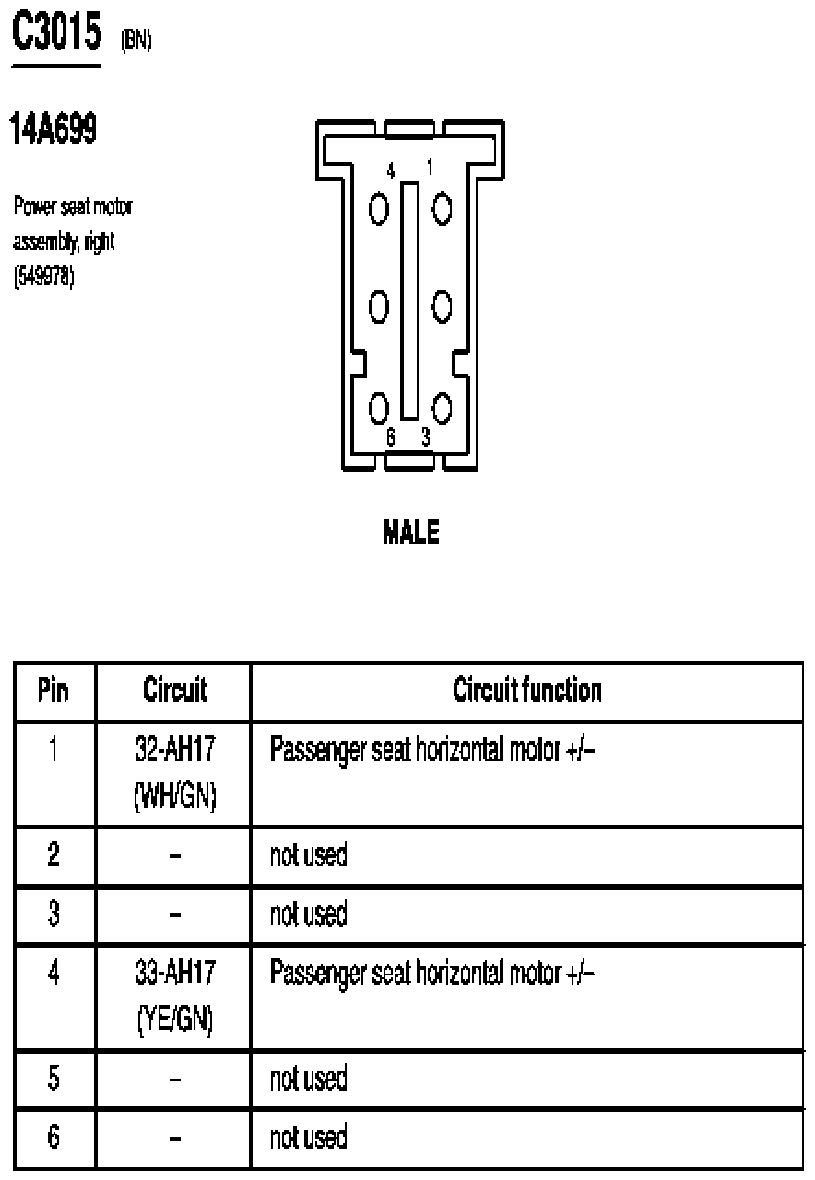

Fig 266: Power Seat Motor Assembly Right Connector End View (C3015)
G07845369Courtesy of FORD MOTOR CO.

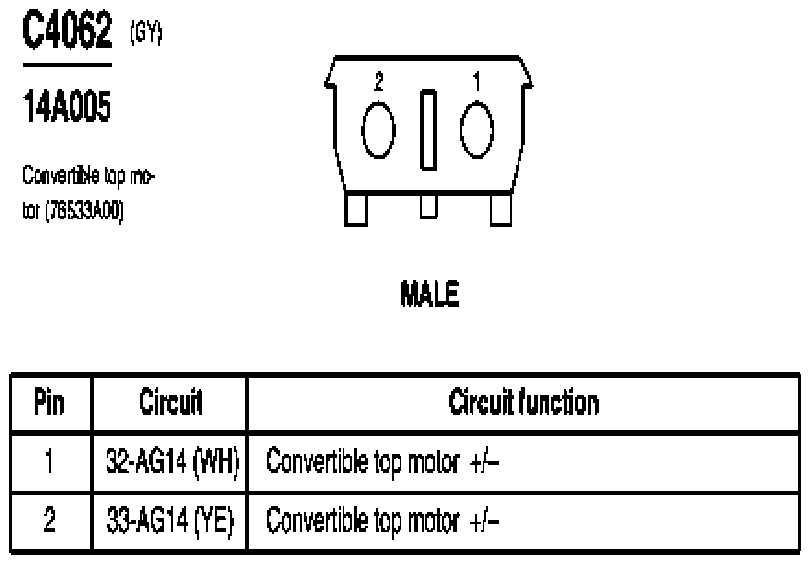

Fig 267: Convertible Top Motor Connector End View (C4062)
G07845370Courtesy of FORD MOTOR CO.

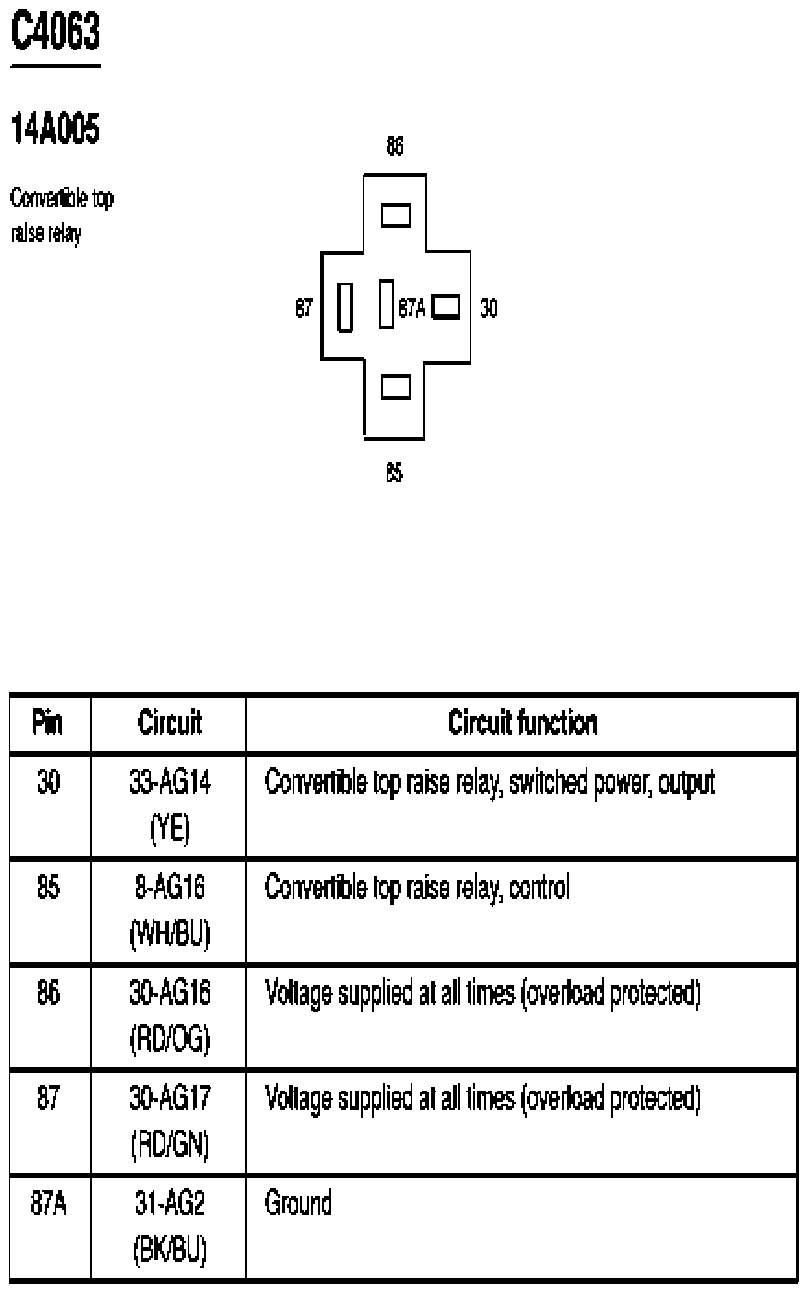

Fig 268: Convertible Top Raise Relay Connector End View (C4063)
G07845371Courtesy of FORD MOTOR CO.

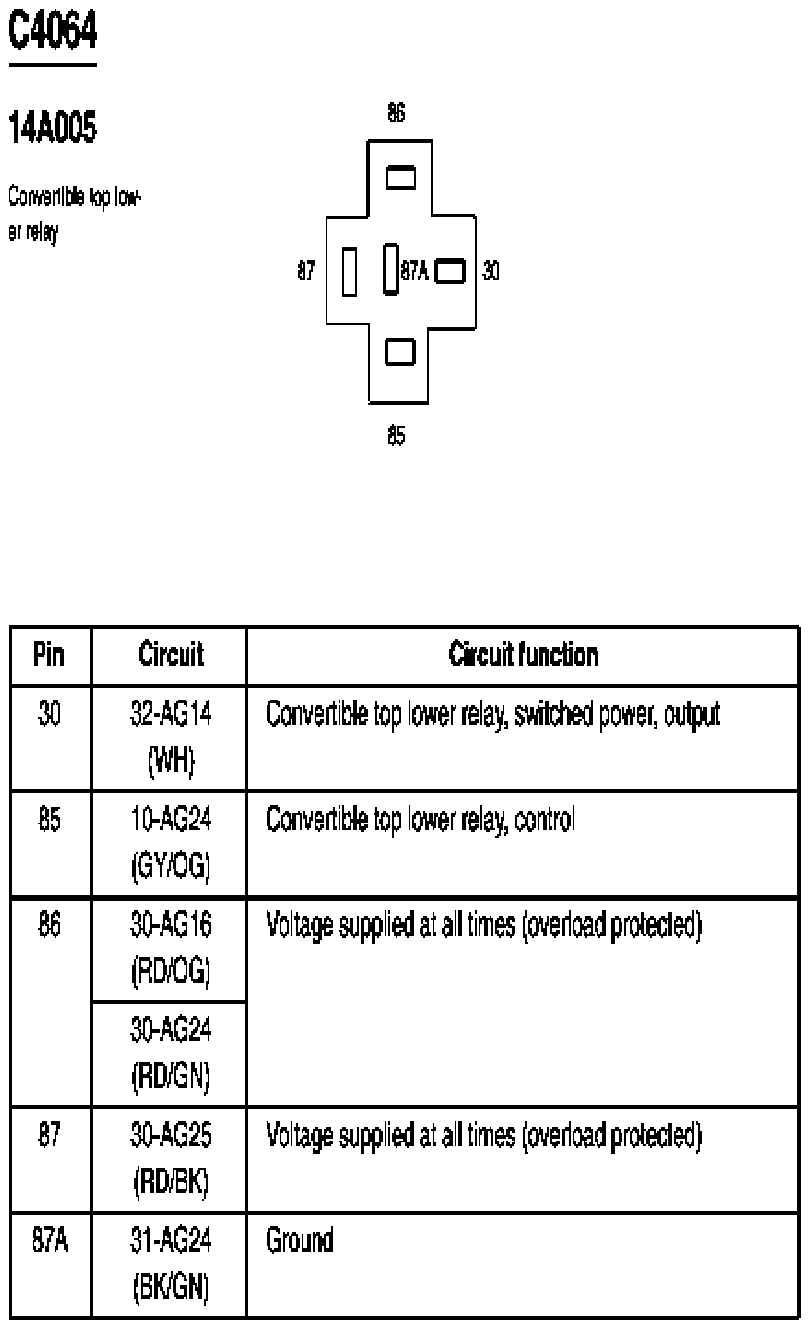

Fig 269: Convertible Top Lower Relay Connector End View (C4064)
G07845372Courtesy of FORD MOTOR CO.

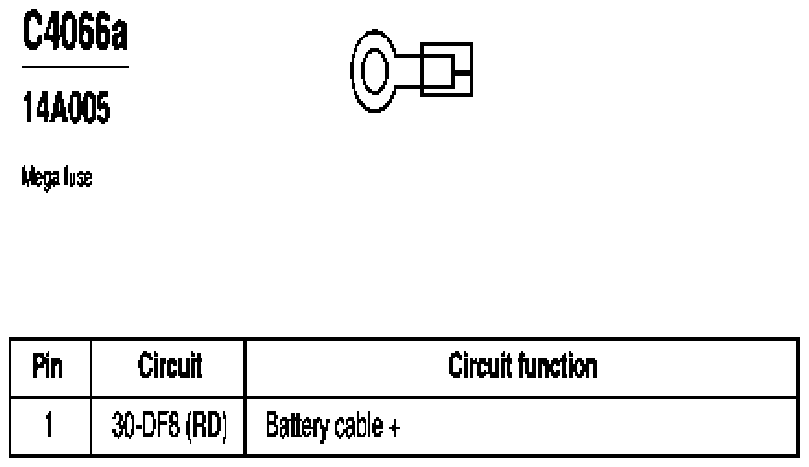

Fig 270: Mega Fuse Connector End View (C4066a)
G07845373Courtesy of FORD MOTOR CO.

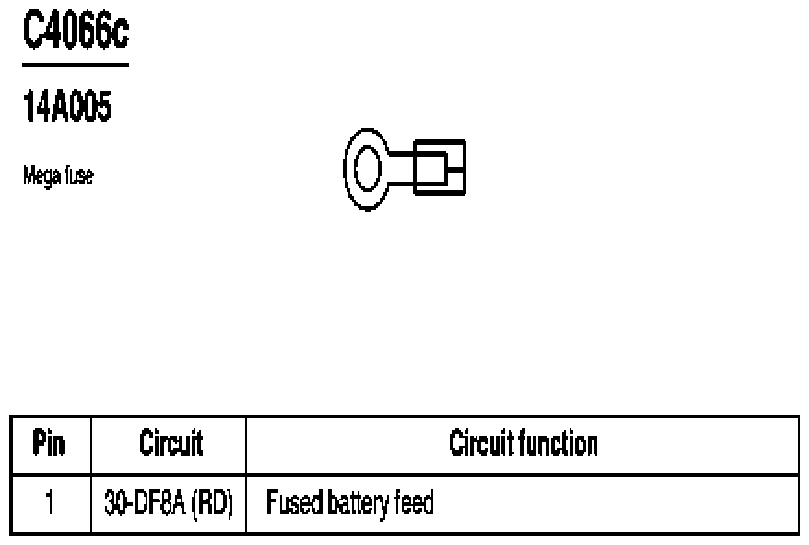

Fig 271: Mega Fuse Connector End View (C4066c)
G07845374Courtesy of FORD MOTOR CO.

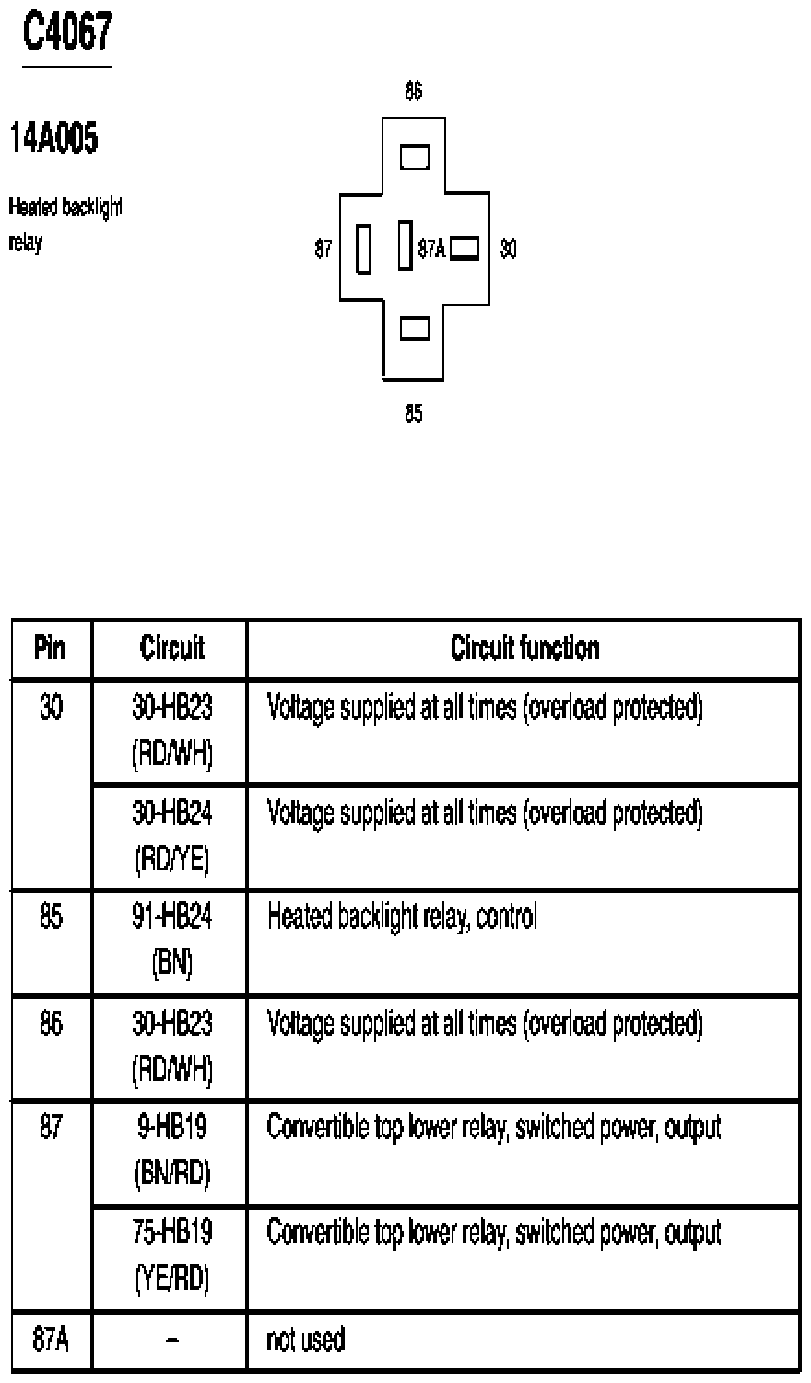

Fig 272: Heated Back Light Relay Connector End View (C4067)
G07845375Courtesy of FORD MOTOR CO.

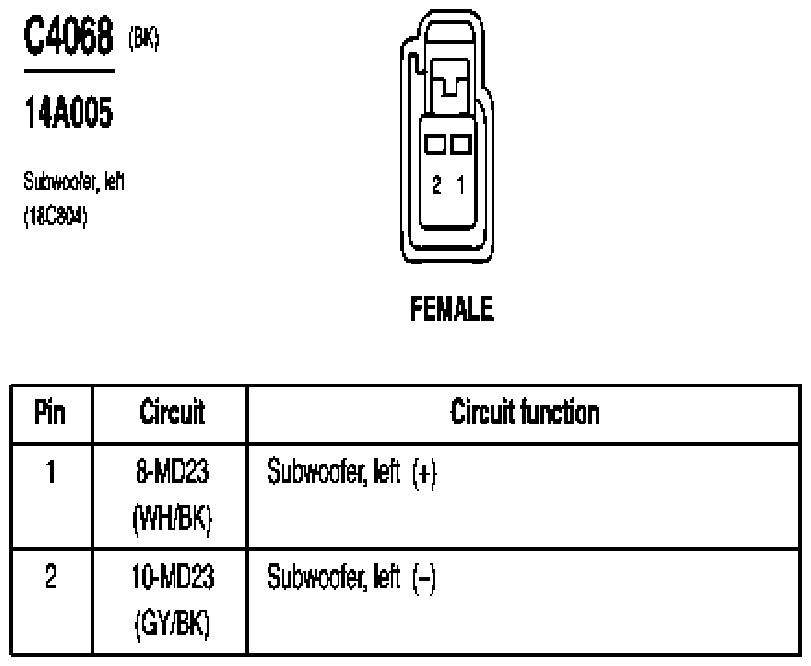

Fig 273: Subwoofer, Left Connector End View (C4068)
G07845376Courtesy of FORD MOTOR CO.

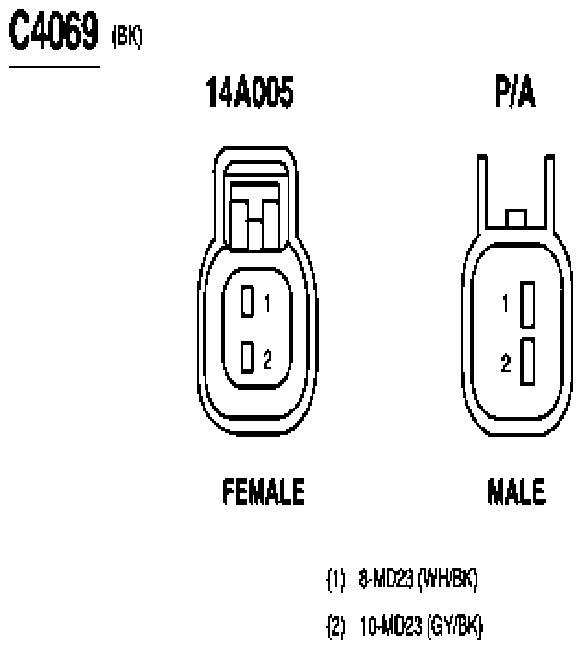

Fig 274: Inline Connector End View (C4069)
G07845377Courtesy of FORD MOTOR CO.

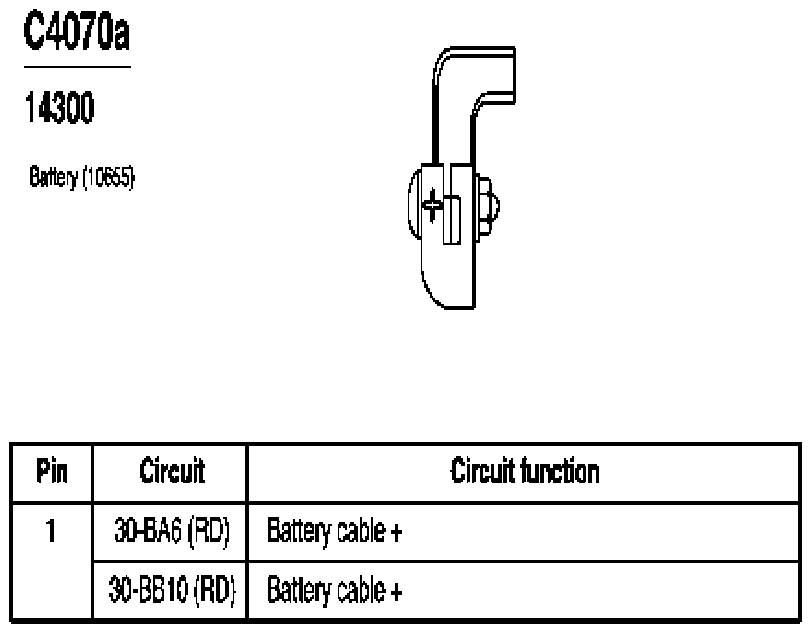

Fig 275: Battery Cable Connector End View (C4070a)
G07845378Courtesy of FORD MOTOR CO.

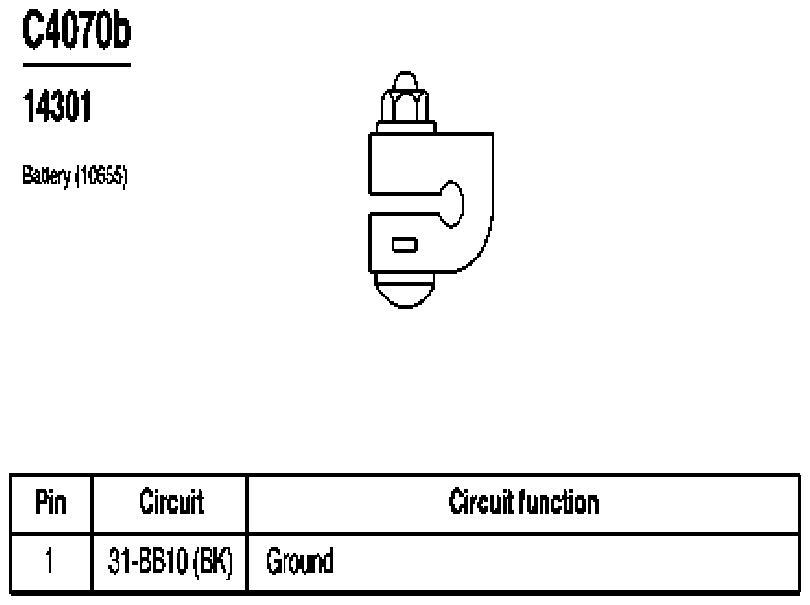

Fig 276: Battery Connector End View (C4070b)
G07845379Courtesy of FORD MOTOR CO.

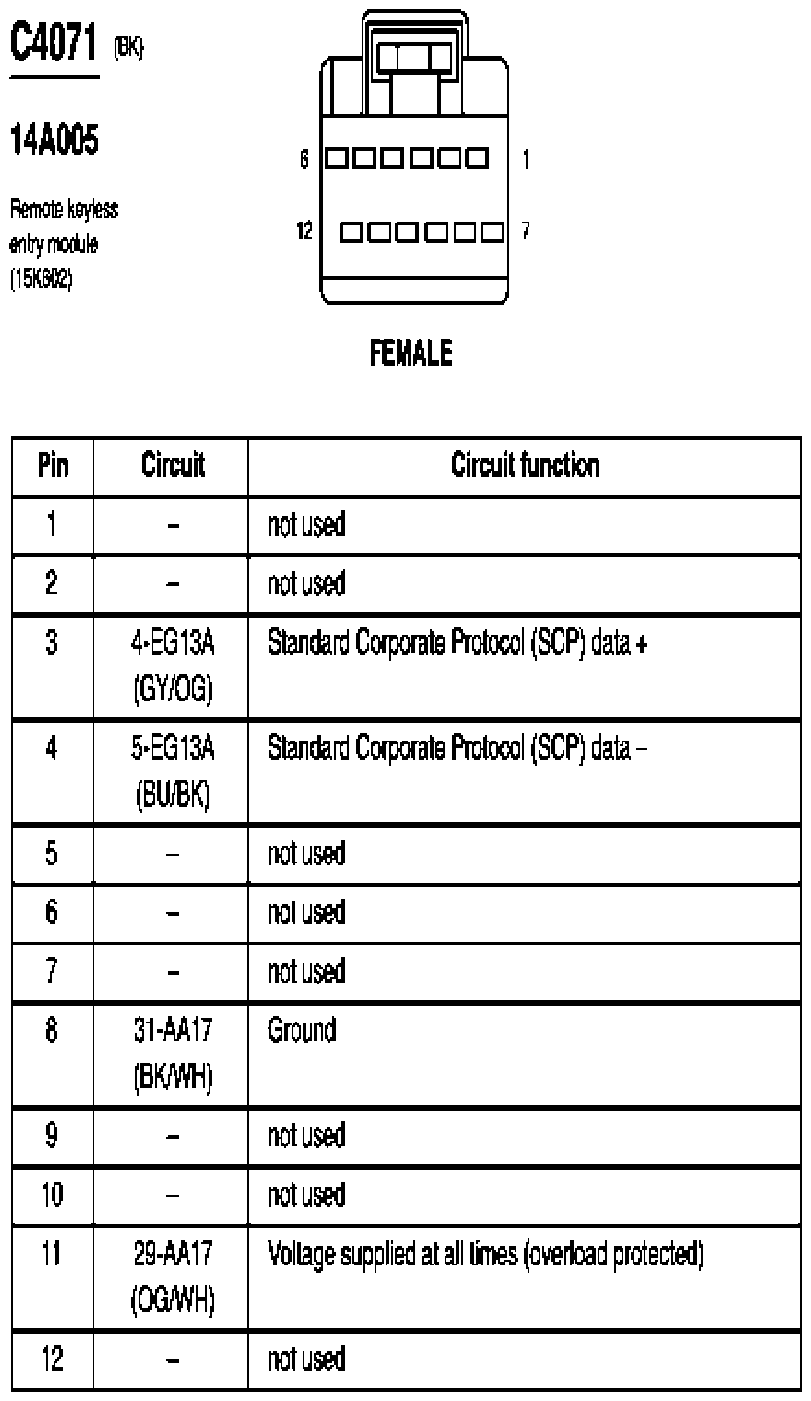

Fig 277: Remote Keyless Relay Module Connector End View (C4071)
G07845380Courtesy of FORD MOTOR CO.
