Power Steering Control Valve Actuator: Notes

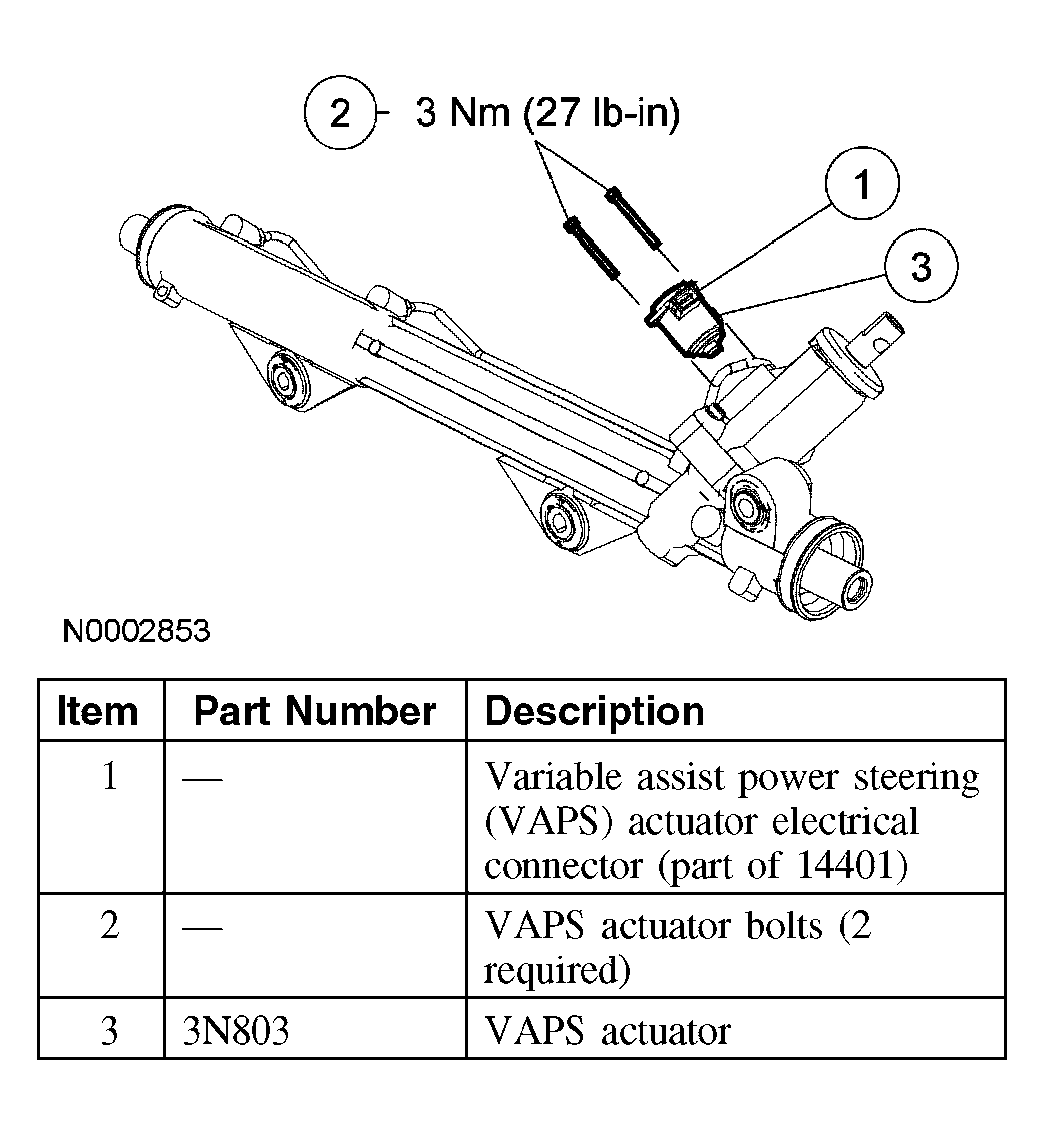

Fig 1: Removing Power Steering Control Valve Actuator With Torque Specification
G04007098Courtesy of FORD MOTOR CO.
