Front Electronic Module (FEM) C201a

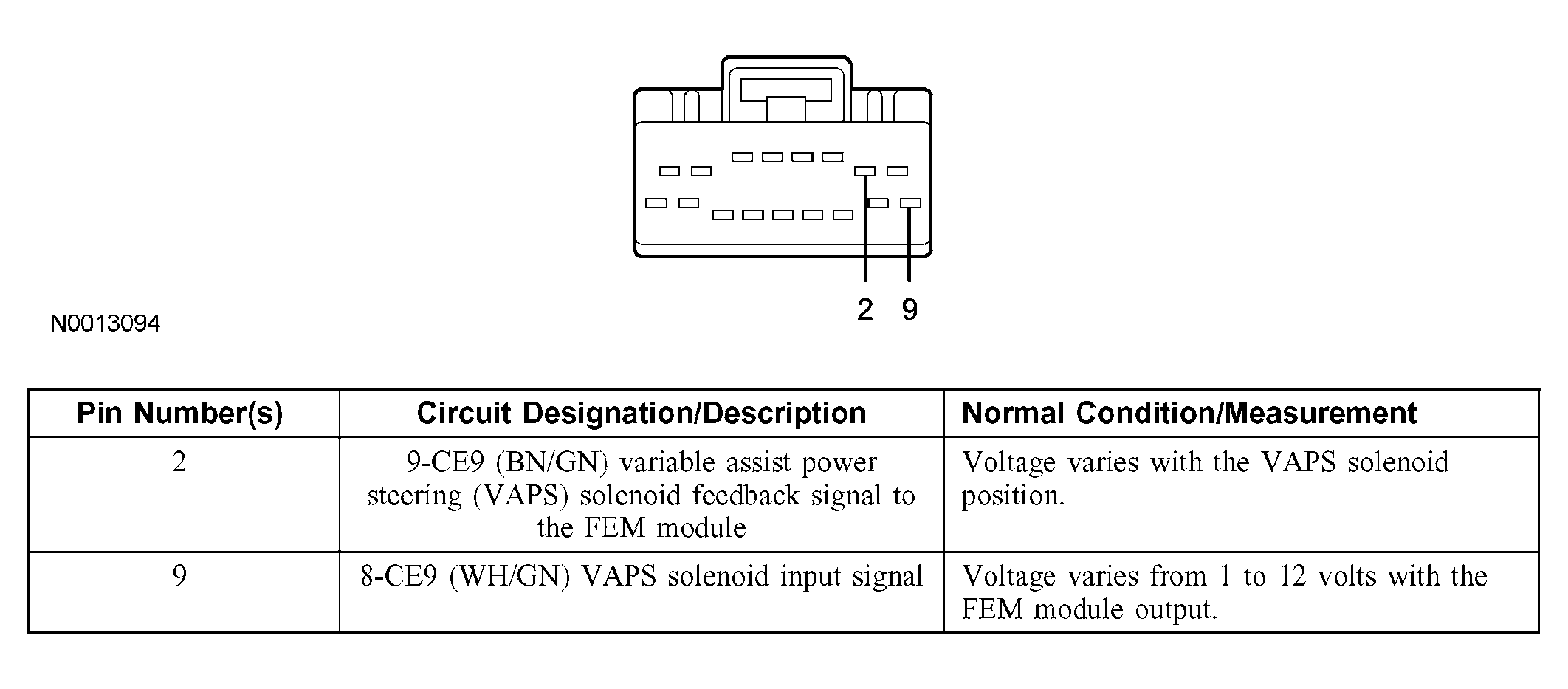

Fig 1: Identifying Front Electronic Module C201A Connector Pins
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
