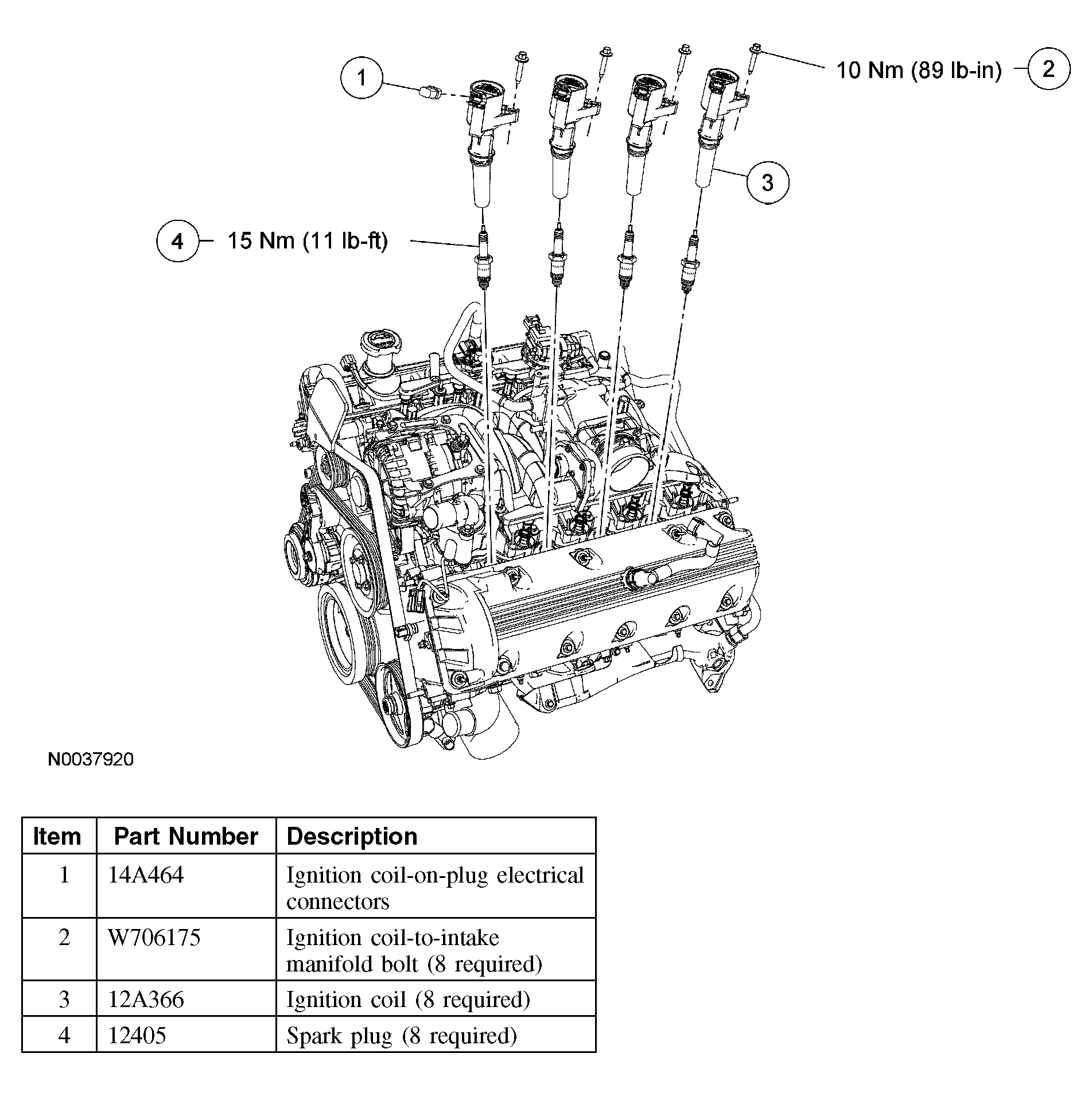

Engine Ignition Components - Exploded View
Courtesy of FORD MOTOR CO.
- For additional information, refer to the procedures in this article.
