Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Battery Junction Box (BJB) | In right front of engine compartment, behind battery. See Figure . |
| Central Junction Box (CJB) | Below dash, left of steering column. See Figure . |
| Emergency Flasher Relay Block | In left rear of luggage compartment. See Figure . |

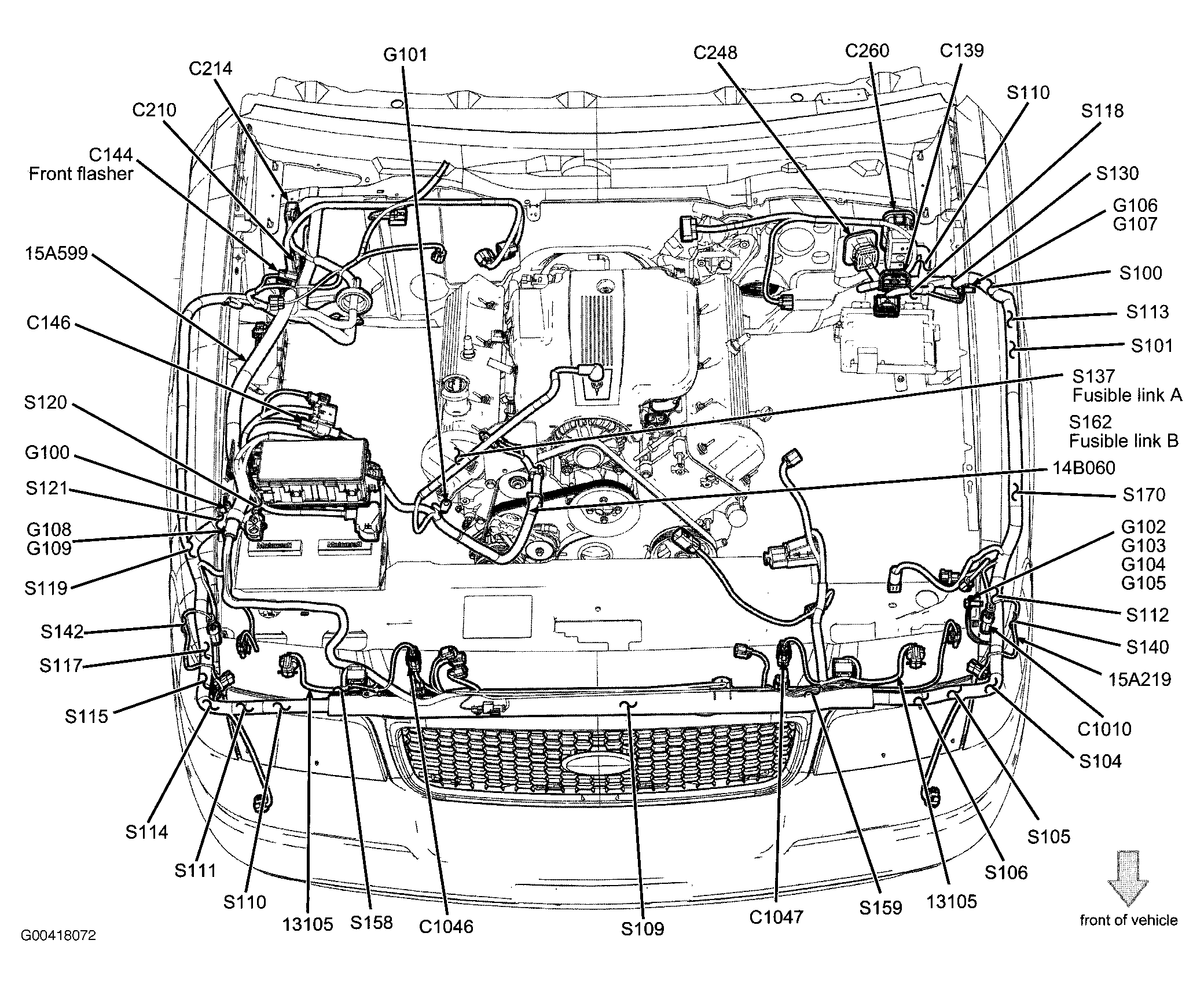

| Fusible Link A | In right center of engine compartment. See Figure . |
| Fusible Link B | In right center of engine compartment. See Figure . |
| Inline Fuse | Behind center of dash. See Figure . |
| Police Auxiliary Junction Box, Rear | Behind bottom center of rear seats. See Figure . |
| Police Glove Box Relay/Fuse Center | In glove box. See Figure . |
| Police Light Bar Relay/Fuse Center | In front of luggage compartment. See Figure . |
| Police Option Fuse Holder | In glove box. See Figure . |

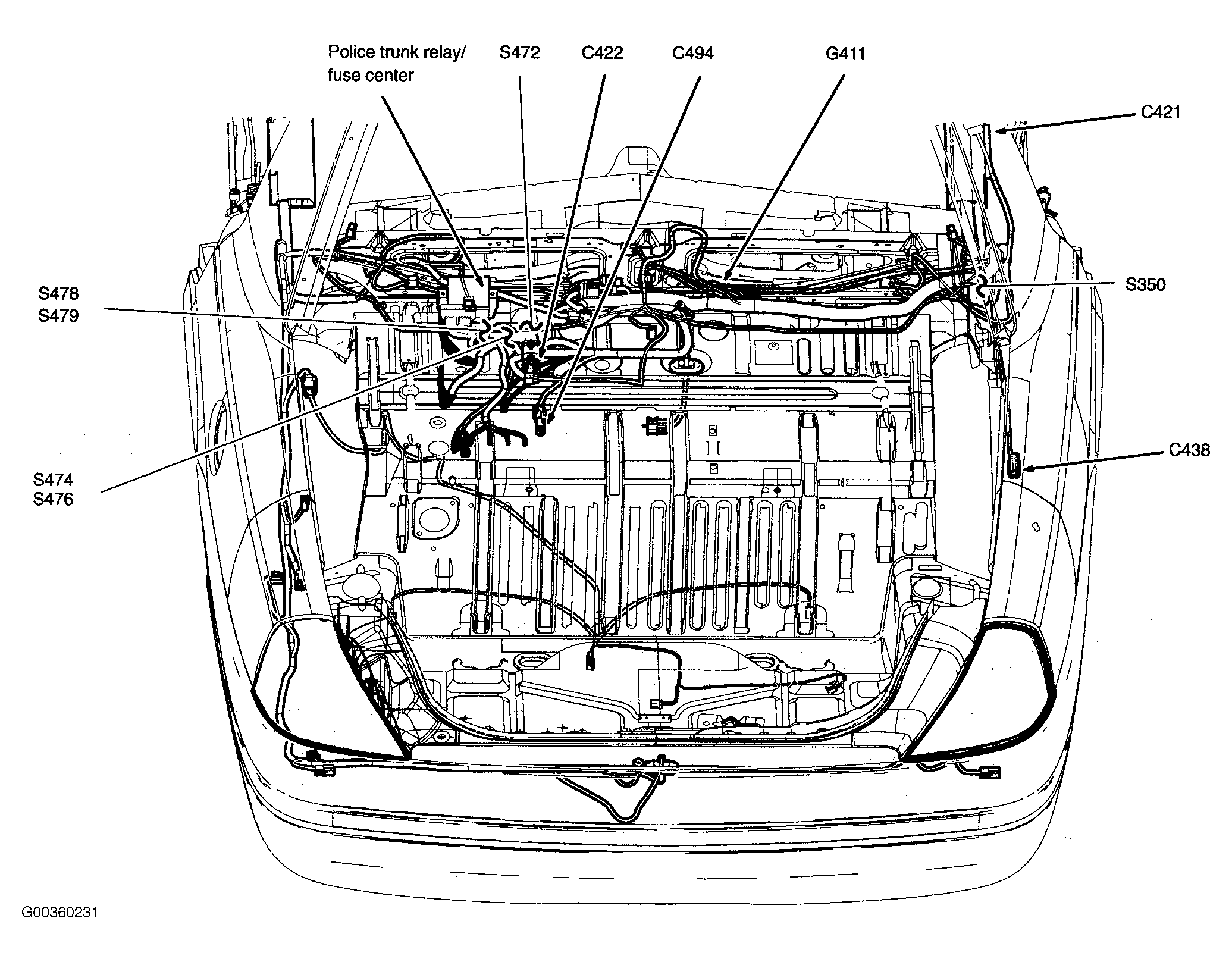

| Police Trunk Relay/Fuse Center | In luggage compartment. See Figure . |
