Exhaust System - Exploded View

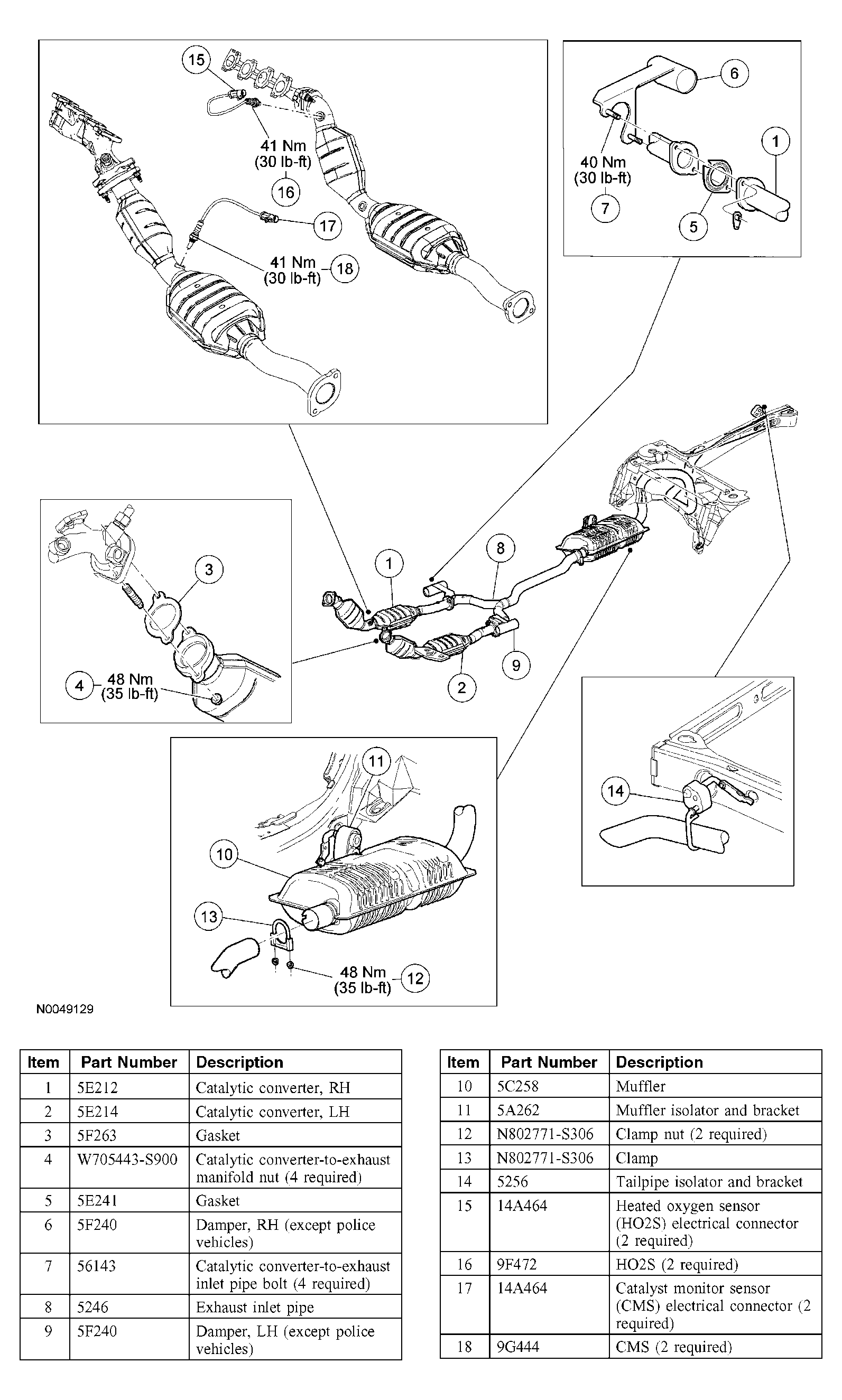

Fig 1: Removing/Installing Exhaust System - Single Exhaust
G04584911Courtesy of FORD MOTOR CO.

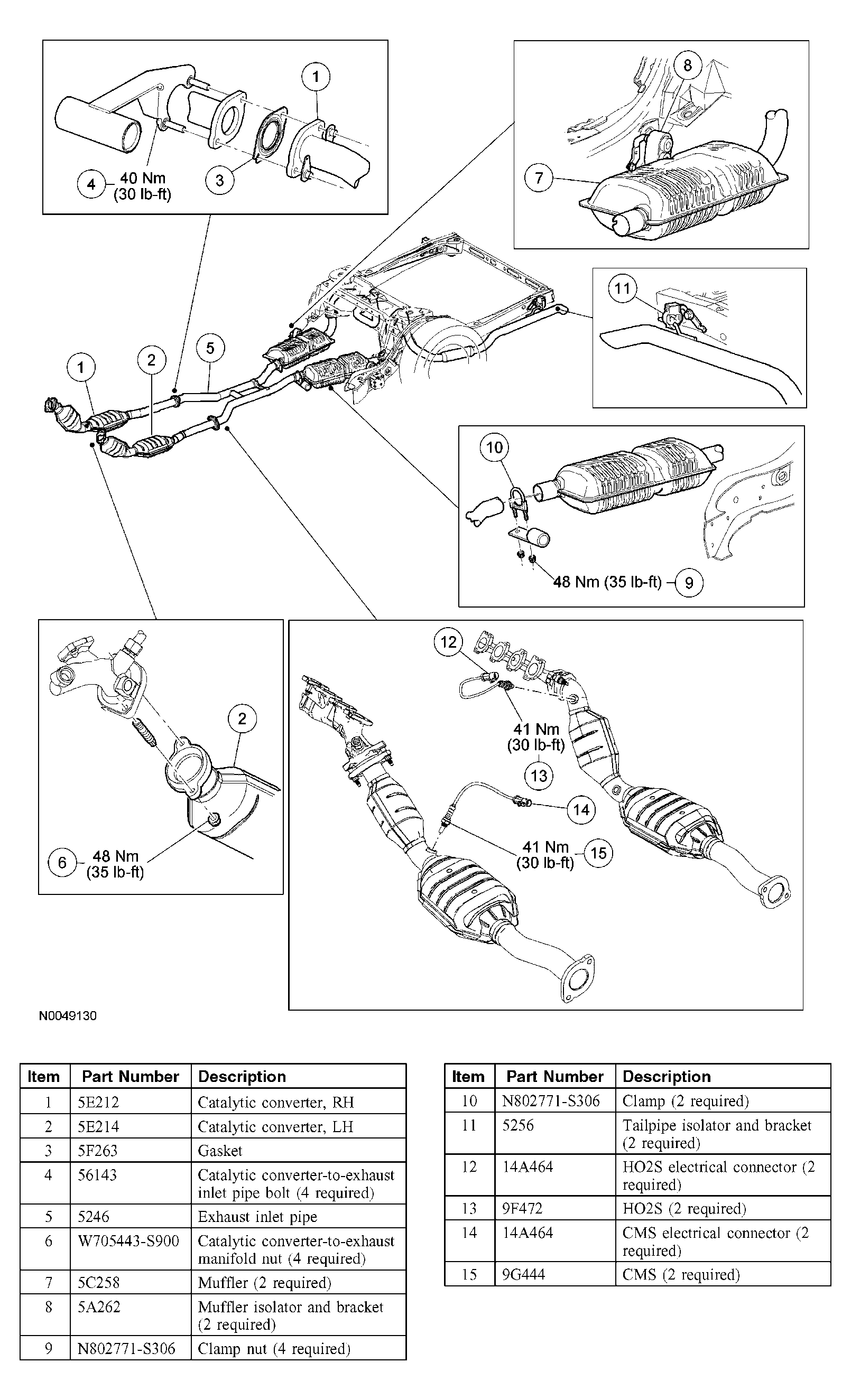

Fig 2: Removing/Installing Dual Exhaust
G04584912Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
