Transmission Main Components - Sectional View

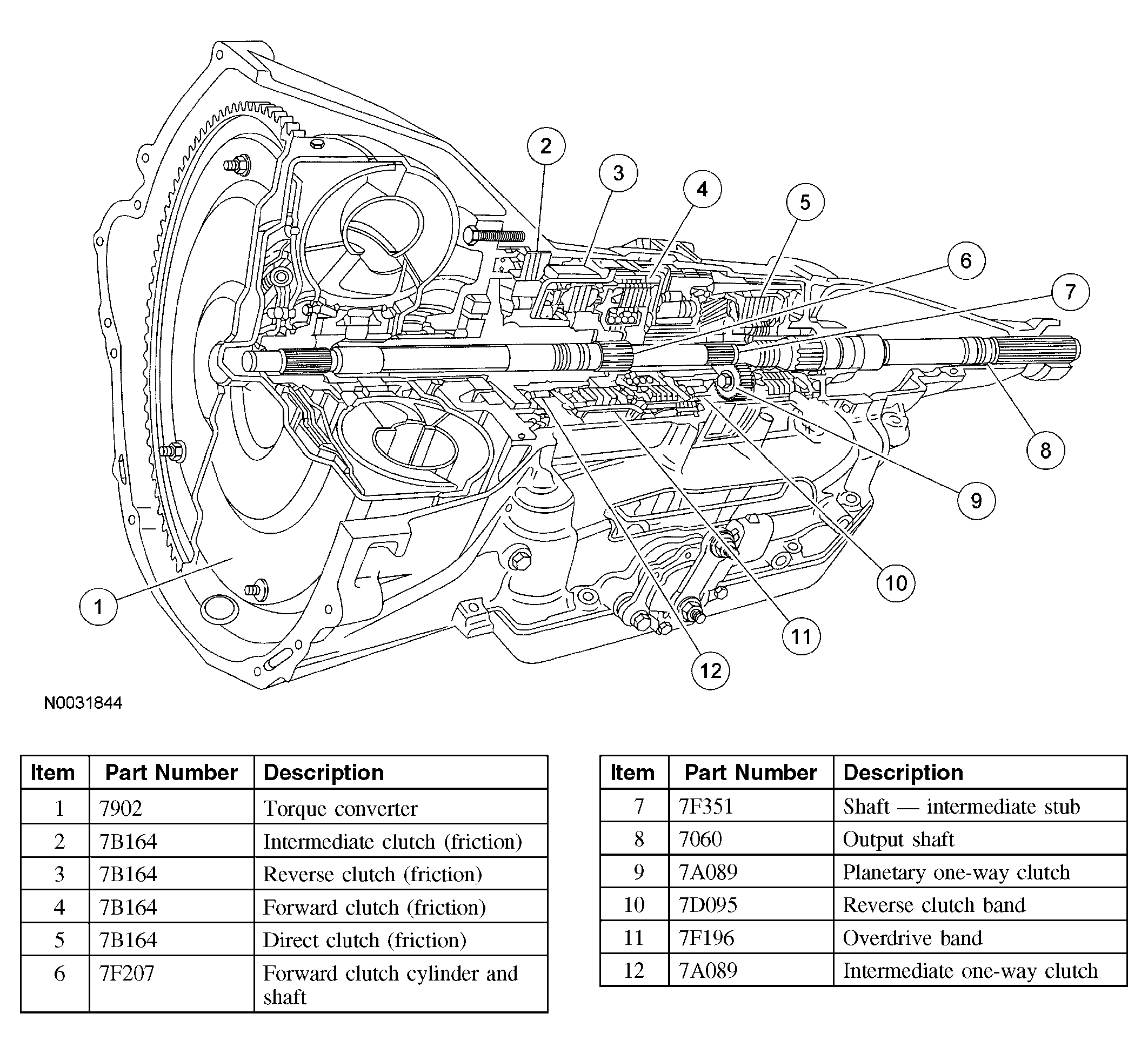

Fig 1: Sectional View Of Transmission Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
