Seat adjust switch, driver side front (14A701): Schematic

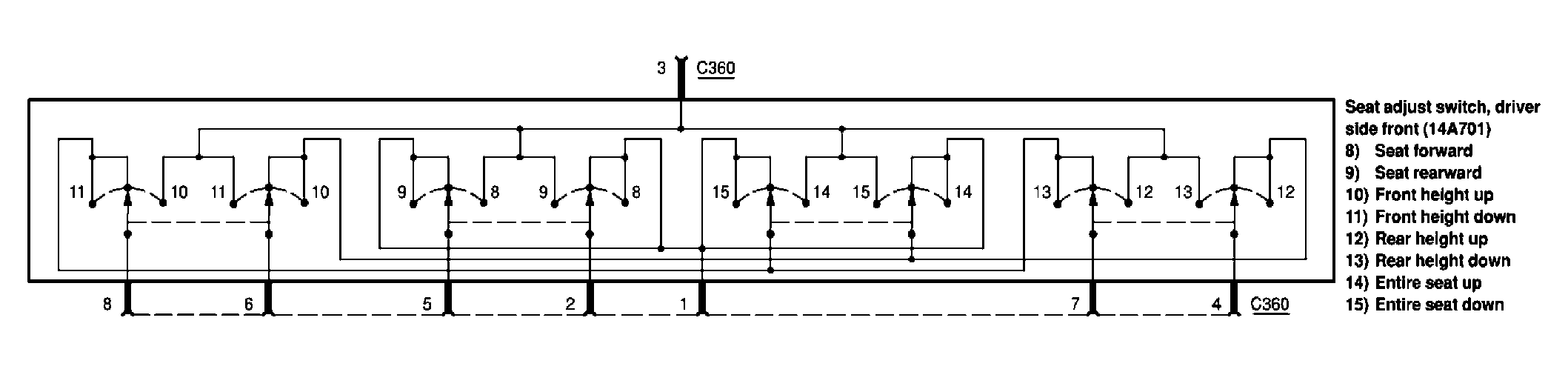

Fig 1: Seat Adjust Switch, Driver Side Front (14A701) Schematic Diagram
G04619440Courtesy of FORD MOTOR CO.
