Fault Detection/Management

If the PCM detects an out of range high or low ICP sensor, the malfunction indicator lamp (MIL) is illuminated and the PCM functions from an estimated injection control pressure (open loop control of injection control pressure).

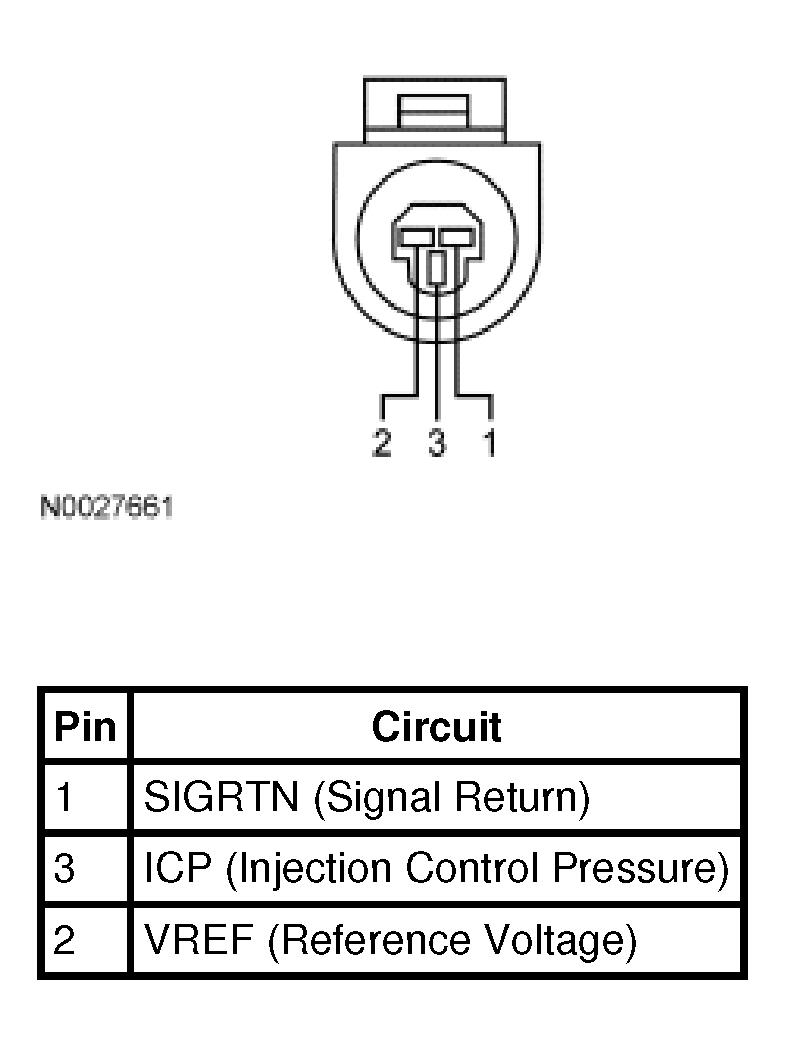

Fig 1: Injection Control Pressure (ICP) Sensor Connector
G04587000

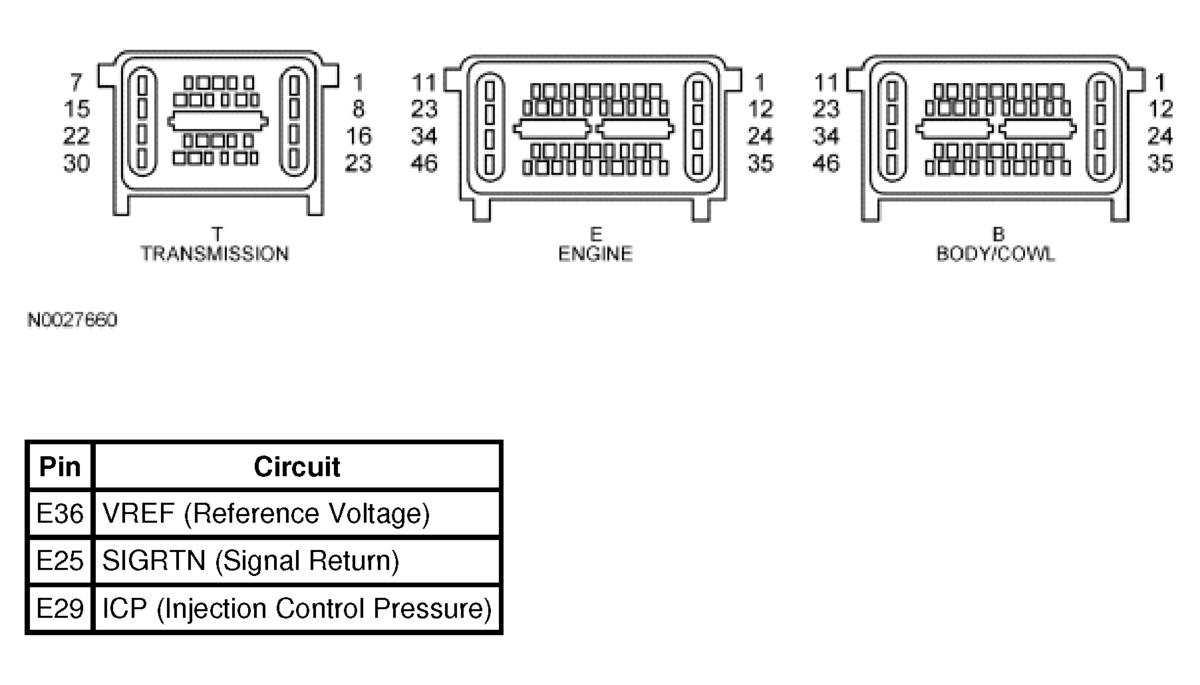

Fig 2: Powertrain Control Module (PCM) Connectors
G04587001
