Exhaust System - Exploded View

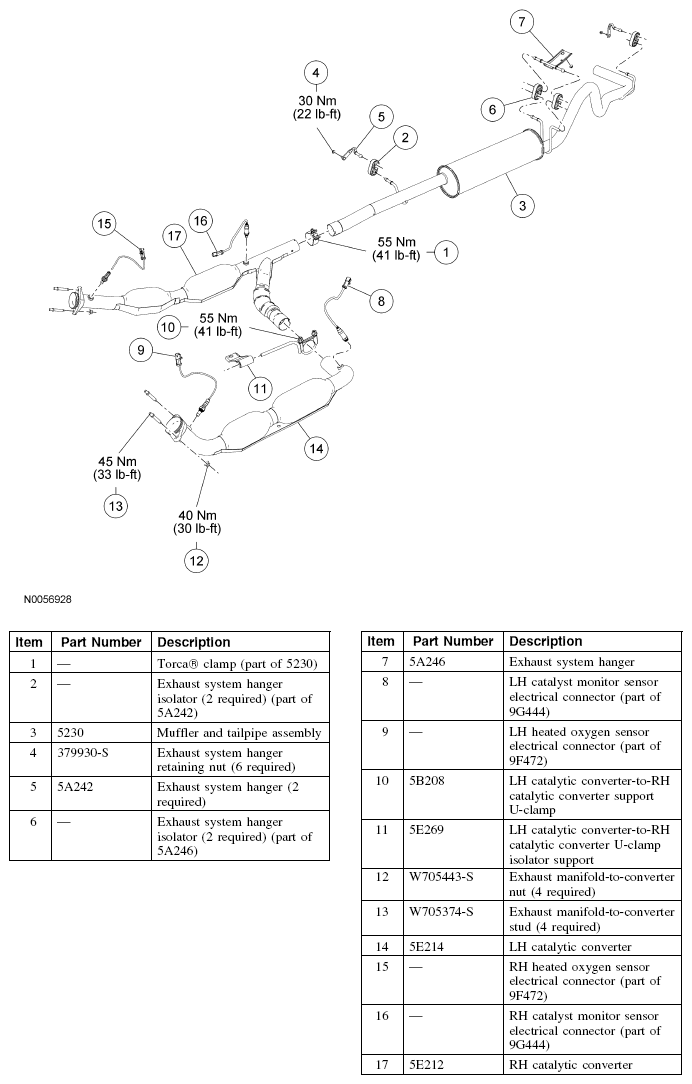

Exhaust System, 4.6L Engine

Fig 1: Exploded View Of Exhaust System - 4.6L Engine With Torque Specifications

Courtesy of FORD MOTOR CO.

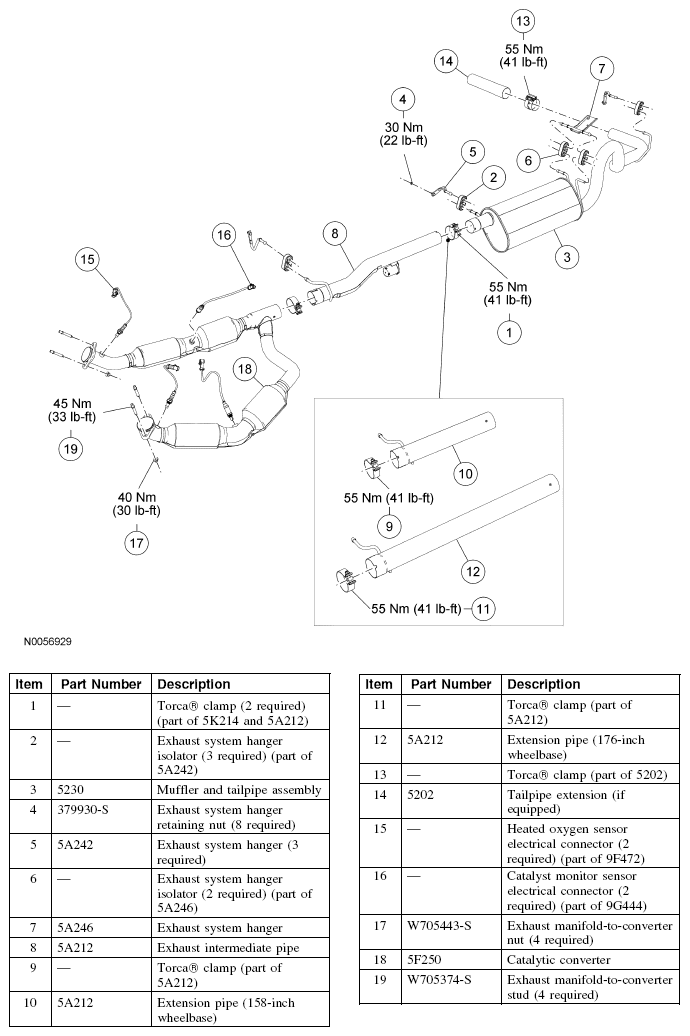

Exhaust System, 5.4L and California 6.8L Engines

Fig 2: Exploded View Of Exhaust System - 5.4L & California 6.8L Engines With Torque Specifications

Courtesy of FORD MOTOR CO.

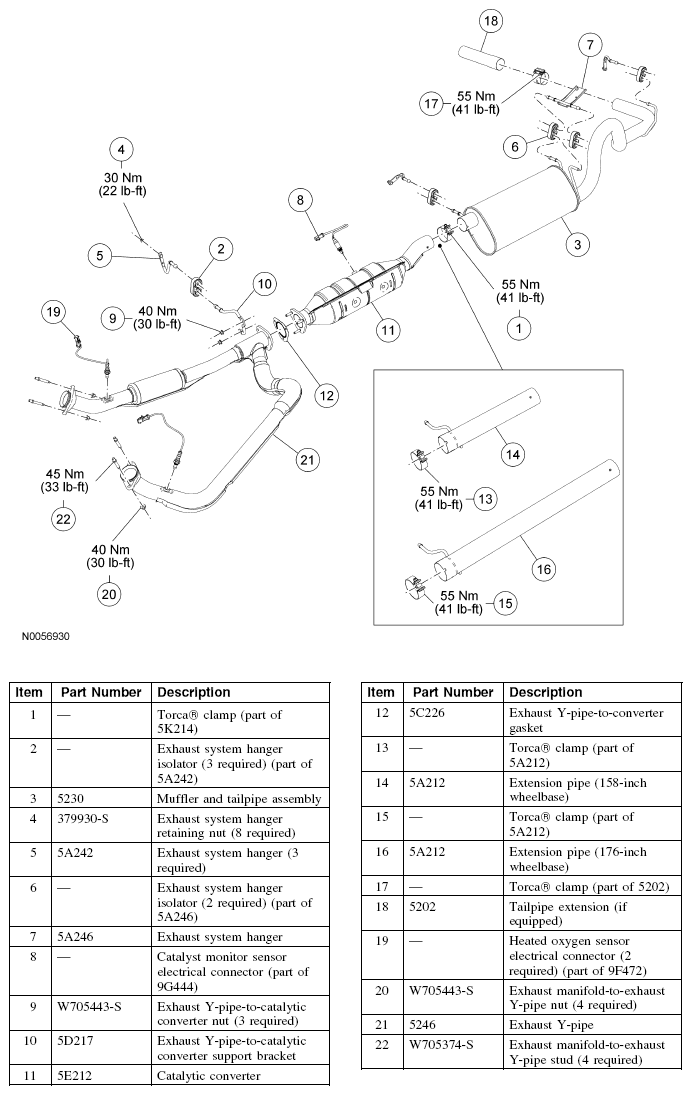

Exhaust System, 6.8L Engine

Fig 3: Exploded View Of Exhaust System - 6.8L Engine With Torque Specifications

Courtesy of FORD MOTOR CO.

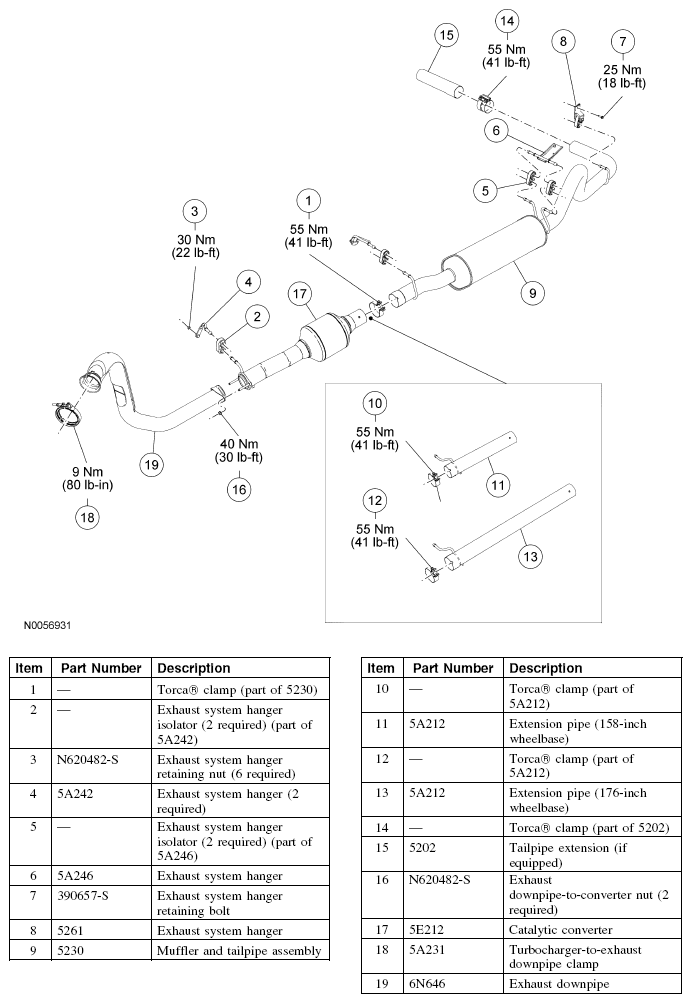

Exhaust System, 6.0L Diesel Engine

Fig 4: Exploded View Of Exhaust System - 6.0L Diesel Engine With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate procedures.
