Steering Column Shaft: Notes

NOTE: Non-commercial chassis shown, commercial chassis similar.

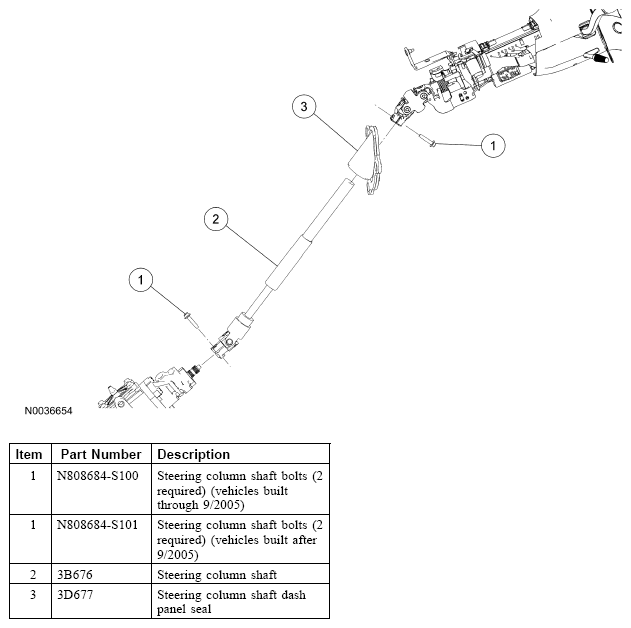

Fig 1: Identifying Steering Column Shaft Components
G04611008Courtesy of FORD MOTOR CO.
