E Series - Control Components - Component Testing
>>
Component Testing
>>
Multifunction switch
>>
Schematic (Wiper/Washer)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic (Wiper/Washer)

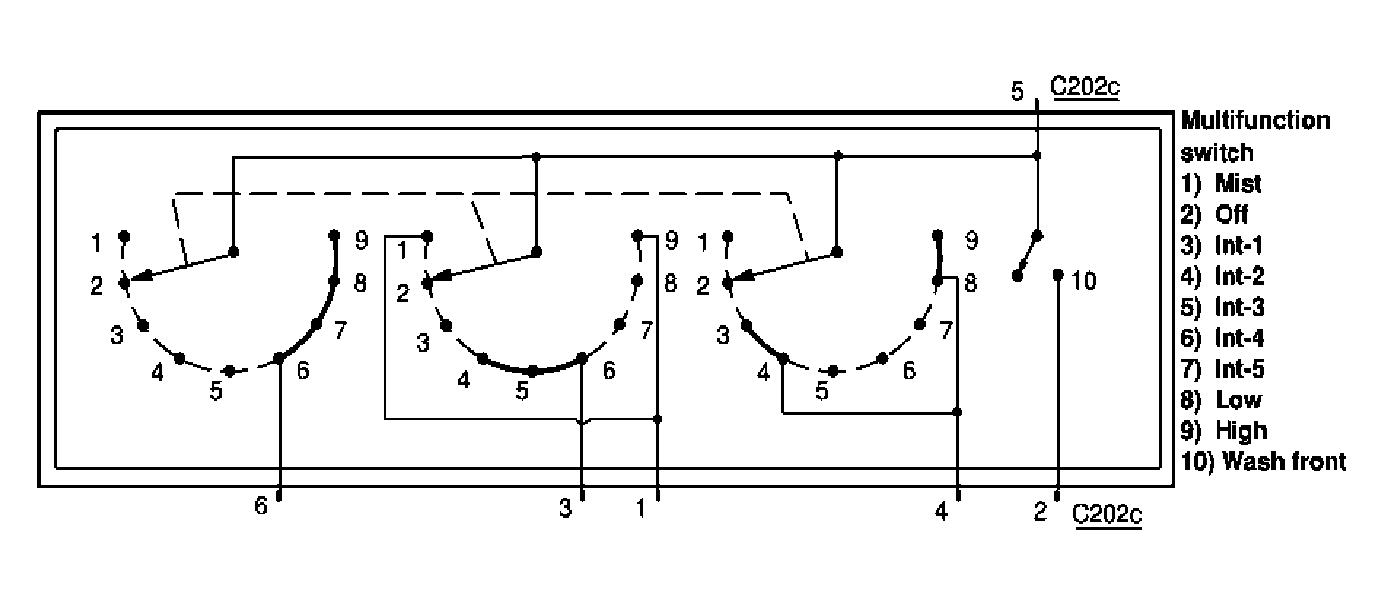

Fig 1: Multifunction Switch Schematic Diagram (Wiper/Washer)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
