Powertrain Control Module (PCM): Notes

SPECIAL TOOL(S) SPECIFICATIONS

G04615117Courtesy of FORD MOTOR CO.
 Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent scan tool

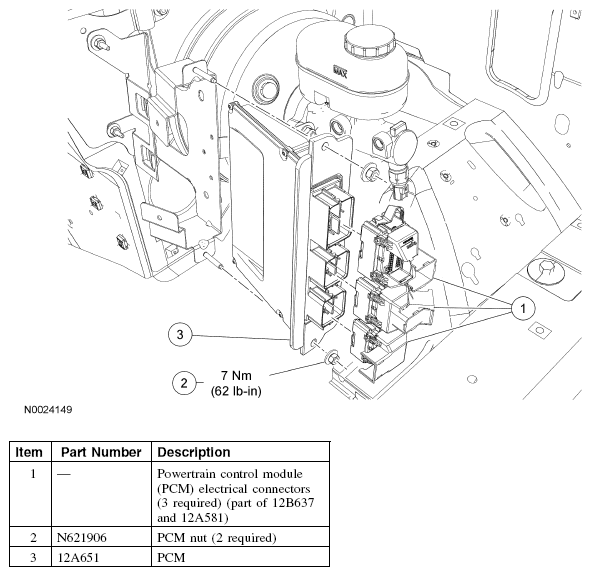

Fig 1: Locating Powertrain Control Module (PCM) With Torque Specification
G04615118Courtesy of FORD MOTOR CO.
