Selector Lever: Notes
Selector Lever

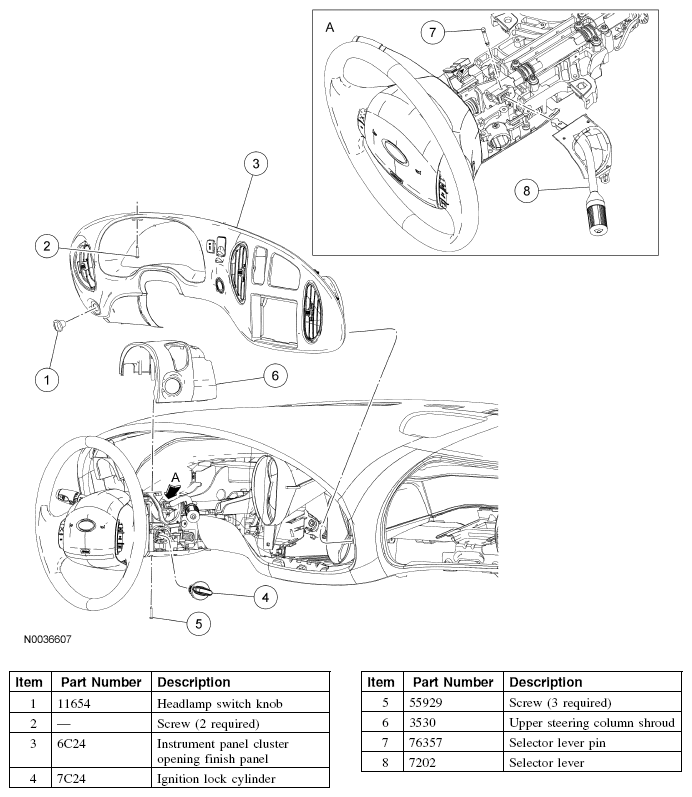

Fig 1: Exploded View Of Selector Lever
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
